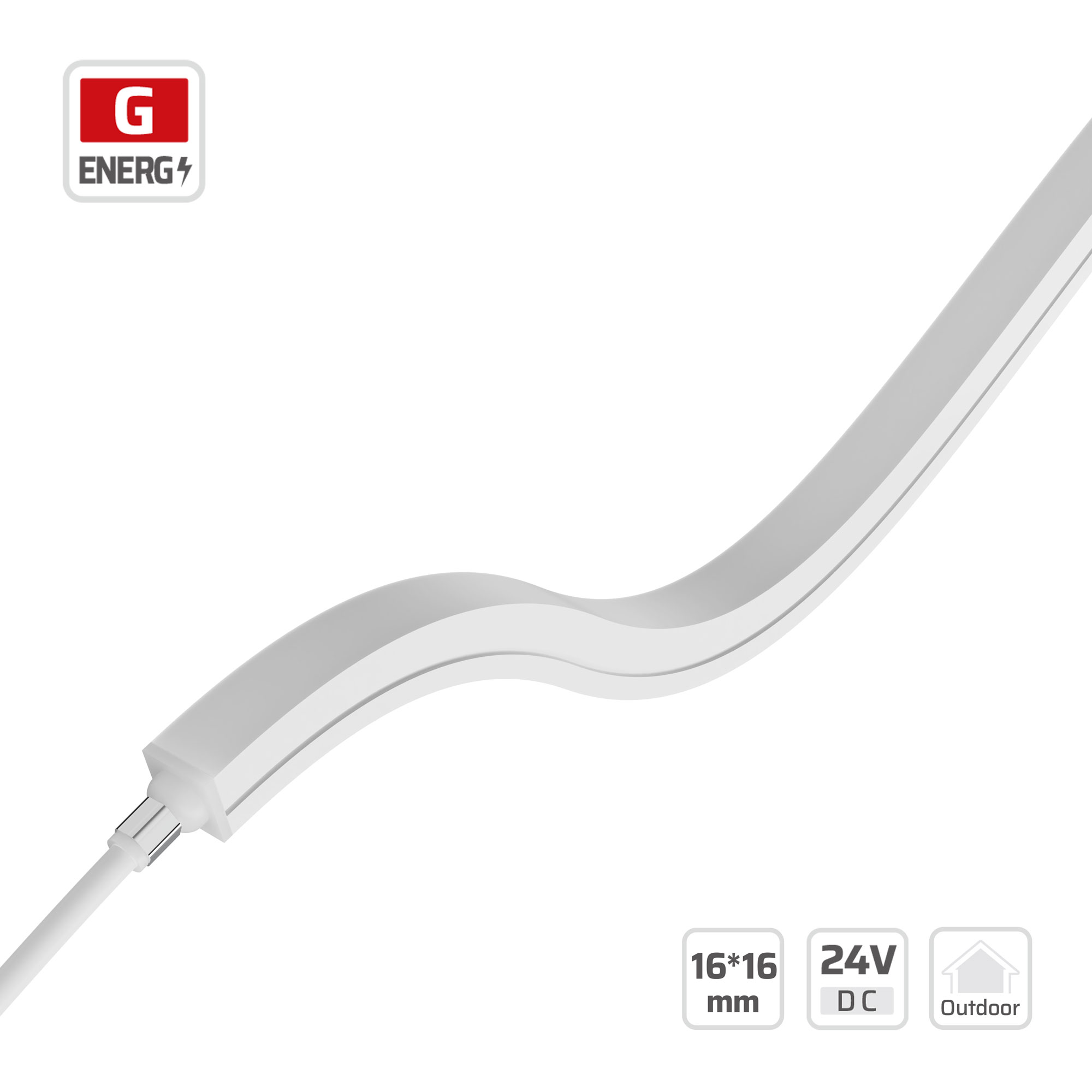

1616 Silicone Flexible Neon Light (#1616T-EE)
24V · 120LEDs · 50mm/cut · 16*16mm
Model: 1616T-EE
Overview
The DENO LED 1616T-EE is a premium 16x16mm silicone flexible neon light, designed for both indoor and outdoor architectural and landscape lighting applications. Featuring 120 LEDs per meter and a 24V input, this IP67 rated strip offers exceptional durability against salt, water, UV, and chemical corrosion. Its high-performance silicone ensures no discoloration over time, while precision manufacturing guarantees uniform light distribution. With multi-angle bending capability...
Description
Engineered with a durable 16x16mm silicone encapsulation, this flexible neon light provides exceptional bendability and resistance to UV, salt, and abrasion for wholesale project supply. High-density 2835 SMD LEDs operating on 24V constant voltage deliver smooth, uniform illumination without dark zones across indoor and outdoor architectural lighting installations. The IP67 rated silicone profile features a stable molecular structure that resists yellowing, aging, and chemical corrosion in demanding operating environments. Precise 50mm cutting increments allow contractors to achieve tailored run lengths easily, supported by OEM custom configurations directly from the manufacturer. Full dimming compatibility enables seamless control across versatile commercial displays, landscape features, and exterior building contours.
Specifications
| LED QTY | 120 |
|---|---|
| PART NO | DL-NF28C60V24-1616T-EE-* |
| SMD TYPE | 2835 |
| CUTTABLE UNIT | 6LEDs/50mm |
| DIMMABLE | Yes |
| IP RATING | IP67 |
| LED PITCH | 8.334mm |
| LIFESPAN | 30000 |
| PCB WIDTH | 10mm |
| WARRANTY | 5 Years |
| RUN LENGTH | 5m |
| COPPER FOIL | 3oz |
| POWER RANGE | 2.8~28.8W |
| CIRCUIT TYPE | C.V. |
| INPUT VOLTAGE | 24V |
| OPERATING TEMPERATURE | -25~40°C;Tc：75°C（max） |
Applications
- Channel letters & logo signage — Silicone neon holds a continuous glow line for logos, channel letters and wayfinding without visible LED dots.
- Facade & perimeter outlining — Flexible neon bends around building edges, balconies and columns to trace architecture at night.
- Bar fronts, headboards & stair nosings — Used along stair nosings, headboards and bar fronts where a soft, uniform tube of light is wanted instead of a hard strip.
- Facade, landscape & bathroom runs (IP67) — IP67 sealing suits facades, landscape lighting, bathrooms and other locations exposed to rain, splashing or wash-down cleaning.
Request a quotation for #1616T-EE
DENO LED is a Shenzhen-based LED strip manufacturer with its own Foshan production base. Send the run length, voltage, CCT/CRI and IP rating you need and our engineering team replies with a specification sheet, wiring plan and price — OEM/ODM and fully custom builds included.
- Warranty: 5 years
- Lead time: standard boards: samples from 1 working day · custom: 3–5 working days · new FPCB: 1–3 weeks · production 1–2 weeks after sample approval
- Compliance: CE · UL · RoHS
- Bonding wire: 99.99% pure gold
- Copper foil: 99.9% pure copper FPCB
Photometric Performance — CCT × CRI Efficacy Matrix
Peak measured luminous efficacy: 76.5 lm/W at 4000K, Ra 80, ErP energy class G (Grade DN (1st Tier) · 12W/m).
All values are measured at the stated power density and ambient 25 °C, reported as luminous efficacy in lumens per watt (lm/W), luminous flux per metre (lm/m) and the corresponding EU ErP (2019/2015) energy class.
Grade DL (2nd Tier) · 12W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | 45.7 lm/W | 548.3 lm/m | G | 36 lm/W | 431.6 lm/m | G | — | — | — |
| 2300 K | 50.8 lm/W | 609.6 lm/m | G | 40.1 lm/W | 480.9 lm/m | G | 32.6 lm/W | 391.2 lm/m | G |
| 2700 K | 52.1 lm/W | 625.2 lm/m | G | 43.3 lm/W | 519.4 lm/m | G | 35.1 lm/W | 420.8 lm/m | G |
| 3000 K | 57.1 lm/W | 685.3 lm/m | G | 45.6 lm/W | 547.1 lm/m | G | 37.1 lm/W | 444.9 lm/m | G |
| 3500 K | 58.2 lm/W | 698.6 lm/m | G | 46.4 lm/W | 556.7 lm/m | G | 38.2 lm/W | 458.1 lm/m | G |
| 4000 K | 60 lm/W | 720.2 lm/m | G | 47.5 lm/W | 569.9 lm/m | G | 39.3 lm/W | 471.3 lm/m | G |
| 5000 K | 60 lm/W | 720.2 lm/m | G | 47.5 lm/W | 569.9 lm/m | G | 38.9 lm/W | 466.6 lm/m | G |
| 6500 K | 54.2 lm/W | 650.5 lm/m | G | 45.6 lm/W | 547.1 lm/m | G | 37.7 lm/W | 452.5 lm/m | G |
Grade DL (2nd Tier) · 14.4W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | 44.9 lm/W | 646.9 lm/m | G | 35.4 lm/W | 509.3 lm/m | G | — | — | — |
| 2300 K | 50 lm/W | 719.3 lm/m | G | 39.4 lm/W | 567.5 lm/m | G | 32.1 lm/W | 461.6 lm/m | G |
| 2700 K | 51.2 lm/W | 737.7 lm/m | G | 42.6 lm/W | 612.9 lm/m | G | 34.5 lm/W | 496.5 lm/m | G |
| 3000 K | 56.2 lm/W | 808.7 lm/m | G | 44.8 lm/W | 645.5 lm/m | G | 36.5 lm/W | 524.9 lm/m | G |
| 3500 K | 57.2 lm/W | 824.3 lm/m | G | 45.6 lm/W | 656.9 lm/m | G | 37.5 lm/W | 540.5 lm/m | G |
| 4000 K | 59 lm/W | 849.8 lm/m | G | 46.7 lm/W | 672.5 lm/m | G | 38.6 lm/W | 556.1 lm/m | G |
| 5000 K | 59 lm/W | 849.8 lm/m | G | 46.7 lm/W | 672.5 lm/m | G | 38.2 lm/W | 550.6 lm/m | G |
| 6500 K | 53.3 lm/W | 767.5 lm/m | G | 44.8 lm/W | 645.5 lm/m | G | 37.1 lm/W | 533.9 lm/m | G |
Grade DL (2nd Tier) · 19.2W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | 43.4 lm/W | 834 lm/m | G | 34.2 lm/W | 656.6 lm/m | G | — | — | — |
| 2300 K | 48.3 lm/W | 927.3 lm/m | G | 38.1 lm/W | 731.6 lm/m | G | 31 lm/W | 595.1 lm/m | G |
| 2700 K | 49.5 lm/W | 951 lm/m | G | 41.2 lm/W | 790.1 lm/m | G | 33.3 lm/W | 640.1 lm/m | G |
| 3000 K | 54.3 lm/W | 1042.5 lm/m | G | 43.3 lm/W | 832.1 lm/m | G | 35.2 lm/W | 676.7 lm/m | G |
| 3500 K | 55.3 lm/W | 1062.6 lm/m | G | 44.1 lm/W | 846.8 lm/m | G | 36.3 lm/W | 696.8 lm/m | G |
| 4000 K | 57.1 lm/W | 1095.5 lm/m | G | 45.2 lm/W | 866.9 lm/m | G | 37.3 lm/W | 716.9 lm/m | G |
| 5000 K | 57.1 lm/W | 1095.5 lm/m | G | 45.2 lm/W | 866.9 lm/m | G | 37 lm/W | 709.8 lm/m | G |
| 6500 K | 51.5 lm/W | 989.4 lm/m | G | 43.3 lm/W | 832.1 lm/m | G | 35.8 lm/W | 688.3 lm/m | G |
Grade DN (1st Tier) · 12W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | 59.9 lm/W | 719 lm/m | G | 49.8 lm/W | 597.6 lm/m | G | — | — | — |
| 2300 K | 65.3 lm/W | 783.9 lm/m | G | 55.6 lm/W | 667.3 lm/m | G | 44.8 lm/W | 537.9 lm/m | G |
| 2700 K | 70.3 lm/W | 844.1 lm/m | G | 60.1 lm/W | 721.4 lm/m | G | 48.7 lm/W | 584.3 lm/m | G |
| 3000 K | 73.9 lm/W | 887.3 lm/m | G | 63.6 lm/W | 763.5 lm/m | G | 51.7 lm/W | 620.4 lm/m | G |
| 3500 K | 74.9 lm/W | 899.4 lm/m | G | 65 lm/W | 780.3 lm/m | G | 53.5 lm/W | 642.1 lm/m | G |
| 4000 K | 76.5 lm/W | 917.4 lm/m | G | 65.4 lm/W | 785.1 lm/m | G | 54 lm/W | 648.1 lm/m | G |
| 5000 K | 76.2 lm/W | 915 lm/m | G | 65.8 lm/W | 790 lm/m | G | 53.5 lm/W | 641.6 lm/m | G |
| 6500 K | 73.1 lm/W | 877.7 lm/m | G | 62.8 lm/W | 753.9 lm/m | G | 51.8 lm/W | 622.2 lm/m | G |
Grade DN (1st Tier) · 14.4W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | 58.9 lm/W | 848.4 lm/m | G | 49 lm/W | 705.1 lm/m | G | — | — | — |
| 2300 K | 64.2 lm/W | 925 lm/m | G | 54.7 lm/W | 787.4 lm/m | G | 44.1 lm/W | 634.7 lm/m | G |
| 2700 K | 69.2 lm/W | 995.9 lm/m | G | 59.1 lm/W | 851.2 lm/m | G | 47.9 lm/W | 689.5 lm/m | G |
| 3000 K | 72.7 lm/W | 1047 lm/m | G | 62.6 lm/W | 900.9 lm/m | G | 50.8 lm/W | 732.1 lm/m | G |
| 3500 K | 73.7 lm/W | 1061.2 lm/m | G | 63.9 lm/W | 920.7 lm/m | G | 52.6 lm/W | 757.6 lm/m | G |
| 4000 K | 75.2 lm/W | 1082.5 lm/m | G | 64.3 lm/W | 926.4 lm/m | G | 53.1 lm/W | 764.7 lm/m | G |
| 5000 K | 75 lm/W | 1079.6 lm/m | G | 64.7 lm/W | 932.1 lm/m | G | 52.6 lm/W | 757 lm/m | G |
| 6500 K | 71.9 lm/W | 1035.7 lm/m | G | 61.8 lm/W | 889.5 lm/m | G | 51 lm/W | 734.1 lm/m | G |
Grade DN (1st Tier) · 19.2W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | 57 lm/W | 1093.7 lm/m | G | 47.3 lm/W | 909 lm/m | G | — | — | — |
| 2300 K | 62.1 lm/W | 1192.4 lm/m | G | 52.9 lm/W | 1015 lm/m | G | 42.6 lm/W | 818.2 lm/m | G |
| 2700 K | 66.9 lm/W | 1283.9 lm/m | G | 57.2 lm/W | 1097.3 lm/m | G | 46.3 lm/W | 888.8 lm/m | G |
| 3000 K | 70.3 lm/W | 1349.7 lm/m | G | 60.5 lm/W | 1161.4 lm/m | G | 49.2 lm/W | 943.7 lm/m | G |
| 3500 K | 71.3 lm/W | 1368 lm/m | G | 61.8 lm/W | 1187 lm/m | G | 50.9 lm/W | 976.6 lm/m | G |
| 4000 K | 72.7 lm/W | 1395.5 lm/m | G | 62.2 lm/W | 1194.3 lm/m | G | 51.3 lm/W | 985.8 lm/m | G |
| 5000 K | 72.5 lm/W | 1391.8 lm/m | G | 62.6 lm/W | 1201.6 lm/m | G | 50.8 lm/W | 975.9 lm/m | G |
| 6500 K | 69.5 lm/W | 1335.1 lm/m | G | 59.7 lm/W | 1146.7 lm/m | G | 49.3 lm/W | 946.3 lm/m | G |
Grade KE (3rd Tier) · 12W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1900 K | 25.9 lm/W | 310.2 lm/m | G | 19.8 lm/W | 238.1 lm/m | G | — | — | — |
| 2300 K | 28.9 lm/W | 346.3 lm/m | G | 22.1 lm/W | 265.7 lm/m | G | 18.3 lm/W | 219.6 lm/m | G |
| 2700 K | 31.1 lm/W | 372.7 lm/m | G | 23.9 lm/W | 287.4 lm/m | G | 19.4 lm/W | 233.3 lm/m | G |
| 3000 K | 32.7 lm/W | 392 lm/m | G | 25.6 lm/W | 306.6 lm/m | G | 20.7 lm/W | 248.9 lm/m | G |
| 3500 K | 33.2 lm/W | 398 lm/m | G | 26.1 lm/W | 312.6 lm/m | G | 21.4 lm/W | 257.3 lm/m | G |
| 4000 K | 34.1 lm/W | 408.8 lm/m | G | 26.7 lm/W | 319.8 lm/m | G | 22 lm/W | 264.5 lm/m | G |
| 5000 K | 34.1 lm/W | 408.8 lm/m | G | 26.7 lm/W | 319.8 lm/m | G | 21.8 lm/W | 261.9 lm/m | G |
| 6500 K | 32.7 lm/W | 392 lm/m | G | 25.6 lm/W | 306.6 lm/m | G | 21.2 lm/W | 253.9 lm/m | G |
Grade KE (3rd Tier) · 14.4W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1900 K | 25.4 lm/W | 366 lm/m | G | 19.5 lm/W | 280.9 lm/m | G | — | — | — |
| 2300 K | 28.4 lm/W | 408.6 lm/m | G | 21.8 lm/W | 313.5 lm/m | G | 18 lm/W | 259.1 lm/m | G |
| 2700 K | 30.5 lm/W | 439.8 lm/m | G | 23.5 lm/W | 339.1 lm/m | G | 19.1 lm/W | 275.2 lm/m | G |
| 3000 K | 32.1 lm/W | 462.5 lm/m | G | 25.1 lm/W | 361.8 lm/m | G | 20.4 lm/W | 293.7 lm/m | G |
| 3500 K | 32.6 lm/W | 469.6 lm/m | G | 25.6 lm/W | 368.9 lm/m | G | 21.1 lm/W | 303.6 lm/m | G |
| 4000 K | 33.5 lm/W | 482.4 lm/m | G | 26.2 lm/W | 377.4 lm/m | G | 21.7 lm/W | 312.1 lm/m | G |
| 5000 K | 33.5 lm/W | 482.4 lm/m | G | 26.2 lm/W | 377.4 lm/m | G | 21.5 lm/W | 309 lm/m | G |
| 6500 K | 32.1 lm/W | 462.5 lm/m | G | 25.1 lm/W | 361.8 lm/m | G | 20.8 lm/W | 299.6 lm/m | G |
Grade KE (3rd Tier) · 19.2W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1900 K | 24.6 lm/W | 471.9 lm/m | G | 18.9 lm/W | 362.1 lm/m | G | — | — | — |
| 2300 K | 27.4 lm/W | 526.7 lm/m | G | 21.1 lm/W | 404.2 lm/m | G | 17.4 lm/W | 334 lm/m | G |
| 2700 K | 29.5 lm/W | 567 lm/m | G | 22.8 lm/W | 437.1 lm/m | G | 18.5 lm/W | 354.8 lm/m | G |
| 3000 K | 31.1 lm/W | 596.2 lm/m | G | 24.3 lm/W | 466.4 lm/m | G | 19.7 lm/W | 378.6 lm/m | G |
| 3500 K | 31.5 lm/W | 605.4 lm/m | G | 24.8 lm/W | 475.5 lm/m | G | 20.4 lm/W | 391.4 lm/m | G |
| 4000 K | 32.4 lm/W | 621.8 lm/m | G | 25.3 lm/W | 486.5 lm/m | G | 21 lm/W | 402.4 lm/m | G |
| 5000 K | 32.4 lm/W | 621.8 lm/m | G | 25.3 lm/W | 486.5 lm/m | G | 20.7 lm/W | 398.3 lm/m | G |
| 6500 K | 31.1 lm/W | 596.2 lm/m | G | 24.3 lm/W | 466.4 lm/m | G | 20.1 lm/W | 386.3 lm/m | G |
Related models in this series
- 2525 Flexible Linear Neon light (#1942)
- 20*20 Flexible Linear Neon Light (#16359)
- Top Bend LED Neon Flex DL-SV-0513 (#DL-SV-0513)
- 1212 Silicone Flexible Neon Light (#1212T-EE)
- Top Bend LED Neon Flex DL-T20D (#DL-T20D)
- 1010 Silicone Flexible Neon Light (#1010T-EE)
- Top Bend LED Neon Flex DL-T0511A (#DL-T0511A)
- Top Bend LED Neon Flex DL-T3032F (#DL-T3032F)
See every model in Neon LED Strip Series or narrow to Top Bend. Compare wattage, lumen output and run length in the ProCalc parameter library, or request OEM/ODM pricing on the custom manufacturing page.
Frequently Asked Questions
What are the key advantages of DENO LED's silicone flexible neon lights?
Our silicone flexible neon lights offer superior durability, IP67 protection, and resistance to UV, salt, and chemicals, ensuring long-lasting performance without discoloration.
Can the 1616T-EE model be used in outdoor environments?
Yes, the 1616T-EE model boasts an IP67 rating and full encapsulation protection, making it ideal for various outdoor architectural and landscape lighting applications.
What are the power and voltage requirements for this neon strip?
The 1616T-EE operates on a 24V input and has a power consumption ranging from 2.8W to 28.8W per meter, depending on the specific application.
What are the key specifications of #1616T-EE?
1616 Silicone Flexible Neon Light | 16*16mm | 24V | 120LEDs | 50mm/cut | #1616T-EE: 2835 LEDs, 120, 24V, 10mm FPCB, 3oz copper foil, 2.8~28.8W power, cut unit 6LEDs/50mm. Photometric files, wiring diagrams and test reports are available in the downloads block on this page.
Which LED driver and run length suit #1616T-EE?
1616 Silicone Flexible Neon Light | 16*16mm | 24V | 120LEDs | 50mm/cut | #1616T-EE is a constant-voltage 24V product, so pair it with a CE or UL listed 24V constant-voltage LED driver rated about 20% above the connected load. Maximum single run is 5m. 5m Single / 10m Dual Input power. Feeding from both ends or mid-feeding halves the copper distance and roughly quarters the voltage drop.
