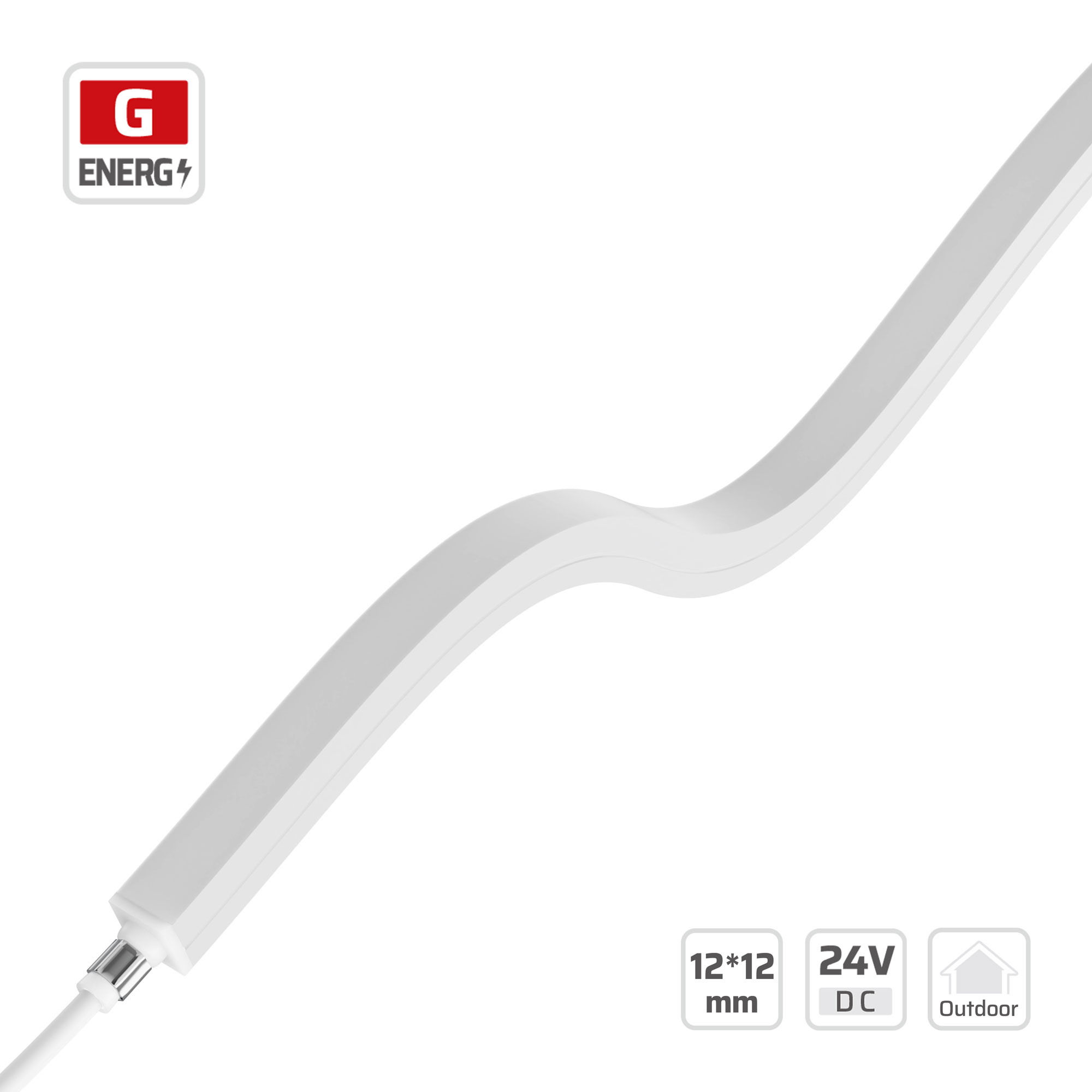

1212 Silicone Flexible Neon Light (#1212T-EE)
24V · 120LEDs · 50mm/cut · 12*12mm
Model: 1212T-EE
Overview
The DENO LED 1212T-EE is a premium 1212 Flexible Neon LED Strip, designed for both indoor and outdoor commercial applications. With its 12x12mm silicone injection-moulded body, it provides exceptional flexibility and durability, making it ideal for shaping around architectural contours, landscape features, and display lighting. Key features include IP67 water and dust protection, resistance to UV and chemical corrosion, and a stable molecular structure preventing discolorat...
Description
Engineered with a 12x12mm profile, this silicone flexible neon light features full IP67 encapsulation resistant to UV, salt, water, and chemical corrosion. High-density 2835 SMD LEDs deliver uniform, dot-free illumination across the flexible silicone body with smooth dimming capabilities for precision architectural lighting. Operating on a 24V constant voltage circuit, the fixture offers convenient 50mm cutting increments supported by a robust 3oz copper foil PCB. Multi-angle flexibility allows easy shaping for commercial displays, making it an ideal LED neon flex solution for OEM custom lengths.
Specifications
| LED QTY | 120 |
|---|---|
| PART NO | DL-NF28C60V24-1212T-EE-* |
| SMD TYPE | 2835 |
| CUTTABLE UNIT | 6LEDs/50mm |
| DIMMABLE | Yes |
| IP RATING | IP67 |
| LED PITCH | 8.334mm |
| LIFESPAN | 30000 |
| PCB WIDTH | 10mm |
| WARRANTY | 5 Years |
| RUN LENGTH | 5m |
| COPPER FOIL | 3oz |
| POWER RANGE | 2.8~28.8W |
| CIRCUIT TYPE | C.V. |
| INPUT VOLTAGE | 24V |
| OPERATING TEMPERATURE | -25~40°C;Tc：75°C（max） |
Applications
- Channel letters & logo signage — Silicone neon holds a continuous glow line for logos, channel letters and wayfinding without visible LED dots.
- Facade & perimeter outlining — Flexible neon bends around building edges, balconies and columns to trace architecture at night.
- Bar fronts, headboards & stair nosings — Used along stair nosings, headboards and bar fronts where a soft, uniform tube of light is wanted instead of a hard strip.
- Facade, landscape & bathroom runs (IP67) — IP67 sealing suits facades, landscape lighting, bathrooms and other locations exposed to rain, splashing or wash-down cleaning.
Request a quotation for #1212T-EE
DENO LED is a Shenzhen-based LED strip manufacturer with its own Foshan production base. Send the run length, voltage, CCT/CRI and IP rating you need and our engineering team replies with a specification sheet, wiring plan and price — OEM/ODM and fully custom builds included.
- Warranty: 5 years
- Lead time: standard boards: samples from 1 working day · custom: 3–5 working days · new FPCB: 1–3 weeks · production 1–2 weeks after sample approval
- Compliance: CE · UL · RoHS
- Bonding wire: 99.99% pure gold
- Copper foil: 99.9% pure copper FPCB
Photometric Performance — CCT × CRI Efficacy Matrix
Peak measured luminous efficacy: 101 lm/W at 4000K, Ra 80, ErP energy class F (Grade DN (1st Tier) · 9.6W/m).
All values are measured at the stated power density and ambient 25 °C, reported as luminous efficacy in lumens per watt (lm/W), luminous flux per metre (lm/m) and the corresponding EU ErP (2019/2015) energy class.
Grade DL (2nd Tier) · 9.6W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | 65.7 lm/W | 630.9 lm/m | G | 52.1 lm/W | 499.8 lm/m | G | — | — | — |
| 2300 K | 73.1 lm/W | 701.3 lm/m | G | 58.1 lm/W | 557.5 lm/m | G | 47.2 lm/W | 453 lm/m | G |
| 2700 K | 75.9 lm/W | 728.7 lm/m | G | 62.8 lm/W | 602.5 lm/m | G | 50.8 lm/W | 488.1 lm/m | G |
| 3000 K | 82.2 lm/W | 789.3 lm/m | G | 66.1 lm/W | 634.8 lm/m | G | 53.7 lm/W | 515.5 lm/m | G |
| 3500 K | 83.5 lm/W | 802 lm/m | G | 67.2 lm/W | 645.6 lm/m | G | 55.3 lm/W | 531.1 lm/m | G |
| 4000 K | 86.2 lm/W | 827.5 lm/m | F | 68.9 lm/W | 661.2 lm/m | G | 56.9 lm/W | 545.8 lm/m | G |
| 5000 K | 86.1 lm/W | 826.5 lm/m | F | 68.9 lm/W | 661.2 lm/m | G | 56.3 lm/W | 540.3 lm/m | G |
| 6500 K | 78.2 lm/W | 751.2 lm/m | G | 66 lm/W | 633.8 lm/m | G | 54.6 lm/W | 524 lm/m | G |
Grade DL (2nd Tier) · 12W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | 64.6 lm/W | 775.4 lm/m | G | 51.2 lm/W | 614.3 lm/m | G | — | — | — |
| 2300 K | 71.8 lm/W | 862 lm/m | G | 57.1 lm/W | 685.3 lm/m | G | 46.4 lm/W | 556.8 lm/m | G |
| 2700 K | 74.6 lm/W | 895.6 lm/m | G | 61.7 lm/W | 740.6 lm/m | G | 50 lm/W | 599.9 lm/m | G |
| 3000 K | 80.8 lm/W | 970.2 lm/m | G | 65 lm/W | 780.2 lm/m | G | 52.8 lm/W | 633.6 lm/m | G |
| 3500 K | 82.1 lm/W | 985.8 lm/m | G | 66.1 lm/W | 793.4 lm/m | G | 54.4 lm/W | 652.8 lm/m | G |
| 4000 K | 84.8 lm/W | 1017.1 lm/m | G | 67.7 lm/W | 812.7 lm/m | G | 55.9 lm/W | 670.8 lm/m | G |
| 5000 K | 84.7 lm/W | 1015.9 lm/m | G | 67.7 lm/W | 812.7 lm/m | G | 55.3 lm/W | 664.1 lm/m | G |
| 6500 K | 76.9 lm/W | 923.3 lm/m | G | 64.9 lm/W | 779 lm/m | G | 53.7 lm/W | 644 lm/m | G |
Grade DL (2nd Tier) · 19.2W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | 61.4 lm/W | 1179.5 lm/m | G | 48.7 lm/W | 934.4 lm/m | G | — | — | — |
| 2300 K | 68.3 lm/W | 1311.1 lm/m | G | 54.3 lm/W | 1042.3 lm/m | G | 44.1 lm/W | 846.9 lm/m | G |
| 2700 K | 71 lm/W | 1362.3 lm/m | G | 58.7 lm/W | 1126.4 lm/m | G | 47.5 lm/W | 912.5 lm/m | G |
| 3000 K | 76.9 lm/W | 1475.7 lm/m | G | 61.8 lm/W | 1186.8 lm/m | G | 50.2 lm/W | 963.7 lm/m | G |
| 3500 K | 78.1 lm/W | 1499.5 lm/m | G | 62.9 lm/W | 1206.9 lm/m | G | 51.7 lm/W | 993 lm/m | G |
| 4000 K | 80.6 lm/W | 1547 lm/m | G | 64.4 lm/W | 1236.2 lm/m | G | 53.1 lm/W | 1020.4 lm/m | G |
| 5000 K | 80.5 lm/W | 1545.2 lm/m | G | 64.4 lm/W | 1236.2 lm/m | G | 52.6 lm/W | 1010.2 lm/m | G |
| 6500 K | 73.1 lm/W | 1404.4 lm/m | G | 61.7 lm/W | 1185 lm/m | G | 51 lm/W | 979.6 lm/m | G |
Grade DN (1st Tier) · 9.6W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | 79.2 lm/W | 760 lm/m | G | 66.2 lm/W | 635.8 lm/m | G | — | — | — |
| 2300 K | 86.3 lm/W | 828.5 lm/m | G | 73.9 lm/W | 709.1 lm/m | G | 59.4 lm/W | 570.7 lm/m | G |
| 2700 K | 93 lm/W | 893 lm/m | F | 79.9 lm/W | 766.8 lm/m | G | 64.8 lm/W | 622.1 lm/m | G |
| 3000 K | 97.7 lm/W | 938 lm/m | F | 84.5 lm/W | 810.9 lm/m | G | 68.7 lm/W | 659.2 lm/m | G |
| 3500 K | 99.1 lm/W | 951.7 lm/m | F | 86.3 lm/W | 828.5 lm/m | G | 71 lm/W | 681.7 lm/m | G |
| 4000 K | 101 lm/W | 969.3 lm/m | F | 86.8 lm/W | 833.3 lm/m | G | 71.6 lm/W | 687.6 lm/m | G |
| 5000 K | 100.9 lm/W | 968.3 lm/m | F | 87.3 lm/W | 838.2 lm/m | G | 70.9 lm/W | 680.7 lm/m | G |
| 6500 K | 96.7 lm/W | 928.2 lm/m | F | 83.4 lm/W | 801.1 lm/m | G | 68.8 lm/W | 660.1 lm/m | G |
Grade DN (1st Tier) · 12W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | 77.8 lm/W | 934.1 lm/m | G | 65.1 lm/W | 781.4 lm/m | G | — | — | — |
| 2300 K | 84.9 lm/W | 1018.3 lm/m | G | 72.6 lm/W | 871.6 lm/m | G | 58.5 lm/W | 701.5 lm/m | G |
| 2700 K | 91.5 lm/W | 1097.6 lm/m | G | 78.5 lm/W | 942.5 lm/m | G | 63.7 lm/W | 764.6 lm/m | G |
| 3000 K | 96.1 lm/W | 1152.9 lm/m | F | 83.1 lm/W | 996.6 lm/m | G | 67.5 lm/W | 810.3 lm/m | G |
| 3500 K | 97.5 lm/W | 1169.7 lm/m | F | 84.9 lm/W | 1018.3 lm/m | G | 69.8 lm/W | 837.9 lm/m | G |
| 4000 K | 99.3 lm/W | 1191.4 lm/m | F | 85.4 lm/W | 1024.3 lm/m | G | 70.4 lm/W | 845.1 lm/m | G |
| 5000 K | 99.2 lm/W | 1190.2 lm/m | F | 85.9 lm/W | 1030.3 lm/m | G | 69.7 lm/W | 836.7 lm/m | G |
| 6500 K | 95.1 lm/W | 1140.9 lm/m | F | 82 lm/W | 984.6 lm/m | G | 67.6 lm/W | 811.3 lm/m | G |
Grade DN (1st Tier) · 19.2W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | 74 lm/W | 1420.9 lm/m | G | 61.9 lm/W | 1188.6 lm/m | G | — | — | — |
| 2300 K | 80.7 lm/W | 1548.9 lm/m | G | 69.1 lm/W | 1325.8 lm/m | G | 55.6 lm/W | 1067 lm/m | G |
| 2700 K | 87 lm/W | 1669.6 lm/m | G | 74.7 lm/W | 1433.7 lm/m | G | 60.6 lm/W | 1163 lm/m | G |
| 3000 K | 91.3 lm/W | 1753.7 lm/m | G | 79 lm/W | 1515.9 lm/m | G | 64.2 lm/W | 1232.5 lm/m | G |
| 3500 K | 92.7 lm/W | 1779.3 lm/m | F | 80.7 lm/W | 1548.9 lm/m | G | 66.4 lm/W | 1274.6 lm/m | G |
| 4000 K | 94.4 lm/W | 1812.2 lm/m | F | 81.1 lm/W | 1558 lm/m | G | 67 lm/W | 1285.5 lm/m | G |
| 5000 K | 94.3 lm/W | 1810.4 lm/m | F | 81.6 lm/W | 1567.1 lm/m | G | 66.3 lm/W | 1272.7 lm/m | G |
| 6500 K | 90.4 lm/W | 1735.4 lm/m | G | 78 lm/W | 1497.7 lm/m | G | 64.3 lm/W | 1234.1 lm/m | G |
Grade KE (3rd Tier) · 9.6W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1900 K | 45.4 lm/W | 436.2 lm/m | G | 35.8 lm/W | 343.3 lm/m | G | — | — | — |
| 2300 K | 50.6 lm/W | 486.1 lm/m | G | 39.8 lm/W | 382.4 lm/m | G | 32.6 lm/W | 313.4 lm/m | G |
| 2700 K | 54.6 lm/W | 524.3 lm/m | G | 43.1 lm/W | 413.7 lm/m | G | 34.9 lm/W | 335.5 lm/m | G |
| 3000 K | 57.4 lm/W | 550.7 lm/m | G | 45.7 lm/W | 439.2 lm/m | G | 37.2 lm/W | 357 lm/m | G |
| 3500 K | 58.2 lm/W | 558.5 lm/m | G | 46.7 lm/W | 448 lm/m | G | 38.4 lm/W | 368.7 lm/m | G |
| 4000 K | 59.9 lm/W | 575.1 lm/m | G | 47.7 lm/W | 457.8 lm/m | G | 39.3 lm/W | 377.5 lm/m | G |
| 5000 K | 59.8 lm/W | 574.1 lm/m | G | 47.7 lm/W | 457.8 lm/m | G | 38.9 lm/W | 373.8 lm/m | G |
| 6500 K | 57.4 lm/W | 550.7 lm/m | G | 45.7 lm/W | 439.2 lm/m | G | 37.8 lm/W | 362.4 lm/m | G |
Grade KE (3rd Tier) · 12W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1900 K | 44.7 lm/W | 536.2 lm/m | G | 35.2 lm/W | 422 lm/m | G | — | — | — |
| 2300 K | 49.8 lm/W | 597.5 lm/m | G | 39.2 lm/W | 470.1 lm/m | G | 32.1 lm/W | 385.2 lm/m | G |
| 2700 K | 53.7 lm/W | 644.4 lm/m | G | 42.4 lm/W | 508.5 lm/m | G | 34.4 lm/W | 412.4 lm/m | G |
| 3000 K | 56.4 lm/W | 676.8 lm/m | G | 45 lm/W | 539.8 lm/m | G | 36.6 lm/W | 438.8 lm/m | G |
| 3500 K | 57.2 lm/W | 686.5 lm/m | G | 45.9 lm/W | 550.6 lm/m | G | 37.8 lm/W | 453.2 lm/m | G |
| 4000 K | 58.9 lm/W | 706.9 lm/m | G | 46.9 lm/W | 562.6 lm/m | G | 38.7 lm/W | 464 lm/m | G |
| 5000 K | 58.8 lm/W | 705.7 lm/m | G | 46.9 lm/W | 562.6 lm/m | G | 38.3 lm/W | 459.4 lm/m | G |
| 6500 K | 56.4 lm/W | 676.8 lm/m | G | 45 lm/W | 539.8 lm/m | G | 37.1 lm/W | 445.5 lm/m | G |
Grade KE (3rd Tier) · 19.2W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1900 K | 42.5 lm/W | 815.6 lm/m | G | 33.4 lm/W | 641.9 lm/m | G | — | — | — |
| 2300 K | 47.3 lm/W | 908.8 lm/m | G | 37.2 lm/W | 715 lm/m | G | 30.5 lm/W | 585.9 lm/m | G |
| 2700 K | 51 lm/W | 980.2 lm/m | G | 40.3 lm/W | 773.5 lm/m | G | 32.7 lm/W | 627.2 lm/m | G |
| 3000 K | 53.6 lm/W | 1029.5 lm/m | G | 42.8 lm/W | 821.1 lm/m | G | 34.8 lm/W | 667.5 lm/m | G |
| 3500 K | 54.4 lm/W | 1044.2 lm/m | G | 43.6 lm/W | 837.5 lm/m | G | 35.9 lm/W | 689.4 lm/m | G |
| 4000 K | 56 lm/W | 1075.2 lm/m | G | 44.6 lm/W | 855.8 lm/m | G | 36.8 lm/W | 705.9 lm/m | G |
| 5000 K | 55.9 lm/W | 1073.4 lm/m | G | 44.6 lm/W | 855.8 lm/m | G | 36.4 lm/W | 698.8 lm/m | G |
| 6500 K | 53.6 lm/W | 1029.5 lm/m | G | 42.8 lm/W | 821.1 lm/m | G | 35.3 lm/W | 677.6 lm/m | G |
Related models in this series
- 2525 Flexible Linear Neon light (#1942)
- 20*20 Flexible Linear Neon Light (#16359)
- 1616 Silicone Flexible Neon Light (#1616T-EE)
- Top Bend LED Neon Flex DL-SV-0513 (#DL-SV-0513)
- Top Bend LED Neon Flex DL-T0511A (#DL-T0511A)
- Top Bend LED Neon Flex DL-T20D (#DL-T20D)
- 1010 Silicone Flexible Neon Light (#1010T-EE)
- Top Bend LED Neon Flex DL-T2016G (#DL-T2016G)
See every model in Neon LED Strip Series or narrow to Top Bend. Compare wattage, lumen output and run length in the ProCalc parameter library, or request OEM/ODM pricing on the custom manufacturing page.
Frequently Asked Questions
What are the key advantages of this 1212 Flexible Neon LED Strip for outdoor use?
This strip features a silicone injection-moulded design with full IP67 encapsulation, providing high resistance to salt, water, UV, and chemicals, ensuring durability in harsh outdoor environments.
Is the 1212T-EE compatible with standard dimming systems?
Yes, the 1212T-EE 1212 Flexible Neon LED Strip is fully dimmable, allowing for precise control over light intensity to meet various atmospheric and functional requirements.
Can this product be customized for specific project lengths or shapes?
The strip is cuttable every 50mm and offers multi-angle bending, providing significant flexibility for custom lengths and intricate shapes to fit unique architectural designs.
What are the key specifications of #1212T-EE?
1212 Silicone Flexible Neon Light | 12*12mm | 24V | 120LEDs | 50mm/cut | #1212T-EE: 2835 LEDs, 120, 24V, 10mm FPCB, 3oz copper foil, 2.8~28.8W power, cut unit 6LEDs/50mm. Photometric files, wiring diagrams and test reports are available in the downloads block on this page.
Which LED driver and run length suit #1212T-EE?
1212 Silicone Flexible Neon Light | 12*12mm | 24V | 120LEDs | 50mm/cut | #1212T-EE is a constant-voltage 24V product, so pair it with a CE or UL listed 24V constant-voltage LED driver rated about 20% above the connected load. Maximum single run is 5m. 5m Single / 10m Dual Input power. Feeding from both ends or mid-feeding halves the copper distance and roughly quarters the voltage drop.
