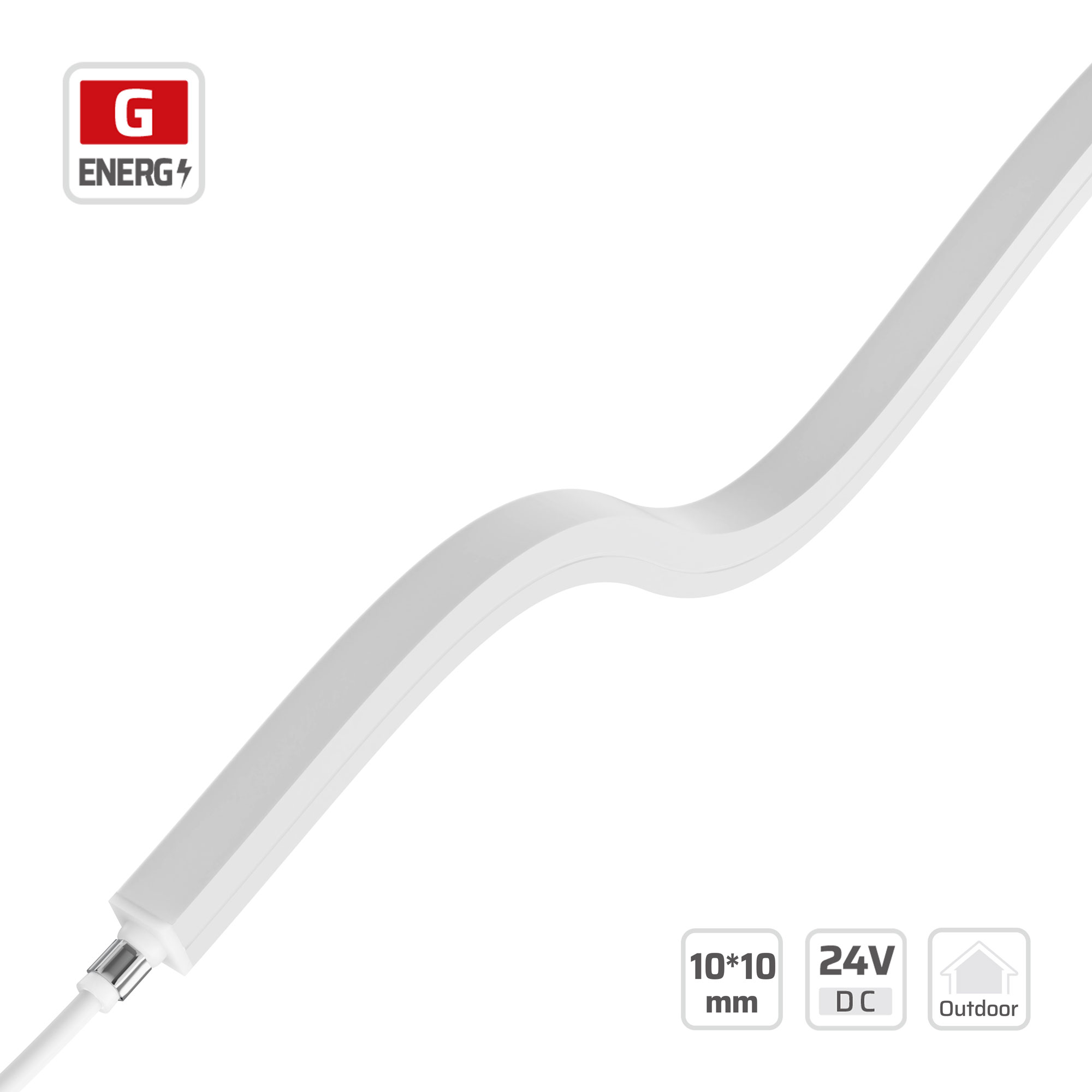

1010 Silicone Flexible Neon Light (#1010T-EE)
24V · 120LEDs · 50mm/cut · 10*10mm
Model: 1010T-EE
Overview
DENO® presents the #1010T-EE, a compact 10x10mm 24V silicone flexible LED neon light designed for professional B2B architectural and commercial lighting applications. Featuring 120 LEDs per meter, a power consumption of 9.6W/m, and a precise 50mm cutting increment, this high-performance LED neon flex offers exceptional flexibility and uniform illumination. Manufactured with DENO's advanced FPCB technology and Roll-to-Roll (R2R) process, it ensures superior durability, color consistency (high CRI), and long-term reliability for projects across North America, Europe, the Middle East, and Asia Pacific. DENO specializes in custom LED solutions, providing scalable manufacturing and technical support for lighting designers, architects, and contractors seeking premium, efficient, and aesthetically versatile lighting products.
Description
Featuring a compact 10x10mm profile, this flexible neon light offers OEM custom lengths for complex curves in architectural contour lighting installations. Engineered with fully encapsulated silicone, the robust extrusion provides exceptional resistance against salt, water, UV rays, abrasion, and chemical corrosion. High-density 2835 SMD LEDs on a 3oz copper PCB ensure uniform, dot-free light emission across a wide 120-degree beam angle. Operating on a constant voltage 24V system, this LED neon flex is dimmable and cuttable every 50mm for flexible integration. Precision binning under 3 SDCM ensures reliable color consistency across 5m continuous runs for commercial displays and landscape decoration.
Specifications
| SDCM | < 3 SDCM (Single Bin) |
|---|---|
| LED QTY | 120 |
| PART NO | DL-NF28C60V24-1010T-EE-* |
| SMD TYPE | 2835 |
| CUTTABLE UNIT | 6LEDs/50mm |
| DIMMABLE | Yes |
| LED PITCH | 8.334mm |
| PCB WIDTH | 8mm |
| WARRANTY | 5 Years |
| BEAM ANGLE | 120° |
| RUN LENGTH | 5m |
| COPPER FOIL | 3oz |
| POWER RANGE | 2.8~28.8W |
| CIRCUIT TYPE | C.V. |
| INPUT VOLTAGE | 24V |
| OPERATING TEMPERATURE | -25~40°C;Tc：75°C（max） |
Applications
- Channel letters & logo signage — Silicone neon holds a continuous glow line for logos, channel letters and wayfinding without visible LED dots.
- Facade & perimeter outlining — Flexible neon bends around building edges, balconies and columns to trace architecture at night.
- Bar fronts, headboards & stair nosings — Used along stair nosings, headboards and bar fronts where a soft, uniform tube of light is wanted instead of a hard strip.
Request a quotation for #1010T-EE
DENO LED is a Shenzhen-based LED strip manufacturer with its own Foshan production base. Send the run length, voltage, CCT/CRI and IP rating you need and our engineering team replies with a specification sheet, wiring plan and price — OEM/ODM and fully custom builds included.
- Warranty: 5 years
- Lead time: standard boards: samples from 1 working day · custom: 3–5 working days · new FPCB: 1–3 weeks · production 1–2 weeks after sample approval
- Compliance: CE · UL · RoHS
- Bonding wire: 99.99% pure gold
- Copper foil: 99.9% pure copper FPCB
Photometric Performance — CCT × CRI Efficacy Matrix
Peak measured luminous efficacy: 93.7 lm/W at 4000K, Ra 80, ErP energy class F (Grade DN (1st Tier) · 7.2W/m).
All values are measured at the stated power density and ambient 25 °C, reported as luminous efficacy in lumens per watt (lm/W), luminous flux per metre (lm/m) and the corresponding EU ErP (2019/2015) energy class.
Grade DL (2nd Tier) · 7.2W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | 59.6 lm/W | 429.3 lm/m | G | 47.1 lm/W | 339.5 lm/m | G | — | — | — |
| 2300 K | 66.3 lm/W | 477.2 lm/m | G | 52.6 lm/W | 378.5 lm/m | G | 42.7 lm/W | 307.4 lm/m | G |
| 2700 K | 68.6 lm/W | 494.1 lm/m | G | 56.9 lm/W | 409.4 lm/m | G | 46 lm/W | 331.4 lm/m | G |
| 3000 K | 74.6 lm/W | 536.8 lm/m | G | 59.8 lm/W | 430.8 lm/m | G | 48.7 lm/W | 350.5 lm/m | G |
| 3500 K | 75.8 lm/W | 545.6 lm/m | G | 60.9 lm/W | 438.1 lm/m | G | 50.1 lm/W | 360.8 lm/m | G |
| 4000 K | 78.2 lm/W | 563.3 lm/m | G | 62.4 lm/W | 449.2 lm/m | G | 51.4 lm/W | 370.4 lm/m | G |
| 5000 K | 78.1 lm/W | 562.6 lm/m | G | 62.3 lm/W | 448.4 lm/m | G | 50.9 lm/W | 366.7 lm/m | G |
| 6500 K | 70.9 lm/W | 510.3 lm/m | G | 59.7 lm/W | 430 lm/m | G | 49.4 lm/W | 355.6 lm/m | G |
Grade DL (2nd Tier) · 9.6W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | 58.6 lm/W | 562.8 lm/m | G | 46.4 lm/W | 445.1 lm/m | G | — | — | — |
| 2300 K | 65.2 lm/W | 625.6 lm/m | G | 51.7 lm/W | 496.2 lm/m | G | 42 lm/W | 403 lm/m | G |
| 2700 K | 67.5 lm/W | 647.8 lm/m | G | 55.9 lm/W | 536.8 lm/m | G | 45.3 lm/W | 434.4 lm/m | G |
| 3000 K | 73.3 lm/W | 703.8 lm/m | G | 58.8 lm/W | 564.8 lm/m | G | 47.9 lm/W | 459.5 lm/m | G |
| 3500 K | 74.5 lm/W | 715.4 lm/m | G | 59.8 lm/W | 574.4 lm/m | G | 49.3 lm/W | 473.1 lm/m | G |
| 4000 K | 76.9 lm/W | 738.5 lm/m | G | 61.3 lm/W | 588.9 lm/m | G | 50.6 lm/W | 485.6 lm/m | G |
| 5000 K | 76.8 lm/W | 737.6 lm/m | G | 61.2 lm/W | 587.9 lm/m | G | 50.1 lm/W | 480.7 lm/m | G |
| 6500 K | 69.7 lm/W | 669 lm/m | G | 58.7 lm/W | 563.8 lm/m | G | 48.6 lm/W | 466.2 lm/m | G |
Grade DL (2nd Tier) · 14.4W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | 56.7 lm/W | 816.3 lm/m | G | 44.8 lm/W | 645.4 lm/m | G | — | — | — |
| 2300 K | 63 lm/W | 907.3 lm/m | G | 50 lm/W | 719.7 lm/m | G | 40.6 lm/W | 584.5 lm/m | G |
| 2700 K | 65.2 lm/W | 939.5 lm/m | G | 54.1 lm/W | 778.5 lm/m | G | 43.8 lm/W | 630 lm/m | G |
| 3000 K | 70.9 lm/W | 1020.7 lm/m | G | 56.9 lm/W | 819.1 lm/m | G | 46.3 lm/W | 666.4 lm/m | G |
| 3500 K | 72 lm/W | 1037.5 lm/m | G | 57.9 lm/W | 833.1 lm/m | G | 47.6 lm/W | 686 lm/m | G |
| 4000 K | 74.4 lm/W | 1071.1 lm/m | G | 59.3 lm/W | 854.1 lm/m | G | 48.9 lm/W | 704.3 lm/m | G |
| 5000 K | 74.3 lm/W | 1069.7 lm/m | G | 59.2 lm/W | 852.7 lm/m | G | 48.4 lm/W | 697.2 lm/m | G |
| 6500 K | 67.4 lm/W | 970.3 lm/m | G | 56.8 lm/W | 817.7 lm/m | G | 47 lm/W | 676.1 lm/m | G |
Grade DN (1st Tier) · 7.2W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | 73.4 lm/W | 528.7 lm/m | G | 61.3 lm/W | 441.1 lm/m | G | — | — | — |
| 2300 K | 80 lm/W | 575.8 lm/m | G | 68.4 lm/W | 492.6 lm/m | G | 55.1 lm/W | 396.7 lm/m | G |
| 2700 K | 86.2 lm/W | 620.8 lm/m | G | 73.9 lm/W | 532.4 lm/m | G | 59.9 lm/W | 431.5 lm/m | G |
| 3000 K | 90.6 lm/W | 652.4 lm/m | G | 78.2 lm/W | 563.3 lm/m | G | 63.6 lm/W | 458 lm/m | G |
| 3500 K | 91.9 lm/W | 662 lm/m | F | 80 lm/W | 575.8 lm/m | G | 65.8 lm/W | 473.5 lm/m | G |
| 4000 K | 93.7 lm/W | 674.5 lm/m | F | 80.4 lm/W | 578.8 lm/m | G | 66.4 lm/W | 477.9 lm/m | G |
| 5000 K | 93.5 lm/W | 673 lm/m | F | 80.9 lm/W | 582.5 lm/m | G | 65.7 lm/W | 473.1 lm/m | G |
| 6500 K | 89.7 lm/W | 645.8 lm/m | G | 77.3 lm/W | 556.7 lm/m | G | 63.7 lm/W | 458.8 lm/m | G |
Grade DN (1st Tier) · 9.6W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | 72.2 lm/W | 693.2 lm/m | G | 60.2 lm/W | 578.3 lm/m | G | — | — | — |
| 2300 K | 78.6 lm/W | 755 lm/m | G | 67.3 lm/W | 645.9 lm/m | G | 54.2 lm/W | 520 lm/m | G |
| 2700 K | 84.8 lm/W | 813.8 lm/m | G | 72.7 lm/W | 698 lm/m | G | 58.9 lm/W | 565.7 lm/m | G |
| 3000 K | 89.1 lm/W | 855.4 lm/m | G | 76.9 lm/W | 738.5 lm/m | G | 62.6 lm/W | 600.5 lm/m | G |
| 3500 K | 90.4 lm/W | 867.9 lm/m | G | 78.6 lm/W | 755 lm/m | G | 64.7 lm/W | 620.8 lm/m | G |
| 4000 K | 92.1 lm/W | 884.3 lm/m | F | 79 lm/W | 758.8 lm/m | G | 65.3 lm/W | 626.6 lm/m | G |
| 5000 K | 91.9 lm/W | 882.4 lm/m | F | 79.5 lm/W | 763.6 lm/m | G | 64.6 lm/W | 620.3 lm/m | G |
| 6500 K | 88.2 lm/W | 846.7 lm/m | G | 76 lm/W | 729.9 lm/m | G | 62.7 lm/W | 601.5 lm/m | G |
Grade DN (1st Tier) · 14.4W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | 69.8 lm/W | 1005.3 lm/m | G | 58.2 lm/W | 838.7 lm/m | G | — | — | — |
| 2300 K | 76 lm/W | 1094.9 lm/m | G | 65 lm/W | 936.7 lm/m | G | 52.4 lm/W | 754.2 lm/m | G |
| 2700 K | 82 lm/W | 1180.3 lm/m | G | 70.3 lm/W | 1012.3 lm/m | G | 57 lm/W | 820.5 lm/m | G |
| 3000 K | 86.1 lm/W | 1240.5 lm/m | G | 74.4 lm/W | 1071.1 lm/m | G | 60.5 lm/W | 870.9 lm/m | G |
| 3500 K | 87.4 lm/W | 1258.7 lm/m | G | 76 lm/W | 1094.9 lm/m | G | 62.5 lm/W | 900.3 lm/m | G |
| 4000 K | 89.1 lm/W | 1282.5 lm/m | G | 76.4 lm/W | 1100.5 lm/m | G | 63.1 lm/W | 908.7 lm/m | G |
| 5000 K | 88.9 lm/W | 1279.7 lm/m | G | 76.9 lm/W | 1107.5 lm/m | G | 62.5 lm/W | 899.6 lm/m | G |
| 6500 K | 85.3 lm/W | 1227.9 lm/m | G | 73.5 lm/W | 1058.5 lm/m | G | 60.6 lm/W | 872.3 lm/m | G |
Grade KE (3rd Tier) · 7.2W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1900 K | 39.3 lm/W | 282.8 lm/m | G | 30.7 lm/W | 220.9 lm/m | G | — | — | — |
| 2300 K | 43.8 lm/W | 315.2 lm/m | G | 34.3 lm/W | 246.7 lm/m | G | 28.1 lm/W | 202.3 lm/m | G |
| 2700 K | 47.1 lm/W | 339.5 lm/m | G | 37.1 lm/W | 267.3 lm/m | G | 30.1 lm/W | 216.5 lm/m | G |
| 3000 K | 49.6 lm/W | 357.1 lm/m | G | 39.4 lm/W | 283.5 lm/m | G | 32 lm/W | 230.5 lm/m | G |
| 3500 K | 50.3 lm/W | 362.3 lm/m | G | 40.2 lm/W | 289.4 lm/m | G | 33 lm/W | 237.8 lm/m | G |
| 4000 K | 51.8 lm/W | 372.6 lm/m | G | 41 lm/W | 295.3 lm/m | G | 33.9 lm/W | 243.7 lm/m | G |
| 5000 K | 51.6 lm/W | 371.9 lm/m | G | 41 lm/W | 295.3 lm/m | G | 33.5 lm/W | 241.3 lm/m | G |
| 6500 K | 49.6 lm/W | 357.1 lm/m | G | 39.4 lm/W | 283.5 lm/m | G | 32.5 lm/W | 234 lm/m | G |
Grade KE (3rd Tier) · 9.6W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1900 K | 38.6 lm/W | 370.7 lm/m | G | 30.2 lm/W | 289.6 lm/m | G | — | — | — |
| 2300 K | 43 lm/W | 413.2 lm/m | G | 33.7 lm/W | 323.4 lm/m | G | 27.6 lm/W | 265.2 lm/m | G |
| 2700 K | 46.4 lm/W | 445.1 lm/m | G | 36.5 lm/W | 350.4 lm/m | G | 29.6 lm/W | 283.8 lm/m | G |
| 3000 K | 48.8 lm/W | 468.2 lm/m | G | 38.7 lm/W | 371.7 lm/m | G | 31.5 lm/W | 302.2 lm/m | G |
| 3500 K | 49.5 lm/W | 475 lm/m | G | 39.5 lm/W | 379.4 lm/m | G | 32.5 lm/W | 311.8 lm/m | G |
| 4000 K | 50.9 lm/W | 488.5 lm/m | G | 40.3 lm/W | 387.1 lm/m | G | 33.3 lm/W | 319.6 lm/m | G |
| 5000 K | 50.8 lm/W | 487.5 lm/m | G | 40.3 lm/W | 387.1 lm/m | G | 33 lm/W | 316.4 lm/m | G |
| 6500 K | 48.8 lm/W | 468.2 lm/m | G | 38.7 lm/W | 371.7 lm/m | G | 32 lm/W | 306.8 lm/m | G |
Grade KE (3rd Tier) · 14.4W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1900 K | 37.3 lm/W | 537.6 lm/m | G | 29.2 lm/W | 420 lm/m | G | — | — | — |
| 2300 K | 41.6 lm/W | 599.2 lm/m | G | 32.6 lm/W | 469 lm/m | G | 26.7 lm/W | 384.6 lm/m | G |
| 2700 K | 44.8 lm/W | 645.4 lm/m | G | 35.3 lm/W | 508.2 lm/m | G | 28.6 lm/W | 411.6 lm/m | G |
| 3000 K | 47.2 lm/W | 679 lm/m | G | 37.4 lm/W | 539 lm/m | G | 30.4 lm/W | 438.2 lm/m | G |
| 3500 K | 47.8 lm/W | 688.8 lm/m | G | 38.2 lm/W | 550.2 lm/m | G | 31.4 lm/W | 452.2 lm/m | G |
| 4000 K | 49.2 lm/W | 708.5 lm/m | G | 39 lm/W | 561.4 lm/m | G | 32.2 lm/W | 463.4 lm/m | G |
| 5000 K | 49.1 lm/W | 707.1 lm/m | G | 39 lm/W | 561.4 lm/m | G | 31.9 lm/W | 458.8 lm/m | G |
| 6500 K | 47.2 lm/W | 679 lm/m | G | 37.4 lm/W | 539 lm/m | G | 30.9 lm/W | 444.9 lm/m | G |
Related models in this series
- 1212 Silicone Flexible Neon Light (#1212T-EE)
- 20*20 Flexible Linear Neon Light (#16359)
- 1616 Silicone Flexible Neon Light (#1616T-EE)
- Top Bend LED Neon Flex DL-SV-0513 (#DL-SV-0513)
- 2525 Flexible Linear Neon light (#1942)
- Top Bend LED Neon Flex DL-T20D (#DL-T20D)
- Top Bend LED Neon Flex DL-T0511A (#DL-T0511A)
- Top Bend LED Neon Flex DL-T2016G (#DL-T2016G)
See every model in Neon LED Strip Series or narrow to Top Bend. Compare wattage, lumen output and run length in the ProCalc parameter library, or request OEM/ODM pricing on the custom manufacturing page.
Frequently Asked Questions
What are the key advantages of DENO's 10x10mm silicone LED neon flex for architectural projects?
DENO's 10x10mm silicone LED neon flex offers a compact profile, superior flexibility, and uniform light output, ideal for intricate architectural designs. Our advanced FPCB technology ensures high reliability and color consistency (high CRI), making it perfect for both indoor and outdoor applications in demanding environments across global markets.
Can the #1010T-EE LED neon light be customized for specific project requirements?
Yes, as a professional B2B LED manufacturer, DENO specializes in custom LED solutions. We can tailor the #1010T-EE with specific color temperatures, brightness levels, lengths, and accessories to meet unique project specifications for clients in North America, Europe, and Asia Pacific. Contact our sales team for detailed customization options.
What are the key specifications of #1010T-EE?
1010 Silicone Flexible Neon Light | 10*10mm | 24V | 120LEDs | 50mm/cut | #1010T-EE: 2835 LEDs, 120, 24V, 8mm FPCB, 3oz copper foil, 2.8~28.8W power, cut unit 6LEDs/50mm. Photometric files, wiring diagrams and test reports are available in the downloads block on this page.
Which LED driver and run length suit #1010T-EE?
1010 Silicone Flexible Neon Light | 10*10mm | 24V | 120LEDs | 50mm/cut | #1010T-EE is a constant-voltage 24V product, so pair it with a CE or UL listed 24V constant-voltage LED driver rated about 20% above the connected load. Maximum single run is 5m. 5m Single / 10m Dual Input power. Feeding from both ends or mid-feeding halves the copper distance and roughly quarters the voltage drop.
Where can #1010T-EE be cut on site?
Cut only on the printed cut marks: 6LEDs/50mm. LED pitch is 8.334mm. Re-solder the cut end or use a matched solderless connector, and reseal the end cap on IP-rated versions so the ingress rating is kept.
