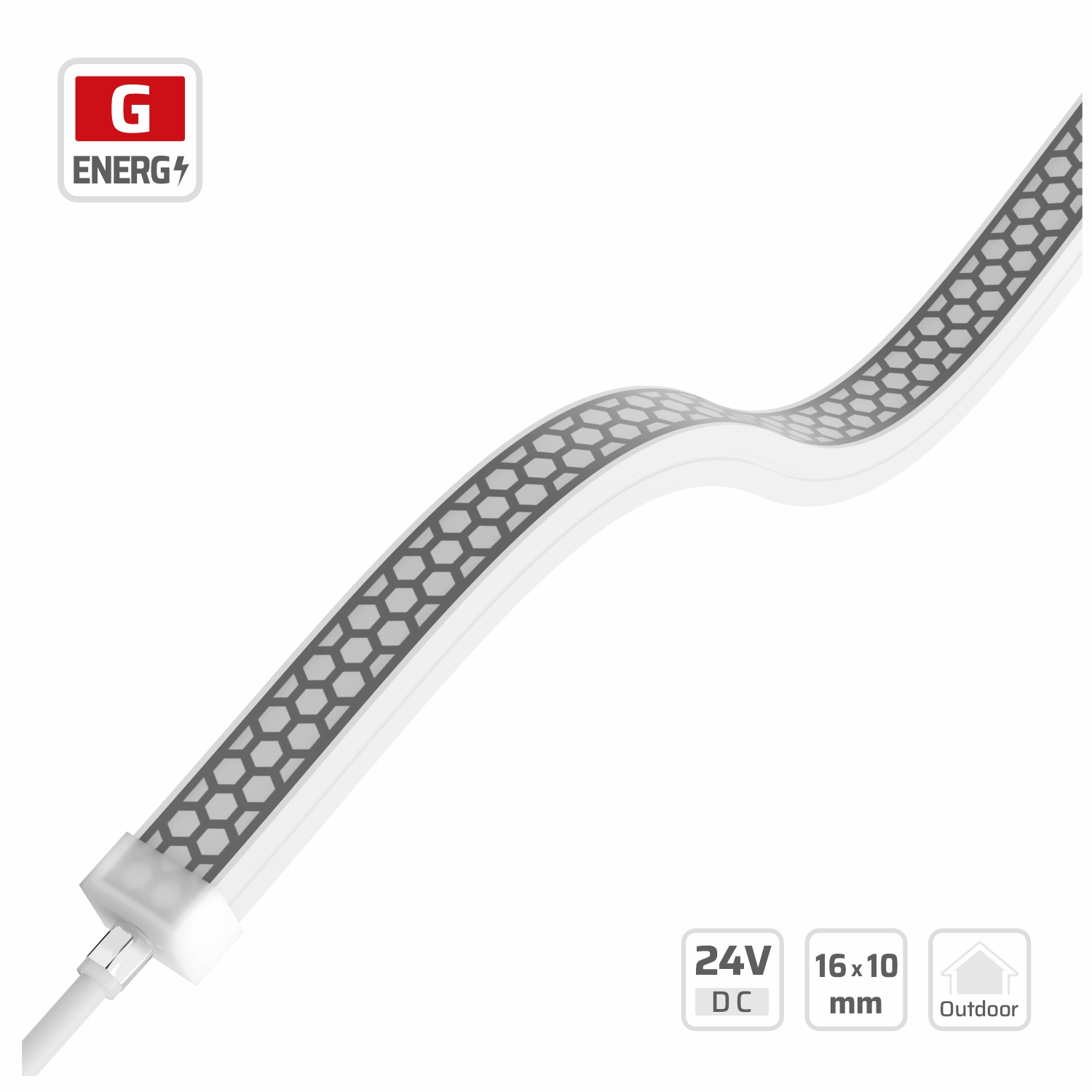

16*10mm Glare-free Neon Lights 128LEDs/m (#3015-GF)
10mm · 24V · 128LEDs · 62.5mm/cut
Model: 3015-GF
Overview
The DENO LED 3015-GF Glare-free Neon Lights provide an exceptional lighting solution with advanced optics to eliminate harsh glare, ensuring visual comfort in various B2B environments. Featuring a flexible 16x10mm silicone injection-molded design with 128 LEDs/m and a 24V input, these neon lights are ideal for applications where close observation or prolonged viewing is common. They maintain rich colors and flexible shapes, allowing for custom lines and patterns while balan...
Description
This 16*10mm glare-free LED neon flex utilizes advanced micro-prism diffusion to deliver soft, uniform illumination ideal for architectural lighting and close-view installations. Engineered with 128 SMD 2835 LEDs per meter on a 24V constant voltage circuit, the system ensures consistent 120-degree light distribution across five-meter runs. Built with a durable 3oz copper 10mm PCB inside flexible silicone encapsulation, this neon light provides reliable thermal management and physical resilience. The dimmable profile features precise 62.5mm cut increments, enabling factory-direct customization and OEM custom lengths tailored to commercial lighting projects.
Specifications
| CRI | Ra≥80 / Ra≥90 / Ra≥95 |
|---|---|
| LED QTY | 128 LEDs/m |
| PART NO | DL-NF28C64V24-3015-1610-GF-* |
| SMD TYPE | 2835 |
| CUTTABLE UNIT | 8LEDs/62.5mm |
| DIMMABLE | Yes |
| IP RATING | IP67 |
| LED PITCH | 7.8mm |
| PCB WIDTH | 10mm |
| BEAM ANGLE | 120° |
| RUN LENGTH | 5m |
| COPPER FOIL | 3oz |
| POWER RANGE | 5~23W |
| CIRCUIT TYPE | C.V. |
| INPUT VOLTAGE | DC24V |
| LUMINOUS FLUX | 481 lm/m @4000K |
Applications
- Channel letters & logo signage — Silicone neon holds a continuous glow line for logos, channel letters and wayfinding without visible LED dots.
- Facade & perimeter outlining — Flexible neon bends around building edges, balconies and columns to trace architecture at night.
- Bar fronts, headboards & stair nosings — Used along stair nosings, headboards and bar fronts where a soft, uniform tube of light is wanted instead of a hard strip.
- Facade, landscape & bathroom runs (IP67) — IP67 sealing suits facades, landscape lighting, bathrooms and other locations exposed to rain, splashing or wash-down cleaning.
Request a quotation for #3015-GF
DENO LED is a Shenzhen-based LED strip manufacturer with its own Foshan production base. Send the run length, voltage, CCT/CRI and IP rating you need and our engineering team replies with a specification sheet, wiring plan and price — OEM/ODM and fully custom builds included.
- Warranty: 5 years
- Lead time: standard boards: samples from 1 working day · custom: 3–5 working days · new FPCB: 1–3 weeks · production 1–2 weeks after sample approval
- Compliance: CE · UL · RoHS
- Bonding wire: 99.99% pure gold
- Copper foil: 99.9% pure copper FPCB
Photometric Performance — CCT × CRI Efficacy Matrix
Peak measured luminous efficacy: 56.5 lm/W at 4000K, Ra 80, ErP energy class G (Grade DN (1st Tier) · 9.6W/m).
All values are measured at the stated power density and ambient 25 °C, reported as luminous efficacy in lumens per watt (lm/W), luminous flux per metre (lm/m) and the corresponding EU ErP (2019/2015) energy class.
Grade DL (2nd Tier) · 9.6W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | 28.1 lm/W | 269.4 lm/m | G | 21.5 lm/W | 206.4 lm/m | G | — | — | — |
| 2300 K | 31.1 lm/W | 298.3 lm/m | G | 24 lm/W | 230.1 lm/m | G | 19.5 lm/W | 186.7 lm/m | G |
| 2700 K | 30.6 lm/W | 294.1 lm/m | G | 25.9 lm/W | 248.7 lm/m | G | 21 lm/W | 201.2 lm/m | G |
| 3000 K | 34.8 lm/W | 334.4 lm/m | G | 27.3 lm/W | 262.1 lm/m | G | 22.1 lm/W | 212.6 lm/m | G |
| 3500 K | 35.7 lm/W | 342.6 lm/m | G | 27.7 lm/W | 266.3 lm/m | G | 22.8 lm/W | 218.8 lm/m | G |
| 4000 K | 36.8 lm/W | 353 lm/m | G | 28.4 lm/W | 272.5 lm/m | G | 23.4 lm/W | 225 lm/m | G |
| 5000 K | 36.8 lm/W | 353 lm/m | G | 28.4 lm/W | 272.5 lm/m | G | 23.2 lm/W | 222.7 lm/m | G |
| 6500 K | 32.6 lm/W | 312.7 lm/m | G | 27.2 lm/W | 261.1 lm/m | G | 22.5 lm/W | 216 lm/m | G |
Grade DL (2nd Tier) · 14.4W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | 27.1 lm/W | 390.6 lm/m | G | 20.8 lm/W | 299.3 lm/m | G | — | — | — |
| 2300 K | 30 lm/W | 432.6 lm/m | G | 23.2 lm/W | 333.8 lm/m | G | 18.8 lm/W | 270.8 lm/m | G |
| 2700 K | 29.6 lm/W | 426.6 lm/m | G | 25 lm/W | 360.7 lm/m | G | 20.3 lm/W | 291.9 lm/m | G |
| 3000 K | 33.7 lm/W | 484.9 lm/m | G | 26.4 lm/W | 380.2 lm/m | G | 21.4 lm/W | 308.3 lm/m | G |
| 3500 K | 34.5 lm/W | 496.9 lm/m | G | 26.8 lm/W | 386.2 lm/m | G | 22 lm/W | 317.3 lm/m | G |
| 4000 K | 35.5 lm/W | 511.9 lm/m | G | 27.4 lm/W | 395.1 lm/m | G | 22.7 lm/W | 326.3 lm/m | G |
| 5000 K | 35.5 lm/W | 511.9 lm/m | G | 27.4 lm/W | 395.1 lm/m | G | 22.4 lm/W | 323 lm/m | G |
| 6500 K | 31.5 lm/W | 453.5 lm/m | G | 26.3 lm/W | 378.7 lm/m | G | 21.8 lm/W | 313.2 lm/m | G |
Grade DL (2nd Tier) · 21W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | 25.9 lm/W | 543.9 lm/m | G | 19.8 lm/W | 416.8 lm/m | G | — | — | — |
| 2300 K | 28.7 lm/W | 602.2 lm/m | G | 22.1 lm/W | 464.7 lm/m | G | 18 lm/W | 377 lm/m | G |
| 2700 K | 28.3 lm/W | 593.9 lm/m | G | 23.9 lm/W | 502.2 lm/m | G | 19.3 lm/W | 406.3 lm/m | G |
| 3000 K | 32.2 lm/W | 675.2 lm/m | G | 25.2 lm/W | 529.3 lm/m | G | 20.4 lm/W | 429.3 lm/m | G |
| 3500 K | 32.9 lm/W | 691.8 lm/m | G | 25.6 lm/W | 537.6 lm/m | G | 21 lm/W | 441.8 lm/m | G |
| 4000 K | 33.9 lm/W | 712.7 lm/m | G | 26.2 lm/W | 550.1 lm/m | G | 21.6 lm/W | 454.3 lm/m | G |
| 5000 K | 33.9 lm/W | 712.7 lm/m | G | 26.2 lm/W | 550.1 lm/m | G | 21.4 lm/W | 449.7 lm/m | G |
| 6500 K | 30.1 lm/W | 631.4 lm/m | G | 25.1 lm/W | 527.2 lm/m | G | 20.8 lm/W | 436.1 lm/m | G |
Grade DN (1st Tier) · 9.6W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | 44.3 lm/W | 425.2 lm/m | G | 36.4 lm/W | 349.9 lm/m | G | — | — | — |
| 2300 K | 48.3 lm/W | 463.4 lm/m | G | 40.7 lm/W | 391.1 lm/m | G | 32.8 lm/W | 315.2 lm/m | G |
| 2700 K | 52 lm/W | 499.5 lm/m | G | 44 lm/W | 422.1 lm/m | G | 35.7 lm/W | 342.6 lm/m | G |
| 3000 K | 54.6 lm/W | 524.3 lm/m | G | 46.7 lm/W | 447.9 lm/m | G | 37.9 lm/W | 364.3 lm/m | G |
| 3500 K | 55.5 lm/W | 532.5 lm/m | G | 47.7 lm/W | 458.2 lm/m | G | 39.2 lm/W | 376.7 lm/m | G |
| 4000 K | 56.5 lm/W | 542.8 lm/m | G | 47.9 lm/W | 460.3 lm/m | G | 39.6 lm/W | 379.8 lm/m | G |
| 5000 K | 56.4 lm/W | 541.8 lm/m | G | 48.3 lm/W | 463.4 lm/m | G | 39.2 lm/W | 376 lm/m | G |
| 6500 K | 54.1 lm/W | 519.1 lm/m | G | 46.1 lm/W | 442.7 lm/m | G | 38 lm/W | 364.6 lm/m | G |
Grade DN (1st Tier) · 14.4W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | 42.8 lm/W | 616.7 lm/m | G | 35.2 lm/W | 507.4 lm/m | G | — | — | — |
| 2300 K | 46.7 lm/W | 672 lm/m | G | 39.4 lm/W | 567.3 lm/m | G | 31.7 lm/W | 457.2 lm/m | G |
| 2700 K | 50.3 lm/W | 724.4 lm/m | G | 42.5 lm/W | 612.2 lm/m | G | 34.5 lm/W | 496.9 lm/m | G |
| 3000 K | 52.8 lm/W | 760.3 lm/m | G | 45.1 lm/W | 649.6 lm/m | G | 36.7 lm/W | 528.3 lm/m | G |
| 3500 K | 53.6 lm/W | 772.3 lm/m | G | 46.1 lm/W | 664.5 lm/m | G | 37.9 lm/W | 546.3 lm/m | G |
| 4000 K | 54.7 lm/W | 787.3 lm/m | G | 46.4 lm/W | 667.5 lm/m | G | 38.2 lm/W | 550.8 lm/m | G |
| 5000 K | 54.6 lm/W | 785.8 lm/m | G | 46.7 lm/W | 672 lm/m | G | 37.9 lm/W | 545.3 lm/m | G |
| 6500 K | 52.3 lm/W | 752.9 lm/m | G | 44.6 lm/W | 642.1 lm/m | G | 36.7 lm/W | 528.8 lm/m | G |
Grade DN (1st Tier) · 21W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | 40.9 lm/W | 858.5 lm/m | G | 33.6 lm/W | 706.4 lm/m | G | — | — | — |
| 2300 K | 44.6 lm/W | 935.6 lm/m | G | 37.6 lm/W | 789.8 lm/m | G | 30.3 lm/W | 636.5 lm/m | G |
| 2700 K | 48 lm/W | 1008.6 lm/m | G | 40.6 lm/W | 852.3 lm/m | G | 32.9 lm/W | 691.8 lm/m | G |
| 3000 K | 50.4 lm/W | 1058.6 lm/m | G | 43.1 lm/W | 904.4 lm/m | G | 35 lm/W | 735.6 lm/m | G |
| 3500 K | 51.2 lm/W | 1075.3 lm/m | G | 44.1 lm/W | 925.2 lm/m | G | 36.2 lm/W | 760.6 lm/m | G |
| 4000 K | 52.2 lm/W | 1096.1 lm/m | G | 44.3 lm/W | 929.4 lm/m | G | 36.5 lm/W | 766.9 lm/m | G |
| 5000 K | 52.1 lm/W | 1094 lm/m | G | 44.6 lm/W | 935.6 lm/m | G | 36.2 lm/W | 759.2 lm/m | G |
| 6500 K | 49.9 lm/W | 1048.2 lm/m | G | 42.6 lm/W | 894 lm/m | G | 35.1 lm/W | 736.2 lm/m | G |
Grade KE (3rd Tier) · 9.6W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1900 K | 6.9 lm/W | 66.1 lm/m | G | 4.4 lm/W | 42.3 lm/m | G | — | — | — |
| 2300 K | 7.6 lm/W | 73.3 lm/m | G | 4.9 lm/W | 47.5 lm/m | G | 4.2 lm/W | 40.3 lm/m | G |
| 2700 K | 8.3 lm/W | 79.5 lm/m | G | 5.3 lm/W | 50.6 lm/m | G | 4.2 lm/W | 40.2 lm/m | G |
| 3000 K | 8.7 lm/W | 83.6 lm/m | G | 5.8 lm/W | 55.7 lm/m | G | 4.7 lm/W | 45.4 lm/m | G |
| 3500 K | 8.8 lm/W | 84.6 lm/m | G | 5.9 lm/W | 56.8 lm/m | G | 4.9 lm/W | 47.5 lm/m | G |
| 4000 K | 9 lm/W | 86.7 lm/m | G | 6.1 lm/W | 58.8 lm/m | G | 5.1 lm/W | 48.5 lm/m | G |
| 5000 K | 9 lm/W | 86.7 lm/m | G | 6.1 lm/W | 58.8 lm/m | G | 5 lm/W | 48 lm/m | G |
| 6500 K | 8.7 lm/W | 83.6 lm/m | G | 5.8 lm/W | 55.7 lm/m | G | 4.9 lm/W | 46.6 lm/m | G |
Grade KE (3rd Tier) · 14.4W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1900 K | 6.7 lm/W | 95.8 lm/m | G | 4.3 lm/W | 61.4 lm/m | G | — | — | — |
| 2300 K | 7.4 lm/W | 106.3 lm/m | G | 4.8 lm/W | 68.8 lm/m | G | 4.1 lm/W | 58.4 lm/m | G |
| 2700 K | 8 lm/W | 115.2 lm/m | G | 5.1 lm/W | 73.3 lm/m | G | 4.1 lm/W | 58.4 lm/m | G |
| 3000 K | 8.4 lm/W | 121.2 lm/m | G | 5.6 lm/W | 80.8 lm/m | G | 4.6 lm/W | 65.9 lm/m | G |
| 3500 K | 8.5 lm/W | 122.7 lm/m | G | 5.7 lm/W | 82.3 lm/m | G | 4.8 lm/W | 68.8 lm/m | G |
| 4000 K | 8.7 lm/W | 125.7 lm/m | G | 5.9 lm/W | 85.3 lm/m | G | 4.9 lm/W | 70.3 lm/m | G |
| 5000 K | 8.7 lm/W | 125.7 lm/m | G | 5.9 lm/W | 85.3 lm/m | G | 4.8 lm/W | 69.6 lm/m | G |
| 6500 K | 8.4 lm/W | 121.2 lm/m | G | 5.6 lm/W | 80.8 lm/m | G | 4.7 lm/W | 67.5 lm/m | G |
Grade KE (3rd Tier) · 21W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1900 K | 6.4 lm/W | 133.4 lm/m | G | 4.1 lm/W | 85.4 lm/m | G | — | — | — |
| 2300 K | 7 lm/W | 148 lm/m | G | 4.6 lm/W | 95.9 lm/m | G | 3.9 lm/W | 81.3 lm/m | G |
| 2700 K | 7.6 lm/W | 160.5 lm/m | G | 4.9 lm/W | 102.1 lm/m | G | 3.9 lm/W | 81.3 lm/m | G |
| 3000 K | 8 lm/W | 168.8 lm/m | G | 5.4 lm/W | 112.5 lm/m | G | 4.4 lm/W | 91.7 lm/m | G |
| 3500 K | 8.1 lm/W | 170.9 lm/m | G | 5.5 lm/W | 114.6 lm/m | G | 4.6 lm/W | 95.9 lm/m | G |
| 4000 K | 8.3 lm/W | 175 lm/m | G | 5.7 lm/W | 118.8 lm/m | G | 4.7 lm/W | 97.9 lm/m | G |
| 5000 K | 8.3 lm/W | 175 lm/m | G | 5.7 lm/W | 118.8 lm/m | G | 4.6 lm/W | 97 lm/m | G |
| 6500 K | 8 lm/W | 168.8 lm/m | G | 5.4 lm/W | 112.5 lm/m | G | 4.5 lm/W | 94 lm/m | G |
Related models in this series
- 1212 Silicone Flexible Neon Light (#1212T-EE)
- Top Bend LED Neon Flex DL-T20D (#DL-T20D)
- 1616 Silicone Flexible Neon Light (#1616T-EE)
- Top Bend LED Neon Flex DL-SV-0513 (#DL-SV-0513)
- 2525 Flexible Linear Neon light (#1942)
- 1010 Silicone Flexible Neon Light (#1010T-EE)
- Top Bend LED Neon Flex DL-T0511A (#DL-T0511A)
- 20*20 Flexible Linear Neon Light (#16359)
See every model in Neon LED Strip Series or narrow to Top Bend. Compare wattage, lumen output and run length in the ProCalc parameter library, or request OEM/ODM pricing on the custom manufacturing page.
Frequently Asked Questions
What makes the 3015-GF Glare-free Neon Lights suitable for extended viewing?
These neon lights incorporate micro-prism structures or soft-light coatings to disperse light, eliminating glare and preventing visual fatigue during prolonged direct viewing, making them ideal for long-term stay scenarios.
Can these neon lights be customized for specific project designs?
Yes, their flexible design allows for customization of lines and patterns, enabling unique aesthetic integrations into various architectural and commercial lighting projects without compromising light quality.
Are these glare-free neon lights dimmable?
Yes, the 3015-GF Glare-free Neon Lights are fully dimmable, offering precise control over light intensity to create the desired ambiance for any B2B application.
What are the key specifications of #3015-GF?
16*10mm Glare-free Neon Lights 128LEDs/m | 10mm | 24V | 128LEDs | 62.5mm/cut | #3015-GF: 2835 LEDs, 128 LEDs/m, DC24V, 10mm FPCB, 3oz copper foil, 5~23W power, cut unit 8LEDs/62.5mm. Photometric files, wiring diagrams and test reports are available in the downloads block on this page.
Which LED driver and run length suit #3015-GF?
16*10mm Glare-free Neon Lights 128LEDs/m | 10mm | 24V | 128LEDs | 62.5mm/cut | #3015-GF is a constant-voltage DC24V product, so pair it with a CE or UL listed DC24V constant-voltage LED driver rated about 20% above the connected load. Maximum single run is 5m. 5m Single / 10m Dual Input power. Feeding from both ends or mid-feeding halves the copper distance and roughly quarters the voltage drop.
Engineering & selection guide
Bending limits, IP selection, voltage drop, cutting and the full buyer Q&A for this family are kept on the series page.
- LED neon flex selection guide — bend direction and radius, IP rating for facade, pool and wet areas, cutting and feed planning
- LED strip engineering selection handbook
