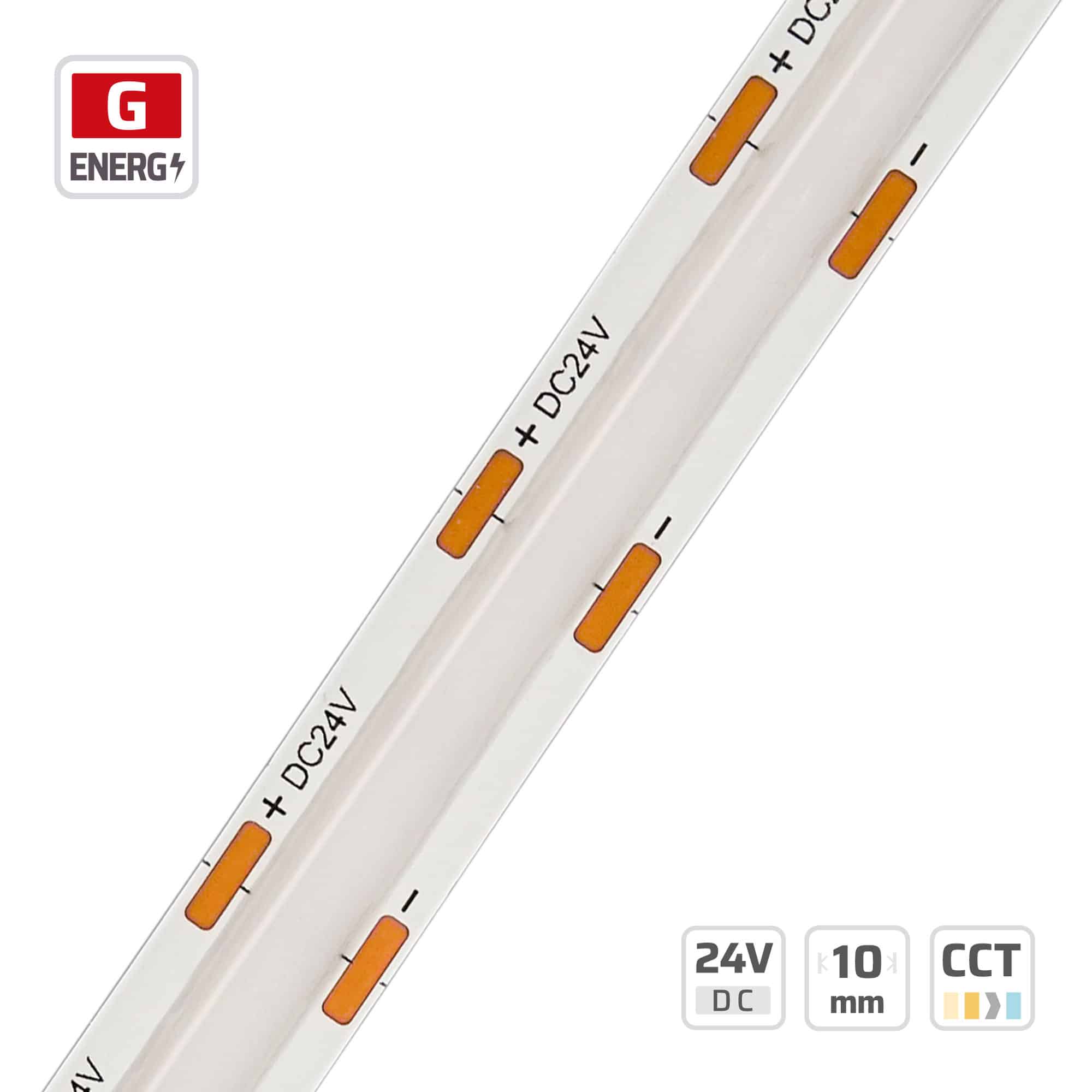

15m Ultra-Long SOB LED Strip Light (#14512)
10mm · 24V · 300LEDs · 20mm/cut
Model: 14512
Overview
The DENO LED 14512 Ultra-Long SOB LED Strip is a highly reliable, flexible lighting solution designed for demanding commercial and architectural applications. Featuring a thicker PCB for superior heat dissipation, it maintains consistent brightness over its continuous 15-meter length with a single-side power feed. Its special surface ensures uniform luminescence and anti-glare properties. With a customizable CCT range from 1800K to 7500K and high power up to 12W/m, this 24V...
Description
Continuous phosphor SOB LED strip light technology delivers dot-free, seamless illumination with a wide 160-degree beam angle across a 10mm board. Constant current 24V architecture enables continuous single-feed 15m runs, providing uniform cove lighting without intermediate power injection points. Built with heavy 3oz copper foil and 300 LEDs per meter, this strip offers precise 20mm cut intervals for exact field measurements. Fully dimmable linear circuitry operates reliably from -25°C to 40°C and supports a minimum bend diameter of 60mm during installation. DENO provides factory-direct OEM custom lengths, custom color temperatures, and tailored ingress protection ratings for wholesale project supply.
Specifications
| LED QTY | 300LEDS/m |
|---|---|
| PART NO | DL-FSOBA150V24-14512-* |
| SMD TYPE | SOB |
| CUTTABLE UNIT | 6LEDs/20mm |
| DIMMABLE | Yes |
| IP RATING | IP20 |
| LED PITCH | 3.333mm |
| PCB WIDTH | 10 |
| BEAM ANGLE | 160° |
| RUN LENGTH | 15m |
| COPPER FOIL | 3oz |
| ON OFF TIMES | 10000（test times） |
| POWER RANGE | 6~24W |
| CIRCUIT TYPE | C.C. |
| INPUT VOLTAGE | 24V |
| MIN BEND DIAMETER | Φ60mm |
| OPERATING TEMPERATURE | -25~40°C; Tc: 75°C (max) |
Applications
- Cove, wall-wash & perimeter lighting — Coves, recesses, wall-wash details and ceiling perimeters where a continuous, uniform line of light is required.
- Showroom & hospitality display lighting — Shelving, display cases, reception desks and signage backlighting in shops, showrooms and hospitality spaces.
- Kitchen & wardrobe under-cabinet lighting — Kitchen, wardrobe and furniture task lighting where the strip stays hidden and only the light is seen.
Recommended accessories & compatible parts
- DL-1003 — 19.1x8mm Surface Mount LED Channel — Dotless Aluminum Profile for 240 LEDs/m Strip: Accepts LED strips up to 10mm wide.
- DL-1103-1 — 16x13mm Surface Mount LED Channel — Aluminum Profile for 10mm LED Strip: Accepts LED strips up to 10mm wide.
- DL-1510 HX-F — 15x9.9mm Recessed LED Channel with Flange — Flush Mount Aluminum Profile: Accepts LED strips up to 10mm wide.
- DN-PSU-100 — 24V 100W Class-2 LED Driver · High Efficiency: Matches the 24V DC input of this strip; size the driver with at least 20% headroom over total load.
- DN-PSU-150 — 24V 150W Class-2 LED Driver · Premium: Matches the 24V DC input of this strip; size the driver with at least 20% headroom over total load.
- DN-PSU-60 — 24V 60W Class-2 LED Driver · Constant Voltage: Matches the 24V DC input of this strip; size the driver with at least 20% headroom over total load.
- V1 — 5-36VDC 1-Channel * 8A RF+Push Dimming Controller | V1: Matched by input voltage range and colour channels.
Request a quotation for #14512
DENO LED is a Shenzhen-based LED strip manufacturer with its own Foshan production base. Send the run length, voltage, CCT/CRI and IP rating you need and our engineering team replies with a specification sheet, wiring plan and price — OEM/ODM and fully custom builds included.
- Warranty: 5 years
- Lead time: standard boards: samples from 1 working day · custom: 3–5 working days · new FPCB: 1–3 weeks · production 1–2 weeks after sample approval
- Compliance: CE · UL · RoHS
- Bonding wire: 99.99% pure gold
- Copper foil: 99.9% pure copper FPCB
Photometric Performance — CCT × CRI Efficacy Matrix
Peak measured luminous efficacy: 87.1 lm/W at 4000K, Ra 90, ErP energy class F (Grade DL (2nd Tier) · 6W/m).
All values are measured at the stated power density and ambient 25 °C, reported as luminous efficacy in lumens per watt (lm/W), luminous flux per metre (lm/m) and the corresponding EU ErP (2019/2015) energy class.
Grade DL (2nd Tier) · 6W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | — | — | — | 65.8 lm/W | 394.9 lm/m | G | — | — | — |
| 2300 K | — | — | — | 73.3 lm/W | 439.9 lm/m | G | — | — | — |
| 2700 K | — | — | — | 79.4 lm/W | 476.1 lm/m | G | — | — | — |
| 3000 K | — | — | — | 83.5 lm/W | 501.1 lm/m | G | — | — | — |
| 3500 K | — | — | — | 85 lm/W | 509.9 lm/m | G | — | — | — |
| 4000 K | — | — | — | 87.1 lm/W | 522.4 lm/m | F | — | — | — |
| 5000 K | — | — | — | 87 lm/W | 521.8 lm/m | F | — | — | — |
| 6500 K | — | — | — | 83.4 lm/W | 500.5 lm/m | G | — | — | — |
Grade DL (2nd Tier) · 12W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | — | — | — | 63.1 lm/W | 757.2 lm/m | G | — | — | — |
| 2300 K | — | — | — | 70.3 lm/W | 843.5 lm/m | G | — | — | — |
| 2700 K | — | — | — | 76.1 lm/W | 913 lm/m | G | — | — | — |
| 3000 K | — | — | — | 80.1 lm/W | 960.9 lm/m | G | — | — | — |
| 3500 K | — | — | — | 81.5 lm/W | 977.7 lm/m | G | — | — | — |
| 4000 K | — | — | — | 83.5 lm/W | 1001.7 lm/m | G | — | — | — |
| 5000 K | — | — | — | 83.4 lm/W | 1000.5 lm/m | G | — | — | — |
| 6500 K | — | — | — | 80 lm/W | 959.7 lm/m | G | — | — | — |
Grade DL (2nd Tier) · 18W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | — | — | — | 60.5 lm/W | 1089 lm/m | G | — | — | — |
| 2300 K | — | — | — | 67.4 lm/W | 1213 lm/m | G | — | — | — |
| 2700 K | — | — | — | 72.9 lm/W | 1313 lm/m | G | — | — | — |
| 3000 K | — | — | — | 76.8 lm/W | 1381.9 lm/m | G | — | — | — |
| 3500 K | — | — | — | 78.1 lm/W | 1406 lm/m | G | — | — | — |
| 4000 K | — | — | — | 80 lm/W | 1440.5 lm/m | G | — | — | — |
| 5000 K | — | — | — | 79.9 lm/W | 1438.7 lm/m | G | — | — | — |
| 6500 K | — | — | — | 76.7 lm/W | 1380.2 lm/m | G | — | — | — |
Related models in this series
See every model in SOB LED Strip Series or narrow to Sob Ultra Long. Compare wattage, lumen output and run length in the ProCalc parameter library, or request OEM/ODM pricing on the custom manufacturing page.
Frequently Asked Questions
What are the benefits of the ultra-long 15m run for the 14512 SOB LED Strip?
The 15m ultra-long run capability significantly reduces installation time and labor costs by minimizing the number of power feeds and connections required for extensive linear lighting projects.
Can this SOB LED strip be dimmed, and what voltage does it require?
Yes, the 14512 SOB LED Strip is dimmable, offering flexible control over light intensity. It operates on a standard 24V input voltage, ensuring compatibility with common LED drivers.
What is the primary advantage of the special surface design for this product?
The special surface design provides highly uniform luminescence and anti-glare properties, making it ideal for low-clearance areas and reflective surfaces without visible light spots.
Is customization available for the CCT or power output of the 14512 SOB LED Strip?
Yes, DENO LED offers a wide CCT range from 1800K to 7500K, and customizable full-spectrum options. Special power configurations are also available to meet specific project requirements.
Is this SOB strip light also called FOB, S-COB or COB Pro strip light?
Yes. Model 14512 belongs to the DENO SOB (Spot on Board) family, which the market also calls FOB strip light, S-COB strip light or COB Pro strip light. All three names describe the same dot-free chip-on-board LED strip construction, so you can quote it under whichever term your project specification uses.
Engineering & selection guide
Bending limits, IP selection, voltage drop, cutting and the full buyer Q&A for this family are kept on the series page.
- Long Run SOB strips — Long Run COB LED Strip (SOB) — Buyer Questions
- LED strip engineering selection handbook
SOB is the upgraded generation of the COB LED strip
Every SOB board on this page starts from the classic COB recipe — one continuous phosphor line, zero visible dots — and rebuilds it with individually encapsulated, gold-wire-bonded packages soldered on thick copper of up to 105 µm or thicker. The result keeps the COB look while DENO has verified builds up to 24W/m at 24V DC (25 °C ambient, aluminum profile), with a standard binning target of SDCM ≤3; CRI, run length and cut unit are model-specific. For shorter, lower-load or cost-sensitive lines the classic COB range remains a practical choice — compare exact models under equal conditions.
