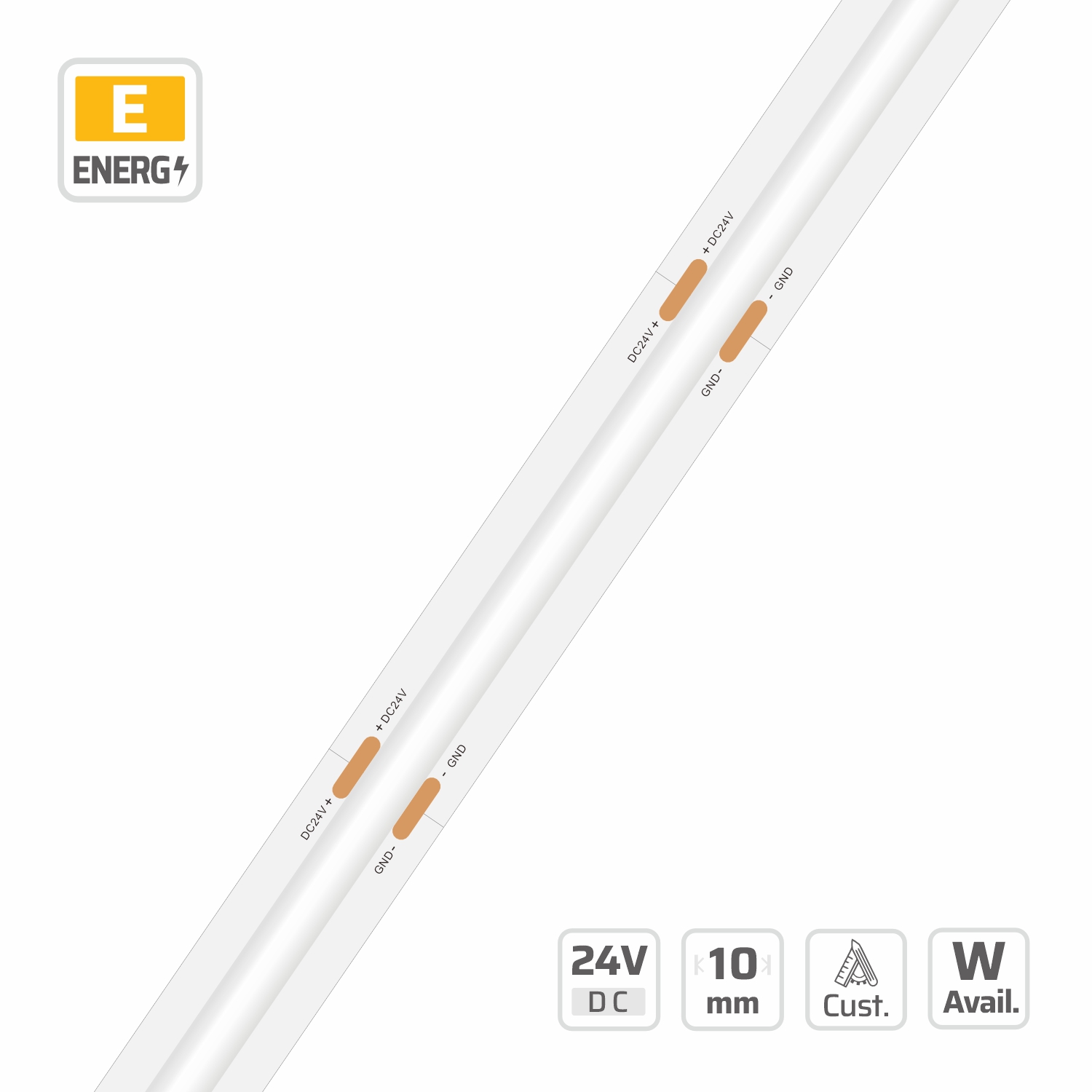

Single-Color SOB LED Strip Light (#11586)

10mm · 24V · 192LEDs · 41.66cut

Model: 11586

11586 Single-Color SOB LED Strip Light | 10mm | 24V | 192LEDs | 41.66cut | #11586 — 24V, cuttable every 41.7mm, 10mm FPCB width, SOB LEDs, 192 LEDs/m, IP20/IP65

Overview

The DENO LED 11586 Single-Color SOB LED Strip is a high-performance, flexible lighting solution designed for demanding B2B applications. Featuring a 10mm width, 24V input, and an impressive 192 LEDs/m, it delivers up to 2000lm/m with uniform luminescence. Its thicker PCB ensures excellent heat dissipation and consistent brightness. With a wide CCT range from 1800K to 7500K available, this strip is perfect for architectural lighting, cove lighting, and areas requiring anti-g...

Description

This single-color SOB LED strip light utilizes 192 LEDs per meter on a 10mm PCB to deliver smooth, dot-free architectural lighting without secondary diffusers. Heavy-duty 3oz copper foil and integrated chip protection ensure superior thermal dissipation and reliable continuous performance across the 24V constant-voltage circuit. High-efficiency SOB packaging delivers up to 2000 lumens per meter with customizable color temperatures ranging from 1800K to 7500K for diverse project requirements. Engineered with a wide 160-degree beam angle, fully dimmable operation, and a minimum bending diameter of 60mm for flexible curved surface installations. We offer factory-direct wholesale project supply with precise 41.66mm cutting increments and power configurations ranging from 2.8W to 24W per meter.

We use 99.99% gold wire, large-size chips, and thickened FPCB, backed by a 5-year warranty.

Specifications

CRI	Ra≥90
POWER (W/M)	18 W/m
LED QTY	192LEDs/m
PART NO	DL-FSOBA96V24-11586-*
SMD TYPE	SOB
CUTTABLE UNIT	8LEDs/41.66mm
DIMMABLE	Yes
IP RATING	IP20/IP65
LED PITCH	5.208mm
PCB WIDTH	10mm
BEAM ANGLE	160°
RUN LENGTH	5m
COPPER FOIL	3oz
ON OFF TIMES	10000（test times）
POWER RANGE	2.8~24W
CIRCUIT TYPE	C.V. (Resistor Based)
INPUT VOLTAGE	24V
LUMINOUS FLUX	1998–2196 lm/m
MIN BEND DIAMETER	Φ60mm
OPERATING TEMPERATURE	-25~40°C; Tc: 75°C (max)

Applications

Cove, wall-wash & perimeter lighting — Coves, recesses, wall-wash details and ceiling perimeters where a continuous, uniform line of light is required.
Showroom & hospitality display lighting — Shelving, display cases, reception desks and signage backlighting in shops, showrooms and hospitality spaces.
Kitchen & wardrobe under-cabinet lighting — Kitchen, wardrobe and furniture task lighting where the strip stays hidden and only the light is seen.

Recommended accessories & compatible parts

DL-1003 — 19.1x8mm Surface Mount LED Channel — Dotless Aluminum Profile for 240 LEDs/m Strip: Accepts LED strips up to 10mm wide.
DL-1103-1 — 16x13mm Surface Mount LED Channel — Aluminum Profile for 10mm LED Strip: Accepts LED strips up to 10mm wide.
DL-1510 HX-F — 15x9.9mm Recessed LED Channel with Flange — Flush Mount Aluminum Profile: Accepts LED strips up to 10mm wide.
DN-PSU-100 — 24V 100W Class-2 LED Driver · High Efficiency: Matches the 24V DC input of this strip; size the driver with at least 20% headroom over total load.
DN-PSU-150 — 24V 150W Class-2 LED Driver · Premium: Matches the 24V DC input of this strip; size the driver with at least 20% headroom over total load.
DN-PSU-60 — 24V 60W Class-2 LED Driver · Constant Voltage: Matches the 24V DC input of this strip; size the driver with at least 20% headroom over total load.
V1 — 5-36VDC 1-Channel * 8A RF+Push Dimming Controller | V1: Matched by input voltage range and colour channels.

Request a quotation for #11586

DENO LED is a Shenzhen-based LED strip manufacturer with its own Foshan production base. Send the run length, voltage, CCT/CRI and IP rating you need and our engineering team replies with a specification sheet, wiring plan and price — OEM/ODM and fully custom builds included.

Warranty: 5 years
Lead time: standard boards: samples from 1 working day · custom: 3–5 working days · new FPCB: 1–3 weeks · production 1–2 weeks after sample approval
Compliance: CE · UL · RoHS
Bonding wire: 99.99% pure gold
Copper foil: 99.9% pure copper FPCB

Contact DENO LED engineers · OEM / ODM capability

Photometric Performance — CCT × CRI Efficacy Matrix

Peak measured luminous efficacy: 174.9 lm/W at 4000K, Ra 80, ErP energy class C (Grade DN (1st Tier) · 12W/m).

All values are measured at the stated power density and ambient 25 °C, reported as luminous efficacy in lumens per watt (lm/W), luminous flux per metre (lm/m) and the corresponding EU ErP (2019/2015) energy class.

Grade DL (2nd Tier) · 12W/m

Grade DL (2nd Tier) · 12W/m — measured at 12 W/m: luminous efficacy (lm/W), luminous flux (lm/m) and ErP energy class per CCT and CRI grade.
CCT (K)	Ra 80 — Luminous Efficacy (lm/W)	Ra 80 — Luminous Flux (lm/m)	Ra 80 — ErP Energy Class	Ra 90 — Luminous Efficacy (lm/W)	Ra 90 — Luminous Flux (lm/m)	Ra 90 — ErP Energy Class	Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W)	Full Spectrum (Ra 95+) — Luminous Flux (lm/m)	Full Spectrum (Ra 95+) — ErP Energy Class
1800 K	126.3 lm/W	1515.6 lm/m	E	101.2 lm/W	1215 lm/m	F	—	—	—
2300 K	140.6 lm/W	1687.2 lm/m	D	112.7 lm/W	1352.7 lm/m	E	91.1 lm/W	1093.5 lm/m	F
2700 K	148.4 lm/W	1781.1 lm/m	D	122 lm/W	1464.2 lm/m	E	98.8 lm/W	1186.2 lm/m	F
3000 K	158.3 lm/W	1900.1 lm/m	D	128.4 lm/W	1540.6 lm/m	E	104.4 lm/W	1252.5 lm/m	F
3500 K	160.6 lm/W	1927.7 lm/m	C	130.7 lm/W	1568.2 lm/m	E	107.5 lm/W	1290.1 lm/m	F
4000 K	165.8 lm/W	1989 lm/m	C	133.8 lm/W	1605.8 lm/m	E	110.4 lm/W	1325.2 lm/m	E
5000 K	165.6 lm/W	1987.8 lm/m	C	133.7 lm/W	1604.5 lm/m	E	110.7 lm/W	1328.9 lm/m	E
6500 K	151.7 lm/W	1819.9 lm/m	D	128.3 lm/W	1539.4 lm/m	E	106.5 lm/W	1277.6 lm/m	F

Grade DL (2nd Tier) · 14.4W/m

Grade DL (2nd Tier) · 14.4W/m — measured at 14.4 W/m: luminous efficacy (lm/W), luminous flux (lm/m) and ErP energy class per CCT and CRI grade.
CCT (K)	Ra 80 — Luminous Efficacy (lm/W)	Ra 80 — Luminous Flux (lm/m)	Ra 80 — ErP Energy Class	Ra 90 — Luminous Efficacy (lm/W)	Ra 90 — Luminous Flux (lm/m)	Ra 90 — ErP Energy Class	Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W)	Full Spectrum (Ra 95+) — Luminous Flux (lm/m)	Full Spectrum (Ra 95+) — ErP Energy Class
1800 K	124.2 lm/W	1788.3 lm/m	E	99.6 lm/W	1433.6 lm/m	F	—	—	—
2300 K	138.2 lm/W	1990.8 lm/m	D	110.8 lm/W	1596.2 lm/m	E	89.6 lm/W	1290.2 lm/m	F
2700 K	145.9 lm/W	2101.6 lm/m	D	120 lm/W	1727.7 lm/m	E	97.2 lm/W	1399.6 lm/m	F
3000 K	155.7 lm/W	2242 lm/m	D	126.2 lm/W	1817.8 lm/m	E	102.6 lm/W	1477.9 lm/m	F
3500 K	158 lm/W	2274.5 lm/m	D	128.5 lm/W	1850.4 lm/m	E	105.7 lm/W	1522.3 lm/m	F
4000 K	163 lm/W	2346.9 lm/m	C	131.6 lm/W	1894.7 lm/m	E	108.6 lm/W	1563.6 lm/m	F
5000 K	162.9 lm/W	2345.5 lm/m	C	131.5 lm/W	1893.2 lm/m	E	108.9 lm/W	1568.1 lm/m	F
6500 K	149.1 lm/W	2147.4 lm/m	D	126.1 lm/W	1816.4 lm/m	E	104.7 lm/W	1507.5 lm/m	F

Grade DL (2nd Tier) · 18W/m

Grade DL (2nd Tier) · 18W/m — measured at 18 W/m: luminous efficacy (lm/W), luminous flux (lm/m) and ErP energy class per CCT and CRI grade.
CCT (K)	Ra 80 — Luminous Efficacy (lm/W)	Ra 80 — Luminous Flux (lm/m)	Ra 80 — ErP Energy Class	Ra 90 — Luminous Efficacy (lm/W)	Ra 90 — Luminous Flux (lm/m)	Ra 90 — ErP Energy Class	Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W)	Full Spectrum (Ra 95+) — Luminous Flux (lm/m)	Full Spectrum (Ra 95+) — ErP Energy Class
1800 K	121.1 lm/W	2179.5 lm/m	E	97.1 lm/W	1747.2 lm/m	F	—	—	—
2300 K	134.8 lm/W	2426.3 lm/m	E	108.1 lm/W	1945.4 lm/m	F	87.4 lm/W	1572.5 lm/m	F
2700 K	142.3 lm/W	2561.4 lm/m	D	117 lm/W	2105.7 lm/m	E	94.8 lm/W	1705.8 lm/m	F
3000 K	151.8 lm/W	2732.5 lm/m	D	123.1 lm/W	2215.6 lm/m	E	100.1 lm/W	1801.3 lm/m	F
3500 K	154 lm/W	2772.1 lm/m	D	125.3 lm/W	2255.2 lm/m	E	103.1 lm/W	1855.3 lm/m	F
4000 K	158.9 lm/W	2860.4 lm/m	D	128.3 lm/W	2309.2 lm/m	E	105.9 lm/W	1905.7 lm/m	F
5000 K	158.8 lm/W	2858.6 lm/m	D	128.2 lm/W	2307.4 lm/m	E	106.2 lm/W	1911.1 lm/m	F
6500 K	145.4 lm/W	2617.2 lm/m	D	123 lm/W	2213.8 lm/m	E	102.1 lm/W	1837.3 lm/m	F

Grade DN (1st Tier) · 12W/m

Grade DN (1st Tier) · 12W/m — measured at 12 W/m: luminous efficacy (lm/W), luminous flux (lm/m) and ErP energy class per CCT and CRI grade.
CCT (K)	Ra 80 — Luminous Efficacy (lm/W)	Ra 80 — Luminous Flux (lm/m)	Ra 80 — ErP Energy Class	Ra 90 — Luminous Efficacy (lm/W)	Ra 90 — Luminous Flux (lm/m)	Ra 90 — ErP Energy Class	Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W)	Full Spectrum (Ra 95+) — Luminous Flux (lm/m)	Full Spectrum (Ra 95+) — ErP Energy Class
1800 K	137 lm/W	1644.6 lm/m	E	115.4 lm/W	1385.3 lm/m	F	—	—	—
2300 K	149.5 lm/W	1793.6 lm/m	D	128.8 lm/W	1545.6 lm/m	E	104.1 lm/W	1248.8 lm/m	F
2700 K	161.1 lm/W	1932.7 lm/m	D	139.4 lm/W	1673.4 lm/m	E	113 lm/W	1356.5 lm/m	F
3000 K	169.2 lm/W	2030.4 lm/m	D	147.2 lm/W	1766.1 lm/m	D	119.7 lm/W	1436.7 lm/m	E
3500 K	171.7 lm/W	2060.4 lm/m	D	150.4 lm/W	1804.9 lm/m	D	123.8 lm/W	1485.5 lm/m	E
4000 K	174.9 lm/W	2099.3 lm/m	C	151.2 lm/W	1814.9 lm/m	D	124.8 lm/W	1498 lm/m	E
5000 K	174.7 lm/W	2096.7 lm/m	C	152.2 lm/W	1826.2 lm/m	D	126 lm/W	1511.8 lm/m	E
6500 K	167.4 lm/W	2009.1 lm/m	D	145.4 lm/W	1744.8 lm/m	E	120.8 lm/W	1449.2 lm/m	E

Grade DN (1st Tier) · 14.4W/m

Grade DN (1st Tier) · 14.4W/m — measured at 14.4 W/m: luminous efficacy (lm/W), luminous flux (lm/m) and ErP energy class per CCT and CRI grade.
CCT (K)	Ra 80 — Luminous Efficacy (lm/W)	Ra 80 — Luminous Flux (lm/m)	Ra 80 — ErP Energy Class	Ra 90 — Luminous Efficacy (lm/W)	Ra 90 — Luminous Flux (lm/m)	Ra 90 — ErP Energy Class	Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W)	Full Spectrum (Ra 95+) — Luminous Flux (lm/m)	Full Spectrum (Ra 95+) — ErP Energy Class
1800 K	134.8 lm/W	1940.5 lm/m	E	113.5 lm/W	1634.6 lm/m	F	—	—	—
2300 K	147 lm/W	2116.4 lm/m	D	126.6 lm/W	1823.8 lm/m	E	102.3 lm/W	1473.5 lm/m	F
2700 K	158.4 lm/W	2280.4 lm/m	D	137.1 lm/W	1974.5 lm/m	E	111.2 lm/W	1600.6 lm/m	F
3000 K	166.4 lm/W	2395.7 lm/m	D	144.7 lm/W	2083.9 lm/m	E	117.7 lm/W	1695.2 lm/m	F
3500 K	168.8 lm/W	2431.2 lm/m	D	147.9 lm/W	2129.7 lm/m	D	121.7 lm/W	1752.8 lm/m	E
4000 K	172 lm/W	2477 lm/m	D	148.7 lm/W	2141.5 lm/m	D	122.7 lm/W	1767.6 lm/m	E
5000 K	171.8 lm/W	2474 lm/m	D	149.6 lm/W	2154.8 lm/m	D	123.9 lm/W	1783.8 lm/m	E
6500 K	164.6 lm/W	2370.6 lm/m	D	143 lm/W	2058.7 lm/m	E	118.7 lm/W	1710 lm/m	F

Grade DN (1st Tier) · 18W/m

Grade DN (1st Tier) · 18W/m — measured at 18 W/m: luminous efficacy (lm/W), luminous flux (lm/m) and ErP energy class per CCT and CRI grade.
CCT (K)	Ra 80 — Luminous Efficacy (lm/W)	Ra 80 — Luminous Flux (lm/m)	Ra 80 — ErP Energy Class	Ra 90 — Luminous Efficacy (lm/W)	Ra 90 — Luminous Flux (lm/m)	Ra 90 — ErP Energy Class	Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W)	Full Spectrum (Ra 95+) — Luminous Flux (lm/m)	Full Spectrum (Ra 95+) — ErP Energy Class
1800 K	131.4 lm/W	2365.1 lm/m	E	110.7 lm/W	1992.2 lm/m	F	—	—	—
2300 K	143.3 lm/W	2579.4 lm/m	E	123.5 lm/W	2222.8 lm/m	E	99.8 lm/W	1795.9 lm/m	F
2700 K	154.4 lm/W	2779.4 lm/m	D	133.7 lm/W	2406.5 lm/m	E	108.4 lm/W	1950.8 lm/m	F
3000 K	162.2 lm/W	2919.9 lm/m	D	141.1 lm/W	2539.8 lm/m	E	114.8 lm/W	2066.1 lm/m	F
3500 K	164.6 lm/W	2963.1 lm/m	D	144.2 lm/W	2595.6 lm/m	E	118.7 lm/W	2136.3 lm/m	F
4000 K	167.7 lm/W	3018.9 lm/m	D	145 lm/W	2610 lm/m	E	119.7 lm/W	2154.3 lm/m	E
5000 K	167.5 lm/W	3015.3 lm/m	D	145.9 lm/W	2626.2 lm/m	D	120.8 lm/W	2174.1 lm/m	E
6500 K	160.5 lm/W	2889.2 lm/m	D	139.4 lm/W	2509.2 lm/m	E	115.8 lm/W	2084.1 lm/m	F

Grade KE (3rd Tier) · 12W/m

Grade KE (3rd Tier) · 12W/m — measured at 12 W/m: luminous efficacy (lm/W), luminous flux (lm/m) and ErP energy class per CCT and CRI grade.
CCT (K)	Ra 80 — Luminous Efficacy (lm/W)	Ra 80 — Luminous Flux (lm/m)	Ra 80 — ErP Energy Class	Ra 90 — Luminous Efficacy (lm/W)	Ra 90 — Luminous Flux (lm/m)	Ra 90 — ErP Energy Class	Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W)	Full Spectrum (Ra 95+) — Luminous Flux (lm/m)	Full Spectrum (Ra 95+) — ErP Energy Class
1900 K	105.2 lm/W	1262.6 lm/m	F	84.1 lm/W	1009.5 lm/m	G	—	—	—
2300 K	117.3 lm/W	1407.9 lm/m	E	93.7 lm/W	1124.8 lm/m	F	75.8 lm/W	909.3 lm/m	G
2700 K	126.4 lm/W	1516.8 lm/m	E	101.8 lm/W	1221.2 lm/m	F	82.5 lm/W	989.5 lm/m	G
3000 K	132.8 lm/W	1593.2 lm/m	E	107.5 lm/W	1290.1 lm/m	F	87.5 lm/W	1049.6 lm/m	F
3500 K	134.8 lm/W	1617 lm/m	E	109.6 lm/W	1315.2 lm/m	F	90.2 lm/W	1082.2 lm/m	F
4000 K	138.7 lm/W	1664.6 lm/m	D	112 lm/W	1344 lm/m	E	92.5 lm/W	1109.7 lm/m	F
5000 K	138.5 lm/W	1662.1 lm/m	D	111.9 lm/W	1342.7 lm/m	E	92.7 lm/W	1112.3 lm/m	F
6500 K	132.8 lm/W	1593.2 lm/m	E	107.5 lm/W	1290.1 lm/m	F	89.2 lm/W	1070.9 lm/m	F

Grade KE (3rd Tier) · 14.4W/m

Grade KE (3rd Tier) · 14.4W/m — measured at 14.4 W/m: luminous efficacy (lm/W), luminous flux (lm/m) and ErP energy class per CCT and CRI grade.
CCT (K)	Ra 80 — Luminous Efficacy (lm/W)	Ra 80 — Luminous Flux (lm/m)	Ra 80 — ErP Energy Class	Ra 90 — Luminous Efficacy (lm/W)	Ra 90 — Luminous Flux (lm/m)	Ra 90 — ErP Energy Class	Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W)	Full Spectrum (Ra 95+) — Luminous Flux (lm/m)	Full Spectrum (Ra 95+) — ErP Energy Class
1900 K	103.5 lm/W	1489.7 lm/m	F	82.7 lm/W	1191.2 lm/m	G	—	—	—
2300 K	115.4 lm/W	1661.2 lm/m	E	92.2 lm/W	1327.2 lm/m	F	74.5 lm/W	1073 lm/m	G
2700 K	124.3 lm/W	1789.8 lm/m	E	100.1 lm/W	1441 lm/m	F	81.1 lm/W	1167.6 lm/m	G
3000 K	130.5 lm/W	1879.9 lm/m	E	105.7 lm/W	1522.3 lm/m	F	86 lm/W	1238.5 lm/m	F
3500 K	132.5 lm/W	1908 lm/m	E	107.8 lm/W	1551.8 lm/m	F	88.7 lm/W	1276.9 lm/m	F
4000 K	136.4 lm/W	1964.2 lm/m	D	110.1 lm/W	1585.8 lm/m	E	90.9 lm/W	1309.4 lm/m	F
5000 K	136.2 lm/W	1961.2 lm/m	D	110 lm/W	1584.3 lm/m	E	91.1 lm/W	1312.4 lm/m	F
6500 K	130.5 lm/W	1879.9 lm/m	E	105.7 lm/W	1522.3 lm/m	F	87.8 lm/W	1263.6 lm/m	F

Grade KE (3rd Tier) · 18W/m

Grade KE (3rd Tier) · 18W/m — measured at 18 W/m: luminous efficacy (lm/W), luminous flux (lm/m) and ErP energy class per CCT and CRI grade.
CCT (K)	Ra 80 — Luminous Efficacy (lm/W)	Ra 80 — Luminous Flux (lm/m)	Ra 80 — ErP Energy Class	Ra 90 — Luminous Efficacy (lm/W)	Ra 90 — Luminous Flux (lm/m)	Ra 90 — ErP Energy Class	Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W)	Full Spectrum (Ra 95+) — Luminous Flux (lm/m)	Full Spectrum (Ra 95+) — ErP Energy Class
1900 K	100.9 lm/W	1815.7 lm/m	F	80.7 lm/W	1451.8 lm/m	G	—	—	—
2300 K	112.5 lm/W	2024.6 lm/m	E	89.9 lm/W	1617.5 lm/m	F	72.7 lm/W	1307.7 lm/m	G
2700 K	121.2 lm/W	2181.3 lm/m	E	97.6 lm/W	1756.2 lm/m	F	79.1 lm/W	1423 lm/m	G
3000 K	127.3 lm/W	2291.2 lm/m	E	103.1 lm/W	1855.3 lm/m	F	83.9 lm/W	1509.5 lm/m	G
3500 K	129.2 lm/W	2325.4 lm/m	E	105.1 lm/W	1891.3 lm/m	F	86.5 lm/W	1556.3 lm/m	F
4000 K	133 lm/W	2393.9 lm/m	E	107.4 lm/W	1932.8 lm/m	F	88.7 lm/W	1595.9 lm/m	F
5000 K	132.8 lm/W	2390.3 lm/m	E	107.3 lm/W	1931 lm/m	F	88.9 lm/W	1599.5 lm/m	F
6500 K	127.3 lm/W	2291.2 lm/m	E	103.1 lm/W	1855.3 lm/m	F	85.6 lm/W	1540.1 lm/m	F

Related models in this series

See every model in SOB LED Strip Series or narrow to Sob Classic. Compare wattage, lumen output and run length in the ProCalc parameter library, or request OEM/ODM pricing on the custom manufacturing page.

Frequently Asked Questions

What is the primary benefit of the SOB technology in this LED strip?

SOB (System-on-Board) technology in model 11586 offers higher bending reliability and uniform, anti-glare luminescence, ideal for tight spaces and reflective surfaces.

Can this 24V SOB LED Strip be cut to specific lengths for custom installations?

Yes, this 24V SOB LED Strip has an 8-LEDs/41.66mm cuttable interval, allowing for flexible customization to fit various project requirements.

What power ranges are supported by the 11586 Single-Color SOB LED Strip?

The 11586 supports a power range of 2.8W to 20W, providing versatility for different brightness and efficiency needs in B2B applications.

Is customizability available for CCT or special power requirements?

Yes, DENO LED offers customizable full spectrum and a wide CCT range (1800K-7500K) or special power options to meet specific project demands.

Is this SOB strip light also called FOB, S-COB or COB Pro strip light?

Yes. Model 11586 belongs to the DENO SOB (Spot on Board) family, which the market also calls FOB strip light, S-COB strip light or COB Pro strip light. All three names describe the same dot-free chip-on-board LED strip construction, so you can quote it under whichever term your project specification uses.
