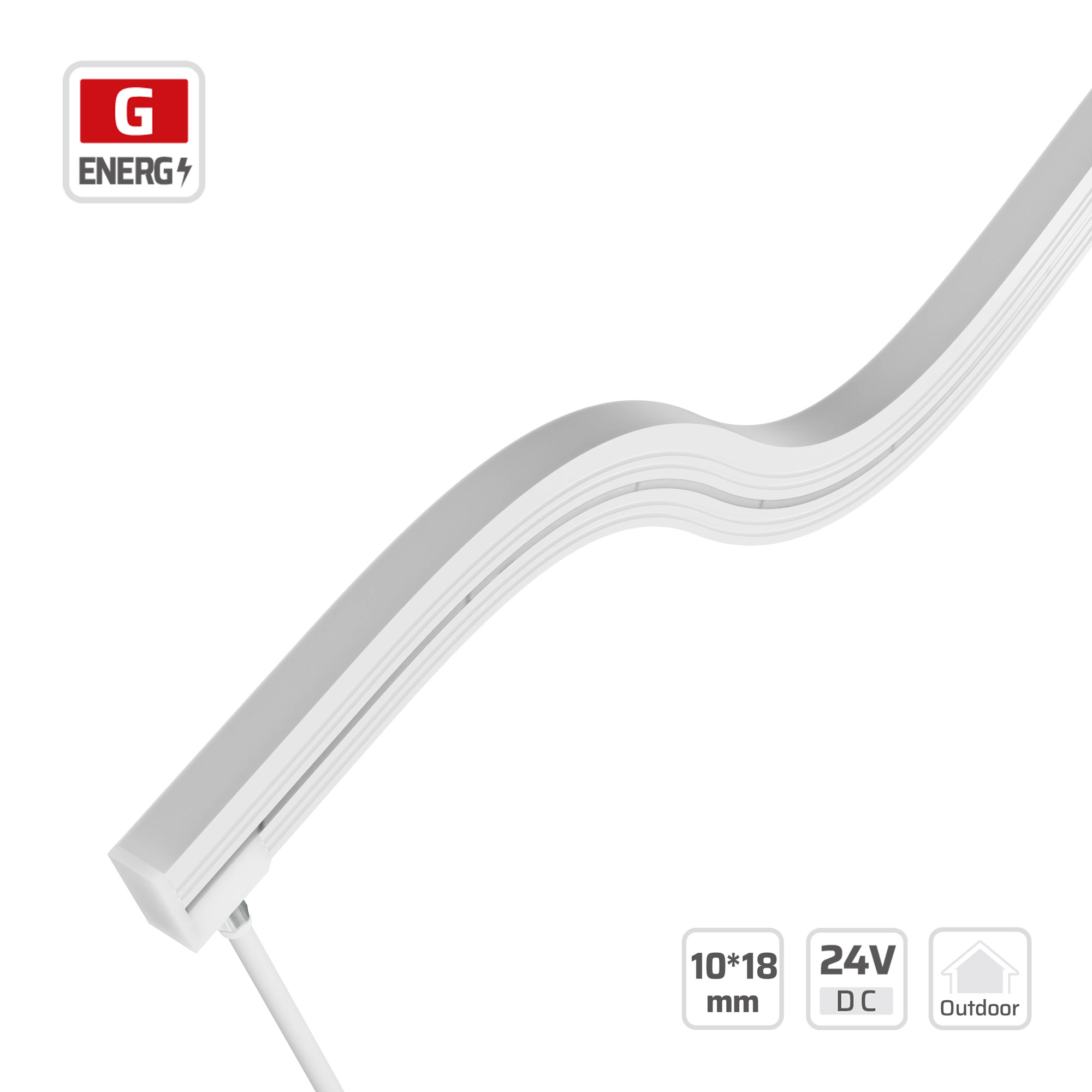

1018 Silicone Flexible Neon Light (#1018S-EE)
24V · 120LEDs · 50mm/cut · 10*18mm
Model: 1018S-EE
Overview
The DENO LED 1018S-EE Silicone Flexible Neon Light is a miniaturized 10x18mm design, offering exceptional flexibility for intricate architectural contours and diverse lighting designs. Fully encapsulated, it provides superior resistance to salt, water, UV, abrasion, and chemical corrosion, making it ideal for both indoor and outdoor B2B applications. Featuring high-performance silicone that ensures color stability and longevity, this 24V LED strip is dimmable with a 50mm cu...
Description
Engineered with a 10x18mm silicone profile, this flexible neon light utilizes 2835 SMD LEDs to deliver uniform, dot-free illumination across a 120-degree beam angle. Operating on a 24V constant voltage circuit, this dimmable LED neon flex features precise 50mm cutting increments to streamline wholesale project supply installations. The premium silicone extrusion resists salt, water, UV exposure, abrasion, and chemical corrosion, preventing material aging across challenging interior and exterior environments. High multi-angle flexibility allows versatile contouring for architectural lighting, facade accents, commercial displays, and decorative landscape applications. Built with a heavy-duty 3oz copper PCB, these systems support OEM custom lengths up to 5 meters for reliable commercial performance.
Specifications
| LED QTY | 120 |
|---|---|
| PART NO | DL-NF28C60V24-1018S-EE-* |
| SMD TYPE | 2835 |
| CUTTABLE UNIT | 6LEDs/50mm |
| DIMMABLE | Yes |
| IP RATING | IP67 |
| LED PITCH | 8.334mm |
| LIFESPAN | 30000 |
| PCB WIDTH | 10mm |
| WARRANTY | 5 Years |
| BEAM ANGLE | 120° |
| RUN LENGTH | 5m |
| COPPER FOIL | 3oz |
| POWER RANGE | 2.8~28.8W |
| CIRCUIT TYPE | C.V. |
| INPUT VOLTAGE | DC 24V |
| OPERATING TEMPERATURE | -25~40°C;Tc：75°C（max） |
Applications
- Channel letters & logo signage — Silicone neon holds a continuous glow line for logos, channel letters and wayfinding without visible LED dots.
- Facade & perimeter outlining — Flexible neon bends around building edges, balconies and columns to trace architecture at night.
- Bar fronts, headboards & stair nosings — Used along stair nosings, headboards and bar fronts where a soft, uniform tube of light is wanted instead of a hard strip.
- Facade, landscape & bathroom runs (IP67) — IP67 sealing suits facades, landscape lighting, bathrooms and other locations exposed to rain, splashing or wash-down cleaning.
Request a quotation for #1018S-EE
DENO LED is a Shenzhen-based LED strip manufacturer with its own Foshan production base. Send the run length, voltage, CCT/CRI and IP rating you need and our engineering team replies with a specification sheet, wiring plan and price — OEM/ODM and fully custom builds included.
- Warranty: 5 years
- Lead time: standard boards: samples from 1 working day · custom: 3–5 working days · new FPCB: 1–3 weeks · production 1–2 weeks after sample approval
- Compliance: CE · UL · RoHS
- Bonding wire: 99.99% pure gold
- Copper foil: 99.9% pure copper FPCB
Photometric Performance — CCT × CRI Efficacy Matrix
Peak measured luminous efficacy: 52.7 lm/W at 4000K, Ra 80, ErP energy class G (Grade DN (1st Tier) · 12W/m).
All values are measured at the stated power density and ambient 25 °C, reported as luminous efficacy in lumens per watt (lm/W), luminous flux per metre (lm/m) and the corresponding EU ErP (2019/2015) energy class.
Grade DL (2nd Tier) · 12W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | 26.1 lm/W | 313.8 lm/m | G | 20.1 lm/W | 241.6 lm/m | G | — | — | — |
| 2300 K | 29.1 lm/W | 348.6 lm/m | G | 22.3 lm/W | 268.1 lm/m | G | 18.2 lm/W | 218.5 lm/m | G |
| 2700 K | 28.7 lm/W | 343.8 lm/m | G | 24.2 lm/W | 290.9 lm/m | G | 19.6 lm/W | 235.6 lm/m | G |
| 3000 K | 32.7 lm/W | 391.9 lm/m | G | 25.4 lm/W | 305.4 lm/m | G | 20.7 lm/W | 248.9 lm/m | G |
| 3500 K | 33.4 lm/W | 400.3 lm/m | G | 25.9 lm/W | 311.4 lm/m | G | 21.3 lm/W | 256.1 lm/m | G |
| 4000 K | 34.4 lm/W | 412.4 lm/m | G | 26.5 lm/W | 318.6 lm/m | G | 21.9 lm/W | 263.3 lm/m | G |
| 5000 K | 34.4 lm/W | 412.4 lm/m | G | 26.5 lm/W | 318.6 lm/m | G | 21.7 lm/W | 260.6 lm/m | G |
| 6500 K | 30.5 lm/W | 365.5 lm/m | G | 25.4 lm/W | 305.4 lm/m | G | 21.1 lm/W | 252.7 lm/m | G |
Grade DL (2nd Tier) · 14.4W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | 25.7 lm/W | 370.2 lm/m | G | 19.8 lm/W | 285.1 lm/m | G | — | — | — |
| 2300 K | 28.6 lm/W | 411.4 lm/m | G | 22 lm/W | 316.3 lm/m | G | 17.9 lm/W | 257.8 lm/m | G |
| 2700 K | 28.2 lm/W | 405.7 lm/m | G | 23.8 lm/W | 343.3 lm/m | G | 19.3 lm/W | 278 lm/m | G |
| 3000 K | 32.1 lm/W | 462.4 lm/m | G | 25 lm/W | 360.3 lm/m | G | 20.4 lm/W | 293.6 lm/m | G |
| 3500 K | 32.8 lm/W | 472.4 lm/m | G | 25.5 lm/W | 367.4 lm/m | G | 21 lm/W | 302.1 lm/m | G |
| 4000 K | 33.8 lm/W | 486.6 lm/m | G | 26.1 lm/W | 375.9 lm/m | G | 21.6 lm/W | 310.7 lm/m | G |
| 5000 K | 33.8 lm/W | 486.6 lm/m | G | 26.1 lm/W | 375.9 lm/m | G | 21.4 lm/W | 307.5 lm/m | G |
| 6500 K | 29.9 lm/W | 431.2 lm/m | G | 25 lm/W | 360.3 lm/m | G | 20.7 lm/W | 298.2 lm/m | G |
Grade DL (2nd Tier) · 19.2W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | 24.9 lm/W | 477.3 lm/m | G | 19.1 lm/W | 367.6 lm/m | G | — | — | — |
| 2300 K | 27.6 lm/W | 530.3 lm/m | G | 21.2 lm/W | 407.8 lm/m | G | 17.3 lm/W | 332.4 lm/m | G |
| 2700 K | 27.2 lm/W | 523 lm/m | G | 23 lm/W | 442.5 lm/m | G | 18.7 lm/W | 358.4 lm/m | G |
| 3000 K | 31 lm/W | 596.1 lm/m | G | 24.2 lm/W | 464.5 lm/m | G | 19.7 lm/W | 378.5 lm/m | G |
| 3500 K | 31.7 lm/W | 608.9 lm/m | G | 24.7 lm/W | 473.6 lm/m | G | 20.3 lm/W | 389.5 lm/m | G |
| 4000 K | 32.7 lm/W | 627.2 lm/m | G | 25.2 lm/W | 484.6 lm/m | G | 20.9 lm/W | 400.5 lm/m | G |
| 5000 K | 32.7 lm/W | 627.2 lm/m | G | 25.2 lm/W | 484.6 lm/m | G | 20.6 lm/W | 396.5 lm/m | G |
| 6500 K | 29 lm/W | 555.9 lm/m | G | 24.2 lm/W | 464.5 lm/m | G | 20 lm/W | 384.5 lm/m | G |
Grade DN (1st Tier) · 12W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | 41.3 lm/W | 495.3 lm/m | G | 34 lm/W | 407.5 lm/m | G | — | — | — |
| 2300 K | 45 lm/W | 539.8 lm/m | G | 38 lm/W | 455.6 lm/m | G | 30.6 lm/W | 367.2 lm/m | G |
| 2700 K | 48.5 lm/W | 581.9 lm/m | G | 41 lm/W | 491.7 lm/m | G | 33.3 lm/W | 399.1 lm/m | G |
| 3000 K | 50.9 lm/W | 610.7 lm/m | G | 43.5 lm/W | 521.8 lm/m | G | 35.4 lm/W | 424.4 lm/m | G |
| 3500 K | 51.7 lm/W | 620.3 lm/m | G | 44.5 lm/W | 533.8 lm/m | G | 36.6 lm/W | 438.8 lm/m | G |
| 4000 K | 52.7 lm/W | 632.4 lm/m | G | 44.7 lm/W | 536.2 lm/m | G | 36.9 lm/W | 442.4 lm/m | G |
| 5000 K | 52.6 lm/W | 631.2 lm/m | G | 45 lm/W | 539.8 lm/m | G | 36.5 lm/W | 438 lm/m | G |
| 6500 K | 50.4 lm/W | 604.7 lm/m | G | 43 lm/W | 515.7 lm/m | G | 35.4 lm/W | 424.7 lm/m | G |
Grade DN (1st Tier) · 14.4W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | 40.6 lm/W | 584.4 lm/m | G | 33.4 lm/W | 480.9 lm/m | G | — | — | — |
| 2300 K | 44.2 lm/W | 636.9 lm/m | G | 37.3 lm/W | 537.6 lm/m | G | 30.1 lm/W | 433.3 lm/m | G |
| 2700 K | 47.7 lm/W | 686.6 lm/m | G | 40.3 lm/W | 580.2 lm/m | G | 32.7 lm/W | 470.9 lm/m | G |
| 3000 K | 50 lm/W | 720.6 lm/m | G | 42.8 lm/W | 615.6 lm/m | G | 34.8 lm/W | 500.7 lm/m | G |
| 3500 K | 50.8 lm/W | 732 lm/m | G | 43.7 lm/W | 629.8 lm/m | G | 36 lm/W | 517.8 lm/m | G |
| 4000 K | 51.8 lm/W | 746.1 lm/m | G | 43.9 lm/W | 632.7 lm/m | G | 36.3 lm/W | 522 lm/m | G |
| 5000 K | 51.7 lm/W | 744.7 lm/m | G | 44.2 lm/W | 636.9 lm/m | G | 35.9 lm/W | 516.8 lm/m | G |
| 6500 K | 49.5 lm/W | 713.5 lm/m | G | 42.3 lm/W | 608.5 lm/m | G | 34.8 lm/W | 501.1 lm/m | G |
Grade DN (1st Tier) · 19.2W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | 39.2 lm/W | 753.4 lm/m | G | 32.3 lm/W | 619.9 lm/m | G | — | — | — |
| 2300 K | 42.8 lm/W | 821.1 lm/m | G | 36.1 lm/W | 693.1 lm/m | G | 29.1 lm/W | 558.5 lm/m | G |
| 2700 K | 46.1 lm/W | 885.1 lm/m | G | 39 lm/W | 747.9 lm/m | G | 31.6 lm/W | 607.1 lm/m | G |
| 3000 K | 48.4 lm/W | 929 lm/m | G | 41.3 lm/W | 793.6 lm/m | G | 33.6 lm/W | 645.5 lm/m | G |
| 3500 K | 49.1 lm/W | 943.6 lm/m | G | 42.3 lm/W | 811.9 lm/m | G | 34.8 lm/W | 667.5 lm/m | G |
| 4000 K | 50.1 lm/W | 961.9 lm/m | G | 42.5 lm/W | 815.6 lm/m | G | 35 lm/W | 672.9 lm/m | G |
| 5000 K | 50 lm/W | 960 lm/m | G | 42.8 lm/W | 821.1 lm/m | G | 34.7 lm/W | 666.2 lm/m | G |
| 6500 K | 47.9 lm/W | 919.8 lm/m | G | 40.9 lm/W | 784.5 lm/m | G | 33.6 lm/W | 646 lm/m | G |
Grade KE (3rd Tier) · 12W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1900 K | 6.4 lm/W | 76.9 lm/m | G | 4.1 lm/W | 49.3 lm/m | G | — | — | — |
| 2300 K | 7.1 lm/W | 85.4 lm/m | G | 4.6 lm/W | 55.3 lm/m | G | 3.9 lm/W | 46.9 lm/m | G |
| 2700 K | 7.7 lm/W | 92.6 lm/m | G | 4.9 lm/W | 58.9 lm/m | G | 3.9 lm/W | 46.9 lm/m | G |
| 3000 K | 8.1 lm/W | 97.4 lm/m | G | 5.4 lm/W | 64.9 lm/m | G | 4.4 lm/W | 52.9 lm/m | G |
| 3500 K | 8.2 lm/W | 98.6 lm/m | G | 5.5 lm/W | 66.1 lm/m | G | 4.6 lm/W | 55.3 lm/m | G |
| 4000 K | 8.4 lm/W | 101 lm/m | G | 5.7 lm/W | 68.5 lm/m | G | 4.7 lm/W | 56.5 lm/m | G |
| 5000 K | 8.4 lm/W | 101 lm/m | G | 5.7 lm/W | 68.5 lm/m | G | 4.7 lm/W | 55.9 lm/m | G |
| 6500 K | 8.1 lm/W | 97.4 lm/m | G | 5.4 lm/W | 64.9 lm/m | G | 4.5 lm/W | 54.2 lm/m | G |
Grade KE (3rd Tier) · 14.4W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1900 K | 6.3 lm/W | 90.8 lm/m | G | 4 lm/W | 58.2 lm/m | G | — | — | — |
| 2300 K | 7 lm/W | 100.7 lm/m | G | 4.5 lm/W | 65.3 lm/m | G | 3.8 lm/W | 55.3 lm/m | G |
| 2700 K | 7.6 lm/W | 109.2 lm/m | G | 4.8 lm/W | 69.5 lm/m | G | 3.8 lm/W | 55.3 lm/m | G |
| 3000 K | 8 lm/W | 114.9 lm/m | G | 5.3 lm/W | 76.6 lm/m | G | 4.3 lm/W | 62.4 lm/m | G |
| 3500 K | 8.1 lm/W | 116.3 lm/m | G | 5.4 lm/W | 78 lm/m | G | 4.5 lm/W | 65.3 lm/m | G |
| 4000 K | 8.3 lm/W | 119.2 lm/m | G | 5.6 lm/W | 80.9 lm/m | G | 4.6 lm/W | 66.7 lm/m | G |
| 5000 K | 8.3 lm/W | 119.2 lm/m | G | 5.6 lm/W | 80.9 lm/m | G | 4.6 lm/W | 66 lm/m | G |
| 6500 K | 8 lm/W | 114.9 lm/m | G | 5.3 lm/W | 76.6 lm/m | G | 4.4 lm/W | 64 lm/m | G |
Grade KE (3rd Tier) · 19.2W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1900 K | 6.1 lm/W | 117 lm/m | G | 3.9 lm/W | 75 lm/m | G | — | — | — |
| 2300 K | 6.8 lm/W | 129.8 lm/m | G | 4.4 lm/W | 84.1 lm/m | G | 3.7 lm/W | 71.3 lm/m | G |
| 2700 K | 7.3 lm/W | 140.8 lm/m | G | 4.7 lm/W | 89.6 lm/m | G | 3.7 lm/W | 71.3 lm/m | G |
| 3000 K | 7.7 lm/W | 148.1 lm/m | G | 5.1 lm/W | 98.7 lm/m | G | 4.2 lm/W | 80.5 lm/m | G |
| 3500 K | 7.8 lm/W | 149.9 lm/m | G | 5.2 lm/W | 100.6 lm/m | G | 4.4 lm/W | 84.1 lm/m | G |
| 4000 K | 8 lm/W | 153.6 lm/m | G | 5.4 lm/W | 104.2 lm/m | G | 4.5 lm/W | 85.9 lm/m | G |
| 5000 K | 8 lm/W | 153.6 lm/m | G | 5.4 lm/W | 104.2 lm/m | G | 4.4 lm/W | 85.1 lm/m | G |
| 6500 K | 7.7 lm/W | 148.1 lm/m | G | 5.1 lm/W | 98.7 lm/m | G | 4.3 lm/W | 82.5 lm/m | G |
Related models in this series
- 0612 Silicone Flexible Neon Light (#0612S-EE)
- Side Bend LED Neon Flex DL-T0815F (#DL-T0815F)
- Side Bend LED Neon Flex DL-T1225F (#DL-T1225F)
- Side Bend LED Neon Flex DL-SV-1020 (#DL-SV-1020)
- Side Bend LED Neon Flex DL-T1220F (#DL-T1220F)
- Side Bend LED Neon Flex DL-T0613F (#DL-T0613F)
- Side Bend LED Neon Flex DL-SV-1018 (#DL-SV-1018)
- Side Bend LED Neon Flex DL-T1220F1 (#DL-T1220F1)
See every model in Neon LED Strip Series or narrow to Side Bend. Compare wattage, lumen output and run length in the ProCalc parameter library, or request OEM/ODM pricing on the custom manufacturing page.
Frequently Asked Questions
What are the key advantages of the silicone material used in the 1018S-EE?
The high-performance silicone ensures full encapsulation protection against salt, water, UV, and chemicals, with stable molecular structure preventing discoloration or aging.
What kind of installation flexibility does the 1018S-EE offer?
With its 10x18mm miniaturized design and multi-angle bending, it offers ultra-high flexibility, adapting to complex installation environments and diverse shaping requirements.
Is the 1018S-EE suitable for outdoor commercial projects?
Absolutely. Its full encapsulation and resistance to environmental factors like salt, water, and UV make it ideal for outdoor architectural and landscape decoration.
What are the typical lead times for large orders or custom configurations of the 1018S-EE?
Lead times vary based on order volume and customization. Please contact our sales team directly with your project specifics for an accurate quote and timeline.
What are the key specifications of #1018S-EE?
1018 Silicone Flexible Neon Light | 10*18mm | 24V | 120LEDs | 50mm/cut | #1018S-EE: 2835 LEDs, 120, DC 24V, 10mm FPCB, 3oz copper foil, 2.8~28.8W power, cut unit 6LEDs/50mm. Photometric files, wiring diagrams and test reports are available in the downloads block on this page.
