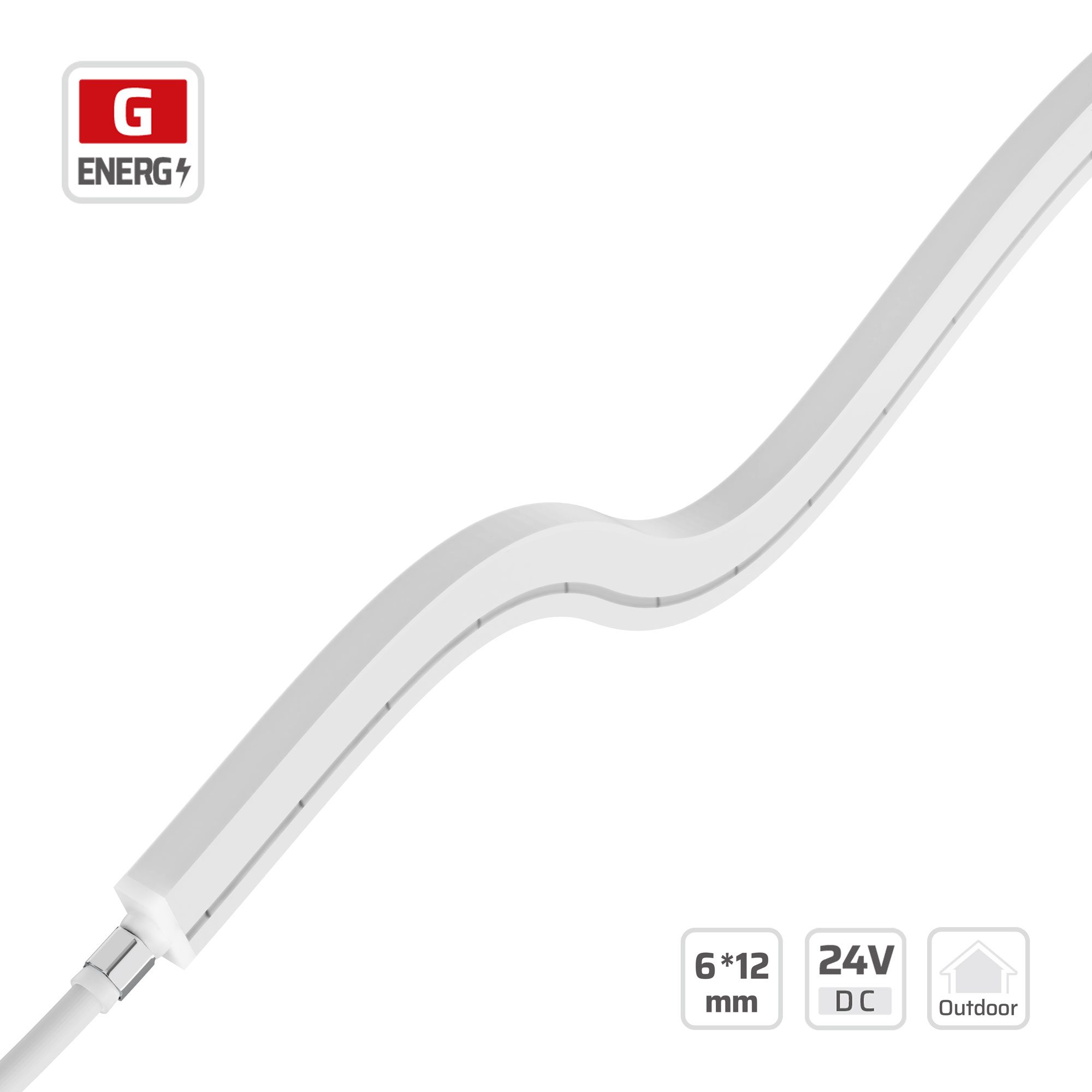

0612 Silicone Flexible Neon Light (#0612S-EE)
24V · 120LEDs · 50mm/cut · 6*12mm
Model: 0612S-EE
Overview
The DENO LED 0612S-EE silicone flexible neon light is a miniaturized 6x12mm solution, offering ultra-high flexibility for complex installations. With full IP67 encapsulation, it resists salt, water, UV, abrasion, and chemical corrosion, ensuring stability and no discoloration over time. Precision manufacturing guarantees uniform light distribution, minimizing dark zones. Its multi-angle bending performance allows for creative architectural contours, landscape decoration, an...
Description
0612 Silicone Flexible Neon Light | 6*12mm | 24V | 120LEDs | 50mm/cut | #0612S-EE 06x12mm miniaturized design, ultra-high flexibility, adapting to complex installation environments. Full encapsulation protection with high resistance: salt, water, UV, abrasion, and chemical corrosion resistant. High-performance silicone material with stable molecular structure, ensuring no discoloration or aging during long-term use. Precision manufacturing process, ensuring uniform light distribution and minimizing light dark zones. Multi-angle bending performance, freely shapeable, meeting various creative lighting requirements. Widely applicable in indoor and outdoor scenarios: architectural contours, landscape decoration, commercial displays, artistic lighting.
Specifications
| LED QTY | 120 |
|---|---|
| PART NO | DL-NF28C60V24-0612S-EE-* |
| SMD TYPE | 2835 |
| CUTTABLE UNIT | 6LEDs/50mm |
| DIMMABLE | Yes |
| IP RATING | IP67 |
| LED PITCH | 8.334mm |
| LIFESPAN | 30000 |
| PCB WIDTH | 8mm |
| WARRANTY | 5 Years |
| LENGTH MAX | 5m |
| COPPER FOIL | 3oz |
| POWER RANGE | 2.8~28.8W |
| CIRCUIT TYPE | C.V. |
| INPUT VOLTAGE | 24V |
| OPERATING TEMPERATURE | -25~40°C;Tc：75°C（max） |
Applications
- Channel letters & logo signage — Silicone neon holds a continuous glow line for logos, channel letters and wayfinding without visible LED dots.
- Facade & perimeter outlining — Flexible neon bends around building edges, balconies and columns to trace architecture at night.
- Bar fronts, headboards & stair nosings — Used along stair nosings, headboards and bar fronts where a soft, uniform tube of light is wanted instead of a hard strip.
- Facade, landscape & bathroom runs (IP67) — IP67 sealing suits facades, landscape lighting, bathrooms and other locations exposed to rain, splashing or wash-down cleaning.
Request a quotation for #0612S-EE
DENO LED is a Shenzhen-based LED strip manufacturer with its own Foshan production base. Send the run length, voltage, CCT/CRI and IP rating you need and our engineering team replies with a specification sheet, wiring plan and price — OEM/ODM and fully custom builds included.
- Warranty: 5 years
- Compliance: CE · UL · RoHS
- Bonding wire: 99.99% pure gold
- Copper foil: 99.9% pure copper FPCB
Photometric Performance — CCT × CRI Efficacy Matrix
Peak measured luminous efficacy: 59.3 lm/W at 4000K, Ra 80, ErP energy class G (Grade DN (1st Tier) · 9.6W/m).
All values are measured at the stated power density and ambient 25 °C, reported as luminous efficacy in lumens per watt (lm/W), luminous flux per metre (lm/m) and the corresponding EU ErP (2019/2015) energy class.
Grade DL (2nd Tier) · 9.6W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | 31.6 lm/W | 303.2 lm/m | G | 24.4 lm/W | 234.6 lm/m | G | — | — | — |
| 2300 K | 35 lm/W | 336 lm/m | G | 27.3 lm/W | 261.6 lm/m | G | 22.2 lm/W | 213.2 lm/m | G |
| 2700 K | 35.1 lm/W | 337 lm/m | G | 29.5 lm/W | 282.9 lm/m | G | 23.9 lm/W | 229.8 lm/m | G |
| 3000 K | 39.4 lm/W | 378.5 lm/m | G | 31.1 lm/W | 298.3 lm/m | G | 25.2 lm/W | 242.3 lm/m | G |
| 3500 K | 40.2 lm/W | 386.2 lm/m | G | 31.6 lm/W | 303.2 lm/m | G | 26 lm/W | 250.1 lm/m | G |
| 4000 K | 41.4 lm/W | 397.8 lm/m | G | 32.4 lm/W | 310.9 lm/m | G | 26.8 lm/W | 256.8 lm/m | G |
| 5000 K | 41.4 lm/W | 397.8 lm/m | G | 32.3 lm/W | 309.9 lm/m | G | 26.5 lm/W | 254.2 lm/m | G |
| 6500 K | 37 lm/W | 355.3 lm/m | G | 31 lm/W | 297.4 lm/m | G | 25.7 lm/W | 246.5 lm/m | G |
Grade DL (2nd Tier) · 12W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | 31.1 lm/W | 372.6 lm/m | G | 24 lm/W | 288.4 lm/m | G | — | — | — |
| 2300 K | 34.4 lm/W | 413 lm/m | G | 26.8 lm/W | 321.6 lm/m | G | 21.8 lm/W | 262 lm/m | G |
| 2700 K | 34.5 lm/W | 414.1 lm/m | G | 29 lm/W | 347.7 lm/m | G | 23.5 lm/W | 282.4 lm/m | G |
| 3000 K | 38.8 lm/W | 465.2 lm/m | G | 30.6 lm/W | 366.7 lm/m | G | 24.8 lm/W | 297.9 lm/m | G |
| 3500 K | 39.6 lm/W | 474.7 lm/m | G | 31.1 lm/W | 372.6 lm/m | G | 25.6 lm/W | 307.3 lm/m | G |
| 4000 K | 40.7 lm/W | 488.9 lm/m | G | 31.8 lm/W | 382.1 lm/m | G | 26.3 lm/W | 315.7 lm/m | G |
| 5000 K | 40.7 lm/W | 488.9 lm/m | G | 31.7 lm/W | 380.9 lm/m | G | 26 lm/W | 312.5 lm/m | G |
| 6500 K | 36.4 lm/W | 436.7 lm/m | G | 30.5 lm/W | 365.5 lm/m | G | 25.3 lm/W | 303 lm/m | G |
Grade DL (2nd Tier) · 19.2W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | 29.5 lm/W | 566.8 lm/m | G | 22.8 lm/W | 438.6 lm/m | G | — | — | — |
| 2300 K | 32.7 lm/W | 628.2 lm/m | G | 25.5 lm/W | 489.2 lm/m | G | 20.8 lm/W | 398.5 lm/m | G |
| 2700 K | 32.8 lm/W | 630 lm/m | G | 27.5 lm/W | 528.9 lm/m | G | 22.4 lm/W | 429.6 lm/m | G |
| 3000 K | 36.9 lm/W | 707.6 lm/m | G | 29 lm/W | 557.8 lm/m | G | 23.6 lm/W | 453.1 lm/m | G |
| 3500 K | 37.6 lm/W | 722 lm/m | G | 29.5 lm/W | 566.8 lm/m | G | 24.3 lm/W | 467.5 lm/m | G |
| 4000 K | 38.7 lm/W | 743.7 lm/m | G | 30.3 lm/W | 581.2 lm/m | G | 25 lm/W | 480.1 lm/m | G |
| 5000 K | 38.7 lm/W | 743.7 lm/m | G | 30.2 lm/W | 579.4 lm/m | G | 24.8 lm/W | 475.3 lm/m | G |
| 6500 K | 34.6 lm/W | 664.3 lm/m | G | 29 lm/W | 556 lm/m | G | 24 lm/W | 460.9 lm/m | G |
Grade DN (1st Tier) · 9.6W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | 46.6 lm/W | 447 lm/m | G | 38.5 lm/W | 369.8 lm/m | G | — | — | — |
| 2300 K | 50.7 lm/W | 486.6 lm/m | G | 42.9 lm/W | 412.3 lm/m | G | 34.6 lm/W | 332.6 lm/m | G |
| 2700 K | 54.7 lm/W | 525.2 lm/m | G | 46.5 lm/W | 446.1 lm/m | G | 37.6 lm/W | 361.1 lm/m | G |
| 3000 K | 57.4 lm/W | 551.3 lm/m | G | 49.2 lm/W | 472.1 lm/m | G | 40 lm/W | 384.3 lm/m | G |
| 3500 K | 58.3 lm/W | 560 lm/m | G | 50.3 lm/W | 482.7 lm/m | G | 41.3 lm/W | 396.8 lm/m | G |
| 4000 K | 59.3 lm/W | 569.6 lm/m | G | 50.6 lm/W | 485.6 lm/m | G | 41.7 lm/W | 400.7 lm/m | G |
| 5000 K | 59.3 lm/W | 569.6 lm/m | G | 50.9 lm/W | 488.5 lm/m | G | 41.3 lm/W | 396.7 lm/m | G |
| 6500 K | 56.8 lm/W | 545.5 lm/m | G | 48.6 lm/W | 466.3 lm/m | G | 40.1 lm/W | 384.6 lm/m | G |
Grade DN (1st Tier) · 12W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | 45.8 lm/W | 549.4 lm/m | G | 37.9 lm/W | 454.5 lm/m | G | — | — | — |
| 2300 K | 49.8 lm/W | 598.1 lm/m | G | 42.2 lm/W | 506.7 lm/m | G | 34.1 lm/W | 408.7 lm/m | G |
| 2700 K | 53.8 lm/W | 645.5 lm/m | G | 45.7 lm/W | 548.2 lm/m | G | 37 lm/W | 443.8 lm/m | G |
| 3000 K | 56.5 lm/W | 677.6 lm/m | G | 48.4 lm/W | 580.3 lm/m | G | 39.4 lm/W | 472.3 lm/m | G |
| 3500 K | 57.4 lm/W | 688.3 lm/m | G | 49.4 lm/W | 593.3 lm/m | G | 40.6 lm/W | 487.7 lm/m | G |
| 4000 K | 58.3 lm/W | 700.1 lm/m | G | 49.7 lm/W | 596.9 lm/m | G | 41 lm/W | 492.5 lm/m | G |
| 5000 K | 58.3 lm/W | 700.1 lm/m | G | 50 lm/W | 600.5 lm/m | G | 40.6 lm/W | 487.5 lm/m | G |
| 6500 K | 55.9 lm/W | 670.5 lm/m | G | 47.8 lm/W | 573.2 lm/m | G | 39.4 lm/W | 472.8 lm/m | G |
Grade DN (1st Tier) · 19.2W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | 43.5 lm/W | 835.7 lm/m | G | 36 lm/W | 691.3 lm/m | G | — | — | — |
| 2300 K | 47.4 lm/W | 909.7 lm/m | G | 40.1 lm/W | 770.7 lm/m | G | 32.4 lm/W | 621.7 lm/m | G |
| 2700 K | 51.1 lm/W | 981.9 lm/m | G | 43.4 lm/W | 833.9 lm/m | G | 35.2 lm/W | 675.1 lm/m | G |
| 3000 K | 53.7 lm/W | 1030.7 lm/m | G | 46 lm/W | 882.7 lm/m | G | 37.4 lm/W | 718.4 lm/m | G |
| 3500 K | 54.5 lm/W | 1046.9 lm/m | G | 47 lm/W | 902.5 lm/m | G | 38.6 lm/W | 741.9 lm/m | G |
| 4000 K | 55.5 lm/W | 1065 lm/m | G | 47.3 lm/W | 907.9 lm/m | G | 39 lm/W | 749.1 lm/m | G |
| 5000 K | 55.5 lm/W | 1065 lm/m | G | 47.6 lm/W | 913.3 lm/m | G | 38.6 lm/W | 741.6 lm/m | G |
| 6500 K | 53.1 lm/W | 1019.8 lm/m | G | 45.4 lm/W | 871.8 lm/m | G | 37.5 lm/W | 719.1 lm/m | G |
Grade KE (3rd Tier) · 9.6W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1900 K | 11.8 lm/W | 113 lm/m | G | 8.4 lm/W | 81.1 lm/m | G | — | — | — |
| 2300 K | 13.1 lm/W | 125.5 lm/m | G | 9.5 lm/W | 90.8 lm/m | G | 7.8 lm/W | 75.3 lm/m | G |
| 2700 K | 14.2 lm/W | 136.1 lm/m | G | 10.2 lm/W | 97.5 lm/m | G | 8.2 lm/W | 79.2 lm/m | G |
| 3000 K | 14.9 lm/W | 142.9 lm/m | G | 11 lm/W | 105.2 lm/m | G | 9 lm/W | 85.9 lm/m | G |
| 3500 K | 15.1 lm/W | 144.8 lm/m | G | 11.2 lm/W | 107.2 lm/m | G | 9.3 lm/W | 88.8 lm/m | G |
| 4000 K | 15.5 lm/W | 148.7 lm/m | G | 11.5 lm/W | 110.1 lm/m | G | 9.5 lm/W | 90.8 lm/m | G |
| 5000 K | 15.5 lm/W | 148.7 lm/m | G | 11.5 lm/W | 110.1 lm/m | G | 9.4 lm/W | 89.8 lm/m | G |
| 6500 K | 14.9 lm/W | 142.9 lm/m | G | 11 lm/W | 105.2 lm/m | G | 9.1 lm/W | 87.1 lm/m | G |
Grade KE (3rd Tier) · 12W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1900 K | 11.6 lm/W | 138.8 lm/m | G | 8.3 lm/W | 99.7 lm/m | G | — | — | — |
| 2300 K | 12.9 lm/W | 154.3 lm/m | G | 9.3 lm/W | 111.5 lm/m | G | 7.7 lm/W | 92.6 lm/m | G |
| 2700 K | 13.9 lm/W | 167.3 lm/m | G | 10 lm/W | 119.9 lm/m | G | 8.1 lm/W | 97.3 lm/m | G |
| 3000 K | 14.6 lm/W | 175.6 lm/m | G | 10.8 lm/W | 129.3 lm/m | G | 8.8 lm/W | 105.6 lm/m | G |
| 3500 K | 14.8 lm/W | 178 lm/m | G | 11 lm/W | 131.7 lm/m | G | 9.1 lm/W | 109.2 lm/m | G |
| 4000 K | 15.2 lm/W | 182.7 lm/m | G | 11.3 lm/W | 135.3 lm/m | G | 9.3 lm/W | 111.5 lm/m | G |
| 5000 K | 15.2 lm/W | 182.7 lm/m | G | 11.3 lm/W | 135.3 lm/m | G | 9.2 lm/W | 110.4 lm/m | G |
| 6500 K | 14.6 lm/W | 175.6 lm/m | G | 10.8 lm/W | 129.3 lm/m | G | 8.9 lm/W | 107.1 lm/m | G |
Grade KE (3rd Tier) · 19.2W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1900 K | 11 lm/W | 211.2 lm/m | G | 7.9 lm/W | 151.6 lm/m | G | — | — | — |
| 2300 K | 12.2 lm/W | 234.7 lm/m | G | 8.8 lm/W | 169.7 lm/m | G | 7.3 lm/W | 140.8 lm/m | G |
| 2700 K | 13.3 lm/W | 254.5 lm/m | G | 9.5 lm/W | 182.3 lm/m | G | 7.7 lm/W | 148 lm/m | G |
| 3000 K | 13.9 lm/W | 267.1 lm/m | G | 10.2 lm/W | 196.7 lm/m | G | 8.4 lm/W | 160.6 lm/m | G |
| 3500 K | 14.1 lm/W | 270.8 lm/m | G | 10.4 lm/W | 200.4 lm/m | G | 8.6 lm/W | 166.1 lm/m | G |
| 4000 K | 14.5 lm/W | 278 lm/m | G | 10.7 lm/W | 205.8 lm/m | G | 8.8 lm/W | 169.7 lm/m | G |
| 5000 K | 14.5 lm/W | 278 lm/m | G | 10.7 lm/W | 205.8 lm/m | G | 8.7 lm/W | 168 lm/m | G |
| 6500 K | 13.9 lm/W | 267.1 lm/m | G | 10.2 lm/W | 196.7 lm/m | G | 8.5 lm/W | 162.9 lm/m | G |
How Side bending LED neon flex 0612S-EE performs on site
Specification notes for 6x12mm section 24V DC silicone neon: what it does outdoors, what it does around water, and how far it bends when you trace a building.
Outdoor & façade exposure
Specify for permanent exterior installation above the waterline (IP67).
The silicone is injection moulded onto the FPCB in one shot, so there is no glued cover to open up after a winter of thermal cycling — the failure mode PVC neon rope light shows in its second outdoor summer. UV-stabilised silicone keeps its colour instead of yellowing, and the body stays elastic from −30 °C to +80 °C, so a façade run installed in summer will not go brittle in a January frost. Feed with 24V DC and plan 5m per feed to hold end-of-run brightness across a long elevation.
- Ingress protection IP67
- UV-stable silicone, −30 °C to +80 °C
- 2.8W/m load
Pools, spas & wet areas
Suitable for pool surrounds, spa ceilings and steam-adjacent joinery — not for submersion.
IP67 covers rain, splash, wash-down and steam — pool decks, shower reveals, sauna ceilings and spa coves — but the body is not intended to sit under water. Mount it above the waterline in an aluminium groove so condensate drains away from the feed joint, run 24V DC for wet-zone safety, and choose the IP68 variant where the channel can flood.
- IP67 — splash and rain, not submersion
- 24V DC
- Moulded end cap and feed joint
Architectural contour & signage
Bends horizontally, flat on the wall at about R30mm — the right pick for curved building contours, balcony bands, circular ceilings and racetrack coves.
Side bending LED neon flex takes its curve horizontally, flat on the wall, which is what decides whether a shape is possible without cutting and re-soldering. At about R30mm the outside of the curve stays evenly lit: 120 LEDs/m is matched to the diffuser depth so you read a continuous line of light rather than dots, even at 30 cm. Printed cut marks with indexed solder pads underneath let a sign maker shorten a letter stroke on site and re-seal it, and mounting clips, aluminium grooves and moulded bend grooves cover surface, recessed and free-form fixing.
- Cross-section 6x12mm
- Bend radius about R30mm
- 120 LEDs/m, dot-free
Related models in this series
- Side Bend LED Neon Flex DL-T1225F (#DL-T1225F)
- Side Bend LED Neon Flex DL-SV-1020 (#DL-SV-1020)
- Side Bend LED Neon Flex DL-T0815F (#DL-T0815F)
- Side Bend LED Neon Flex DL-T0613F (#DL-T0613F)
- 1018 Silicone Flexible Neon Light (#1018S-EE)
- Side Bend LED Neon Flex DL-T1220F (#DL-T1220F)
- Side Bend LED Neon Flex DL-SV-1018 (#DL-SV-1018)
- Side Bend LED Neon Flex DL-T1220F1 (#DL-T1220F1)
See every model in Neon LED Strip Series or narrow to Side Bend. Compare wattage, lumen output and run length in the ProCalc parameter library, or request OEM/ODM pricing on the custom manufacturing page.
Frequently Asked Questions
What are the key advantages of silicone material for this neon light?
The high-performance silicone ensures stable molecular structure, preventing discoloration and aging, while offering superior resistance to environmental factors.
Can this flexible neon light be installed in outdoor environments?
Yes, with an IP67 rating, the 0612S-EE is fully protected against dust and water immersion, making it ideal for both indoor and outdoor use.
What is the maximum continuous length for installation?
The maximum continuous length for this 24V 0612S-EE silicone flexible neon light is 5 meters, ensuring consistent performance and light quality.
Is customization available for specific project requirements?
DENO LED offers flexible solutions and can discuss customization options based on project scale and specific technical requirements for B2B orders.
What are the key specifications of #0612S-EE?
0612 Silicone Flexible Neon Light | 6*12mm | 24V | 120LEDs | 50mm/cut | #0612S-EE: 2835 LEDs, 120, 24V, 8mm FPCB, 3oz copper foil, 2.8~28.8W power, cut unit 6LEDs/50mm. Photometric files, wiring diagrams and test reports are available in the downloads block on this page.
Which LED driver and run length suit #0612S-EE?
0612 Silicone Flexible Neon Light | 6*12mm | 24V | 120LEDs | 50mm/cut | #0612S-EE is a constant-voltage 24V product, so pair it with a CE or UL listed 24V constant-voltage LED driver rated about 20% above the connected load. Maximum single run is 5m. 5m Single / 10m Dual Input power. Feeding from both ends or mid-feeding halves the copper distance and roughly quarters the voltage drop.
Injection Moulded LED Neon Flex — Buyer Questions
What is an injection moulded LED neon strip?
An injection moulded (US: molded) LED neon strip is formed by hot-melting silicone directly around the FPCB in a single shot, instead of sliding the board into a pre-extruded tube. There is no air gap and no glue seam, so water has no path in and the diffuser sits at a fixed distance from every LED — which is what keeps the light line even over a 20 m façade run.
- Series Injection-Moulded Neon Flex series
- Related series LED neon flex series overview
- Related series top bend bodies built on the same moulding line
Why is a seamless injection neon strip more reliable than an extruded tube?
Extruded neon relies on adhesive to bond the cover, the tube and the end cap; UV and thermal cycling eventually open that bond and the run fogs from the inside. A seamless injection LED neon strip has one continuous silicone body, so ageing tests show no delamination, no internal condensation and no yellowing line after 20,000+ hours of sun exposure.
- Series Injection-Moulded Neon Flex series
- Related series custom silicone bodies built to order
- Guide silicone vs PVC neon lifetime data
- Product 1018S-EE seamless silicone neon flex
Is IP68 injection moulded neon flex suitable for underwater use?
IP68 builds are rated for continuous immersion at shallow depth — pool coping, fountain rims, planter edges and flooded coves. Both body and terminations are potted in the same operation, and the feed cable is over-moulded rather than glued. For permanent submersion below 1 m, DENO specifies a marine-grade cable gland and a sealed junction box outside the water line.
- Series Injection-Moulded Neon Flex series
- Related series marine-grade LED builds for wet zones
- Guide check voltage drop on a wet-zone run
Can injection moulded neon flex handle outdoor façade temperature swings?
Yes. The silicone body stays elastic from −30 °C to +80 °C and expands at a similar rate to the FPCB, so the joint does not shear the way a PVC jacket does at winter temperatures. Neon flex for outdoor façade work is supplied with UV-stabilised silicone and a 105 μm copper FPCB that spreads heat instead of concentrating it under each LED.
Do injection moulded end caps really stop water ingress?
They are the deciding factor. Most field failures on waterproof neon flex start at a glued cap that shrank away from the body. An injection-moulded end cap is fused to the same silicone compound, so cap and body behave as one part under thermal cycling — DENO pressure-tests every terminated length before it leaves the line.
Can the injection moulded body be made in a custom colour or profile?
Yes — body colour (milky white, black, grey, colour-matched), cross-section, wall thickness, light-emitting window width and printed cut interval are all tooling parameters, not catalogue limits. Because DENO owns the moulding line, a project-specific integrated-moulding neon strip is set up from an existing stack-up rather than quoted as a new product programme.
- Series Injection-Moulded Neon Flex series
- Guide OEM/ODM neon flex tooling
- Related series special-build LED strips and neon
Side Bending LED Neon Flex — Buyer Questions
What is a side bending LED neon flex?
A side bend neon strip flexes left and right in the plane of the emitting face, so the run can follow a curve drawn on a wall or ceiling without twisting. The FPCB is built narrow with a serpentine copper layout, which is what allows horizontal bending without cracking the copper or stressing the solder joints.
- Series Side Bend Neon Flex series
- Related series LED neon flex bend directions compared
- Related series top bend bodies for vertical curves
- Product DL-SV-1018 side bend neon flex
What is the minimum bend radius of a side emitting bendable neon strip?
Typical side bend bodies hold R30 mm at 6×12 mm and R80–R120 mm at 12×25 mm; the wider the body in the bend plane, the larger the radius. Staying above the rated radius keeps the outer wall from whitening and prevents the pitch from opening up into visible dark spots on the outside of the curve.
- Series Side Bend Neon Flex series
- Guide why copper layout sets the bend radius
- Related series S-bend FPCB strips for tight corners
- Product DL-T0613F tight-radius side bend body
Is side bend neon flex used for building contour lighting?
It is the default choice. Building contour and outline work follows the plane of the façade — cornices, arches, balcony edges — so the run must bend sideways while staying flat against the substrate. Combined with an IP67 injection-moulded body and stainless clips, a side bend LED neon flex holds a clean architectural outline through weather cycling.
- Series Side Bend Neon Flex series
- Related series IP67 injection bodies for façade work
- Guide project-scale neon supply for contractors
- Product DL-T1220F1 façade side bend neon
