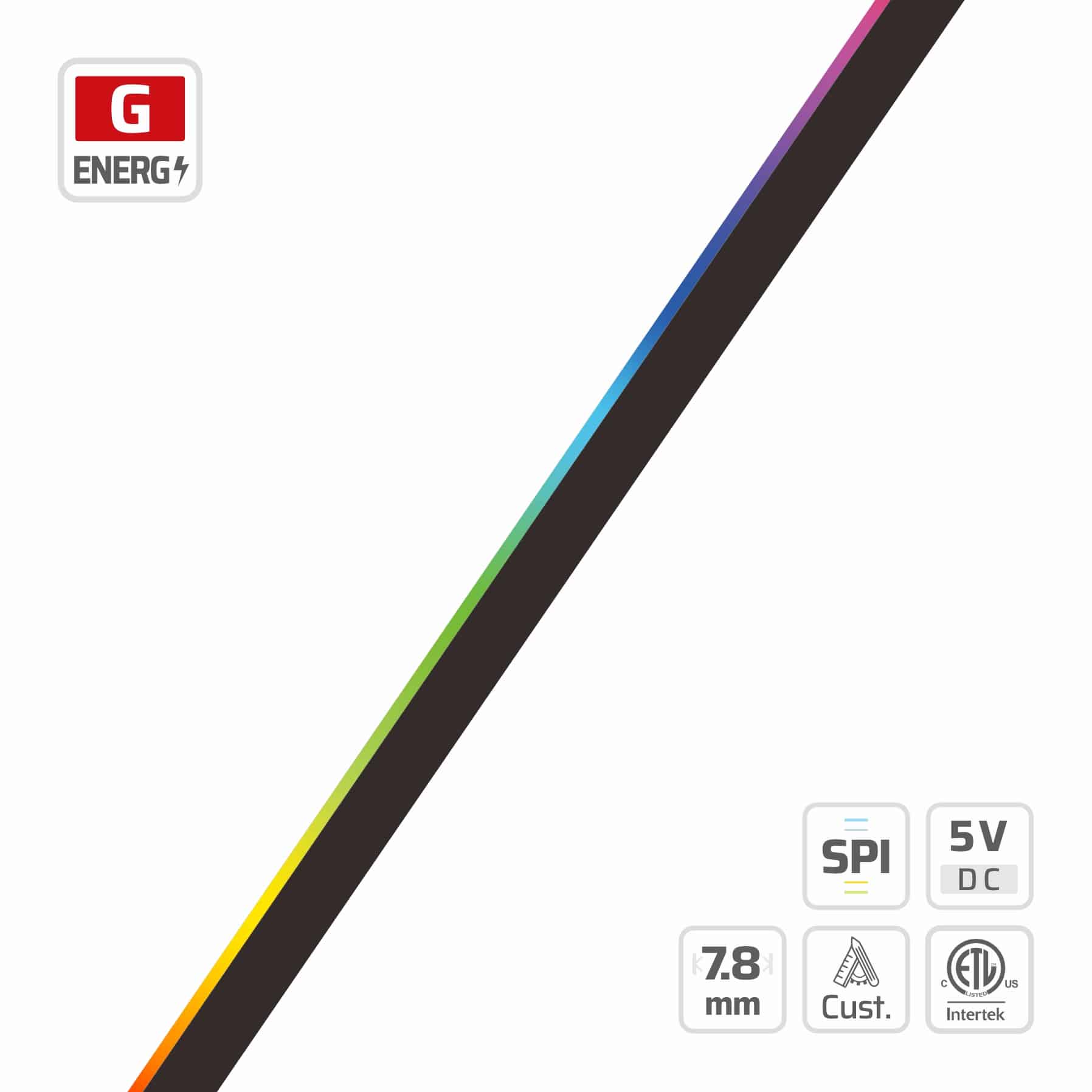

7.8mm | 5V | 136LEDs | 7.35mm/cut | #D8018 SPI Side View LED Strip Light (#D8018 SPI Side View LED Strip Light)
7.8mm · 5V · 136LEDs · 7.35mm/cut
Model: D8018
Overview
7.8mm | 5V | 136LEDs | 7.35mm/cut | #D8018 SPI Side View LED Strip Light is part of the DENO Side Emitting LED Strips series, engineered around side emitting LED strip. Key specifications: 0807, 136, 5V, 7.8 PCB, cuttable 7.35mm, IP20, CRI Ra≥80. Every reel is produced on DENO's roll-to-roll line with 99.9% pure copper FPCB and ships CE, UL and RoHS compliant for architectural, retail and hospitality projects. OEM and ODM configurations of length, colour temperature and waterproofing are available on request.
Description
This 7.8mm side view LED strip light features 136 0807 LEDs per meter with SPI digital control for specialized architectural lighting designs. Engineered with a short 7.35mm cutting pitch and 5V constant voltage design, it allows flexible installation in compact spaces. Delivering 400 lm/m with Ra 80 color accuracy and single-bin consistency, it provides clean illumination across 2700K to 6500K color temperatures. The 120-degree side-emitting beam angle and smooth dimming capability provide flawless edge illumination for custom interior joinery. We offer factory-direct wholesale project supply and OEM custom configurations to support commercial lighting contractors and system integrators.
Automotive Led Strip built for automotive smd strip projects.
Specifications
| CCT (K) | 2700-6500 |
|---|---|
| CRI | Ra≥80 |
| SDCM | < 3 SDCM (Single Bin) |
| LED QTY | 136 |
| PART NO | DL-F08A68V5-D8018-* |
| SMD TYPE | 0807 |
| CUTTABLE UNIT | 7.35mm |
| DIMMABLE | Yes |
| IP RATING | IP20 |
| LIFESPAN | 50000 |
| PCB WIDTH | 7.8 |
| WARRANTY | 5 Years |
| BEAM ANGLE | 120° |
| RUN LENGTH | 1m |
| POWER RANGE | 4 W/m |
| CIRCUIT TYPE | C.V. |
| INPUT VOLTAGE | 5V |
| LUMINOUS FLUX | 400 lm/m |
| OPERATING TEMPERATURE | -25~40°C;Tc: 75°C (max) |
Applications
- Cove, wall-wash & perimeter lighting — Coves, recesses, wall-wash details and ceiling perimeters where a continuous, uniform line of light is required.
- Showroom & hospitality display lighting — Shelving, display cases, reception desks and signage backlighting in shops, showrooms and hospitality spaces.
- Kitchen & wardrobe under-cabinet lighting — Kitchen, wardrobe and furniture task lighting where the strip stays hidden and only the light is seen.
- Entertainment & media-facade colour scenes — Entertainment venues, media facades, gaming rooms and branded retail installs driven by DMX/SPI or standard RGB controllers.
Recommended accessories & compatible parts
- DL-1215 — 12x15mm Surface Mount LED Channel — Tall U Shape Aluminum Profile: Accepts LED strips up to 8mm wide.
- DL-1313HX-M — 13x13mm Magnetic Cabinet LED Channel — Tool-Free Corner Aluminum Profile: Accepts LED strips up to 8mm wide.
- DL-1408 HX — 14x8mm Surface Mount LED Channel — Slim Aluminum Profile for 8mm Strip: Accepts LED strips up to 8mm wide.
- V1 — 5-36VDC 1-Channel * 8A RF+Push Dimming Controller | V1: Matched by input voltage range and colour channels.
Request a quotation for #D8018
DENO LED is a Shenzhen-based LED strip manufacturer with its own Foshan production base. Send the run length, voltage, CCT/CRI and IP rating you need and our engineering team replies with a specification sheet, wiring plan and price — OEM/ODM and fully custom builds included.
- Warranty: 5 years
- Lead time: standard boards: samples from 1 working day · custom: 3–5 working days · new FPCB: 1–3 weeks · production 1–2 weeks after sample approval
- Compliance: CE · UL · RoHS
- Bonding wire: 99.99% pure gold
- Copper foil: 99.9% pure copper FPCB
Recommended LED Channels
Mount this LED strip in a DENO LED aluminum profile for heat dissipation, physical protection and diffused, dot-free output.
This strip is 7.8mm wide, so it needs a channel with at least 9.8mm inner width (7.8mm + 2mm clearance). Every profile below meets that.
Frequently Asked Questions
What are the key specifications of D8018?
D8018: 0807, 136, 5V, 7.8 PCB, cuttable 7.35mm, IP20, CRI Ra≥80. Full photometric data, wiring diagrams and test reports are available in the downloads section of this page.
What makes the construction of this side emitting LED strip different?
It is built as a side emitting LED strip on a thickened copper FPCB with a cutting unit of 7.35mm and an LED pitch of the pitch listed in the datasheet, so it holds its electrical and mechanical performance where standard strips fail.
Can DENO customise this side emitting LED strip for a project?
Yes. DENO manufactures the Side Emitting LED Strips series as an OEM and ODM supplier: reel length, colour temperature, CRI grade, PCB width, waterproofing and private labelling can all be specified. Request a quote for lead time and project pricing.
Where is a side emitting LED strip used?
A side view LED strip fires light out of the edge of the board rather than the face, which suits edge-lit panels, glass shelf edges, handrail slots and shallow reveals where there is no depth to mount a top-firing strip and aim it at the surface.
What makes an automotive LED strip different from standard 12V LED strip lights?
Automotive use adds vibration, wide temperature swing and an unstable bus voltage. These car LED strip lights use reinforced 2 oz copper FPCB, high-temperature adhesive and constant-current drive, so brightness stays stable between roughly 9 and 16 V and the strip survives continuous vibration.
