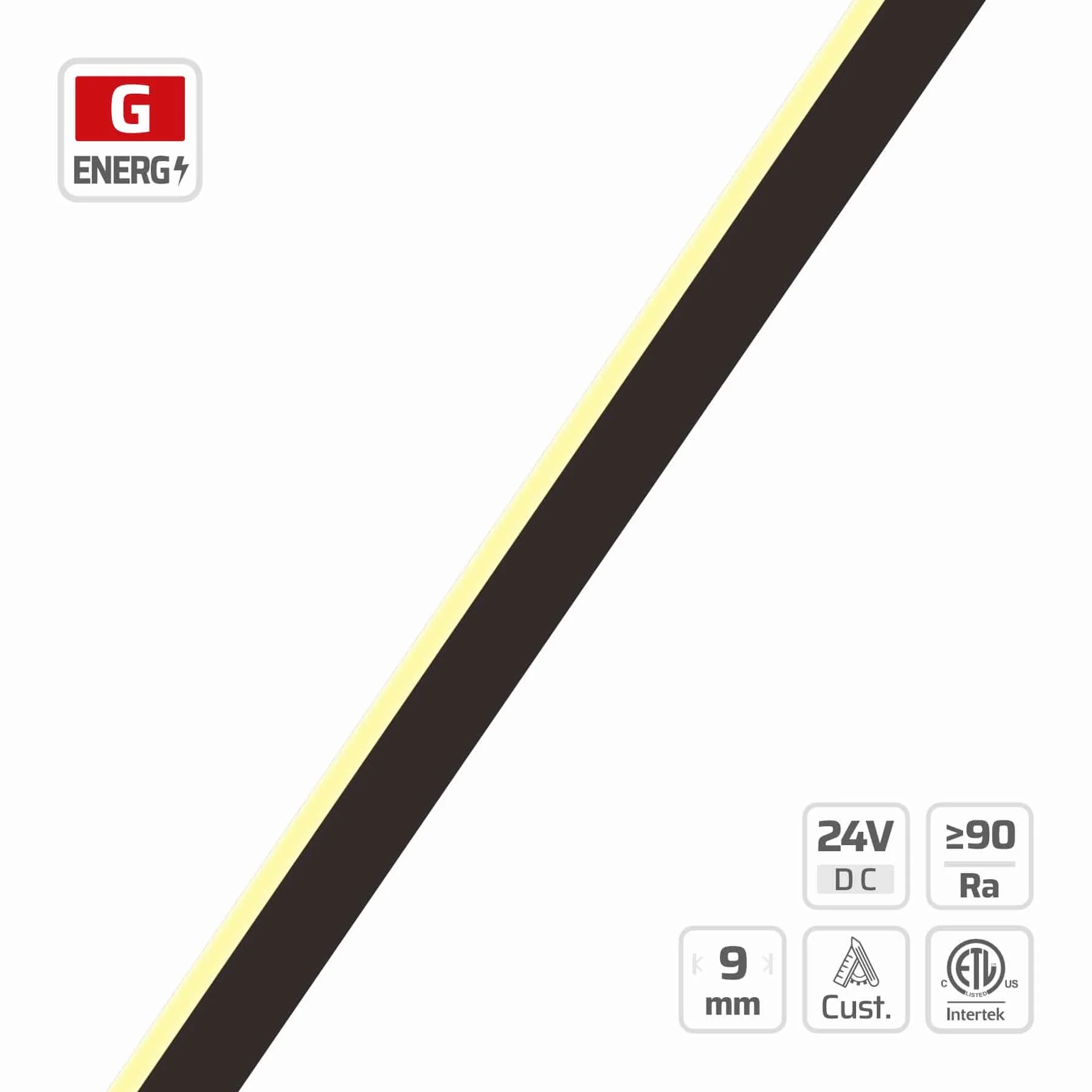

Special LED Strip Light (#14045)
9mm · 24V · 140LEDs · Arbitrary cut
Model: 14045
Overview
Special LED Strip Light | 9mm | 24V | 140LEDs | Arbitrary cut | #14045 is part of the DENO Special SMD Strips series, engineered around special application LED strip. Key specifications: 2216, 140, 24V, 9 PCB, 2oz copper FPCB, cuttable 1LED/7.142mm. Every reel is produced on DENO's roll-to-roll line with 99.9% pure copper FPCB and ships CE, UL and RoHS compliant for architectural, retail and hospitality projects. OEM and ODM configurations of length, colour temperature and waterproofing are available on request.
Description
This special LED strip light features high-density 2216 SMD LEDs engineered with an ultra-short cutting unit of one LED for precise on-site tailoring. Built on a 9mm 2oz copper PCB, the 24V constant voltage design supports stable operation and smooth dimming performance for wholesale project supply. Integrated semi-transparent encapsulation softens light output and provides a flat design that fits effortlessly into narrow crevices and tight gaps. The flexible linear construction delivers uniform atmospheric lighting ideal for bespoke cabinet lighting and demanding OEM custom lengths.
Automotive Led Strip built for automotive smd strip projects.
Specifications
| CCT (K) | 2700–6500K |
|---|---|
| CRI | Ra≥90 |
| POWER (W/M) | 7 W/m |
| LED QTY | 140 |
| PART NO | DL-FATPA70V24-14045-* |
| SMD TYPE | 2216 |
| CUTTABLE UNIT | 1LED/7.142mm |
| DIMMABLE | Yes |
| IP RATING | IP20 |
| LIFESPAN | 50000 |
| PCB WIDTH | 9 |
| WARRANTY | 5 Years |
| RUN LENGTH | 5m |
| COPPER FOIL | 2oz |
| CIRCUIT TYPE | C.V. |
| INPUT VOLTAGE | 24V |
| LUMINOUS FLUX | 38–46 lm/m |
| OPERATING TEMPERATURE | -25~40°C;Tc：75°C（max） |
Applications
- Cove, wall-wash & perimeter lighting — Coves, recesses, wall-wash details and ceiling perimeters where a continuous, uniform line of light is required.
- Showroom & hospitality display lighting — Shelving, display cases, reception desks and signage backlighting in shops, showrooms and hospitality spaces.
- Kitchen & wardrobe under-cabinet lighting — Kitchen, wardrobe and furniture task lighting where the strip stays hidden and only the light is seen.
Recommended accessories & compatible parts
- DL-1003 — 19.1x8mm Surface Mount LED Channel — Dotless Aluminum Profile for 240 LEDs/m Strip: Accepts LED strips up to 10mm wide.
- DL-1103-1 — 16x13mm Surface Mount LED Channel — Aluminum Profile for 10mm LED Strip: Accepts LED strips up to 10mm wide.
- DL-1510 HX-F — 15x9.9mm Recessed LED Channel with Flange — Flush Mount Aluminum Profile: Accepts LED strips up to 10mm wide.
- DN-PSU-100 — 24V 100W Class-2 LED Driver · High Efficiency: Matches the 24V DC input of this strip; size the driver with at least 20% headroom over total load.
- DN-PSU-150 — 24V 150W Class-2 LED Driver · Premium: Matches the 24V DC input of this strip; size the driver with at least 20% headroom over total load.
- DN-PSU-60 — 24V 60W Class-2 LED Driver · Constant Voltage: Matches the 24V DC input of this strip; size the driver with at least 20% headroom over total load.
- V1 — 5-36VDC 1-Channel * 8A RF+Push Dimming Controller | V1: Matched by input voltage range and colour channels.
Request a quotation for #14045
DENO LED is a Shenzhen-based LED strip manufacturer with its own Foshan production base. Send the run length, voltage, CCT/CRI and IP rating you need and our engineering team replies with a specification sheet, wiring plan and price — OEM/ODM and fully custom builds included.
- Warranty: 5 years
- Lead time: standard boards: samples from 1 working day · custom: 3–5 working days · new FPCB: 1–3 weeks · production 1–2 weeks after sample approval
- Compliance: CE · UL · RoHS
- Bonding wire: 99.99% pure gold
- Copper foil: 99.9% pure copper FPCB
Photometric Performance — CCT × CRI Efficacy Matrix
Peak measured luminous efficacy: 6.3 lm/W at 4000K, Ra 90, ErP energy class G (Grade DL (2nd Tier) · 5W/m).
All values are measured at the stated power density and ambient 25 °C, reported as luminous efficacy in lumens per watt (lm/W), luminous flux per metre (lm/m) and the corresponding EU ErP (2019/2015) energy class.
Grade DL (2nd Tier) · 5W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | — | — | — | 4.8 lm/W | 23.9 lm/m | G | — | — | — |
| 2300 K | — | — | — | 5.3 lm/W | 26.4 lm/m | G | — | — | — |
| 2700 K | — | — | — | 5.8 lm/W | 29 lm/m | G | 4.7 lm/W | 23.4 lm/m | G |
| 3000 K | — | — | — | 6.1 lm/W | 30.5 lm/m | G | 4.9 lm/W | 24.4 lm/m | G |
| 3500 K | — | — | — | 6.2 lm/W | 31 lm/m | G | 5.1 lm/W | 25.4 lm/m | G |
| 4000 K | — | — | — | 6.3 lm/W | 31.5 lm/m | G | 5.2 lm/W | 25.9 lm/m | G |
| 5000 K | — | — | — | 6.3 lm/W | 31.5 lm/m | G | — | — | — |
| 6500 K | — | — | — | 6.1 lm/W | 30.5 lm/m | G | — | — | — |
Grade DL (2nd Tier) · 7W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | — | — | — | 4.7 lm/W | 33 lm/m | G | — | — | — |
| 2300 K | — | — | — | 5.2 lm/W | 36.5 lm/m | G | — | — | — |
| 2700 K | — | — | — | 5.7 lm/W | 40 lm/m | G | 4.6 lm/W | 32.3 lm/m | G |
| 3000 K | — | — | — | 6 lm/W | 42.1 lm/m | G | 4.8 lm/W | 33.7 lm/m | G |
| 3500 K | — | — | — | 6.1 lm/W | 42.8 lm/m | G | 5 lm/W | 35.1 lm/m | G |
| 4000 K | — | — | — | 6.2 lm/W | 43.5 lm/m | G | 5.1 lm/W | 35.8 lm/m | G |
| 5000 K | — | — | — | 6.2 lm/W | 43.5 lm/m | G | — | — | — |
| 6500 K | — | — | — | 6 lm/W | 42.1 lm/m | G | — | — | — |
Recommended LED Channels
Mount this LED strip in a DENO LED aluminum profile for heat dissipation, physical protection and diffused, dot-free output.
This strip is 9mm wide, so it needs a channel with at least 11mm inner width (9mm + 2mm clearance). Every profile below meets that.
Related models in this series
- 2216 Special LED Strip Light (#11474)
- Special LED Strip Light (#14047)
- 2835 Gold Yellow Special LED Strip Light (#2176-Yellow)
- Special LED Strip Light (#14046)
- 5050 Special LED Strip Light (#2809-food)
- 2835 Dual Loop LED Strip 240LEDs/m (#19291)
See every model in SMD LED Strip Series or narrow to Special. Compare wattage, lumen output and run length in the ProCalc parameter library, or request OEM/ODM pricing on the custom manufacturing page.
Frequently Asked Questions
What are the key specifications of 14045?
14045: 2216, 140, 24V, 9 PCB, 2oz copper FPCB, cuttable 1LED/7.142mm. Full photometric data, wiring diagrams and test reports are available in the downloads section of this page.
Which environments is this special application LED strip rated for?
Ingress protection for this model is listed in the datasheet. As a special application LED strip it is specified for the duty listed in the datasheet, and DENO can supply alternative coatings, sleeves or IP68 potting for harsher installations.
Can DENO customise this special application LED strip for a project?
Yes. DENO manufactures the Special SMD Strips series as an OEM and ODM supplier: reel length, colour temperature, CRI grade, PCB width, waterproofing and private labelling can all be specified. Request a quote for lead time and project pricing.
What makes an automotive LED strip different from standard 12V LED strip lights?
Automotive use adds vibration, wide temperature swing and an unstable bus voltage. These car LED strip lights use reinforced 2 oz copper FPCB, high-temperature adhesive and constant-current drive, so brightness stays stable between roughly 9 and 16 V and the strip survives continuous vibration.
What can be customised on an OEM LED strip order?
FPCB width and copper weight, LED type and density, CCT and CRI bin, cut interval, reel length, connector and encapsulation can all be specified. As a direct LED strip manufacturer, DENO builds to drawing, including non-standard shapes and project-specific labelling.
