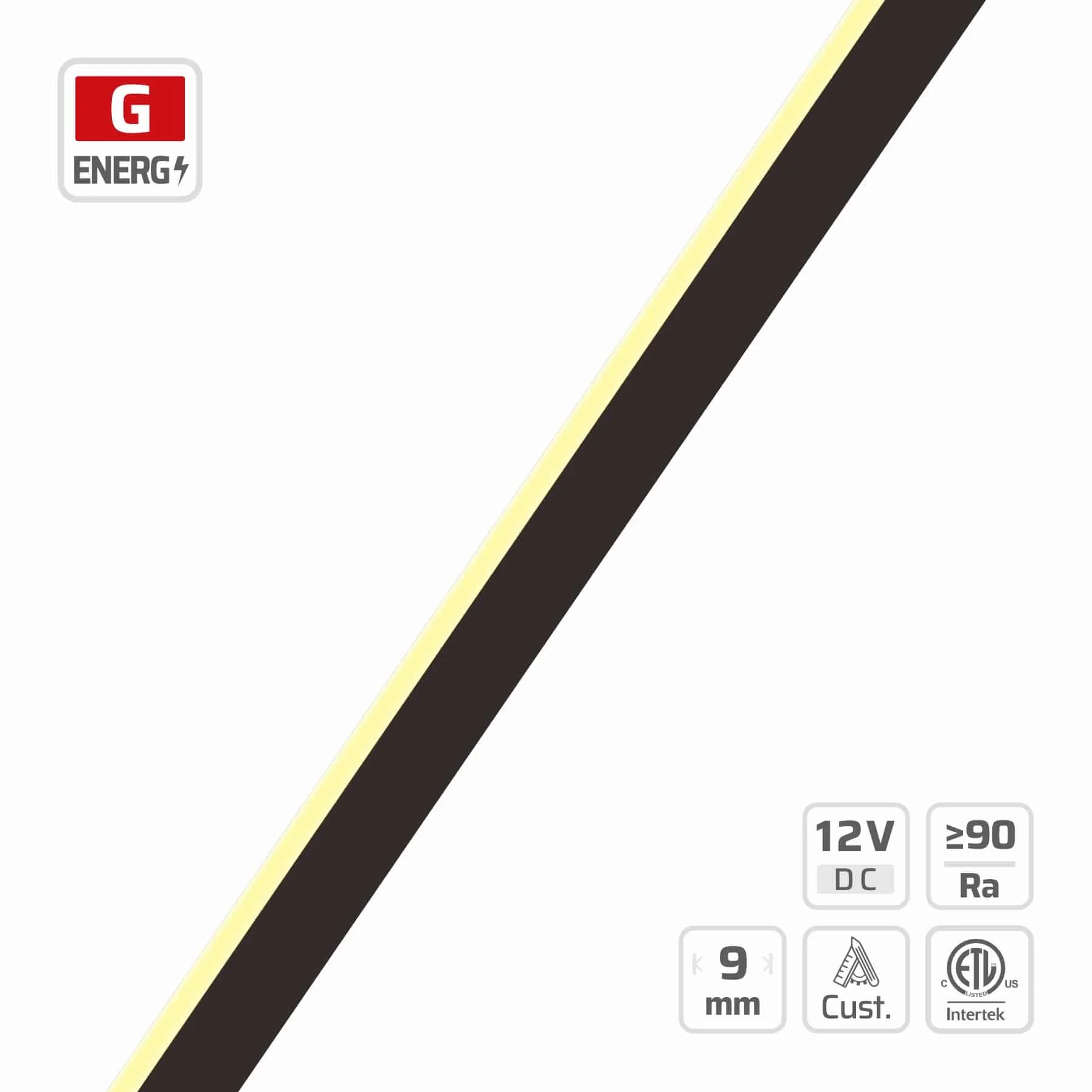

Special LED Strip Light (#14046)
9mm · 12V · 140LEDs · Arbitrary cut
Model: 14046
Overview
Special LED Strip Light | 9mm | 12V | 140LEDs | Arbitrary cut | #14046 is part of the DENO Automotive SMD Strip series, engineered around automotive LED strip. Key specifications: 2216, 140, 12V, 9 PCB, 2oz copper FPCB, cuttable 1LED/7.143mm. Every reel is produced on DENO's roll-to-roll line with 99.9% pure copper FPCB and ships CE, UL and RoHS compliant for architectural, retail and hospitality projects. OEM and ODM configurations of length, colour temperature and waterproofing are available on request.
Description
Special LED Strip Light | 9mm | 12V | 140LEDs | Arbitrary cut | #14046 LED Atmospheric lights, serving as functional lighting, enhance the perception of space. With an integration of semi-transparent material in its design, it not only achieves a softer and more uniform lighting but also provides greater flexibility and possibilities. Its ability to snugly fit into narrow crevices elevates the style of any space. The flat design allows it to effortlessly slide into various tight gaps. Whether you’re creating a cozy and intimate atmosphere at home or aiming for a trendy and fashionable play of light and shadow in a bar, it ensures that your space stands out from the rest. Cut freely Make it more easy for using and installation.
Special Application Led Strip built for special smd strips projects.
Specifications
| LED QTY | 140 |
|---|---|
| PART NO | DL-FATPA70V12-14046-* |
| SMD TYPE | 2216 |
| CUTTABLE UNIT | 1LED/7.143mm |
| DIMMABLE | Yes |
| LIFESPAN | 50000 |
| PCB WIDTH | 9 |
| WARRANTY | 5 Years |
| LENGTH MAX | 5m |
| COPPER FOIL | 2oz |
| CIRCUIT TYPE | C.V. |
| INPUT VOLTAGE | 12V |
| OPERATING TEMPERATURE | -25~40°C;Tc：75°C（max） |
Applications
- Cove, wall-wash & perimeter lighting — Coves, recesses, wall-wash details and ceiling perimeters where a continuous, uniform line of light is required.
- Showroom & hospitality display lighting — Shelving, display cases, reception desks and signage backlighting in shops, showrooms and hospitality spaces.
- Kitchen & wardrobe under-cabinet lighting — Kitchen, wardrobe and furniture task lighting where the strip stays hidden and only the light is seen.
Request a quotation for #14046
DENO LED is a Shenzhen-based LED strip manufacturer with its own Foshan production base. Send the run length, voltage, CCT/CRI and IP rating you need and our engineering team replies with a specification sheet, wiring plan and price — OEM/ODM and fully custom builds included.
- Warranty: 5 years
- Compliance: CE · UL · RoHS
- Bonding wire: 99.99% pure gold
- Copper foil: 99.9% pure copper FPCB
Photometric Performance — CCT × CRI Efficacy Matrix
Peak measured luminous efficacy: 4.8 lm/W at 4000K, Ra 90, ErP energy class G (Grade DL (2nd Tier) · 5W/m).
All values are measured at the stated power density and ambient 25 °C, reported as luminous efficacy in lumens per watt (lm/W), luminous flux per metre (lm/m) and the corresponding EU ErP (2019/2015) energy class.
Grade DL (2nd Tier) · 5W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | — | — | — | 3.6 lm/W | 17.8 lm/m | G | — | — | — |
| 2300 K | — | — | — | 4 lm/W | 19.8 lm/m | G | — | — | — |
| 2700 K | — | — | — | 4.4 lm/W | 21.8 lm/m | G | 3.6 lm/W | 17.8 lm/m | G |
| 3000 K | — | — | — | 4.6 lm/W | 22.8 lm/m | G | 3.8 lm/W | 18.8 lm/m | G |
| 3500 K | — | — | — | 4.7 lm/W | 23.3 lm/m | G | 3.9 lm/W | 19.3 lm/m | G |
| 4000 K | — | — | — | 4.8 lm/W | 23.9 lm/m | G | 4 lm/W | 19.8 lm/m | G |
| 5000 K | — | — | — | 4.8 lm/W | 23.9 lm/m | G | — | — | — |
| 6500 K | — | — | — | 4.6 lm/W | 22.8 lm/m | G | — | — | — |
Grade DL (2nd Tier) · 7W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | — | — | — | 3.5 lm/W | 24.5 lm/m | G | — | — | — |
| 2300 K | — | — | — | 3.9 lm/W | 27.3 lm/m | G | — | — | — |
| 2700 K | — | — | — | 4.3 lm/W | 30.1 lm/m | G | 3.5 lm/W | 24.5 lm/m | G |
| 3000 K | — | — | — | 4.5 lm/W | 31.5 lm/m | G | 3.7 lm/W | 25.9 lm/m | G |
| 3500 K | — | — | — | 4.6 lm/W | 32.2 lm/m | G | 3.8 lm/W | 26.6 lm/m | G |
| 4000 K | — | — | — | 4.7 lm/W | 32.9 lm/m | G | 3.9 lm/W | 27.3 lm/m | G |
| 5000 K | — | — | — | 4.7 lm/W | 32.9 lm/m | G | — | — | — |
| 6500 K | — | — | — | 4.5 lm/W | 31.5 lm/m | G | — | — | — |
Related models in this series
- Special LED Strip Light (#14047)
- Special LED Strip Light (#14045)
- 2835 Gold Yellow Special LED Strip Light (#2176-Yellow)
- 2216 Special LED Strip Light (#11474)
- 5050 Special LED Strip Light (#2809-food)
See every model in SMD LED Strip Series or narrow to Special. Compare wattage, lumen output and run length in the ProCalc parameter library, or request OEM/ODM pricing on the custom manufacturing page.
Frequently Asked Questions
What are the key specifications of 14046?
14046: 2216, 140, 12V, 9 PCB, 2oz copper FPCB, cuttable 1LED/7.143mm. Full photometric data, wiring diagrams and test reports are available in the downloads section of this page.
Which environments is this automotive LED strip rated for?
Ingress protection for this model is listed in the datasheet. As a automotive LED strip it is specified for the duty listed in the datasheet, and DENO can supply alternative coatings, sleeves or IP68 potting for harsher installations.
Can DENO customise this automotive LED strip for a project?
Yes. DENO manufactures the Automotive SMD Strip series as an OEM and ODM supplier: reel length, colour temperature, CRI grade, PCB width, waterproofing and private labelling can all be specified. Request a quote for lead time and project pricing.
What makes an automotive LED strip different from standard 12V LED strip lights?
Automotive use adds vibration, wide temperature swing and an unstable bus voltage. These car LED strip lights use reinforced 2 oz copper FPCB, high-temperature adhesive and constant-current drive, so brightness stays stable between roughly 9 and 16 V and the strip survives continuous vibration.
Where is a side emitting LED strip used?
A side view LED strip fires light out of the edge of the board rather than the face, which suits edge-lit panels, glass shelf edges, handrail slots and shallow reveals where there is no depth to mount a top-firing strip and aim it at the surface.
What can be customised on an OEM LED strip order?
FPCB width and copper weight, LED type and density, CCT and CRI bin, cut interval, reel length, connector and encapsulation can all be specified. As a direct LED strip manufacturer, DENO builds to drawing, including non-standard shapes and project-specific labelling.
