2835 Long Run LED Strip Light (#5217)
12mm · 36V · 90LEDs · 100cut
Model: 5217
Overview

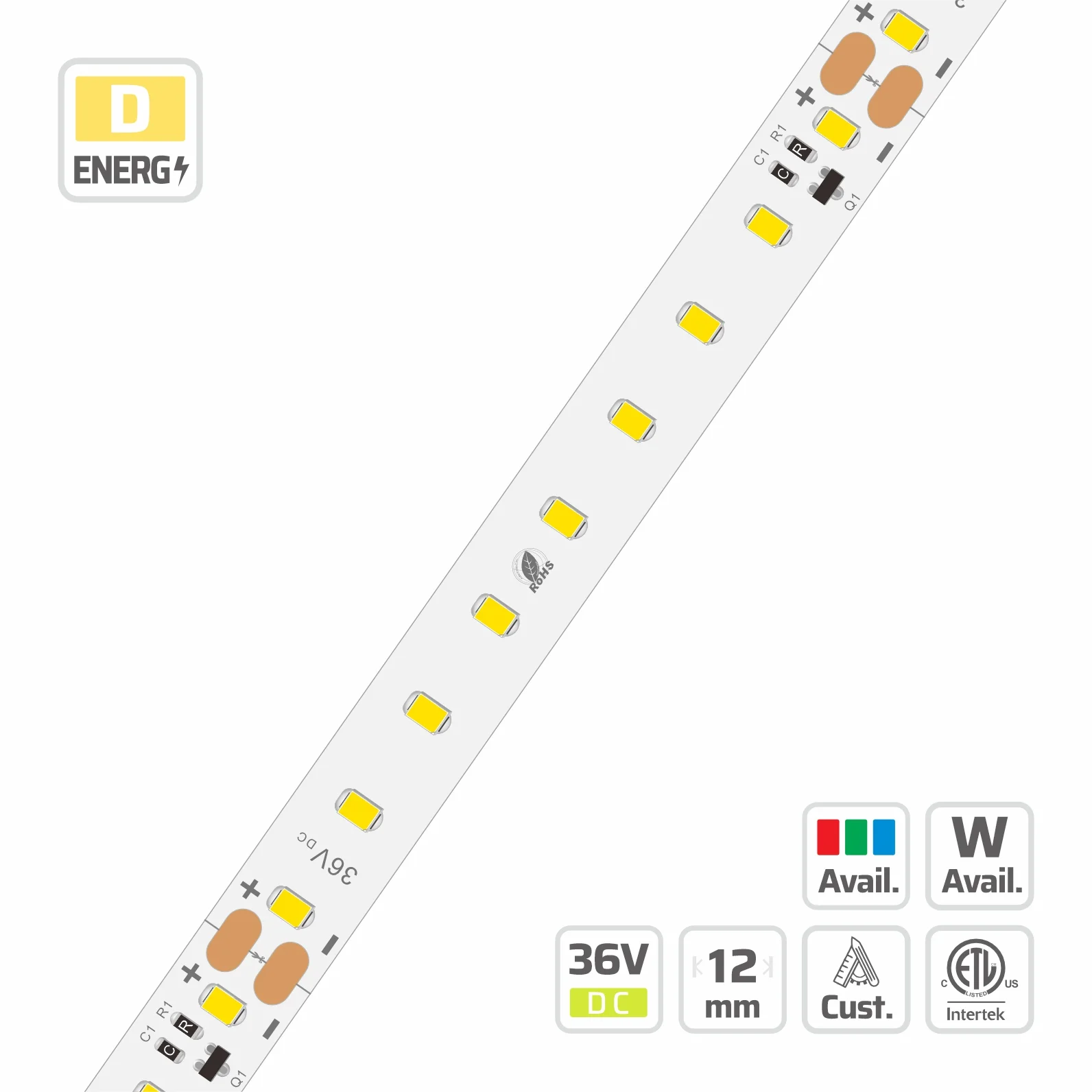

12mm | 36V | 90LEDs | 100cut | #5217 | 2835 Ultra-long LED Strip Light is part of the DENO 36V SMD Strips series, engineered around 36V LED strip lights. Key specifications: 2835, 90 LEDs/m, 36V, 12 mm PCB, 3oz copper FPCB, cuttable 9LEDs/100mm. Every reel is produced on DENO's roll-to-roll line with 99.9% pure copper FPCB and ships CE, UL and RoHS compliant for architectural, retail and hospitality projects. OEM and ODM configurations of length, colour temperature and waterproofing are available on request.
Description
Operating on a 36V constant-current circuit, this 2835 LED strip light supports single continuous runs up to 25 meters with reduced power feed points. Engineered on a heavy-duty 12mm wide 3oz copper PCB, the strip features 90 LEDs per meter with precise cut increments every 100mm. The dimmable design delivers a wide 120-degree beam angle across a 1.8W to 22W power range for linear architectural lighting projects. With a minimum bend diameter of 60mm and an operating temperature range of -25°C to 40°C, the strip ensures reliable mechanical flexibility. Available for factory-direct wholesale project supply with OEM custom lengths, color temperatures, and ingress protection options upon request.
We use 99.99% gold wire, large-size chips, and thickened FPCB, backed by a 5-year warranty.
Specifications
| CCT (K) | 1800–6500K |
|---|---|
| CRI | Ra≥90 |
| LED QTY | 90 LEDs/m |
| PART NO | DL-F28A45V36-5217-* |
| SMD TYPE | 2835 |
| CUTTABLE UNIT | 9LEDs/100mm |
| DIMMABLE | Yes |
| IP RATING | IP20 |
| LED PITCH | 11.11mm |
| PCB WIDTH | 12 mm |
| BEAM ANGLE | 120° |
| RUN LENGTH | 25M |
| COPPER FOIL | 3oz |
| ON OFF TIMES | 10000（test times） |
| POWER RANGE | 3.6~22W |
| CIRCUIT TYPE | C.C. |
| INPUT VOLTAGE | 36V |
| LUMINOUS FLUX | 90–1171 lm/m |
| MIN BEND DIAMETER | Φ60mm |
| OPERATING TEMPERATURE | -25~40°C;Tc：75°C（max） |
Applications
- Cove, wall-wash & perimeter lighting — Coves, recesses, wall-wash details and ceiling perimeters where a continuous, uniform line of light is required.
- Showroom & hospitality display lighting — Shelving, display cases, reception desks and signage backlighting in shops, showrooms and hospitality spaces.
- Kitchen & wardrobe under-cabinet lighting — Kitchen, wardrobe and furniture task lighting where the strip stays hidden and only the light is seen.
- Long corridor & warehouse runs — Long single-feed runs on 36V cover corridors, warehouse aisles and facade lines with fewer injection points and fewer power supplies.
Recommended accessories & compatible parts
- DL-1201 — 25x14.5mm Wide Surface Mount LED Channel — Aluminum Profile for 12mm Strip: Accepts LED strips up to 12mm wide.
- DL-1202 — 17.3x14.5mm Surface Mount LED Channel — Deep Aluminum Profile for 12mm Strip: Accepts LED strips up to 12mm wide.
- DL-1204 — 25x7mm Wide Slim Surface Mount LED Channel — Dotless Aluminum Profile for 240 LEDs/m: Accepts LED strips up to 12mm wide.
- V1 — 5-36VDC 1-Channel * 8A RF+Push Dimming Controller | V1: Matched by input voltage range and colour channels.
Request a quotation for #5217
DENO LED is a Shenzhen-based LED strip manufacturer with its own Foshan production base. Send the run length, voltage, CCT/CRI and IP rating you need and our engineering team replies with a specification sheet, wiring plan and price — OEM/ODM and fully custom builds included.
- Warranty: 5 years
- Lead time: standard boards: samples from 1 working day · custom: 3–5 working days · new FPCB: 1–3 weeks · production 1–2 weeks after sample approval
- Compliance: CE · UL · RoHS
- Bonding wire: 99.99% pure gold
- Copper foil: 99.9% pure copper FPCB
Photometric Performance — CCT × CRI Efficacy Matrix
Peak measured luminous efficacy: 150 lm/W at 4000K, Ra 80, ErP energy class D (Grade DN (1st Tier) · 5.4W/m).
All values are measured at the stated power density and ambient 25 °C, reported as luminous efficacy in lumens per watt (lm/W), luminous flux per metre (lm/m) and the corresponding EU ErP (2019/2015) energy class.
Grade DL (2nd Tier) · 5.4W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | 106.5 lm/W | 575.2 lm/m | F | 85.2 lm/W | 460.1 lm/m | F | — | — | — |
| 2300 K | 118.5 lm/W | 640 lm/m | E | 94.9 lm/W | 512.5 lm/m | F | 76.7 lm/W | 414.2 lm/m | G |
| 2700 K | 124.8 lm/W | 674 lm/m | E | 102.7 lm/W | 554.6 lm/m | F | 83.2 lm/W | 449.3 lm/m | G |
| 3000 K | 133.4 lm/W | 720.4 lm/m | E | 108.1 lm/W | 583.8 lm/m | F | 87.9 lm/W | 474.7 lm/m | F |
| 3500 K | 135.4 lm/W | 731.2 lm/m | D | 110 lm/W | 594.1 lm/m | E | 90.5 lm/W | 488.7 lm/m | F |
| 4000 K | 139.7 lm/W | 754.5 lm/m | D | 112.6 lm/W | 608.1 lm/m | E | 93 lm/W | 502.2 lm/m | F |
| 5000 K | 139.6 lm/W | 753.9 lm/m | D | 112.6 lm/W | 608.1 lm/m | E | 93.2 lm/W | 503.3 lm/m | F |
| 6500 K | 127.7 lm/W | 689.6 lm/m | E | 108 lm/W | 583.3 lm/m | F | 89.6 lm/W | 483.9 lm/m | F |
Grade DL (2nd Tier) · 7.2W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | 105.2 lm/W | 757.2 lm/m | F | 84.1 lm/W | 605.8 lm/m | G | — | — | — |
| 2300 K | 117 lm/W | 842.6 lm/m | E | 93.7 lm/W | 674.8 lm/m | F | 75.7 lm/W | 545.4 lm/m | G |
| 2700 K | 123.2 lm/W | 887.4 lm/m | E | 101.4 lm/W | 730.2 lm/m | F | 82.2 lm/W | 591.6 lm/m | G |
| 3000 K | 131.7 lm/W | 948.5 lm/m | E | 106.8 lm/W | 768.6 lm/m | F | 86.8 lm/W | 625 lm/m | F |
| 3500 K | 133.7 lm/W | 962.7 lm/m | E | 108.6 lm/W | 782.1 lm/m | F | 89.4 lm/W | 643.5 lm/m | F |
| 4000 K | 138 lm/W | 993.3 lm/m | D | 111.2 lm/W | 800.6 lm/m | E | 91.8 lm/W | 661.3 lm/m | F |
| 5000 K | 137.9 lm/W | 992.6 lm/m | D | 111.2 lm/W | 800.6 lm/m | E | 92 lm/W | 662.7 lm/m | F |
| 6500 K | 126.1 lm/W | 908 lm/m | E | 106.7 lm/W | 767.9 lm/m | F | 88.5 lm/W | 637.1 lm/m | F |
Grade DL (2nd Tier) · 14.4W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | 100 lm/W | 1439.8 lm/m | F | 80 lm/W | 1151.8 lm/m | G | — | — | — |
| 2300 K | 111.3 lm/W | 1602 lm/m | E | 89.1 lm/W | 1283 lm/m | F | 72 lm/W | 1036.9 lm/m | G |
| 2700 K | 117.2 lm/W | 1687.2 lm/m | E | 96.4 lm/W | 1388.4 lm/m | F | 78.1 lm/W | 1124.8 lm/m | G |
| 3000 K | 125.2 lm/W | 1803.5 lm/m | E | 101.5 lm/W | 1461.4 lm/m | F | 82.5 lm/W | 1188.3 lm/m | G |
| 3500 K | 127.1 lm/W | 1830.5 lm/m | E | 103.3 lm/W | 1487.1 lm/m | F | 85 lm/W | 1223.5 lm/m | G |
| 4000 K | 131.2 lm/W | 1888.6 lm/m | E | 105.7 lm/W | 1522.3 lm/m | F | 87.3 lm/W | 1257.3 lm/m | F |
| 5000 K | 131.1 lm/W | 1887.3 lm/m | E | 105.7 lm/W | 1522.3 lm/m | F | 87.5 lm/W | 1260 lm/m | F |
| 6500 K | 119.9 lm/W | 1726.4 lm/m | E | 101.4 lm/W | 1460.1 lm/m | F | 84.1 lm/W | 1211.3 lm/m | G |
Grade DN (1st Tier) · 5.4W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | 117.6 lm/W | 635.1 lm/m | F | 98.9 lm/W | 534.1 lm/m | F | — | — | — |
| 2300 K | 128.2 lm/W | 692.3 lm/m | E | 110.4 lm/W | 596.2 lm/m | F | 89.2 lm/W | 481.7 lm/m | G |
| 2700 K | 138.2 lm/W | 746.4 lm/m | E | 119.4 lm/W | 644.8 lm/m | E | 96.8 lm/W | 522.8 lm/m | F |
| 3000 K | 145.1 lm/W | 783.6 lm/m | E | 126.1 lm/W | 681 lm/m | E | 102.6 lm/W | 554.1 lm/m | F |
| 3500 K | 147.3 lm/W | 795.5 lm/m | D | 128.8 lm/W | 695.6 lm/m | E | 106 lm/W | 572.5 lm/m | F |
| 4000 K | 150 lm/W | 810.1 lm/m | D | 129.6 lm/W | 699.9 lm/m | E | 106.9 lm/W | 577.3 lm/m | F |
| 5000 K | 149.8 lm/W | 809 lm/m | D | 130.4 lm/W | 704.2 lm/m | E | 108 lm/W | 583.3 lm/m | F |
| 6500 K | 143.6 lm/W | 775.5 lm/m | E | 124.6 lm/W | 672.9 lm/m | E | 103.4 lm/W | 558.4 lm/m | F |
Grade DN (1st Tier) · 7.2W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | 116.1 lm/W | 836.2 lm/m | F | 97.7 lm/W | 703.2 lm/m | F | — | — | — |
| 2300 K | 126.6 lm/W | 911.5 lm/m | E | 109 lm/W | 785 lm/m | F | 88.1 lm/W | 634.2 lm/m | G |
| 2700 K | 136.5 lm/W | 982.6 lm/m | E | 117.9 lm/W | 849 lm/m | F | 95.6 lm/W | 688.3 lm/m | F |
| 3000 K | 143.3 lm/W | 1031.7 lm/m | E | 124.5 lm/W | 896.6 lm/m | E | 101.3 lm/W | 729.5 lm/m | F |
| 3500 K | 145.5 lm/W | 1047.3 lm/m | E | 127.2 lm/W | 915.8 lm/m | E | 104.7 lm/W | 753.7 lm/m | F |
| 4000 K | 148.1 lm/W | 1066.5 lm/m | D | 128 lm/W | 921.5 lm/m | E | 105.6 lm/W | 760.1 lm/m | F |
| 5000 K | 147.9 lm/W | 1065.1 lm/m | D | 128.8 lm/W | 927.2 lm/m | E | 106.7 lm/W | 767.9 lm/m | F |
| 6500 K | 141.8 lm/W | 1021 lm/m | E | 123 lm/W | 885.9 lm/m | E | 102.1 lm/W | 735.2 lm/m | F |
Grade DN (1st Tier) · 14.4W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | 110.4 lm/W | 1589.8 lm/m | F | 92.9 lm/W | 1337 lm/m | F | — | — | — |
| 2300 K | 120.4 lm/W | 1733.2 lm/m | E | 103.6 lm/W | 1492.5 lm/m | F | 83.7 lm/W | 1205.9 lm/m | G |
| 2700 K | 129.7 lm/W | 1868.3 lm/m | E | 112.1 lm/W | 1614.2 lm/m | F | 90.9 lm/W | 1308.7 lm/m | G |
| 3000 K | 136.2 lm/W | 1961.6 lm/m | E | 118.4 lm/W | 1704.8 lm/m | F | 96.3 lm/W | 1387.1 lm/m | F |
| 3500 K | 138.3 lm/W | 1991.4 lm/m | E | 120.9 lm/W | 1741.3 lm/m | E | 99.5 lm/W | 1433 lm/m | F |
| 4000 K | 140.8 lm/W | 2027.9 lm/m | E | 121.7 lm/W | 1752.1 lm/m | E | 100.4 lm/W | 1445.2 lm/m | F |
| 5000 K | 140.6 lm/W | 2025.2 lm/m | E | 122.4 lm/W | 1762.9 lm/m | E | 101.4 lm/W | 1460.1 lm/m | F |
| 6500 K | 134.8 lm/W | 1941.3 lm/m | E | 117 lm/W | 1684.5 lm/m | F | 97.1 lm/W | 1397.9 lm/m | F |
Grade KE (3rd Tier) · 5.4W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1900 K | 86.4 lm/W | 466.6 lm/m | F | 68.9 lm/W | 372.1 lm/m | G | — | — | — |
| 2300 K | 96.3 lm/W | 520.1 lm/m | F | 76.8 lm/W | 414.8 lm/m | G | 62.1 lm/W | 335.4 lm/m | G |
| 2700 K | 103.8 lm/W | 560.6 lm/m | F | 83.3 lm/W | 449.9 lm/m | G | 67.5 lm/W | 364.5 lm/m | G |
| 3000 K | 109 lm/W | 588.7 lm/m | F | 88.1 lm/W | 475.8 lm/m | F | 71.6 lm/W | 386.7 lm/m | G |
| 3500 K | 110.6 lm/W | 597.3 lm/m | E | 89.8 lm/W | 485 lm/m | F | 73.9 lm/W | 399.1 lm/m | G |
| 4000 K | 113.9 lm/W | 615.1 lm/m | E | 91.8 lm/W | 495.8 lm/m | F | 75.8 lm/W | 409.4 lm/m | G |
| 5000 K | 113.7 lm/W | 614 lm/m | E | 91.7 lm/W | 495.2 lm/m | F | 76 lm/W | 410.4 lm/m | G |
| 6500 K | 109 lm/W | 588.7 lm/m | F | 88.1 lm/W | 475.8 lm/m | F | 73.1 lm/W | 394.8 lm/m | G |
Grade KE (3rd Tier) · 7.2W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1900 K | 85.3 lm/W | 614.3 lm/m | F | 68 lm/W | 489.9 lm/m | G | — | — | — |
| 2300 K | 95.1 lm/W | 684.7 lm/m | F | 75.8 lm/W | 546.1 lm/m | G | 61.3 lm/W | 441.5 lm/m | G |
| 2700 K | 102.5 lm/W | 738 lm/m | F | 82.3 lm/W | 592.3 lm/m | G | 66.7 lm/W | 479.9 lm/m | G |
| 3000 K | 107.6 lm/W | 775 lm/m | F | 87 lm/W | 626.4 lm/m | F | 70.7 lm/W | 509.1 lm/m | G |
| 3500 K | 109.2 lm/W | 786.4 lm/m | F | 88.7 lm/W | 638.5 lm/m | F | 73 lm/W | 525.4 lm/m | G |
| 4000 K | 112.5 lm/W | 809.9 lm/m | E | 90.7 lm/W | 652.7 lm/m | F | 74.9 lm/W | 539 lm/m | G |
| 5000 K | 112.3 lm/W | 808.4 lm/m | E | 90.6 lm/W | 652 lm/m | F | 75.1 lm/W | 540.4 lm/m | G |
| 6500 K | 107.6 lm/W | 775 lm/m | F | 87 lm/W | 626.4 lm/m | F | 72.2 lm/W | 519.8 lm/m | G |
Grade KE (3rd Tier) · 14.4W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1900 K | 81.1 lm/W | 1168.1 lm/m | G | 64.7 lm/W | 931.5 lm/m | G | — | — | — |
| 2300 K | 90.4 lm/W | 1301.9 lm/m | F | 72.1 lm/W | 1038.3 lm/m | G | 58.3 lm/W | 839.5 lm/m | G |
| 2700 K | 97.5 lm/W | 1403.3 lm/m | F | 78.2 lm/W | 1126.1 lm/m | G | 63.4 lm/W | 912.5 lm/m | G |
| 3000 K | 102.3 lm/W | 1473.6 lm/m | F | 82.7 lm/W | 1191 lm/m | G | 67.2 lm/W | 968 lm/m | G |
| 3500 K | 103.8 lm/W | 1495.2 lm/m | F | 84.3 lm/W | 1214 lm/m | G | 69.4 lm/W | 999.1 lm/m | G |
| 4000 K | 106.9 lm/W | 1539.8 lm/m | F | 86.2 lm/W | 1241.1 lm/m | F | 71.2 lm/W | 1024.7 lm/m | G |
| 5000 K | 106.7 lm/W | 1537.1 lm/m | F | 86.1 lm/W | 1239.7 lm/m | F | 71.4 lm/W | 1027.5 lm/m | G |
| 6500 K | 102.3 lm/W | 1473.6 lm/m | F | 82.7 lm/W | 1191 lm/m | G | 68.6 lm/W | 988.2 lm/m | G |
High-Power LED Strip: Heat Dissipation & Aluminum Channel Guide
At up to 14.4W/m, 5217 is a high-power SMD LED strip. Above roughly 14.4W/m the tape can no longer shed its own heat through the FPC alone — an aluminum channel is part of the luminaire, not an accessory.
Why high-wattage strips need a heat sink
- Aluminum conducts heat roughly 30× faster than the plastics, MDF or gypsum a strip is usually stuck to, so a bare high-power run traps heat under the tape.
- LED lifetime (LM-80 / TM-21) is driven by solder-point temperature Tc. Keeping Tc inside the datasheet limit — DENO strips are rated Tc ≤ 75°C — is what preserves the rated L70 lifetime and colour stability.
- Never run 14.4W/m or more coiled on the reel, inside a sealed plastic diffuser, or directly on wood, wallpaper or foam.
Sizing rule: FPC width vs channel inner width
- Channel inner width ≥ FPC width + 2mm. This strip is 12mm wide, so it needs at least 14mm of inner width.
- The 2mm clearance absorbs extrusion tolerance and lets the tape be seated or replaced without scraping the side walls or the wiring.
- A frosted or opal PC cover then diffuses the higher lumen output into an even, dot-free line instead of visible hot spots.
Aluminum channels that fit this strip
- 20x08mm Surface Mount LED Channel · fits ≤12mm strip
- 18x18mm Magnetic LED Channel · fits ≤12mm strip
- 17.3x14.5mm Surface Mount LED Channel · fits ≤12mm strip
- 17.5x7mm Slim Surface Mount LED Channel · fits ≤12mm strip
- Slim Surface Aluminum Profile · 12mm PCB · fits ≤12mm strip
- 25x7mm Wide Slim Surface Mount LED Channel · fits ≤12mm strip
Recommended LED Channels
Mount this LED strip in a DENO LED aluminum profile for heat dissipation, physical protection and diffused, dot-free output.
This strip is 12mm wide, so it needs a channel with at least 14mm inner width (12mm + 2mm clearance). Every profile below meets that.
Related models in this series
- 20cut (#9009 High Density LED strip light)
- 2835 Constant Current High Lumen High Light Efficacy LED Strip Light (#5932)
- 2835 High Light Efficacy High Lumen LED Strip Light (#4493)
- 2835 Long Run LED Strip Light (#4274)
- 2835 Constant Current High Lumen Long Run LED Strip Light (#3557)
- 2835 Long Run LED Strip Light (#3960)
- 2835 Long Run LED Strip Light (#5164)
- 2835 High Light Efficacy High Lumen LED Strip Light (#1494)
See every model in SMD LED Strip Series or narrow to Ic. Compare wattage, lumen output and run length in the ProCalc parameter library, or request OEM/ODM pricing on the custom manufacturing page.
Frequently Asked Questions
What are the key specifications of 5217?
5217: 2835, 90 LEDs/m, 36V, 12 mm PCB, 3oz copper FPCB, cuttable 9LEDs/100mm. Full photometric data, wiring diagrams and test reports are available in the downloads section of this page.
How long can a single run of this 36V LED strip lights be?
Maximum single run for this model is 25M. Feeding from both ends or using a mid-point tap halves the effective distance per segment, so a 36V LED strip lights can cover twice that length on one circuit when wired accordingly.
Can DENO customise this 36V LED strip lights for a project?
Yes. DENO manufactures the 36V SMD Strips series as an OEM and ODM supplier: reel length, colour temperature, CRI grade, PCB width, waterproofing and private labelling can all be specified. Request a quote for lead time and project pricing.
What limits how long an LED strip run can be?
Voltage drop and conductor current, not the LED itself. A long run LED strip combines low watts per metre, 2 oz or thicker copper and a higher bus voltage such as 24V, 36V or 48V to reach 20 m or more from one feed while staying inside a 3 percent drop.
When should you use a 36V LED strip instead of 24V?
Choose 36V when a single run exceeds what a 24V LED strip can feed within a 3 percent voltage drop. At the same power per metre a higher bus voltage means lower current and roughly half the drop of 24V over the same distance, so corridors, facades and cove runs can be fed from one end with fewer power injection points.
