2835 Long Run LED Strip Light (#5164)
10mm · 24V · 60LED · 100cut
Model: 5164
Overview

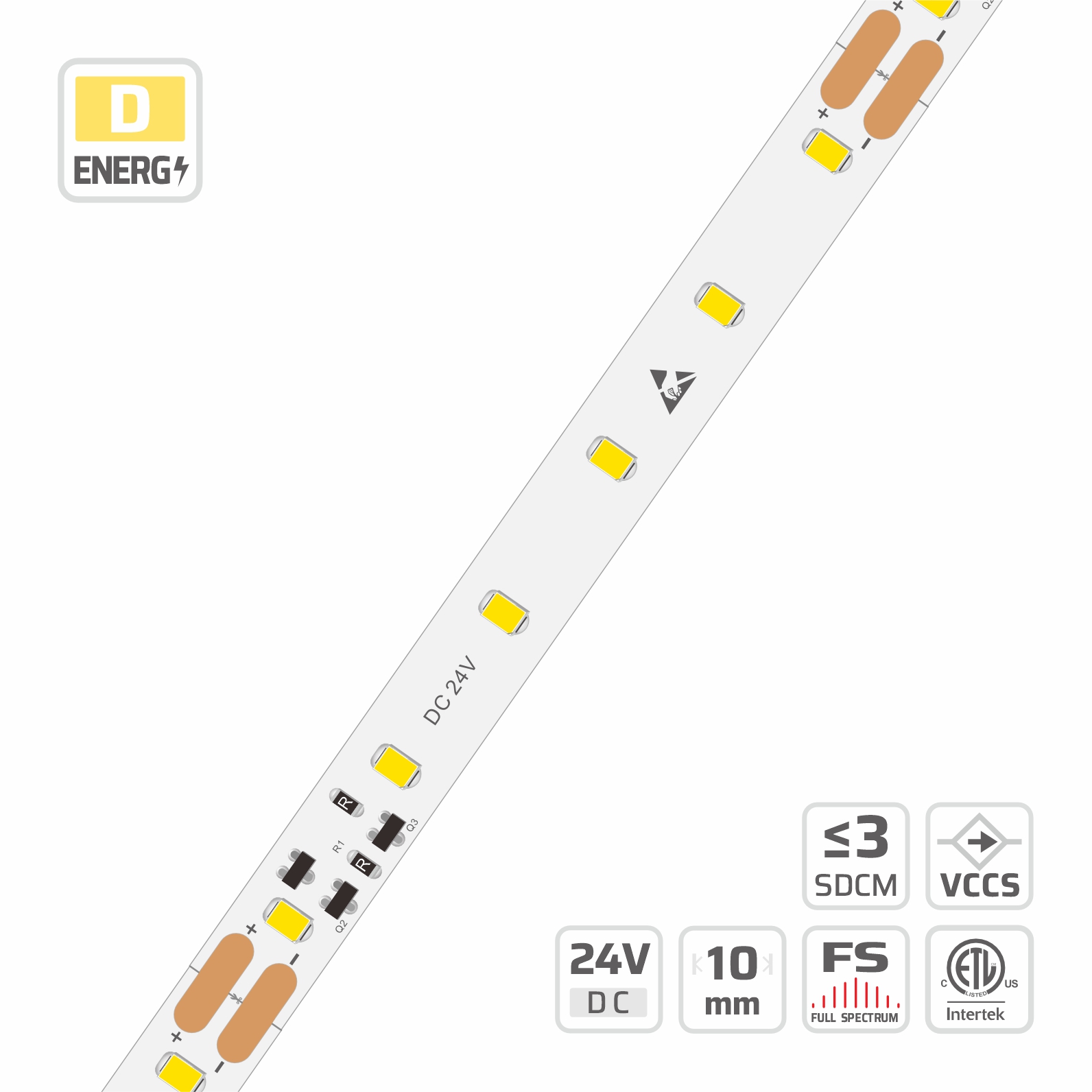

10mm | 24V | 100cut | 60LED | #5164 | 2835 Ultra-long LED Strip Light is part of the DENO Ultra-Long SMD Strips series, engineered around ultra long run LED strip. Key specifications: 2835, 60LED/m, 24V, 10mm PCB, 3oz copper FPCB, cuttable 6LEDs/100mm. Every reel is produced on DENO's roll-to-roll line with 99.9% pure copper FPCB and ships CE, UL and RoHS compliant for architectural, retail and hospitality projects. OEM and ODM configurations of length, colour temperature and waterproofing are available on request.
Description
2835 long LED strip — 24V DC, 60 LEDs/m on a 10mm, 3 oz copper board, cuttable every 100mm, constant-current circuit. Buyer decision: a true 65.6 ft (20 m) strip on one feed, 40 m on two — shipped as a single uncut board, so there is no mid-run joint to dim, fail or break the line. The straightforward choice for long coves and corridors. Custom CCT, IP and length — request a factory quote.
Constant Current Ic Led Strip built for c.c. smd strips (ic regulated) projects.
Specifications
| LED QTY | 60LED/m |
|---|---|
| PART NO | DL-F28A30V24-5164-* |
| SMD TYPE | 2835 |
| CUTTABLE UNIT | 6LEDs/100mm |
| DIMMABLE | Yes |
| LED PITCH | 16.6mm |
| PCB WIDTH | 10mm |
| BEAM ANGLE | 120° |
| LENGTH MAX | 20m |
| COPPER FOIL | 3oz |
| POWER RANGE | 2.4~14.4W |
| CIRCUIT TYPE | C.C. |
| INPUT VOLTAGE | 24V |
Applications
- Cove, wall-wash & perimeter lighting — Coves, recesses, wall-wash details and ceiling perimeters where a continuous, uniform line of light is required.
- Showroom & hospitality display lighting — Shelving, display cases, reception desks and signage backlighting in shops, showrooms and hospitality spaces.
- Kitchen & wardrobe under-cabinet lighting — Kitchen, wardrobe and furniture task lighting where the strip stays hidden and only the light is seen.
- Long corridor & warehouse runs — 48V feeding lets one run cover long corridors, warehouse aisles and facade lines with fewer injection points and fewer power supplies.
Request a quotation for #5164
DENO LED is a Shenzhen-based LED strip manufacturer with its own Foshan production base. Send the run length, voltage, CCT/CRI and IP rating you need and our engineering team replies with a specification sheet, wiring plan and price — OEM/ODM and fully custom builds included.
- Warranty: 5 years
- Compliance: CE · UL · RoHS
- Bonding wire: 99.99% pure gold
- Copper foil: 99.9% pure copper FPCB
Photometric Performance — CCT × CRI Efficacy Matrix
Peak measured luminous efficacy: 146.9 lm/W at 4000K, Ra 80, ErP energy class D (Grade DN (1st Tier)).
All values are measured at the stated power density and ambient 25 °C, reported as luminous efficacy in lumens per watt (lm/W), luminous flux per metre (lm/m) and the corresponding EU ErP (2019/2015) energy class.
Grade DN (1st Tier)
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | 115.1 lm/W | 414.5 lm/m | F | 96.8 lm/W | 348.6 lm/m | F | — | — | — |
| 2300 K | 125.6 lm/W | 452.2 lm/m | E | 108 lm/W | 388.8 lm/m | F | 87.5 lm/W | 315 lm/m | G |
| 2700 K | 135.4 lm/W | 487.3 lm/m | E | 117 lm/W | 421 lm/m | F | 94.7 lm/W | 341 lm/m | F |
| 3000 K | 142.1 lm/W | 511.6 lm/m | E | 123.5 lm/W | 444.6 lm/m | E | 100.5 lm/W | 361.7 lm/m | F |
| 3500 K | 144.2 lm/W | 519.2 lm/m | E | 126.2 lm/W | 454.4 lm/m | E | 103.9 lm/W | 374 lm/m | F |
| 4000 K | 146.9 lm/W | 528.9 lm/m | D | 126.8 lm/W | 456.5 lm/m | E | 104.7 lm/W | 376.9 lm/m | F |
| 5000 K | 146.7 lm/W | 528.2 lm/m | D | 127.7 lm/W | 459.8 lm/m | E | 105.4 lm/W | 379.4 lm/m | F |
| 6500 K | 140.7 lm/W | 506.5 lm/m | E | 122 lm/W | 439.1 lm/m | E | 101.2 lm/W | 364.3 lm/m | F |
Grade DN (1st Tier)
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | 114.2 lm/W | 548.1 lm/m | F | 96 lm/W | 460.9 lm/m | F | — | — | — |
| 2300 K | 124.6 lm/W | 597.8 lm/m | E | 107.1 lm/W | 514.1 lm/m | F | 86.8 lm/W | 416.6 lm/m | G |
| 2700 K | 134.2 lm/W | 644.3 lm/m | E | 116 lm/W | 556.7 lm/m | F | 93.9 lm/W | 450.9 lm/m | F |
| 3000 K | 140.9 lm/W | 676.3 lm/m | E | 122.5 lm/W | 587.8 lm/m | E | 99.6 lm/W | 478.2 lm/m | F |
| 3500 K | 143 lm/W | 686.4 lm/m | E | 125.1 lm/W | 600.7 lm/m | E | 103 lm/W | 494.5 lm/m | F |
| 4000 K | 145.7 lm/W | 699.3 lm/m | E | 125.7 lm/W | 603.6 lm/m | E | 103.8 lm/W | 498.3 lm/m | F |
| 5000 K | 145.5 lm/W | 698.4 lm/m | E | 126.6 lm/W | 607.9 lm/m | E | 104.5 lm/W | 501.6 lm/m | F |
| 6500 K | 139.5 lm/W | 669.6 lm/m | E | 121 lm/W | 580.6 lm/m | E | 100.4 lm/W | 481.9 lm/m | F |
Grade DN (1st Tier)
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | 112.3 lm/W | 808.4 lm/m | F | 94.4 lm/W | 679.9 lm/m | F | — | — | — |
| 2300 K | 122.5 lm/W | 881.8 lm/m | E | 105.3 lm/W | 758.2 lm/m | F | 85.3 lm/W | 614.2 lm/m | G |
| 2700 K | 132 lm/W | 950.3 lm/m | E | 114 lm/W | 821.1 lm/m | F | 92.4 lm/W | 665 lm/m | F |
| 3000 K | 138.5 lm/W | 997.6 lm/m | E | 120.4 lm/W | 867 lm/m | E | 98 lm/W | 705.3 lm/m | F |
| 3500 K | 140.6 lm/W | 1012.4 lm/m | E | 123.1 lm/W | 886 lm/m | E | 101.3 lm/W | 729.3 lm/m | F |
| 4000 K | 143.3 lm/W | 1031.4 lm/m | E | 123.6 lm/W | 890.2 lm/m | E | 102.1 lm/W | 734.9 lm/m | F |
| 5000 K | 143.1 lm/W | 1030 lm/m | E | 124.5 lm/W | 896.6 lm/m | E | 102.7 lm/W | 739.4 lm/m | F |
| 6500 K | 137.2 lm/W | 987.7 lm/m | E | 118.9 lm/W | 856.4 lm/m | E | 98.7 lm/W | 710.6 lm/m | F |
Grade DN (1st Tier)
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | 108.5 lm/W | 1302.6 lm/m | F | 91.3 lm/W | 1095.5 lm/m | G | — | — | — |
| 2300 K | 118.4 lm/W | 1420.9 lm/m | F | 101.8 lm/W | 1221.8 lm/m | F | 82.5 lm/W | 990 lm/m | G |
| 2700 K | 127.6 lm/W | 1531.3 lm/m | E | 110.3 lm/W | 1323.1 lm/m | F | 89.3 lm/W | 1071.6 lm/m | G |
| 3000 K | 134 lm/W | 1607.5 lm/m | E | 116.4 lm/W | 1397 lm/m | F | 94.7 lm/W | 1136.5 lm/m | F |
| 3500 K | 135.9 lm/W | 1631.4 lm/m | E | 119 lm/W | 1427.7 lm/m | E | 97.9 lm/W | 1175.2 lm/m | F |
| 4000 K | 138.5 lm/W | 1662.1 lm/m | E | 119.5 lm/W | 1434.6 lm/m | E | 98.7 lm/W | 1184.3 lm/m | F |
| 5000 K | 138.3 lm/W | 1659.8 lm/m | E | 120.4 lm/W | 1444.8 lm/m | E | 99.3 lm/W | 1191.6 lm/m | F |
| 6500 K | 132.6 lm/W | 1591.5 lm/m | E | 115 lm/W | 1379.9 lm/m | F | 95.4 lm/W | 1144.8 lm/m | F |
Grade DL (2nd Tier)
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | 110 lm/W | 396.1 lm/m | E | 88 lm/W | 316.8 lm/m | F | — | — | — |
| 2300 K | 122.4 lm/W | 440.6 lm/m | E | 98.1 lm/W | 353 lm/m | F | 79.4 lm/W | 285.8 lm/m | G |
| 2700 K | 128.9 lm/W | 464.2 lm/m | E | 106.1 lm/W | 382 lm/m | F | 86 lm/W | 309.6 lm/m | F |
| 3000 K | 137.8 lm/W | 496 lm/m | D | 111.6 lm/W | 401.9 lm/m | E | 90.8 lm/W | 326.9 lm/m | F |
| 3500 K | 139.9 lm/W | 503.6 lm/m | D | 113.6 lm/W | 409.1 lm/m | E | 93.5 lm/W | 336.7 lm/m | F |
| 4000 K | 144.3 lm/W | 519.6 lm/m | D | 116.4 lm/W | 418.9 lm/m | E | 96 lm/W | 345.8 lm/m | F |
| 5000 K | 144.2 lm/W | 519.2 lm/m | D | 116.4 lm/W | 418.9 lm/m | E | 96 lm/W | 345.6 lm/m | F |
| 6500 K | 132 lm/W | 475 lm/m | E | 111.6 lm/W | 401.9 lm/m | E | 92.7 lm/W | 333.7 lm/m | F |
Grade DL (2nd Tier)
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | 109.1 lm/W | 523.7 lm/m | F | 87.3 lm/W | 418.9 lm/m | F | — | — | — |
| 2300 K | 121.4 lm/W | 582.6 lm/m | E | 97.2 lm/W | 466.7 lm/m | F | 78.8 lm/W | 378.2 lm/m | G |
| 2700 K | 127.9 lm/W | 613.7 lm/m | E | 105.2 lm/W | 505 lm/m | F | 85.3 lm/W | 409.3 lm/m | F |
| 3000 K | 136.6 lm/W | 655.8 lm/m | D | 110.7 lm/W | 531.4 lm/m | E | 90.1 lm/W | 432.3 lm/m | F |
| 3500 K | 138.7 lm/W | 665.9 lm/m | D | 112.7 lm/W | 540.9 lm/m | E | 92.7 lm/W | 445.2 lm/m | F |
| 4000 K | 143.1 lm/W | 686.9 lm/m | D | 115.4 lm/W | 553.9 lm/m | E | 95.2 lm/W | 457.2 lm/m | F |
| 5000 K | 143 lm/W | 686.5 lm/m | D | 115.4 lm/W | 553.9 lm/m | E | 95.2 lm/W | 457 lm/m | F |
| 6500 K | 130.8 lm/W | 628.1 lm/m | E | 110.7 lm/W | 531.4 lm/m | E | 91.9 lm/W | 441.1 lm/m | F |
Grade DL (2nd Tier)
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | 107.3 lm/W | 772.4 lm/m | F | 85.8 lm/W | 617.8 lm/m | F | — | — | — |
| 2300 K | 119.3 lm/W | 859.3 lm/m | E | 95.6 lm/W | 688.4 lm/m | F | 77.4 lm/W | 557.3 lm/m | G |
| 2700 K | 125.7 lm/W | 905.2 lm/m | E | 103.5 lm/W | 744.9 lm/m | F | 83.8 lm/W | 603.7 lm/m | G |
| 3000 K | 134.3 lm/W | 967.3 lm/m | E | 108.9 lm/W | 783.7 lm/m | F | 88.6 lm/W | 637.6 lm/m | F |
| 3500 K | 136.4 lm/W | 982.1 lm/m | D | 110.8 lm/W | 797.8 lm/m | E | 91.2 lm/W | 656.6 lm/m | F |
| 4000 K | 140.7 lm/W | 1013.2 lm/m | D | 113.5 lm/W | 816.9 lm/m | E | 93.7 lm/W | 674.3 lm/m | F |
| 5000 K | 140.6 lm/W | 1012.5 lm/m | D | 113.5 lm/W | 816.9 lm/m | E | 93.6 lm/W | 673.9 lm/m | F |
| 6500 K | 128.7 lm/W | 926.3 lm/m | E | 108.9 lm/W | 783.7 lm/m | F | 90.3 lm/W | 650.2 lm/m | F |
Grade DL (2nd Tier)
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | 103.7 lm/W | 1244.7 lm/m | F | 83 lm/W | 995.5 lm/m | G | — | — | — |
| 2300 K | 115.4 lm/W | 1384.6 lm/m | E | 92.4 lm/W | 1109.3 lm/m | F | 74.9 lm/W | 898.8 lm/m | G |
| 2700 K | 121.5 lm/W | 1458.6 lm/m | E | 100 lm/W | 1200.3 lm/m | F | 81.1 lm/W | 972.8 lm/m | G |
| 3000 K | 129.9 lm/W | 1558.7 lm/m | E | 105.2 lm/W | 1262.9 lm/m | F | 85.6 lm/W | 1027.4 lm/m | F |
| 3500 K | 131.9 lm/W | 1582.6 lm/m | E | 107.1 lm/W | 1285.7 lm/m | F | 88.2 lm/W | 1058.1 lm/m | F |
| 4000 K | 136.1 lm/W | 1632.7 lm/m | D | 109.7 lm/W | 1316.4 lm/m | F | 90.5 lm/W | 1086.5 lm/m | F |
| 5000 K | 136 lm/W | 1631.5 lm/m | D | 109.7 lm/W | 1316.4 lm/m | F | 90.5 lm/W | 1086 lm/m | F |
| 6500 K | 124.4 lm/W | 1492.7 lm/m | E | 105.2 lm/W | 1262.9 lm/m | F | 87.4 lm/W | 1048.8 lm/m | F |
Grade KE (3rd Tier)
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1900 K | 97.1 lm/W | 349.4 lm/m | F | 77.6 lm/W | 279.2 lm/m | G | — | — | — |
| 2300 K | 108.1 lm/W | 389.3 lm/m | F | 86.4 lm/W | 311.1 lm/m | F | 70 lm/W | 252 lm/m | G |
| 2700 K | 116.6 lm/W | 419.7 lm/m | E | 93.7 lm/W | 337.5 lm/m | F | 76 lm/W | 273.8 lm/m | G |
| 3000 K | 122.4 lm/W | 440.7 lm/m | E | 99.1 lm/W | 356.7 lm/m | F | 80.6 lm/W | 290.1 lm/m | G |
| 3500 K | 124.2 lm/W | 447.2 lm/m | E | 101.1 lm/W | 363.9 lm/m | F | 83.2 lm/W | 299.5 lm/m | G |
| 4000 K | 127.9 lm/W | 460.6 lm/m | E | 103.2 lm/W | 371.5 lm/m | F | 85.2 lm/W | 306.7 lm/m | F |
| 5000 K | 127.7 lm/W | 459.9 lm/m | E | 103.2 lm/W | 371.5 lm/m | F | 85.1 lm/W | 306.4 lm/m | F |
| 6500 K | 122.4 lm/W | 440.7 lm/m | E | 99.1 lm/W | 356.7 lm/m | F | 82.2 lm/W | 295.9 lm/m | G |
Grade KE (3rd Tier)
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1900 K | 96.3 lm/W | 462 lm/m | F | 76.9 lm/W | 369.1 lm/m | G | — | — | — |
| 2300 K | 107.2 lm/W | 514.7 lm/m | F | 85.7 lm/W | 411.3 lm/m | F | 69.4 lm/W | 333.1 lm/m | G |
| 2700 K | 115.6 lm/W | 554.9 lm/m | E | 93 lm/W | 446.2 lm/m | F | 75.4 lm/W | 361.9 lm/m | G |
| 3000 K | 121.4 lm/W | 582.7 lm/m | E | 98.2 lm/W | 471.6 lm/m | F | 79.9 lm/W | 383.5 lm/m | G |
| 3500 K | 123.2 lm/W | 591.3 lm/m | E | 100.2 lm/W | 481.2 lm/m | F | 82.5 lm/W | 395.9 lm/m | G |
| 4000 K | 126.9 lm/W | 609 lm/m | E | 102.3 lm/W | 491.2 lm/m | F | 84.5 lm/W | 405.5 lm/m | G |
| 5000 K | 126.7 lm/W | 608 lm/m | E | 102.3 lm/W | 491.2 lm/m | F | 84.4 lm/W | 405.1 lm/m | G |
| 6500 K | 121.4 lm/W | 582.7 lm/m | E | 98.2 lm/W | 471.6 lm/m | F | 81.5 lm/W | 391.2 lm/m | G |
Grade KE (3rd Tier)
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1900 K | 94.6 lm/W | 681.4 lm/m | F | 75.6 lm/W | 544.4 lm/m | G | — | — | — |
| 2300 K | 105.4 lm/W | 759.1 lm/m | F | 84.2 lm/W | 606.6 lm/m | G | 68.2 lm/W | 491 lm/m | G |
| 2700 K | 113.7 lm/W | 818.4 lm/m | E | 91.4 lm/W | 658.1 lm/m | F | 74.1 lm/W | 533.8 lm/m | G |
| 3000 K | 119.4 lm/W | 859.4 lm/m | E | 96.6 lm/W | 695.5 lm/m | F | 78.6 lm/W | 565.6 lm/m | G |
| 3500 K | 121.1 lm/W | 872.1 lm/m | E | 98.6 lm/W | 709.7 lm/m | F | 81.1 lm/W | 584 lm/m | G |
| 4000 K | 124.8 lm/W | 898.2 lm/m | E | 100.6 lm/W | 724.5 lm/m | F | 83.1 lm/W | 598.1 lm/m | G |
| 5000 K | 124.6 lm/W | 896.8 lm/m | E | 100.6 lm/W | 724.5 lm/m | F | 83 lm/W | 597.6 lm/m | G |
| 6500 K | 119.4 lm/W | 859.4 lm/m | E | 96.6 lm/W | 695.5 lm/m | F | 80.2 lm/W | 577.4 lm/m | G |
Grade KE (3rd Tier)
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1900 K | 91.5 lm/W | 1098.1 lm/m | F | 73.1 lm/W | 877.3 lm/m | G | — | — | — |
| 2300 K | 101.9 lm/W | 1223.2 lm/m | F | 81.5 lm/W | 977.4 lm/m | G | 66 lm/W | 792 lm/m | G |
| 2700 K | 109.9 lm/W | 1318.8 lm/m | F | 88.4 lm/W | 1060.5 lm/m | F | 71.7 lm/W | 860.2 lm/m | G |
| 3000 K | 115.4 lm/W | 1384.8 lm/m | E | 93.4 lm/W | 1120.8 lm/m | F | 76 lm/W | 911.4 lm/m | G |
| 3500 K | 117.1 lm/W | 1405.3 lm/m | E | 95.3 lm/W | 1143.6 lm/m | F | 78.4 lm/W | 941 lm/m | G |
| 4000 K | 120.6 lm/W | 1447.4 lm/m | E | 97.3 lm/W | 1167.5 lm/m | F | 80.3 lm/W | 963.8 lm/m | G |
| 5000 K | 120.4 lm/W | 1445.1 lm/m | E | 97.3 lm/W | 1167.5 lm/m | F | 80.3 lm/W | 963.6 lm/m | G |
| 6500 K | 115.4 lm/W | 1384.8 lm/m | E | 93.4 lm/W | 1120.8 lm/m | F | 77.5 lm/W | 930 lm/m | G |
Related models in this series
- 20cut (#9009 High Density LED strip light)
- 2835 High Light Efficacy High Lumen LED Strip Light (#4493)
- 2835 Long Run LED Strip Light (#3960)
- 2835 Constant Current High Lumen Long Run LED Strip Light (#3348)
- 2835 Classic Long Run LED Strip Light (#11056)
- 2835 Long Run LED Strip Light (#4274)
- 2835 Long Run LED Strip Light (#5217)
- 2835 High Light Efficacy High Lumen LED Strip Light (#1494)
See every model in SMD LED Strip Series or narrow to Ic. Compare wattage, lumen output and run length in the ProCalc parameter library, or request OEM/ODM pricing on the custom manufacturing page.
Frequently Asked Questions
What are the key specifications of 5164?
5164: 2835, 60LED/m, 24V, 10mm PCB, 3oz copper FPCB, cuttable 6LEDs/100mm. Full photometric data, wiring diagrams and test reports are available in the downloads section of this page.
How long can a single run of this ultra long run LED strip be?
Maximum single run for this model is 20m. Feeding from both ends or using a mid-point tap halves the effective distance per segment, so a ultra long run LED strip can cover twice that length on one circuit when wired accordingly.
Can DENO customise this ultra long run LED strip for a project?
Yes. DENO manufactures the Ultra-Long SMD Strips series as an OEM and ODM supplier: reel length, colour temperature, CRI grade, PCB width, waterproofing and private labelling can all be specified. Request a quote for lead time and project pricing.
What limits how long an LED strip run can be?
Voltage drop and conductor current, not the LED itself. A long run LED strip combines low watts per metre, 2 oz or thicker copper and a higher bus voltage such as 24V, 36V or 48V to reach 20 m or more from one feed while staying inside a 3 percent drop.
Does a constant current LED strip really eliminate voltage drop?
Voltage still drops along the copper, but the per-segment constant current IC holds LED current fixed until the local voltage falls below its dropout point. Brightness therefore stays even end to end, and power can be injected at one end, both ends or any mid point of the run.
Constant Current LED Strip — Buyer Questions
What is a constant current LED strip?
A constant current LED strip carries a linear CC driver IC on the board that holds a fixed current through each segment regardless of the input voltage seen at that point. Brightness therefore stays flat along the run, instead of falling off with voltage drop the way a plain constant-voltage strip does.
Constant current vs constant voltage LED strip — which is better?
Constant voltage is cheaper and fine for short runs under 3 m. Constant current is the right choice whenever the run is long, the copper is thin, the input voltage is unstable, or the installation is camera-facing — the IC absorbs supply variation and keeps every metre at the same luminous flux.
Can a constant current LED strip be powered from both ends or mid-feed?
Yes. Because regulation happens per segment, DENO's CC boards accept single-end, both-ends and any mid-strip tap. Both-ends and mid-feed wiring halve the effective feed distance, which is how a single driver covers a long corridor or perimeter cove.
- Series constant current LED strip series
- Guide wiring layout planner for mid-feed CC runs
- Related series long-run CC LED strip builds
- Product 3348 mid-feed constant current LED strip
Does a constant current LED strip dim without flicker?
It does when the driver is matched to it. Linear CC ICs dim smoothly on PWM down to about 1%, and at 16 kHz+ PWM the run is flicker-free on camera (low Pst LM and SVM). Analogue dimming of a CC board is not recommended below 20% because the IC needs headroom.
- Series constant current LED strip series
- Guide flicker, Pst LM and SVM reference data
- Related series high-CRI boards for camera-facing work
How long can a constant current LED strip run be?
Up to 20 m and beyond on 24V or 48V builds with 2 oz copper, versus 5 m for a comparable constant-voltage board. The practical limit becomes the copper's current-carrying capacity and thermal design rather than perceived brightness fall-off.
Can I order a custom constant current LED strip?
Yes — segment length, drive current, voltage, LED density, CCT/CRI, PCB width and copper weight are all configurable, and CC regulation can be combined with high-density, ultra-narrow or full-spectrum layouts on the same board.
- Series constant current LED strip series
- Related series custom LED strip lights built to order
- Related series combine CC drive with high density layouts
Long LED Strip Lights — Buyer Questions
How long can a long LED strip run be on a single power feed?
A standard 24V constant-voltage tape is limited to about 5 m before the far end visibly dims. DENO's long-run boards combine 2 oz to 3 oz copper, 24V or 48V input and per-segment constant-current ICs, which takes a single feed to 20 m, and up to 50 m on 48V builds, with no measurable fall-off between the first and last metre.
What are the longest LED light strips DENO manufactures?
Standard reels ship at 5 m, 10 m, 15 m, 20 m and 30 m, and OEM orders are produced as one continuous 50 m board with no mid-reel solder joint. Roll-to-roll plating is what makes that possible: the copper is deposited continuously, so length is not capped by panel size the way it is on die-cut FPCB.
- Series long LED strip lights series
- Guide roll-to-roll process behind continuous long boards
- Related series roll-to-roll LED strip series
- Product 9009 long LED strip reel
Do you supply extra long LED strip lights in 65.6 ft or 100 ft?
Yes. 65.6 ft (20 m) and 100 ft (30 m) are stock run lengths, and anything longer than 32 feet is supplied as one uncut board rather than two reels joined with a connector. Joints are the usual failure point on extra long LED strip lights, so removing them is the single biggest reliability gain on a large install.
