What counts as a high efficiency LED strip in lumens per watt?

In 2026 a mainstream 24V 2835 board sits around 120-140 lm/W. A high efficiency LED strip starts at roughly 160 lm/W and DENO's top binned 2835 and 2110 boards are measured at up to 200 lm/W at 4000K Ra 80, LM-79 tested at 25 degrees Celsius. The figure is light-source efficacy of the tape itself, measured without the driver, which is exactly how the ErP energy label is calculated.

What is the difference between high efficiency and high efficacy LED strip lights?

They describe the same measurement. Efficacy is the engineering term for lumens delivered per watt consumed; efficiency is how buyers and tender documents usually phrase it. DENO publishes lm/W per model so both audiences read the same number, and the ErP energy class printed on the reel is derived from it.

Which ErP energy class can a high efficiency LED strip reach?

Class C is achievable on the best-binned 2835 and 2110 boards above 180 lm/W, class D covers the 160-180 lm/W band and most well-specified architectural tape lands in class E. High-CRI 95+ and full spectrum builds drop one or two classes because phosphor conversion costs lumens. Every DENO datasheet states the measured class so it can be reproduced by a notified body.

Does a high efficiency LED strip run cooler and last longer?

Yes. Fewer watts per lumen means less heat into the FPCB, so junction temperature drops and L70 lifetime extends. Combined with 2 oz copper and a 99.9% pure copper foil the same brightness can be produced at 20-30% lower wattage, which also lets a single driver feed a longer run and keeps aluminium profiles below the touch-temperature limits used in hospitality projects.

How much energy does a high efficiency LED strip save on a large project?

Take 500 m of cove lighting at 10 hours a day. A 130 lm/W board delivering 1000 lm/m draws about 7.7 W/m; a 190 lm/W board delivers the same output at about 5.3 W/m. Across 500 m that is 1.2 kW saved, roughly 4,380 kWh a year, and it usually removes one driver and one circuit from the electrical schedule as well.

Can I get a high efficiency LED strip in 12V, 24V, 36V or 48V?

24V is the efficiency sweet spot and carries the full binned range. 12V is available where fixture space or existing drivers dictate it, at the cost of shorter single-feed runs. 36V and 48V constant-current boards keep the same lm/W while extending a single feed well past 20 m, which is where the real system efficiency gain shows up on long architectural lines.

What is a constant current LED strip?

A constant current LED strip carries a linear CC driver IC on the board that holds a fixed current through each segment regardless of the input voltage seen at that point. Brightness therefore stays flat along the run, instead of falling off with voltage drop the way a plain constant-voltage strip does.

Constant current vs constant voltage LED strip — which is better?

Constant voltage is cheaper and fine for short runs under 3 m. Constant current is the right choice whenever the run is long, the copper is thin, the input voltage is unstable, or the installation is camera-facing — the IC absorbs supply variation and keeps every metre at the same luminous flux.

Can a constant current LED strip be powered from both ends or mid-feed?

Yes. Because regulation happens per segment, DENO's CC boards accept single-end, both-ends and any mid-strip tap. Both-ends and mid-feed wiring halve the effective feed distance, which is how a single driver covers a long corridor or perimeter cove.

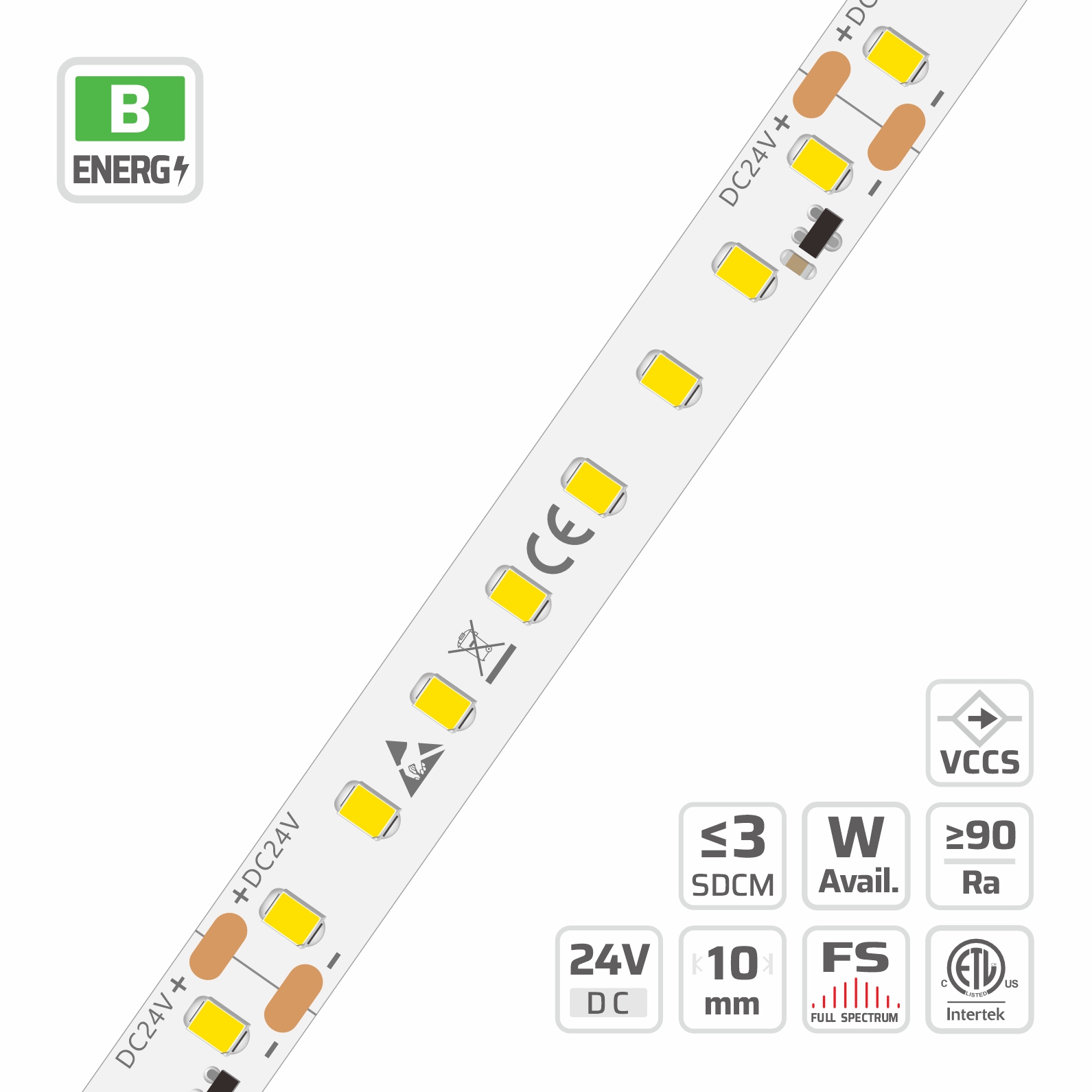

2835 Constant Current High Lumen High Light Efficacy LED Strip Light (#5932)

10mm · 24V · 112LEDs · 71.4cut

Model: 5932

5932 10mm | 24V | 112LEDs | 71.4cut | #5932 | 2835 Constant Current High Lumen High Light Efficacy LED Strip Light — 24V, cuttable every 71.4mm, 10mm FPCB width, 2835 LEDs, 112 LEDs/m, IP20

Overview

10mm | 24V | 112LEDs | 71.4cut | #5932 | 2835 Constant Current High Lumen High Light Efficacy LED Strip Light is part of the DENO C.C. SMD Strips (IC Regulated) series, engineered around constant current IC LED strip. Key specifications: 2835, 112 LEDs/m, DC 24V, 10 PCB, 3oz copper FPCB, cuttable 8LEDs/71.4mm. Every reel is produced on DENO's roll-to-roll line with 99.9% pure copper FPCB and ships CE, UL and RoHS compliant for architectural, retail and hospitality projects. OEM and ODM configurations of length, colour temperature and waterproofing are available on request.

Description

Engineered with 112 SMD 2835 chips per meter, this 24V constant current LED strip light delivers uniform performance for premium architectural lighting installations. The 10mm wide circuit board features a robust 3oz copper foil design to ensure optimal thermal stability up to a maximum temperature of 75°C. Durable pure copper LED lead frames combined with 99.9% purity gold wire encapsulation effectively protect the emitters from mechanical stress during assembly. Precise cut points spaced every 71.4mm with an 8.9mm pitch and dimmable capability enable smooth illumination across a 120-degree beam angle. Supplied in 5M maximum run lengths with a 60mm bend diameter, our factory-direct wholesale project supply accommodates tailored commercial installations.

High Efficacy Led Strip Lights built for high light efficacy smd strips projects.

Specifications

LED QTY	112 LEDs/m
PART NO	DL-F28A56V24-5932-*
SMD TYPE	2835
CUTTABLE UNIT	8LEDs/71.4mm
DIMMABLE	Yes
IP RATING	IP20
LED PITCH	8.9mm
PCB WIDTH	10
BEAM ANGLE	120°
RUN LENGTH	5M
COPPER FOIL	3oz
ON OFF TIMES	10000（test times）
POWER RANGE	5~20W
CIRCUIT TYPE	C.C.
INPUT VOLTAGE	DC 24V
MIN BEND DIAMETER	Φ60mm
OPERATING TEMPERATURE	-25~40°C;Tc：75°C（max）

Applications

Cove, wall-wash & perimeter lighting — Coves, recesses, wall-wash details and ceiling perimeters where a continuous, uniform line of light is required.
Showroom & hospitality display lighting — Shelving, display cases, reception desks and signage backlighting in shops, showrooms and hospitality spaces.
Kitchen & wardrobe under-cabinet lighting — Kitchen, wardrobe and furniture task lighting where the strip stays hidden and only the light is seen.

Recommended accessories & compatible parts

DL-1003 — 19.1x8mm Surface Mount LED Channel — Dotless Aluminum Profile for 240 LEDs/m Strip: Accepts LED strips up to 10mm wide.
DL-1103-1 — 16x13mm Surface Mount LED Channel — Aluminum Profile for 10mm LED Strip: Accepts LED strips up to 10mm wide.
DL-1510 HX-F — 15x9.9mm Recessed LED Channel with Flange — Flush Mount Aluminum Profile: Accepts LED strips up to 10mm wide.
DN-PSU-100 — 24V 100W Class-2 LED Driver · High Efficiency: Matches the 24V DC input of this strip; size the driver with at least 20% headroom over total load.
DN-PSU-150 — 24V 150W Class-2 LED Driver · Premium: Matches the 24V DC input of this strip; size the driver with at least 20% headroom over total load.
DN-PSU-60 — 24V 60W Class-2 LED Driver · Constant Voltage: Matches the 24V DC input of this strip; size the driver with at least 20% headroom over total load.
V1 — 5-36VDC 1-Channel * 8A RF+Push Dimming Controller | V1: Matched by input voltage range and colour channels.

Request a quotation for #5932

DENO LED is a Shenzhen-based LED strip manufacturer with its own Foshan production base. Send the run length, voltage, CCT/CRI and IP rating you need and our engineering team replies with a specification sheet, wiring plan and price — OEM/ODM and fully custom builds included.

Warranty: 5 years
Lead time: standard boards: samples from 1 working day · custom: 3–5 working days · new FPCB: 1–3 weeks · production 1–2 weeks after sample approval
Compliance: CE · UL · RoHS
Bonding wire: 99.99% pure gold
Copper foil: 99.9% pure copper FPCB

Contact DENO LED engineers · OEM / ODM capability

Photometric Performance — CCT × CRI Efficacy Matrix

Peak measured luminous efficacy: 199.4 lm/W at 4000K, Ra 80, ErP energy class C (Grade DN (1st Tier) · 5W/m).

All values are measured at the stated power density and ambient 25 °C, reported as luminous efficacy in lumens per watt (lm/W), luminous flux per metre (lm/m) and the corresponding EU ErP (2019/2015) energy class.

Grade DL (2nd Tier) · 5W/m

Grade DL (2nd Tier) · 5W/m — measured at 5 W/m: luminous efficacy (lm/W), luminous flux (lm/m) and ErP energy class per CCT and CRI grade.
CCT (K)	Ra 80 — Luminous Efficacy (lm/W)	Ra 80 — Luminous Flux (lm/m)	Ra 80 — ErP Energy Class	Ra 90 — Luminous Efficacy (lm/W)	Ra 90 — Luminous Flux (lm/m)	Ra 90 — ErP Energy Class	Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W)	Full Spectrum (Ra 95+) — Luminous Flux (lm/m)	Full Spectrum (Ra 95+) — ErP Energy Class
1800 K	146.6 lm/W	732.9 lm/m	D	117.7 lm/W	588.3 lm/m	E	—	—	—
2300 K	163.3 lm/W	816.4 lm/m	C	131.1 lm/W	655.7 lm/m	E	106 lm/W	529.8 lm/m	F
2700 K	172.7 lm/W	863.6 lm/m	C	141.8 lm/W	709.1 lm/m	D	115 lm/W	574.8 lm/m	E
3000 K	183.8 lm/W	919 lm/m	C	149.3 lm/W	746.4 lm/m	D	121.4 lm/W	607 lm/m	E
3500 K	186.5 lm/W	932.5 lm/m	B	152 lm/W	759.9 lm/m	D	125 lm/W	625.1 lm/m	E
4000 K	192.4 lm/W	962.1 lm/m	B	155.6 lm/W	778 lm/m	D	128.4 lm/W	642.2 lm/m	E
5000 K	192.2 lm/W	961 lm/m	B	155.5 lm/W	777.5 lm/m	D	128.8 lm/W	643.8 lm/m	E
6500 K	176.2 lm/W	881.2 lm/m	C	149.2 lm/W	745.9 lm/m	D	123.8 lm/W	618.9 lm/m	E

Grade DL (2nd Tier) · 10W/m

Grade DL (2nd Tier) · 10W/m — measured at 10 W/m: luminous efficacy (lm/W), luminous flux (lm/m) and ErP energy class per CCT and CRI grade.
CCT (K)	Ra 80 — Luminous Efficacy (lm/W)	Ra 80 — Luminous Flux (lm/m)	Ra 80 — ErP Energy Class	Ra 90 — Luminous Efficacy (lm/W)	Ra 90 — Luminous Flux (lm/m)	Ra 90 — ErP Energy Class	Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W)	Full Spectrum (Ra 95+) — Luminous Flux (lm/m)	Full Spectrum (Ra 95+) — ErP Energy Class
1800 K	141.5 lm/W	1415.3 lm/m	D	113.6 lm/W	1136 lm/m	E	—	—	—
2300 K	157.6 lm/W	1576.4 lm/m	D	126.6 lm/W	1266.2 lm/m	E	102.3 lm/W	1022.9 lm/m	F
2700 K	166.8 lm/W	1667.5 lm/m	C	136.9 lm/W	1369.2 lm/m	D	111 lm/W	1110 lm/m	E
3000 K	177.5 lm/W	1774.6 lm/m	C	144.1 lm/W	1441.3 lm/m	D	117.2 lm/W	1172.1 lm/m	E
3500 K	180.1 lm/W	1800.6 lm/m	C	146.7 lm/W	1467.3 lm/m	D	120.7 lm/W	1207.1 lm/m	E
4000 K	185.8 lm/W	1857.7 lm/m	B	150.2 lm/W	1502.4 lm/m	D	124 lm/W	1240.1 lm/m	E
5000 K	185.6 lm/W	1855.7 lm/m	B	150.1 lm/W	1501.4 lm/m	D	124.3 lm/W	1243.1 lm/m	E
6500 K	170.2 lm/W	1701.6 lm/m	C	144 lm/W	1440.3 lm/m	D	119.5 lm/W	1195.1 lm/m	E

Grade DL (2nd Tier) · 13.5W/m

Grade DL (2nd Tier) · 13.5W/m — measured at 13.5 W/m: luminous efficacy (lm/W), luminous flux (lm/m) and ErP energy class per CCT and CRI grade.
CCT (K)	Ra 80 — Luminous Efficacy (lm/W)	Ra 80 — Luminous Flux (lm/m)	Ra 80 — ErP Energy Class	Ra 90 — Luminous Efficacy (lm/W)	Ra 90 — Luminous Flux (lm/m)	Ra 90 — ErP Energy Class	Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W)	Full Spectrum (Ra 95+) — Luminous Flux (lm/m)	Full Spectrum (Ra 95+) — ErP Energy Class
1800 K	138.1 lm/W	1864.2 lm/m	D	110.8 lm/W	1496.4 lm/m	E	—	—	—
2300 K	153.8 lm/W	2076.5 lm/m	D	123.5 lm/W	1667.8 lm/m	E	99.8 lm/W	1347.4 lm/m	F
2700 K	162.7 lm/W	2196.5 lm/m	C	133.6 lm/W	1803.6 lm/m	E	108.3 lm/W	1462.1 lm/m	F
3000 K	173.2 lm/W	2337.6 lm/m	C	140.6 lm/W	1898.5 lm/m	D	114.4 lm/W	1543.9 lm/m	E
3500 K	175.7 lm/W	2371.8 lm/m	C	143.2 lm/W	1932.8 lm/m	D	117.8 lm/W	1590 lm/m	E
4000 K	181.3 lm/W	2447 lm/m	C	146.6 lm/W	1978.9 lm/m	D	121 lm/W	1633.5 lm/m	E
5000 K	181.1 lm/W	2444.3 lm/m	C	146.5 lm/W	1977.6 lm/m	D	121.3 lm/W	1637.5 lm/m	E
6500 K	166 lm/W	2241.3 lm/m	C	140.5 lm/W	1897.2 lm/m	D	116.6 lm/W	1574.2 lm/m	E

Grade DL (2nd Tier) · 20W/m

Grade DL (2nd Tier) · 20W/m — measured at 20 W/m: luminous efficacy (lm/W), luminous flux (lm/m) and ErP energy class per CCT and CRI grade.
CCT (K)	Ra 80 — Luminous Efficacy (lm/W)	Ra 80 — Luminous Flux (lm/m)	Ra 80 — ErP Energy Class	Ra 90 — Luminous Efficacy (lm/W)	Ra 90 — Luminous Flux (lm/m)	Ra 90 — ErP Energy Class	Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W)	Full Spectrum (Ra 95+) — Luminous Flux (lm/m)	Full Spectrum (Ra 95+) — ErP Energy Class
1800 K	131.9 lm/W	2638.6 lm/m	E	105.9 lm/W	2117.9 lm/m	F	—	—	—
2300 K	147 lm/W	2939 lm/m	D	118 lm/W	2360.5 lm/m	E	95.4 lm/W	1907.1 lm/m	F
2700 K	155.4 lm/W	3108.8 lm/m	D	127.6 lm/W	2552.7 lm/m	E	103.5 lm/W	2069.4 lm/m	F
3000 K	165.4 lm/W	3308.5 lm/m	C	134.4 lm/W	2687.1 lm/m	E	109.3 lm/W	2185.1 lm/m	F
3500 K	167.8 lm/W	3357 lm/m	C	136.8 lm/W	2735.6 lm/m	D	112.5 lm/W	2250.4 lm/m	E
4000 K	173.2 lm/W	3463.4 lm/m	C	140 lm/W	2800.9 lm/m	D	115.6 lm/W	2312 lm/m	E
5000 K	173 lm/W	3459.6 lm/m	C	140 lm/W	2799 lm/m	D	115.9 lm/W	2317.6 lm/m	E
6500 K	158.6 lm/W	3172.3 lm/m	D	134.3 lm/W	2685.2 lm/m	E	111.4 lm/W	2228 lm/m	E

Grade DN (1st Tier) · 5W/m

Grade DN (1st Tier) · 5W/m — measured at 5 W/m: luminous efficacy (lm/W), luminous flux (lm/m) and ErP energy class per CCT and CRI grade.
CCT (K)	Ra 80 — Luminous Efficacy (lm/W)	Ra 80 — Luminous Flux (lm/m)	Ra 80 — ErP Energy Class	Ra 90 — Luminous Efficacy (lm/W)	Ra 90 — Luminous Flux (lm/m)	Ra 90 — ErP Energy Class	Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W)	Full Spectrum (Ra 95+) — Luminous Flux (lm/m)	Full Spectrum (Ra 95+) — ErP Energy Class
1800 K	156.2 lm/W	781.1 lm/m	D	131.8 lm/W	658.8 lm/m	E	—	—	—
2300 K	170.3 lm/W	851.6 lm/m	D	147 lm/W	735 lm/m	D	118.8 lm/W	594 lm/m	E
2700 K	183.6 lm/W	918 lm/m	C	159.1 lm/W	795.7 lm/m	D	129 lm/W	644.8 lm/m	E
3000 K	192.8 lm/W	964.1 lm/m	C	167.9 lm/W	839.7 lm/m	D	136.5 lm/W	682.7 lm/m	E
3500 K	195.7 lm/W	978.6 lm/m	C	171.6 lm/W	857.9 lm/m	D	141.2 lm/W	706 lm/m	E
4000 K	199.4 lm/W	996.8 lm/m	C	172.5 lm/W	862.5 lm/m	D	142.4 lm/W	712.2 lm/m	E
5000 K	199.1 lm/W	995.7 lm/m	C	173.6 lm/W	868.2 lm/m	C	143.8 lm/W	718.9 lm/m	E
6500 K	190.9 lm/W	954.3 lm/m	C	166 lm/W	829.9 lm/m	D	137.8 lm/W	688.9 lm/m	E

Grade DN (1st Tier) · 10W/m

Grade DN (1st Tier) · 10W/m — measured at 10 W/m: luminous efficacy (lm/W), luminous flux (lm/m) and ErP energy class per CCT and CRI grade.
CCT (K)	Ra 80 — Luminous Efficacy (lm/W)	Ra 80 — Luminous Flux (lm/m)	Ra 80 — ErP Energy Class	Ra 90 — Luminous Efficacy (lm/W)	Ra 90 — Luminous Flux (lm/m)	Ra 90 — ErP Energy Class	Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W)	Full Spectrum (Ra 95+) — Luminous Flux (lm/m)	Full Spectrum (Ra 95+) — ErP Energy Class
1800 K	150.8 lm/W	1508.4 lm/m	D	127.2 lm/W	1272.2 lm/m	E	—	—	—
2300 K	164.5 lm/W	1644.5 lm/m	D	141.9 lm/W	1419.3 lm/m	E	114.7 lm/W	1147 lm/m	F
2700 K	177.3 lm/W	1772.6 lm/m	C	153.6 lm/W	1536.4 lm/m	D	124.5 lm/W	1245.1 lm/m	E
3000 K	186.2 lm/W	1861.7 lm/m	C	162.1 lm/W	1621.5 lm/m	D	131.8 lm/W	1318.2 lm/m	E
3500 K	189 lm/W	1889.7 lm/m	C	165.7 lm/W	1656.5 lm/m	D	136.3 lm/W	1363.2 lm/m	E
4000 K	192.5 lm/W	1924.8 lm/m	C	166.6 lm/W	1665.5 lm/m	D	137.5 lm/W	1375.3 lm/m	E
5000 K	192.3 lm/W	1922.8 lm/m	C	167.7 lm/W	1676.5 lm/m	D	138.8 lm/W	1388.3 lm/m	E
6500 K	184.3 lm/W	1842.7 lm/m	C	160.2 lm/W	1602.5 lm/m	D	133 lm/W	1330.2 lm/m	E

Grade DN (1st Tier) · 13.5W/m

Grade DN (1st Tier) · 13.5W/m — measured at 13.5 W/m: luminous efficacy (lm/W), luminous flux (lm/m) and ErP energy class per CCT and CRI grade.
CCT (K)	Ra 80 — Luminous Efficacy (lm/W)	Ra 80 — Luminous Flux (lm/m)	Ra 80 — ErP Energy Class	Ra 90 — Luminous Efficacy (lm/W)	Ra 90 — Luminous Flux (lm/m)	Ra 90 — ErP Energy Class	Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W)	Full Spectrum (Ra 95+) — Luminous Flux (lm/m)	Full Spectrum (Ra 95+) — ErP Energy Class
1800 K	147.2 lm/W	1986.9 lm/m	D	124.1 lm/W	1675.7 lm/m	E	—	—	—
2300 K	160.5 lm/W	2166.2 lm/m	D	138.5 lm/W	1869.5 lm/m	E	111.9 lm/W	1510.9 lm/m	F
2700 K	173 lm/W	2334.9 lm/m	C	149.9 lm/W	2023.8 lm/m	D	121.5 lm/W	1640.1 lm/m	E
3000 K	181.6 lm/W	2452.3 lm/m	C	158.2 lm/W	2135.8 lm/m	D	128.6 lm/W	1736.4 lm/m	E
3500 K	184.4 lm/W	2489.2 lm/m	C	161.6 lm/W	2182 lm/m	D	133 lm/W	1795.7 lm/m	E
4000 K	187.8 lm/W	2535.3 lm/m	C	162.5 lm/W	2193.8 lm/m	D	134.2 lm/W	1811.5 lm/m	E
5000 K	187.6 lm/W	2532.7 lm/m	C	163.6 lm/W	2208.3 lm/m	D	135.5 lm/W	1828.6 lm/m	E
6500 K	179.8 lm/W	2427.2 lm/m	C	156.4 lm/W	2110.8 lm/m	D	129.8 lm/W	1752.2 lm/m	E

Grade DN (1st Tier) · 20W/m

Grade DN (1st Tier) · 20W/m — measured at 20 W/m: luminous efficacy (lm/W), luminous flux (lm/m) and ErP energy class per CCT and CRI grade.
CCT (K)	Ra 80 — Luminous Efficacy (lm/W)	Ra 80 — Luminous Flux (lm/m)	Ra 80 — ErP Energy Class	Ra 90 — Luminous Efficacy (lm/W)	Ra 90 — Luminous Flux (lm/m)	Ra 90 — ErP Energy Class	Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W)	Full Spectrum (Ra 95+) — Luminous Flux (lm/m)	Full Spectrum (Ra 95+) — ErP Energy Class
1800 K	140.6 lm/W	2812.1 lm/m	E	118.6 lm/W	2371.7 lm/m	F	—	—	—
2300 K	153.3 lm/W	3065.9 lm/m	D	132.3 lm/W	2646 lm/m	E	106.9 lm/W	2138.5 lm/m	F
2700 K	165.2 lm/W	3304.7 lm/m	D	143.2 lm/W	2864.4 lm/m	E	116.1 lm/W	2321.3 lm/m	F
3000 K	173.5 lm/W	3470.8 lm/m	C	151.1 lm/W	3023 lm/m	D	122.9 lm/W	2457.6 lm/m	E
3500 K	176.2 lm/W	3523.1 lm/m	C	154.4 lm/W	3088.3 lm/m	D	127.1 lm/W	2541.5 lm/m	E
4000 K	179.4 lm/W	3588.4 lm/m	C	155.3 lm/W	3105.1 lm/m	D	128.2 lm/W	2563.9 lm/m	E
5000 K	179.2 lm/W	3584.6 lm/m	C	156.3 lm/W	3125.6 lm/m	D	129.4 lm/W	2588.2 lm/m	E
6500 K	171.8 lm/W	3435.4 lm/m	D	149.4 lm/W	2987.5 lm/m	D	124 lm/W	2480 lm/m	E

Grade KE (3rd Tier) · 5W/m

Grade KE (3rd Tier) · 5W/m — measured at 5 W/m: luminous efficacy (lm/W), luminous flux (lm/m) and ErP energy class per CCT and CRI grade.
CCT (K)	Ra 80 — Luminous Efficacy (lm/W)	Ra 80 — Luminous Flux (lm/m)	Ra 80 — ErP Energy Class	Ra 90 — Luminous Efficacy (lm/W)	Ra 90 — Luminous Flux (lm/m)	Ra 90 — ErP Energy Class	Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W)	Full Spectrum (Ra 95+) — Luminous Flux (lm/m)	Full Spectrum (Ra 95+) — ErP Energy Class
1900 K	125.5 lm/W	627.7 lm/m	E	100.7 lm/W	503.3 lm/m	F	—	—	—
2300 K	140 lm/W	699.8 lm/m	D	112.2 lm/W	560.9 lm/m	E	90.6 lm/W	453 lm/m	F
2700 K	150.8 lm/W	754.2 lm/m	D	121.7 lm/W	608.5 lm/m	E	98.7 lm/W	493.5 lm/m	F
3000 K	158.4 lm/W	792 lm/m	D	128.5 lm/W	642.7 lm/m	E	104.5 lm/W	522.5 lm/m	F
3500 K	160.8 lm/W	804 lm/m	C	131 lm/W	655.2 lm/m	E	107.9 lm/W	539.6 lm/m	F
4000 K	165.5 lm/W	827.3 lm/m	C	133.8 lm/W	669.2 lm/m	E	110.5 lm/W	552.6 lm/m	E
5000 K	165.2 lm/W	826.2 lm/m	C	133.8 lm/W	669.2 lm/m	E	110.8 lm/W	554.1 lm/m	E
6500 K	158.4 lm/W	792 lm/m	D	128.5 lm/W	642.7 lm/m	E	106.7 lm/W	533.4 lm/m	F

Grade KE (3rd Tier) · 10W/m

Grade KE (3rd Tier) · 10W/m — measured at 10 W/m: luminous efficacy (lm/W), luminous flux (lm/m) and ErP energy class per CCT and CRI grade.
CCT (K)	Ra 80 — Luminous Efficacy (lm/W)	Ra 80 — Luminous Flux (lm/m)	Ra 80 — ErP Energy Class	Ra 90 — Luminous Efficacy (lm/W)	Ra 90 — Luminous Flux (lm/m)	Ra 90 — ErP Energy Class	Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W)	Full Spectrum (Ra 95+) — Luminous Flux (lm/m)	Full Spectrum (Ra 95+) — ErP Energy Class
1900 K	121.2 lm/W	1212.1 lm/m	E	97.2 lm/W	971.9 lm/m	F	—	—	—
2300 K	135.1 lm/W	1351.2 lm/m	D	108.3 lm/W	1083 lm/m	F	87.5 lm/W	874.8 lm/m	F
2700 K	145.6 lm/W	1456.3 lm/m	D	117.5 lm/W	1175.1 lm/m	E	95.3 lm/W	952.9 lm/m	F
3000 K	152.9 lm/W	1529.4 lm/m	D	124.1 lm/W	1241.1 lm/m	E	100.9 lm/W	1008.9 lm/m	F
3500 K	155.2 lm/W	1552.4 lm/m	D	126.5 lm/W	1265.2 lm/m	E	104.2 lm/W	1042 lm/m	F
4000 K	159.7 lm/W	1597.5 lm/m	D	129.2 lm/W	1292.2 lm/m	E	106.7 lm/W	1067 lm/m	F
5000 K	159.5 lm/W	1595.5 lm/m	D	129.2 lm/W	1292.2 lm/m	E	107 lm/W	1070 lm/m	F
6500 K	152.9 lm/W	1529.4 lm/m	D	124.1 lm/W	1241.1 lm/m	E	103 lm/W	1029.9 lm/m	F

Grade KE (3rd Tier) · 13.5W/m

Grade KE (3rd Tier) · 13.5W/m — measured at 13.5 W/m: luminous efficacy (lm/W), luminous flux (lm/m) and ErP energy class per CCT and CRI grade.
CCT (K)	Ra 80 — Luminous Efficacy (lm/W)	Ra 80 — Luminous Flux (lm/m)	Ra 80 — ErP Energy Class	Ra 90 — Luminous Efficacy (lm/W)	Ra 90 — Luminous Flux (lm/m)	Ra 90 — ErP Energy Class	Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W)	Full Spectrum (Ra 95+) — Luminous Flux (lm/m)	Full Spectrum (Ra 95+) — ErP Energy Class
1900 K	118.3 lm/W	1596.6 lm/m	E	94.8 lm/W	1280.2 lm/m	F	—	—	—
2300 K	131.8 lm/W	1779.9 lm/m	E	105.7 lm/W	1426.5 lm/m	F	85.4 lm/W	1152.3 lm/m	F
2700 K	142.1 lm/W	1918.3 lm/m	D	114.7 lm/W	1547.8 lm/m	E	93 lm/W	1255.1 lm/m	F
3000 K	149.2 lm/W	2014.5 lm/m	D	121.1 lm/W	1634.8 lm/m	E	98.4 lm/W	1329 lm/m	F
3500 K	151.5 lm/W	2044.9 lm/m	D	123.4 lm/W	1666.5 lm/m	E	101.7 lm/W	1372.5 lm/m	F
4000 K	155.9 lm/W	2104.2 lm/m	D	126.1 lm/W	1702.1 lm/m	E	104.1 lm/W	1405.4 lm/m	F
5000 K	155.7 lm/W	2101.6 lm/m	D	126.1 lm/W	1702.1 lm/m	E	104.4 lm/W	1409.4 lm/m	F
6500 K	149.2 lm/W	2014.5 lm/m	D	121.1 lm/W	1634.8 lm/m	E	100.5 lm/W	1356.7 lm/m	F

Grade KE (3rd Tier) · 20W/m

Grade KE (3rd Tier) · 20W/m — measured at 20 W/m: luminous efficacy (lm/W), luminous flux (lm/m) and ErP energy class per CCT and CRI grade.
CCT (K)	Ra 80 — Luminous Efficacy (lm/W)	Ra 80 — Luminous Flux (lm/m)	Ra 80 — ErP Energy Class	Ra 90 — Luminous Efficacy (lm/W)	Ra 90 — Luminous Flux (lm/m)	Ra 90 — ErP Energy Class	Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W)	Full Spectrum (Ra 95+) — Luminous Flux (lm/m)	Full Spectrum (Ra 95+) — ErP Energy Class
1900 K	113 lm/W	2259.8 lm/m	E	90.6 lm/W	1811.9 lm/m	F	—	—	—
2300 K	126 lm/W	2519.1 lm/m	E	101 lm/W	2019 lm/m	F	81.5 lm/W	1630.9 lm/m	G
2700 K	135.8 lm/W	2715.1 lm/m	D	109.5 lm/W	2190.7 lm/m	F	88.8 lm/W	1776.5 lm/m	F
3000 K	142.6 lm/W	2851.3 lm/m	D	115.7 lm/W	2313.9 lm/m	E	94 lm/W	1881 lm/m	F
3500 K	144.7 lm/W	2894.2 lm/m	D	117.9 lm/W	2358.7 lm/m	E	97.1 lm/W	1942.5 lm/m	F
4000 K	148.9 lm/W	2978.2 lm/m	D	120.5 lm/W	2409 lm/m	E	99.5 lm/W	1989.2 lm/m	F
5000 K	148.7 lm/W	2974.5 lm/m	D	120.5 lm/W	2409 lm/m	E	99.7 lm/W	1994.8 lm/m	F
6500 K	142.6 lm/W	2851.3 lm/m	D	115.7 lm/W	2313.9 lm/m	E	96 lm/W	1920.1 lm/m	F

High-Power LED Strip: Heat Dissipation & Aluminum Channel Guide

At up to 20W/m, 5932 is a high-power SMD LED strip. Above roughly 14.4W/m the tape can no longer shed its own heat through the FPC alone — an aluminum channel is part of the luminaire, not an accessory.

Why high-wattage strips need a heat sink

Aluminum conducts heat roughly 30× faster than the plastics, MDF or gypsum a strip is usually stuck to, so a bare high-power run traps heat under the tape.
LED lifetime (LM-80 / TM-21) is driven by solder-point temperature Tc. Keeping Tc inside the datasheet limit — DENO strips are rated Tc ≤ 75°C — is what preserves the rated L70 lifetime and colour stability.
Never run 14.4W/m or more coiled on the reel, inside a sealed plastic diffuser, or directly on wood, wallpaper or foam.

Sizing rule: FPC width vs channel inner width

Channel inner width ≥ FPC width + 2mm. This strip is 10mm wide, so it needs at least 12mm of inner width.
The 2mm clearance absorbs extrusion tolerance and lets the tape be seated or replaced without scraping the side walls or the wiring.
A frosted or opal PC cover then diffuses the higher lumen output into an even, dot-free line instead of visible hot spots.

Aluminum channels that fit this strip

Recommended LED Channels

Mount this LED strip in a DENO LED aluminum profile for heat dissipation, physical protection and diffused, dot-free output.

This strip is 10mm wide, so it needs a channel with at least 12mm inner width (10mm + 2mm clearance). Every profile below meets that.

Related models in this series

See every model in SMD LED Strip Series or narrow to Ic. Compare wattage, lumen output and run length in the ProCalc parameter library, or request OEM/ODM pricing on the custom manufacturing page.

Frequently Asked Questions

What are the key specifications of 5932?

5932: 2835, 112 LEDs/m, DC 24V, 10 PCB, 3oz copper FPCB, cuttable 8LEDs/71.4mm. Full photometric data, wiring diagrams and test reports are available in the downloads section of this page.

What makes the construction of this constant current IC LED strip different?

It is built as a constant current IC LED strip on 3oz copper FPCB with a cutting unit of 8LEDs/71.4mm and an LED pitch of 8.9mm, so it holds its electrical and mechanical performance where standard strips fail.

Can DENO customise this constant current IC LED strip for a project?

Yes. DENO manufactures the C.C. SMD Strips (IC Regulated) series as an OEM and ODM supplier: reel length, colour temperature, CRI grade, PCB width, waterproofing and private labelling can all be specified. Request a quote for lead time and project pricing.

Does a constant current LED strip really eliminate voltage drop?

Voltage still drops along the copper, but the per-segment constant current IC holds LED current fixed until the local voltage falls below its dropout point. Brightness therefore stays even end to end, and power can be injected at one end, both ends or any mid point of the run.

How much can a high efficacy LED strip cut energy use?

Moving from a typical 100 lm/W strip to a 180 to 200 lm/W high lumen LED strip roughly halves the wattage needed for the same lumen output. Over a long commercial run this also lowers the required driver size and helps the installation reach a better ErP energy class.

Engineering & selection guide

Bending limits, IP selection, voltage drop, cutting and the full buyer Q&A for this family are kept on the series page.

High Efficiency LED Strips series — High Efficiency LED Strip — Buyer Questions
constant current LED strip series — Constant Current LED Strip — Buyer Questions
LED strip engineering selection handbook
