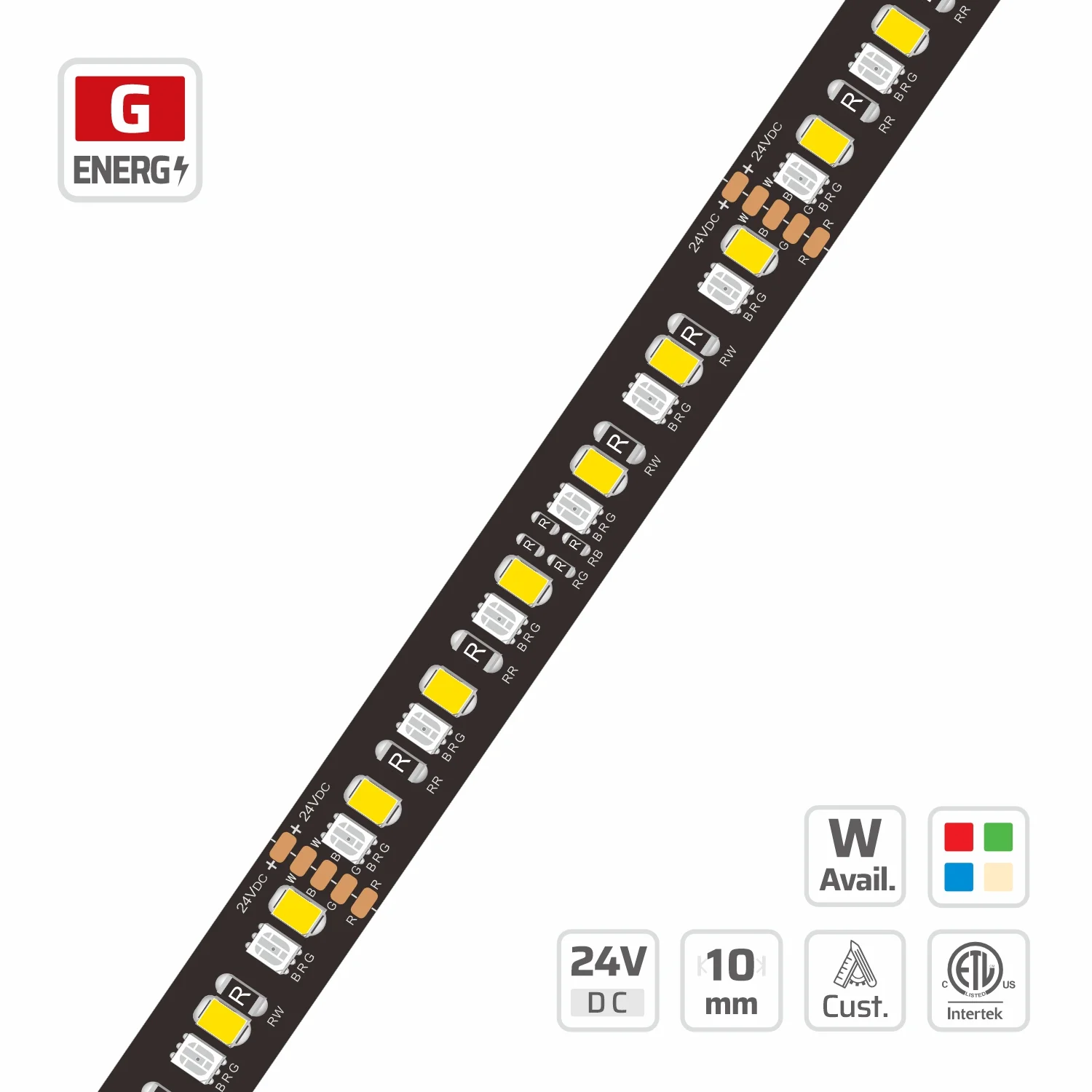

10mm | 24V | 192LEDs | 62.5mm/cut | #18201 | 2835 Mixes RGB+W LED
Model: 18201
Overview
The DENO LED Model 18201 is a versatile RGBW LED strip offering 10mm width and 24V operation, featuring a high LED density of 192 LEDs/meter and cuttable every 62.5mm. It combines 2835 RGB and 2835 white LEDs to deliver both dynamic color effects and tunable white lighting from 1800-6500K, with CRI options up to Ra ≥95. This product supports various IP ratings from IP20 to IP68, making it suitable for a wide range of interior and exterior B2B applications in retail, hospita...
Description
10mm | 24V | 192LEDs | 62.5mm/cut | #18201 | 2835 Mixes RGB+W LED Mixes 2835RGB + 2835 White LEDs to deliver both dynamic RGB effects and tunable white lighting. Lighting modes can seamlessly switch between vibrant RGB colors and adjustable white tones via compatible LED controllers. Consistent color mixing ensures uniform visual output and enhanced lighting performance. High-quality PCB ensures reliable performance and compatibility with standard LED profiles. Ideal for dynamic lighting applications in residential, hospitality, and retail environments.
Specifications
| cct | 1800-6500 |
|---|---|
| cri | Ra ≥80 , Ra ≥90 , Ra ≥95 |
| sdcm | < 3 SDCM (Single Bin) |
| ledQty | 192 |
| partNo | DL-F28+28A96V24-18201-* |
| smdType | 2835 |
| cuttable | 12LEDs/62.5mm |
| dimmable | Yes |
| ipRating | IP20/IP54/IP65/IP66/IP67/IP68 |
| ledPitch | 1.45mm |
| lifespan | 50000h |
| pcbWidth | 10 |
| warranty | 3 Years |
| beamAngle | 120° |
| lengthMax | 5m |
| copperFoil | 3oz |
| powerRange | 9.6~38.4W |
| circuitType | CV |
| inputVoltage | 24V |
| operatingTemperature | -25~40°C;Tc：75°C（max） |
Frequently Asked Questions
What are the common applications for this RGBW LED strip?
This RGBW LED strip is ideal for dynamic lighting in retail displays, hospitality mood lighting, architectural accents, and residential smart home integration, offering both vibrant colors and tunable white light.
Is the 18201 RGBW LED strip compatible with standard dimming systems?
Yes, the 18201 RGBW LED strip is fully dimmable and designed for seamless integration with standard 24V constant voltage LED controllers and dimming systems, offering versatile control over light intensity and color.
What is the expected lifespan and warranty for this product?
The DENO LED 18201 RGBW strip boasts a long lifespan of 50,000 hours and comes with a 3-year warranty, ensuring reliability and long-term performance for B2B projects.
What IP ratings are available for the 18201 LED strip?
The 18201 LED strip is available with multiple IP ratings, including IP20, IP54, IP65, IP66, IP67, and IP68, allowing for flexible application in various environments from dry indoor to demanding outdoor conditions.
