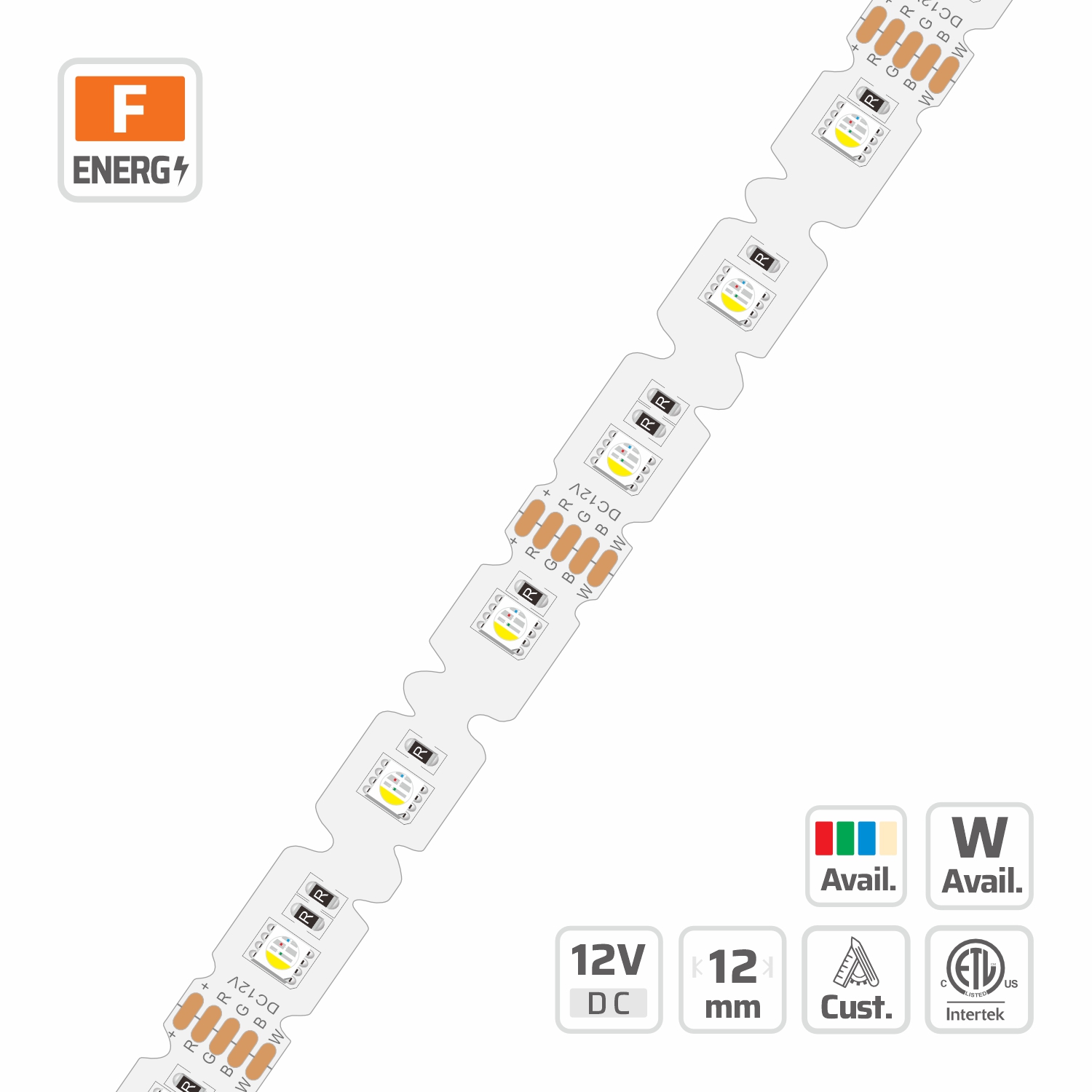

5050 RGBW S-Bend LED Strip Light (#10953)
12mm · 12V · 48LEDs · 62.5mm/cut
Model: 10953
Overview
5050 RGBW S-Bend LED Strip Light | 12mm | 12V | 48LEDs | 62.5mm/cut | #10953 is part of the DENO S-Bend SMD Strips series, engineered around S-bend flexible LED strip. Key specifications: 5050 SMD, 48, 12V, 12 PCB, 2oz copper FPCB, cuttable 3LEDs/62.5mm, IP20. Every reel is produced on DENO's roll-to-roll line with 99.9% pure copper FPCB and ships CE, UL and RoHS compliant for architectural, retail and hospitality projects. OEM and ODM configurations of length, colour temperature and waterproofing are available on request.
Description
5050 RGBW S-Bend LED Strip Light | 12mm | 12V | 48LEDs | 62.5mm/cut | #10953 Adopt pure copper strong LED frame, 99.9% purity diameter> 1 mm pure golden wire encapsulation, can reduce the LED damage in different applications. The special snake shape PCB design provides flexible bending angle and bending direction. It is the first choice for backlight. Like the advertising word, signboard light box or abnormity mount scene.
Rgbw Led Strip Lights built for rgbw smd strips projects.
Specifications
| LED QTY | 48 |
|---|---|
| PART NO | DL-F50A24V12-10953-* |
| SMD TYPE | 5050 SMD |
| CUTTABLE UNIT | 3LEDs/62.5mm |
| DIMMABLE | Yes |
| IP RATING | IP20 |
| LED PITCH | 20.8mm |
| LIFESPAN | 50000 |
| PCB WIDTH | 12 |
| WARRANTY | 5 Years |
| BEAM ANGLE | 120° |
| LENGTH MAX | 5m |
| COPPER FOIL | 2oz |
| POWER RANGE | 3.8~15.36W |
| CIRCUIT TYPE | C.V. |
| INPUT VOLTAGE | 12V |
| OPERATING TEMPERATURE | -25~40°C;Tc：75°C（max） |
Applications
- Cove, wall-wash & perimeter lighting — Coves, recesses, wall-wash details and ceiling perimeters where a continuous, uniform line of light is required.
- Showroom & hospitality display lighting — Shelving, display cases, reception desks and signage backlighting in shops, showrooms and hospitality spaces.
- Kitchen & wardrobe under-cabinet lighting — Kitchen, wardrobe and furniture task lighting where the strip stays hidden and only the light is seen.
- Entertainment & media-facade colour scenes — Entertainment venues, media facades, gaming rooms and branded retail installs driven by DMX/SPI or standard RGB controllers.
Request a quotation for #10953
DENO LED is a Shenzhen-based LED strip manufacturer with its own Foshan production base. Send the run length, voltage, CCT/CRI and IP rating you need and our engineering team replies with a specification sheet, wiring plan and price — OEM/ODM and fully custom builds included.
- Warranty: 5 years
- Compliance: CE · UL · RoHS
- Bonding wire: 99.99% pure gold
- Copper foil: 99.9% pure copper FPCB
Related models in this series
- 5050 RGBW S-Bend LED Strip Light (#27297)
- Mixes RGB+W Color LED Strip Light (#18200)
- 2835 Mixes RGB+W LED (#18201)
- 3535 RGBW LED Strip Light (#20481)
See every model in SMD LED Strip Series or narrow to Rgbw. Compare wattage, lumen output and run length in the ProCalc parameter library, or request OEM/ODM pricing on the custom manufacturing page.
Frequently Asked Questions
What are the key specifications of 10953?
10953: 5050 SMD, 48, 12V, 12 PCB, 2oz copper FPCB, cuttable 3LEDs/62.5mm, IP20. Full photometric data, wiring diagrams and test reports are available in the downloads section of this page.
What makes the construction of this S-bend flexible LED strip different?
It is built as a S-bend flexible LED strip on 2oz copper FPCB with a cutting unit of 3LEDs/62.5mm and an LED pitch of 20.8mm, so it holds its electrical and mechanical performance where standard strips fail.
Can DENO customise this S-bend flexible LED strip for a project?
Yes. DENO manufactures the S-Bend SMD Strips series as an OEM and ODM supplier: reel length, colour temperature, CRI grade, PCB width, waterproofing and private labelling can all be specified. Request a quote for lead time and project pricing.
What does the W channel add on an RGBW LED strip?
The fourth chip is a real white LED, so the strip delivers a clean 2700K to 6500K white at full efficacy instead of the pale tint produced by mixing red, green and blue. RGBCCT versions add a second white channel for tunable white control alongside colour.
How tightly can a bendable LED strip turn a corner?
The S-shaped FPCB pattern lets the strip curve in the plane of the board, so it follows a radius of about 30 mm horizontally instead of needing a cut and a solder joint. Curved coves, circular ceilings and signage letters stay as one continuous run of flexible LED strip lights.
RGBW LED Strip — Buyer Questions
What is an RGBW LED strip?
An RGBW LED strip carries a fourth, dedicated white die alongside the red, green and blue ones. The colour channels handle scenes and accents while the white channel delivers real architectural light — 2700K to 6500K at Ra 90+ — so one run covers both jobs instead of mixing a bluish pseudo-white from RGB alone.
- Series RGBW LED strip lights series
- Related series three-channel RGB LED strip lights for colour-only zones
- Related series full spectrum boards behind the white channel
- Product 18200 RGBW LED strip
How do you connect and wire an RGBW LED strip?
RGBW tape is a five-pin constant-voltage load: one shared V+ and four PWM negatives (R, G, B, W). Match the pin order printed on the board to the decoder, keep the run on a single controller output, and wire multiple runs in parallel from the driver — never in series, which starves the far run and shifts its colour.
- Series RGBW LED strip lights series
- Guide plan parallel feeds for an RGBW run
- Related series constant current boards that hold colour over distance
- Product 18201 24V RGBW LED strip
Should I use 12V or 24V RGBW LED strip lights?
24V is the default for architectural work — at equal wattage it draws half the current, so a feed reaches 5–10 m before the white channel visibly warms and the colour mix drifts. 12V is kept for short cabinet, furniture and vehicle runs where the controller is 12V-native. For anything past 10 m, use a mid-feed or constant-current build.
- Series RGBW LED strip lights series
- Guide check voltage drop on a 12V vs 24V colour run
- Related series long-run layouts for continuous coves
What is the difference between 10mm and 12mm RGBW LED strips?
Width follows the package and the copper. A 10 mm board fits standard slim profiles and suits 4-in-1 packages such as 5050 RGBW; 12 mm gives room for wider copper pours or side-by-side RGB + white dies, which raises usable output and lowers junction temperature. DENO builds both, and narrower 8 mm versions where the channel demands it.
- Series RGBW LED strip lights series
- Related series narrow LED strip boards for slim reveals
- Guide copper weight, width and heat spreading
- Product 27297 10mm RGBW LED strip
What are the brightest RGBW LED tape light options?
Output is set by die count and thermal headroom, not by the controller. DENO's high-output colour builds reach 24 W/m with 2 oz copper on 12 mm boards; 4-in-1 packages keep the four channels on one optical centre, while separate RGB + white layouts trade a small colour-mixing penalty for more white lumens.
Are there waterproof RGBW strip lights for outdoor use?
Yes — IP65 silicone-coated, IP67 sleeved and IP68 fully potted, plus DENO WAP™ conformal coating that stays clear and flexible rather than yellowing over UV exposure. Marine-grade terminations are available for dock, pool and yacht work where salt spray attacks the solder joints first.
- Series RGBW LED strip lights series
- Related series marine grade LED strip for exposed installations
- Related series DENO WAP™ conformal coating explained
Can I order a custom RGBW or RGB+CCT LED strip?
Yes. Channel layout (RGBW, RGBWW, RGB+CCT five-channel), white CCT and CRI, LED density, PCB width from 8 mm, copper weight, cut unit, IP class and connector are all configurable. DENO is the manufacturer, so a non-standard colour build is tooled from an existing FPCB stack-up instead of being quoted as a new product line.
