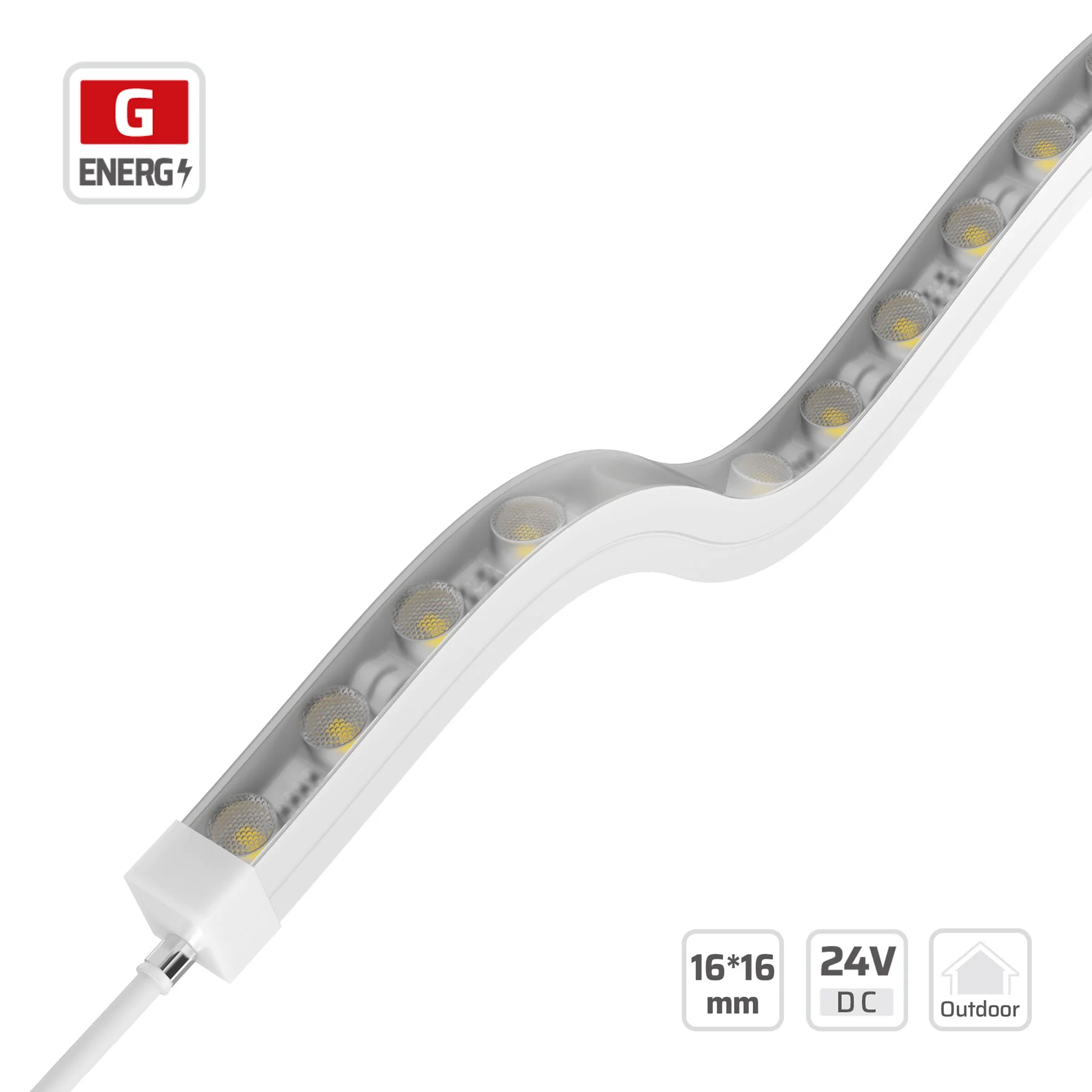

1616 RGB Side-Bendable Wall Washer LED (#16693)
24V · 48LEDs · 125mm/cut · 16*16mm
Model: 16693
Overview
The DENO LED model 16693 is a 1616 RGB Side-Bendable Wall Washer LED, designed for versatile and vibrant lighting applications. Featuring a compact 16*16mm profile, this 24V LED strip delivers 21W/meter with 24 LEDs, offering high brightness and uniform light distribution thanks to its lensed design. Its side and top bendable construction allows for easy installation on complex surfaces, ideal for parks, commercial spaces, stage lighting, exhibitions, and indoor decoration....
Description
1616 RGB Side-Bendable Wall Washer LED | 16*16mm | 24V | 48LEDs | 125mm/cut | #16693 Provides vibrant RGB lighting effects, suitable for various decorative needs. Side and top bendable design allows flexible installation on complex surfaces. Lensed design ensures uniform light distribution and effective wall-washing. Stable power input with high power output of 21W per meter for optimal brightness and efficiency. Maximum production length of 2000mm reduces connection frequency, improving installation efficiency. Applications: Ideal for parks, commercial spaces, stage lighting, exhibitions, and indoor decoration.
Specifications
| SDCM | < 3 SDCM (Single Bin) |
|---|---|
| LED QTY | 48 |
| PART NO | DL-F30C24V24-16693-* |
| SMD TYPE | 3030 |
| CUTTABLE UNIT | 6LEDs/125mm |
| DIMMABLE | Yes |
| LED PITCH | 20.833mm |
| PCB WIDTH | 12mm |
| WARRANTY | 5 Years |
| BEAM ANGLE | 40°、50° |
| LENGTH MAX | 5m |
| COPPER FOIL | 2oz |
| POWER RANGE | 8~24W |
| CIRCUIT TYPE | C.V. |
| INPUT VOLTAGE | 24V |
| OPERATING TEMPERATURE | -25~40°C;Tc：75°C（max） |
Applications
- Cove, wall-wash & perimeter lighting — Coves, recesses, wall-wash details and ceiling perimeters where a continuous, uniform line of light is required.
- Showroom & hospitality display lighting — Shelving, display cases, reception desks and signage backlighting in shops, showrooms and hospitality spaces.
- Kitchen & wardrobe under-cabinet lighting — Kitchen, wardrobe and furniture task lighting where the strip stays hidden and only the light is seen.
- Entertainment & media-facade colour scenes — Entertainment venues, media facades, gaming rooms and branded retail installs driven by DMX/SPI or standard RGB controllers.
Request a quotation for #16693
DENO LED is a Shenzhen-based LED strip manufacturer with its own Foshan production base. Send the run length, voltage, CCT/CRI and IP rating you need and our engineering team replies with a specification sheet, wiring plan and price — OEM/ODM and fully custom builds included.
- Warranty: 5 years
- Compliance: CE · UL · RoHS
- Bonding wire: 99.99% pure gold
- Copper foil: 99.9% pure copper FPCB
Related models in this series
See every model in Flexible Wall Washer Series or narrow to Rgb. Compare wattage, lumen output and run length in the ProCalc parameter library, or request OEM/ODM pricing on the custom manufacturing page.
Frequently Asked Questions
What is the maximum continuous length for the 16693 series?
The maximum production length for the 16693 series is 2000mm, which helps reduce connection frequency during installation.
Is this RGB wall washer LED dimmable?
Yes, the 16693 RGB Side-Bendable Wall Washer LED is fully dimmable, allowing for flexible light intensity control.
What are the primary applications for the 1616 RGB Side-Bendable Wall Washer LED?
It is ideal for parks, commercial spaces, stage lighting, exhibitions, and various indoor decorative lighting projects.
What is the operating voltage and power consumption per meter?
This LED operates at 24V input and consumes 21W per meter, ensuring efficient and bright illumination.
Should you choose RGB or RGBW LED strip lights?
RGB LED strip lights mix colour but produce a weak, tinted white. If the installation also needs usable white light for everyday use, choose RGBW or RGBCCT, which adds a dedicated white chip. Pure RGB is best where the strip is only ever a colour accent.
What are the key specifications of #16693?
1616 RGB Side-Bendable Wall Washer LED | 16*16mm | 24V | 48LEDs | 125mm/cut | #16693: 3030 LEDs, 48, 24V, 12mm FPCB, 2oz copper foil, 8~24W power, cut unit 6LEDs/125mm. Photometric files, wiring diagrams and test reports are available in the downloads block on this page.
RGB LED Strip Lights — Buyer Questions
What is the difference between RGB and RGBW LED strip lights?
An RGB LED strip mixes red, green and blue dies to produce colour, and its 'white' is a mix that always carries a colour cast. RGBW LED strip lights add a dedicated white die — 2700K to 6500K, Ra 90+ — so the same run can deliver usable architectural white and saturated colour scenes without a second channel of tape.
- Series RGB LED strip lights series
- Related series RGBW LED strip lights with dedicated white channel
- Related series full spectrum LED strip for high-CRI white
Should I use a 12V or 24V RGB LED strip?
24V is the default for architectural work: at the same wattage it draws half the current of 12V, so a single feed covers 5–10 m without visible colour shift at the far end. 12V RGB LED strip is reserved for short cabinet, furniture and vehicle runs where the driver or controller is 12V-native.
- Series RGB LED strip lights series
- Guide check voltage drop on a 12V vs 24V RGB run
- Related series constant current RGB boards for long feeds
- Product 11281 24V RGB LED strip
Can an RGB LED strip be dot-free?
Yes, if the LED pitch is tight enough for the three dies to blend before the light leaves the diffuser. DENO builds high-density RGB boards at 2.1–4.2 mm pitch, which removes both the dot pattern and the rainbow fringing typical of 60 LEDs/m colour tape in shallow profiles.
Do you make an outdoor waterproof RGB LED strip?
Yes. RGB builds are available IP65 silicone-coated, IP67 sleeved and IP68 fully potted, plus DENO WAP™ conformal coating that stays clear and flexible instead of yellowing. Marine-grade variants add salt-spray resistant terminations for dock and yacht installations.
- Series RGB LED strip lights series
- Related series marine grade LED strip for outdoor colour runs
- Related series long-run outdoor LED strip layouts
How is an RGB LED strip controlled — DMX, DALI or a standard controller?
Common RGB tape is a 4-pin constant-voltage load, so it works with any PWM controller: standard RF/Wi-Fi controllers, 0–10V, DALI DT8 or DMX512 decoders. Choose a driver and decoder with at least 1 kHz PWM (16 kHz for camera-facing work) to keep the run flicker-free on video.
- Series RGB LED strip lights series
- Related series pixel addressable LED strip for per-LED control
- Guide flicker, Pst LM and SVM reference data
- Product 15556 RGB LED strip
Can I order a custom RGB LED strip?
Yes — LED count, pitch, PCB width from 5 mm, copper weight, cut unit, IP class and connector type are all configurable, including RGB+CCT (five-channel) and mixed RGB/white layouts. DENO is a manufacturer, so a non-standard colour build is tooled from an existing FPCB stack-up rather than quoted as a new product line.
- Series RGB LED strip lights series
- Related series custom LED strip lights built to order
- Guide send an RGB LED strip specification to DENO
