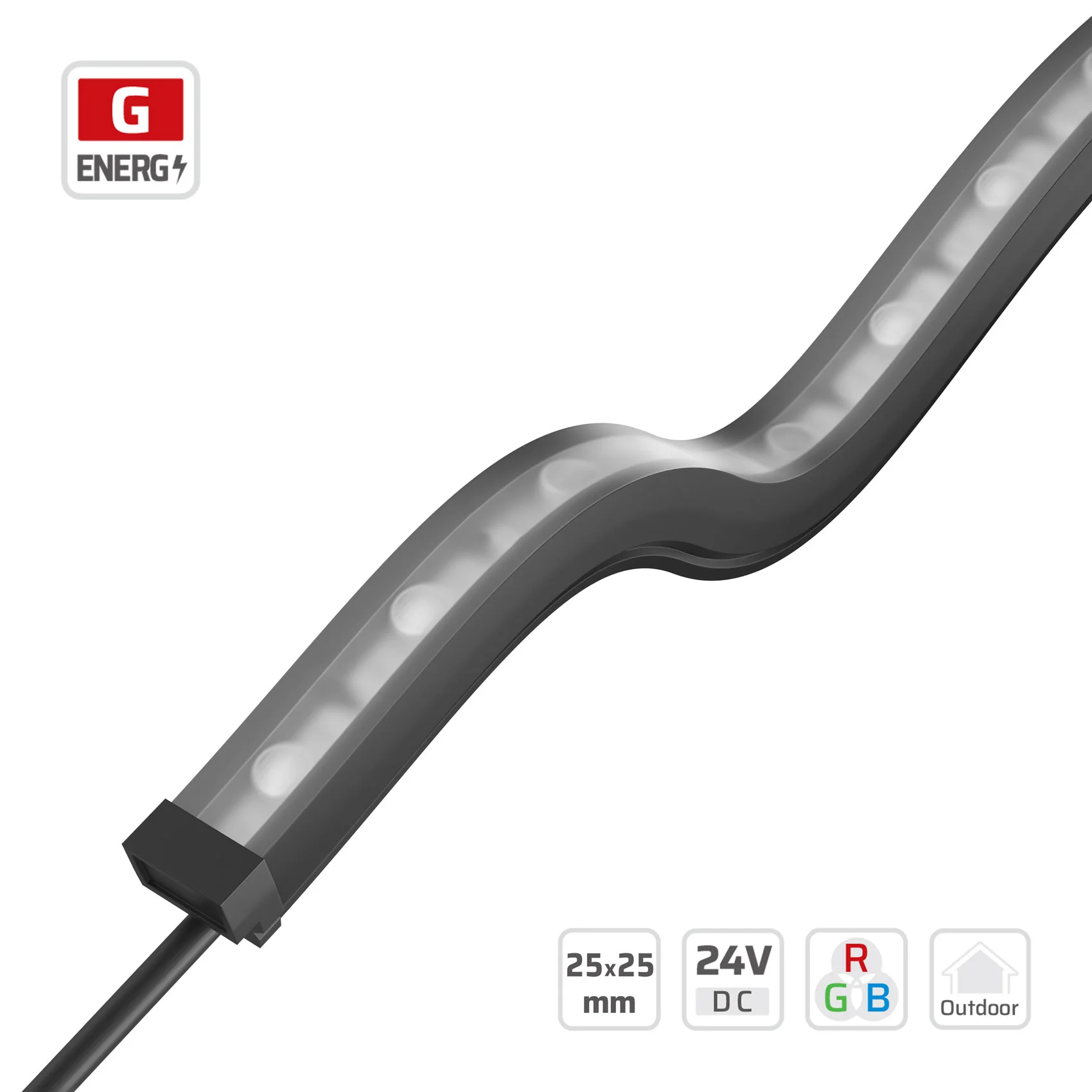

2525 3D Twistable RGB LED Strip Light (#11281)
24V · 24LEDs · 250mm/cut · 25*25mm
Model: 11281
Overview
The DENO LED Model 11281 is a 2525 3D Twistable RGB LED Strip Light, part of the Flexible Wall Washer Series, offering unique design versatility for B2B architectural and commercial lighting projects. With a 24V input, 24 LEDs per cuttable segment, and a maximum continuous length of 2M, it simplifies complex installations. Key features include integrated silicone encapsulation for durability, precision lenses for enhanced optical efficiency, and a 50,000-hour lifespan. Its...
Description
This 25x25mm 3D twistable RGB LED strip light integrates precision lenses and silicone encapsulation for seamless shaping across curved architectural structures. Engineered with 3030 SMD LEDs on an 18.4mm PCB, the 24V constant-voltage circuit provides smooth dimming with 250mm cuttable increments. Each piece features a maximum length of 2m and supports connection lengths up to 5m powered from a single end. Multiple optical beam angles including 35°, 45°, and 40x50° ensure targeted illumination for outdoor facade lighting and pathway installations. DENO provides factory-direct wholesale project supply with OEM custom lengths to meet demanding architectural lighting specifications.
Specifications
| POWER (W/M) | 21 W/m |
|---|---|
| LED QTY | 24 |
| PART NO | DL-F30C12V24-11281-* |
| SMD TYPE | 3030 |
| CUTTABLE UNIT | 6LEDs/250mm |
| DIMMABLE | Yes |
| IP RATING | IP65 |
| LED PITCH | 41.667mm |
| LIFESPAN | 50000 |
| PCB WIDTH | 18.4mm |
| WARRANTY | 3 Years |
| BEAM ANGLE | 35°,45°,40°* 50° |
| RUN LENGTH | 2m |
| COPPER FOIL | 2oz |
| POWER RANGE | 21 W/m |
| CIRCUIT TYPE | C.V. |
| INPUT VOLTAGE | 24V |
| LUMINOUS FLUX | 70–576 lm/m |
| OPERATING TEMPERATURE | -25~40°C;Tc：75°C（max） |
Applications
- Cove, wall-wash & perimeter lighting — Coves, recesses, wall-wash details and ceiling perimeters where a continuous, uniform line of light is required.
- Showroom & hospitality display lighting — Shelving, display cases, reception desks and signage backlighting in shops, showrooms and hospitality spaces.
- Kitchen & wardrobe under-cabinet lighting — Kitchen, wardrobe and furniture task lighting where the strip stays hidden and only the light is seen.
- Damp and splash-prone areas (IP65) — IP65 protection covers covered outdoor soffits, bathrooms and kitchens where occasional water contact is expected.
- Entertainment & media-facade colour scenes — Entertainment venues, media facades, gaming rooms and branded retail installs driven by DMX/SPI or standard RGB controllers.
Request a quotation for #11281
DENO LED is a Shenzhen-based LED strip manufacturer with its own Foshan production base. Send the run length, voltage, CCT/CRI and IP rating you need and our engineering team replies with a specification sheet, wiring plan and price — OEM/ODM and fully custom builds included.
- Warranty: 5 years
- Lead time: standard boards: samples from 1 working day · custom: 3–5 working days · new FPCB: 1–3 weeks · production 1–2 weeks after sample approval
- Compliance: CE · UL · RoHS
- Bonding wire: 99.99% pure gold
- Copper foil: 99.9% pure copper FPCB
Related models in this series
See every model in Flexible Wall Washer Series or narrow to Rgb. Compare wattage, lumen output and run length in the ProCalc parameter library, or request OEM/ODM pricing on the custom manufacturing page.
Frequently Asked Questions
What are the common applications for the 11281 3D Twistable RGB LED Strip Light?
This flexible LED strip is ideal for facade lighting, landscape illumination, pathway lighting, and illuminating cultural landmarks, offering highly adaptable solutions.
What is the maximum continuous length for this LED strip, and how does it impact installation?
The maximum continuous length is 2M, and it significantly reduces wiring complexity for larger architectural installations, streamlining project timelines.
Can the 11281 LED Strip Light be customized for specific project requirements?
Yes, it is highly customizable to meet diverse architectural lighting needs, providing bespoke solutions for unconventional structures and unique designs.
What voltage does the 2525 3D Twistable RGB LED Strip Light operate on?
The 2525 3D Twistable RGB LED Strip Light operates on a 24V input, ensuring stable and efficient performance for various commercial applications.
What are the key specifications of #11281?
2525 3D Twistable RGB LED Strip Light | 25*25mm | 24V | 24LEDs | 250mm/cut | #11281: 3030 LEDs, 24, 24V, 18.4mm FPCB, 2oz copper foil, cut unit 6LEDs/250mm. Photometric files, wiring diagrams and test reports are available in the downloads block on this page.
