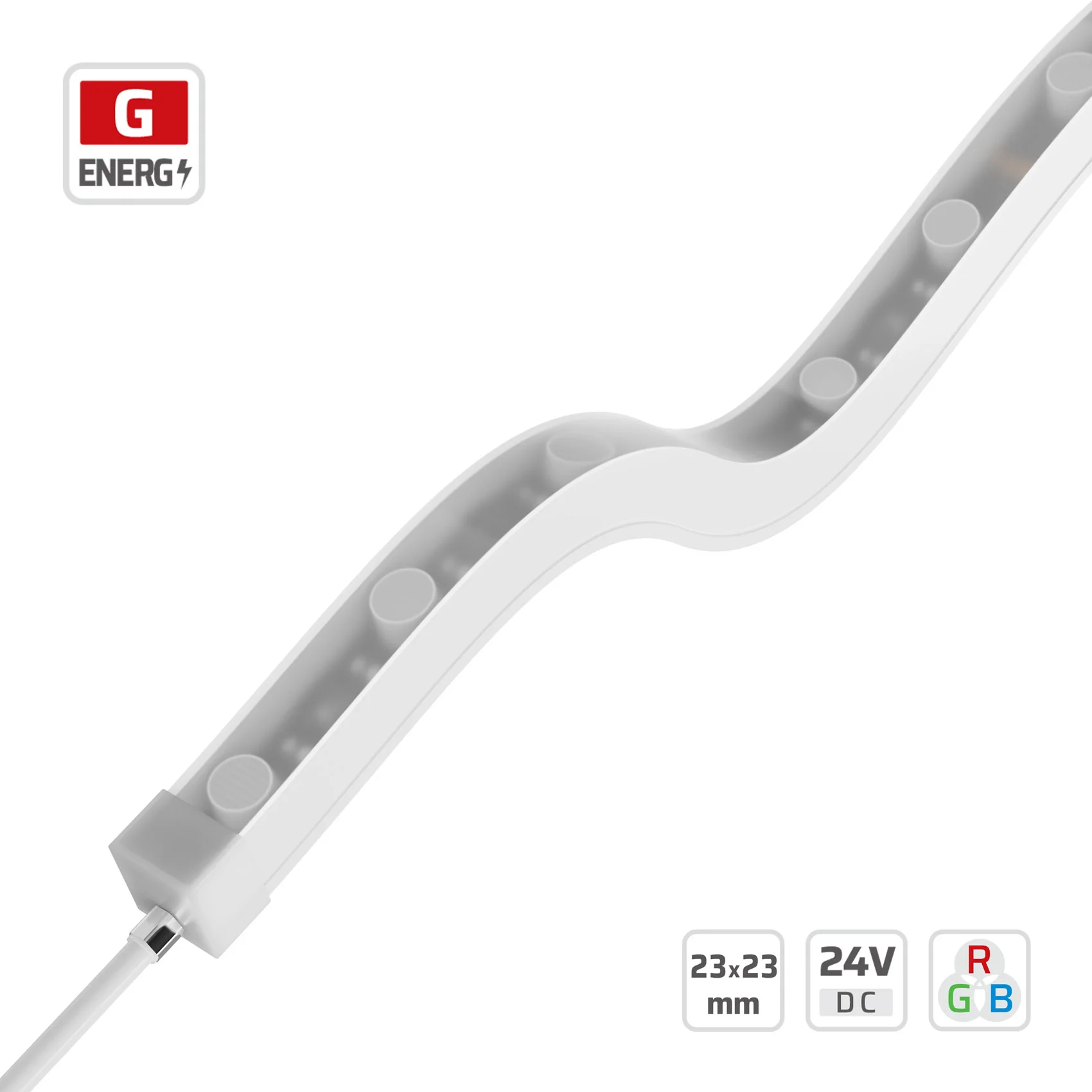

2323 RGB Flexible Wall Washer LED (#15556)
24V · 24LEDs · 270mm/cut · 23*23mm
Model: 15556
Overview
The DENO LED Model 15556 is a 23x23mm 24V RGB flexible wall washer LED, engineered for aesthetic and functional architectural lighting. Its compact, 3D flexible design allows for discreet installation in challenging spaces. Featuring proprietary optics and integrated silicone encapsulation, it ensures uniform illumination and high durability. With a 3oz copper foil and 50,000-hour lifespan, it's ideal for facade, landscape, and pathway lighting. The product supports a const...
Description
This 23x23mm 24V RGB flexible wall washer LED features 5054 SMD chips and integrated precision lenses for uniform illumination on curved surfaces. Engineered with optical beam angles of 30°, 40°, and 40x45°, it delivers targeted grazing effects for exterior facade and architectural lighting. Constructed with a 2oz copper 15mm PCB, the 24V circuit is cuttable every 270mm and supports runs up to 5 meters. Integrated silicone encapsulation protects internal optics while dimmable controls provide smooth color mixing for dynamic pathway and landscape lighting. DENO delivers OEM custom lengths and factory-direct support to lighting contractors and distributors requiring dependable wholesale project supply.
Specifications
| POWER (W/M) | 21 W/m |
|---|---|
| LED QTY | 24 |
| PART NO | DL-F50C12V24-15556-* |
| SMD TYPE | 5054 |
| CUTTABLE UNIT | 6LEDs/270mm |
| DIMMABLE | Yes |
| IP RATING | IP65 |
| LED PITCH | 45mm |
| LIFESPAN | 50000 |
| PCB WIDTH | 15mm |
| WARRANTY | 3 Years |
| BEAM ANGLE | 30° , 40° , 40*45° |
| RUN LENGTH | 5m |
| COPPER FOIL | 2oz |
| POWER RANGE | 21 W/m |
| CIRCUIT TYPE | C.V. |
| INPUT VOLTAGE | 24V |
| LUMINOUS FLUX | 80–1002 lm/m |
| OPERATING TEMPERATURE | -25~40°C;Tc：75°C（max） |
Applications
- Cove, wall-wash & perimeter lighting — Coves, recesses, wall-wash details and ceiling perimeters where a continuous, uniform line of light is required.
- Showroom & hospitality display lighting — Shelving, display cases, reception desks and signage backlighting in shops, showrooms and hospitality spaces.
- Kitchen & wardrobe under-cabinet lighting — Kitchen, wardrobe and furniture task lighting where the strip stays hidden and only the light is seen.
- Damp and splash-prone areas (IP65) — IP65 protection covers covered outdoor soffits, bathrooms and kitchens where occasional water contact is expected.
- Entertainment & media-facade colour scenes — Entertainment venues, media facades, gaming rooms and branded retail installs driven by DMX/SPI or standard RGB controllers.
Request a quotation for #15556
DENO LED is a Shenzhen-based LED strip manufacturer with its own Foshan production base. Send the run length, voltage, CCT/CRI and IP rating you need and our engineering team replies with a specification sheet, wiring plan and price — OEM/ODM and fully custom builds included.
- Warranty: 5 years
- Lead time: standard boards: samples from 1 working day · custom: 3–5 working days · new FPCB: 1–3 weeks · production 1–2 weeks after sample approval
- Compliance: CE · UL · RoHS
- Bonding wire: 99.99% pure gold
- Copper foil: 99.9% pure copper FPCB
Related models in this series
See every model in Flexible Wall Washer Series or narrow to Rgb. Compare wattage, lumen output and run length in the ProCalc parameter library, or request OEM/ODM pricing on the custom manufacturing page.
Frequently Asked Questions
What are the common applications for this flexible wall washer LED?
This flexible wall washer is ideal for facade lighting, landscape illumination, and pathway lighting, offering dynamic and uniform illumination for various architectural projects.
Is the Model 15556 compatible with standard control systems?
Yes, as a 24V constant voltage RGB LED, it can be easily integrated with most standard LED control systems for seamless dimming and color management.
Can the 2323 RGB Flexible Wall Washer LED be customized for specific project requirements?
Absolutely. This flexible wall washer is designed for customization, allowing bespoke solutions to meet unique architectural lighting needs and unconventional structures.
What is the typical lead time for a bulk order of the 15556 wall washer?
Lead times vary based on order size and customization. Please contact our sales team to discuss your specific project requirements and receive an accurate lead time estimate.
What are the key specifications of #15556?
2323 RGB Flexible Wall Washer LED | 23*23mm | 24V | 24LEDs | 270mm/cut | #15556: 5054 LEDs, 24, 24V, 15mm FPCB, 2oz copper foil, cut unit 6LEDs/270mm. Photometric files, wiring diagrams and test reports are available in the downloads block on this page.
