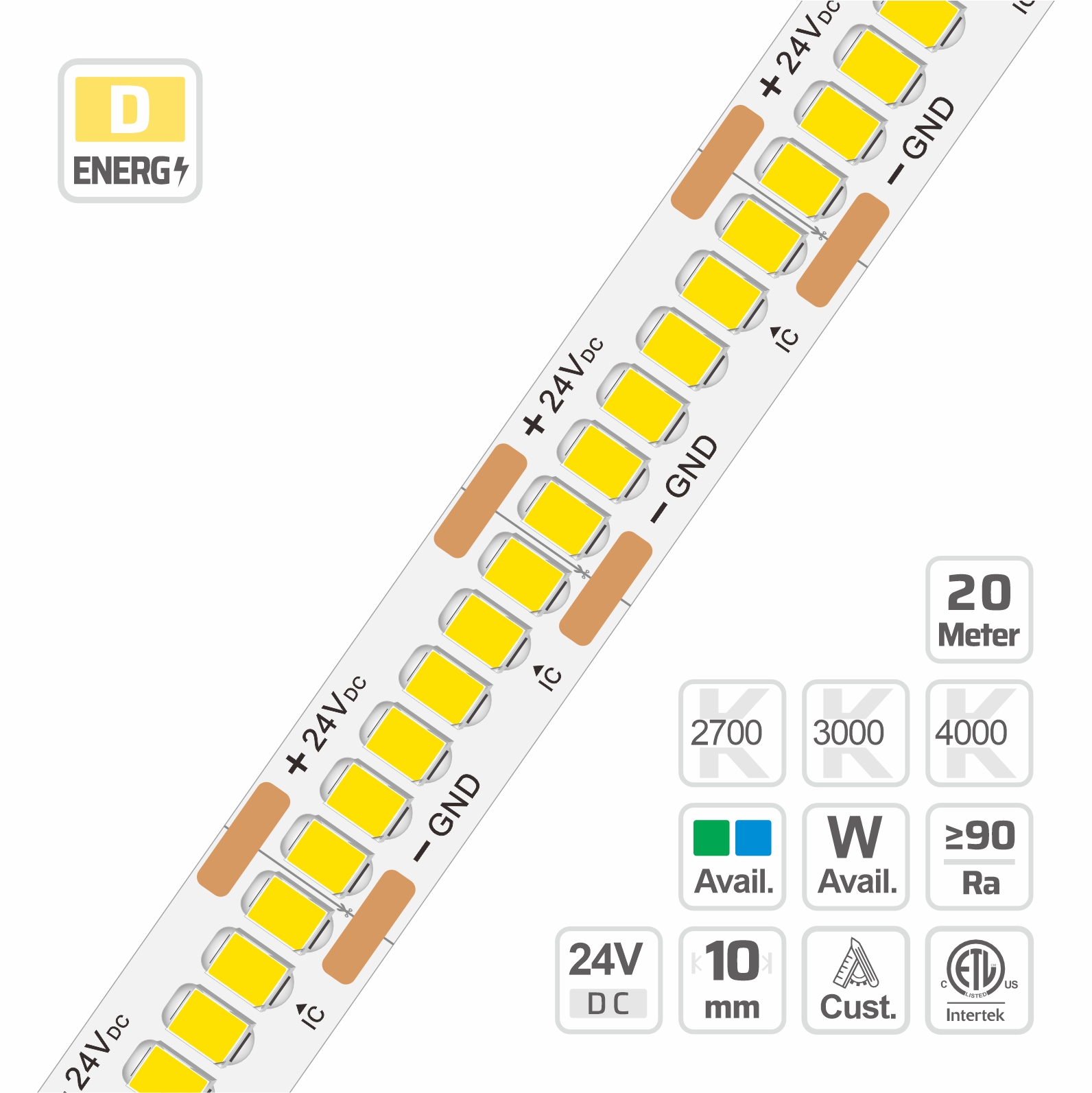

Name: 10mm | 24V | 300LEDs | 20cut | #14092 | 2835 Long Run Bulit in IC High Density LED Strip Light
Brand: DENO LED
SKU: 14092
Availability: InStock

Question 1

What are the key specifications of 14092?

Accepted Answer

14092: 2835, 300, 24V, 10mm PCB, 3 oz copper FPCB, cuttable 6LEDs/20mm. Full photometric data, wiring diagrams and test reports are available in the downloads section of this page.

Question 2

How long can a single run of this ultra long run LED strip be?

Accepted Answer

Maximum single run for this model is 10m. Feeding from both ends or using a mid-point tap halves the effective distance per segment, so a ultra long run LED strip can cover twice that length on one circuit when wired accordingly.

Question 3

Can DENO customise this ultra long run LED strip for a project?

Accepted Answer

Yes. DENO manufactures the Ultra-Long SMD Strips series as an OEM and ODM supplier: reel length, colour temperature, CRI grade, PCB width, waterproofing and private labelling can all be specified. Request a quote for lead time and project pricing.

Question 4

How many LEDs per metre does a dotless LED strip need?

Accepted Answer

Visible dots depend on LED pitch, diffuser distance and transmittance. Above roughly 480 LEDs/m most diffusers give a continuous line at 10 mm depth, and the 700 LEDs/m high density LED strip stays dot free even behind a shallow, highly transmissive lens.

Question 5

What limits how long an LED strip run can be?

Accepted Answer

Voltage drop and conductor current, not the LED itself. A long run LED strip combines low watts per metre, 2 oz or thicker copper and a higher bus voltage such as 24V, 36V or 48V to reach 20 m or more from one feed while staying inside a 3 percent drop.

Question 6

What does a built-in IC do on a constant current LED strip?

Accepted Answer

Each segment carries its own constant current driver IC, so LED current stays fixed even as the bus voltage sags along the reel. The result is no visible brightness fade at the far end, per-segment protection, and freedom to feed power at either end or at any mid point of the run.

Question 7

What counts as a high density LED strip?

Accepted Answer

Anything above roughly 120 LEDs per metre is normally sold as a high density LED strip. DENO builds high-density boards from 240 up to 700 LEDs/m, which puts the LED pitch between 4.2 mm and 1.4 mm — tight enough to read as a continuous line behind a shallow diffuser instead of a row of dots.

Question 8

Is a 24V high density LED strip better than 12V?

Accepted Answer

For dense boards, yes in most cases. A 24V high density LED strip draws half the current of a 12V board at the same wattage, so voltage drop is far lower and single runs of 5–10 m stay even in brightness. DENO supplies 12V, 24V, 48V and mains-voltage versions of the same high-density layout; 12V is normally reserved for short cabinet runs or low-voltage furniture requirements.

Question 9

Do you make a 5V high density LED strip?

Accepted Answer

Yes. 5V dense LED tape is built for USB-powered displays, shelving and addressable pixel projects where the controller is 5V-native. Because 5V boards lose voltage quickly, DENO limits standard runs to 1–2 m per feed, uses 2 oz or 35+70 μm copper, and adds per-segment constant-current ICs so the far end does not dim.

Question 10

Can a high density RGB LED strip stay dot-free?

Accepted Answer

It can, but the pitch has to be tighter than a white board because each RGB package mixes three separate dies. DENO's high density RGB and RGBW builds place emitters at 2.1 mm–4.2 mm pitch so colour mixing completes within a few millimetres of the diffuser, which removes both the dot pattern and the rainbow fringing seen on standard 60 LEDs/m RGB tape.

Question 11

What is a high density addressable LED strip used for?

Accepted Answer

High density addressable LED strip (pixel tape) is used for signage, media facades, stair effects and studio lighting where each LED or short segment must be controlled individually. DENO offers addressable builds with up to 700 pixels per metre in SPI protocols such as WS2812B, WS2815 and SK6812, with breakout points every cut unit for reliable data injection on long runs.

Question 12

What makes the best high density LED strip lights?

Accepted Answer

Density alone is not enough. The best high density LED strip lights combine tight LED pitch with a 3-SDCM binning window, Ra 90+ (Ra 95+ for full-spectrum), 2 oz or heavier copper for thermal spreading, flicker-free constant-current drive and an FPCB rated for repeated bending. DENO ships photometric data, LM-80 chip data and a full test report with every OEM order so specifiers can verify these claims instead of trusting a datasheet number.

Question 13

How dense can an ultra high density LED strip go?

Accepted Answer

DENO's ultra high density LED strip tops out at 700 LEDs per metre with a 1.4 mm pitch, drawing up to 30 W/m. Beyond that point a discrete SMD layout stops making sense thermally, and a SCOB (COB) emitter is the better route to a fully dotless line.

Question 14

Can I order a custom high density LED strip?

Accepted Answer

Yes — LED count, pitch, CCT, CRI, PCB width from 3 mm, copper weight, cut unit and IP rating are all configurable on a custom high density LED strip. DENO is a manufacturer, not a reseller, so a non-standard density or a mixed-CCT dense board can be tooled from an existing FPCB stack-up without a new production line.

Question 15

Is high density LED tape the same as a high density LED strip?

Accepted Answer

They are the same product under two names: “high density led tape” is the common UK/EU term for what North America calls a high density LED strip. DENO ships the identical dense FPCB boards to both markets — 240 to 700 LEDs/m, 3 mm to 12 mm widths, CE/UL/RoHS documentation — so the tape you specify in a UK cove detail is the same board as the strip specified in a US one.

Question 16

Which dense LED tape suits under-cabinet lighting?

Accepted Answer

For under-cabinet work choose a dense board at 240–420 LEDs/m in a 5 mm to 8 mm width, 12V or 24V, with a short cut unit so the board matches each cabinet run exactly. At that density a 10 mm deep aluminium channel with a frosted diffuser already reads dot-free at normal worktop viewing distance.

Question 17

What power supply do I need for a dense LED strip run?

Accepted Answer

Size the driver from the board wattage: multiply the W/m figure on the datasheet by the run length, then add 20–30 % headroom, so a 20 W/m board over 5 m needs a 100 W load on a 120–130 W constant-voltage driver. Match the driver voltage exactly (24V board, 24V driver), keep it constant-voltage rather than constant-current unless the board carries its own CC ICs, and check that the dimming protocol — TRIAC, 0–10V, DALI or PWM — is supported on both sides before ordering.

Question 18

Does more LEDs per metre mean a brighter strip?

Accepted Answer

Not on its own. Brightness is lumens per metre, which is drive current times die count times efficacy — doubling the LED count while halving the current per die gives the same output with a smoother line, not twice the light. Read lm/m and W/m together: DENO dense boards run 8–24 W/m and 700–2600 lm/m, so pick the density for dot-free appearance and the wattage for the light level you actually need.

Question 19

Can dense LED tape run on 36V or 48V supplies?

Accepted Answer

Yes. 36V and 48V builds exist specifically for long uninterrupted runs: at 48V the same wattage draws a quarter of the current of a 12V board, so a single feed can cover 15–20 m with even brightness and far fewer injection points. They need a matching SELV driver and, in most territories, the same low-voltage installation rules as 24V; DENO supplies 36V and 48V versions of the standard dense layouts on request.

Question 20

How long can a long LED strip run be on a single power feed?

Accepted Answer

A standard 24V constant-voltage tape is limited to about 5 m before the far end visibly dims. DENO's long-run boards combine 2 oz to 3 oz copper, 24V or 48V input and per-segment constant-current ICs, which takes a single feed to 20 m, and up to 50 m on 48V builds, with no measurable fall-off between the first and last metre.

Question 21

What are the longest LED light strips DENO manufactures?

Accepted Answer

Standard reels ship at 5 m, 10 m, 15 m, 20 m and 30 m, and OEM orders are produced as one continuous 50 m board with no mid-reel solder joint. Roll-to-roll plating is what makes that possible: the copper is deposited continuously, so length is not capped by panel size the way it is on die-cut FPCB.

Question 22

Do you supply extra long LED strip lights in 65.6 ft or 100 ft?

Accepted Answer

Yes. 65.6 ft (20 m) and 100 ft (30 m) are stock run lengths, and anything longer than 32 feet is supplied as one uncut board rather than two reels joined with a connector. Joints are the usual failure point on extra long LED strip lights, so removing them is the single biggest reliability gain on a large install.

Question 23

Why do long strip lights get dimmer at the far end, and how is it fixed?

Accepted Answer

Copper resistance drops the supply voltage along the tape, so LEDs near the end of the run receive less drive current. Three fixes work together: raise the voltage (24V, 36V or 48V), raise the copper weight (2 oz or 3 oz), and add a linear constant-current IC per segment so each segment holds its current regardless of the local voltage it sees.

Question 24

Which long outdoor LED strip lights are rated for wet locations?

Accepted Answer

Long outdoor LED strip lights are built IP65 silicone-coated, IP67 sleeved or IP68 fully potted, with DENO WAP™ conformal coating that stays clear instead of yellowing under UV. For facade and perimeter work the run length also has to survive thermal cycling, so outdoor boards use 3 oz copper and a wider PCB to spread heat.

Question 25

What makes long lasting LED strip lights actually last?

Accepted Answer

Lifetime is decided by junction temperature and solder-joint fatigue, not by the LED bin. DENO specifies 99.9% pure electroplated copper for lower thermal resistance, gold-wire bonding, and derated drive current — L90 at 50,000 hours on standard architectural builds, backed by a 5-year warranty.

Question 26

Can a long RGB or RGBIC strip run stay colour-consistent?

Accepted Answer

It can, provided each colour channel is current-regulated. On a plain long RGB LED strip the red die drops out first as voltage falls, so the far end shifts warm; a CC-regulated 24V colour board holds the mix over 15 m to 20 m. Addressable RGBIC runs additionally need data re-amplification roughly every 5 m.

Question 27

Can long LED light strips be cut to an exact length for a room or kitchen?

Accepted Answer

Yes. Cut units run from 12.5 mm to 100 mm depending on voltage and density, so a run can be trimmed to a drawing dimension on site, and DENO also pre-cuts and pre-wires to length at the factory for room, cove and kitchen installations. Ask for the cut unit in the quote — it decides how closely the finished line matches the millwork.

Question 28

Can you get LED strip lights longer than 32 feet in one run?

Accepted Answer

Yes — 32 feet (10 m) is where consumer tape stops, not where the physics stops. Past that the board needs constant-current regulation and 2 oz to 3 oz copper, and DENO supplies it as one uncut length with factory-fitted lead wires rather than two reels joined by a solderless connector, which would put the whole downstream current through a spring contact.

Question 29

Should I specify a 65.6 ft or a 100 ft LED strip run?

Accepted Answer

65.6 ft (20 m) is the practical ceiling for a 24V constant-current board with 2 oz copper on a single-end feed, and it covers most cove and corridor jobs with one driver. 100 ft (30 m) moves to 36V or 48V with 3 oz copper, a bigger driver and usually a mid-point tap, because at 24V the current would be high enough for cable losses to matter.

Question 30

When is a long RGBW LED strip better than RGB on a long run?

Accepted Answer

Whenever the same run also has to serve as everyday white light. Mixing white from three colour dies costs roughly twice the wattage for the same lux and renders skin and timber poorly — a real penalty over 20 m. RGBW adds a dedicated Ra 90+ white die at 2700K to 6500K, so white comes from a white source and the colour channels stay reserved for scenes.

Question 31

Is 36V or 48V better for a long LED strip installation?

Accepted Answer

48V once a single run passes about 30 m, 36V between 20 m and 30 m or where a 48V driver is unavailable. Both stay inside SELV limits and both cut voltage drop sharply against 24V; the trade-off is the cut unit, which grows from roughly 50 mm at 24V to 100 mm at 36V and up to 166.6 mm at 48V.

SDCM	< 3 SDCM (Single Bin)
LED QTY	300
PART NO	DL-F28A150V24-14092-*
SMD TYPE	2835
CUTTABLE UNIT	6LEDs/20mm
DIMMABLE	Yes
LED PITCH	3.333mm
PCB WIDTH	10mm
WARRANTY	5 Years
BEAM ANGLE	120°
LENGTH MAX	10m
COPPER FOIL	3 oz
ON OFF TIMES	10000（test times）
POWER RANGE	6~24W
CIRCUIT TYPE	C.C.
INPUT VOLTAGE	24V
MIN BEND DIAMETER	Φ60mm
OPERATING TEMPERATURE	-25~40°C;Tc: 75°C (max)

2835 Long Run Bulit in IC High Density LED Strip Light (#14092)
