Question 1

What are the key specifications of 13438?

Accepted Answer

13438: 2835, 180 LEDs/m, DC 24V, 8 mm PCB, 4oz copper FPCB, cuttable 6LEDs/33.3mm. Full photometric data, wiring diagrams and test reports are available in the downloads section of this page.

Question 2

How long can a single run of this ultra long run LED strip be?

Accepted Answer

Maximum single run for this model is 20m. Feeding from both ends or using a mid-point tap halves the effective distance per segment, so a ultra long run LED strip can cover twice that length on one circuit when wired accordingly.

Question 3

Can DENO customise this ultra long run LED strip for a project?

Accepted Answer

Yes. DENO manufactures the Ultra-Long SMD Strips series as an OEM and ODM supplier: reel length, colour temperature, CRI grade, PCB width, waterproofing and private labelling can all be specified. Request a quote for lead time and project pricing.

Question 4

What does a built-in IC do on a constant current LED strip?

Accepted Answer

Each segment carries its own constant current driver IC, so LED current stays fixed even as the bus voltage sags along the reel. The result is no visible brightness fade at the far end, per-segment protection, and freedom to feed power at either end or at any mid point of the run.

Question 5

What limits how long an LED strip run can be?

Accepted Answer

Voltage drop and conductor current, not the LED itself. A long run LED strip combines low watts per metre, 2 oz or thicker copper and a higher bus voltage such as 24V, 36V or 48V to reach 20 m or more from one feed while staying inside a 3 percent drop.

Question 6

How long can a long LED strip run be on a single power feed?

Accepted Answer

A standard 24V constant-voltage tape is limited to about 5 m before the far end visibly dims. DENO's long-run boards combine 2 oz to 3 oz copper, 24V or 48V input and per-segment constant-current ICs, which takes a single feed to 20 m, and up to 50 m on 48V builds, with no measurable fall-off between the first and last metre.

Question 7

What are the longest LED light strips DENO manufactures?

Accepted Answer

Standard reels ship at 5 m, 10 m, 15 m, 20 m and 30 m, and OEM orders are produced as one continuous 50 m board with no mid-reel solder joint. Roll-to-roll plating is what makes that possible: the copper is deposited continuously, so length is not capped by panel size the way it is on die-cut FPCB.

Question 8

Do you supply extra long LED strip lights in 65.6 ft or 100 ft?

Accepted Answer

Yes. 65.6 ft (20 m) and 100 ft (30 m) are stock run lengths, and anything longer than 32 feet is supplied as one uncut board rather than two reels joined with a connector. Joints are the usual failure point on extra long LED strip lights, so removing them is the single biggest reliability gain on a large install.

Question 9

Why do long strip lights get dimmer at the far end, and how is it fixed?

Accepted Answer

Copper resistance drops the supply voltage along the tape, so LEDs near the end of the run receive less drive current. Three fixes work together: raise the voltage (24V, 36V or 48V), raise the copper weight (2 oz or 3 oz), and add a linear constant-current IC per segment so each segment holds its current regardless of the local voltage it sees.

Question 10

Which long outdoor LED strip lights are rated for wet locations?

Accepted Answer

Long outdoor LED strip lights are built IP65 silicone-coated, IP67 sleeved or IP68 fully potted, with DENO WAP™ conformal coating that stays clear instead of yellowing under UV. For facade and perimeter work the run length also has to survive thermal cycling, so outdoor boards use 3 oz copper and a wider PCB to spread heat.

Question 11

What makes long lasting LED strip lights actually last?

Accepted Answer

Lifetime is decided by junction temperature and solder-joint fatigue, not by the LED bin. DENO specifies 99.9% pure electroplated copper for lower thermal resistance, gold-wire bonding, and derated drive current — L90 at 50,000 hours on standard architectural builds, backed by a 5-year warranty.

Question 12

Can a long RGB or RGBIC strip run stay colour-consistent?

Accepted Answer

It can, provided each colour channel is current-regulated. On a plain long RGB LED strip the red die drops out first as voltage falls, so the far end shifts warm; a CC-regulated 24V colour board holds the mix over 15 m to 20 m. Addressable RGBIC runs additionally need data re-amplification roughly every 5 m.

Question 13

Can long LED light strips be cut to an exact length for a room or kitchen?

Accepted Answer

Yes. Cut units run from 12.5 mm to 100 mm depending on voltage and density, so a run can be trimmed to a drawing dimension on site, and DENO also pre-cuts and pre-wires to length at the factory for room, cove and kitchen installations. Ask for the cut unit in the quote — it decides how closely the finished line matches the millwork.

Question 14

Can you get LED strip lights longer than 32 feet in one run?

Accepted Answer

Yes — 32 feet (10 m) is where consumer tape stops, not where the physics stops. Past that the board needs constant-current regulation and 2 oz to 3 oz copper, and DENO supplies it as one uncut length with factory-fitted lead wires rather than two reels joined by a solderless connector, which would put the whole downstream current through a spring contact.

Question 15

Should I specify a 65.6 ft or a 100 ft LED strip run?

Accepted Answer

65.6 ft (20 m) is the practical ceiling for a 24V constant-current board with 2 oz copper on a single-end feed, and it covers most cove and corridor jobs with one driver. 100 ft (30 m) moves to 36V or 48V with 3 oz copper, a bigger driver and usually a mid-point tap, because at 24V the current would be high enough for cable losses to matter.

Question 16

When is a long RGBW LED strip better than RGB on a long run?

Accepted Answer

Whenever the same run also has to serve as everyday white light. Mixing white from three colour dies costs roughly twice the wattage for the same lux and renders skin and timber poorly — a real penalty over 20 m. RGBW adds a dedicated Ra 90+ white die at 2700K to 6500K, so white comes from a white source and the colour channels stay reserved for scenes.

Question 17

Is 36V or 48V better for a long LED strip installation?

Accepted Answer

48V once a single run passes about 30 m, 36V between 20 m and 30 m or where a 48V driver is unavailable. Both stay inside SELV limits and both cut voltage drop sharply against 24V; the trade-off is the cut unit, which grows from roughly 50 mm at 24V to 100 mm at 36V and up to 166.6 mm at 48V.

CCT (K)	2700–6500K
CRI	Ra≥90
POWER (W/M)	13.2 W/m
LED QTY	180 LEDs/m
PART NO	DL-F28A90V24-13438-*
SMD TYPE	2835
CUTTABLE UNIT	6LEDs/33.3mm
DIMMABLE	Yes
IP RATING	IP20
LED PITCH	5.55mm
PCB WIDTH	8 mm
BEAM ANGLE	120°
RUN LENGTH	20m
COPPER FOIL	4oz
ON OFF TIMES	10000（test times）
POWER RANGE	3.6~19.2W
CIRCUIT TYPE	C.C.
INPUT VOLTAGE	DC 24V
LUMINOUS FLUX	828–1490 lm/m
MIN BEND DIAMETER	Φ60mm
OPERATING TEMPERATURE	-25~40°C;Tc：75°C（max）

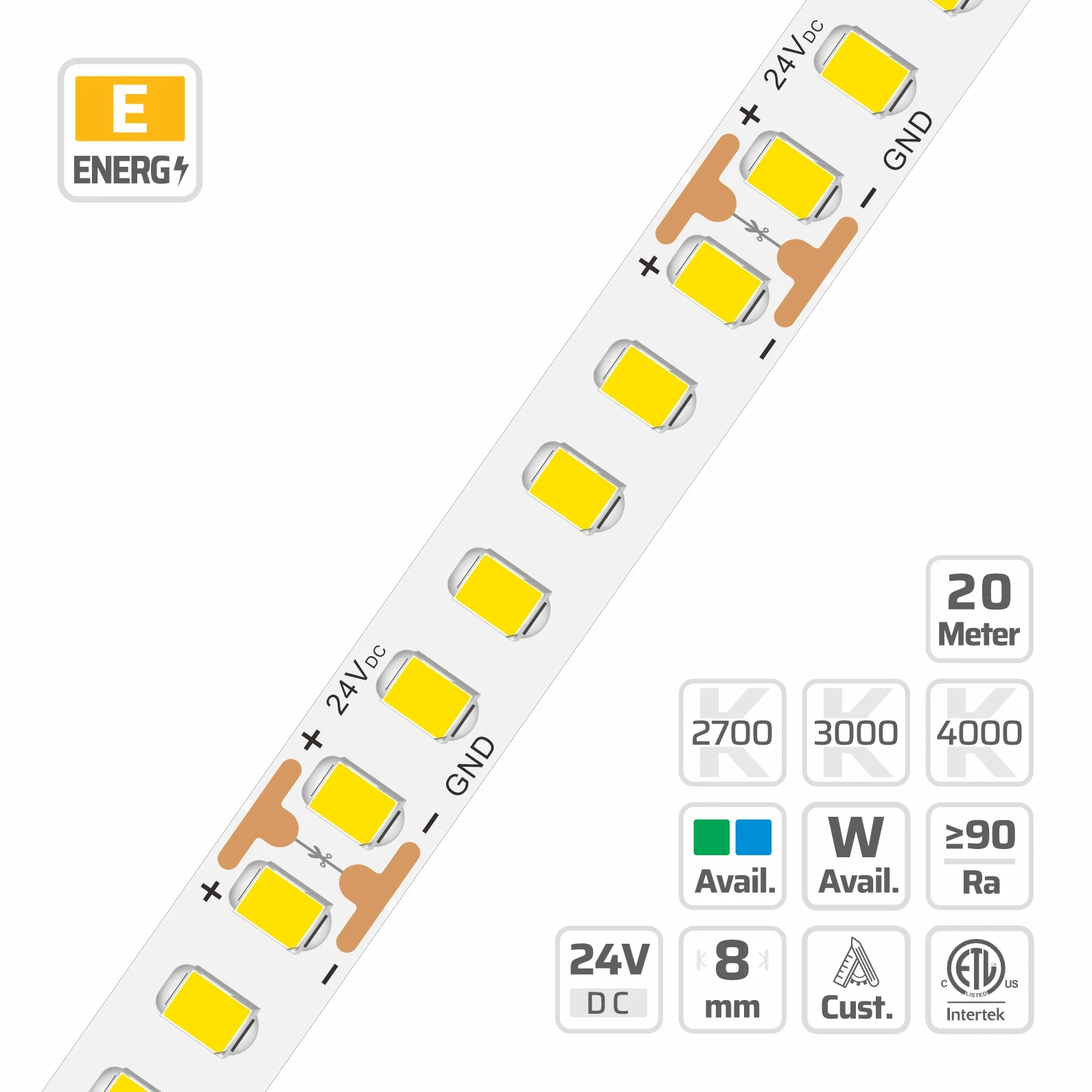

2835 Built-in IC Long Run LED Strip Light (#13438)

Overview

Description

Specifications

Applications

Recommended accessories & compatible parts

Request a quotation for #13438

Photometric Performance — CCT × CRI Efficacy Matrix

Grade DL (2nd Tier) · 8.2W/m

Grade DL (2nd Tier) · 13W/m

Recommended LED Channels

Related models in this series

Frequently Asked Questions

What are the key specifications of 13438?

How long can a single run of this ultra long run LED strip be?

Can DENO customise this ultra long run LED strip for a project?

What does a built-in IC do on a constant current LED strip?

What limits how long an LED strip run can be?

Engineering & selection guide

CCT (K)	Ra 80 — Luminous Efficacy (lm/W)	Ra 80 — Luminous Flux (lm/m)	Ra 80 — ErP Energy Class	Ra 90 — Luminous Efficacy (lm/W)	Ra 90 — Luminous Flux (lm/m)	Ra 90 — ErP Energy Class	Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W)	Full Spectrum (Ra 95+) — Luminous Flux (lm/m)	Full Spectrum (Ra 95+) — ErP Energy Class
1800 K	—	—	—	91.5 lm/W	750.6 lm/m	F	—	—	—
2300 K	—	—	—	102 lm/W	836.2 lm/m	F	—	—	—
2700 K	—	—	—	110.4 lm/W	905.3 lm/m	E	—	—	—
3000 K	—	—	—	116.1 lm/W	952.3 lm/m	E	—	—	—
3500 K	—	—	—	118.2 lm/W	969.5 lm/m	E	—	—	—
4000 K	—	—	—	121 lm/W	992.6 lm/m	E	—	—	—
5000 K	—	—	—	120.9 lm/W	991.8 lm/m	E	—	—	—
6500 K	—	—	—	116 lm/W	951.4 lm/m	E	—	—	—

CCT (K)	Ra 80 — Luminous Efficacy (lm/W)	Ra 80 — Luminous Flux (lm/m)	Ra 80 — ErP Energy Class	Ra 90 — Luminous Efficacy (lm/W)	Ra 90 — Luminous Flux (lm/m)	Ra 90 — ErP Energy Class	Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W)	Full Spectrum (Ra 95+) — Luminous Flux (lm/m)	Full Spectrum (Ra 95+) — ErP Energy Class
1800 K	—	—	—	88.5 lm/W	1150.5 lm/m	F	—	—	—
2300 K	—	—	—	98.6 lm/W	1281.7 lm/m	F	—	—	—
2700 K	—	—	—	106.7 lm/W	1387.7 lm/m	F	—	—	—
3000 K	—	—	—	112.3 lm/W	1459.6 lm/m	E	—	—	—
3500 K	—	—	—	114.3 lm/W	1486.1 lm/m	E	—	—	—
4000 K	—	—	—	117 lm/W	1521.4 lm/m	E	—	—	—
5000 K	—	—	—	116.9 lm/W	1520.2 lm/m	E	—	—	—
6500 K	—	—	—	112.2 lm/W	1458.4 lm/m	E	—	—	—
