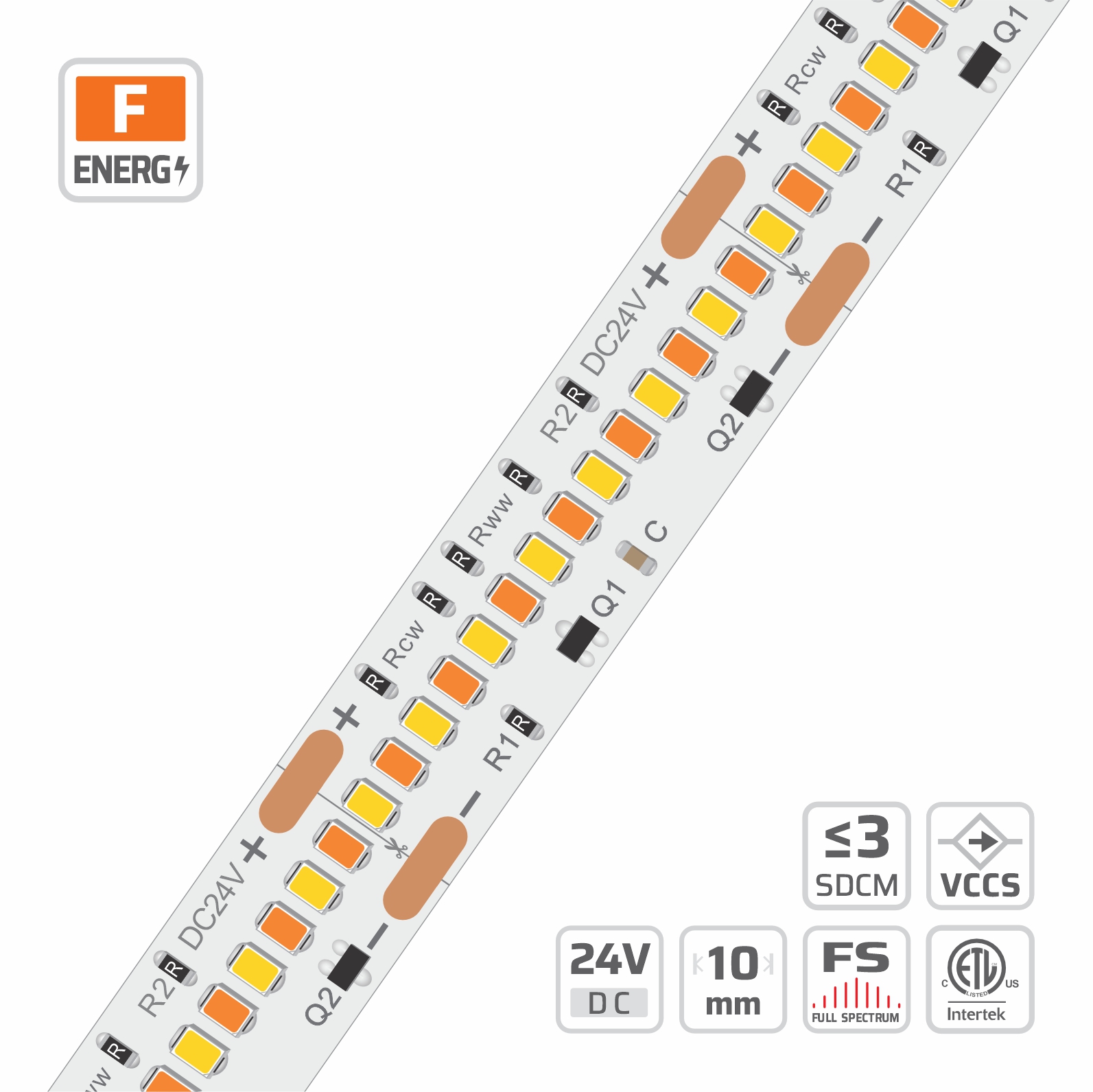

2216 High Density Dim to Warm LED Strip Light (#14025)
10mm · 24V · 420LEDs · 33.3mm/cut
Model: 14025
Overview
2216 High Density Dim to Warm LED Strip Light | 10mm | 24V | 420LEDs | 33.3mm/cut | #14025 is part of the DENO High Density LED Strips series, engineered around ultra high density LED strip. Key specifications: 2216, 420, 24V, 10 PCB, 3oz copper FPCB, cuttable 14LEDs/33.3mm. Every reel is produced on DENO's roll-to-roll line with 99.9% pure copper FPCB and ships CE, UL and RoHS compliant for architectural, retail and hospitality projects. OEM and ODM configurations of length, colour temperature and waterproofing are available on request.
Description
Engineered with 420 LEDs per meter, this 2216 dim to warm LED strip light seamlessly shifts color temperature from 3000K down to 1800K. The 24V constant current circuit operates between 7.2W and 18W, offering full compatibility with standard TRIAC, PWM, and 0/1-10V dimming systems. Delivering up to 106lm/W with a high color rendering index of CRI 95, it produces smooth illumination across a 10mm wide PCB. Built with a heavy 3oz copper PCB, this flexible strip features precise cut points every 33.3mm to facilitate rapid architectural installation. Ideal for premium cove lighting and hospitality joinery, we offer factory-direct manufacturing and OEM custom lengths for wholesale project supply.
Dim To Warm Led Strip built for dim to warm smd strips projects.
Specifications
| LED QTY | 420 |
|---|---|
| PART NO | DL-F22A210V24-14025-* |
| SMD TYPE | 2216 |
| CUTTABLE UNIT | 14LEDs/33.3mm |
| DIMMABLE | Yes |
| IP RATING | IP20 |
| LED PITCH | 2.381mm |
| LIFESPAN | 50000 |
| PCB WIDTH | 10 |
| WARRANTY | 5 Years |
| RUN LENGTH | 5m |
| COPPER FOIL | 3oz |
| POWER RANGE | 7.2~18W |
| CIRCUIT TYPE | C.C. |
| INPUT VOLTAGE | 24V |
| OPERATING TEMPERATURE | -25~40°C;Tc：75°C（max） |
Applications
- Cove, wall-wash & perimeter lighting — Coves, recesses, wall-wash details and ceiling perimeters where a continuous, uniform line of light is required.
- Showroom & hospitality display lighting — Shelving, display cases, reception desks and signage backlighting in shops, showrooms and hospitality spaces.
- Kitchen & wardrobe under-cabinet lighting — Kitchen, wardrobe and furniture task lighting where the strip stays hidden and only the light is seen.
- Hotel & residential tunable-white scenes — Hotel rooms, residential living areas and meeting spaces where warm evening light and neutral daytime light are both required from one fixture.
Recommended accessories & compatible parts
- DL-1003 — 19.1x8mm Surface Mount LED Channel — Dotless Aluminum Profile for 240 LEDs/m Strip: Accepts LED strips up to 10mm wide.
- DL-1103-1 — 16x13mm Surface Mount LED Channel — Aluminum Profile for 10mm LED Strip: Accepts LED strips up to 10mm wide.
- DL-1510 HX-F — 15x9.9mm Recessed LED Channel with Flange — Flush Mount Aluminum Profile: Accepts LED strips up to 10mm wide.
- DN-PSU-100 — 24V 100W Class-2 LED Driver · High Efficiency: Matches the 24V DC input of this strip; size the driver with at least 20% headroom over total load.
- DN-PSU-150 — 24V 150W Class-2 LED Driver · Premium: Matches the 24V DC input of this strip; size the driver with at least 20% headroom over total load.
- DN-PSU-60 — 24V 60W Class-2 LED Driver · Constant Voltage: Matches the 24V DC input of this strip; size the driver with at least 20% headroom over total load.
- V1 — 5-36VDC 1-Channel * 8A RF+Push Dimming Controller | V1: Matched by input voltage range and colour channels.
Request a quotation for #14025
DENO LED is a Shenzhen-based LED strip manufacturer with its own Foshan production base. Send the run length, voltage, CCT/CRI and IP rating you need and our engineering team replies with a specification sheet, wiring plan and price — OEM/ODM and fully custom builds included.
- Warranty: 5 years
- Lead time: standard boards: samples from 1 working day · custom: 3–5 working days · new FPCB: 1–3 weeks · production 1–2 weeks after sample approval
- Compliance: CE · UL · RoHS
- Bonding wire: 99.99% pure gold
- Copper foil: 99.9% pure copper FPCB
Photometric Performance — CCT × CRI Efficacy Matrix
Peak measured luminous efficacy: 163.3 lm/W at 3000K, Ra 90, ErP energy class C (DN · DTW C · 12W/m).
All values are measured at the stated power density and ambient 25 °C, reported as luminous efficacy in lumens per watt (lm/W), luminous flux per metre (lm/m) and the corresponding EU ErP (2019/2015) energy class.
DL · DTW C · 12W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 3000 K | — | — | — | 140.2 lm/W | 1682 lm/m | D | 109.4 lm/W | 1313 lm/m | F |
| 2980 K | — | — | — | 139.3 lm/W | 1433 lm/m | D | 108.7 lm/W | 1119 lm/m | F |
| 2960 K | — | — | — | 137.7 lm/W | 1194 lm/m | D | 107.5 lm/W | 932 lm/m | F |
| 2940 K | — | — | — | 135.6 lm/W | 968 lm/m | D | 105.8 lm/W | 755 lm/m | F |
| 2900 K | — | — | — | 133.2 lm/W | 761 lm/m | E | 103.9 lm/W | 593 lm/m | F |
| 2860 K | — | — | — | 125.2 lm/W | 548 lm/m | E | 97.7 lm/W | 428 lm/m | F |
| 2800 K | — | — | — | 117.3 lm/W | 373 lm/m | E | 91.5 lm/W | 291 lm/m | F |
| 2700 K | — | — | — | 109.4 lm/W | 230 lm/m | F | 85.3 lm/W | 179 lm/m | F |
| 2500 K | — | — | — | 61.9 lm/W | 73 lm/m | G | 48.3 lm/W | 57 lm/m | G |
| 2200 K | — | — | — | 28.7 lm/W | 13 lm/m | G | 22.4 lm/W | 10 lm/m | G |
| 1850 K | — | — | — | 15.9 lm/W | 1 lm/m | G | 12.4 lm/W | 1 lm/m | G |
DL · DTW C · 15W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 3000 K | — | — | — | 137.3 lm/W | 2060 lm/m | D | 107.1 lm/W | 1607 lm/m | F |
| 2980 K | — | — | — | 136.4 lm/W | 1754 lm/m | D | 106.4 lm/W | 1368 lm/m | F |
| 2960 K | — | — | — | 134.9 lm/W | 1461 lm/m | E | 105.2 lm/W | 1139 lm/m | F |
| 2940 K | — | — | — | 132.8 lm/W | 1185 lm/m | E | 103.6 lm/W | 924 lm/m | F |
| 2900 K | — | — | — | 130.4 lm/W | 930 lm/m | E | 101.7 lm/W | 725 lm/m | F |
| 2860 K | — | — | — | 122.7 lm/W | 672 lm/m | E | 95.7 lm/W | 524 lm/m | F |
| 2800 K | — | — | — | 114.9 lm/W | 456 lm/m | E | 89.6 lm/W | 356 lm/m | F |
| 2700 K | — | — | — | 107.1 lm/W | 282 lm/m | F | 83.5 lm/W | 220 lm/m | G |
| 2500 K | — | — | — | 60.6 lm/W | 89 lm/m | G | 47.3 lm/W | 70 lm/m | G |
| 2200 K | — | — | — | 28.2 lm/W | 16 lm/m | G | 22 lm/W | 12 lm/m | G |
| 1850 K | — | — | — | 15.6 lm/W | 2 lm/m | G | 12.2 lm/W | 1 lm/m | G |
DL · DTW C · 18W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 3000 K | — | — | — | 134.5 lm/W | 2421 lm/m | E | 104.9 lm/W | 1888 lm/m | F |
| 2980 K | — | — | — | 133.7 lm/W | 2064 lm/m | E | 104.2 lm/W | 1609 lm/m | F |
| 2960 K | — | — | — | 132.1 lm/W | 1717 lm/m | E | 103 lm/W | 1339 lm/m | F |
| 2940 K | — | — | — | 130.1 lm/W | 1393 lm/m | E | 101.5 lm/W | 1087 lm/m | F |
| 2900 K | — | — | — | 127.8 lm/W | 1094 lm/m | E | 99.7 lm/W | 853 lm/m | F |
| 2860 K | — | — | — | 120.2 lm/W | 790 lm/m | E | 93.7 lm/W | 616 lm/m | F |
| 2800 K | — | — | — | 112.5 lm/W | 537 lm/m | E | 87.8 lm/W | 419 lm/m | F |
| 2700 K | — | — | — | 104.9 lm/W | 330 lm/m | F | 81.8 lm/W | 258 lm/m | G |
| 2500 K | — | — | — | 59.4 lm/W | 105 lm/m | G | 46.3 lm/W | 82 lm/m | G |
| 2200 K | — | — | — | 27.6 lm/W | 18 lm/m | G | 21.5 lm/W | 14 lm/m | G |
| 1850 K | — | — | — | 15.3 lm/W | 2 lm/m | G | 11.9 lm/W | 2 lm/m | G |
DN · DTW C · 12W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 3000 K | — | — | — | 163.3 lm/W | 1960 lm/m | C | 127.4 lm/W | 1529 lm/m | E |
| 2980 K | — | — | — | 162.3 lm/W | 1670 lm/m | C | 126.6 lm/W | 1303 lm/m | E |
| 2960 K | — | — | — | 160.4 lm/W | 1391 lm/m | C | 125.1 lm/W | 1085 lm/m | E |
| 2940 K | — | — | — | 158 lm/W | 1128 lm/m | D | 123.3 lm/W | 880 lm/m | E |
| 2900 K | — | — | — | 155.1 lm/W | 886 lm/m | D | 121 lm/W | 691 lm/m | E |
| 2860 K | — | — | — | 145.9 lm/W | 639 lm/m | D | 113.8 lm/W | 498 lm/m | E |
| 2800 K | — | — | — | 136.6 lm/W | 434 lm/m | D | 106.6 lm/W | 339 lm/m | F |
| 2700 K | — | — | — | 127.4 lm/W | 268 lm/m | E | 99.4 lm/W | 209 lm/m | F |
| 2500 K | — | — | — | 72.1 lm/W | 85 lm/m | G | 56.2 lm/W | 66 lm/m | G |
| 2200 K | — | — | — | 33.5 lm/W | 15 lm/m | G | 26.1 lm/W | 12 lm/m | G |
| 1850 K | — | — | — | 18.5 lm/W | 2 lm/m | G | 14.5 lm/W | 1 lm/m | G |
DN · DTW C · 15W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 3000 K | — | — | — | 160.4 lm/W | 2406 lm/m | C | 125.1 lm/W | 1877 lm/m | E |
| 2980 K | — | — | — | 159.4 lm/W | 2050 lm/m | D | 124.3 lm/W | 1598 lm/m | E |
| 2960 K | — | — | — | 157.6 lm/W | 1707 lm/m | D | 122.9 lm/W | 1331 lm/m | E |
| 2940 K | — | — | — | 155.2 lm/W | 1384 lm/m | D | 121 lm/W | 1079 lm/m | E |
| 2900 K | — | — | — | 152.4 lm/W | 1087 lm/m | D | 118.8 lm/W | 847 lm/m | E |
| 2860 K | — | — | — | 143.3 lm/W | 785 lm/m | D | 111.8 lm/W | 613 lm/m | E |
| 2800 K | — | — | — | 134.2 lm/W | 533 lm/m | E | 104.7 lm/W | 416 lm/m | F |
| 2700 K | — | — | — | 125.1 lm/W | 329 lm/m | E | 97.6 lm/W | 257 lm/m | F |
| 2500 K | — | — | — | 70.8 lm/W | 104 lm/m | G | 55.2 lm/W | 81 lm/m | G |
| 2200 K | — | — | — | 32.9 lm/W | 18 lm/m | G | 25.7 lm/W | 14 lm/m | G |
| 1850 K | — | — | — | 18.2 lm/W | 2 lm/m | G | 14.2 lm/W | 2 lm/m | G |
DN · DTW C · 18W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 3000 K | — | — | — | 157.5 lm/W | 2835 lm/m | D | 122.9 lm/W | 2212 lm/m | E |
| 2980 K | — | — | — | 156.5 lm/W | 2416 lm/m | D | 122.1 lm/W | 1885 lm/m | E |
| 2960 K | — | — | — | 154.7 lm/W | 2011 lm/m | D | 120.7 lm/W | 1569 lm/m | E |
| 2940 K | — | — | — | 152.4 lm/W | 1632 lm/m | D | 118.9 lm/W | 1273 lm/m | E |
| 2900 K | — | — | — | 149.6 lm/W | 1281 lm/m | D | 116.8 lm/W | 1000 lm/m | E |
| 2860 K | — | — | — | 140.7 lm/W | 924 lm/m | D | 109.8 lm/W | 721 lm/m | F |
| 2800 K | — | — | — | 131.8 lm/W | 629 lm/m | E | 102.8 lm/W | 490 lm/m | F |
| 2700 K | — | — | — | 122.9 lm/W | 387 lm/m | E | 95.9 lm/W | 302 lm/m | F |
| 2500 K | — | — | — | 69.5 lm/W | 123 lm/m | G | 54.2 lm/W | 96 lm/m | G |
| 2200 K | — | — | — | 32.3 lm/W | 22 lm/m | G | 25.2 lm/W | 17 lm/m | G |
| 1850 K | — | — | — | 17.9 lm/W | 2 lm/m | G | 14 lm/W | 2 lm/m | G |
High-Power LED Strip: Heat Dissipation & Aluminum Channel Guide
At up to 18W/m, 14025 is a high-power SMD LED strip. Above roughly 14.4W/m the tape can no longer shed its own heat through the FPC alone — an aluminum channel is part of the luminaire, not an accessory.
Why high-wattage strips need a heat sink
- Aluminum conducts heat roughly 30× faster than the plastics, MDF or gypsum a strip is usually stuck to, so a bare high-power run traps heat under the tape.
- LED lifetime (LM-80 / TM-21) is driven by solder-point temperature Tc. Keeping Tc inside the datasheet limit — DENO strips are rated Tc ≤ 75°C — is what preserves the rated L70 lifetime and colour stability.
- Never run 14.4W/m or more coiled on the reel, inside a sealed plastic diffuser, or directly on wood, wallpaper or foam.
Sizing rule: FPC width vs channel inner width
- Channel inner width ≥ FPC width + 2mm. This strip is 10mm wide, so it needs at least 12mm of inner width.
- The 2mm clearance absorbs extrusion tolerance and lets the tape be seated or replaced without scraping the side walls or the wiring.
- A frosted or opal PC cover then diffuses the higher lumen output into an even, dot-free line instead of visible hot spots.
Aluminum channels that fit this strip
- 22x12mm Recessed LED Channel with Flange · fits ≤10mm strip
- 20x15mm Wide Surface Mount LED Channel · fits ≤10mm strip
- 17x15mm Surface Mount LED Channel · fits ≤10mm strip
- 15x15mm Magnetic LED Channel · fits ≤10mm strip
- 19.1x8mm Surface Mount LED Channel · fits ≤10mm strip
- 15x15mm 48V Surface Mount LED Channel · fits ≤10mm strip
Recommended LED Channels
Mount this LED strip in a DENO LED aluminum profile for heat dissipation, physical protection and diffused, dot-free output.
This strip is 10mm wide, so it needs a channel with at least 12mm inner width (10mm + 2mm clearance). Every profile below meets that.
Related models in this series
- 2216 High Density LED Strip Light (#17000-N)
- 2216 Constant Current High Lumen High Density High Light Efficacy LED Strip Light (#9426)
- 2216 Single-Color LED Strip Light (#15926-N)
- 2216 Dim-to-warm LED Ultra-Narrow strip light (#17254)
- 2216 Dim-to-warm High density LED Strip Light (#14207-N)
- Classic Series PU LED Light Strips (#1688 PU)
- 2216 Ultra-high density mini cutting LED Strip Light (#14158-N)
- PU LED Light Strips (#2783-PU)
See every model in SMD LED Strip Series or narrow to 2216. Compare wattage, lumen output and run length in the ProCalc parameter library, or request OEM/ODM pricing on the custom manufacturing page.
Frequently Asked Questions
What are the key specifications of 14025?
14025: 2216, 420, 24V, 10 PCB, 3oz copper FPCB, cuttable 14LEDs/33.3mm. Full photometric data, wiring diagrams and test reports are available in the downloads section of this page.
How long can a single run of this ultra high density LED strip be?
Maximum single run for this model is 5m. Feeding from both ends or using a mid-point tap halves the effective distance per segment, so a ultra high density LED strip can cover twice that length on one circuit when wired accordingly.
Can DENO customise this ultra high density LED strip for a project?
Yes. DENO manufactures the High Density LED Strips series as an OEM and ODM supplier: reel length, colour temperature, CRI grade, PCB width, waterproofing and private labelling can all be specified. Request a quote for lead time and project pricing.
How does a dim to warm LED strip behave when dimmed?
As output falls the white point shifts from about 3000K down to 1800K, mimicking an incandescent or halogen lamp at low levels. The shift follows a single dimming channel, so any standard 0-10V, DALI or PWM dimmer controls it and no second control wire is required.
How many LEDs per metre does a dotless LED strip need?
Visible dots depend on LED pitch, diffuser distance and transmittance. Above roughly 480 LEDs/m most diffusers give a continuous line at 10 mm depth, and the 700 LEDs/m high density LED strip stays dot free even behind a shallow, highly transmissive lens.
