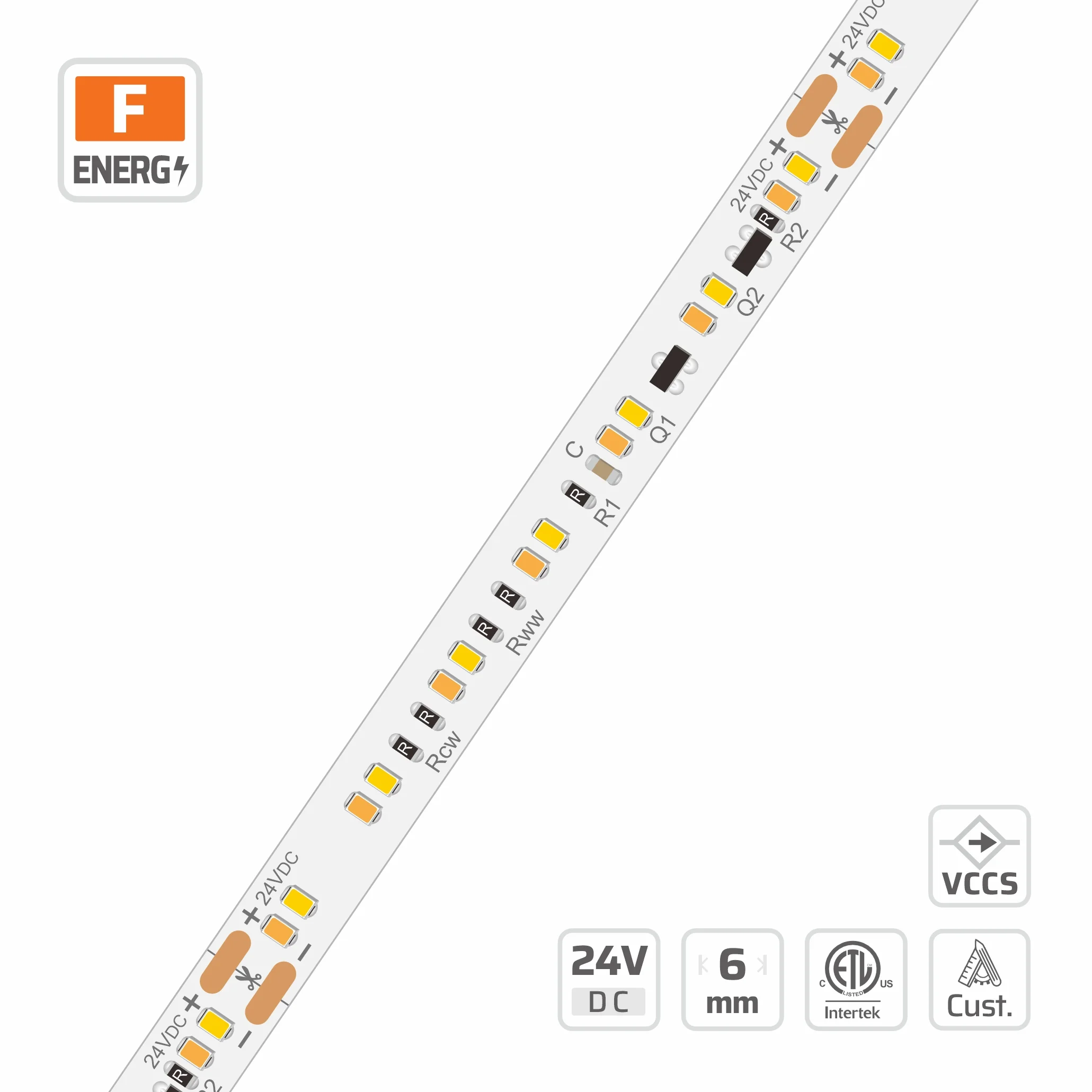

2216 Dim-to-warm LED Ultra-Narrow strip light (#17254)
6mm · 24V · 224LEDs · 62.5mm/cut
Model: 17254
Overview
6mm | 24V | 224LEDs | 62.5mm/cut | #17254 | 2216 Dim-to-warm LED Ultra-Narrow strip light is part of the DENO Ultra-Narrow SMD Strips series, engineered around ultra narrow LED strip. Key specifications: 2216, 224 LEDs/m, 24V, 6mm PCB, 3oz copper FPCB, cuttable 14LEDs/62.5mm. Every reel is produced on DENO's roll-to-roll line with 99.9% pure copper FPCB and ships CE, UL and RoHS compliant for architectural, retail and hospitality projects. OEM and ODM configurations of length, colour temperature and waterproofing are available on request.
Description
6mm | 24V | 224LEDs | 62.5mm/cut | #17254 | 2216 Dim-to-warm LED Ultra-Narrow strip light The Dim-to-Warm light strip offers seamless adjustment of brightness and color temperature by controlling the current: higher currents produce brighter, cooler light, while lower currents result in softer, warmer tones. This dynamic adjustment creates comfortable and adaptable lighting environments for a wide range of applications. Designed with a slim 6mm PCB width, it provides greater flexibility for installation, making it ideal for compact spaces or refined lighting designs. Perfect for residential, commercial, landscape, and stage lighting, the Dim-to-Warm light strip enhances ambiance, improves user experience, and delivers versatile lighting solutions tailored to different scenes and moods.
Dim To Warm Led Strip built for dim to warm smd strips projects.
Specifications
| LED QTY | 224 LEDs/m |
|---|---|
| PART NO | DL-F22A112V24-17254-* |
| SMD TYPE | 2216 |
| CUTTABLE UNIT | 14LEDs/62.5mm |
| DIMMABLE | Yes |
| LED PITCH | 8.929mm |
| PCB WIDTH | 6mm |
| BEAM ANGLE | 120° |
| LENGTH MAX | 5m |
| COPPER FOIL | 3oz |
| POWER RANGE | 7.7~15.36W |
| CIRCUIT TYPE | C.C. |
| INPUT VOLTAGE | 24V |
Applications
- Cove, wall-wash & perimeter lighting — Coves, recesses, wall-wash details and ceiling perimeters where a continuous, uniform line of light is required.
- Showroom & hospitality display lighting — Shelving, display cases, reception desks and signage backlighting in shops, showrooms and hospitality spaces.
- Kitchen & wardrobe under-cabinet lighting — Kitchen, wardrobe and furniture task lighting where the strip stays hidden and only the light is seen.
- Hotel & residential tunable-white scenes — Hotel rooms, residential living areas and meeting spaces where warm evening light and neutral daytime light are both required from one fixture.
Request a quotation for #17254
DENO LED is a Shenzhen-based LED strip manufacturer with its own Foshan production base. Send the run length, voltage, CCT/CRI and IP rating you need and our engineering team replies with a specification sheet, wiring plan and price — OEM/ODM and fully custom builds included.
- Warranty: 5 years
- Compliance: CE · UL · RoHS
- Bonding wire: 99.99% pure gold
- Copper foil: 99.9% pure copper FPCB
Photometric Performance — CCT × CRI Efficacy Matrix
Peak measured luminous efficacy: 102.2 lm/W at 3000K, Ra 90, ErP energy class F (DL · DTW C · 12W/m).
All values are measured at the stated power density and ambient 25 °C, reported as luminous efficacy in lumens per watt (lm/W), luminous flux per metre (lm/m) and the corresponding EU ErP (2019/2015) energy class.
DL · DTW C · 12W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 3000 K | — | — | — | 102.2 lm/W | 1226 lm/m | F | — | — | — |
| 2980 K | — | — | — | 101.6 lm/W | 1045 lm/m | F | — | — | — |
| 2960 K | — | — | — | 100.4 lm/W | 870 lm/m | F | — | — | — |
| 2940 K | — | — | — | 98.9 lm/W | 706 lm/m | F | — | — | — |
| 2900 K | — | — | — | 97.1 lm/W | 554 lm/m | F | — | — | — |
| 2860 K | — | — | — | 91.3 lm/W | 400 lm/m | F | — | — | — |
| 2800 K | — | — | — | 85.5 lm/W | 272 lm/m | F | — | — | — |
| 2700 K | — | — | — | 79.7 lm/W | 167 lm/m | G | — | — | — |
| 2500 K | — | — | — | 45.1 lm/W | 53 lm/m | G | — | — | — |
| 2200 K | — | — | — | 21 lm/W | 9 lm/m | G | — | — | — |
| 1850 K | — | — | — | 11.6 lm/W | 1 lm/m | G | — | — | — |
DL · DTW C · 14.4W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 3000 K | — | — | — | 100.5 lm/W | 1447 lm/m | F | — | — | — |
| 2980 K | — | — | — | 99.9 lm/W | 1234 lm/m | F | — | — | — |
| 2960 K | — | — | — | 98.7 lm/W | 1026 lm/m | F | — | — | — |
| 2940 K | — | — | — | 97.2 lm/W | 833 lm/m | F | — | — | — |
| 2900 K | — | — | — | 95.5 lm/W | 654 lm/m | F | — | — | — |
| 2860 K | — | — | — | 89.8 lm/W | 472 lm/m | F | — | — | — |
| 2800 K | — | — | — | 84.1 lm/W | 320 lm/m | G | — | — | — |
| 2700 K | — | — | — | 78.4 lm/W | 198 lm/m | G | — | — | — |
| 2500 K | — | — | — | 44.4 lm/W | 63 lm/m | G | — | — | — |
| 2200 K | — | — | — | 20.6 lm/W | 11 lm/m | G | — | — | — |
| 1850 K | — | — | — | 11.4 lm/W | 1 lm/m | G | — | — | — |
DL · DTW C · 15.36W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 3000 K | — | — | — | 99.9 lm/W | 1534 lm/m | F | — | — | — |
| 2980 K | — | — | — | 99.3 lm/W | 1308 lm/m | F | — | — | — |
| 2960 K | — | — | — | 98.1 lm/W | 1088 lm/m | F | — | — | — |
| 2940 K | — | — | — | 96.7 lm/W | 884 lm/m | F | — | — | — |
| 2900 K | — | — | — | 94.9 lm/W | 693 lm/m | F | — | — | — |
| 2860 K | — | — | — | 89.2 lm/W | 500 lm/m | F | — | — | — |
| 2800 K | — | — | — | 83.6 lm/W | 340 lm/m | G | — | — | — |
| 2700 K | — | — | — | 77.9 lm/W | 210 lm/m | G | — | — | — |
| 2500 K | — | — | — | 44.1 lm/W | 67 lm/m | G | — | — | — |
| 2200 K | — | — | — | 20.5 lm/W | 12 lm/m | G | — | — | — |
| 1850 K | — | — | — | 11.3 lm/W | 1 lm/m | G | — | — | — |
Related models in this series
- 2216 Ultra-high density mini cutting LED Strip Light (#14158-N)
- Classic Series PU LED Light Strips (#1688 PU)
- 2216 Constant Current High Lumen High Density High Light Efficacy LED Strip Light (#9426)
- 2216 Dim-to-warm High density LED Strip Light (#14207-N)
- 2216 High Density LED Strip Light (#17000-N)
- PU LED Light Strips (#2783-PU)
- 2216 Single-Color LED Strip Light (#15926-N)
- 2216 Ultra-Dense Micro SMD LED Strip Light (#14159-N)
See every model in SMD LED Strip Series or narrow to 2216. Compare wattage, lumen output and run length in the ProCalc parameter library, or request OEM/ODM pricing on the custom manufacturing page.
Frequently Asked Questions
What are the key specifications of 17254?
17254: 2216, 224 LEDs/m, 24V, 6mm PCB, 3oz copper FPCB, cuttable 14LEDs/62.5mm. Full photometric data, wiring diagrams and test reports are available in the downloads section of this page.
How long can a single run of this ultra narrow LED strip be?
Maximum single run for this model is 5m. Feeding from both ends or using a mid-point tap halves the effective distance per segment, so a ultra narrow LED strip can cover twice that length on one circuit when wired accordingly.
Can DENO customise this ultra narrow LED strip for a project?
Yes. DENO manufactures the Ultra-Narrow SMD Strips series as an OEM and ODM supplier: reel length, colour temperature, CRI grade, PCB width, waterproofing and private labelling can all be specified. Request a quote for lead time and project pricing.
How narrow can a thin LED strip be?
DENO builds down to a 3 mm wide FPCB. A 3 mm LED strip fits aluminium channels, cabinet reveals, shelf edges and slim architectural slots where an 8 or 10 mm board cannot be hidden, while still carrying 2 oz copper for stable long runs.
How does a dim to warm LED strip behave when dimmed?
As output falls the white point shifts from about 3000K down to 1800K, mimicking an incandescent or halogen lamp at low levels. The shift follows a single dimming channel, so any standard 0-10V, DALI or PWM dimmer controls it and no second control wire is required.
Does a constant current LED strip really eliminate voltage drop?
Voltage still drops along the copper, but the per-segment constant current IC holds LED current fixed until the local voltage falls below its dropout point. Brightness therefore stays even end to end, and power can be injected at one end, both ends or any mid point of the run.
Constant Current LED Strip — Buyer Questions
What is a constant current LED strip?
A constant current LED strip carries a linear CC driver IC on the board that holds a fixed current through each segment regardless of the input voltage seen at that point. Brightness therefore stays flat along the run, instead of falling off with voltage drop the way a plain constant-voltage strip does.
Constant current vs constant voltage LED strip — which is better?
Constant voltage is cheaper and fine for short runs under 3 m. Constant current is the right choice whenever the run is long, the copper is thin, the input voltage is unstable, or the installation is camera-facing — the IC absorbs supply variation and keeps every metre at the same luminous flux.
Can a constant current LED strip be powered from both ends or mid-feed?
Yes. Because regulation happens per segment, DENO's CC boards accept single-end, both-ends and any mid-strip tap. Both-ends and mid-feed wiring halve the effective feed distance, which is how a single driver covers a long corridor or perimeter cove.
Does a constant current LED strip dim without flicker?
It does when the driver is matched to it. Linear CC ICs dim smoothly on PWM down to about 1%, and at 16 kHz+ PWM the run is flicker-free on camera (low Pst LM and SVM). Analogue dimming of a CC board is not recommended below 20% because the IC needs headroom.
- Series constant current LED strip series
- Guide flicker, Pst LM and SVM reference data
- Related series high-CRI boards for camera-facing work
How long can a constant current LED strip run be?
Up to 20 m and beyond on 24V or 48V builds with 2 oz copper, versus 5 m for a comparable constant-voltage board. The practical limit becomes the copper's current-carrying capacity and thermal design rather than perceived brightness fall-off.
Can I order a custom constant current LED strip?
Yes — segment length, drive current, voltage, LED density, CCT/CRI, PCB width and copper weight are all configurable, and CC regulation can be combined with high-density, ultra-narrow or full-spectrum layouts on the same board.
- Series constant current LED strip series
- Related series custom LED strip lights built to order
- Related series combine CC drive with high density layouts
Ultra Narrow LED Strip — Buyer Questions
Can a 3mm LED strip still be high density?
Yes. Micro packages such as 1808, 2110 and 2216 allow 240–480 LEDs/m on a 3–5 mm board, so a narrow reveal can still be dot-free behind a shallow diffuser. Above that density the width usually has to grow to 8 mm for thermal reasons.
- Series ultra narrow LED strip series
- Related series high density LED strip boards from 240 LEDs/m
- Related series narrow SCOB LED strip for a fully dotless line
- Product 2783-PU high density narrow LED strip
What is the cut unit on an ultra-narrow LED strip?
Cut intervals typically run from 12.5 mm to 50 mm depending on voltage and density, and micro-cut versions shorten this further for exact millwork lengths. Ask for the cut unit in the quote — it decides how closely the finished run matches the drawing.
- Series ultra narrow LED strip series
- Related series micro cut LED strip for exact lengths
- Related series per-segment CC drive on short cut units
- Product 1688 PU micro cut narrow LED strip
Can I order a custom width LED strip?
Yes — PCB width from 3 mm, LED density, CCT and CRI, copper weight, cut unit, IP class and connector are all configurable. DENO is a manufacturer, so a non-standard width is tooled from an existing FPCB stack-up instead of being ruled out.
- Series ultra narrow LED strip series
- Related series custom LED strip lights built to order
- Guide send a narrow LED strip specification to DENO
- Product 17000-N custom width LED strip
