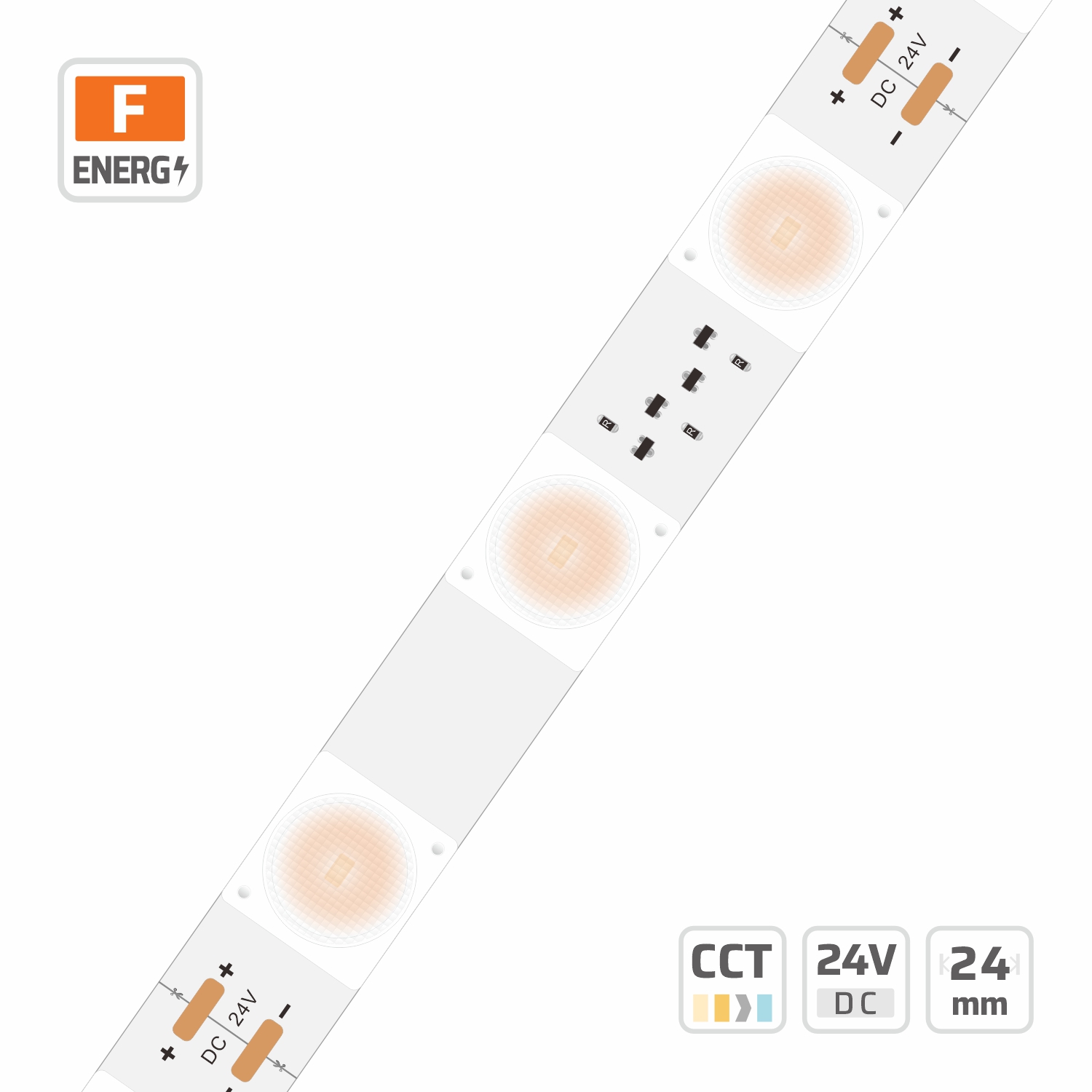

3030 Lenses LED Strip Light (#10461)
24mm · 24V · 18LEDs · 166.66mm/cut
Model: 10461
Overview
3030 Lenses LED Strip Light | 24mm | 24V | 18LEDs | 166.66mm/cut | #10461 is part of the DENO Wide SMD Strips series, engineered around wide PCB LED strip. Key specifications: 3030, 18, 24V, 24 PCB, 2oz copper FPCB, cuttable 3LEDs/166.66mm, IP20. Every reel is produced on DENO's roll-to-roll line with 99.9% pure copper FPCB and ships CE, UL and RoHS compliant for architectural, retail and hospitality projects. OEM and ODM configurations of length, colour temperature and waterproofing are available on request.
Description
Designed with optical 3030 lenses featuring a 15*45° beam angle, this LED strip light provides precise light distribution for specialized architectural lighting projects. Engineered with a constant current circuit on a 24mm wide 2oz copper PCB, ensuring uniform luminosity and low light decay across extended runs. Powered by a 24V input, this dimmable strip is cuttable every 166.66mm at 3 LEDs, offering adaptable configurations for wholesale project supply. The flexible PCB accommodates curved surface mounting and supports versatile installation using adhesive backing, stainless steel clips, or aluminum profiles.
Wide Pcb Led Strip built for wide smd strips projects.
Specifications
| LED QTY | 18 |
|---|---|
| PART NO | DL-F30A9V24-10461-* |
| SMD TYPE | 3030 |
| CUTTABLE UNIT | 3LEDs/166.66mm |
| DIMMABLE | Yes |
| IP RATING | IP20 |
| LED PITCH | 55.55mm |
| LIFESPAN | 50000 |
| PCB WIDTH | 24 |
| WARRANTY | 5 Years |
| BEAM ANGLE | 15*45° |
| RUN LENGTH | 5m |
| COPPER FOIL | 2oz |
| CIRCUIT TYPE | C.C. |
| INPUT VOLTAGE | 24V |
| OPERATING TEMPERATURE | -25~40°C;Tc：75°C（max） |
Applications
- Cove, wall-wash & perimeter lighting — Coves, recesses, wall-wash details and ceiling perimeters where a continuous, uniform line of light is required.
- Showroom & hospitality display lighting — Shelving, display cases, reception desks and signage backlighting in shops, showrooms and hospitality spaces.
- Kitchen & wardrobe under-cabinet lighting — Kitchen, wardrobe and furniture task lighting where the strip stays hidden and only the light is seen.
Request a quotation for #10461
DENO LED is a Shenzhen-based LED strip manufacturer with its own Foshan production base. Send the run length, voltage, CCT/CRI and IP rating you need and our engineering team replies with a specification sheet, wiring plan and price — OEM/ODM and fully custom builds included.
- Warranty: 5 years
- Lead time: standard boards: samples from 1 working day · custom: 3–5 working days · new FPCB: 1–3 weeks · production 1–2 weeks after sample approval
- Compliance: CE · UL · RoHS
- Bonding wire: 99.99% pure gold
- Copper foil: 99.9% pure copper FPCB
Photometric Performance — CCT × CRI Efficacy Matrix
Peak measured luminous efficacy: 104.4 lm/W at 4000K, Ra 80, ErP energy class F (Grade DL (2nd Tier) · 14.4W/m).
All values are measured at the stated power density and ambient 25 °C, reported as luminous efficacy in lumens per watt (lm/W), luminous flux per metre (lm/m) and the corresponding EU ErP (2019/2015) energy class.
Grade DL (2nd Tier) · 14.4W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | 79.6 lm/W | 1146 lm/m | G | 63.3 lm/W | 911.9 lm/m | G | — | — | — |
| 2300 K | 88.5 lm/W | 1274 lm/m | F | 70.6 lm/W | 1016.6 lm/m | G | — | — | — |
| 2700 K | 92.5 lm/W | 1332.2 lm/m | F | 76.4 lm/W | 1099.5 lm/m | G | — | — | — |
| 3000 K | 99.6 lm/W | 1434 lm/m | F | 80.4 lm/W | 1157.6 lm/m | G | — | — | — |
| 3500 K | 101.2 lm/W | 1457.2 lm/m | F | 81.8 lm/W | 1178 lm/m | G | — | — | — |
| 4000 K | 104.4 lm/W | 1503.8 lm/m | F | 83.7 lm/W | 1205.6 lm/m | G | — | — | — |
| 5000 K | 104.3 lm/W | 1502.3 lm/m | F | 83.7 lm/W | 1205.6 lm/m | G | — | — | — |
| 6500 K | 95.1 lm/W | 1370 lm/m | F | 80.3 lm/W | 1156.2 lm/m | G | — | — | — |
Grade DL (2nd Tier) · 16W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | 78.7 lm/W | 1259.1 lm/m | G | 62.6 lm/W | 1001.9 lm/m | G | — | — | — |
| 2300 K | 87.5 lm/W | 1399.7 lm/m | F | 69.8 lm/W | 1116.9 lm/m | G | — | — | — |
| 2700 K | 91.5 lm/W | 1463.6 lm/m | F | 75.5 lm/W | 1208 lm/m | G | — | — | — |
| 3000 K | 98.5 lm/W | 1575.5 lm/m | F | 79.5 lm/W | 1271.9 lm/m | G | — | — | — |
| 3500 K | 100.1 lm/W | 1601.1 lm/m | F | 80.9 lm/W | 1294.3 lm/m | G | — | — | — |
| 4000 K | 103.3 lm/W | 1652.2 lm/m | F | 82.8 lm/W | 1324.6 lm/m | G | — | — | — |
| 5000 K | 103.2 lm/W | 1650.6 lm/m | F | 82.8 lm/W | 1324.6 lm/m | G | — | — | — |
| 6500 K | 94.1 lm/W | 1505.2 lm/m | F | 79.4 lm/W | 1270.3 lm/m | G | — | — | — |
Related models in this series
- 2323 3D Flexible Wall Washer LED Light (#16006)
- 1616 3D Twistable Wall Washer LED Light (#1242)
- 1616 3D Twistable Wall Washer LED Light (#1241)
- 2323 3D Twistable Wall washer LED light (#15215)
See every model in Flexible Wall Washer Series or narrow to Single Color. Compare wattage, lumen output and run length in the ProCalc parameter library, or request OEM/ODM pricing on the custom manufacturing page.
Frequently Asked Questions
What are the key specifications of 10461?
10461: 3030, 18, 24V, 24 PCB, 2oz copper FPCB, cuttable 3LEDs/166.66mm, IP20. Full photometric data, wiring diagrams and test reports are available in the downloads section of this page.
How long can a single run of this wide PCB LED strip be?
Maximum single run for this model is 5m. Feeding from both ends or using a mid-point tap halves the effective distance per segment, so a wide PCB LED strip can cover twice that length on one circuit when wired accordingly.
Can DENO customise this wide PCB LED strip for a project?
Yes. DENO manufactures the Wide SMD Strips series as an OEM and ODM supplier: reel length, colour temperature, CRI grade, PCB width, waterproofing and private labelling can all be specified. Request a quote for lead time and project pricing.
Why use a wide LED strip PCB?
A 15 or 20 mm LED strip gives more copper area, so it dissipates heat better and carries more current. That is what allows high power builds above 25 W/m to run cooler, keep lumen maintenance high and support longer single feeds than a narrow board.
Which LED driver and run length suit #10461?
3030 Lenses LED Strip Light | 24mm | 24V | 18LEDs | 166.66mm/cut | #10461 is a constant-voltage 24V product, so pair it with a CE or UL listed 24V constant-voltage LED driver rated about 20% above the connected load. Maximum single run is 5m. 5m Single / 10m Dual Input power. Feeding from both ends or mid-feeding halves the copper distance and roughly quarters the voltage drop.
