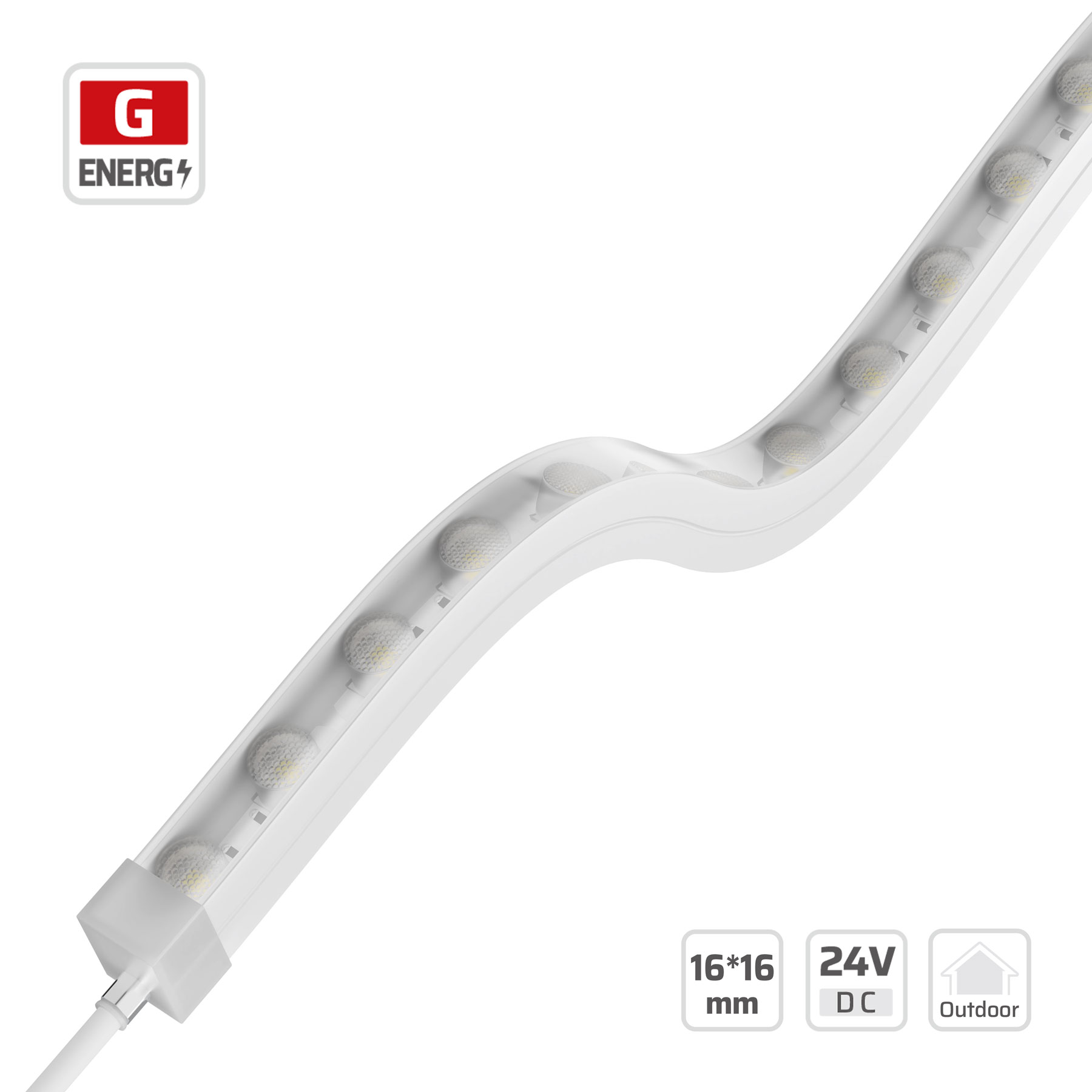

1616 3D Twistable Wall Washer LED Light (#1242)
24V · 48LEDs · 41.6mm/cut · 16*16mm
Model: 1242
Overview
The DENO LED 1242 3D Twistable Wall Washer LED light offers a unique 16x16mm flexible design, perfect for subtle integration into diverse architectural contours. Operating at 24V with a power range of 2.8~28.8W and a beam angle options of 35° or 40×60°, it ensures superior, uniform illumination for facades, landscapes, and accent lighting. Its integrated silicone encapsulation and precision lenses guarantee durability and optimal light delivery. This product is ideal for li...
Description
Engineered with a compact 16x16mm profile, this 3D twistable wall washer LED light bends freely across multiple axes for complex architectural lighting contours. Precision optical lenses deliver targeted 35° or 40x60° beam angles, producing uniform wall-washing illumination ideal for facade lighting and recessed structural accents. Powered by constant voltage 24V, high-performance 3030 SMD LEDs offer dimmable control and practical cuttable increments of 41.6mm. Integrated silicone encapsulation and a 12mm PCB with 3oz copper foil maintain durable thermal management across temperatures from -25°C to 40°C. Available with OEM custom lengths, this versatile luminaire delivers factory-direct wholesale project supply for challenging commercial and exterior installations.
Specifications
| CRI | Ra≥90 / Ra≥95 |
|---|---|
| LED QTY | 48 |
| PART NO | DL-F30C24V24-1242-* |
| SMD TYPE | 3030 |
| CUTTABLE UNIT | 2LEDs/41.6mm |
| DIMMABLE | Yes |
| IP RATING | IP65 |
| LED PITCH | 20.8mm |
| LIFESPAN | 50000 |
| PCB WIDTH | 12mm |
| WARRANTY | 5 Years |
| BEAM ANGLE | 35°、40×60° |
| RUN LENGTH | 5m |
| COPPER FOIL | 3oz |
| POWER RANGE | 2.8~28.8W |
| CIRCUIT TYPE | C.V. |
| INPUT VOLTAGE | 24V |
| LUMINOUS FLUX | 1798 lm/m @4000K |
| OPERATING TEMPERATURE | -25~40°C;Tc：75°C（max） |
Applications
- Cove, wall-wash & perimeter lighting — Coves, recesses, wall-wash details and ceiling perimeters where a continuous, uniform line of light is required.
- Showroom & hospitality display lighting — Shelving, display cases, reception desks and signage backlighting in shops, showrooms and hospitality spaces.
- Kitchen & wardrobe under-cabinet lighting — Kitchen, wardrobe and furniture task lighting where the strip stays hidden and only the light is seen.
- Damp and splash-prone areas (IP65) — IP65 protection covers covered outdoor soffits, bathrooms and kitchens where occasional water contact is expected.
Request a quotation for #1242
DENO LED is a Shenzhen-based LED strip manufacturer with its own Foshan production base. Send the run length, voltage, CCT/CRI and IP rating you need and our engineering team replies with a specification sheet, wiring plan and price — OEM/ODM and fully custom builds included.
- Warranty: 5 years
- Lead time: standard boards: samples from 1 working day · custom: 3–5 working days · new FPCB: 1–3 weeks · production 1–2 weeks after sample approval
- Compliance: CE · UL · RoHS
- Bonding wire: 99.99% pure gold
- Copper foil: 99.9% pure copper FPCB
Photometric Performance — CCT × CRI Efficacy Matrix
Peak measured luminous efficacy: 67.9 lm/W at 4000K, Ra 90, ErP energy class G (Grade DL (2nd Tier) · 17.2W/m).
All values are measured at the stated power density and ambient 25 °C, reported as luminous efficacy in lumens per watt (lm/W), luminous flux per metre (lm/m) and the corresponding EU ErP (2019/2015) energy class.
Grade DL (2nd Tier) · 17.2W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | — | — | — | 51.3 lm/W | 882.9 lm/m | G | — | — | — |
| 2300 K | — | — | — | 57.1 lm/W | 982.8 lm/m | G | — | — | — |
| 2700 K | — | — | — | 61.9 lm/W | 1064.8 lm/m | G | — | — | — |
| 3000 K | — | — | — | 65.1 lm/W | 1120.1 lm/m | G | — | — | — |
| 3500 K | — | — | — | 66.3 lm/W | 1139.7 lm/m | G | — | — | — |
| 4000 K | — | — | — | 67.9 lm/W | 1168.3 lm/m | G | — | — | — |
| 5000 K | — | — | — | 67.8 lm/W | 1166.5 lm/m | G | — | — | — |
| 6500 K | — | — | — | 65.1 lm/W | 1120.1 lm/m | G | — | — | — |
Grade DL (2nd Tier) · 22W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | — | — | — | 49.6 lm/W | 1091.8 lm/m | G | — | — | — |
| 2300 K | — | — | — | 55.2 lm/W | 1215.4 lm/m | G | — | — | — |
| 2700 K | — | — | — | 59.9 lm/W | 1316.8 lm/m | G | — | — | — |
| 3000 K | — | — | — | 63 lm/W | 1385.2 lm/m | G | — | — | — |
| 3500 K | — | — | — | 64.1 lm/W | 1409.5 lm/m | G | — | — | — |
| 4000 K | — | — | — | 65.7 lm/W | 1444.8 lm/m | G | — | — | — |
| 5000 K | — | — | — | 65.6 lm/W | 1442.5 lm/m | G | — | — | — |
| 6500 K | — | — | — | 63 lm/W | 1385.2 lm/m | G | — | — | — |
Related models in this series
- 3030 Lenses LED Strip Light (#10461)
- 2323 3D Flexible Wall Washer LED Light (#16006)
- 1616 3D Twistable Wall Washer LED Light (#1241)
- 2323 3D Twistable Wall washer LED light (#15215)
See every model in Flexible Wall Washer Series or narrow to Single Color. Compare wattage, lumen output and run length in the ProCalc parameter library, or request OEM/ODM pricing on the custom manufacturing page.
Frequently Asked Questions
What are the primary benefits of the 1242's 3D twistable design?
The 3D twistable design allows for exceptional flexibility and adaptation to complex architectural contours, enabling seamless recessed installations and creative lighting effects in challenging spaces.
Is the 1242 suitable for outdoor use and what is its operating temperature range?
While not explicitly IP-rated in the specs, it features silicone encapsulation for durability. Its operating temperature range is -25~40°C, suitable for many demanding environments.
Can the 1242 LED light be customized for specific project requirements?
Yes, the 1242 model is highly customizable to meet diverse architectural lighting requirements, offering bespoke solutions for unconventional structures and unique design visions. Contact our team for specific needs.
What are the key specifications of #1242?
1616 3D Twistable Wall Washer LED Light | 16*16mm | 24V | 48LEDs | 41.6mm/cut | #1242: 3030 LEDs, 48, 24V, 12mm FPCB, 3oz copper foil, 2.8~28.8W power, cut unit 2LEDs/41.6mm. Photometric files, wiring diagrams and test reports are available in the downloads block on this page.
Which LED driver and run length suit #1242?
1616 3D Twistable Wall Washer LED Light | 16*16mm | 24V | 48LEDs | 41.6mm/cut | #1242 is a constant-voltage 24V product, so pair it with a CE or UL listed 24V constant-voltage LED driver rated about 20% above the connected load. Maximum single run is 5m. 5m Single / 10m Dual Input power. Feeding from both ends or mid-feeding halves the copper distance and roughly quarters the voltage drop.
