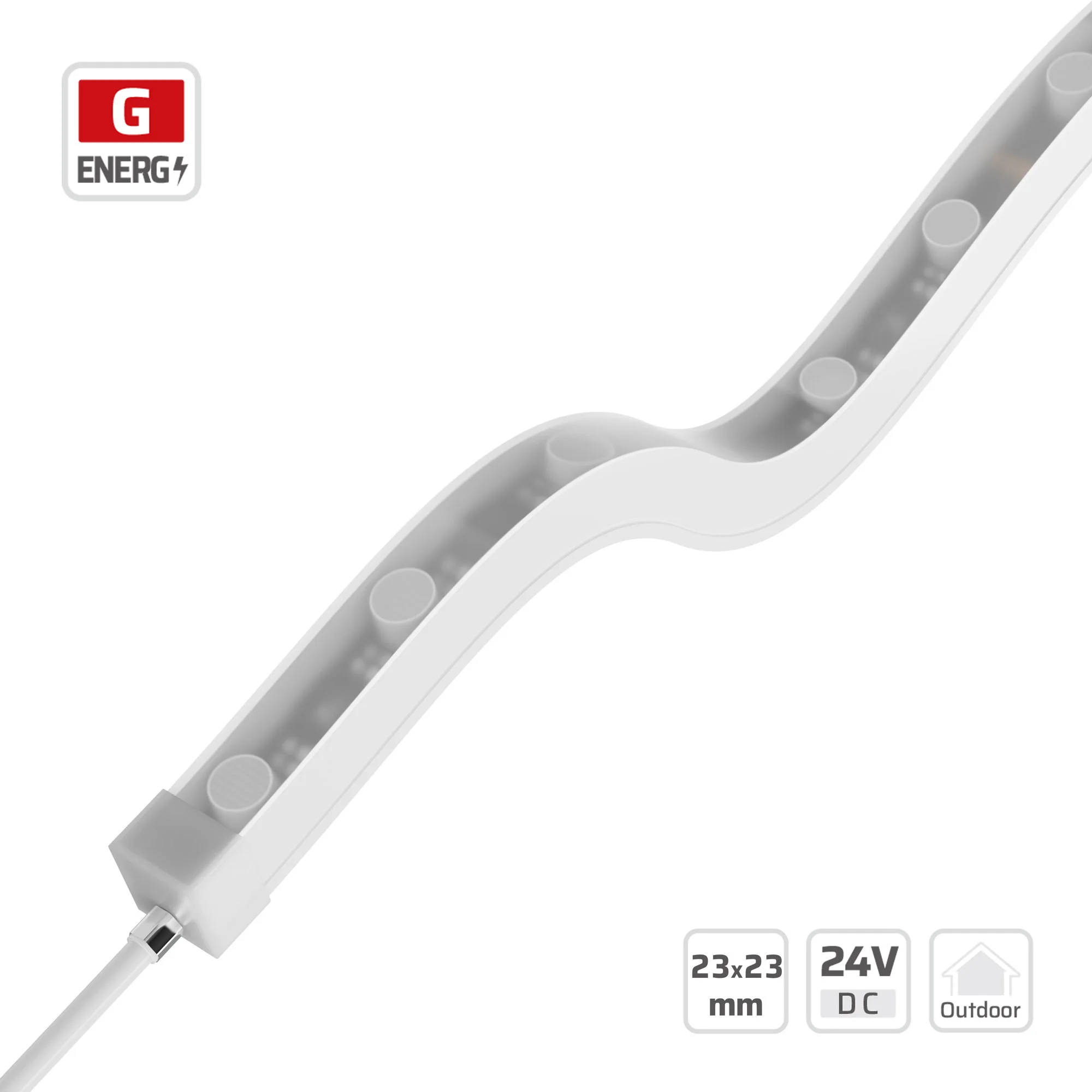

2323 3D Flexible Wall Washer LED Light (#16006)
24V · 24LEDs · 125mm/cut · 23*23mm
Model: 16006
Overview
The DENO LED Model 16006 is a 23*23mm 3D flexible wall washer LED light designed for versatile architectural and landscape illumination. Featuring a 24V constant current design and a maximum continuous length of 8 meters, it ensures consistent brightness and simplifies installation. Its integrated silicone encapsulation and precision lenses enhance durability and optical performance, making it ideal for facade lighting, pathway illumination, and various outdoor applications...
Description
Engineered with a compact 23x23mm silicone profile, this 3D flexible wall washer LED light easily bends across multi-axis planes for architectural lighting installations. Equipped with 3030 SMD LEDs and precision optics, it offers multiple beam angle options including 30°, 40°, and 35x45° for focused facade illumination. The constant current circuit design supports continuous runs up to 8m on 24V input, maintaining uniform illumination across extended installations. Featuring cuttable increments of 270mm and full dimming capability, this fixture is readily available for OEM custom lengths and wholesale project supply. Built with a 15mm 2oz copper PCB and durable silicone encapsulation, the wall washer operates reliably in ambient temperatures from -25°C to 40°C.
Specifications
| CCT (K) | 1800–6500K |
|---|---|
| CRI | Ra≥90 |
| LED QTY | 24 |
| PART NO | DL-F30C12V24-16006-* |
| SMD TYPE | 3030 |
| CUTTABLE UNIT | 3LEDs/270mm |
| DIMMABLE | Yes |
| IP RATING | IP65 |
| LED PITCH | 45mm |
| LIFESPAN | 50000 |
| PCB WIDTH | 15mm |
| WARRANTY | 3 Years |
| BEAM ANGLE | 30°,40° ,35*45° |
| RUN LENGTH | 8m |
| COPPER FOIL | 2oz |
| POWER RANGE | 21 W/m |
| CIRCUIT TYPE | C.C. |
| INPUT VOLTAGE | 24V |
| LUMINOUS FLUX | 1308–1770 lm/m |
| OPERATING TEMPERATURE | -25~40°C;Tc：75°C（max） |
Applications
- Cove, wall-wash & perimeter lighting — Coves, recesses, wall-wash details and ceiling perimeters where a continuous, uniform line of light is required.
- Showroom & hospitality display lighting — Shelving, display cases, reception desks and signage backlighting in shops, showrooms and hospitality spaces.
- Kitchen & wardrobe under-cabinet lighting — Kitchen, wardrobe and furniture task lighting where the strip stays hidden and only the light is seen.
- Damp and splash-prone areas (IP65) — IP65 protection covers covered outdoor soffits, bathrooms and kitchens where occasional water contact is expected.
Request a quotation for #16006
DENO LED is a Shenzhen-based LED strip manufacturer with its own Foshan production base. Send the run length, voltage, CCT/CRI and IP rating you need and our engineering team replies with a specification sheet, wiring plan and price — OEM/ODM and fully custom builds included.
- Warranty: 5 years
- Lead time: standard boards: samples from 1 working day · custom: 3–5 working days · new FPCB: 1–3 weeks · production 1–2 weeks after sample approval
- Compliance: CE · UL · RoHS
- Bonding wire: 99.99% pure gold
- Copper foil: 99.9% pure copper FPCB
Photometric Performance — CCT × CRI Efficacy Matrix
Peak measured luminous efficacy: 87.1 lm/W at 4000K, Ra 90, ErP energy class F (Grade DL (2nd Tier) · 16W/m).
All values are measured at the stated power density and ambient 25 °C, reported as luminous efficacy in lumens per watt (lm/W), luminous flux per metre (lm/m) and the corresponding EU ErP (2019/2015) energy class.
Grade DL (2nd Tier) · 16W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | — | — | — | 65.9 lm/W | 1055.1 lm/m | G | — | — | — |
| 2300 K | — | — | — | 73.4 lm/W | 1174.5 lm/m | G | — | — | — |
| 2700 K | — | — | — | 79.4 lm/W | 1270.8 lm/m | G | — | — | — |
| 3000 K | — | — | — | 83.6 lm/W | 1337.1 lm/m | G | — | — | — |
| 3500 K | — | — | — | 85.1 lm/W | 1362 lm/m | F | — | — | — |
| 4000 K | — | — | — | 87.1 lm/W | 1393.5 lm/m | F | — | — | — |
| 5000 K | — | — | — | 87.1 lm/W | 1393.5 lm/m | F | — | — | — |
| 6500 K | — | — | — | 83.6 lm/W | 1337.1 lm/m | G | — | — | — |
Grade DL (2nd Tier) · 21W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | — | — | — | 63.7 lm/W | 1337 lm/m | G | — | — | — |
| 2300 K | — | — | — | 70.9 lm/W | 1488.4 lm/m | G | — | — | — |
| 2700 K | — | — | — | 76.7 lm/W | 1610.3 lm/m | G | — | — | — |
| 3000 K | — | — | — | 80.7 lm/W | 1694.4 lm/m | G | — | — | — |
| 3500 K | — | — | — | 82.2 lm/W | 1725.9 lm/m | G | — | — | — |
| 4000 K | — | — | — | 84.1 lm/W | 1765.9 lm/m | G | — | — | — |
| 5000 K | — | — | — | 84.1 lm/W | 1765.9 lm/m | G | — | — | — |
| 6500 K | — | — | — | 80.7 lm/W | 1694.4 lm/m | G | — | — | — |
Related models in this series
- 3030 Lenses LED Strip Light (#10461)
- 1616 3D Twistable Wall Washer LED Light (#1242)
- 1616 3D Twistable Wall Washer LED Light (#1241)
- 2323 3D Twistable Wall washer LED light (#15215)
See every model in Flexible Wall Washer Series or narrow to Single Color. Compare wattage, lumen output and run length in the ProCalc parameter library, or request OEM/ODM pricing on the custom manufacturing page.
Frequently Asked Questions
What is the maximum continuous length for the 16006 flexible wall washer?
The Model 16006 flexible wall washer LED light supports a maximum continuous length of 8 meters (8000mm), reducing the need for frequent wiring connections.
What beam angle options are available for the 16006?
The 16006 flexible wall washer offers multiple lens angle options, including 30°, 40°, and an elliptical 35*45°, to meet diverse application requirements.
What kind of applications is the 16006 best suited for?
The 16006 is suitable for a wide range of applications, including facade lighting, landscape illumination, pathway lighting, and other architectural lighting projects.
What are the key specifications of #16006?
2323 3D Flexible Wall Washer LED Light | 23*23mm | 24V | 24LEDs | 270mm/cut | #16006: 3030 LEDs, 24, 24V, 15mm FPCB, 2oz copper foil, cut unit 6LEDs/270mm. Photometric files, wiring diagrams and test reports are available in the downloads block on this page.
Which LED driver and run length suit #16006?
2323 3D Flexible Wall Washer LED Light | 23*23mm | 24V | 24LEDs | 270mm/cut | #16006 is a constant-voltage 24V product, so pair it with a CE or UL listed 24V constant-voltage LED driver rated about 20% above the connected load. Maximum single run is 8m. 8m Single / 16m Dual Input power. Feeding from both ends or mid-feeding halves the copper distance and roughly quarters the voltage drop.
