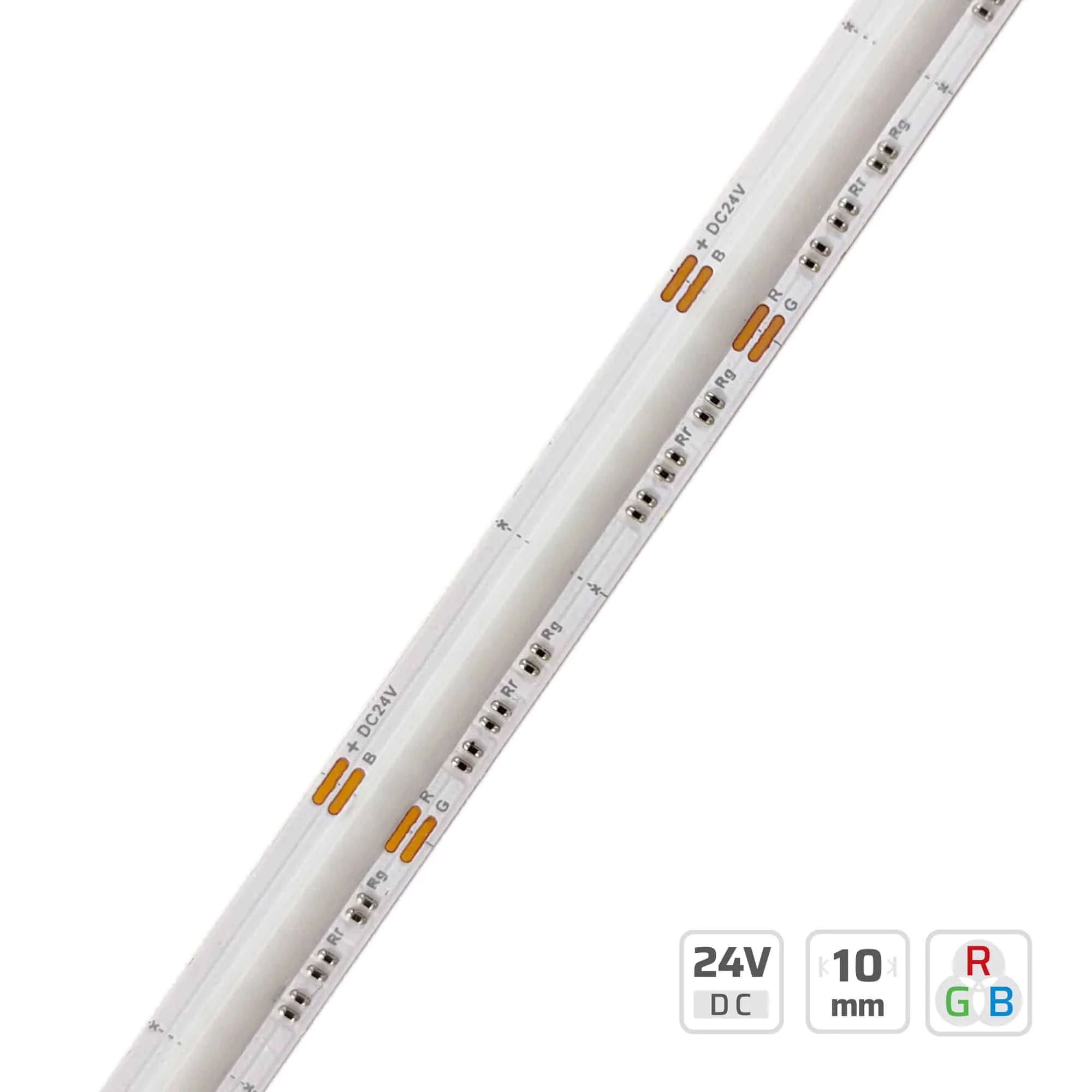

RGB SOB LED Strip Light (#8448)
10mm · 24V · 924LEDs · 22.82mm/cut
Model: 8448
Overview
The DENO LED RGB SOB LED Strip (model #8448) is a 10mm, 24V solution designed for superior performance in B2B lighting applications. Featuring a thicker PCB for enhanced heat dissipation and chip protection stents for increased bending resistance, this strip light offers exceptional durability and consistent brightness. Its surface-applied optical glue ensures uniform light diffusion and effective anti-glare performance, eliminating the need for additional diffuser covers....
Description
This 24V SOB LED strip light utilizes a 10mm 2oz copper PCB with built-in protection stents for superior heat dissipation and enhanced bending durability. Surface-applied optical glue delivers a wide 160-degree beam angle with seamless light diffusion, eliminating spot glare without requiring supplementary diffuser covers. Featuring 924 LEDs with a 22.82mm cut interval, this flexible strip delivers smooth color mixing ideal for low-clearance architectural lighting installations. Engineered for wholesale project supply, the dimmable RGB strip integrates smoothly with standard constant-voltage controllers across custom lengths up to 5 meters.
Specifications
| LED QTY | 924LEDs |
|---|---|
| PART NO | DL-COB ProA462V24-RGB-8448-* |
| SMD TYPE | SOB |
| CUTTABLE UNIT | 22.82mm |
| DIMMABLE | Yes |
| LED PITCH | 1.8mm |
| LIFESPAN | 50000 |
| PCB WIDTH | 10 |
| WARRANTY | 5 Years |
| BEAM ANGLE | 160° |
| RUN LENGTH | 5m |
| COPPER FOIL | 2oz |
| CIRCUIT TYPE | C.V. |
| INPUT VOLTAGE | 24V |
| OPERATING TEMPERATURE | -25~40°C; Tc: 75°C (max) |
Applications
- Cove, wall-wash & perimeter lighting — Coves, recesses, wall-wash details and ceiling perimeters where a continuous, uniform line of light is required.
- Showroom & hospitality display lighting — Shelving, display cases, reception desks and signage backlighting in shops, showrooms and hospitality spaces.
- Kitchen & wardrobe under-cabinet lighting — Kitchen, wardrobe and furniture task lighting where the strip stays hidden and only the light is seen.
- Entertainment & media-facade colour scenes — Entertainment venues, media facades, gaming rooms and branded retail installs driven by DMX/SPI or standard RGB controllers.
Recommended accessories & compatible parts
- DL-1003 — 19.1x8mm Surface Mount LED Channel — Dotless Aluminum Profile for 240 LEDs/m Strip: Accepts LED strips up to 10mm wide.
- DL-1103-1 — 16x13mm Surface Mount LED Channel — Aluminum Profile for 10mm LED Strip: Accepts LED strips up to 10mm wide.
- DL-1510 HX-F — 15x9.9mm Recessed LED Channel with Flange — Flush Mount Aluminum Profile: Accepts LED strips up to 10mm wide.
- DN-PSU-100 — 24V 100W Class-2 LED Driver · High Efficiency: Matches the 24V DC input of this strip; size the driver with at least 20% headroom over total load.
- DN-PSU-150 — 24V 150W Class-2 LED Driver · Premium: Matches the 24V DC input of this strip; size the driver with at least 20% headroom over total load.
- DN-PSU-60 — 24V 60W Class-2 LED Driver · Constant Voltage: Matches the 24V DC input of this strip; size the driver with at least 20% headroom over total load.
Request a quotation for #8448
DENO LED is a Shenzhen-based LED strip manufacturer with its own Foshan production base. Send the run length, voltage, CCT/CRI and IP rating you need and our engineering team replies with a specification sheet, wiring plan and price — OEM/ODM and fully custom builds included.
- Warranty: 5 years
- Lead time: standard boards: samples from 1 working day · custom: 3–5 working days · new FPCB: 1–3 weeks · production 1–2 weeks after sample approval
- Compliance: CE · UL · RoHS
- Bonding wire: 99.99% pure gold
- Copper foil: 99.9% pure copper FPCB
Frequently Asked Questions
What are the key advantages of a SOB LED Strip over traditional RGB strips?
SOB LED strips offer superior bending resistance, greater sturdiness, and enhanced heat dissipation due to their thicker PCB and chip protection stents.
Is this RGB SOB LED Strip compatible with existing lighting control systems?
Yes, this RGB SOB LED Strip is designed to be compatible with most standard RGB controllers available on the market, ensuring seamless integration.
What specific B2B applications are best suited for this LED strip?
It is ideal for commercial, architectural, and display lighting in areas with low clearance or reflective surfaces, providing uniform light without glare.
Does this product require additional diffusing accessories for optimal light quality?
No, the surface-applied optical glue enables uniform light diffusion and anti-glare performance, eliminating the need for external diffusers.
Is this SOB strip light also called FOB, S-COB or COB Pro strip light?
Yes. Model belongs to the DENO SOB (Spot on Board) family, which the market also calls FOB strip light, S-COB strip light or COB Pro strip light. All three names describe the same dot-free chip-on-board LED strip construction, so you can quote it under whichever term your project specification uses.
Engineering & selection guide
Bending limits, IP selection, voltage drop, cutting and the full buyer Q&A for this family are kept on the series page.
- RGB SOB strips — RGB COB LED Strip — Buyer Questions
- LED strip engineering selection handbook
SOB is the upgraded generation of the COB LED strip
Every SOB board on this page starts from the classic COB recipe — one continuous phosphor line, zero visible dots — and rebuilds it with individually encapsulated, gold-wire-bonded packages soldered on thick copper of up to 105 µm or thicker. The result keeps the COB look while DENO has verified builds up to 24W/m at 24V DC (25 °C ambient, aluminum profile), with a standard binning target of SDCM ≤3; CRI, run length and cut unit are model-specific. For shorter, lower-load or cost-sensitive lines the classic COB range remains a practical choice — compare exact models under equal conditions.
