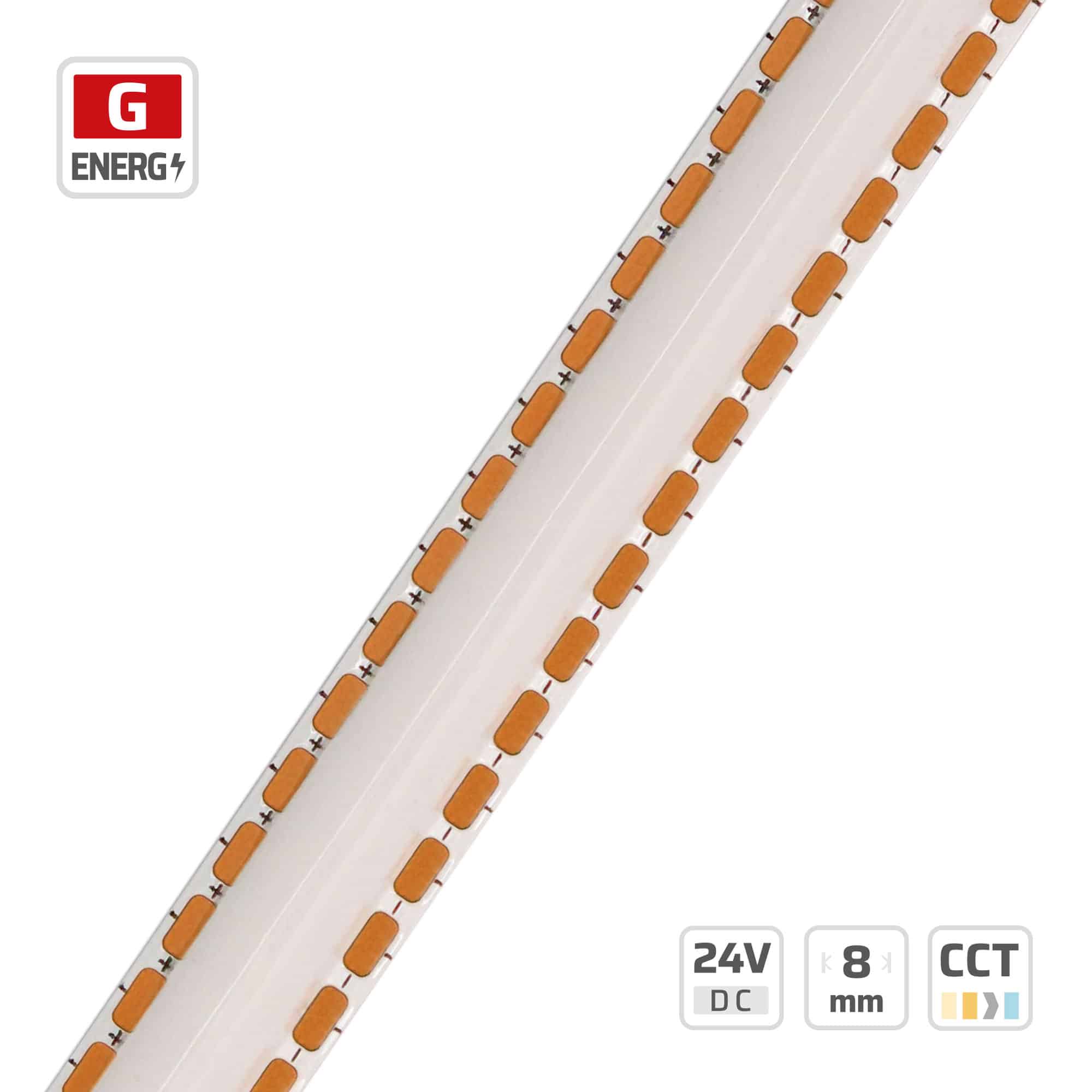

Micro-Cut SOB LED Strip Light (#14159)
8mm · 24V · 300LEDs · 3.33cut
Model: 14159
Overview
The DENO LED Micro-Cut SOB Strip model 14159 is an advanced 8mm, 24V linear lighting solution specifically engineered for professional B2B applications. Featuring a unique micro-cut length of just 3.33mm and an innovative SOB (Strip on Board) design, it delivers consistent, uniform illumination even in low-clearance areas, eliminating spot-glare. Its robust construction with thicker PCB ensures superior heat dissipation and consistent brightness across the entire strip leng...
Description
Featuring an ultra-short 3.33mm cut length per LED, this micro-cut SOB LED strip light delivers continuous, dot-free architectural lighting without dark spots. Engineered with heavy 3oz copper foil on an 8mm PCB, the 24V circuit ensures superior heat dissipation and consistent brightness across runs. The specialized SOB surface provides a wide 160-degree beam angle with uniform, anti-glare illumination ideal for installations with low clearance or reflective surfaces. Available in color temperatures from 1800K to 7500K and customizable full spectrum options, we support OEM custom lengths for diverse project requirements. Operating from 4W to 20W with 300 LEDs per meter, this dimmable strip withstands 10,000 switching cycles for dependable commercial integration.
Specifications
| LED QTY | 300 LEDs/m |
|---|---|
| PART NO | DL-FSOBA150V24-14159-* |
| SMD TYPE | SOB |
| CUTTABLE UNIT | 1LED/3.333mm |
| DIMMABLE | Yes |
| LED PITCH | 3.333mm |
| PCB WIDTH | 8 |
| BEAM ANGLE | 160° |
| RUN LENGTH | 5m |
| COPPER FOIL | 3oz |
| ON OFF TIMES | 10000（test times） |
| POWER RANGE | 4~20W |
| CIRCUIT TYPE | C.V. (Resistor Based) |
| INPUT VOLTAGE | 24V |
| MIN BEND DIAMETER | Φ60mm |
| OPERATING TEMPERATURE | -25~40°C; Tc: 75°C (max) |
Applications
- Cove, wall-wash & perimeter lighting — Coves, recesses, wall-wash details and ceiling perimeters where a continuous, uniform line of light is required.
- Showroom & hospitality display lighting — Shelving, display cases, reception desks and signage backlighting in shops, showrooms and hospitality spaces.
- Kitchen & wardrobe under-cabinet lighting — Kitchen, wardrobe and furniture task lighting where the strip stays hidden and only the light is seen.
Recommended accessories & compatible parts
- DL-1215 — 12x15mm Surface Mount LED Channel — Tall U Shape Aluminum Profile: Accepts LED strips up to 8mm wide.
- DL-1313HX-M — 13x13mm Magnetic Cabinet LED Channel — Tool-Free Corner Aluminum Profile: Accepts LED strips up to 8mm wide.
- DL-1408 HX — 14x8mm Surface Mount LED Channel — Slim Aluminum Profile for 8mm Strip: Accepts LED strips up to 8mm wide.
- DN-PSU-100 — 24V 100W Class-2 LED Driver · High Efficiency: Matches the 24V DC input of this strip; size the driver with at least 20% headroom over total load.
- DN-PSU-150 — 24V 150W Class-2 LED Driver · Premium: Matches the 24V DC input of this strip; size the driver with at least 20% headroom over total load.
- DN-PSU-60 — 24V 60W Class-2 LED Driver · Constant Voltage: Matches the 24V DC input of this strip; size the driver with at least 20% headroom over total load.
- V1 — 5-36VDC 1-Channel * 8A RF+Push Dimming Controller | V1: Matched by input voltage range and colour channels.
Request a quotation for #14159
DENO LED is a Shenzhen-based LED strip manufacturer with its own Foshan production base. Send the run length, voltage, CCT/CRI and IP rating you need and our engineering team replies with a specification sheet, wiring plan and price — OEM/ODM and fully custom builds included.
- Warranty: 5 years
- Lead time: standard boards: samples from 1 working day · custom: 3–5 working days · new FPCB: 1–3 weeks · production 1–2 weeks after sample approval
- Compliance: CE · UL · RoHS
- Bonding wire: 99.99% pure gold
- Copper foil: 99.9% pure copper FPCB
Photometric Performance — CCT × CRI Efficacy Matrix
Peak measured luminous efficacy: 80 lm/W at 4000K, Ra 90, ErP energy class G (Grade DL (2nd Tier) · 12W/m).
All values are measured at the stated power density and ambient 25 °C, reported as luminous efficacy in lumens per watt (lm/W), luminous flux per metre (lm/m) and the corresponding EU ErP (2019/2015) energy class.
Grade DL (2nd Tier) · 12W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | — | — | — | 60.5 lm/W | 726.5 lm/m | G | — | — | — |
| 2300 K | — | — | — | 67.5 lm/W | 809.4 lm/m | G | — | — | — |
| 2700 K | — | — | — | 72.9 lm/W | 875.3 lm/m | G | 59.1 lm/W | 709.5 lm/m | G |
| 3000 K | — | — | — | 76.8 lm/W | 921.6 lm/m | G | 62.4 lm/W | 748.5 lm/m | G |
| 3500 K | — | — | — | 78.1 lm/W | 937.4 lm/m | G | 64.3 lm/W | 771.6 lm/m | G |
| 4000 K | — | — | — | 80 lm/W | 960.6 lm/m | G | 66 lm/W | 792.4 lm/m | G |
| 5000 K | — | — | — | 79.9 lm/W | 959.4 lm/m | G | — | — | — |
| 6500 K | — | — | — | 76.7 lm/W | 920.4 lm/m | G | — | — | — |
Grade DL (2nd Tier) · 14.4W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | — | — | — | 59.5 lm/W | 857.3 lm/m | G | — | — | — |
| 2300 K | — | — | — | 66.3 lm/W | 955.1 lm/m | G | — | — | — |
| 2700 K | — | — | — | 71.7 lm/W | 1032.8 lm/m | G | 58.1 lm/W | 837.1 lm/m | G |
| 3000 K | — | — | — | 75.5 lm/W | 1087.4 lm/m | G | 61.3 lm/W | 883.2 lm/m | G |
| 3500 K | — | — | — | 76.8 lm/W | 1106.1 lm/m | G | 63.2 lm/W | 910.5 lm/m | G |
| 4000 K | — | — | — | 78.7 lm/W | 1133.4 lm/m | G | 64.9 lm/W | 934.9 lm/m | G |
| 5000 K | — | — | — | 78.6 lm/W | 1132 lm/m | G | — | — | — |
| 6500 K | — | — | — | 75.4 lm/W | 1086 lm/m | G | — | — | — |
Grade DL (2nd Tier) · 19W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | — | — | — | 57.6 lm/W | 1095.2 lm/m | G | — | — | — |
| 2300 K | — | — | — | 64.2 lm/W | 1220.1 lm/m | G | — | — | — |
| 2700 K | — | — | — | 69.4 lm/W | 1319.3 lm/m | G | 56.3 lm/W | 1069.4 lm/m | G |
| 3000 K | — | — | — | 73.1 lm/W | 1389.2 lm/m | G | 59.4 lm/W | 1128.2 lm/m | G |
| 3500 K | — | — | — | 74.4 lm/W | 1413.1 lm/m | G | 61.2 lm/W | 1163.2 lm/m | G |
| 4000 K | — | — | — | 76.2 lm/W | 1448 lm/m | G | 62.9 lm/W | 1194.4 lm/m | G |
| 5000 K | — | — | — | 76.1 lm/W | 1446.1 lm/m | G | — | — | — |
| 6500 K | — | — | — | 73 lm/W | 1387.3 lm/m | G | — | — | — |
Related models in this series
See every model in SOB LED Strip Series or narrow to Sob Micro Cut. Compare wattage, lumen output and run length in the ProCalc parameter library, or request OEM/ODM pricing on the custom manufacturing page.
Frequently Asked Questions
What is the minimum cutting length for the 14159 Micro-Cut SOB Strip?
The 14159 Micro-Cut SOB Strip features an ultra-small cutting length of just 3.33mm, allowing for precise customization and eliminating dark spots in installations.
What are the common applications for this SOB LED Strip?
This strip is ideal for architectural lighting, display cases, accent lighting, and areas with reflective surfaces or low clearance where uniform, anti-glare illumination is required.
Does the 14159 Micro-Cut SOB Strip support dimming?
Yes, the 14159 Micro-Cut SOB Strip is fully dimmable, allowing for flexible control over light intensity to suit various environment and mood requirements.
Can DENO LED customize CCT or special power requirements?
Absolutely. DENO LED offers a wide CCT range from 1800K to 7500K and can customize full spectrum and special power specifications to meet specific project needs.
Is this SOB strip light also called FOB, S-COB or COB Pro strip light?
Yes. Model 14159 belongs to the DENO SOB (Spot on Board) family, which the market also calls FOB strip light, S-COB strip light or COB Pro strip light. All three names describe the same dot-free chip-on-board LED strip construction, so you can quote it under whichever term your project specification uses.
Engineering & selection guide
Bending limits, IP selection, voltage drop, cutting and the full buyer Q&A for this family are kept on the series page.
- Micro-Cut SOB strips — Micro Cut LED Strip — Buyer Questions
- LED strip engineering selection handbook
SOB is the upgraded generation of the COB LED strip
Every SOB board on this page starts from the classic COB recipe — one continuous phosphor line, zero visible dots — and rebuilds it with individually encapsulated, gold-wire-bonded packages soldered on thick copper of up to 105 µm or thicker. The result keeps the COB look while DENO has verified builds up to 24W/m at 24V DC (25 °C ambient, aluminum profile), with a standard binning target of SDCM ≤3; CRI, run length and cut unit are model-specific. For shorter, lower-load or cost-sensitive lines the classic COB range remains a practical choice — compare exact models under equal conditions.
