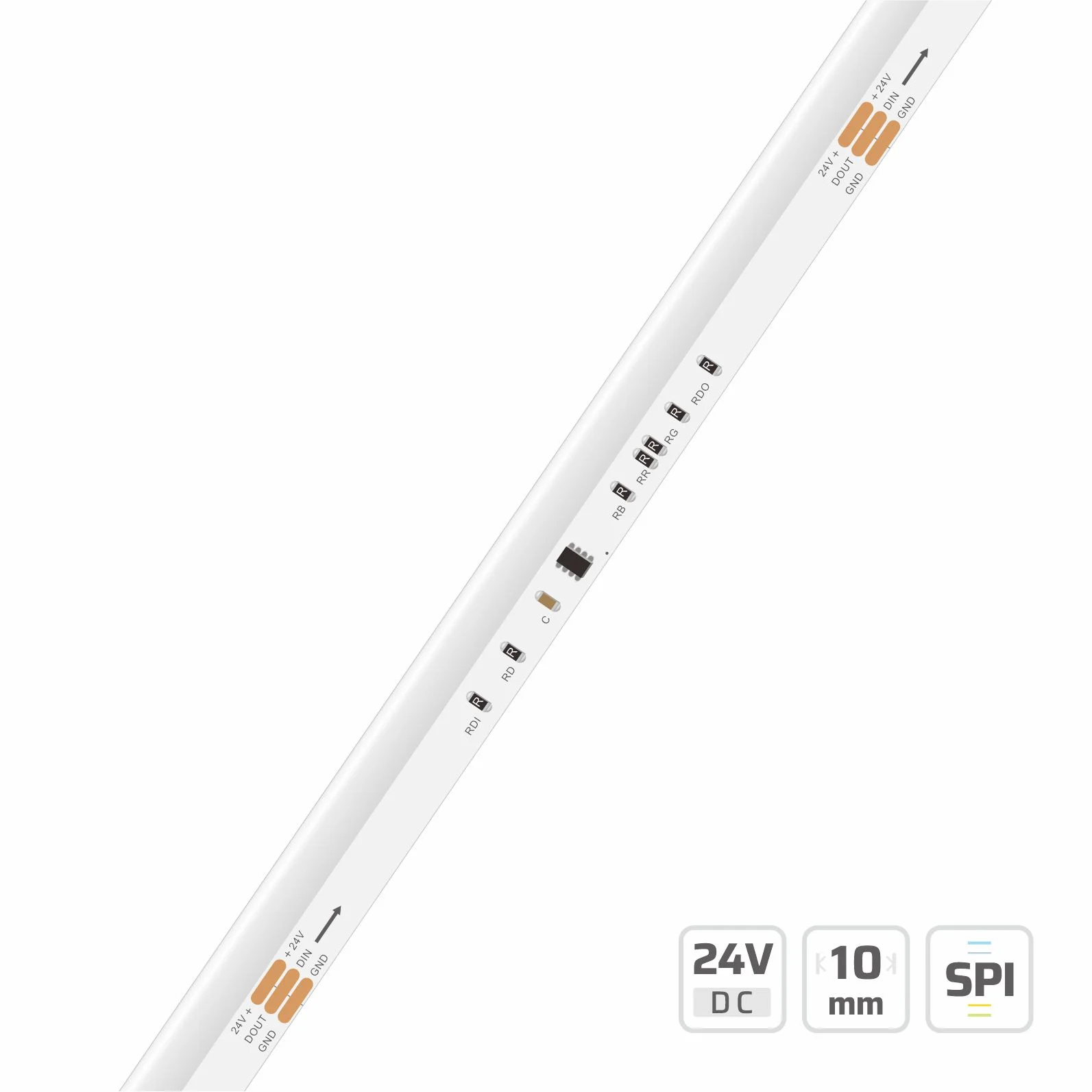

SPI Addressable COB RGB LED Strip Light (#6705)
10mm · 24V · 840LEDs · 100mm/cut
Model: 6705
Overview
DENO model 6705 is a 24V SPI addressable COB RGB LED strip: a driver IC controls each addressable segment of a continuous 840 LEDs/m phosphor line, so chasing, gradient and running-water effects play as moving light instead of a row of visible dots. The 10mm FPCB emits at 180 degrees, cuts every 100mm and is dimmable, which suits stage, KTV, signage, retail and architectural media lighting. Driver IC and segment length are specified per project for OEM and ODM orders.
Description
SPI addressable COB LED strip light: a driver IC controls each addressable segment, so chasing, gradient and running-water effects play across one continuous dot-free line. RGB three-channel colour mixing runs on a 10mm wide FPCB with 840 LEDs per metre at DC24V constant current. The seamless COB phosphor line emits across a 180-degree beam angle, so pixels blend instead of showing visible dots or dark gaps. Cuttable every 100mm and dimmable, with 1.3oz copper foil supporting stable performance along the run. Suited to stage, KTV, signage, retail and architectural media lighting where dynamic colour has to read as moving light. Driver IC and addressable segment length are specified per project for OEM and ODM builds.
Specifications
| POWER (W/M) | 14 W/m |
|---|---|
| IC TYPE | Specified per project |
| LED QTY | 840 |
| PART NO | DL-FCOBA420V24-6705-* |
| SMD TYPE | COB |
| CUTTABLE UNIT | 100mm |
| DIMMABLE | Yes |
| IP RATING | IP20 |
| LIFESPAN | 50000 |
| PCB WIDTH | 10 |
| WARRANTY | 3 Years |
| BEAM ANGLE | 180° |
| COLOR TYPE | RGB |
| RUN LENGTH | 5m |
| COPPER FOIL | 1.3oz |
| POWER RANGE | 14 W/m |
| CIRCUIT TYPE | C.C. |
| CONTROL TYPE | SPI Addressable (DMX512 via decoder) |
| INPUT VOLTAGE | 24V |
| LUMINOUS FLUX | 390–460 lm/m |
| OPERATING TEMPERATURE | -25~40°C;Tc：75°C（max） |
Applications
- Cove, wall-wash & perimeter lighting — Coves, recesses, wall-wash details and ceiling perimeters where a continuous, uniform line of light is required.
- Showroom & hospitality display lighting — Shelving, display cases, reception desks and signage backlighting in shops, showrooms and hospitality spaces.
- Kitchen & wardrobe under-cabinet lighting — Kitchen, wardrobe and furniture task lighting where the strip stays hidden and only the light is seen.
- Entertainment & media-facade colour scenes — Entertainment venues, media facades, gaming rooms and branded retail installs driven by DMX/SPI or standard RGB controllers.
Recommended accessories & compatible parts
- DL-1003 — 19.1x8mm Surface Mount LED Channel — Dotless Aluminum Profile for 240 LEDs/m Strip: Accepts LED strips up to 10mm wide.
- DL-1103-1 — 16x13mm Surface Mount LED Channel — Aluminum Profile for 10mm LED Strip: Accepts LED strips up to 10mm wide.
- DL-1510 HX-F — 15x9.9mm Recessed LED Channel with Flange — Flush Mount Aluminum Profile: Accepts LED strips up to 10mm wide.
- DN-PSU-100 — 24V 100W Class-2 LED Driver · High Efficiency: Matches the 24V DC input of this strip; size the driver with at least 20% headroom over total load.
- DN-PSU-150 — 24V 150W Class-2 LED Driver · Premium: Matches the 24V DC input of this strip; size the driver with at least 20% headroom over total load.
- DN-PSU-60 — 24V 60W Class-2 LED Driver · Constant Voltage: Matches the 24V DC input of this strip; size the driver with at least 20% headroom over total load.
Request a quotation for #6705
DENO LED is a Shenzhen-based LED strip manufacturer with its own Foshan production base. Send the run length, voltage, CCT/CRI and IP rating you need and our engineering team replies with a specification sheet, wiring plan and price — OEM/ODM and fully custom builds included.
- Warranty: 5 years
- Lead time: standard boards: samples from 1 working day · custom: 3–5 working days · new FPCB: 1–3 weeks · production 1–2 weeks after sample approval
- Compliance: CE · UL · RoHS
- Bonding wire: 99.99% pure gold
- Copper foil: 99.9% pure copper FPCB
Frequently Asked Questions
Is the 6705 a plain white COB strip or an addressable RGB strip?
It is an SPI addressable COB RGB strip. Three RGB channels sit under one continuous phosphor line and a driver IC controls each addressable segment, so the strip plays chasing, gradient and running-water effects rather than a static colour.
Why does an addressable COB strip look dot-free while chasing?
On a standard pixel strip each IC drives a visible discrete LED. On the 6705 the IC drives a segment of a continuous 840 LEDs/m COB line at a 180-degree beam angle, so the moving effect reads as a travelling band of light with no visible pixel dots or dark gaps.
How short can the addressable segments be, and where can it be cut?
The strip is cuttable every 100mm. The addressable segment length is built to project requirement and is confirmed with DENO before production, together with the driver IC.
Which controller and IC does it work with?
It runs on standard SPI pixel controllers; WS2811-class and UCS-class ICs are the usual options and DMX512 or Art-Net systems connect through an SPI decoder. Tell DENO the controller in your installation and the IC is matched to it.
What are the electrical basics for planning a run?
Input is DC24V constant current, the FPCB is 10mm wide with 1.3oz copper foil, LED density is 840 LEDs/m and the strip is dimmable. Longer runs need power injection and, depending on controller and segment count, data amplification; DENO confirms the layout per project.
