What counts as a high efficiency LED strip in lumens per watt?

In 2026 a mainstream 24V 2835 board sits around 120-140 lm/W. A high efficiency LED strip starts at roughly 160 lm/W and DENO's top binned 2835 and 2110 boards are measured at up to 200 lm/W at 4000K Ra 80, LM-79 tested at 25 degrees Celsius. The figure is light-source efficacy of the tape itself, measured without the driver, which is exactly how the ErP energy label is calculated.

What is the difference between high efficiency and high efficacy LED strip lights?

They describe the same measurement. Efficacy is the engineering term for lumens delivered per watt consumed; efficiency is how buyers and tender documents usually phrase it. DENO publishes lm/W per model so both audiences read the same number, and the ErP energy class printed on the reel is derived from it.

Which ErP energy class can a high efficiency LED strip reach?

Class C is achievable on the best-binned 2835 and 2110 boards above 180 lm/W, class D covers the 160-180 lm/W band and most well-specified architectural tape lands in class E. High-CRI 95+ and full spectrum builds drop one or two classes because phosphor conversion costs lumens. Every DENO datasheet states the measured class so it can be reproduced by a notified body.

Does a high efficiency LED strip run cooler and last longer?

Yes. Fewer watts per lumen means less heat into the FPCB, so junction temperature drops and L70 lifetime extends. Combined with 2 oz copper and a 99.9% pure copper foil the same brightness can be produced at 20-30% lower wattage, which also lets a single driver feed a longer run and keeps aluminium profiles below the touch-temperature limits used in hospitality projects.

How much energy does a high efficiency LED strip save on a large project?

Take 500 m of cove lighting at 10 hours a day. A 130 lm/W board delivering 1000 lm/m draws about 7.7 W/m; a 190 lm/W board delivers the same output at about 5.3 W/m. Across 500 m that is 1.2 kW saved, roughly 4,380 kWh a year, and it usually removes one driver and one circuit from the electrical schedule as well.

Can I get a high efficiency LED strip in 12V, 24V, 36V or 48V?

24V is the efficiency sweet spot and carries the full binned range. 12V is available where fixture space or existing drivers dictate it, at the cost of shorter single-feed runs. 36V and 48V constant-current boards keep the same lm/W while extending a single feed well past 20 m, which is where the real system efficiency gain shows up on long architectural lines.

What is an electroplated, non-die-cut FPCB?

A die-cut FPCB starts from rolled-annealed copper foil, typically 35 µm with 50 µm heavy variants, laminated to polyimide and mechanically punched. An electroplated non-die-cut FPCB grows the copper electrolytically onto the base film instead, so DENO's R2R circuits reach copper up to 105 µm or thicker with ±10 µm trace-width control. Compare the documented specifications rather than the process label alone.

Is a 50 m LED strip roll the same as a 50 m powered run?

No. The supplied reel length describes packaging; the maximum powered run length depends on the model's operating voltage, power per metre and feed arrangement. Reel formats are model-specific, so confirm both the available reel length and the required power-feed plan — including any mid-run injection — before you specify a long installation.

Which R2R LED strip suits SMD and SOB projects?

R2R SMD LED strip is the general-purpose choice for coves, shelves and architectural lines where discrete packages and standard cut units are appropriate. R2R SOB builds add a coated, dot-free luminous surface for exposed and close-viewing positions. Both use DENO's electroplated, non-die-cut FPCB; cutting interval, run length and power-feed requirements remain model-specific.

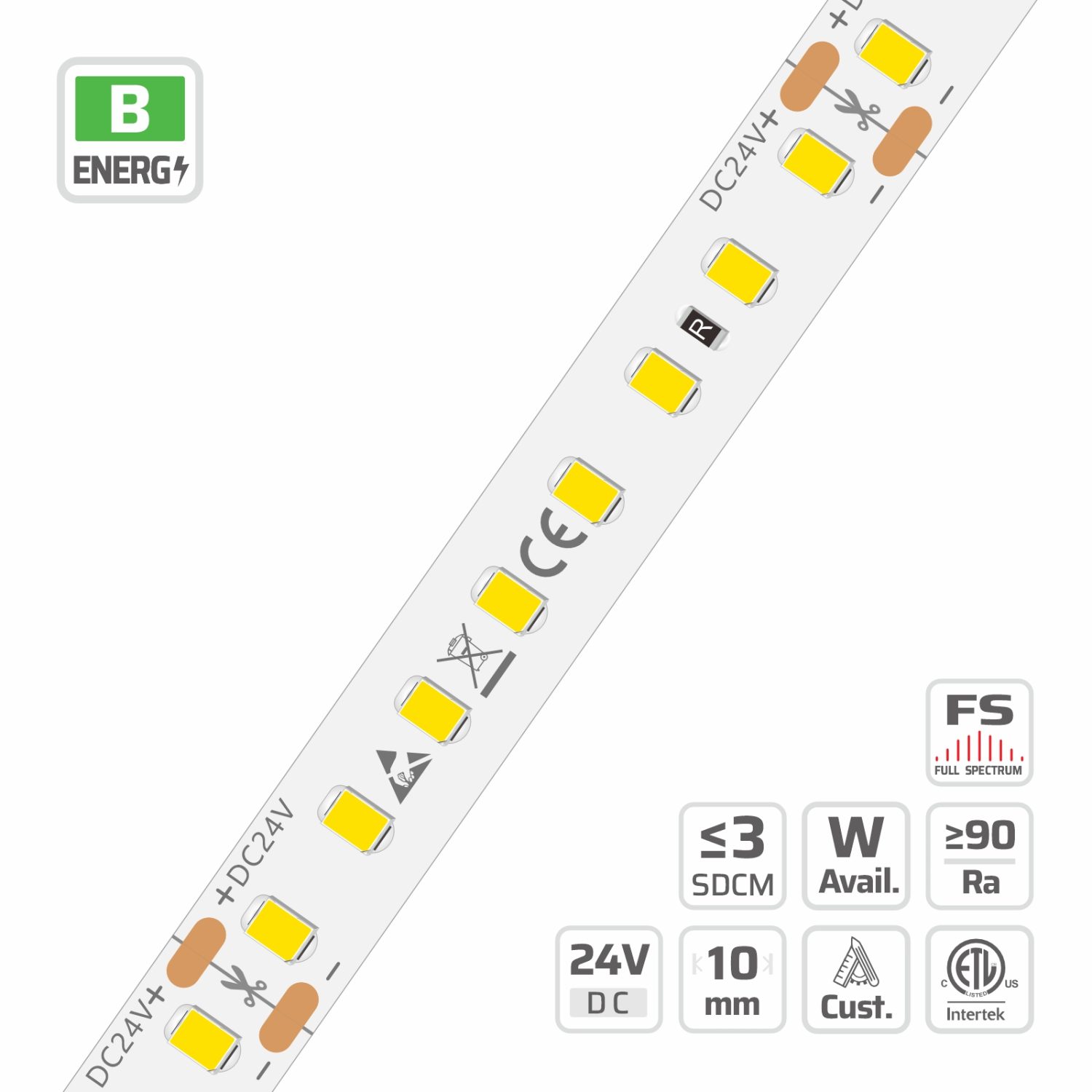

2835 High Light Efficacy High Lumen LED Strip Light (#3015)

10mm · 24V · 128LEDs · 62.5mm/cut

Model: 3015

3015 10mm | 24V | 128LEDs | 62.5mm/cut | #3015 | 2835 High Light Efficacy High Lumen LED Strip Light — 24V, cuttable every 62.5mm, 10mm FPCB width, 2835 LEDs, 128 LEDs/m, 1800–6500K

Overview

10mm | 24V | 128LEDs | 62.5mm/cut | #3015 | 2835 High Light Efficacy High Lumen LED Strip Light is part of the DENO Roll-to-Roll SMD Strips series, engineered around roll to roll LED strip. Key specifications: 2835, 128 LEDs/m, 24V, 10 PCB, 3oz copper FPCB, cuttable 8LEDs/62.5mm. Every reel is produced on DENO's roll-to-roll line with 99.9% pure copper FPCB and ships CE, UL and RoHS compliant for architectural, retail and hospitality projects. OEM and ODM configurations of length, colour temperature and waterproofing are available on request. This model uses DENO's electroplated, non-die-cut R2R FPCB, with no intermediate PCB splice joints inside the specified continuous length. Cutting interval, rated run length and planned feed positions remain model-specific.

Description

Built on DENO's electroplated, non-die-cut R2R FPCB, this model has no intermediate PCB splice joints within its specified continuous length. Cutting interval, rated run length and feed positions remain model-specific.\nManufactured on DENO's roll-to-roll line, the FPCB stays continuous through the reel with no intermediate PCB splice joints between sections. Engineered with 128 LEDs per meter, this 2835 LED strip light delivers high light efficacy and uniform output with a 120-degree beam angle. The robust 10mm wide 3oz copper foil PCB ensures dependable thermal performance across an operating temperature range of -25°C to 40°C. Built on a constant voltage 24V circuit, the strip is fully dimmable with precise 62.5mm cuttable segments for seamless architectural lighting installations. One continuous placement pass across the whole roll keeps LED pitch and solder quality consistent for factory-direct wholesale project supply.

High Efficacy Led Strip Lights built for high light efficacy smd strips projects.

Specifications

CCT (K)	1800–6500K
CRI	Ra≥90
POWER (W/M)	19.2 W/m
LED QTY	128 LEDs/m
PART NO	DL-F28D64V24-3015-*
SMD TYPE	2835
CUTTABLE UNIT	8LEDs/62.5mm
DIMMABLE	Yes
IP RATING	IP20/IP54/IP65/IP66/IP67/IP68
LED PITCH	7.8mm
PCB WIDTH	10
BEAM ANGLE	120°
RUN LENGTH	5m
COPPER FOIL	3oz
POWER RANGE	2~23W
CIRCUIT TYPE	C.V.
INPUT VOLTAGE	24V
LUMINOUS FLUX	1066–2612 lm/m
OPERATING TEMPERATURE	-25~40°C;Tc：75°C（max）

Applications

Cove, wall-wash & perimeter lighting — Coves, recesses, wall-wash details and ceiling perimeters where a continuous, uniform line of light is required.
Showroom & hospitality display lighting — Shelving, display cases, reception desks and signage backlighting in shops, showrooms and hospitality spaces.
Kitchen & wardrobe under-cabinet lighting — Kitchen, wardrobe and furniture task lighting where the strip stays hidden and only the light is seen.

Recommended accessories & compatible parts

DL-1003 — 19.1x8mm Surface Mount LED Channel — Dotless Aluminum Profile for 240 LEDs/m Strip: Accepts LED strips up to 10mm wide.
DL-1103-1 — 16x13mm Surface Mount LED Channel — Aluminum Profile for 10mm LED Strip: Accepts LED strips up to 10mm wide.
DL-1510 HX-F — 15x9.9mm Recessed LED Channel with Flange — Flush Mount Aluminum Profile: Accepts LED strips up to 10mm wide.
DN-PSU-100 — 24V 100W Class-2 LED Driver · High Efficiency: Matches the 24V DC input of this strip; size the driver with at least 20% headroom over total load.
DN-PSU-150 — 24V 150W Class-2 LED Driver · Premium: Matches the 24V DC input of this strip; size the driver with at least 20% headroom over total load.
DN-PSU-60 — 24V 60W Class-2 LED Driver · Constant Voltage: Matches the 24V DC input of this strip; size the driver with at least 20% headroom over total load.
V1 — 5-36VDC 1-Channel * 8A RF+Push Dimming Controller | V1: Matched by input voltage range and colour channels.

Request a quotation for #3015

DENO LED is a Shenzhen-based LED strip manufacturer with its own Foshan production base. Send the run length, voltage, CCT/CRI and IP rating you need and our engineering team replies with a specification sheet, wiring plan and price — OEM/ODM and fully custom builds included.

Warranty: 5 years
Lead time: standard boards: samples from 1 working day · custom: 3–5 working days · new FPCB: 1–3 weeks · production 1–2 weeks after sample approval
Compliance: CE · UL · RoHS
Bonding wire: 99.99% pure gold
Copper foil: 99.9% pure copper FPCB

Contact DENO LED engineers · OEM / ODM capability

Photometric Performance — CCT × CRI Efficacy Matrix

Peak measured luminous efficacy: 207.5 lm/W at 4000K, Ra 80, ErP energy class B (Grade DN (1st Tier) · 9.6W/m).

All values are measured at the stated power density and ambient 25 °C, reported as luminous efficacy in lumens per watt (lm/W), luminous flux per metre (lm/m) and the corresponding EU ErP (2019/2015) energy class.

Grade DN (1st Tier) · 9.6W/m

Grade DN (1st Tier) · 9.6W/m — measured at 9.6 W/m: luminous efficacy (lm/W), luminous flux (lm/m) and ErP energy class per CCT and CRI grade.
CCT (K)	Ra 80 — Luminous Efficacy (lm/W)	Ra 80 — Luminous Flux (lm/m)	Ra 80 — ErP Energy Class	Ra 90 — Luminous Efficacy (lm/W)	Ra 90 — Luminous Flux (lm/m)	Ra 90 — ErP Energy Class	Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W)	Full Spectrum (Ra 95+) — Luminous Flux (lm/m)	Full Spectrum (Ra 95+) — ErP Energy Class
1800 K	162.6 lm/W	1560.7 lm/m	D	137.2 lm/W	1317.1 lm/m	E	—	—	—
2300 K	177.3 lm/W	1701.9 lm/m	C	153 lm/W	1469.1 lm/m	D	124 lm/W	1190.4 lm/m	E
2700 K	191.1 lm/W	1834.4 lm/m	C	165.7 lm/W	1590.9 lm/m	D	134.3 lm/W	1288.9 lm/m	E
3000 K	200.7 lm/W	1927 lm/m	B	174.8 lm/W	1678.5 lm/m	C	142.2 lm/W	1364.9 lm/m	E
3500 K	203.7 lm/W	1955.2 lm/m	B	178.6 lm/W	1714.6 lm/m	C	147 lm/W	1411.6 lm/m	D
4000 K	207.5 lm/W	1992.2 lm/m	B	179.6 lm/W	1724.3 lm/m	C	148.3 lm/W	1423.3 lm/m	D
5000 K	207.2 lm/W	1989.3 lm/m	B	180.8 lm/W	1736 lm/m	C	149.2 lm/W	1432.3 lm/m	D
6500 K	198.6 lm/W	1906.5 lm/m	C	172.8 lm/W	1659.1 lm/m	C	143.4 lm/W	1376.6 lm/m	E

Grade DN (1st Tier) · 12W/m

Grade DN (1st Tier) · 12W/m — measured at 12 W/m: luminous efficacy (lm/W), luminous flux (lm/m) and ErP energy class per CCT and CRI grade.
CCT (K)	Ra 80 — Luminous Efficacy (lm/W)	Ra 80 — Luminous Flux (lm/m)	Ra 80 — ErP Energy Class	Ra 90 — Luminous Efficacy (lm/W)	Ra 90 — Luminous Flux (lm/m)	Ra 90 — ErP Energy Class	Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W)	Full Spectrum (Ra 95+) — Luminous Flux (lm/m)	Full Spectrum (Ra 95+) — ErP Energy Class
1800 K	159.9 lm/W	1918.2 lm/m	D	134.9 lm/W	1618.9 lm/m	E	—	—	—
2300 K	174.3 lm/W	2091.8 lm/m	C	150.5 lm/W	1805.7 lm/m	D	121.9 lm/W	1462.8 lm/m	E
2700 K	187.9 lm/W	2254.7 lm/m	C	162.9 lm/W	1955.3 lm/m	D	132 lm/W	1584.1 lm/m	E
3000 K	197.4 lm/W	2368.4 lm/m	C	171.9 lm/W	2063.1 lm/m	D	139.8 lm/W	1677.5 lm/m	E
3500 K	200.3 lm/W	2403.2 lm/m	B	175.6 lm/W	2107.4 lm/m	C	144.6 lm/W	1735 lm/m	E
4000 K	204.1 lm/W	2448.7 lm/m	B	176.6 lm/W	2119.4 lm/m	C	145.8 lm/W	1749.4 lm/m	E
5000 K	203.8 lm/W	2445.1 lm/m	B	177.8 lm/W	2133.7 lm/m	C	146.7 lm/W	1760.4 lm/m	D
6500 K	195.3 lm/W	2343.3 lm/m	C	169.9 lm/W	2039.2 lm/m	D	141 lm/W	1692 lm/m	E

Grade DN (1st Tier) · 14.4W/m

Grade DN (1st Tier) · 14.4W/m — measured at 14.4 W/m: luminous efficacy (lm/W), luminous flux (lm/m) and ErP energy class per CCT and CRI grade.
CCT (K)	Ra 80 — Luminous Efficacy (lm/W)	Ra 80 — Luminous Flux (lm/m)	Ra 80 — ErP Energy Class	Ra 90 — Luminous Efficacy (lm/W)	Ra 90 — Luminous Flux (lm/m)	Ra 90 — ErP Energy Class	Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W)	Full Spectrum (Ra 95+) — Luminous Flux (lm/m)	Full Spectrum (Ra 95+) — ErP Energy Class
1800 K	157.2 lm/W	2263.4 lm/m	D	132.7 lm/W	1910.2 lm/m	E	—	—	—
2300 K	171.4 lm/W	2468.2 lm/m	D	148 lm/W	2130.6 lm/m	D	119.8 lm/W	1725.1 lm/m	E
2700 K	184.7 lm/W	2660.4 lm/m	C	160.2 lm/W	2307.2 lm/m	D	129.8 lm/W	1869.2 lm/m	E
3000 K	194.1 lm/W	2794.6 lm/m	C	169.1 lm/W	2434.3 lm/m	D	137.5 lm/W	1979.4 lm/m	E
3500 K	196.9 lm/W	2835.6 lm/m	C	172.7 lm/W	2486.6 lm/m	D	142.2 lm/W	2047.2 lm/m	E
4000 K	200.6 lm/W	2889.3 lm/m	B	173.7 lm/W	2500.7 lm/m	C	143.3 lm/W	2064.2 lm/m	E
5000 K	200.3 lm/W	2885 lm/m	B	174.8 lm/W	2517.7 lm/m	C	144.2 lm/W	2076.5 lm/m	E
6500 K	192 lm/W	2764.9 lm/m	C	167.1 lm/W	2406.1 lm/m	D	138.7 lm/W	1997.3 lm/m	E

Grade DN (1st Tier) · 19.2W/m

Grade DN (1st Tier) · 19.2W/m — measured at 19.2 W/m: luminous efficacy (lm/W), luminous flux (lm/m) and ErP energy class per CCT and CRI grade.
CCT (K)	Ra 80 — Luminous Efficacy (lm/W)	Ra 80 — Luminous Flux (lm/m)	Ra 80 — ErP Energy Class	Ra 90 — Luminous Efficacy (lm/W)	Ra 90 — Luminous Flux (lm/m)	Ra 90 — ErP Energy Class	Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W)	Full Spectrum (Ra 95+) — Luminous Flux (lm/m)	Full Spectrum (Ra 95+) — ErP Energy Class
1800 K	152 lm/W	2917.8 lm/m	D	128.3 lm/W	2462.4 lm/m	E	—	—	—
2300 K	165.7 lm/W	3181.9 lm/m	D	143.1 lm/W	2746.6 lm/m	E	115.9 lm/W	2225.3 lm/m	F
2700 K	178.6 lm/W	3429.6 lm/m	C	154.9 lm/W	2974.2 lm/m	D	125.5 lm/W	2409.6 lm/m	E
3000 K	187.6 lm/W	3602.6 lm/m	C	163.4 lm/W	3138.2 lm/m	D	132.9 lm/W	2551.7 lm/m	E
3500 K	190.4 lm/W	3655.4 lm/m	C	167 lm/W	3205.6 lm/m	D	137.5 lm/W	2639.1 lm/m	E
4000 K	194 lm/W	3724.6 lm/m	C	167.9 lm/W	3223.8 lm/m	D	138.6 lm/W	2661 lm/m	E
5000 K	193.7 lm/W	3719.2 lm/m	C	169 lm/W	3245.6 lm/m	D	139.5 lm/W	2678.4 lm/m	E
6500 K	185.6 lm/W	3564.4 lm/m	C	161.5 lm/W	3101.7 lm/m	D	134.1 lm/W	2574.7 lm/m	E

Grade DN (1st Tier) · 21W/m

Grade DN (1st Tier) · 21W/m — measured at 21 W/m: luminous efficacy (lm/W), luminous flux (lm/m) and ErP energy class per CCT and CRI grade.
CCT (K)	Ra 80 — Luminous Efficacy (lm/W)	Ra 80 — Luminous Flux (lm/m)	Ra 80 — ErP Energy Class	Ra 90 — Luminous Efficacy (lm/W)	Ra 90 — Luminous Flux (lm/m)	Ra 90 — ErP Energy Class	Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W)	Full Spectrum (Ra 95+) — Luminous Flux (lm/m)	Full Spectrum (Ra 95+) — ErP Energy Class
1800 K	150.1 lm/W	3151.2 lm/m	D	126.6 lm/W	2659.5 lm/m	E	—	—	—
2300 K	163.6 lm/W	3436.4 lm/m	D	141.3 lm/W	2966.3 lm/m	E	114.4 lm/W	2402.4 lm/m	F
2700 K	176.4 lm/W	3704 lm/m	C	153 lm/W	3212.2 lm/m	D	123.9 lm/W	2602.4 lm/m	E
3000 K	185.3 lm/W	3890.8 lm/m	C	161.4 lm/W	3389.2 lm/m	D	131.2 lm/W	2755.8 lm/m	E
3500 K	188 lm/W	3947.9 lm/m	C	164.9 lm/W	3462 lm/m	D	135.7 lm/W	2850.3 lm/m	E
4000 K	191.6 lm/W	4022.6 lm/m	C	165.8 lm/W	3481.7 lm/m	D	136.9 lm/W	2873.9 lm/m	E
5000 K	191.3 lm/W	4016.7 lm/m	C	166.9 lm/W	3505.3 lm/m	D	137.7 lm/W	2891.7 lm/m	E
6500 K	183.3 lm/W	3849.5 lm/m	C	159.5 lm/W	3349.9 lm/m	D	132.4 lm/W	2780.4 lm/m	E

Grade DL (2nd Tier) · 9.6W/m

Grade DL (2nd Tier) · 9.6W/m — measured at 9.6 W/m: luminous efficacy (lm/W), luminous flux (lm/m) and ErP energy class per CCT and CRI grade.
CCT (K)	Ra 80 — Luminous Efficacy (lm/W)	Ra 80 — Luminous Flux (lm/m)	Ra 80 — ErP Energy Class	Ra 90 — Luminous Efficacy (lm/W)	Ra 90 — Luminous Flux (lm/m)	Ra 90 — ErP Energy Class	Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W)	Full Spectrum (Ra 95+) — Luminous Flux (lm/m)	Full Spectrum (Ra 95+) — ErP Energy Class
1800 K	151.6 lm/W	1455.4 lm/m	D	121.7 lm/W	1168.6 lm/m	E	—	—	—
2300 K	168.8 lm/W	1620.3 lm/m	C	135.7 lm/W	1302.3 lm/m	D	109.9 lm/W	1055 lm/m	F
2700 K	178.7 lm/W	1715.9 lm/m	C	146.7 lm/W	1408.6 lm/m	D	118.9 lm/W	1141.3 lm/m	E
3000 K	190 lm/W	1824.2 lm/m	B	154.5 lm/W	1482.8 lm/m	D	125.6 lm/W	1205.7 lm/m	E
3500 K	192.9 lm/W	1851.5 lm/m	B	157.2 lm/W	1509.1 lm/m	D	129.4 lm/W	1241.8 lm/m	E
4000 K	199 lm/W	1910 lm/m	B	161 lm/W	1545.2 lm/m	C	132.9 lm/W	1276 lm/m	E
5000 K	198.8 lm/W	1908.1 lm/m	B	160.9 lm/W	1544.2 lm/m	C	132.7 lm/W	1273.9 lm/m	E
6500 K	182.3 lm/W	1750 lm/m	C	154.4 lm/W	1481.8 lm/m	D	128.1 lm/W	1229.8 lm/m	E

Grade DL (2nd Tier) · 12W/m

Grade DL (2nd Tier) · 12W/m — measured at 12 W/m: luminous efficacy (lm/W), luminous flux (lm/m) and ErP energy class per CCT and CRI grade.
CCT (K)	Ra 80 — Luminous Efficacy (lm/W)	Ra 80 — Luminous Flux (lm/m)	Ra 80 — ErP Energy Class	Ra 90 — Luminous Efficacy (lm/W)	Ra 90 — Luminous Flux (lm/m)	Ra 90 — ErP Energy Class	Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W)	Full Spectrum (Ra 95+) — Luminous Flux (lm/m)	Full Spectrum (Ra 95+) — ErP Energy Class
1800 K	149.1 lm/W	1788.9 lm/m	D	119.7 lm/W	1436.4 lm/m	E	—	—	—
2300 K	166 lm/W	1991.5 lm/m	C	133.4 lm/W	1600.7 lm/m	E	108 lm/W	1296 lm/m	F
2700 K	175.8 lm/W	2109 lm/m	C	144.3 lm/W	1731.3 lm/m	D	116.9 lm/W	1402.8 lm/m	E
3000 K	186.8 lm/W	2242.1 lm/m	B	151.9 lm/W	1822.5 lm/m	D	123.5 lm/W	1482 lm/m	E
3500 K	189.6 lm/W	2275.7 lm/m	B	154.6 lm/W	1854.8 lm/m	D	127.2 lm/W	1526.3 lm/m	E
4000 K	195.6 lm/W	2347.6 lm/m	B	158.3 lm/W	1899.2 lm/m	D	130.7 lm/W	1568.3 lm/m	E
5000 K	195.4 lm/W	2345.2 lm/m	B	158.2 lm/W	1898 lm/m	D	130.5 lm/W	1566 lm/m	E
6500 K	179.2 lm/W	2151 lm/m	C	151.8 lm/W	1821.3 lm/m	D	126 lm/W	1512 lm/m	E

Grade DL (2nd Tier) · 14.4W/m

Grade DL (2nd Tier) · 14.4W/m — measured at 14.4 W/m: luminous efficacy (lm/W), luminous flux (lm/m) and ErP energy class per CCT and CRI grade.
CCT (K)	Ra 80 — Luminous Efficacy (lm/W)	Ra 80 — Luminous Flux (lm/m)	Ra 80 — ErP Energy Class	Ra 90 — Luminous Efficacy (lm/W)	Ra 90 — Luminous Flux (lm/m)	Ra 90 — ErP Energy Class	Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W)	Full Spectrum (Ra 95+) — Luminous Flux (lm/m)	Full Spectrum (Ra 95+) — ErP Energy Class
1800 K	146.6 lm/W	2110.8 lm/m	D	117.7 lm/W	1694.9 lm/m	E	—	—	—
2300 K	163.2 lm/W	2349.9 lm/m	C	131.2 lm/W	1888.7 lm/m	E	106.2 lm/W	1529.3 lm/m	F
2700 K	172.8 lm/W	2488.5 lm/m	C	141.9 lm/W	2042.9 lm/m	D	114.9 lm/W	1655.2 lm/m	E
3000 K	183.7 lm/W	2645.6 lm/m	C	149.3 lm/W	2150.4 lm/m	D	121.4 lm/W	1748.6 lm/m	E
3500 K	186.5 lm/W	2685.2 lm/m	B	152 lm/W	2188.6 lm/m	D	125.1 lm/W	1801 lm/m	E
4000 K	192.4 lm/W	2770 lm/m	B	155.6 lm/W	2240.9 lm/m	D	128.5 lm/W	1850.5 lm/m	E
5000 K	192.2 lm/W	2767.2 lm/m	B	155.5 lm/W	2239.5 lm/m	D	128.3 lm/W	1847.5 lm/m	E
6500 K	176.3 lm/W	2538 lm/m	C	149.2 lm/W	2149 lm/m	D	123.9 lm/W	1784.2 lm/m	E

Grade DL (2nd Tier) · 19.2W/m

Grade DL (2nd Tier) · 19.2W/m — measured at 19.2 W/m: luminous efficacy (lm/W), luminous flux (lm/m) and ErP energy class per CCT and CRI grade.
CCT (K)	Ra 80 — Luminous Efficacy (lm/W)	Ra 80 — Luminous Flux (lm/m)	Ra 80 — ErP Energy Class	Ra 90 — Luminous Efficacy (lm/W)	Ra 90 — Luminous Flux (lm/m)	Ra 90 — ErP Energy Class	Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W)	Full Spectrum (Ra 95+) — Luminous Flux (lm/m)	Full Spectrum (Ra 95+) — ErP Energy Class
1800 K	141.7 lm/W	2721.1 lm/m	D	113.8 lm/W	2184.9 lm/m	E	—	—	—
2300 K	157.8 lm/W	3029.3 lm/m	D	126.8 lm/W	2434.7 lm/m	E	102.7 lm/W	1971.8 lm/m	F
2700 K	167.1 lm/W	3208 lm/m	C	137.2 lm/W	2633.5 lm/m	D	111.1 lm/W	2133.8 lm/m	E
3000 K	177.6 lm/W	3410.4 lm/m	C	144.4 lm/W	2772.1 lm/m	D	117.4 lm/W	2254.2 lm/m	E
3500 K	180.3 lm/W	3461.5 lm/m	C	146.9 lm/W	2821.4 lm/m	D	120.9 lm/W	2321.7 lm/m	E
4000 K	186 lm/W	3570.9 lm/m	B	150.5 lm/W	2888.8 lm/m	D	124.2 lm/W	2385.5 lm/m	E
5000 K	185.8 lm/W	3567.3 lm/m	B	150.4 lm/W	2887 lm/m	D	124.1 lm/W	2382.7 lm/m	E
6500 K	170.4 lm/W	3271.8 lm/m	C	144.3 lm/W	2770.3 lm/m	D	119.8 lm/W	2300.2 lm/m	E

Grade DL (2nd Tier) · 21W/m

Grade DL (2nd Tier) · 21W/m — measured at 21 W/m: luminous efficacy (lm/W), luminous flux (lm/m) and ErP energy class per CCT and CRI grade.
CCT (K)	Ra 80 — Luminous Efficacy (lm/W)	Ra 80 — Luminous Flux (lm/m)	Ra 80 — ErP Energy Class	Ra 90 — Luminous Efficacy (lm/W)	Ra 90 — Luminous Flux (lm/m)	Ra 90 — ErP Energy Class	Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W)	Full Spectrum (Ra 95+) — Luminous Flux (lm/m)	Full Spectrum (Ra 95+) — ErP Energy Class
1800 K	139.9 lm/W	2938.8 lm/m	D	112.4 lm/W	2359.7 lm/m	E	—	—	—
2300 K	155.8 lm/W	3271.6 lm/m	D	125.2 lm/W	2629.5 lm/m	E	101.4 lm/W	2129.4 lm/m	F
2700 K	165 lm/W	3464.7 lm/m	C	135.4 lm/W	2844.2 lm/m	D	109.7 lm/W	2304.5 lm/m	F
3000 K	175.4 lm/W	3683.3 lm/m	C	142.6 lm/W	2993.9 lm/m	D	115.9 lm/W	2434.5 lm/m	E
3500 K	178 lm/W	3738.5 lm/m	C	145.1 lm/W	3047.1 lm/m	D	119.4 lm/W	2507.4 lm/m	E
4000 K	183.6 lm/W	3856.6 lm/m	C	148.6 lm/W	3120 lm/m	D	122.7 lm/W	2576.3 lm/m	E
5000 K	183.5 lm/W	3852.7 lm/m	C	148.5 lm/W	3118 lm/m	D	122.5 lm/W	2572.5 lm/m	E
6500 K	168.3 lm/W	3533.6 lm/m	C	142.5 lm/W	2991.9 lm/m	D	118.3 lm/W	2484.3 lm/m	E

Grade KE (3rd Tier) · 9.6W/m

Grade KE (3rd Tier) · 9.6W/m — measured at 9.6 W/m: luminous efficacy (lm/W), luminous flux (lm/m) and ErP energy class per CCT and CRI grade.
CCT (K)	Ra 80 — Luminous Efficacy (lm/W)	Ra 80 — Luminous Flux (lm/m)	Ra 80 — ErP Energy Class	Ra 90 — Luminous Efficacy (lm/W)	Ra 90 — Luminous Flux (lm/m)	Ra 90 — ErP Energy Class	Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W)	Full Spectrum (Ra 95+) — Luminous Flux (lm/m)	Full Spectrum (Ra 95+) — ErP Energy Class
1900 K	128.3 lm/W	1231.9 lm/m	E	102.9 lm/W	987.5 lm/m	F	—	—	—
2300 K	143.1 lm/W	1373.3 lm/m	D	114.7 lm/W	1101.2 lm/m	E	92.9 lm/W	891.8 lm/m	F
2700 K	154.2 lm/W	1480.2 lm/m	D	124.5 lm/W	1195.2 lm/m	E	100.9 lm/W	968.7 lm/m	F
3000 K	161.9 lm/W	1554.4 lm/m	C	131.4 lm/W	1261.5 lm/m	E	106.9 lm/W	1026 lm/m	F
3500 K	164.4 lm/W	1578.2 lm/m	C	134 lm/W	1286.3 lm/m	E	110.3 lm/W	1058.7 lm/m	E
4000 K	169.1 lm/W	1623.7 lm/m	C	136.9 lm/W	1314 lm/m	D	113 lm/W	1084.4 lm/m	E
5000 K	168.9 lm/W	1621.7 lm/m	C	136.9 lm/W	1314 lm/m	D	112.9 lm/W	1083.8 lm/m	E
6500 K	161.9 lm/W	1554.4 lm/m	C	131.4 lm/W	1261.5 lm/m	E	109.1 lm/W	1047.4 lm/m	F

Grade KE (3rd Tier) · 12W/m

Grade KE (3rd Tier) · 12W/m — measured at 12 W/m: luminous efficacy (lm/W), luminous flux (lm/m) and ErP energy class per CCT and CRI grade.
CCT (K)	Ra 80 — Luminous Efficacy (lm/W)	Ra 80 — Luminous Flux (lm/m)	Ra 80 — ErP Energy Class	Ra 90 — Luminous Efficacy (lm/W)	Ra 90 — Luminous Flux (lm/m)	Ra 90 — ErP Energy Class	Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W)	Full Spectrum (Ra 95+) — Luminous Flux (lm/m)	Full Spectrum (Ra 95+) — ErP Energy Class
1900 K	126.2 lm/W	1514.1 lm/m	E	101.1 lm/W	1213.7 lm/m	F	—	—	—
2300 K	140.7 lm/W	1688 lm/m	D	112.8 lm/W	1353.5 lm/m	E	91.4 lm/W	1096.8 lm/m	F
2700 K	151.6 lm/W	1819.3 lm/m	D	122.4 lm/W	1469.1 lm/m	E	99.2 lm/W	1190.6 lm/m	F
3000 K	159.2 lm/W	1910.5 lm/m	D	129.2 lm/W	1550.6 lm/m	E	105.1 lm/W	1261.1 lm/m	F
3500 K	161.6 lm/W	1939.7 lm/m	C	131.7 lm/W	1581 lm/m	E	108.4 lm/W	1301.3 lm/m	F
4000 K	166.3 lm/W	1995.7 lm/m	C	134.6 lm/W	1615 lm/m	E	111.1 lm/W	1332.9 lm/m	E
5000 K	166.1 lm/W	1993.2 lm/m	C	134.6 lm/W	1615 lm/m	E	111 lm/W	1332 lm/m	E
6500 K	159.2 lm/W	1910.5 lm/m	D	129.2 lm/W	1550.6 lm/m	E	107.2 lm/W	1286.4 lm/m	F

Grade KE (3rd Tier) · 14.4W/m

Grade KE (3rd Tier) · 14.4W/m — measured at 14.4 W/m: luminous efficacy (lm/W), luminous flux (lm/m) and ErP energy class per CCT and CRI grade.
CCT (K)	Ra 80 — Luminous Efficacy (lm/W)	Ra 80 — Luminous Flux (lm/m)	Ra 80 — ErP Energy Class	Ra 90 — Luminous Efficacy (lm/W)	Ra 90 — Luminous Flux (lm/m)	Ra 90 — ErP Energy Class	Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W)	Full Spectrum (Ra 95+) — Luminous Flux (lm/m)	Full Spectrum (Ra 95+) — ErP Energy Class
1900 K	124.1 lm/W	1786.5 lm/m	E	99.5 lm/W	1432.1 lm/m	F	—	—	—
2300 K	138.3 lm/W	1991.7 lm/m	D	110.9 lm/W	1597.1 lm/m	E	89.8 lm/W	1293.1 lm/m	F
2700 K	149.1 lm/W	2146.7 lm/m	D	120.4 lm/W	1733.4 lm/m	E	97.6 lm/W	1404.8 lm/m	F
3000 K	156.5 lm/W	2254.3 lm/m	D	127.1 lm/W	1829.6 lm/m	E	103.3 lm/W	1488 lm/m	F
3500 K	158.9 lm/W	2288.7 lm/m	D	129.5 lm/W	1865.4 lm/m	E	106.6 lm/W	1535.4 lm/m	F
4000 K	163.5 lm/W	2354.8 lm/m	C	132.3 lm/W	1905.6 lm/m	E	109.2 lm/W	1572.7 lm/m	F
5000 K	163.3 lm/W	2351.9 lm/m	C	132.3 lm/W	1905.6 lm/m	E	109.2 lm/W	1572.5 lm/m	F
6500 K	156.5 lm/W	2254.3 lm/m	D	127.1 lm/W	1829.6 lm/m	E	105.5 lm/W	1519.2 lm/m	F

Grade KE (3rd Tier) · 19.2W/m

Grade KE (3rd Tier) · 19.2W/m — measured at 19.2 W/m: luminous efficacy (lm/W), luminous flux (lm/m) and ErP energy class per CCT and CRI grade.
CCT (K)	Ra 80 — Luminous Efficacy (lm/W)	Ra 80 — Luminous Flux (lm/m)	Ra 80 — ErP Energy Class	Ra 90 — Luminous Efficacy (lm/W)	Ra 90 — Luminous Flux (lm/m)	Ra 90 — ErP Energy Class	Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W)	Full Spectrum (Ra 95+) — Luminous Flux (lm/m)	Full Spectrum (Ra 95+) — ErP Energy Class
1900 K	120 lm/W	2303 lm/m	E	96.2 lm/W	1846.1 lm/m	F	—	—	—
2300 K	133.7 lm/W	2567.6 lm/m	E	107.2 lm/W	2058.9 lm/m	F	86.9 lm/W	1668.5 lm/m	F
2700 K	144.1 lm/W	2767.3 lm/m	D	116.4 lm/W	2234.6 lm/m	E	94.3 lm/W	1811 lm/m	F
3000 K	151.4 lm/W	2906.1 lm/m	D	122.8 lm/W	2358.5 lm/m	E	99.9 lm/W	1918.3 lm/m	F
3500 K	153.7 lm/W	2950.5 lm/m	D	125.2 lm/W	2404.8 lm/m	E	103.1 lm/W	1979.3 lm/m	F
4000 K	158.1 lm/W	3035.6 lm/m	D	127.9 lm/W	2456.6 lm/m	E	105.6 lm/W	2027.4 lm/m	F
5000 K	157.9 lm/W	3031.9 lm/m	D	127.9 lm/W	2456.6 lm/m	E	105.6 lm/W	2027.5 lm/m	F
6500 K	151.4 lm/W	2906.1 lm/m	D	122.8 lm/W	2358.5 lm/m	E	102 lm/W	1958.4 lm/m	F

Grade KE (3rd Tier) · 21W/m

Grade KE (3rd Tier) · 21W/m — measured at 21 W/m: luminous efficacy (lm/W), luminous flux (lm/m) and ErP energy class per CCT and CRI grade.
CCT (K)	Ra 80 — Luminous Efficacy (lm/W)	Ra 80 — Luminous Flux (lm/m)	Ra 80 — ErP Energy Class	Ra 90 — Luminous Efficacy (lm/W)	Ra 90 — Luminous Flux (lm/m)	Ra 90 — ErP Energy Class	Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W)	Full Spectrum (Ra 95+) — Luminous Flux (lm/m)	Full Spectrum (Ra 95+) — ErP Energy Class
1900 K	118.4 lm/W	2487.3 lm/m	E	94.9 lm/W	1993.8 lm/m	F	—	—	—
2300 K	132 lm/W	2773 lm/m	E	105.9 lm/W	2223.6 lm/m	F	85.8 lm/W	1801.8 lm/m	F
2700 K	142.3 lm/W	2988.8 lm/m	D	114.9 lm/W	2413.4 lm/m	E	93.1 lm/W	1955.9 lm/m	F
3000 K	149.5 lm/W	3138.6 lm/m	D	121.3 lm/W	2547.2 lm/m	E	98.7 lm/W	2071.8 lm/m	F
3500 K	151.7 lm/W	3186.5 lm/m	D	123.7 lm/W	2597.2 lm/m	E	101.8 lm/W	2137.7 lm/m	F
4000 K	156.1 lm/W	3278.4 lm/m	D	126.3 lm/W	2653.1 lm/m	E	104.3 lm/W	2189.6 lm/m	F
5000 K	155.9 lm/W	3274.4 lm/m	D	126.3 lm/W	2653.1 lm/m	E	104.2 lm/W	2188.2 lm/m	F
6500 K	149.5 lm/W	3138.6 lm/m	D	121.3 lm/W	2547.2 lm/m	E	100.7 lm/W	2114.7 lm/m	F

High-Power LED Strip: Heat Dissipation & Aluminum Channel Guide

At up to 21W/m, 3015 is a high-power SMD LED strip. Above roughly 14.4W/m the tape can no longer shed its own heat through the FPC alone — an aluminum channel is part of the luminaire, not an accessory.

Why high-wattage strips need a heat sink

Aluminum conducts heat roughly 30× faster than the plastics, MDF or gypsum a strip is usually stuck to, so a bare high-power run traps heat under the tape.
LED lifetime (LM-80 / TM-21) is driven by solder-point temperature Tc. Keeping Tc inside the datasheet limit — DENO strips are rated Tc ≤ 75°C — is what preserves the rated L70 lifetime and colour stability.
Never run 14.4W/m or more coiled on the reel, inside a sealed plastic diffuser, or directly on wood, wallpaper or foam.

Sizing rule: FPC width vs channel inner width

Channel inner width ≥ FPC width + 2mm. This strip is 10mm wide, so it needs at least 12mm of inner width.
The 2mm clearance absorbs extrusion tolerance and lets the tape be seated or replaced without scraping the side walls or the wiring.
A frosted or opal PC cover then diffuses the higher lumen output into an even, dot-free line instead of visible hot spots.

Aluminum channels that fit this strip

Recommended LED Channels

Mount this LED strip in a DENO LED aluminum profile for heat dissipation, physical protection and diffused, dot-free output.

This strip is 10mm wide, so it needs a channel with at least 12mm inner width (10mm + 2mm clearance). Every profile below meets that.

Related models in this series

See every model in SMD LED Strip Series or narrow to 2835. Compare wattage, lumen output and run length in the ProCalc parameter library, or request OEM/ODM pricing on the custom manufacturing page.

Frequently Asked Questions

What are the key specifications of 3015?

3015: 2835, 128 LEDs/m, 24V, 10 PCB, 3oz copper FPCB, cuttable 8LEDs/62.5mm. Full photometric data, wiring diagrams and test reports are available in the downloads section of this page.

What makes the construction of this roll to roll LED strip different?

It is built as a roll to roll LED strip on 3oz copper FPCB with a cutting unit of 8LEDs/62.5mm and an LED pitch of 7.8mm, so it holds its electrical and mechanical performance where standard strips fail.

Can DENO customise this roll to roll LED strip for a project?

Yes. DENO manufactures the Roll-to-Roll SMD Strips series as an OEM and ODM supplier: reel length, colour temperature, CRI grade, PCB width, waterproofing and private labelling can all be specified. Request a quote for lead time and project pricing.

How long can this LED strip roll run in one continuous piece?

This model ships as a continuous roll-to-roll reel with no mid-reel solder joints, so custom single runs beyond the standard 5 m are available. Keep the run within a 3% voltage drop: lower power densities support up to 20 m single-end, higher densities need a both-ends or mid-feed connection. Use the DENO ProCalc voltage-drop tool to confirm the exact limit for your length.

Why choose a roll-to-roll strip over a standard 5 m LED strip reel?

The electroplated continuous FPCB keeps copper thickness uniform along the whole reel, so resistance stays low, brightness stays even end to end, and there are no pieced solder points that can fail during bending or long-run installation.

Engineering & selection guide

Bending limits, IP selection, voltage drop, cutting and the full buyer Q&A for this family are kept on the series page.

High Efficiency LED Strips series — High Efficiency LED Strip — Buyer Questions
Roll-to-Roll LED strip rolls series — Roll-to-Roll (R2R) LED Strip — Buyer Questions
LED strip engineering selection handbook
