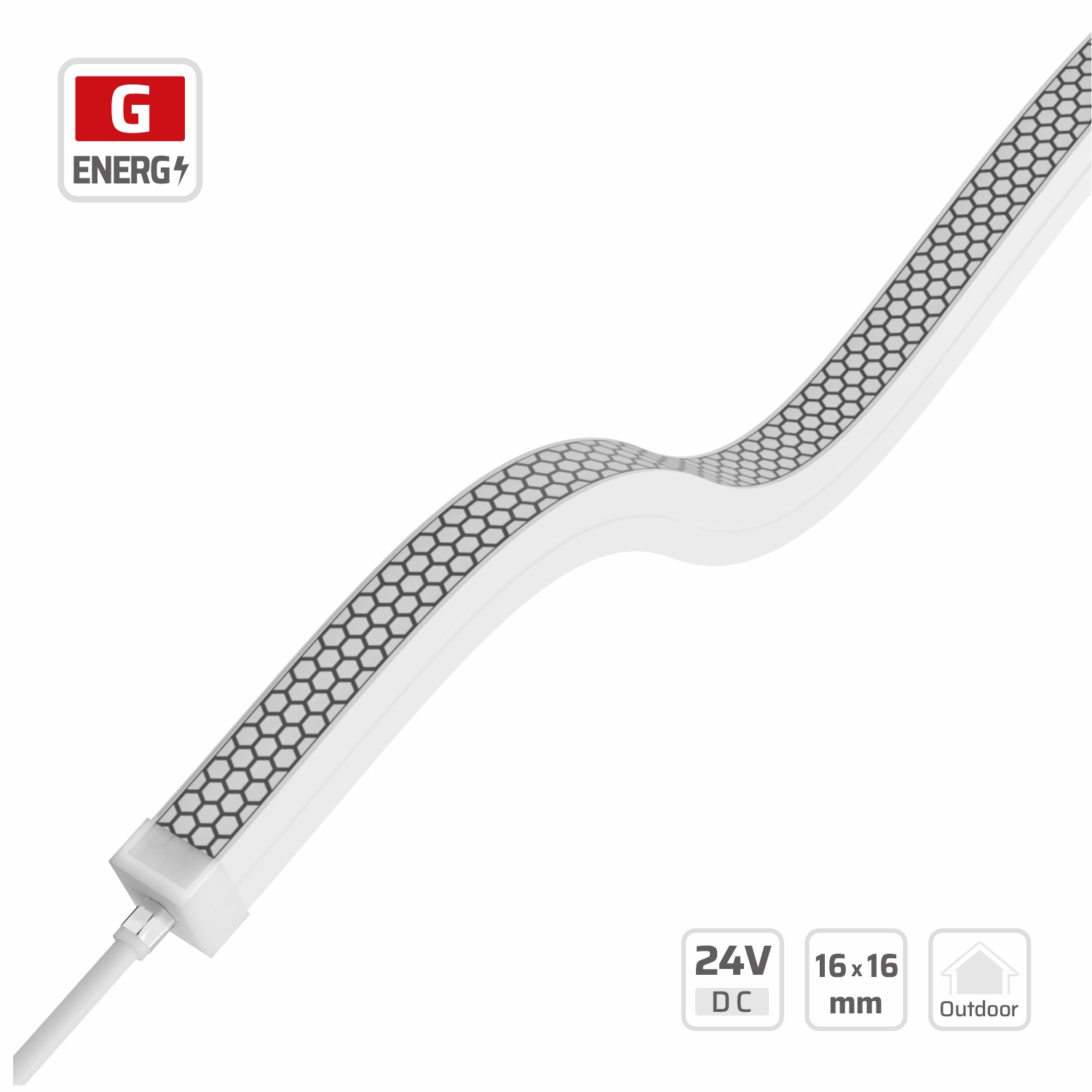

16*16mm Glare-free Neon Lights (#2176-GF)

Outdoor & façade exposure

Specify for permanent exterior installation above the waterline (IP67).

The silicone is injection moulded onto the FPCB in one shot, so there is no glued cover to open up after a winter of thermal cycling — the failure mode PVC neon rope light shows in its second outdoor summer. UV-stabilised silicone keeps its colour instead of yellowing, and the body stays elastic from −30 °C to +80 °C, so a façade run installed in summer will not go brittle in a January frost. Feed with 24V DC and plan 5m per feed to hold end-of-run brightness across a long elevation.

• Sealed silicone body
• UV-stable silicone, −30 °C to +80 °C
• 2.4W/m load

Pools, spas & wet areas

Suitable for pool surrounds, spa ceilings and steam-adjacent joinery — not for submersion.

IP67 covers rain, splash, wash-down and steam — pool decks, shower reveals, sauna ceilings and spa coves — but the body is not intended to sit under water. Mount it above the waterline in an aluminium groove so condensate drains away from the feed joint, run 24V DC for wet-zone safety, and choose the IP68 variant where the channel can flood.

• IP67 — splash and rain, not submersion
• 24V DC
• Moulded end cap and feed joint

Architectural contour & signage

Bends vertically, over and under the emitting face at about R48mm — the right pick for channel letters, logos, arches, domes and cove crests.

Top bending LED neon flex takes its curve vertically, over and under the emitting face, which is what decides whether a shape is possible without cutting and re-soldering. At about R48mm the outside of the curve stays evenly lit: 120 LEDs/m is matched to the diffuser depth so you read a continuous line of light rather than dots, even at 30 cm. Printed cut marks with indexed solder pads underneath let a sign maker shorten a letter stroke on site and re-seal it, and mounting clips, aluminium grooves and moulded bend grooves cover surface, recessed and free-form fixing.

• Cross-section 16x16mm
• Bend radius about R48mm
• 120 LEDs/m, dot-free

What are the specific benefits of the glare-free design for commercial applications?

The glare-free design, achieved through micro-prism structures, ensures soft, diffused light, preventing visual fatigue in professional settings or areas with prolonged human presence.

Is the 2176-GF model compatible with standard LED lighting control systems?

Yes, the 2176-GF operates on a 24V constant voltage circuit and is dimmable, making it compatible with various common LED control systems and drivers.

What is the minimum order quantity for custom lengths or specific colors?

DENO LED offers customization for the 2176-GF. Minimum order quantities vary based on the specific customization requests, please contact our sales team for details.

Does this product require any special certification for international projects?

Our products typically comply with CE, RoHS, and UL standards. Specific project certifications can be discussed with our technical sales team to meet your regional requirements.

What is a top bending LED neon flex?

A top bend neon strip flexes up and down, perpendicular to the emitting face, so it can crest over an edge, follow a dome or climb a vertical stroke while the light window keeps facing the viewer. It is the most common neon body type and covers cove lighting, step nosing, signage letters and handrails.

• Series Top Bend Neon Flex series
• Related series LED neon strip and neon flex family
• Related series side bend bodies for planar curves

Which top bend neon size should I specify?

Cross-sections run 5×11 mm, 10×10 mm, 12×12 mm, 16×16 mm, 20×18 mm, 20×20 mm and 25×25 mm. Small sections suit letters and slim reveals; 16×16 mm and above give the deep, saturated neon line specified for façade and feature work. Match the emitting window to the visible aperture of the channel and keep the LED pitch at 120 LEDs/m or denser for a dot-free result.

• Series Top Bend Neon Flex series
• Related series high density boards for dot-free neon
• Related series mini bodies below 8 mm
• Product 1010T-EE sized top bend body

What bend radius does vertical bending neon flex hold?

Typical top bend bodies hold R30–R50 mm; taller sections such as 25×25 mm need R100 mm or more. Bending tighter than the rating stretches the outer silicone wall, which shows as a pale band and, over time, as a stress line at the FPCB solder pads.

• Series Top Bend Neon Flex series
• Guide FPCB construction behind the bend rating
• Related series round bodies for free-form geometry

Is top bend neon flex suitable for letters and logos?

Yes — vertical strokes, dome tops and the crests of script letters are exactly what a top bend body is for. Fabricators normally combine top bend for the strokes with side bend for the horizontal curves, or use a mini top bend body throughout on letters under 100 mm deep.

• Series Top Bend Neon Flex series
• Related series mini neon flex for channel letters
• Guide signage OEM programmes
• Product DL-T0511A signage top bend neon

Does a dome top LED neon strip look different from a flat top?

A dome top scatters light over a wider angle and hides the LED line better at close viewing distance, which is why it is preferred for exposed runs and lettering. A flat top concentrates output forward and reads sharper inside a channel or under a coving lip.

• Series Top Bend Neon Flex series
• Related series wide-window builds for higher output
• Guide beam distribution reference

Can a top bend neon strip be used outdoors?

Yes, with an IP67 injection-moulded silicone body and sealed end caps. Outdoor top bend runs are standard on cornices, parapets, canopy edges and stair nosings; specify UV-stabilised silicone and a 105 μm copper FPCB so the run survives sun load and winter cycling without colour shift.

• Series Top Bend Neon Flex series
• Related series injection moulded IP67 construction
• Guide IP67 versus IP68 outdoors
• Product 1212T-EE outdoor top bend neon
