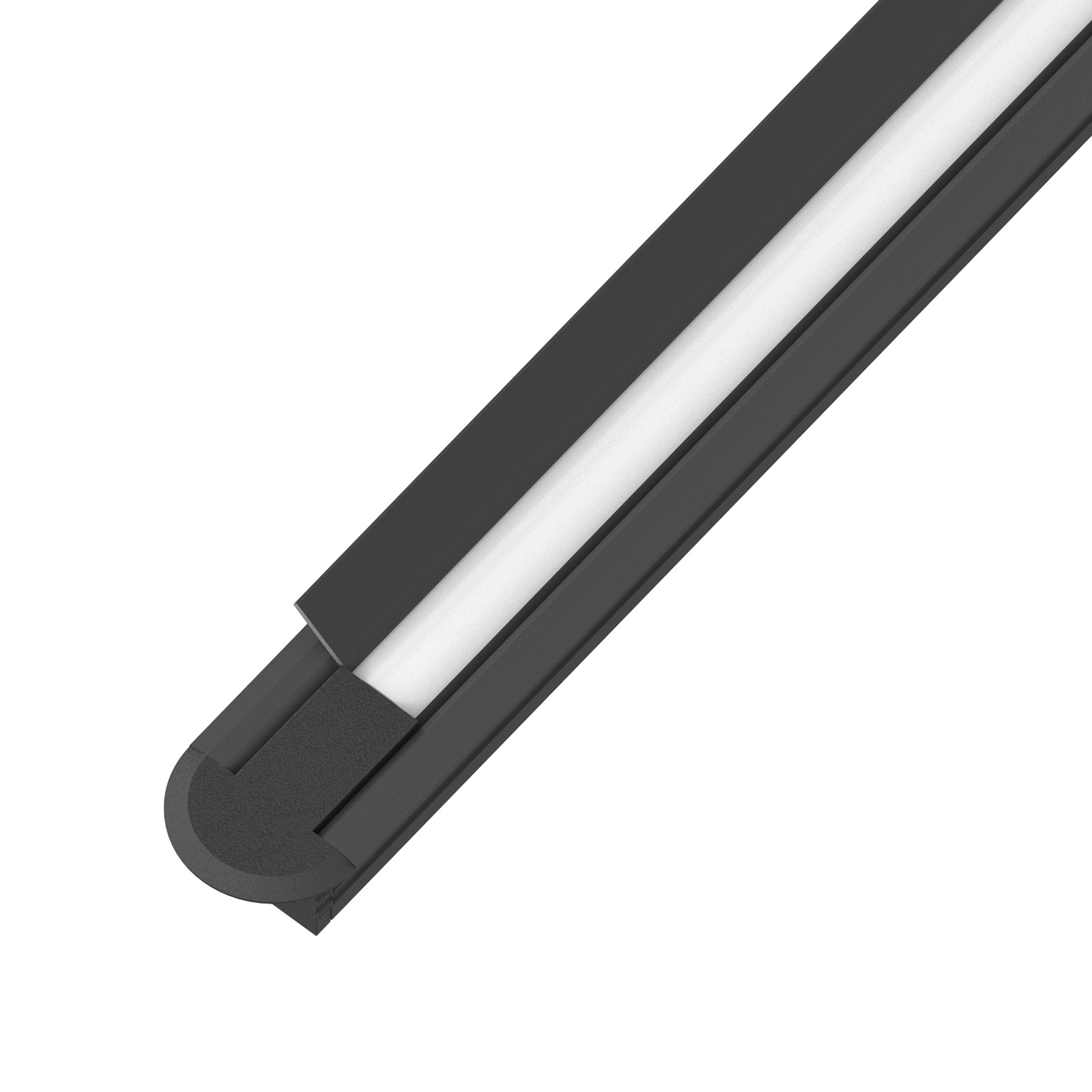

17.4×15.97mm Rotatable Linear LED Light with Flange
Model: DL-1716HX-F
Overview
The DENO LED DL-1716HX-F is a high-performance 17.4×15.97mm rotatable linear LED light with an integrated flange design. Crafted from durable AL6063-T5 aluminum and featuring a glare shield, this dimmable fixture provides soft, uniform illumination with a 92° beam angle. Key specs include a maximum FPC width of 5mm and an operating temperature range of -25~40°C. Ideal for various commercial applications requiring precise lighting control and a clean aesthetic, this model is...
Description
Manufactured from AL6063-T5 aluminum with an opal PC diffuser, this linear LED light delivers uniform, glare-free illumination with a 92-degree beam angle. The integrated flanged housing conceals rough cut-out edges during recessed mounting, delivering a clean architectural finish for specialized cabinet lighting installations. An adjustable rotatable shield allows precise beam positioning and light direction, accommodating 5mm width LED strip light options with full dimming support. DENO offers OEM custom lengths from 0.5m to 3m with matching end caps and mounting clips for wholesale project supply.
Specifications
| LED QTY | 120leds/m or above |
|---|---|
| PART NO | DL-1716HX-F |
| MATERIAL | AL6063-T5 |
| DIMMABLE | Yes |
| PCB WIDTH | 5mm |
| WARRANTY | 3 Years |
| BEAM ANGLE | 92° |
| RUN LENGTH | 0.5~3m |
| ACCESSORIES | End Cap | Clip |
| MAX.FPC WIDTH | 5mm |
| OPERATING TEMPERATURE | -25~40°C;Tc：75°C（max） |
Applications
- Cove, wall-wash & perimeter lighting — Coves, recesses, wall-wash details and ceiling perimeters where a continuous, uniform line of light is required.
- Showroom & hospitality display lighting — Shelving, display cases, reception desks and signage backlighting in shops, showrooms and hospitality spaces.
- Kitchen & wardrobe under-cabinet lighting — Kitchen, wardrobe and furniture task lighting where the strip stays hidden and only the light is seen.
- Ultra-narrow 5mm channels & shadow gaps — Fits shadow-gap details, slim profiles and joinery grooves that cannot take a standard 8–10mm strip.
Request a quotation for #DL-1716HX-F
DENO LED is a Shenzhen-based LED strip manufacturer with its own Foshan production base. Send the run length, voltage, CCT/CRI and IP rating you need and our engineering team replies with a specification sheet, wiring plan and price — OEM/ODM and fully custom builds included.
- Warranty: 5 years
- Lead time: standard boards: samples from 1 working day · custom: 3–5 working days · new FPCB: 1–3 weeks · production 1–2 weeks after sample approval
- Compliance: CE · UL · RoHS
- Bonding wire: 99.99% pure gold
- Copper foil: 99.9% pure copper FPCB
Related models in this series
See every model in Linear Light Series or narrow to Rotatable Linear Led. Compare wattage, lumen output and run length in the ProCalc parameter library, or request OEM/ODM pricing on the custom manufacturing page.
Frequently Asked Questions
What are the primary benefits of the rotatable glare shield design?
The rotatable glare shield allows for flexible adjustment of beam spread, precise light output control, and significant reduction of glare, enhancing visual comfort.
Can this linear LED light be customized for specific project lengths?
Yes, the DL-1716HX-F is available in customizable lengths ranging from 0.5m to 3m, allowing for tailored installations to meet project requirements.
What is the typical lead time for custom orders or large quantities of DL-1716HX-F?
For custom orders or large quantities, lead times typically range from 2-4 weeks, depending on order size and current production schedules. Please contact DENO LED sales.
What are the key specifications of #DL-1716HX-F?
17.4×15.97mm Rotatable Linear LED Light with Flange: 120leds/m or above, 5mm FPCB. Photometric files, wiring diagrams and test reports are available in the downloads block on this page.
How does the DL-1716HX-F mount and lock its aiming angle?
The DL-1716HX-F is a complete fixture with its own extruded aluminium housing and PC diffuser, so no separate channel is required. It is fixed through its flange into a surface or recessed slot, and the rotatable body is then aimed and held at the required angle without tools.
