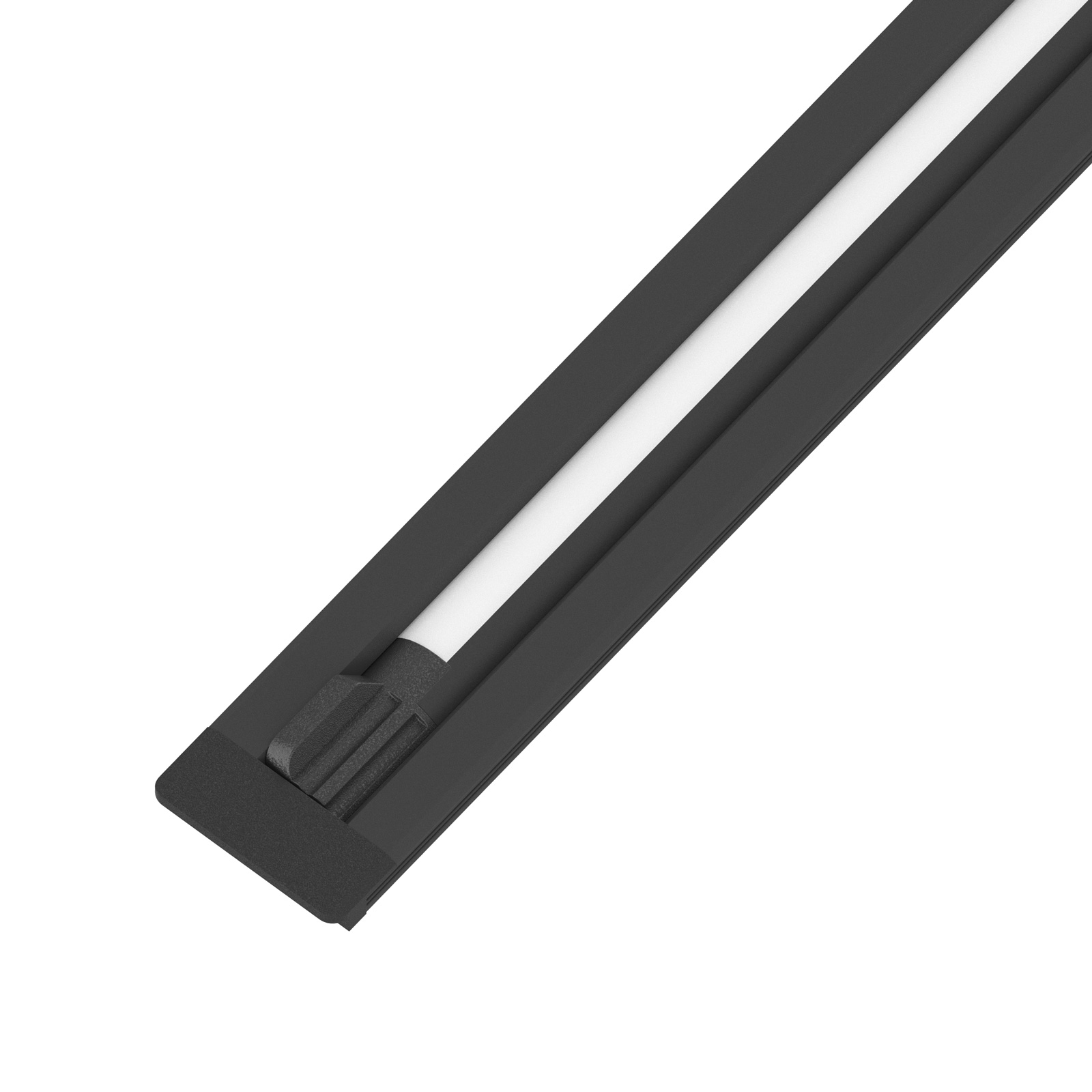

18×12.2mm Rotatable Linear LED Light with Flange
Model: DL-1213HX-F
Overview
The DL-1213HX-F from DENO LED is an 18x12.2mm rotatable linear LED light engineered for precision and aesthetic integration in B2B environments. It features a premium AL6063-T5 aluminum housing and a circular pivot rotation structure, allowing for effortless 71-degree beam adjustment to reduce glare. This dimmable fixture is optimized for various applications requiring focused illumination, such as under-cabinet task lighting and wardrobe illumination, ensuring a sleek and...
Description
Extruded from AL6063-T5 aluminum, this rotatable linear LED light pairs with an opal diffuser to deliver smooth, glare-free illumination with a 71-degree beam angle. The circular pivot rotation structure allows smooth directional aiming, making it an adjustable linear lighting solution for precision illumination in compact spaces. The integrated flange profile cleanly conceals cut-out edges during recessed mounting, providing a neat finish for high-end under-cabinet lighting and display cases. Engineered for 5mm width LED strip light integration with 120leds/m or above, this fixture supports dimmable control and operates reliably from -25°C to 40°C. Available in 0.5m to 3m lengths, our factory-direct manufacturing provides OEM custom lengths and tailored options for wholesale project supply.
Specifications
| LED QTY | 120leds/m or above |
|---|---|
| PART NO | DL-1213HX-F |
| MATERIAL | AL6063-T5 |
| DIMMABLE | Yes |
| PCB WIDTH | 5mm |
| WARRANTY | 3 Years |
| BEAM ANGLE | 71° |
| RUN LENGTH | 0.5~3m |
| MAX.FPC WIDTH | 5mm |
| OPERATING TEMPERATURE | -25~40°C;Tc：75°C（max） |
Applications
- Cove, wall-wash & perimeter lighting — Coves, recesses, wall-wash details and ceiling perimeters where a continuous, uniform line of light is required.
- Showroom & hospitality display lighting — Shelving, display cases, reception desks and signage backlighting in shops, showrooms and hospitality spaces.
- Kitchen & wardrobe under-cabinet lighting — Kitchen, wardrobe and furniture task lighting where the strip stays hidden and only the light is seen.
- Ultra-narrow 5mm channels & shadow gaps — Fits shadow-gap details, slim profiles and joinery grooves that cannot take a standard 8–10mm strip.
Request a quotation for #DL-1213HX-F
DENO LED is a Shenzhen-based LED strip manufacturer with its own Foshan production base. Send the run length, voltage, CCT/CRI and IP rating you need and our engineering team replies with a specification sheet, wiring plan and price — OEM/ODM and fully custom builds included.
- Warranty: 5 years
- Lead time: standard boards: samples from 1 working day · custom: 3–5 working days · new FPCB: 1–3 weeks · production 1–2 weeks after sample approval
- Compliance: CE · UL · RoHS
- Bonding wire: 99.99% pure gold
- Copper foil: 99.9% pure copper FPCB
Related models in this series
See every model in Linear Light Series or narrow to Rotatable Linear Led. Compare wattage, lumen output and run length in the ProCalc parameter library, or request OEM/ODM pricing on the custom manufacturing page.
Frequently Asked Questions
What are the key benefits of the rotatable feature for B2B applications?
The rotatable feature allows precise beam adjustment to direct light exactly where needed, minimizing glare and enhancing user comfort in commercial settings like retail or offices.
Which specific recessed or surface installations is this model suitable for?
The DL-1213HX-F is ideal for narrow applications such as under-cabinet task lighting, display cases, and wardrobe illumination due to its compact design and flanged profile.
Is the DL-1213HX-F compatible with various LED strip types and dimming systems?
Yes, it is designed for 5mm wide FPC LED strips, supporting 120leds/m or above, and is dimmable, offering flexibility for different lighting controls and preferences.
What are the key specifications of #DL-1213HX-F?
18×12.2mm Rotatable Linear LED Light with Flange: 120leds/m or above, 5mm FPCB. Photometric files, wiring diagrams and test reports are available in the downloads block on this page.
How does the DL-1213HX-F mount and lock its aiming angle?
The DL-1213HX-F is a complete fixture with its own extruded aluminium housing and PC diffuser, so no separate channel is required. It is fixed through its flange into a surface or recessed slot, and the rotatable body is then aimed and held at the required angle without tools.
