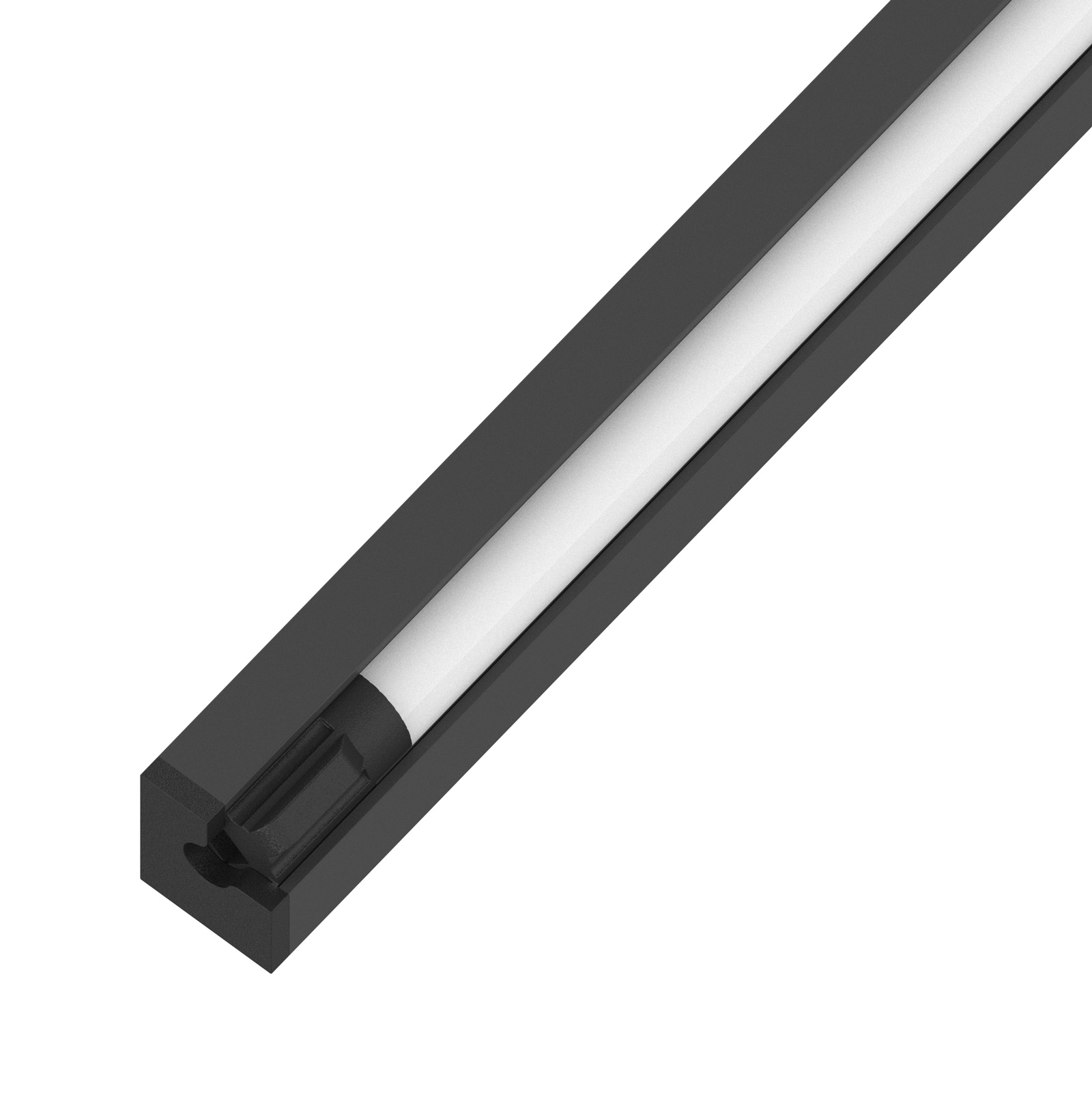

14.95×12.3mm Rotatable linear LED light
Model: DL-1512HX-M
Overview
The DL-1512HX-M is a premium 14.95×12.3mm rotatable linear LED light from DENO LED, engineered for precise and adaptable illumination. It boasts an aluminum housing with an opal PC diffuser, ensuring smooth light distribution. Its innovative circular pivot design supports magnetic mounting and allows for effortless body rotation, providing precise beam direction and reducing glare. Ideal for narrow applications such as under-cabinet task lighting, wardrobes, display cases,...
Description
Engineered from AL6063-T5 aluminum, this compact 14.95×12.3mm rotatable linear LED light features an opal PC diffuser delivering a smooth 120-degree beam angle. The innovative circular pivot housing supports magnetic mounting, allowing installers to rotate the fixture effortlessly for precise beam targeting and glare control. Designed for dimmable operation, the housing accommodates a 5mm PCB width LED strip light operating reliably across ambient temperatures from -25°C to 40°C. As a versatile adjustable fixture, it is ideal for under-cabinet task lighting, wardrobe illumination, retail display cases, and automotive cargo areas. Supplied with end caps and mounting clips up to 3 meters in length, we offer factory-direct manufacturing and wholesale project supply.
Specifications
| LED QTY | 120leds/m or above |
|---|---|
| PART NO | DL-1512HX-M |
| MATERIAL | AL6063-T5 |
| DIMMABLE | Yes |
| PCB WIDTH | 5mm |
| WARRANTY | 3 Years |
| BEAM ANGLE | 120° |
| RUN LENGTH | 3m |
| ACCESSORIES | End Cap | Clip |
| MAX.FPC WIDTH | 5mm |
| OPERATING TEMPERATURE | -25~40°C;Tc：75°C（max） |
Applications
- Cove, wall-wash & perimeter lighting — Coves, recesses, wall-wash details and ceiling perimeters where a continuous, uniform line of light is required.
- Showroom & hospitality display lighting — Shelving, display cases, reception desks and signage backlighting in shops, showrooms and hospitality spaces.
- Kitchen & wardrobe under-cabinet lighting — Kitchen, wardrobe and furniture task lighting where the strip stays hidden and only the light is seen.
- Ultra-narrow 5mm channels & shadow gaps — Fits shadow-gap details, slim profiles and joinery grooves that cannot take a standard 8–10mm strip.
Request a quotation for #DL-1512HX-M
DENO LED is a Shenzhen-based LED strip manufacturer with its own Foshan production base. Send the run length, voltage, CCT/CRI and IP rating you need and our engineering team replies with a specification sheet, wiring plan and price — OEM/ODM and fully custom builds included.
- Warranty: 5 years
- Lead time: standard boards: samples from 1 working day · custom: 3–5 working days · new FPCB: 1–3 weeks · production 1–2 weeks after sample approval
- Compliance: CE · UL · RoHS
- Bonding wire: 99.99% pure gold
- Copper foil: 99.9% pure copper FPCB
Related models in this series
See every model in Linear Light Series or narrow to Rotatable Linear Led. Compare wattage, lumen output and run length in the ProCalc parameter library, or request OEM/ODM pricing on the custom manufacturing page.
Frequently Asked Questions
What are the key benefits of the rotatable design for B2B applications?
The rotatable design allows for precise beam direction, reducing glare and optimizing light placement for specific tasks or product display in various commercial environments.
Is the DL-1512HX-M compatible with existing dimming systems?
Yes, the DL-1512HX-M is dimmable, offering flexibility for integration into various control systems to achieve desired light levels and energy savings.
What are the recommended mounting options for the DL-1512HX-M?
This fixture supports magnetic mounting due to its innovative circular pivot design, making installation quick and adaptable for various surfaces.
What are the key specifications of #DL-1512HX-M?
14.95×12.3mm Rotatable linear LED light: 120leds/m or above, 5mm FPCB. Photometric files, wiring diagrams and test reports are available in the downloads block on this page.
How does the DL-1512HX-M mount and lock its aiming angle?
The DL-1512HX-M is a complete fixture with its own extruded aluminium housing and PC diffuser, so no separate channel is required. It mounts directly into the prepared slot or surface, and the rotatable body is then aimed and held at the required angle without tools.
