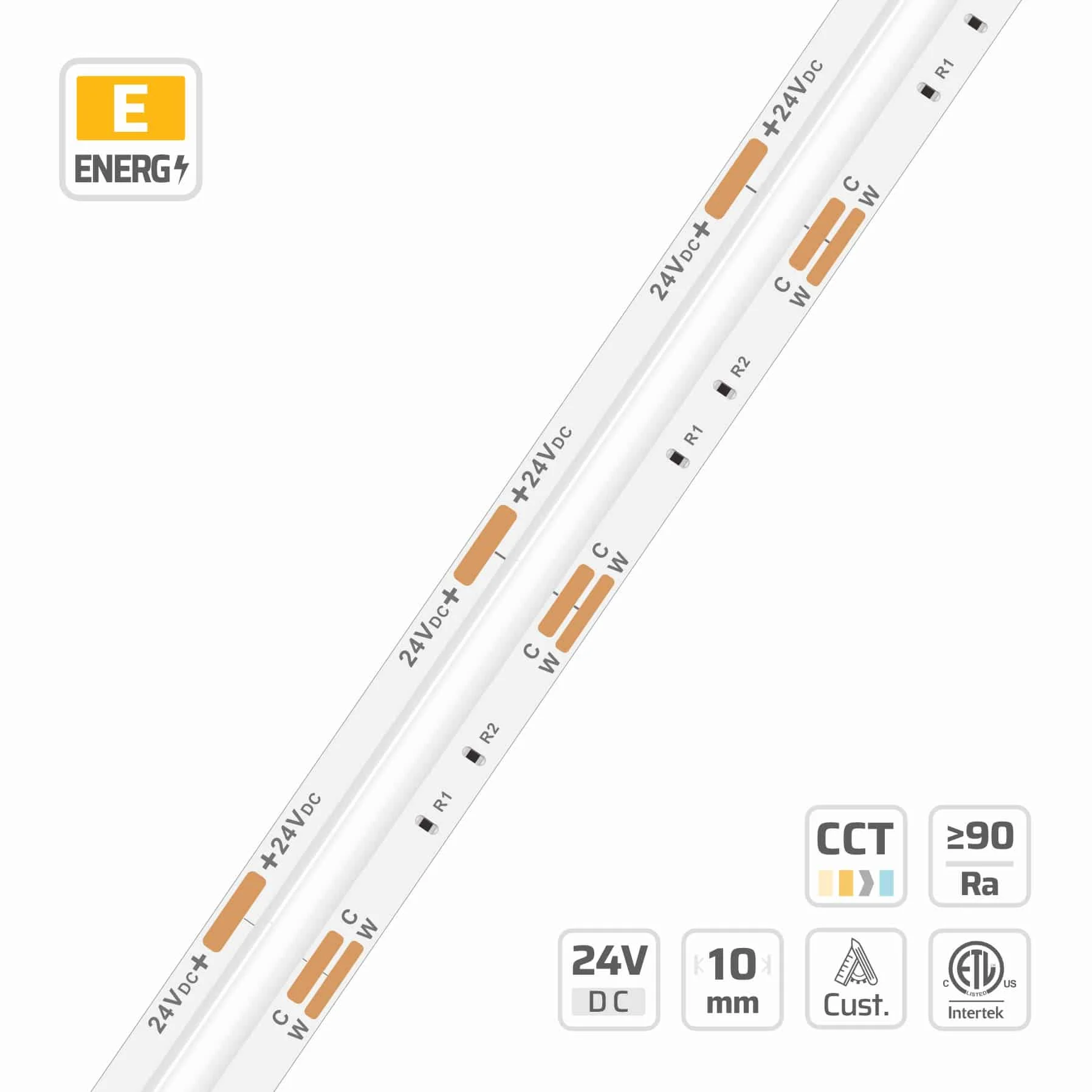

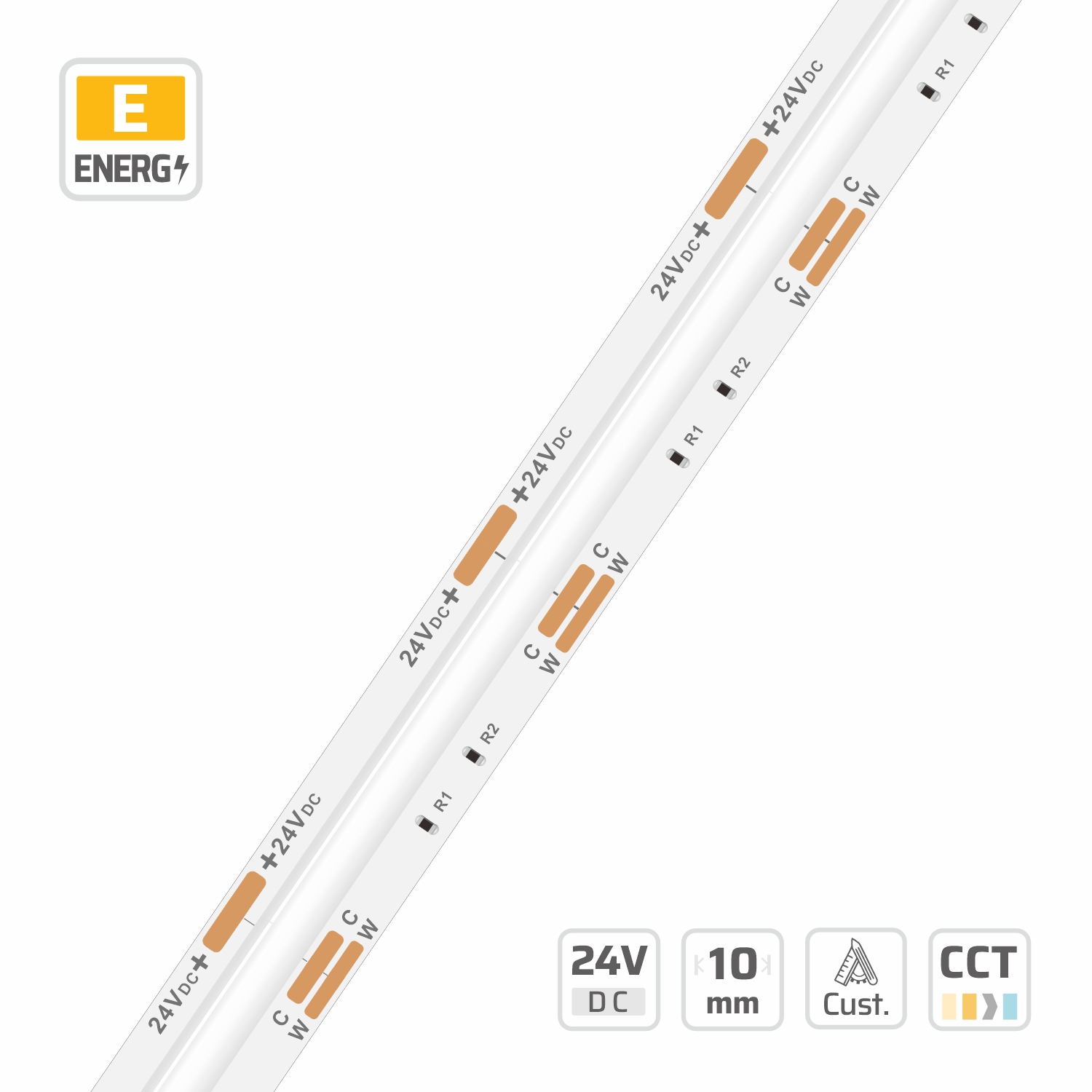

CCT Tunable SOB LED Strip Light (#16828)
10mm · 24V · 544LEDs · 29.412mm/cut
Model: 16828
Overview
The DENO LED 16828 CCT Tunable SOB Strip is a versatile 10mm, 24V LED solution featuring 544 LEDs per meter and a precise 29.412mm cuttable unit. This innovative SOB (Strip On Board) design provides adjustable color temperature from 2700K to 6500K with smooth transitions, eliminating light spots due to its high-density SMD1515 configuration. It supports multiple dimming modes including 0-10V, DALI, and PWM, ensuring broad compatibility. Ideal for home, commercial, and decor...
Description
CCT Tunable SOB LED Strip Light | 10mm | 24V | 544LEDs | 29.412mm/cut | #16828 SOB is an innovative linear solution combining flexibility and versatility. Adjustable color temperature from 2700K to 6500K with smooth transitions, suitable for different moods and settings. High density on PCB, no lighting spot, can make maximum 544LEDs/meter for single row using the SMD1515. Supports multiple dimming modes: 0-10V, DALI, PWM. High-quality PCB board ensures stability and reliability over prolonged use. Suitable for home lighting, commercial lighting, and decorative lighting applications.
Specifications
| LED QTY | 544 |
|---|---|
| PART NO | DL-FSOBA272V24-16828-* |
| SMD TYPE | SOB |
| CUTTABLE UNIT | 16LEDs/29.412mm |
| DIMMABLE | Yes |
| LED PITCH | 1.839mm |
| LIFESPAN | 50000 |
| PCB WIDTH | 10 |
| BEAM ANGLE | 160° |
| LENGTH MAX | 5m |
| COPPER FOIL | 3oz |
| POWER RANGE | 12~24W |
| CIRCUIT TYPE | C.V. |
| INPUT VOLTAGE | 24V |
| OPERATING TEMPERATURE | -25~40°C; Tc: 75°C (max) |
Applications
- Cove, wall-wash & perimeter lighting — Coves, recesses, wall-wash details and ceiling perimeters where a continuous, uniform line of light is required.
- Showroom & hospitality display lighting — Shelving, display cases, reception desks and signage backlighting in shops, showrooms and hospitality spaces.
- Kitchen & wardrobe under-cabinet lighting — Kitchen, wardrobe and furniture task lighting where the strip stays hidden and only the light is seen.
- Hotel & residential tunable-white scenes — Hotel rooms, residential living areas and meeting spaces where warm evening light and neutral daytime light are both required from one fixture.
Request a quotation for #16828
DENO LED is a Shenzhen-based LED strip manufacturer with its own Foshan production base. Send the run length, voltage, CCT/CRI and IP rating you need and our engineering team replies with a specification sheet, wiring plan and price — OEM/ODM and fully custom builds included.
- Warranty: 5 years
- Compliance: CE · UL · RoHS
- Bonding wire: 99.99% pure gold
- Copper foil: 99.9% pure copper FPCB
Photometric Performance — CCT × CRI Efficacy Matrix
Peak measured luminous efficacy: 138.5 lm/W at 6500K, Ra 90, ErP energy class D (Grade DL (2nd Tier) · CCT 3-Anchor · 12W/m).
All values are measured at the stated power density and ambient 25 °C, reported as luminous efficacy in lumens per watt (lm/W), luminous flux per metre (lm/m) and the corresponding EU ErP (2019/2015) energy class.
Grade DL (2nd Tier) · CCT 3-Anchor · 12W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 2700 K | — | — | — | 124.6 lm/W | 747.6 lm/m | E | — | — | — |
| 4000 K | — | — | — | 125.9 lm/W | 1511.2 lm/m | E | — | — | — |
| 6500 K | — | — | — | 138.5 lm/W | 831 lm/m | D | — | — | — |
Grade DL (2nd Tier) · CCT 3-Anchor · 15W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 2700 K | — | — | — | 122 lm/W | 915 lm/m | E | — | — | — |
| 4000 K | — | — | — | 123.3 lm/W | 1849.6 lm/m | E | — | — | — |
| 6500 K | — | — | — | 135.6 lm/W | 1017.1 lm/m | D | — | — | — |
Grade DL (2nd Tier) · CCT 3-Anchor · 24W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 2700 K | — | — | — | 114.5 lm/W | 1374.3 lm/m | E | — | — | — |
| 4000 K | — | — | — | 115.7 lm/W | 2778 lm/m | E | — | — | — |
| 6500 K | — | — | — | 127.3 lm/W | 1527.7 lm/m | E | — | — | — |
Frequently Asked Questions
What CCT range does this LED strip offer?
This CCT Tunable LED strip provides an adjustable color temperature range from 2700K (warm white) to 6500K (cool white), allowing for diverse ambiance.
What dimming protocols are compatible with this product?
The 16828 LED strip is compatible with multiple dimming protocols, including 0-10V, DALI, and PWM, offering flexible control options for integration.
Is this SOB LED strip suitable for outdoor use?
This specific model is designed for indoor applications. For outdoor use, please inquire about our IP-rated SOB LED strip series for weather protection.
What is the maximum continuous run length for this strip?
The maximum recommended continuous run length for this 24V LED strip is 5 meters to ensure consistent brightness and optimal performance without voltage drop.
Is this SOB strip light also called FOB, S-COB or COB Pro strip light?
Yes. Model 16828 belongs to the DENO SOB (Spot on Board) family, which the market also calls FOB strip light, S-COB strip light or COB Pro strip light. All three names describe the same dot-free chip-on-board LED strip construction, so you can quote it under whichever term your project specification uses.
Why choose this S-COB strip light over a standard COB LED strip?
Compared with conventional COB LED strip, DENO SOB / FOB strip light supports higher power up to 24W/m instead of roughly 12W/m, CRI 95 and full-spectrum options, SDCM <=3 colour consistency, and single-end power feed at 5m, 10m and 15m without visible head-to-tail brightness loss, with higher luminous efficacy and lumen output.
CCT Tunable COB LED Strip — Buyer Questions
What CCT range does a tunable white COB LED strip cover?
The dual white LED strip runs 2700K to 6500K from one 24V board, with 2200K–4000K and 3000K–6000K available on OEM orders. Both channels sit under the same dot-free phosphor line, so warm, cool and every mix in between stay perfectly uniform with no colour banding along the run.
- Series Tunable White SOB strips
- Guide model the mixed CCT output
- Related series dim to warm alternative
How is a CCT adjustable COB LED strip 24V wired and controlled?
Three conductors: common positive plus a warm and a cool channel. Any 2-channel CCT controller, DALI DT8 gateway or 0-10V dual driver will drive it. The 16828 build carries 544 LEDs/m at 12–24W/m, so plan roughly half the wattage per channel at full mix.
- Series Tunable White SOB strips
- Related series constant current dimming behaviour
- Guide ask DENO for a control schematic
Can a 3-in-1 CCT LED strip be used for circadian or human centric lighting?
Yes. With a DALI DT8 or DMX scene controller the strip tracks a daily curve from 6500K morning light down to 2700K evening light at constant illuminance. Combined with CRI 95 and full-spectrum phosphor it meets most human centric lighting briefs for offices, clinics and hospitality.
- Series Tunable White SOB strips
- Related series full spectrum boards for circadian work
- Guide custom circadian specifications
Is there a high CRI tunable white LED strip at CRI 95?
CRI 95 with R9 above 50 is standard on the tunable range, and CRI 97 is available on request. Because both channels are binned to ≤3 SDCM, the mixed point does not drift green or pink as the mix changes — the failure mode that makes cheap dual-white tape unusable in hotels.
- Series Tunable White SOB strips
- Related series tight colour binning on white channels
- Guide why SOB holds colour better than COB
Which projects suit a dimmable CCT LED strip for hotel or office lighting?
Guest-room headboards and coves, meeting rooms and reception soffits — anywhere one fixture must read warm at night and neutral by day. The dot-free surface matters here because the tape sits close to the reveal and dots would be visible at seated eye height.
- Series Tunable White SOB strips
- Related series profiles for hotel cove details
- Guide discuss a hotel specification
SOB is the upgraded generation of the COB LED strip
Every SOB board on this page starts from the classic COB recipe — one continuous phosphor line, zero visible dots — and rebuilds it on flip-chip dies and thick copper. The result keeps the COB look but runs to 24W/m, holds CRI 95 and stays within SDCM ≤3 over the full reel. If your project is comfortable at 4–12W/m, the classic COB range remains the economical choice; if you need double the output or a 15 m single-feed run, you are already on the right page.
