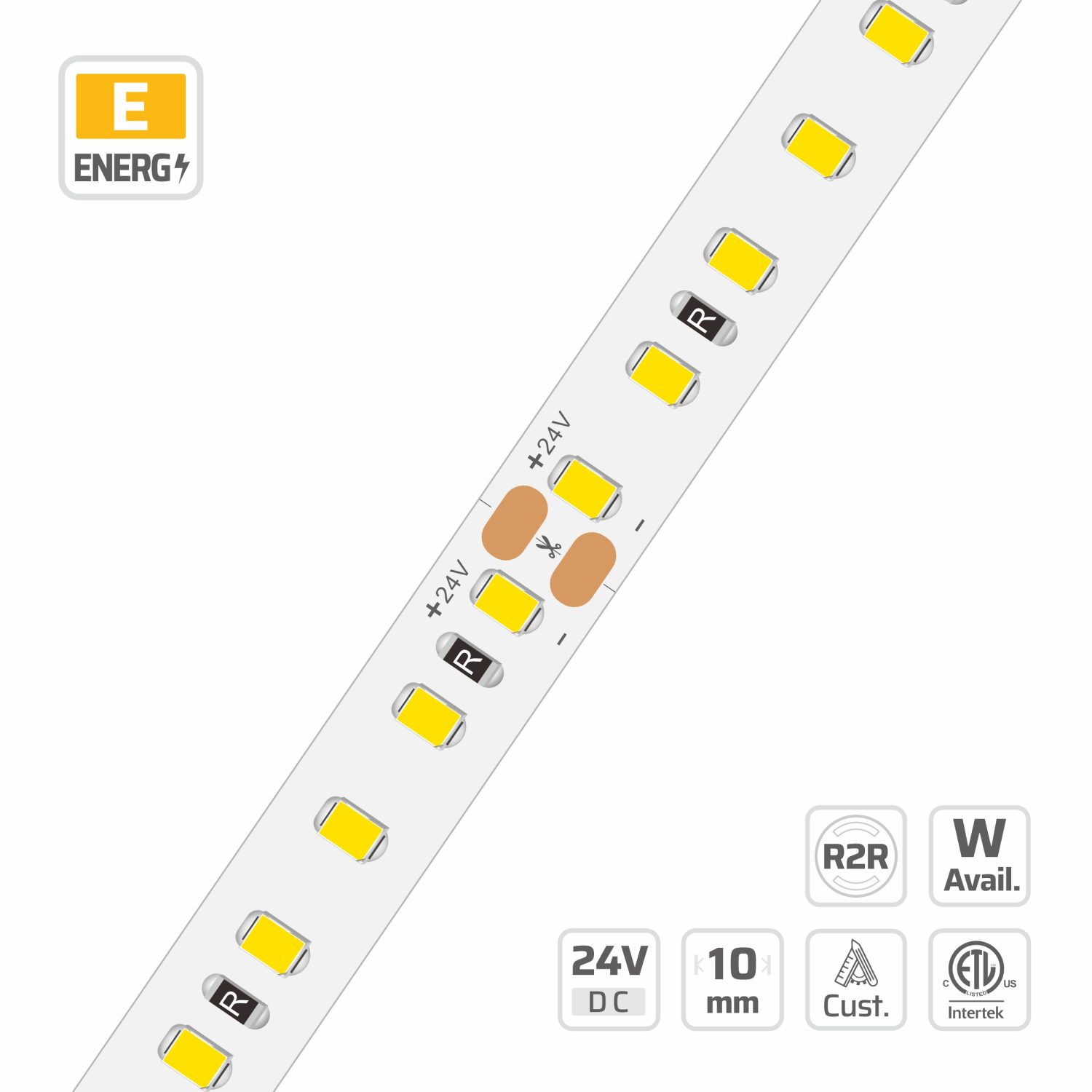

Roll-to-Roll Long Reel LED Strip Light (#16770)
10mm · 24V · 120LEDs · 50mm/cut
Model: 16770
Overview
Roll-to-Roll Long Reel LED Strip Light | 10mm | 24V | 120LEDs | 50mm/cut | #16770 is part of the DENO Roll-to-Roll SMD Strips series, engineered around roll to roll LED strip. Key specifications: 2835, 120 LEDs/m, DC 24V, 10mm PCB, 2oz copper FPCB, cuttable 6LEDs/50mm. Every reel is produced on DENO's roll-to-roll line with 99.9% pure copper FPCB and ships CE, UL and RoHS compliant for architectural, retail and hospitality projects. OEM and ODM configurations of length, colour temperature and waterproofing are available on request.
Description
Roll-to-Roll Long Reel LED Strip Light | 10mm | 24V | 120LEDs | 50mm/cut | #16770
The long-reel LED strip light utilizes innovative Reel-to-Reel one-piece production technology, manufactured continuously in full rolls without the 0.5m solder joints required by traditional processes. This results in a more integrated structure and stable current flow, significantly enhancing uniformity and reliability.
With a 10mm width and high density of 120 LEDs/m, it delivers consistent brightness output and supports multiple dimming methods including PWM, DALI, and 0-10V, ideal for commercial lighting, exhibitions, and decorative applications demanding high brightness and consistency.
Choosing this long-reel LED strip light ensures seamless illumination over large areas. Its constant voltage power supply maintains stable brightness under varying loads, a key advantage of the long-reel LED strip light. As an advanced long-reel LED strip light, it simplifies installation and reduces failure risks.
Roll To Roll Led Strip built for roll-to-roll smd strips projects.
Specifications
| LED QTY | 120 LEDs/m |
|---|
| PART NO | DL-F28A60V24-16770-* |
|---|
| SMD TYPE | 2835 |
|---|
| CUTTABLE UNIT | 6LEDs/50mm |
|---|
| DIMMABLE | Yes |
|---|
| LED PITCH | 8.333mm |
|---|
| PCB WIDTH | 10mm |
|---|
| BEAM ANGLE | 120° |
|---|
| LENGTH MAX | 20m |
|---|
| COPPER FOIL | 2oz |
|---|
| POWER RANGE | 2.4~28.8W |
|---|
| CIRCUIT TYPE | C.V. |
|---|
| INPUT VOLTAGE | DC 24V |
|---|
| OPERATING TEMPERATURE | -25~40°C;Tc：75°C（max） |
|---|
Applications
- Cove, wall-wash & perimeter lighting — Coves, recesses, wall-wash details and ceiling perimeters where a continuous, uniform line of light is required.
- Showroom & hospitality display lighting — Shelving, display cases, reception desks and signage backlighting in shops, showrooms and hospitality spaces.
- Kitchen & wardrobe under-cabinet lighting — Kitchen, wardrobe and furniture task lighting where the strip stays hidden and only the light is seen.
Request a quotation for #16770
DENO LED is a Shenzhen-based LED strip manufacturer with its own Foshan production base. Send the run length, voltage, CCT/CRI and IP rating you need and our engineering team replies with a specification sheet, wiring plan and price — OEM/ODM and fully custom builds included.
- Warranty: 5 years
- Compliance: CE · UL · RoHS
- Bonding wire: 99.99% pure gold
- Copper foil: 99.9% pure copper FPCB
Contact DENO LED engineers · OEM / ODM capability
Photometric Performance — CCT × CRI Efficacy Matrix
Peak measured luminous efficacy: 162.9 lm/W at 4000K, Ra 80, ErP energy class D (Grade DN (1st Tier) · 4.8W/m).
All values are measured at the stated power density and ambient 25 °C, reported as luminous efficacy in lumens per watt (lm/W), luminous flux per metre (lm/m) and the corresponding EU ErP (2019/2015) energy class.
Grade DL (2nd Tier) · 4.8W/m
Grade DL (2nd Tier) · 4.8W/m — measured at 4.8 W/m: luminous efficacy (lm/W), luminous flux (lm/m) and ErP energy class per CCT and CRI grade.| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|
| 1800 K | 116.2 lm/W | 557.8 lm/m | E | 93 lm/W | 446.4 lm/m | F | — | — | — |
|---|
| 2300 K | 129.3 lm/W | 620.5 lm/m | E | 103.5 lm/W | 497 lm/m | F | 84.2 lm/W | 404.1 lm/m | F |
|---|
| 2700 K | 136.2 lm/W | 653.9 lm/m | D | 112.1 lm/W | 538 lm/m | E | 90.8 lm/W | 435.8 lm/m | F |
|---|
| 3000 K | 145.5 lm/W | 698.5 lm/m | D | 118 lm/W | 566.4 lm/m | E | 96 lm/W | 460.6 lm/m | F |
|---|
| 3500 K | 147.7 lm/W | 709.1 lm/m | D | 120.1 lm/W | 576.5 lm/m | E | 98.8 lm/W | 474.3 lm/m | F |
|---|
| 4000 K | 152.5 lm/W | 731.9 lm/m | D | 123 lm/W | 590.2 lm/m | E | 101.4 lm/W | 486.9 lm/m | F |
|---|
| 5000 K | 152.4 lm/W | 731.4 lm/m | D | 122.8 lm/W | 589.7 lm/m | E | 100.4 lm/W | 482 lm/m | F |
|---|
| 6500 K | 139.4 lm/W | 669.1 lm/m | D | 117.9 lm/W | 565.9 lm/m | E | 97.4 lm/W | 467.4 lm/m | F |
|---|
Grade DL (2nd Tier) · 7.2W/m
Grade DL (2nd Tier) · 7.2W/m — measured at 7.2 W/m: luminous efficacy (lm/W), luminous flux (lm/m) and ErP energy class per CCT and CRI grade.| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|
| 1800 K | 114.3 lm/W | 822.7 lm/m | E | 91.4 lm/W | 658.4 lm/m | F | — | — | — |
|---|
| 2300 K | 127.1 lm/W | 915.2 lm/m | E | 101.8 lm/W | 733.1 lm/m | F | 82.8 lm/W | 596.1 lm/m | F |
|---|
| 2700 K | 134 lm/W | 964.5 lm/m | E | 110.2 lm/W | 793.6 lm/m | E | 89.3 lm/W | 642.8 lm/m | F |
|---|
| 3000 K | 143.1 lm/W | 1030.2 lm/m | D | 116 lm/W | 835.4 lm/m | E | 94.4 lm/W | 679.3 lm/m | F |
|---|
| 3500 K | 145.3 lm/W | 1045.9 lm/m | D | 118.1 lm/W | 850.3 lm/m | E | 97.2 lm/W | 699.5 lm/m | F |
|---|
| 4000 K | 149.9 lm/W | 1079.5 lm/m | D | 120.9 lm/W | 870.4 lm/m | E | 99.7 lm/W | 718.2 lm/m | F |
|---|
| 5000 K | 149.8 lm/W | 1078.7 lm/m | D | 120.8 lm/W | 869.7 lm/m | E | 98.7 lm/W | 711 lm/m | F |
|---|
| 6500 K | 137.1 lm/W | 986.9 lm/m | D | 115.9 lm/W | 834.6 lm/m | E | 95.8 lm/W | 689.4 lm/m | F |
|---|
Grade DL (2nd Tier) · 9.6W/m
Grade DL (2nd Tier) · 9.6W/m — measured at 9.6 W/m: luminous efficacy (lm/W), luminous flux (lm/m) and ErP energy class per CCT and CRI grade.| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|
| 1800 K | 112.3 lm/W | 1078.6 lm/m | E | 89.9 lm/W | 863.2 lm/m | F | — | — | — |
|---|
| 2300 K | 125 lm/W | 1199.9 lm/m | E | 100.1 lm/W | 961.1 lm/m | F | 81.4 lm/W | 781.5 lm/m | F |
|---|
| 2700 K | 131.7 lm/W | 1264.5 lm/m | E | 108.4 lm/W | 1040.4 lm/m | F | 87.8 lm/W | 842.7 lm/m | F |
|---|
| 3000 K | 140.7 lm/W | 1350.6 lm/m | D | 114.1 lm/W | 1095.2 lm/m | E | 92.8 lm/W | 890.6 lm/m | F |
|---|
| 3500 K | 142.8 lm/W | 1371.2 lm/m | D | 116.1 lm/W | 1114.8 lm/m | E | 95.5 lm/W | 917.1 lm/m | F |
|---|
| 4000 K | 147.4 lm/W | 1415.2 lm/m | D | 118.9 lm/W | 1141.2 lm/m | E | 98.1 lm/W | 941.5 lm/m | F |
|---|
| 5000 K | 147.3 lm/W | 1414.3 lm/m | D | 118.8 lm/W | 1140.2 lm/m | E | 97.1 lm/W | 932.1 lm/m | F |
|---|
| 6500 K | 134.8 lm/W | 1293.9 lm/m | E | 114 lm/W | 1094.2 lm/m | E | 94.2 lm/W | 903.9 lm/m | F |
|---|
Grade DL (2nd Tier) · 12W/m
Grade DL (2nd Tier) · 12W/m — measured at 12 W/m: luminous efficacy (lm/W), luminous flux (lm/m) and ErP energy class per CCT and CRI grade.| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|
| 1800 K | 110.5 lm/W | 1325.7 lm/m | E | 88.4 lm/W | 1061 lm/m | F | — | — | — |
|---|
| 2300 K | 122.9 lm/W | 1474.8 lm/m | E | 98.4 lm/W | 1181.3 lm/m | F | 80 lm/W | 960.5 lm/m | F |
|---|
| 2700 K | 129.5 lm/W | 1554.2 lm/m | E | 106.6 lm/W | 1278.7 lm/m | F | 86.3 lm/W | 1035.7 lm/m | F |
|---|
| 3000 K | 138.3 lm/W | 1660.1 lm/m | D | 112.2 lm/W | 1346.1 lm/m | E | 91.2 lm/W | 1094.7 lm/m | F |
|---|
| 3500 K | 140.4 lm/W | 1685.3 lm/m | D | 114.2 lm/W | 1370.2 lm/m | E | 93.9 lm/W | 1127.2 lm/m | F |
|---|
| 4000 K | 145 lm/W | 1739.5 lm/m | D | 116.9 lm/W | 1402.6 lm/m | E | 96.4 lm/W | 1157.2 lm/m | F |
|---|
| 5000 K | 144.9 lm/W | 1738.3 lm/m | D | 116.8 lm/W | 1401.4 lm/m | E | 95.5 lm/W | 1145.7 lm/m | F |
|---|
| 6500 K | 132.5 lm/W | 1590.3 lm/m | E | 112.1 lm/W | 1344.9 lm/m | E | 92.6 lm/W | 1111 lm/m | F |
|---|
Grade DL (2nd Tier) · 14.4W/m
Grade DL (2nd Tier) · 14.4W/m — measured at 14.4 W/m: luminous efficacy (lm/W), luminous flux (lm/m) and ErP energy class per CCT and CRI grade.| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|
| 1800 K | 108.6 lm/W | 1564.2 lm/m | F | 86.9 lm/W | 1251.9 lm/m | F | — | — | — |
|---|
| 2300 K | 120.8 lm/W | 1740.2 lm/m | E | 96.8 lm/W | 1393.9 lm/m | F | 78.7 lm/W | 1133.3 lm/m | F |
|---|
| 2700 K | 127.4 lm/W | 1833.9 lm/m | E | 104.8 lm/W | 1508.8 lm/m | F | 84.9 lm/W | 1222.1 lm/m | G |
|---|
| 3000 K | 136 lm/W | 1958.8 lm/m | D | 110.3 lm/W | 1588.3 lm/m | E | 89.7 lm/W | 1291.7 lm/m | F |
|---|
| 3500 K | 138.1 lm/W | 1988.6 lm/m | D | 112.3 lm/W | 1616.7 lm/m | E | 92.4 lm/W | 1330 lm/m | F |
|---|
| 4000 K | 142.5 lm/W | 2052.5 lm/m | D | 114.9 lm/W | 1655 lm/m | E | 94.8 lm/W | 1365.5 lm/m | F |
|---|
| 5000 K | 142.4 lm/W | 2051.1 lm/m | D | 114.8 lm/W | 1653.6 lm/m | E | 93.9 lm/W | 1351.8 lm/m | F |
|---|
| 6500 K | 130.3 lm/W | 1876.5 lm/m | E | 110.2 lm/W | 1586.9 lm/m | E | 91 lm/W | 1310.9 lm/m | F |
|---|
Grade DN (1st Tier) · 4.8W/m
Grade DN (1st Tier) · 4.8W/m — measured at 4.8 W/m: luminous efficacy (lm/W), luminous flux (lm/m) and ErP energy class per CCT and CRI grade.| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|
| 1800 K | 127.7 lm/W | 612.9 lm/m | E | 107.5 lm/W | 515.8 lm/m | F | — | — | — |
|---|
| 2300 K | 139.2 lm/W | 668.1 lm/m | E | 119.9 lm/W | 575.5 lm/m | E | 96.4 lm/W | 463 lm/m | F |
|---|
| 2700 K | 150.1 lm/W | 720.2 lm/m | D | 129.7 lm/W | 622.6 lm/m | E | 105.1 lm/W | 504.6 lm/m | F |
|---|
| 3000 K | 157.5 lm/W | 756.2 lm/m | D | 137 lm/W | 657.5 lm/m | E | 111.4 lm/W | 534.5 lm/m | F |
|---|
| 3500 K | 160 lm/W | 767.8 lm/m | D | 139.9 lm/W | 671.7 lm/m | E | 115.1 lm/W | 552.7 lm/m | F |
|---|
| 4000 K | 162.9 lm/W | 782 lm/m | D | 140.8 lm/W | 675.7 lm/m | E | 116.2 lm/W | 557.8 lm/m | F |
|---|
| 5000 K | 162.7 lm/W | 781 lm/m | D | 141.6 lm/W | 679.8 lm/m | E | 115 lm/W | 552.2 lm/m | F |
|---|
| 6500 K | 156 lm/W | 748.6 lm/m | D | 135.4 lm/W | 649.9 lm/m | E | 111.6 lm/W | 535.5 lm/m | F |
|---|
Grade DN (1st Tier) · 7.2W/m
Grade DN (1st Tier) · 7.2W/m — measured at 7.2 W/m: luminous efficacy (lm/W), luminous flux (lm/m) and ErP energy class per CCT and CRI grade.| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|
| 1800 K | 125.6 lm/W | 904 lm/m | E | 105.7 lm/W | 760.7 lm/m | F | — | — | — |
|---|
| 2300 K | 136.9 lm/W | 985.4 lm/m | E | 117.9 lm/W | 848.8 lm/m | F | 94.8 lm/W | 682.8 lm/m | F |
|---|
| 2700 K | 147.5 lm/W | 1062.3 lm/m | D | 127.5 lm/W | 918.2 lm/m | E | 103.4 lm/W | 744.3 lm/m | F |
|---|
| 3000 K | 154.9 lm/W | 1115.3 lm/m | D | 134.7 lm/W | 969.7 lm/m | E | 109.5 lm/W | 788.3 lm/m | F |
|---|
| 3500 K | 157.3 lm/W | 1132.5 lm/m | D | 137.6 lm/W | 990.6 lm/m | E | 113.2 lm/W | 815.2 lm/m | F |
|---|
| 4000 K | 160.2 lm/W | 1153.4 lm/m | D | 138.4 lm/W | 996.6 lm/m | E | 114.3 lm/W | 822.7 lm/m | F |
|---|
| 5000 K | 160 lm/W | 1151.9 lm/m | D | 139.2 lm/W | 1002.6 lm/m | E | 113.1 lm/W | 814.4 lm/m | F |
|---|
| 6500 K | 153.3 lm/W | 1104.1 lm/m | D | 133.1 lm/W | 958.5 lm/m | E | 109.7 lm/W | 789.8 lm/m | F |
|---|
Grade DN (1st Tier) · 9.6W/m
Grade DN (1st Tier) · 9.6W/m — measured at 9.6 W/m: luminous efficacy (lm/W), luminous flux (lm/m) and ErP energy class per CCT and CRI grade.| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|
| 1800 K | 123.5 lm/W | 1185.2 lm/m | E | 103.9 lm/W | 997.3 lm/m | F | — | — | — |
|---|
| 2300 K | 134.6 lm/W | 1291.9 lm/m | E | 115.9 lm/W | 1112.8 lm/m | F | 93.3 lm/W | 895.2 lm/m | F |
|---|
| 2700 K | 145.1 lm/W | 1392.7 lm/m | E | 125.4 lm/W | 1203.8 lm/m | E | 101.6 lm/W | 975.8 lm/m | F |
|---|
| 3000 K | 152.3 lm/W | 1462.2 lm/m | D | 132.4 lm/W | 1271.4 lm/m | E | 107.7 lm/W | 1033.5 lm/m | F |
|---|
| 3500 K | 154.7 lm/W | 1484.7 lm/m | D | 135.3 lm/W | 1298.8 lm/m | E | 111.3 lm/W | 1068.8 lm/m | F |
|---|
| 4000 K | 157.5 lm/W | 1512.1 lm/m | D | 136.1 lm/W | 1306.6 lm/m | E | 112.3 lm/W | 1078.6 lm/m | F |
|---|
| 5000 K | 157.3 lm/W | 1510.2 lm/m | D | 136.9 lm/W | 1314.4 lm/m | E | 111.2 lm/W | 1067.8 lm/m | F |
|---|
| 6500 K | 150.8 lm/W | 1447.5 lm/m | D | 130.9 lm/W | 1256.7 lm/m | E | 107.9 lm/W | 1035.4 lm/m | F |
|---|
Grade DN (1st Tier) · 12W/m
Grade DN (1st Tier) · 12W/m — measured at 12 W/m: luminous efficacy (lm/W), luminous flux (lm/m) and ErP energy class per CCT and CRI grade.| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|
| 1800 K | 121.4 lm/W | 1456.8 lm/m | E | 102.2 lm/W | 1225.8 lm/m | F | — | — | — |
|---|
| 2300 K | 132.3 lm/W | 1587.9 lm/m | E | 114 lm/W | 1367.8 lm/m | F | 91.7 lm/W | 1100.3 lm/m | F |
|---|
| 2700 K | 142.7 lm/W | 1711.8 lm/m | E | 123.3 lm/W | 1479.6 lm/m | E | 99.9 lm/W | 1199.3 lm/m | F |
|---|
| 3000 K | 149.8 lm/W | 1797.2 lm/m | D | 130.2 lm/W | 1562.6 lm/m | E | 105.9 lm/W | 1270.3 lm/m | F |
|---|
| 3500 K | 152.1 lm/W | 1824.9 lm/m | D | 133 lm/W | 1596.3 lm/m | E | 109.5 lm/W | 1313.6 lm/m | F |
|---|
| 4000 K | 154.9 lm/W | 1858.6 lm/m | D | 133.8 lm/W | 1605.9 lm/m | E | 110.5 lm/W | 1325.7 lm/m | F |
|---|
| 5000 K | 154.7 lm/W | 1856.2 lm/m | D | 134.6 lm/W | 1615.6 lm/m | E | 109.4 lm/W | 1312.4 lm/m | F |
|---|
| 6500 K | 148.3 lm/W | 1779.2 lm/m | D | 128.7 lm/W | 1544.6 lm/m | E | 106.1 lm/W | 1272.6 lm/m | F |
|---|
Grade DN (1st Tier) · 14.4W/m
Grade DN (1st Tier) · 14.4W/m — measured at 14.4 W/m: luminous efficacy (lm/W), luminous flux (lm/m) and ErP energy class per CCT and CRI grade.| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|
| 1800 K | 119.4 lm/W | 1718.9 lm/m | E | 100.4 lm/W | 1446.4 lm/m | F | — | — | — |
|---|
| 2300 K | 130.1 lm/W | 1873.6 lm/m | E | 112.1 lm/W | 1613.9 lm/m | F | 90.2 lm/W | 1298.3 lm/m | F |
|---|
| 2700 K | 140.3 lm/W | 2019.8 lm/m | E | 121.2 lm/W | 1745.9 lm/m | E | 98.3 lm/W | 1415.2 lm/m | F |
|---|
| 3000 K | 147.3 lm/W | 2120.6 lm/m | D | 128 lm/W | 1843.8 lm/m | E | 104.1 lm/W | 1498.9 lm/m | F |
|---|
| 3500 K | 149.5 lm/W | 2153.2 lm/m | D | 130.8 lm/W | 1883.6 lm/m | E | 107.6 lm/W | 1550 lm/m | F |
|---|
| 4000 K | 152.3 lm/W | 2193 lm/m | D | 131.6 lm/W | 1894.9 lm/m | E | 108.6 lm/W | 1564.2 lm/m | F |
|---|
| 5000 K | 152.1 lm/W | 2190.2 lm/m | D | 132.4 lm/W | 1906.3 lm/m | E | 107.5 lm/W | 1548.6 lm/m | F |
|---|
| 6500 K | 145.8 lm/W | 2099.3 lm/m | E | 126.6 lm/W | 1822.5 lm/m | E | 104.3 lm/W | 1501.6 lm/m | F |
|---|
Grade KE (3rd Tier) · 4.8W/m
Grade KE (3rd Tier) · 4.8W/m — measured at 4.8 W/m: luminous efficacy (lm/W), luminous flux (lm/m) and ErP energy class per CCT and CRI grade.| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|
| 1900 K | 95 lm/W | 456 lm/m | F | 75.8 lm/W | 363.9 lm/m | G | — | — | — |
|---|
| 2300 K | 105.9 lm/W | 508.2 lm/m | F | 84.5 lm/W | 405.4 lm/m | G | 69.1 lm/W | 331.9 lm/m | G |
|---|
| 2700 K | 114.1 lm/W | 547.6 lm/m | E | 91.6 lm/W | 439.8 lm/m | F | 74.3 lm/W | 356.8 lm/m | G |
|---|
| 3000 K | 119.8 lm/W | 575 lm/m | E | 96.9 lm/W | 465.1 lm/m | F | 78.8 lm/W | 378.1 lm/m | G |
|---|
| 3500 K | 121.6 lm/W | 583.6 lm/m | E | 98.8 lm/W | 474.3 lm/m | F | 81.3 lm/W | 390.2 lm/m | G |
|---|
| 4000 K | 125.2 lm/W | 600.8 lm/m | E | 100.9 lm/W | 484.4 lm/m | F | 83.3 lm/W | 399.9 lm/m | G |
|---|
| 5000 K | 125 lm/W | 599.8 lm/m | E | 100.9 lm/W | 484.4 lm/m | F | 82.5 lm/W | 395.9 lm/m | G |
|---|
| 6500 K | 119.8 lm/W | 575 lm/m | E | 96.9 lm/W | 465.1 lm/m | F | 80 lm/W | 383.9 lm/m | G |
|---|
Grade KE (3rd Tier) · 7.2W/m
Grade KE (3rd Tier) · 7.2W/m — measured at 7.2 W/m: luminous efficacy (lm/W), luminous flux (lm/m) and ErP energy class per CCT and CRI grade.| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|
| 1900 K | 93.4 lm/W | 672.6 lm/m | F | 74.5 lm/W | 536.8 lm/m | G | — | — | — |
|---|
| 2300 K | 104.1 lm/W | 749.5 lm/m | F | 83.1 lm/W | 598 lm/m | G | 68 lm/W | 489.5 lm/m | G |
|---|
| 2700 K | 112.2 lm/W | 807.7 lm/m | E | 90.1 lm/W | 648.7 lm/m | F | 73.1 lm/W | 526.3 lm/m | G |
|---|
| 3000 K | 117.8 lm/W | 848.1 lm/m | E | 95.3 lm/W | 686.1 lm/m | F | 77.5 lm/W | 557.7 lm/m | G |
|---|
| 3500 K | 119.5 lm/W | 860.7 lm/m | E | 97.2 lm/W | 699.5 lm/m | F | 79.9 lm/W | 575.6 lm/m | G |
|---|
| 4000 K | 123.1 lm/W | 886.1 lm/m | E | 99.2 lm/W | 714.4 lm/m | F | 81.9 lm/W | 589.8 lm/m | G |
|---|
| 5000 K | 122.9 lm/W | 884.6 lm/m | E | 99.2 lm/W | 714.4 lm/m | F | 81.1 lm/W | 583.9 lm/m | G |
|---|
| 6500 K | 117.8 lm/W | 848.1 lm/m | E | 95.3 lm/W | 686.1 lm/m | F | 78.6 lm/W | 566.2 lm/m | G |
|---|
Grade KE (3rd Tier) · 9.6W/m
Grade KE (3rd Tier) · 9.6W/m — measured at 9.6 W/m: luminous efficacy (lm/W), luminous flux (lm/m) and ErP energy class per CCT and CRI grade.| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|
| 1900 K | 91.9 lm/W | 881.8 lm/m | F | 73.3 lm/W | 703.7 lm/m | G | — | — | — |
|---|
| 2300 K | 102.4 lm/W | 982.6 lm/m | F | 81.7 lm/W | 784 lm/m | G | 66.8 lm/W | 641.8 lm/m | G |
|---|
| 2700 K | 110.3 lm/W | 1059 lm/m | E | 88.6 lm/W | 850.5 lm/m | F | 71.9 lm/W | 690 lm/m | G |
|---|
| 3000 K | 115.8 lm/W | 1111.8 lm/m | E | 93.7 lm/W | 899.4 lm/m | F | 76.2 lm/W | 731.1 lm/m | G |
|---|
| 3500 K | 117.5 lm/W | 1128.5 lm/m | E | 95.5 lm/W | 917.1 lm/m | F | 78.6 lm/W | 754.6 lm/m | G |
|---|
| 4000 K | 121 lm/W | 1161.7 lm/m | E | 97.6 lm/W | 936.6 lm/m | F | 80.5 lm/W | 773.2 lm/m | G |
|---|
| 5000 K | 120.8 lm/W | 1159.8 lm/m | E | 97.6 lm/W | 936.6 lm/m | F | 79.7 lm/W | 765.5 lm/m | G |
|---|
| 6500 K | 115.8 lm/W | 1111.8 lm/m | E | 93.7 lm/W | 899.4 lm/m | F | 77.3 lm/W | 742.3 lm/m | G |
|---|
Grade KE (3rd Tier) · 12W/m
Grade KE (3rd Tier) · 12W/m — measured at 12 W/m: luminous efficacy (lm/W), luminous flux (lm/m) and ErP energy class per CCT and CRI grade.| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|
| 1900 K | 90.3 lm/W | 1083.9 lm/m | F | 72.1 lm/W | 864.9 lm/m | G | — | — | — |
|---|
| 2300 K | 100.6 lm/W | 1207.8 lm/m | F | 80.3 lm/W | 963.6 lm/m | G | 65.7 lm/W | 788.8 lm/m | G |
|---|
| 2700 K | 108.5 lm/W | 1301.6 lm/m | F | 87.1 lm/W | 1045.4 lm/m | F | 70.7 lm/W | 848.1 lm/m | G |
|---|
| 3000 K | 113.9 lm/W | 1366.6 lm/m | E | 92.1 lm/W | 1105.5 lm/m | F | 74.9 lm/W | 898.6 lm/m | G |
|---|
| 3500 K | 115.6 lm/W | 1387 lm/m | E | 93.9 lm/W | 1127.2 lm/m | F | 77.3 lm/W | 927.5 lm/m | G |
|---|
| 4000 K | 119 lm/W | 1427.9 lm/m | E | 95.9 lm/W | 1151.2 lm/m | F | 79.2 lm/W | 950.3 lm/m | G |
|---|
| 5000 K | 118.8 lm/W | 1425.5 lm/m | E | 95.9 lm/W | 1151.2 lm/m | F | 78.4 lm/W | 940.8 lm/m | G |
|---|
| 6500 K | 113.9 lm/W | 1366.6 lm/m | E | 92.1 lm/W | 1105.5 lm/m | F | 76 lm/W | 912.3 lm/m | G |
|---|
Grade KE (3rd Tier) · 14.4W/m
Grade KE (3rd Tier) · 14.4W/m — measured at 14.4 W/m: luminous efficacy (lm/W), luminous flux (lm/m) and ErP energy class per CCT and CRI grade.| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|
| 1900 K | 88.8 lm/W | 1278.9 lm/m | F | 70.9 lm/W | 1020.6 lm/m | G | — | — | — |
|---|
| 2300 K | 99 lm/W | 1425.1 lm/m | F | 79 lm/W | 1136.9 lm/m | G | 64.6 lm/W | 930.7 lm/m | G |
|---|
| 2700 K | 106.7 lm/W | 1535.8 lm/m | F | 85.7 lm/W | 1233.5 lm/m | F | 69.5 lm/W | 1000.7 lm/m | G |
|---|
| 3000 K | 112 lm/W | 1612.5 lm/m | E | 90.6 lm/W | 1304.4 lm/m | F | 73.6 lm/W | 1060.3 lm/m | G |
|---|
| 3500 K | 113.7 lm/W | 1636.6 lm/m | E | 92.4 lm/W | 1330 lm/m | F | 76 lm/W | 1094.4 lm/m | G |
|---|
| 4000 K | 117 lm/W | 1684.8 lm/m | E | 94.3 lm/W | 1358.4 lm/m | F | 77.9 lm/W | 1121.3 lm/m | G |
|---|
| 5000 K | 116.8 lm/W | 1682 lm/m | E | 94.3 lm/W | 1358.4 lm/m | F | 77.1 lm/W | 1110.1 lm/m | G |
|---|
| 6500 K | 112 lm/W | 1612.5 lm/m | E | 90.6 lm/W | 1304.4 lm/m | F | 74.8 lm/W | 1076.5 lm/m | G |
|---|
Frequently Asked Questions
What are the key specifications of 16770?
16770: 2835, 120 LEDs/m, DC 24V, 10mm PCB, 2oz copper FPCB, cuttable 6LEDs/50mm. Full photometric data, wiring diagrams and test reports are available in the downloads section of this page.
What makes the construction of this roll to roll LED strip different?
It is built as a roll to roll LED strip on 2oz copper FPCB with a cutting unit of 6LEDs/50mm and an LED pitch of 8.333mm, so it holds its electrical and mechanical performance where standard strips fail.
Can DENO customise this roll to roll LED strip for a project?
Yes. DENO manufactures the Roll-to-Roll SMD Strips series as an OEM and ODM supplier: reel length, colour temperature, CRI grade, PCB width, waterproofing and private labelling can all be specified. Request a quote for lead time and project pricing.
How long can this LED strip roll run in one continuous piece?
This model ships as a continuous roll-to-roll reel with no mid-reel solder joints, so custom single runs beyond the standard 5 m are available. Keep the run within a 3% voltage drop: lower power densities support up to 20 m single-end, higher densities need a both-ends or mid-feed connection. Use the DENO ProCalc voltage-drop tool to confirm the exact limit for your length.
Why choose a roll-to-roll strip over a standard 5 m LED strip reel?
The electroplated continuous FPCB keeps copper thickness uniform along the whole reel, so resistance stays low, brightness stays even end to end, and there are no pieced solder points that can fail during bending or long-run installation.
