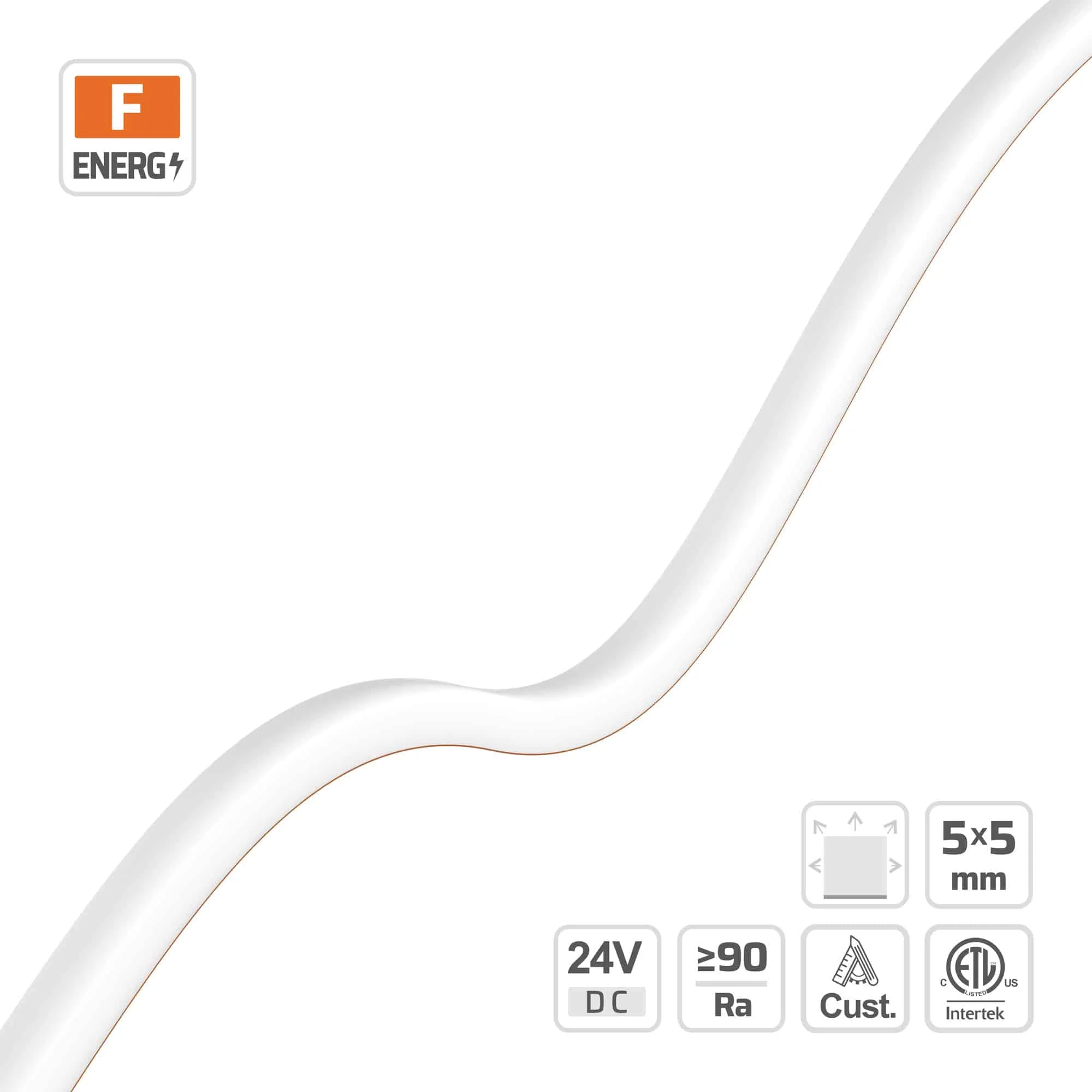

5*5mm Mini Neon LED Strip Light (#16416-5*5)
24V · 420LEDs · 16.66mm/cut · 5*5mm
Model: 16416-5*5
Overview
The DENO LED 16416-5*5 mini neon LED strip features a compact 5x5mm profile, 24V input, and IP67 rating, making it suitable for demanding B2B applications. With 420 LEDs/m and a solderless design, it provides uniform, soft illumination for commercial and architectural projects. This long-reel solution ensures easy installation and durability for under-cabinet, cove, or special contour lighting. It meets high industry standards for performance and longevity, targeting profes...
Description
5*5mm | 24V | 420LEDs | 16.66mm/cut | #16416-5*5 | 5*5mm Mini Neon LED Strip Light This innovative reel-to-reel integrated long-reel LED strip light features a 5 * 5mm mini neon design with a solderless structure for seamless lighting. With 420 LEDs in a high-density layout, it delivers soft and uniform illumination. The IP54 waterproof and dustproof square design makes it ideal for home auxiliary lighting and special contour lighting projects. This long-reel LED strip light is perfect for long-reel applications like under-cabinet lighting or decorative accents. Its integrated long-reel LED strip light construction ensures easy installation and durability. Choose this long-reel LED strip light to add modernity and functionality to your space. The flexibility of the long-reel LED strip light allows it to adapt to various shapes effortlessly.
Specifications
| LED QTY | 420 LEDs/m |
|---|---|
| PART NO | DL-FSOBA210V24-16416-5*5-* |
| SMD TYPE | SOB |
| CUTTABLE UNIT | 7LEDs/16.66mm |
| DIMMABLE | Yes |
| IP RATING | IP67 |
| LED PITCH | 2.385mm |
| LIFESPAN | 30000 |
| PCB WIDTH | 5mm |
| WARRANTY | 5 Years |
| BEAM ANGLE | 160° |
| LENGTH MAX | 5m |
| COPPER FOIL | 2oz |
| POWER RANGE | 3.6~15W |
| CIRCUIT TYPE | C.V. |
| INPUT VOLTAGE | 24V |
| OPERATING TEMPERATURE | -25~40°C;Tc: 75°C (max) |
Applications
- Channel letters & logo signage — Silicone neon holds a continuous glow line for logos, channel letters and wayfinding without visible LED dots.
- Facade & perimeter outlining — Flexible neon bends around building edges, balconies and columns to trace architecture at night.
- Bar fronts, headboards & stair nosings — Used along stair nosings, headboards and bar fronts where a soft, uniform tube of light is wanted instead of a hard strip.
- Facade, landscape & bathroom runs (IP67) — IP67 sealing suits facades, landscape lighting, bathrooms and other locations exposed to rain, splashing or wash-down cleaning.
- Ultra-narrow 5mm channels & shadow gaps — Fits shadow-gap details, slim profiles and joinery grooves that cannot take a standard 8–10mm strip.
Request a quotation for #16416-5*5
DENO LED is a Shenzhen-based LED strip manufacturer with its own Foshan production base. Send the run length, voltage, CCT/CRI and IP rating you need and our engineering team replies with a specification sheet, wiring plan and price — OEM/ODM and fully custom builds included.
- Warranty: 5 years
- Compliance: CE · UL · RoHS
- Bonding wire: 99.99% pure gold
- Copper foil: 99.9% pure copper FPCB
Photometric Performance — CCT × CRI Efficacy Matrix
Peak measured luminous efficacy: 93.8 lm/W at 4000K, Ra 90, ErP energy class F (Grade DL (2nd Tier) · 10W/m).
All values are measured at the stated power density and ambient 25 °C, reported as luminous efficacy in lumens per watt (lm/W), luminous flux per metre (lm/m) and the corresponding EU ErP (2019/2015) energy class.
Grade DL (2nd Tier) · 10W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | — | — | — | 70.9 lm/W | 709.4 lm/m | G | — | — | — |
| 2300 K | — | — | — | 79 lm/W | 790.5 lm/m | G | — | — | — |
| 2700 K | — | — | — | 85.6 lm/W | 856 lm/m | F | — | — | — |
| 3000 K | — | — | — | 90.1 lm/W | 900.7 lm/m | F | — | — | — |
| 3500 K | — | — | — | 91.6 lm/W | 916.3 lm/m | F | — | — | — |
| 4000 K | — | — | — | 93.8 lm/W | 938.2 lm/m | F | — | — | — |
| 5000 K | — | — | — | 93.8 lm/W | 938.2 lm/m | F | — | — | — |
| 6500 K | — | — | — | 90 lm/W | 899.7 lm/m | F | — | — | — |
Grade DL (2nd Tier) · 12W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | — | — | — | 69.9 lm/W | 839.4 lm/m | G | — | — | — |
| 2300 K | — | — | — | 77.9 lm/W | 935.4 lm/m | G | — | — | — |
| 2700 K | — | — | — | 84.4 lm/W | 1012.9 lm/m | G | — | — | — |
| 3000 K | — | — | — | 88.8 lm/W | 1065.8 lm/m | F | — | — | — |
| 3500 K | — | — | — | 90.4 lm/W | 1084.3 lm/m | F | — | — | — |
| 4000 K | — | — | — | 92.5 lm/W | 1110.1 lm/m | F | — | — | — |
| 5000 K | — | — | — | 92.5 lm/W | 1110.1 lm/m | F | — | — | — |
| 6500 K | — | — | — | 88.7 lm/W | 1064.6 lm/m | F | — | — | — |
Grade DL (2nd Tier) · 15W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | — | — | — | 68.5 lm/W | 1027.3 lm/m | G | — | — | — |
| 2300 K | — | — | — | 76.3 lm/W | 1144.8 lm/m | G | — | — | — |
| 2700 K | — | — | — | 82.6 lm/W | 1239.7 lm/m | G | — | — | — |
| 3000 K | — | — | — | 87 lm/W | 1304.5 lm/m | F | — | — | — |
| 3500 K | — | — | — | 88.5 lm/W | 1327.1 lm/m | F | — | — | — |
| 4000 K | — | — | — | 90.6 lm/W | 1358.7 lm/m | F | — | — | — |
| 5000 K | — | — | — | 90.6 lm/W | 1358.7 lm/m | F | — | — | — |
| 6500 K | — | — | — | 86.9 lm/W | 1303 lm/m | F | — | — | — |
How Mini LED neon flex 16416-5*5 performs on site
Specification notes for 5x5mm section 24V DC silicone neon: what it does outdoors, what it does around water, and how far it bends when you trace a building.
Outdoor & façade exposure
Specify for permanent exterior installation above the waterline (IP67).
The silicone is injection moulded onto the FPCB in one shot, so there is no glued cover to open up after a winter of thermal cycling — the failure mode PVC neon rope light shows in its second outdoor summer. UV-stabilised silicone keeps its colour instead of yellowing, and the body stays elastic from −30 °C to +80 °C, so a façade run installed in summer will not go brittle in a January frost. Feed with 24V DC and plan 5m per feed to hold end-of-run brightness across a long elevation.
- Ingress protection IP67
- UV-stable silicone, −30 °C to +80 °C
- 3.6W/m load
Pools, spas & wet areas
Suitable for pool surrounds, spa ceilings and steam-adjacent joinery — not for submersion.
IP67 covers rain, splash, wash-down and steam — pool decks, shower reveals, sauna ceilings and spa coves — but the body is not intended to sit under water. Mount it above the waterline in an aluminium groove so condensate drains away from the feed joint, run 24V DC for wet-zone safety, and choose the IP68 variant where the channel can flood.
- IP67 — splash and rain, not submersion
- 24V DC
- Moulded end cap and feed joint
Architectural contour & signage
Bends in the direction of its slim axis at about R20mm — the right pick for small signage letters, cabinet reveals, model displays and shallow niches.
Mini LED neon flex takes its curve in the direction of its slim axis, which is what decides whether a shape is possible without cutting and re-soldering. At about R20mm the outside of the curve stays evenly lit: 420 LEDs/m is matched to the diffuser depth so you read a continuous line of light rather than dots, even at 30 cm. Printed cut marks with indexed solder pads underneath let a sign maker shorten a letter stroke on site and re-seal it, and mounting clips, aluminium grooves and moulded bend grooves cover surface, recessed and free-form fixing.
- Cross-section 5x5mm
- Bend radius about R20mm
- 420 LEDs/m, dot-free
Frequently Asked Questions
What are the dimensions and voltage of this mini neon LED strip?
This mini neon LED strip measures 5x5mm and operates on a 24V input, providing flexibility for various installations.
Is this LED strip suitable for outdoor or wet environments?
Yes, with an IP67 rating, this LED strip is highly resistant to dust and water, making it suitable for outdoor and damp applications.
What are the customization options for length and power requirements?
This LED strip is cuttable every 16.66mm (7 LEDs) and supports a power range of 3.6~15W, allowing for tailored lengths and brightness settings.
What is the typical lead time and minimum order quantity (MOQ) for this product?
Lead times and MOQ vary based on project specifics and customization. Please contact DENO LED directly for a detailed quote and timeline.
What are the key specifications of #16416-5*5?
5*5mm | 24V | 420LEDs | 16.66mm/cut | #16416-5*5 | 5*5mm Mini Neon LED Strip Light: SOB LEDs, 420 LEDs/m, 24V, 5mm FPCB, 2oz copper foil, 3.6~15W power, cut unit 7LEDs/16.66mm. Photometric files, wiring diagrams and test reports are available in the downloads block on this page.
Which LED driver and run length suit #16416-5*5?
5*5mm | 24V | 420LEDs | 16.66mm/cut | #16416-5*5 | 5*5mm Mini Neon LED Strip Light is a constant-voltage 24V product, so pair it with a CE or UL listed 24V constant-voltage LED driver rated about 20% above the connected load. Maximum single run is 5m. 5m Single/10m Dual Input power. Feeding from both ends or mid-feeding halves the copper distance and roughly quarters the voltage drop.
Mini LED Neon Flex — Buyer Questions
How small can a mini LED neon flex be?
DENO's mini neon range starts at a 5×5 mm cross-section and runs through 4×10 mm, 6×12 mm and 6×13 mm bodies. At 5×5 mm the body is slim enough to follow the inside radius of a 60 mm channel letter, which is where standard 12×20 mm neon simply will not sit.
- Series Mini Neon Flex series
- Related series LED neon flex cross-section overview
- Related series ultra narrow LED strip boards
Is mini neon flex 24V or 12V?
24V is the default for mini neon flex 24V builds: the same wattage draws half the current, so a 5 mm-wide FPCB does not overheat and a single feed still covers 5 m. 12V mini bodies exist for vehicle, furniture and battery work where the supply is fixed, at the cost of shorter runs and tighter power-injection spacing.
- Series Mini Neon Flex series
- Guide compare 12V and 24V drop on a mini run
- Related series constant current boards for even brightness
How bright is an ultra thin neon flex compared with a full-size body?
A 5×5 mm mini body typically delivers 240–420 LEDs/m at 3.6–8 W/m, roughly 60–70% of the output of a 12×20 mm body, because the emitting window is narrower. For signage that is usually a benefit: the line reads crisp rather than blown out, and the lower wattage keeps the small silicone section within its thermal limit.
- Series Mini Neon Flex series
- Related series high density boards behind mini neon
- Related series high efficiency builds at low wattage
Which mini neon flex size suits signage letters?
Letters 60–100 mm deep take 5×5 mm or 4×10 mm bodies; 100–150 mm letters take 6×12 mm or 6×13 mm. Match the emitting window to the face aperture, then keep at least 15 mm of diffusion depth so the LEDs blend. Mini neon flex for signage is normally supplied pre-cut per letter with wire leads exiting the back.
- Series Mini Neon Flex series
- Related series top bend bodies for vertical letter strokes
- Guide batch pre-cut neon kits for sign makers
Can a narrow neon strip still be cut on site?
Yes, but the cut unit gets longer as the body gets smaller: a 5×5 mm mini neon at 420 LEDs/m cuts every 16.66 mm, while lower-density mini bodies cut every 50 mm. The pads are printed on the silicone so an installer can find them without stripping the body back.
- Series Mini Neon Flex series
- Related series micro-cut boards for short increments
- Guide ask for a factory cut list
Is mini neon flex available waterproof?
Yes — the mini range is injection-moulded in the same IP67 process as the full-size bodies, with IP68 available for immersion. That means an exterior channel letter or a handrail detail can use the same 5×5 mm body indoors and out, with only the termination specification changing.
- Series Mini Neon Flex series
- Related series injection moulded waterproof bodies
- Guide IP test certification
