Question 1

What are the key specifications of 15098-N?

Accepted Answer

15098-N: 2216, 312, 36V, 10 PCB, 3oz copper FPCB, cuttable 12LEDs/38.46mm. Full photometric data, wiring diagrams and test reports are available in the downloads section of this page.

Question 2

How long can a single run of this 36V LED strip lights be?

Accepted Answer

Maximum single run for this model is 8m. Feeding from both ends or using a mid-point tap halves the effective distance per segment, so a 36V LED strip lights can cover twice that length on one circuit when wired accordingly.

Question 3

Can DENO customise this 36V LED strip lights for a project?

Accepted Answer

Yes. DENO manufactures the 36V SMD Strips series as an OEM and ODM supplier: reel length, colour temperature, CRI grade, PCB width, waterproofing and private labelling can all be specified. Request a quote for lead time and project pricing.

Question 4

How many LEDs per metre does a dotless LED strip need?

Accepted Answer

Visible dots depend on LED pitch, diffuser distance and transmittance. Above roughly 480 LEDs/m most diffusers give a continuous line at 10 mm depth, and the 700 LEDs/m high density LED strip stays dot free even behind a shallow, highly transmissive lens.

Question 5

When should you use a 36V LED strip instead of 24V?

Accepted Answer

Choose 36V when a single run exceeds what a 24V LED strip can feed within a 3 percent voltage drop. At the same power per metre a higher bus voltage means lower current and roughly half the drop of 24V over the same distance, so corridors, facades and cove runs can be fed from one end with fewer power injection points.

Question 6

What counts as a high density LED strip?

Accepted Answer

Anything above roughly 120 LEDs per metre is normally sold as a high density LED strip. DENO builds high-density boards from 240 up to 700 LEDs/m, which puts the LED pitch between 4.2 mm and 1.4 mm — tight enough to read as a continuous line behind a shallow diffuser instead of a row of dots.

Question 7

Is a 24V high density LED strip better than 12V?

Accepted Answer

For dense boards, yes in most cases. A 24V high density LED strip draws half the current of a 12V board at the same wattage, so voltage drop is far lower and single runs of 5–10 m stay even in brightness. DENO supplies 12V, 24V, 48V and mains-voltage versions of the same high-density layout; 12V is normally reserved for short cabinet runs or low-voltage furniture requirements.

Question 8

Do you make a 5V high density LED strip?

Accepted Answer

Yes. 5V dense LED tape is built for USB-powered displays, shelving and addressable pixel projects where the controller is 5V-native. Because 5V boards lose voltage quickly, DENO limits standard runs to 1–2 m per feed, uses 2 oz or 35+70 μm copper, and adds per-segment constant-current ICs so the far end does not dim.

Question 9

Can a high density RGB LED strip stay dot-free?

Accepted Answer

It can, but the pitch has to be tighter than a white board because each RGB package mixes three separate dies. DENO's high density RGB and RGBW builds place emitters at 2.1 mm–4.2 mm pitch so colour mixing completes within a few millimetres of the diffuser, which removes both the dot pattern and the rainbow fringing seen on standard 60 LEDs/m RGB tape.

Question 10

What is a high density addressable LED strip used for?

Accepted Answer

High density addressable LED strip (pixel tape) is used for signage, media facades, stair effects and studio lighting where each LED or short segment must be controlled individually. DENO offers addressable builds with up to 700 pixels per metre in SPI protocols such as WS2812B, WS2815 and SK6812, with breakout points every cut unit for reliable data injection on long runs.

Question 11

What makes the best high density LED strip lights?

Accepted Answer

Density alone is not enough. The best high density LED strip lights combine tight LED pitch with a 3-SDCM binning window, Ra 90+ (Ra 95+ for full-spectrum), 2 oz or heavier copper for thermal spreading, flicker-free constant-current drive and an FPCB rated for repeated bending. DENO ships photometric data, LM-80 chip data and a full test report with every OEM order so specifiers can verify these claims instead of trusting a datasheet number.

Question 12

How dense can an ultra high density LED strip go?

Accepted Answer

DENO's ultra high density LED strip tops out at 700 LEDs per metre with a 1.4 mm pitch, drawing up to 30 W/m. Beyond that point a discrete SMD layout stops making sense thermally, and a SCOB (COB) emitter is the better route to a fully dotless line.

Question 13

Can I order a custom high density LED strip?

Accepted Answer

Yes — LED count, pitch, CCT, CRI, PCB width from 3 mm, copper weight, cut unit and IP rating are all configurable on a custom high density LED strip. DENO is a manufacturer, not a reseller, so a non-standard density or a mixed-CCT dense board can be tooled from an existing FPCB stack-up without a new production line.

Question 14

Is high density LED tape the same as a high density LED strip?

Accepted Answer

They are the same product under two names: “high density led tape” is the common UK/EU term for what North America calls a high density LED strip. DENO ships the identical dense FPCB boards to both markets — 240 to 700 LEDs/m, 3 mm to 12 mm widths, CE/UL/RoHS documentation — so the tape you specify in a UK cove detail is the same board as the strip specified in a US one.

Question 15

Which dense LED tape suits under-cabinet lighting?

Accepted Answer

For under-cabinet work choose a dense board at 240–420 LEDs/m in a 5 mm to 8 mm width, 12V or 24V, with a short cut unit so the board matches each cabinet run exactly. At that density a 10 mm deep aluminium channel with a frosted diffuser already reads dot-free at normal worktop viewing distance.

Question 16

What power supply do I need for a dense LED strip run?

Accepted Answer

Size the driver from the board wattage: multiply the W/m figure on the datasheet by the run length, then add 20–30 % headroom, so a 20 W/m board over 5 m needs a 100 W load on a 120–130 W constant-voltage driver. Match the driver voltage exactly (24V board, 24V driver), keep it constant-voltage rather than constant-current unless the board carries its own CC ICs, and check that the dimming protocol — TRIAC, 0–10V, DALI or PWM — is supported on both sides before ordering.

Question 17

Does more LEDs per metre mean a brighter strip?

Accepted Answer

Not on its own. Brightness is lumens per metre, which is drive current times die count times efficacy — doubling the LED count while halving the current per die gives the same output with a smoother line, not twice the light. Read lm/m and W/m together: DENO dense boards run 8–24 W/m and 700–2600 lm/m, so pick the density for dot-free appearance and the wattage for the light level you actually need.

Question 18

Can dense LED tape run on 36V or 48V supplies?

Accepted Answer

Yes. 36V and 48V builds exist specifically for long uninterrupted runs: at 48V the same wattage draws a quarter of the current of a 12V board, so a single feed can cover 15–20 m with even brightness and far fewer injection points. They need a matching SELV driver and, in most territories, the same low-voltage installation rules as 24V; DENO supplies 36V and 48V versions of the standard dense layouts on request.

Question 19

Why choose a 36V LED strip over 12V or 24V?

Accepted Answer

Current, not brightness, is what limits a run. At the same wattage a 36V board draws one third of the current of a 12V board and two thirds of a 24V one, so the copper loses far less voltage along the tape. That is why the 36V models here are rated for 8 m to 30 m from a single feed, where a comparable 24V board is usually rated 5 m. 36V stays inside SELV, so it uses ordinary low-voltage wiring practice.

Question 20

What density and output can a 36 volt board deliver?

Accepted Answer

Two layouts cover most work. The 2216 boards run 312 LEDs/m at 10 mm width, 4 to 20 W/m, Ra 90+, with 1233 lm/m measured at 4000K and a 38.46 mm cut unit — dense enough for a dot-free cove. The 3528 and 2835 boards run 90 LEDs/m at 10 to 12 mm width, 1.8 to 22 W/m, with a 100 mm cut unit, and are built for distance rather than density.

Question 21

Which driver and dimming system does a 36 volt run need?

Accepted Answer

A constant-voltage 36V driver sized with about 20% headroom over the connected load, or a matched constant-current driver for the CC boards. Control is standard PWM: TRIAC, 0–10V, DALI and DMX decoders all work provided the output is 36V. Use a PWM frequency above 3 kHz for camera-facing rooms, and keep the driver at one end of the run so the feed distance matches the rating.

CCT (K)	1800–6500K
CRI	Ra≥90
POWER (W/M)	9.6 W/m
LED QTY	312
PART NO	DL-F22A156V36-15098-N-*
SMD TYPE	2216
CUTTABLE UNIT	12LEDs/38.46mm
DIMMABLE	Yes
IP RATING	IP20/IP65/IP67/IP68
LED PITCH	3.21mm
PCB WIDTH	10
BEAM ANGLE	120°
RUN LENGTH	8m
COPPER FOIL	3oz
POWER RANGE	4~18W
CIRCUIT TYPE	C.V.
INPUT VOLTAGE	36V
LUMINOUS FLUX	911–1233 lm/m
OPERATING TEMPERATURE	-25~40°C;Tc：75°C（max）

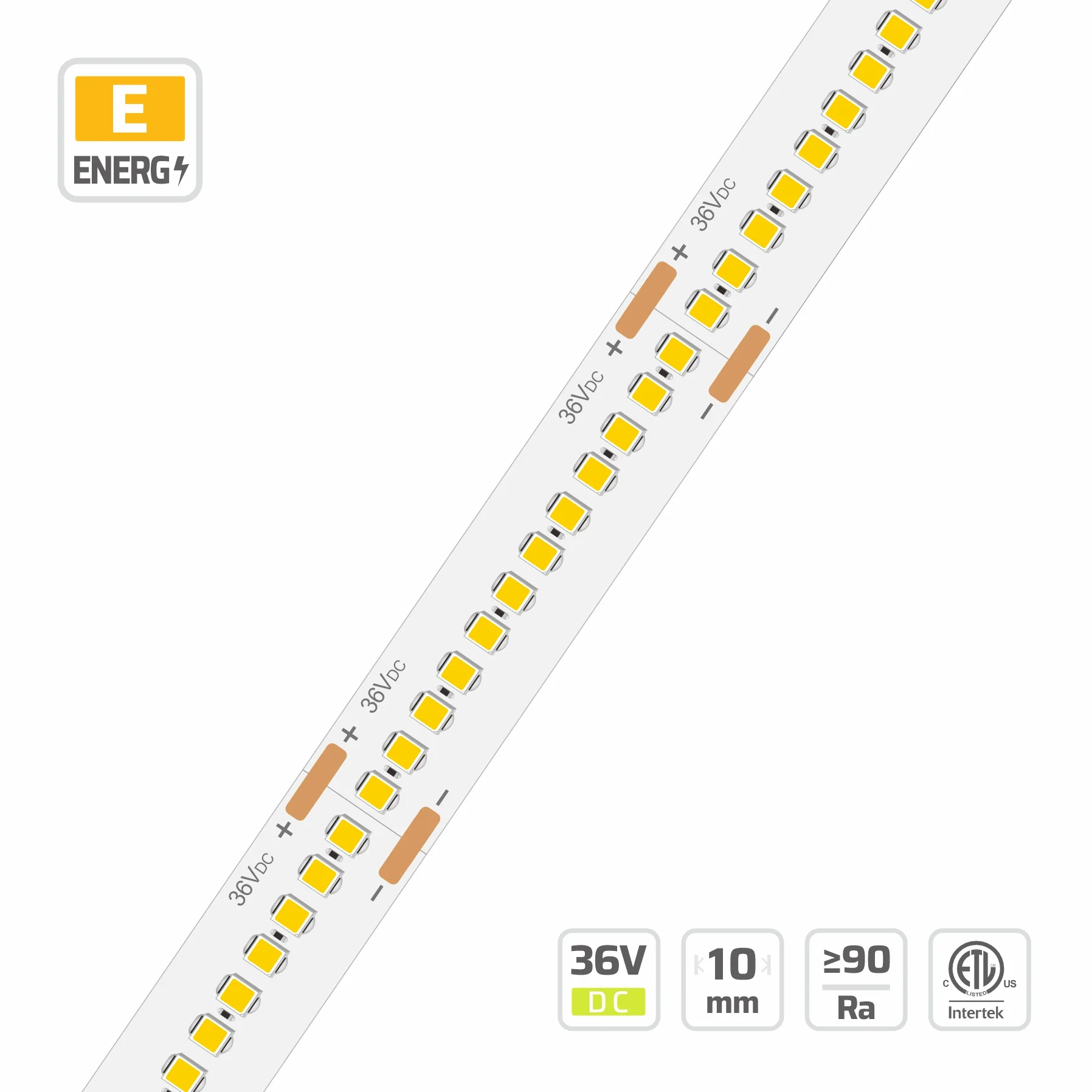

2216 High-Density LED Strip Light (#15098-N)

Overview

Description

Specifications

Applications

Recommended accessories & compatible parts

Request a quotation for #15098-N

Photometric Performance — CCT × CRI Efficacy Matrix

Grade DL (2nd Tier) · 4.8W/m

Grade DL (2nd Tier) · 9.6W/m

Grade DL (2nd Tier) · 18W/m

High-Power LED Strip: Heat Dissipation & Aluminum Channel Guide

Why high-wattage strips need a heat sink

Sizing rule: FPC width vs channel inner width

Aluminum channels that fit this strip

Recommended LED Channels

Related models in this series

Frequently Asked Questions

What are the key specifications of 15098-N?

How long can a single run of this 36V LED strip lights be?

Can DENO customise this 36V LED strip lights for a project?

How many LEDs per metre does a dotless LED strip need?

When should you use a 36V LED strip instead of 24V?

Engineering & selection guide

CCT (K)	Ra 80 — Luminous Efficacy (lm/W)	Ra 80 — Luminous Flux (lm/m)	Ra 80 — ErP Energy Class	Ra 90 — Luminous Efficacy (lm/W)	Ra 90 — Luminous Flux (lm/m)	Ra 90 — ErP Energy Class	Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W)	Full Spectrum (Ra 95+) — Luminous Flux (lm/m)	Full Spectrum (Ra 95+) — ErP Energy Class
1800 K	—	—	—	100.9 lm/W	484.4 lm/m	F	—	—	—
2300 K	—	—	—	112.4 lm/W	539.6 lm/m	E	—	—	—
2700 K	—	—	—	121.6 lm/W	583.7 lm/m	E	—	—	—
3000 K	—	—	—	128 lm/W	614.4 lm/m	E	—	—	—
3500 K	—	—	—	130.3 lm/W	625.4 lm/m	E	—	—	—
4000 K	—	—	—	133.4 lm/W	640.5 lm/m	E	—	—	—
5000 K	—	—	—	133.3 lm/W	640 lm/m	E	—	—	—
6500 K	—	—	—	128 lm/W	614.4 lm/m	E	—	—	—

CCT (K)	Ra 80 — Luminous Efficacy (lm/W)	Ra 80 — Luminous Flux (lm/m)	Ra 80 — ErP Energy Class	Ra 90 — Luminous Efficacy (lm/W)	Ra 90 — Luminous Flux (lm/m)	Ra 90 — ErP Energy Class	Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W)	Full Spectrum (Ra 95+) — Luminous Flux (lm/m)	Full Spectrum (Ra 95+) — ErP Energy Class
1800 K	—	—	—	97.6 lm/W	936.6 lm/m	F	—	—	—
2300 K	—	—	—	108.7 lm/W	1043.4 lm/m	F	—	—	—
2700 K	—	—	—	117.6 lm/W	1128.8 lm/m	E	—	—	—
3000 K	—	—	—	123.7 lm/W	1188 lm/m	E	—	—	—
3500 K	—	—	—	126 lm/W	1209.3 lm/m	E	—	—	—
4000 K	—	—	—	129 lm/W	1238.5 lm/m	E	—	—	—
5000 K	—	—	—	128.9 lm/W	1237.5 lm/m	E	—	—	—
6500 K	—	—	—	123.7 lm/W	1188 lm/m	E	—	—	—

CCT (K)	Ra 80 — Luminous Efficacy (lm/W)	Ra 80 — Luminous Flux (lm/m)	Ra 80 — ErP Energy Class	Ra 90 — Luminous Efficacy (lm/W)	Ra 90 — Luminous Flux (lm/m)	Ra 90 — ErP Energy Class	Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W)	Full Spectrum (Ra 95+) — Luminous Flux (lm/m)	Full Spectrum (Ra 95+) — ErP Energy Class
1800 K	—	—	—	92 lm/W	1655.5 lm/m	F	—	—	—
2300 K	—	—	—	102.5 lm/W	1844.2 lm/m	F	—	—	—
2700 K	—	—	—	110.8 lm/W	1995.2 lm/m	E	—	—	—
3000 K	—	—	—	116.7 lm/W	2099.8 lm/m	E	—	—	—
3500 K	—	—	—	118.8 lm/W	2137.6 lm/m	E	—	—	—
4000 K	—	—	—	121.6 lm/W	2189.1 lm/m	E	—	—	—
5000 K	—	—	—	121.5 lm/W	2187.3 lm/m	E	—	—	—
6500 K	—	—	—	116.7 lm/W	2099.8 lm/m	E	—	—	—
