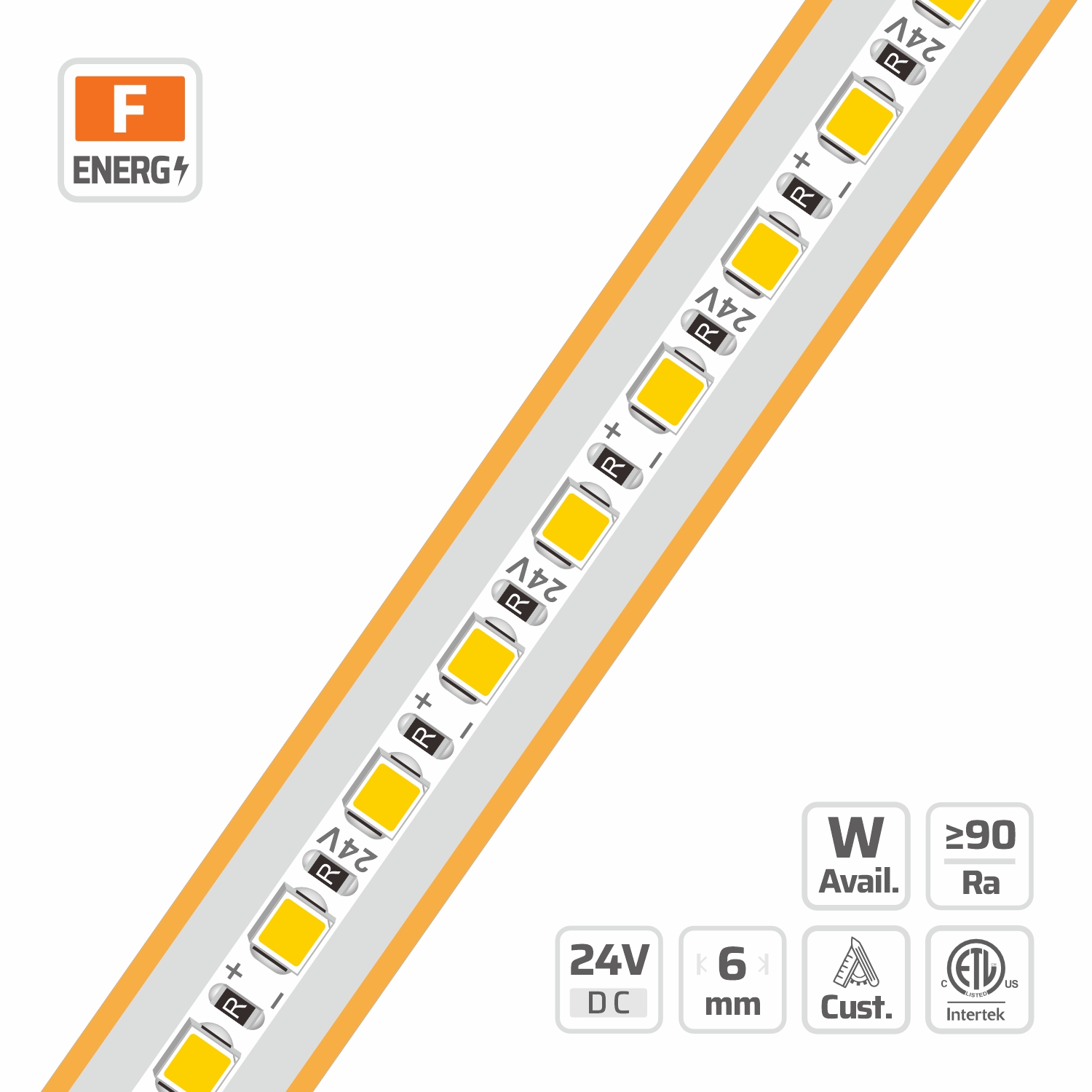

2216 Special LED Strip Light (#11474)
6mm · 24V · 180LEDs · Arbitrary cut
Model: 11474
Overview
2216 Special LED Strip Light | 6mm | 24V | 180LEDs | Arbitrary cut | #11474 is part of the DENO Special SMD Strips series, engineered around special application LED strip. Key specifications: 2216, 180LEDs/m, 24V, 6 PCB, 2oz copper FPCB, cuttable Arbitrary cutting. Every reel is produced on DENO's roll-to-roll line with 99.9% pure copper FPCB and ships CE, UL and RoHS compliant for architectural, retail and hospitality projects. OEM and ODM configurations of length, colour temperature and waterproofing are available on request.
Description
2216 Special LED Strip Light | 6mm | 24V | 180LEDs | Arbitrary cut | #11474 Strong pure copper LED frame, and diameter>1mm, 99.9%-purity gold wire encapsulation, can reduce damage to the LED in different applications. CRI>90 SMD2220 LED Strips is outfitted with extremely bright LED chips and strong adhesive backing. Special heat resistant PCB layout, copper layer 3Oz that make sure lower voltage drop and excellent heat dissipation. 5 SDCM one BIN only, these strips are great for providing elegant and discreet lighting.
Special Application Led Strip built for special smd strips projects.
Specifications
| LED QTY | 180LEDs/m |
|---|---|
| PART NO | DL-F20A90V24-11474-* |
| SMD TYPE | 2216 |
| CUTTABLE UNIT | Arbitrary cutting |
| DIMMABLE | Yes |
| LED PITCH | 5.55mm |
| PCB WIDTH | 6 |
| BEAM ANGLE | 120° |
| LENGTH MAX | 5m |
| COPPER FOIL | 2oz |
| POWER RANGE | 4~19.2W |
| CIRCUIT TYPE | C.V. |
| INPUT VOLTAGE | 24V |
| OPERATING TEMPERATURE | -25~40°C; Tc: 75°C (max) |
Applications
- Cove, wall-wash & perimeter lighting — Coves, recesses, wall-wash details and ceiling perimeters where a continuous, uniform line of light is required.
- Showroom & hospitality display lighting — Shelving, display cases, reception desks and signage backlighting in shops, showrooms and hospitality spaces.
- Kitchen & wardrobe under-cabinet lighting — Kitchen, wardrobe and furniture task lighting where the strip stays hidden and only the light is seen.
Request a quotation for #11474
DENO LED is a Shenzhen-based LED strip manufacturer with its own Foshan production base. Send the run length, voltage, CCT/CRI and IP rating you need and our engineering team replies with a specification sheet, wiring plan and price — OEM/ODM and fully custom builds included.
- Warranty: 5 years
- Compliance: CE · UL · RoHS
- Bonding wire: 99.99% pure gold
- Copper foil: 99.9% pure copper FPCB
Photometric Performance — CCT × CRI Efficacy Matrix
Peak measured luminous efficacy: 146 lm/W at 4000K, Ra 90, ErP energy class D (Grade DL (2nd Tier) · 7.2W/m).
All values are measured at the stated power density and ambient 25 °C, reported as luminous efficacy in lumens per watt (lm/W), luminous flux per metre (lm/m) and the corresponding EU ErP (2019/2015) energy class.
Grade DL (2nd Tier) · 7.2W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | — | — | — | 110.4 lm/W | 794.6 lm/m | E | — | — | — |
| 2300 K | — | — | — | 123 lm/W | 885.5 lm/m | E | — | — | — |
| 2700 K | — | — | — | 133.1 lm/W | 958.5 lm/m | E | 107.9 lm/W | 776.5 lm/m | F |
| 3000 K | — | — | — | 140 lm/W | 1008.1 lm/m | D | 113.9 lm/W | 820.1 lm/m | E |
| 3500 K | — | — | — | 142.5 lm/W | 1026.1 lm/m | D | 117.4 lm/W | 844.9 lm/m | E |
| 4000 K | — | — | — | 146 lm/W | 1050.9 lm/m | D | 120.5 lm/W | 867.5 lm/m | E |
| 5000 K | — | — | — | 145.9 lm/W | 1050.2 lm/m | D | — | — | — |
| 6500 K | — | — | — | 139.9 lm/W | 1007.3 lm/m | D | — | — | — |
Grade DL (2nd Tier) · 13.5W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | — | — | — | 105.6 lm/W | 1425.3 lm/m | F | — | — | — |
| 2300 K | — | — | — | 117.7 lm/W | 1588.5 lm/m | E | — | — | — |
| 2700 K | — | — | — | 127.4 lm/W | 1719.3 lm/m | E | 103.2 lm/W | 1393 lm/m | F |
| 3000 K | — | — | — | 133.9 lm/W | 1808.3 lm/m | E | 109 lm/W | 1471.2 lm/m | F |
| 3500 K | — | — | — | 136.3 lm/W | 1840.7 lm/m | D | 112.3 lm/W | 1515.7 lm/m | E |
| 4000 K | — | — | — | 139.6 lm/W | 1885.2 lm/m | D | 115.3 lm/W | 1556.2 lm/m | E |
| 5000 K | — | — | — | 139.5 lm/W | 1883.8 lm/m | D | — | — | — |
| 6500 K | — | — | — | 133.8 lm/W | 1807 lm/m | E | — | — | — |
Grade DL (2nd Tier) · 16.8W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | — | — | — | 103.2 lm/W | 1733.1 lm/m | F | — | — | — |
| 2300 K | — | — | — | 115 lm/W | 1931.5 lm/m | E | — | — | — |
| 2700 K | — | — | — | 124.4 lm/W | 2090.6 lm/m | E | 100.8 lm/W | 1693.8 lm/m | F |
| 3000 K | — | — | — | 130.9 lm/W | 2198.8 lm/m | E | 106.5 lm/W | 1788.9 lm/m | F |
| 3500 K | — | — | — | 133.2 lm/W | 2238.1 lm/m | E | 109.7 lm/W | 1843 lm/m | F |
| 4000 K | — | — | — | 136.4 lm/W | 2292.2 lm/m | D | 112.6 lm/W | 1892.2 lm/m | E |
| 5000 K | — | — | — | 136.3 lm/W | 2290.6 lm/m | D | — | — | — |
| 6500 K | — | — | — | 130.8 lm/W | 2197.1 lm/m | E | — | — | — |
Grade DL (2nd Tier) · 19.2W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | — | — | — | 101.4 lm/W | 1947.6 lm/m | F | — | — | — |
| 2300 K | — | — | — | 113 lm/W | 2170.5 lm/m | E | — | — | — |
| 2700 K | — | — | — | 122.4 lm/W | 2349.3 lm/m | E | 99.1 lm/W | 1903.4 lm/m | F |
| 3000 K | — | — | — | 128.7 lm/W | 2470.9 lm/m | E | 104.7 lm/W | 2010.2 lm/m | F |
| 3500 K | — | — | — | 131 lm/W | 2515.1 lm/m | E | 107.9 lm/W | 2071 lm/m | F |
| 4000 K | — | — | — | 134.2 lm/W | 2575.9 lm/m | E | 110.7 lm/W | 2126.3 lm/m | E |
| 5000 K | — | — | — | 134.1 lm/W | 2574.1 lm/m | E | — | — | — |
| 6500 K | — | — | — | 128.6 lm/W | 2469 lm/m | E | — | — | — |
Related models in this series
- Special LED Strip Light (#14047)
- Special LED Strip Light (#14045)
- 2835 Gold Yellow Special LED Strip Light (#2176-Yellow)
- Special LED Strip Light (#14046)
- 5050 Special LED Strip Light (#2809-food)
See every model in SMD LED Strip Series or narrow to Special. Compare wattage, lumen output and run length in the ProCalc parameter library, or request OEM/ODM pricing on the custom manufacturing page.
Frequently Asked Questions
What are the key specifications of 11474?
11474: 2216, 180LEDs/m, 24V, 6 PCB, 2oz copper FPCB, cuttable Arbitrary cutting. Full photometric data, wiring diagrams and test reports are available in the downloads section of this page.
Which environments is this special application LED strip rated for?
Ingress protection for this model is listed in the datasheet. As a special application LED strip it is specified for the duty listed in the datasheet, and DENO can supply alternative coatings, sleeves or IP68 potting for harsher installations.
Can DENO customise this special application LED strip for a project?
Yes. DENO manufactures the Special SMD Strips series as an OEM and ODM supplier: reel length, colour temperature, CRI grade, PCB width, waterproofing and private labelling can all be specified. Request a quote for lead time and project pricing.
What can be customised on an OEM LED strip order?
FPCB width and copper weight, LED type and density, CCT and CRI bin, cut interval, reel length, connector and encapsulation can all be specified. As a direct LED strip manufacturer, DENO builds to drawing, including non-standard shapes and project-specific labelling.
Which LED driver and run length suit #11474?
2216 Special LED Strip Light | 6mm | 24V | 180LEDs | Arbitrary cut | #11474 is a constant-voltage 24V product, so pair it with a CE or UL listed 24V constant-voltage LED driver rated about 20% above the connected load. Maximum single run is 5m. 5m Single/10m Dual Input power. Feeding from both ends or mid-feeding halves the copper distance and roughly quarters the voltage drop.
