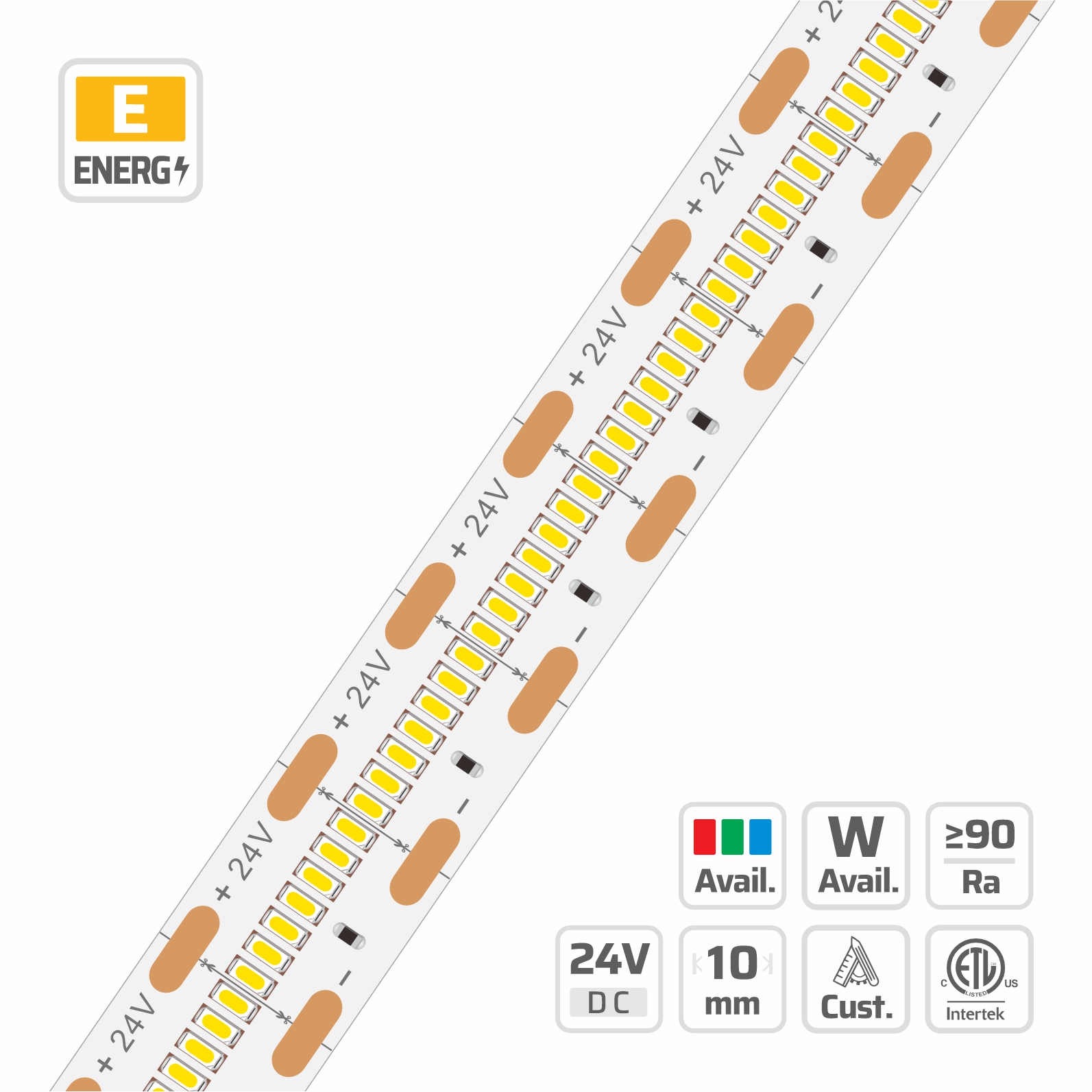

2110 Micro-Cut High Density LED Strip Light (#8651)
10mm · 24V · 700LEDs · 10cut
Model: 8651
Overview
10mm | 24V | 700LEDs | 10cut | #8651 | 2110 Micro-Cut High Density LED Strip Light is part of the DENO High Density LED Strips series, engineered around ultra high density LED strip. Key specifications: 2110, 700 LEDs/m, 24V, 10 mm PCB, 2oz copper FPCB, cuttable 7LEDs/10mm. Every reel is produced on DENO's roll-to-roll line with 99.9% pure copper FPCB and ships CE, UL and RoHS compliant for architectural, retail and hospitality projects. OEM and ODM configurations of length, colour temperature and waterproofing are available on request.
Description
This 2110 high density LED strip light features 700 LEDs per meter with a tight 1.4mm pitch for smooth architectural lighting. Engineered with a precise 10mm cutting increment on a 10mm wide 2oz copper PCB, it operates on constant voltage 24V input. The fully dimmable circuit supports a 4W to 22W power range across a wide 120 degree beam angle for uniform illumination. We provide factory-direct wholesale project supply with a minimum bend diameter of 60mm and a maximum continuous run of 5 meters.
Micro Cut Led Strip built for micro-cut smd strips projects.
Specifications
| LED QTY | 700 LEDs/m |
|---|---|
| PART NO | DL-F21A350V24-8651-* |
| SMD TYPE | 2110 |
| CUTTABLE UNIT | 7LEDs/10mm |
| DIMMABLE | Yes |
| IP RATING | IP20 |
| LED PITCH | 1.4mm |
| PCB WIDTH | 10 mm |
| BEAM ANGLE | 120° |
| RUN LENGTH | 5M |
| COPPER FOIL | 2oz |
| ON OFF TIMES | 10000（test times） |
| POWER RANGE | 4~22W |
| CIRCUIT TYPE | C.V. |
| INPUT VOLTAGE | 24V |
| MIN BEND DIAMETER | Φ60mm |
| OPERATING TEMPERATURE | -25~40°C;Tc：75°C（max） |
Applications
- Cove, wall-wash & perimeter lighting — Coves, recesses, wall-wash details and ceiling perimeters where a continuous, uniform line of light is required.
- Showroom & hospitality display lighting — Shelving, display cases, reception desks and signage backlighting in shops, showrooms and hospitality spaces.
- Kitchen & wardrobe under-cabinet lighting — Kitchen, wardrobe and furniture task lighting where the strip stays hidden and only the light is seen.
Recommended accessories & compatible parts
- DL-1003 — 19.1x8mm Surface Mount LED Channel — Dotless Aluminum Profile for 240 LEDs/m Strip: Accepts LED strips up to 10mm wide.
- DL-1103-1 — 16x13mm Surface Mount LED Channel — Aluminum Profile for 10mm LED Strip: Accepts LED strips up to 10mm wide.
- DL-1510 HX-F — 15x9.9mm Recessed LED Channel with Flange — Flush Mount Aluminum Profile: Accepts LED strips up to 10mm wide.
- DN-PSU-100 — 24V 100W Class-2 LED Driver · High Efficiency: Matches the 24V DC input of this strip; size the driver with at least 20% headroom over total load.
- DN-PSU-150 — 24V 150W Class-2 LED Driver · Premium: Matches the 24V DC input of this strip; size the driver with at least 20% headroom over total load.
- DN-PSU-60 — 24V 60W Class-2 LED Driver · Constant Voltage: Matches the 24V DC input of this strip; size the driver with at least 20% headroom over total load.
- V1 — 5-36VDC 1-Channel * 8A RF+Push Dimming Controller | V1: Matched by input voltage range and colour channels.
Request a quotation for #8651
DENO LED is a Shenzhen-based LED strip manufacturer with its own Foshan production base. Send the run length, voltage, CCT/CRI and IP rating you need and our engineering team replies with a specification sheet, wiring plan and price — OEM/ODM and fully custom builds included.
- Warranty: 5 years
- Lead time: standard boards: samples from 1 working day · custom: 3–5 working days · new FPCB: 1–3 weeks · production 1–2 weeks after sample approval
- Compliance: CE · UL · RoHS
- Bonding wire: 99.99% pure gold
- Copper foil: 99.9% pure copper FPCB
Photometric Performance — CCT × CRI Efficacy Matrix
Peak measured luminous efficacy: 138.8 lm/W at 4000K, Ra 90, ErP energy class D (Grade DL (2nd Tier) · 8.01W/m).
All values are measured at the stated power density and ambient 25 °C, reported as luminous efficacy in lumens per watt (lm/W), luminous flux per metre (lm/m) and the corresponding EU ErP (2019/2015) energy class.
Grade DL (2nd Tier) · 8.01W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | — | — | — | 105 lm/W | 839.7 lm/m | F | — | — | — |
| 2300 K | — | — | — | 116.9 lm/W | 935.4 lm/m | E | — | — | — |
| 2700 K | — | — | — | 126.5 lm/W | 1012.1 lm/m | E | 102.5 lm/W | 819.9 lm/m | F |
| 3000 K | — | — | — | 133.1 lm/W | 1064.7 lm/m | E | 108.3 lm/W | 866.4 lm/m | F |
| 3500 K | — | — | — | 135.5 lm/W | 1083.7 lm/m | D | 111.5 lm/W | 892.3 lm/m | E |
| 4000 K | — | — | — | 138.8 lm/W | 1110.4 lm/m | D | 114.6 lm/W | 916.4 lm/m | E |
| 5000 K | — | — | — | 138.7 lm/W | 1109.6 lm/m | D | — | — | — |
| 6500 K | — | — | — | 133.1 lm/W | 1064.7 lm/m | E | — | — | — |
Grade DL (2nd Tier) · 12W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | — | — | — | 102.1 lm/W | 1224.8 lm/m | F | — | — | — |
| 2300 K | — | — | — | 113.7 lm/W | 1364.3 lm/m | E | — | — | — |
| 2700 K | — | — | — | 123 lm/W | 1476.3 lm/m | E | 99.7 lm/W | 1195.8 lm/m | F |
| 3000 K | — | — | — | 129.4 lm/W | 1553 lm/m | E | 105.3 lm/W | 1263.7 lm/m | F |
| 3500 K | — | — | — | 131.7 lm/W | 1580.6 lm/m | E | 108.5 lm/W | 1301.5 lm/m | F |
| 4000 K | — | — | — | 135 lm/W | 1619.6 lm/m | E | 111.4 lm/W | 1336.7 lm/m | E |
| 5000 K | — | — | — | 134.9 lm/W | 1618.3 lm/m | E | — | — | — |
| 6500 K | — | — | — | 129.4 lm/W | 1553 lm/m | E | — | — | — |
Grade DL (2nd Tier) · 16W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | — | — | — | 99.2 lm/W | 1587.8 lm/m | F | — | — | — |
| 2300 K | — | — | — | 110.5 lm/W | 1768.7 lm/m | E | — | — | — |
| 2700 K | — | — | — | 119.6 lm/W | 1913.8 lm/m | E | 96.9 lm/W | 1550.3 lm/m | F |
| 3000 K | — | — | — | 125.8 lm/W | 2013.2 lm/m | E | 102.4 lm/W | 1638.3 lm/m | F |
| 3500 K | — | — | — | 128.1 lm/W | 2049.1 lm/m | E | 105.5 lm/W | 1687.2 lm/m | F |
| 4000 K | — | — | — | 131.2 lm/W | 2099.6 lm/m | E | 108.3 lm/W | 1732.9 lm/m | F |
| 5000 K | — | — | — | 131.1 lm/W | 2098 lm/m | E | — | — | — |
| 6500 K | — | — | — | 125.8 lm/W | 2013.2 lm/m | E | — | — | — |
Grade DL (2nd Tier) · 20W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | — | — | — | 96.5 lm/W | 1929.7 lm/m | F | — | — | — |
| 2300 K | — | — | — | 107.5 lm/W | 2149.6 lm/m | F | — | — | — |
| 2700 K | — | — | — | 116.3 lm/W | 2326 lm/m | E | 94.2 lm/W | 1884.2 lm/m | F |
| 3000 K | — | — | — | 122.3 lm/W | 2446.8 lm/m | E | 99.6 lm/W | 1991.1 lm/m | F |
| 3500 K | — | — | — | 124.5 lm/W | 2490.4 lm/m | E | 102.5 lm/W | 2050.6 lm/m | F |
| 4000 K | — | — | — | 127.6 lm/W | 2551.8 lm/m | E | 105.3 lm/W | 2106.1 lm/m | F |
| 5000 K | — | — | — | 127.5 lm/W | 2549.8 lm/m | E | — | — | — |
| 6500 K | — | — | — | 122.3 lm/W | 2446.8 lm/m | E | — | — | — |
High-Power LED Strip: Heat Dissipation & Aluminum Channel Guide
At up to 20W/m, 8651 is a high-power SMD LED strip. Above roughly 14.4W/m the tape can no longer shed its own heat through the FPC alone — an aluminum channel is part of the luminaire, not an accessory.
Why high-wattage strips need a heat sink
- Aluminum conducts heat roughly 30× faster than the plastics, MDF or gypsum a strip is usually stuck to, so a bare high-power run traps heat under the tape.
- LED lifetime (LM-80 / TM-21) is driven by solder-point temperature Tc. Keeping Tc inside the datasheet limit — DENO strips are rated Tc ≤ 75°C — is what preserves the rated L70 lifetime and colour stability.
- Never run 14.4W/m or more coiled on the reel, inside a sealed plastic diffuser, or directly on wood, wallpaper or foam.
Sizing rule: FPC width vs channel inner width
- Channel inner width ≥ FPC width + 2mm. This strip is 10mm wide, so it needs at least 12mm of inner width.
- The 2mm clearance absorbs extrusion tolerance and lets the tape be seated or replaced without scraping the side walls or the wiring.
- A frosted or opal PC cover then diffuses the higher lumen output into an even, dot-free line instead of visible hot spots.
Aluminum channels that fit this strip
- 22x12mm Recessed LED Channel with Flange · fits ≤10mm strip
- 20x15mm Wide Surface Mount LED Channel · fits ≤10mm strip
- 17x15mm Surface Mount LED Channel · fits ≤10mm strip
- 15x15mm Magnetic LED Channel · fits ≤10mm strip
- 19.1x8mm Surface Mount LED Channel · fits ≤10mm strip
- 15x15mm 48V Surface Mount LED Channel · fits ≤10mm strip
Recommended LED Channels
Mount this LED strip in a DENO LED aluminum profile for heat dissipation, physical protection and diffused, dot-free output.
This strip is 10mm wide, so it needs a channel with at least 12mm inner width (10mm + 2mm clearance). Every profile below meets that.
Related models in this series
- 2110 High Density Ultra-Narrow PU LED Strip Light (#9677-PU)
- 2110 Classic LED Strip Light (#6014)
- 2110 High Density LED Strip Light (#6016)
- 2110 High Lumen High Density Multi-Line LED Strip Light (#3702)
- 2110 Classic LED Strip Light (#5572)
- 2110 High Density LED Strip Light (#8734)
- 2110 High Density PU LED Strip Light (#5379-PU)
- 2110 High Density PU LED Strip Light (#5991-PU)
See every model in SMD LED Strip Series or narrow to 2110. Compare wattage, lumen output and run length in the ProCalc parameter library, or request OEM/ODM pricing on the custom manufacturing page.
Frequently Asked Questions
What are the key specifications of 8651?
8651: 2110, 700 LEDs/m, 24V, 10 mm PCB, 2oz copper FPCB, cuttable 7LEDs/10mm. Full photometric data, wiring diagrams and test reports are available in the downloads section of this page.
How long can a single run of this ultra high density LED strip be?
Maximum single run for this model is 5M. Feeding from both ends or using a mid-point tap halves the effective distance per segment, so a ultra high density LED strip can cover twice that length on one circuit when wired accordingly.
Can DENO customise this ultra high density LED strip for a project?
Yes. DENO manufactures the High Density LED Strips series as an OEM and ODM supplier: reel length, colour temperature, CRI grade, PCB width, waterproofing and private labelling can all be specified. Request a quote for lead time and project pricing.
How many LEDs per metre does a dotless LED strip need?
Visible dots depend on LED pitch, diffuser distance and transmittance. Above roughly 480 LEDs/m most diffusers give a continuous line at 10 mm depth, and the 700 LEDs/m high density LED strip stays dot free even behind a shallow, highly transmissive lens.
How short can you cut a micro-cut LED strip?
Cut points come as close as 12.5 mm, against 50 to 100 mm on a conventional cuttable LED strip. Short segments matter in cabinets, stair nosings, signage letters and display cases where a standard cut interval would leave a dark gap at the end of the run.
