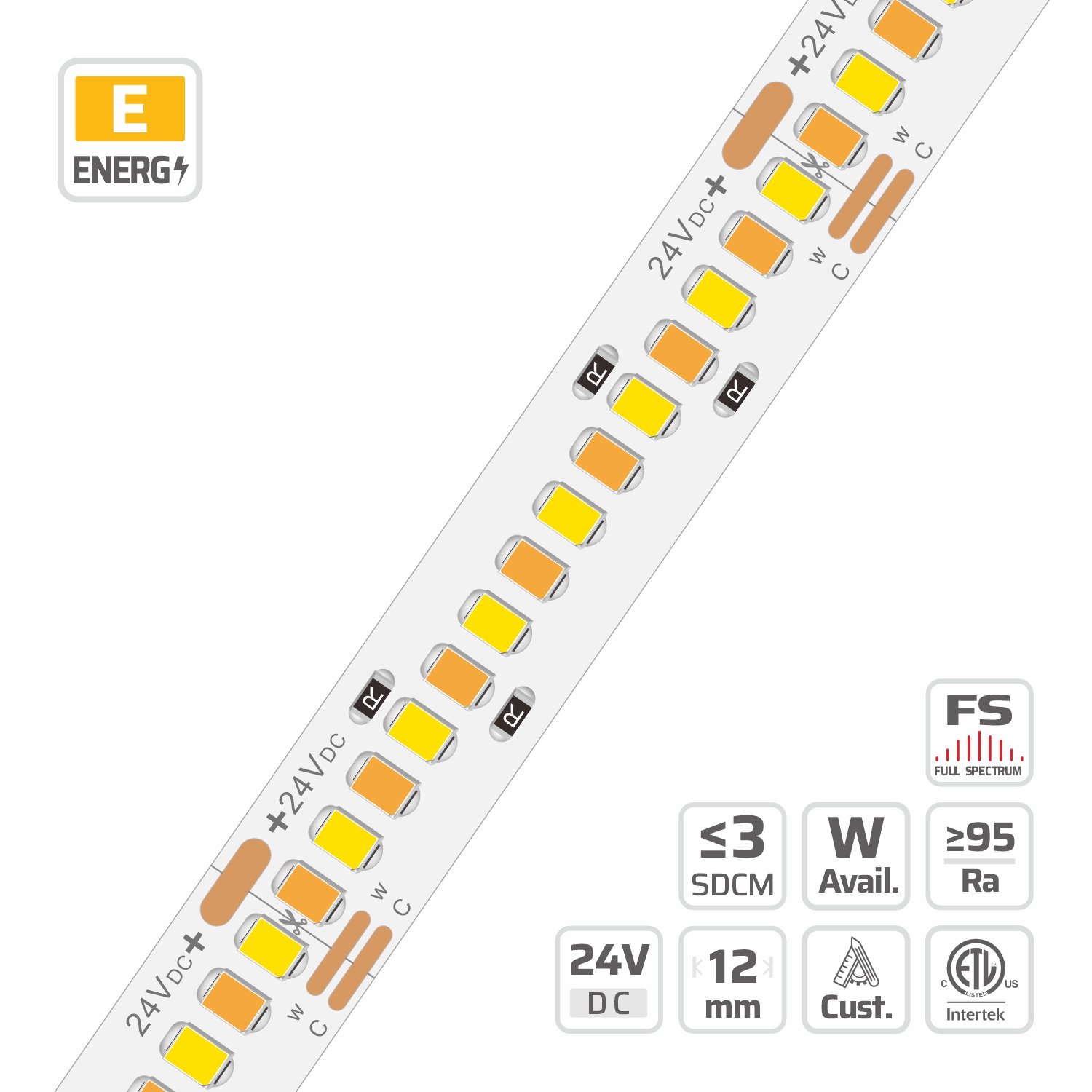

2835 CCT High Density LED Strip Light (#6804)
Model: 6804
Overview
2835 CCT High Density LED Strip Light | 12mm | 24V | 252LEDs | 55.5mm/cut | #6804 is part of the DENO High Density LED Strips series, engineered around ultra high density LED strip. Key specifications: 2835, 252 LEDs/m, 24V, 12mm PCB, 3oz copper FPCB, cuttable 14LEDs/55.55mm. Every reel is produced on DENO's roll-to-roll line with 99.9% pure copper FPCB and ships CE, UL and RoHS compliant for architectural, retail and hospitality projects. OEM and ODM configurations of length, colour temperature and waterproofing are available on request.
Description
#6804 | 2835 CCT High Density LED Strip Light Strong pure copper LED frame, and diameter>1mm, 99.9%-purity gold wire encapsulation, can reduce damage to the LED in different applications.
We use 99.99% gold wire, large-size chips, and thickened FPCB, backed by a 5-year warranty.
Specifications
| LED QTY | 252 LEDs/m |
|---|---|
| PART NO | DL-F28A126V24-6804-* |
| SMD TYPE | 2835 |
| CUTTABLE UNIT | 14LEDs/55.55mm |
| DIMMABLE | Yes |
| LED PITCH | 3.96mm |
| PCB WIDTH | 12mm |
| BEAM ANGLE | 120° |
| LENGTH MAX | 5m |
| COPPER FOIL | 3oz |
| POWER RANGE | 12~28.8W |
| CIRCUIT TYPE | C.V. |
| INPUT VOLTAGE | 24V |
Applications
- Cove, wall-wash & perimeter lighting — Coves, recesses, wall-wash details and ceiling perimeters where a continuous, uniform line of light is required.
- Showroom & hospitality display lighting — Shelving, display cases, reception desks and signage backlighting in shops, showrooms and hospitality spaces.
- Kitchen & wardrobe under-cabinet lighting — Kitchen, wardrobe and furniture task lighting where the strip stays hidden and only the light is seen.
- Hotel & residential tunable-white scenes — Hotel rooms, residential living areas and meeting spaces where warm evening light and neutral daytime light are both required from one fixture.
Request a quotation for #6804
DENO LED is a Shenzhen-based LED strip manufacturer with its own Foshan production base. Send the run length, voltage, CCT/CRI and IP rating you need and our engineering team replies with a specification sheet, wiring plan and price — OEM/ODM and fully custom builds included.
- Warranty: 5 years
- Compliance: CE · UL · RoHS
- Bonding wire: 99.99% pure gold
- Copper foil: 99.9% pure copper FPCB
Photometric Performance — CCT × CRI Efficacy Matrix
Peak measured luminous efficacy: 225.1 lm/W at 6500K, Ra 80, ErP energy class B (Grade DN (1st Tier) · CCT 3-Anchor · 12W/m).
All values are measured at the stated power density and ambient 25 °C, reported as luminous efficacy in lumens per watt (lm/W), luminous flux per metre (lm/m) and the corresponding EU ErP (2019/2015) energy class.
Grade DN (1st Tier) · CCT 3-Anchor · 12W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 2700 K | 202.8 lm/W | 1216.7 lm/m | B | 165 lm/W | 990.1 lm/m | D | 128.7 lm/W | 772.1 lm/m | E |
| 4000 K | 204.8 lm/W | 2457.1 lm/m | B | 166.7 lm/W | 2000.1 lm/m | D | 130 lm/W | 1560.1 lm/m | E |
| 6500 K | 225.1 lm/W | 1350.8 lm/m | B | 183.3 lm/W | 1099.8 lm/m | C | 143 lm/W | 858 lm/m | E |
Grade DN (1st Tier) · CCT 3-Anchor · 18W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 2700 K | 194.4 lm/W | 1749.7 lm/m | C | 158.2 lm/W | 1423.9 lm/m | D | 123.4 lm/W | 1110.4 lm/m | E |
| 4000 K | 196.3 lm/W | 3533.6 lm/m | C | 159.8 lm/W | 2876.3 lm/m | D | 124.6 lm/W | 2243.6 lm/m | E |
| 6500 K | 215.8 lm/W | 1942.5 lm/m | B | 175.7 lm/W | 1581.6 lm/m | C | 137.1 lm/W | 1233.9 lm/m | E |
Grade DN (1st Tier) · CCT 3-Anchor · 22W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 2700 K | 189 lm/W | 2079.3 lm/m | C | 153.8 lm/W | 1692.1 lm/m | D | 120 lm/W | 1319.6 lm/m | E |
| 4000 K | 190.9 lm/W | 4199.2 lm/m | C | 155.4 lm/W | 3418 lm/m | D | 121.2 lm/W | 2666.2 lm/m | E |
| 6500 K | 209.9 lm/W | 2308.4 lm/m | B | 170.9 lm/W | 1879.5 lm/m | D | 133.3 lm/W | 1466.3 lm/m | E |
Grade DN (1st Tier) · CCT 3-Anchor · 28.8W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 2700 K | 180.2 lm/W | 2595 lm/m | C | 146.7 lm/W | 2111.8 lm/m | D | 114.4 lm/W | 1646.9 lm/m | F |
| 4000 K | 182 lm/W | 5240.7 lm/m | C | 148.1 lm/W | 4265.8 lm/m | D | 115.5 lm/W | 3327.5 lm/m | F |
| 6500 K | 200.1 lm/W | 2881 lm/m | B | 162.9 lm/W | 2345.6 lm/m | D | 127.1 lm/W | 1830 lm/m | E |
Grade DL (2nd Tier) · CCT 3-Anchor · 12W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 2700 K | 178.8 lm/W | 1072.7 lm/m | C | 145.4 lm/W | 872.5 lm/m | D | 113.4 lm/W | 680.3 lm/m | E |
| 4000 K | 180.7 lm/W | 2167.8 lm/m | C | 146.9 lm/W | 1762.3 lm/m | D | 114.5 lm/W | 1373.9 lm/m | E |
| 6500 K | 198.5 lm/W | 1190.9 lm/m | B | 161.5 lm/W | 969 lm/m | C | 125.9 lm/W | 755.6 lm/m | E |
Grade DL (2nd Tier) · CCT 3-Anchor · 18W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 2700 K | 171.4 lm/W | 1542.6 lm/m | C | 139.4 lm/W | 1254.8 lm/m | D | 108.7 lm/W | 978.4 lm/m | F |
| 4000 K | 173.2 lm/W | 3117.5 lm/m | C | 140.8 lm/W | 2534.3 lm/m | D | 109.8 lm/W | 1975.8 lm/m | F |
| 6500 K | 190.3 lm/W | 1712.6 lm/m | B | 154.8 lm/W | 1393.5 lm/m | D | 120.7 lm/W | 1086.7 lm/m | E |
Grade DL (2nd Tier) · CCT 3-Anchor · 22W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 2700 K | 166.7 lm/W | 1833.2 lm/m | C | 135.6 lm/W | 1491.2 lm/m | D | 105.7 lm/W | 1162.7 lm/m | F |
| 4000 K | 168.4 lm/W | 3704.7 lm/m | C | 136.9 lm/W | 3011.7 lm/m | D | 106.7 lm/W | 2347.9 lm/m | F |
| 6500 K | 185 lm/W | 2035.2 lm/m | B | 150.5 lm/W | 1656 lm/m | D | 117.4 lm/W | 1291.4 lm/m | E |
Grade DL (2nd Tier) · CCT 3-Anchor · 25.68W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 2700 K | 162.4 lm/W | 2078.7 lm/m | C | 132.1 lm/W | 1690.3 lm/m | E | 103 lm/W | 1318.4 lm/m | F |
| 4000 K | 164.1 lm/W | 4214.1 lm/m | C | 133.4 lm/W | 3425.5 lm/m | E | 104 lm/W | 2670.7 lm/m | F |
| 6500 K | 180.3 lm/W | 2307.8 lm/m | C | 146.7 lm/W | 1878.1 lm/m | D | 114.4 lm/W | 1464.3 lm/m | E |
Grade DL (2nd Tier) · CCT 3-Anchor · 28.8W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 2700 K | 158.9 lm/W | 2287.9 lm/m | D | 129.2 lm/W | 1861 lm/m | E | 100.8 lm/W | 1451 lm/m | F |
| 4000 K | 160.5 lm/W | 4623.6 lm/m | C | 130.5 lm/W | 3758.6 lm/m | E | 101.7 lm/W | 2930.3 lm/m | F |
| 6500 K | 176.4 lm/W | 2540 lm/m | C | 143.5 lm/W | 2066.7 lm/m | D | 111.9 lm/W | 1611.6 lm/m | E |
Grade KE (3rd Tier) · CCT 3-Anchor · 12W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 2700 K | 152.2 lm/W | 913.5 lm/m | D | 123.6 lm/W | 741.8 lm/m | E | 96.4 lm/W | 578.6 lm/m | F |
| 4000 K | 153.8 lm/W | 1845.5 lm/m | D | 124.8 lm/W | 1498.1 lm/m | E | 97.3 lm/W | 1167.8 lm/m | F |
| 6500 K | 169 lm/W | 1013.9 lm/m | C | 137.3 lm/W | 823.7 lm/m | D | 107.1 lm/W | 642.7 lm/m | F |
Grade KE (3rd Tier) · CCT 3-Anchor · 18W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 2700 K | 146 lm/W | 1313.7 lm/m | D | 118.5 lm/W | 1066.7 lm/m | E | 92.5 lm/W | 832.1 lm/m | F |
| 4000 K | 147.4 lm/W | 2654 lm/m | D | 119.7 lm/W | 2154.3 lm/m | E | 93.3 lm/W | 1679.4 lm/m | F |
| 6500 K | 162 lm/W | 1458.1 lm/m | C | 131.6 lm/W | 1184.5 lm/m | E | 102.7 lm/W | 924.2 lm/m | F |
Grade KE (3rd Tier) · CCT 3-Anchor · 22W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 2700 K | 141.9 lm/W | 1561.1 lm/m | D | 115.2 lm/W | 1267.6 lm/m | E | 89.9 lm/W | 988.8 lm/m | F |
| 4000 K | 143.4 lm/W | 3153.9 lm/m | D | 116.4 lm/W | 2560.1 lm/m | E | 90.7 lm/W | 1995.7 lm/m | F |
| 6500 K | 157.5 lm/W | 1732.7 lm/m | D | 128 lm/W | 1407.6 lm/m | E | 99.8 lm/W | 1098.3 lm/m | F |
Grade KE (3rd Tier) · CCT 3-Anchor · 25.68W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 2700 K | 138.3 lm/W | 1770.2 lm/m | D | 112.3 lm/W | 1436.9 lm/m | E | 87.6 lm/W | 1121.3 lm/m | F |
| 4000 K | 139.7 lm/W | 3587.5 lm/m | D | 113.4 lm/W | 2911.9 lm/m | E | 88.4 lm/W | 2270.1 lm/m | F |
| 6500 K | 153.5 lm/W | 1964.8 lm/m | D | 124.7 lm/W | 1596.5 lm/m | E | 97.3 lm/W | 1245.4 lm/m | F |
Grade KE (3rd Tier) · CCT 3-Anchor · 28.8W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 2700 K | 135.3 lm/W | 1948.3 lm/m | D | 109.9 lm/W | 1582.1 lm/m | F | 85.7 lm/W | 1234.1 lm/m | F |
| 4000 K | 136.7 lm/W | 3936.1 lm/m | D | 110.9 lm/W | 3195.1 lm/m | E | 86.5 lm/W | 2490.7 lm/m | F |
| 6500 K | 150.2 lm/W | 2162.5 lm/m | D | 122 lm/W | 1756.8 lm/m | E | 95.2 lm/W | 1370.7 lm/m | F |
Related models in this series
- 3838 CCT LED Strips Two chip in one LED (#11668)
- 3838 CCT LED Strips Two chip in one LED (#7727)
- 3838 CCT LED Strips Two chip in one LED (#8180)
- 2835 CCT Tunable LED Strip Light (#17985)
- 2835 2-in-1 CCT Tunable LED Strip Light (#19937)
- 2835 CCT Tunable LED Strip Light (#18084)
See every model in SMD LED Strip Series or narrow to Cct. Compare wattage, lumen output and run length in the ProCalc parameter library, or request OEM/ODM pricing on the custom manufacturing page.
Frequently Asked Questions
What are the key specifications of 6804?
6804: 2835, 252 LEDs/m, 24V, 12mm PCB, 3oz copper FPCB, cuttable 14LEDs/55.55mm. Full photometric data, wiring diagrams and test reports are available in the downloads section of this page.
How long can a single run of this ultra high density LED strip be?
Maximum single run for this model is 5m. Feeding from both ends or using a mid-point tap halves the effective distance per segment, so a ultra high density LED strip can cover twice that length on one circuit when wired accordingly.
Can DENO customise this ultra high density LED strip for a project?
Yes. DENO manufactures the High Density LED Strips series as an OEM and ODM supplier: reel length, colour temperature, CRI grade, PCB width, waterproofing and private labelling can all be specified. Request a quote for lead time and project pricing.
How many LEDs per metre does a dotless LED strip need?
Visible dots depend on LED pitch, diffuser distance and transmittance. Above roughly 480 LEDs/m most diffusers give a continuous line at 10 mm depth, and the 700 LEDs/m high density LED strip stays dot free even behind a shallow, highly transmissive lens.
How does a tunable white LED strip mix colour temperature?
Two LED channels, typically 2700K and 6500K, sit on the same FPCB and are dimmed against each other. Mixing the channels sweeps the white point along the black body line while total output stays even, which is how a CCT LED strip supports circadian and human centric lighting schedules.
High Density LED Strip — Buyer Questions
What counts as a high density LED strip?
Anything above roughly 120 LEDs per metre is normally sold as a high density LED strip. DENO builds high-density boards from 240 up to 700 LEDs/m, which puts the LED pitch between 4.2 mm and 1.4 mm — tight enough to read as a continuous line behind a shallow diffuser instead of a row of dots.
Is a 24V high density LED strip better than 12V?
For dense boards, yes in most cases. A 24V high density LED strip draws half the current of a 12V board at the same wattage, so voltage drop is far lower and single runs of 5–10 m stay even in brightness. DENO supplies 12V, 24V, 48V and mains-voltage versions of the same high-density layout; 12V is normally reserved for short cabinet runs or low-voltage furniture requirements.
Do you make a 5V high density LED strip?
Yes. 5V dense LED tape is built for USB-powered displays, shelving and addressable pixel projects where the controller is 5V-native. Because 5V boards lose voltage quickly, DENO limits standard runs to 1–2 m per feed, uses 2 oz or 35+70 μm copper, and adds per-segment constant-current ICs so the far end does not dim.
- Series High Density LED Strips series
- Related series Constant-current dense LED strip boards
- Related series 5V addressable pixel LED strip builds
Can a high density RGB LED strip stay dot-free?
It can, but the pitch has to be tighter than a white board because each RGB package mixes three separate dies. DENO's high density RGB and RGBW builds place emitters at 2.1 mm–4.2 mm pitch so colour mixing completes within a few millimetres of the diffuser, which removes both the dot pattern and the rainbow fringing seen on standard 60 LEDs/m RGB tape.
- Series High Density LED Strips series
- Related series Dense RGB and RGBW colour tape
- Related series RGBW LED strip lights with a dedicated white die
What is a high density addressable LED strip used for?
High density addressable LED strip (pixel tape) is used for signage, media facades, stair effects and studio lighting where each LED or short segment must be controlled individually. DENO offers addressable builds with up to 700 pixels per metre in SPI protocols such as WS2812B, WS2815 and SK6812, with breakout points every cut unit for reliable data injection on long runs.
What makes the best high density LED strip lights?
Density alone is not enough. The best high density LED strip lights combine tight LED pitch with a 3-SDCM binning window, Ra 90+ (Ra 95+ for full-spectrum), 2 oz or heavier copper for thermal spreading, flicker-free constant-current drive and an FPCB rated for repeated bending. DENO ships photometric data, LM-80 chip data and a full test report with every OEM order so specifiers can verify these claims instead of trusting a datasheet number.
- Series High Density LED Strips series
- Related series Full-spectrum Ra 95+ dense boards
- Guide efficacy, flicker and ErP reference data
How dense can an ultra high density LED strip go?
DENO's ultra high density LED strip tops out at 700 LEDs per metre with a 1.4 mm pitch, drawing up to 30 W/m. Beyond that point a discrete SMD layout stops making sense thermally, and a SCOB (COB) emitter is the better route to a fully dotless line.
- Series High Density LED Strips series
- Related series Dotless SCOB alternative to ultra high density tape
- Related series ultra narrow LED strip boards from 3 mm wide
Can I order a custom high density LED strip?
Yes — LED count, pitch, CCT, CRI, PCB width from 3 mm, copper weight, cut unit and IP rating are all configurable on a custom high density LED strip. DENO is a manufacturer, not a reseller, so a non-standard density or a mixed-CCT dense board can be tooled from an existing FPCB stack-up without a new production line.
- Series High Density LED Strips series
- Related series Custom LED strip light capabilities
- Guide send a dense LED strip specification to DENO
- Product 18084 custom high density LED strip
Is high density LED tape the same as a high density LED strip?
They are the same product under two names: “high density led tape” is the common UK/EU term for what North America calls a high density LED strip. DENO ships the identical dense FPCB boards to both markets — 240 to 700 LEDs/m, 3 mm to 12 mm widths, CE/UL/RoHS documentation — so the tape you specify in a UK cove detail is the same board as the strip specified in a US one.
- Series High Density LED Strips series
- Related series micro-cut intervals on dense tape
- Related series narrow dense tape from 3 mm wide
Which dense LED tape suits under-cabinet lighting?
For under-cabinet work choose a dense board at 240–420 LEDs/m in a 5 mm to 8 mm width, 12V or 24V, with a short cut unit so the board matches each cabinet run exactly. At that density a 10 mm deep aluminium channel with a frosted diffuser already reads dot-free at normal worktop viewing distance.
What power supply do I need for a dense LED strip run?
Size the driver from the board wattage: multiply the W/m figure on the datasheet by the run length, then add 20–30 % headroom, so a 20 W/m board over 5 m needs a 100 W load on a 120–130 W constant-voltage driver. Match the driver voltage exactly (24V board, 24V driver), keep it constant-voltage rather than constant-current unless the board carries its own CC ICs, and check that the dimming protocol — TRIAC, 0–10V, DALI or PWM — is supported on both sides before ordering.
Does more LEDs per metre mean a brighter strip?
Not on its own. Brightness is lumens per metre, which is drive current times die count times efficacy — doubling the LED count while halving the current per die gives the same output with a smoother line, not twice the light. Read lm/m and W/m together: DENO dense boards run 8–24 W/m and 700–2600 lm/m, so pick the density for dot-free appearance and the wattage for the light level you actually need.
Can dense LED tape run on 36V or 48V supplies?
Yes. 36V and 48V builds exist specifically for long uninterrupted runs: at 48V the same wattage draws a quarter of the current of a 12V board, so a single feed can cover 15–20 m with even brightness and far fewer injection points. They need a matching SELV driver and, in most territories, the same low-voltage installation rules as 24V; DENO supplies 36V and 48V versions of the standard dense layouts on request.
