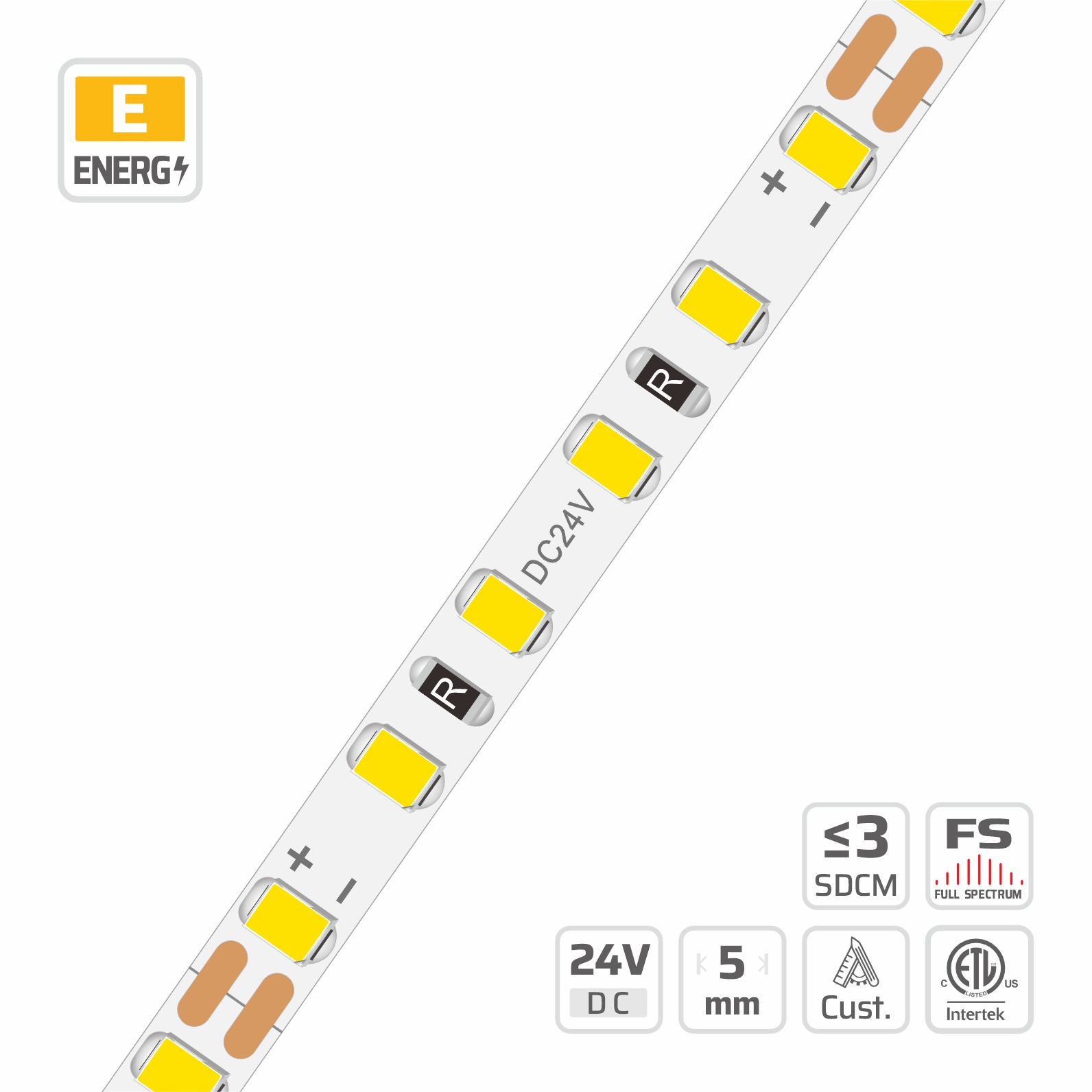

2835 Ultra-Narrow LED Strip Light (#6644)

Model: 6644

6644 #6644 | 2835 Ultra-Narrow LED Strip Light — 24V, cuttable every 50mm, 5mm FPCB width, 2835 LEDs, 120 LEDs/m, IP20

Overview

2835 Ultra-Narrow LED Strip Light | 5mm | 24V | 120LEDs | 12W | 50cut | #6644 is part of the DENO Ultra-Narrow SMD Strips series, engineered around ultra narrow LED strip. Key specifications: 2835, 120 LEDs/m, 24V, 5 mm PCB, 3oz copper FPCB, cuttable 6LEDs/50mm. Every reel is produced on DENO's roll-to-roll line with 99.9% pure copper FPCB and ships CE, UL and RoHS compliant for architectural, retail and hospitality projects. OEM and ODM configurations of length, colour temperature and waterproofing are available on request.

Description

This ultra-narrow 5 mm PCB 2835 LED strip light fits tight spaces, making it an ideal solution for slim architectural cabinet lighting. Engineered with 120 LEDs per meter and an 8.3 mm pitch, this 24V constant voltage tape offers smooth dimmable illumination cuttable every 50 mm. Built with a 3oz copper foil PCB and 99.9% purity gold wire encapsulation to ensure stable thermal management up to a 75°C maximum case temperature. Featuring a 120-degree beam angle and a minimum bend diameter of 60 mm, the 5-meter reel delivers flexible operation across diverse commercial installations. Operating from 2.4W to 14.4W per meter, this versatile strip is available for factory-direct wholesale project supply and OEM manufacturing needs.

Ultra Narrow Led Strip built for ultra-narrow smd strips projects.

Specifications

LED QTY	120 LEDs/m
PART NO	DL-F28A60V24-6644-*
SMD TYPE	2835
CUTTABLE UNIT	6LEDs/50mm
DIMMABLE	Yes
IP RATING	IP20
LED PITCH	8.3mm
PCB WIDTH	5 mm
BEAM ANGLE	120°
RUN LENGTH	5M
COPPER FOIL	3oz
ON OFF TIMES	10000（test times）
POWER RANGE	2.4~14.4W
CIRCUIT TYPE	C.V.
INPUT VOLTAGE	24V
MIN BEND DIAMETER	Φ60mm
OPERATING TEMPERATURE	-25~40°C;Tc：75°C（max）

Applications

Cove, wall-wash & perimeter lighting — Coves, recesses, wall-wash details and ceiling perimeters where a continuous, uniform line of light is required.
Showroom & hospitality display lighting — Shelving, display cases, reception desks and signage backlighting in shops, showrooms and hospitality spaces.
Kitchen & wardrobe under-cabinet lighting — Kitchen, wardrobe and furniture task lighting where the strip stays hidden and only the light is seen.
Ultra-narrow 5mm channels & shadow gaps — Fits shadow-gap details, slim profiles and joinery grooves that cannot take a standard 8–10mm strip.

Recommended accessories & compatible parts

DL-0809HX-F — 8.89x7.79mm Mini Recessed LED Channel with Flange — Trimless Aluminum Profile for 5mm Strip: Accepts LED strips up to 5mm wide.
DL-0909HX-M — 9x9mm Magnetic LED Channel — Tool-Free Aluminum Profile for Shelf Lighting: Accepts LED strips up to 5mm wide.
DL-1010HX-V — 10x10mm V Shape Corner LED Channel — 45 Degree Aluminum Profile for Cabinets: Accepts LED strips up to 5mm wide.
DN-PSU-100 — 24V 100W Class-2 LED Driver · High Efficiency: Matches the 24V DC input of this strip; size the driver with at least 20% headroom over total load.
DN-PSU-150 — 24V 150W Class-2 LED Driver · Premium: Matches the 24V DC input of this strip; size the driver with at least 20% headroom over total load.
DN-PSU-60 — 24V 60W Class-2 LED Driver · Constant Voltage: Matches the 24V DC input of this strip; size the driver with at least 20% headroom over total load.
V1 — 5-36VDC 1-Channel * 8A RF+Push Dimming Controller | V1: Matched by input voltage range and colour channels.

Request a quotation for #6644

DENO LED is a Shenzhen-based LED strip manufacturer with its own Foshan production base. Send the run length, voltage, CCT/CRI and IP rating you need and our engineering team replies with a specification sheet, wiring plan and price — OEM/ODM and fully custom builds included.

Warranty: 5 years
Lead time: standard boards: samples from 1 working day · custom: 3–5 working days · new FPCB: 1–3 weeks · production 1–2 weeks after sample approval
Compliance: CE · UL · RoHS
Bonding wire: 99.99% pure gold
Copper foil: 99.9% pure copper FPCB

Contact DENO LED engineers · OEM / ODM capability

Photometric Performance — CCT × CRI Efficacy Matrix

Peak measured luminous efficacy: 139.2 lm/W at 4000K, Ra 80, ErP energy class E (Grade DN (1st Tier)).

All values are measured at the stated power density and ambient 25 °C, reported as luminous efficacy in lumens per watt (lm/W), luminous flux per metre (lm/m) and the corresponding EU ErP (2019/2015) energy class.

Grade DL (2nd Tier)

Grade DL (2nd Tier) — measured at 7.2 W/m: luminous efficacy (lm/W), luminous flux (lm/m) and ErP energy class per CCT and CRI grade.
CCT (K)	Ra 80 — Luminous Efficacy (lm/W)	Ra 80 — Luminous Flux (lm/m)	Ra 80 — ErP Energy Class	Ra 90 — Luminous Efficacy (lm/W)	Ra 90 — Luminous Flux (lm/m)	Ra 90 — ErP Energy Class	Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W)	Full Spectrum (Ra 95+) — Luminous Flux (lm/m)	Full Spectrum (Ra 95+) — ErP Energy Class
1800 K	97 lm/W	698.3 lm/m	F	77.5 lm/W	557.7 lm/m	G	—	—	—
2300 K	107.9 lm/W	776.8 lm/m	F	86.3 lm/W	621.3 lm/m	F	69.9 lm/W	503.3 lm/m	G
2700 K	113.3 lm/W	815.7 lm/m	E	93.3 lm/W	672.1 lm/m	F	75.6 lm/W	544.3 lm/m	G
3000 K	121.5 lm/W	874.7 lm/m	E	98.2 lm/W	707.3 lm/m	F	79.9 lm/W	574.9 lm/m	G
3500 K	123.4 lm/W	888.2 lm/m	E	100 lm/W	720 lm/m	F	82.2 lm/W	592.1 lm/m	G
4000 K	127.3 lm/W	916.6 lm/m	E	102.4 lm/W	737.2 lm/m	F	84.5 lm/W	608.6 lm/m	G
5000 K	127.1 lm/W	915.1 lm/m	E	102.3 lm/W	736.4 lm/m	F	84.4 lm/W	607.7 lm/m	G
6500 K	116.1 lm/W	835.8 lm/m	E	98.1 lm/W	706.5 lm/m	F	81.4 lm/W	586.1 lm/m	G

Grade DL (2nd Tier)

Grade DL (2nd Tier) — measured at 9.6 W/m: luminous efficacy (lm/W), luminous flux (lm/m) and ErP energy class per CCT and CRI grade.
CCT (K)	Ra 80 — Luminous Efficacy (lm/W)	Ra 80 — Luminous Flux (lm/m)	Ra 80 — ErP Energy Class	Ra 90 — Luminous Efficacy (lm/W)	Ra 90 — Luminous Flux (lm/m)	Ra 90 — ErP Energy Class	Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W)	Full Spectrum (Ra 95+) — Luminous Flux (lm/m)	Full Spectrum (Ra 95+) — ErP Energy Class
1800 K	95.4 lm/W	915.5 lm/m	F	76.2 lm/W	731.2 lm/m	G	—	—	—
2300 K	106.1 lm/W	1018.4 lm/m	F	84.8 lm/W	814.5 lm/m	G	68.7 lm/W	659.5 lm/m	G
2700 K	111.4 lm/W	1069.4 lm/m	E	91.8 lm/W	881.2 lm/m	F	74.3 lm/W	713.6 lm/m	G
3000 K	119.5 lm/W	1146.8 lm/m	E	96.6 lm/W	927.2 lm/m	F	78.5 lm/W	753.8 lm/m	G
3500 K	121.3 lm/W	1164.4 lm/m	E	98.3 lm/W	943.9 lm/m	F	80.9 lm/W	776.3 lm/m	G
4000 K	125.2 lm/W	1201.7 lm/m	E	100.7 lm/W	966.4 lm/m	F	83.1 lm/W	797.9 lm/m	G
5000 K	125 lm/W	1199.7 lm/m	E	100.6 lm/W	965.5 lm/m	F	83 lm/W	796.8 lm/m	G
6500 K	114.1 lm/W	1095.8 lm/m	E	96.5 lm/W	926.3 lm/m	F	80.1 lm/W	769 lm/m	G

Grade DL (2nd Tier)

Grade DL (2nd Tier) — measured at 12 W/m: luminous efficacy (lm/W), luminous flux (lm/m) and ErP energy class per CCT and CRI grade.
CCT (K)	Ra 80 — Luminous Efficacy (lm/W)	Ra 80 — Luminous Flux (lm/m)	Ra 80 — ErP Energy Class	Ra 90 — Luminous Efficacy (lm/W)	Ra 90 — Luminous Flux (lm/m)	Ra 90 — ErP Energy Class	Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W)	Full Spectrum (Ra 95+) — Luminous Flux (lm/m)	Full Spectrum (Ra 95+) — ErP Energy Class
1800 K	93.8 lm/W	1125.2 lm/m	F	74.9 lm/W	898.7 lm/m	G	—	—	—
2300 K	104.3 lm/W	1251.7 lm/m	F	83.4 lm/W	1001.1 lm/m	G	67.6 lm/W	811.2 lm/m	G
2700 K	109.5 lm/W	1314.4 lm/m	F	90.3 lm/W	1083.1 lm/m	F	73.1 lm/W	877 lm/m	G
3000 K	117.5 lm/W	1409.5 lm/m	E	95 lm/W	1139.7 lm/m	F	77.2 lm/W	926.4 lm/m	G
3500 K	119.3 lm/W	1431.2 lm/m	E	96.7 lm/W	1160.2 lm/m	F	79.5 lm/W	954.1 lm/m	G
4000 K	123.1 lm/W	1477 lm/m	E	99 lm/W	1187.9 lm/m	F	81.7 lm/W	980.7 lm/m	G
5000 K	122.9 lm/W	1474.6 lm/m	E	98.9 lm/W	1186.7 lm/m	F	81.6 lm/W	979.2 lm/m	G
6500 K	112.2 lm/W	1346.9 lm/m	E	94.9 lm/W	1138.5 lm/m	F	78.7 lm/W	944.4 lm/m	G

Grade DN (1st Tier)

Grade DN (1st Tier) — measured at 7.2 W/m: luminous efficacy (lm/W), luminous flux (lm/m) and ErP energy class per CCT and CRI grade.
CCT (K)	Ra 80 — Luminous Efficacy (lm/W)	Ra 80 — Luminous Flux (lm/m)	Ra 80 — ErP Energy Class	Ra 90 — Luminous Efficacy (lm/W)	Ra 90 — Luminous Flux (lm/m)	Ra 90 — ErP Energy Class	Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W)	Full Spectrum (Ra 95+) — Luminous Flux (lm/m)	Full Spectrum (Ra 95+) — ErP Energy Class
1800 K	109.1 lm/W	785.8 lm/m	F	91.7 lm/W	660.2 lm/m	G	—	—	—
2300 K	119 lm/W	856.8 lm/m	E	102.3 lm/W	736.4 lm/m	F	82.8 lm/W	596.2 lm/m	G
2700 K	128.2 lm/W	923.3 lm/m	E	110.7 lm/W	797 lm/m	F	89.7 lm/W	645.9 lm/m	G
3000 K	134.7 lm/W	969.7 lm/m	E	116.9 lm/W	841.8 lm/m	F	95.1 lm/W	684.8 lm/m	F
3500 K	136.8 lm/W	984.6 lm/m	E	119.5 lm/W	860.5 lm/m	E	98.3 lm/W	708 lm/m	F
4000 K	139.2 lm/W	1002.6 lm/m	E	120.1 lm/W	865 lm/m	E	99.2 lm/W	714 lm/m	F
5000 K	139 lm/W	1001.1 lm/m	E	121 lm/W	871 lm/m	E	99.8 lm/W	718.6 lm/m	F
6500 K	133.3 lm/W	960 lm/m	E	115.6 lm/W	832.1 lm/m	F	95.9 lm/W	690.5 lm/m	F

Grade DN (1st Tier)

Grade DN (1st Tier) — measured at 9.6 W/m: luminous efficacy (lm/W), luminous flux (lm/m) and ErP energy class per CCT and CRI grade.
CCT (K)	Ra 80 — Luminous Efficacy (lm/W)	Ra 80 — Luminous Flux (lm/m)	Ra 80 — ErP Energy Class	Ra 90 — Luminous Efficacy (lm/W)	Ra 90 — Luminous Flux (lm/m)	Ra 90 — ErP Energy Class	Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W)	Full Spectrum (Ra 95+) — Luminous Flux (lm/m)	Full Spectrum (Ra 95+) — ErP Energy Class
1800 K	107.3 lm/W	1030.2 lm/m	F	90.2 lm/W	865.5 lm/m	G	—	—	—
2300 K	117 lm/W	1123.3 lm/m	F	100.6 lm/W	965.5 lm/m	F	81.5 lm/W	782.4 lm/m	G
2700 K	126.1 lm/W	1210.5 lm/m	E	108.8 lm/W	1044.9 lm/m	F	88.2 lm/W	846.9 lm/m	G
3000 K	132.4 lm/W	1271.3 lm/m	E	115 lm/W	1103.7 lm/m	F	93.5 lm/W	897.8 lm/m	F
3500 K	134.5 lm/W	1290.9 lm/m	E	117.5 lm/W	1128.2 lm/m	F	96.7 lm/W	928.2 lm/m	F
4000 K	136.9 lm/W	1314.4 lm/m	E	118.1 lm/W	1134.1 lm/m	F	97.5 lm/W	936.1 lm/m	F
5000 K	136.7 lm/W	1312.4 lm/m	E	118.9 lm/W	1141.9 lm/m	E	98.1 lm/W	941.8 lm/m	F
6500 K	131.1 lm/W	1258.5 lm/m	E	113.6 lm/W	1090.9 lm/m	F	94.3 lm/W	905.3 lm/m	F

Grade DN (1st Tier)

Grade DN (1st Tier) — measured at 12 W/m: luminous efficacy (lm/W), luminous flux (lm/m) and ErP energy class per CCT and CRI grade.
CCT (K)	Ra 80 — Luminous Efficacy (lm/W)	Ra 80 — Luminous Flux (lm/m)	Ra 80 — ErP Energy Class	Ra 90 — Luminous Efficacy (lm/W)	Ra 90 — Luminous Flux (lm/m)	Ra 90 — ErP Energy Class	Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W)	Full Spectrum (Ra 95+) — Luminous Flux (lm/m)	Full Spectrum (Ra 95+) — ErP Energy Class
1800 K	105.5 lm/W	1266.2 lm/m	F	88.6 lm/W	1063.8 lm/m	G	—	—	—
2300 K	115.1 lm/W	1380.6 lm/m	F	98.9 lm/W	1186.7 lm/m	F	80.1 lm/W	961.2 lm/m	G
2700 K	124 lm/W	1487.8 lm/m	E	107 lm/W	1284.2 lm/m	F	86.7 lm/W	1040.9 lm/m	G
3000 K	130.2 lm/W	1562.5 lm/m	E	113 lm/W	1356.5 lm/m	F	92 lm/W	1103.5 lm/m	F
3500 K	132.2 lm/W	1586.6 lm/m	E	115.6 lm/W	1386.6 lm/m	F	95.1 lm/W	1140.9 lm/m	F
4000 K	134.6 lm/W	1615.5 lm/m	E	116.2 lm/W	1393.9 lm/m	F	95.9 lm/W	1150.5 lm/m	F
5000 K	134.4 lm/W	1613.1 lm/m	E	117 lm/W	1403.5 lm/m	F	96.5 lm/W	1158 lm/m	F
6500 K	128.9 lm/W	1546.9 lm/m	E	111.7 lm/W	1340.9 lm/m	F	92.7 lm/W	1112.4 lm/m	F

Grade KE (3rd Tier)

Grade KE (3rd Tier) — measured at 7.2 W/m: luminous efficacy (lm/W), luminous flux (lm/m) and ErP energy class per CCT and CRI grade.
CCT (K)	Ra 80 — Luminous Efficacy (lm/W)	Ra 80 — Luminous Flux (lm/m)	Ra 80 — ErP Energy Class	Ra 90 — Luminous Efficacy (lm/W)	Ra 90 — Luminous Flux (lm/m)	Ra 90 — ErP Energy Class	Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W)	Full Spectrum (Ra 95+) — Luminous Flux (lm/m)	Full Spectrum (Ra 95+) — ErP Energy Class
1900 K	76.1 lm/W	548 lm/m	G	60.5 lm/W	435.9 lm/m	G	—	—	—
2300 K	84.8 lm/W	610.8 lm/m	G	67.5 lm/W	486 lm/m	G	54.7 lm/W	393.8 lm/m	G
2700 K	91.5 lm/W	658.7 lm/m	F	73.2 lm/W	527.1 lm/m	G	59.4 lm/W	427.6 lm/m	G
3000 K	96 lm/W	691.6 lm/m	F	77.5 lm/W	557.7 lm/m	G	63 lm/W	453.8 lm/m	G
3500 K	97.5 lm/W	702 lm/m	F	79 lm/W	568.9 lm/m	G	65 lm/W	468 lm/m	G
4000 K	100.3 lm/W	722.2 lm/m	F	80.7 lm/W	580.9 lm/m	G	66.6 lm/W	479.2 lm/m	G
5000 K	100.2 lm/W	721.5 lm/m	F	80.7 lm/W	580.9 lm/m	G	66.6 lm/W	479.5 lm/m	G
6500 K	96 lm/W	691.6 lm/m	F	77.5 lm/W	557.7 lm/m	G	64.3 lm/W	463 lm/m	G

Grade KE (3rd Tier)

Grade KE (3rd Tier) — measured at 9.6 W/m: luminous efficacy (lm/W), luminous flux (lm/m) and ErP energy class per CCT and CRI grade.
CCT (K)	Ra 80 — Luminous Efficacy (lm/W)	Ra 80 — Luminous Flux (lm/m)	Ra 80 — ErP Energy Class	Ra 90 — Luminous Efficacy (lm/W)	Ra 90 — Luminous Flux (lm/m)	Ra 90 — ErP Energy Class	Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W)	Full Spectrum (Ra 95+) — Luminous Flux (lm/m)	Full Spectrum (Ra 95+) — ErP Energy Class
1900 K	74.8 lm/W	718.5 lm/m	G	59.5 lm/W	571.4 lm/m	G	—	—	—
2300 K	83.4 lm/W	800.8 lm/m	G	66.4 lm/W	637.1 lm/m	G	53.8 lm/W	516.5 lm/m	G
2700 K	90 lm/W	863.5 lm/m	F	72 lm/W	691 lm/m	G	58.4 lm/W	560.7 lm/m	G
3000 K	94.4 lm/W	906.7 lm/m	F	76.2 lm/W	731.2 lm/m	G	62 lm/W	595 lm/m	G
3500 K	95.9 lm/W	920.4 lm/m	F	77.7 lm/W	745.9 lm/m	G	63.9 lm/W	613.6 lm/m	G
4000 K	98.6 lm/W	946.8 lm/m	F	79.3 lm/W	761.6 lm/m	G	65.4 lm/W	628.3 lm/m	G
5000 K	98.5 lm/W	945.9 lm/m	F	79.3 lm/W	761.6 lm/m	G	65.4 lm/W	627.8 lm/m	G
6500 K	94.4 lm/W	906.7 lm/m	F	76.2 lm/W	731.2 lm/m	G	63.2 lm/W	606.7 lm/m	G

Grade KE (3rd Tier)

Grade KE (3rd Tier) — measured at 12 W/m: luminous efficacy (lm/W), luminous flux (lm/m) and ErP energy class per CCT and CRI grade.
CCT (K)	Ra 80 — Luminous Efficacy (lm/W)	Ra 80 — Luminous Flux (lm/m)	Ra 80 — ErP Energy Class	Ra 90 — Luminous Efficacy (lm/W)	Ra 90 — Luminous Flux (lm/m)	Ra 90 — ErP Energy Class	Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W)	Full Spectrum (Ra 95+) — Luminous Flux (lm/m)	Full Spectrum (Ra 95+) — ErP Energy Class
1900 K	73.6 lm/W	883.1 lm/m	G	58.5 lm/W	702.4 lm/m	G	—	—	—
2300 K	82 lm/W	984.3 lm/m	G	65.3 lm/W	783.1 lm/m	G	52.9 lm/W	634.8 lm/m	G
2700 K	88.4 lm/W	1061.4 lm/m	F	70.8 lm/W	849.3 lm/m	G	57.4 lm/W	689.1 lm/m	G
3000 K	92.9 lm/W	1114.4 lm/m	F	74.9 lm/W	898.7 lm/m	G	60.9 lm/W	731.3 lm/m	G
3500 K	94.3 lm/W	1131.2 lm/m	F	76.4 lm/W	916.8 lm/m	G	62.8 lm/W	754.2 lm/m	G
4000 K	97 lm/W	1163.8 lm/m	F	78 lm/W	936.1 lm/m	G	64.4 lm/W	772.2 lm/m	G
5000 K	96.9 lm/W	1162.6 lm/m	F	78 lm/W	936.1 lm/m	G	64.4 lm/W	772.8 lm/m	G
6500 K	92.9 lm/W	1114.4 lm/m	F	74.9 lm/W	898.7 lm/m	G	62.2 lm/W	746.4 lm/m	G

Recommended LED Channels

Mount this LED strip in a DENO LED aluminum profile for heat dissipation, physical protection and diffused, dot-free output.

This strip is 5mm wide, so it needs a channel with at least 7mm inner width (5mm + 2mm clearance). Every profile below meets that.

Related models in this series

See every model in SMD LED Strip Series or narrow to Ultra Narrow. Compare wattage, lumen output and run length in the ProCalc parameter library, or request OEM/ODM pricing on the custom manufacturing page.

Frequently Asked Questions

What are the key specifications of 6644?

6644: 2835, 120 LEDs/m, 24V, 5 mm PCB, 3oz copper FPCB, cuttable 6LEDs/50mm. Full photometric data, wiring diagrams and test reports are available in the downloads section of this page.

How long can a single run of this ultra narrow LED strip be?

Maximum single run for this model is 5M. Feeding from both ends or using a mid-point tap halves the effective distance per segment, so a ultra narrow LED strip can cover twice that length on one circuit when wired accordingly.

Can DENO customise this ultra narrow LED strip for a project?

Yes. DENO manufactures the Ultra-Narrow SMD Strips series as an OEM and ODM supplier: reel length, colour temperature, CRI grade, PCB width, waterproofing and private labelling can all be specified. Request a quote for lead time and project pricing.

How narrow can a thin LED strip be?

DENO builds down to a 3 mm wide FPCB. A 3 mm LED strip fits aluminium channels, cabinet reveals, shelf edges and slim architectural slots where an 8 or 10 mm board cannot be hidden, while still carrying 2 oz copper for stable long runs.

Which LED driver and run length suit #6644?

#6644 | 2835 Ultra-Narrow LED Strip Light is a constant-voltage 24V product, so pair it with a CE or UL listed 24V constant-voltage LED driver rated about 20% above the connected load. Maximum single run is 5M. 5m Single/10m Dual Input power. Feeding from both ends or mid-feeding halves the copper distance and roughly quarters the voltage drop.
