2216 Ultra-Narrow LED Strip Light (#5288)
5mm · 12V · 120LEDs · 25mm/cut
Model: 5288
Overview

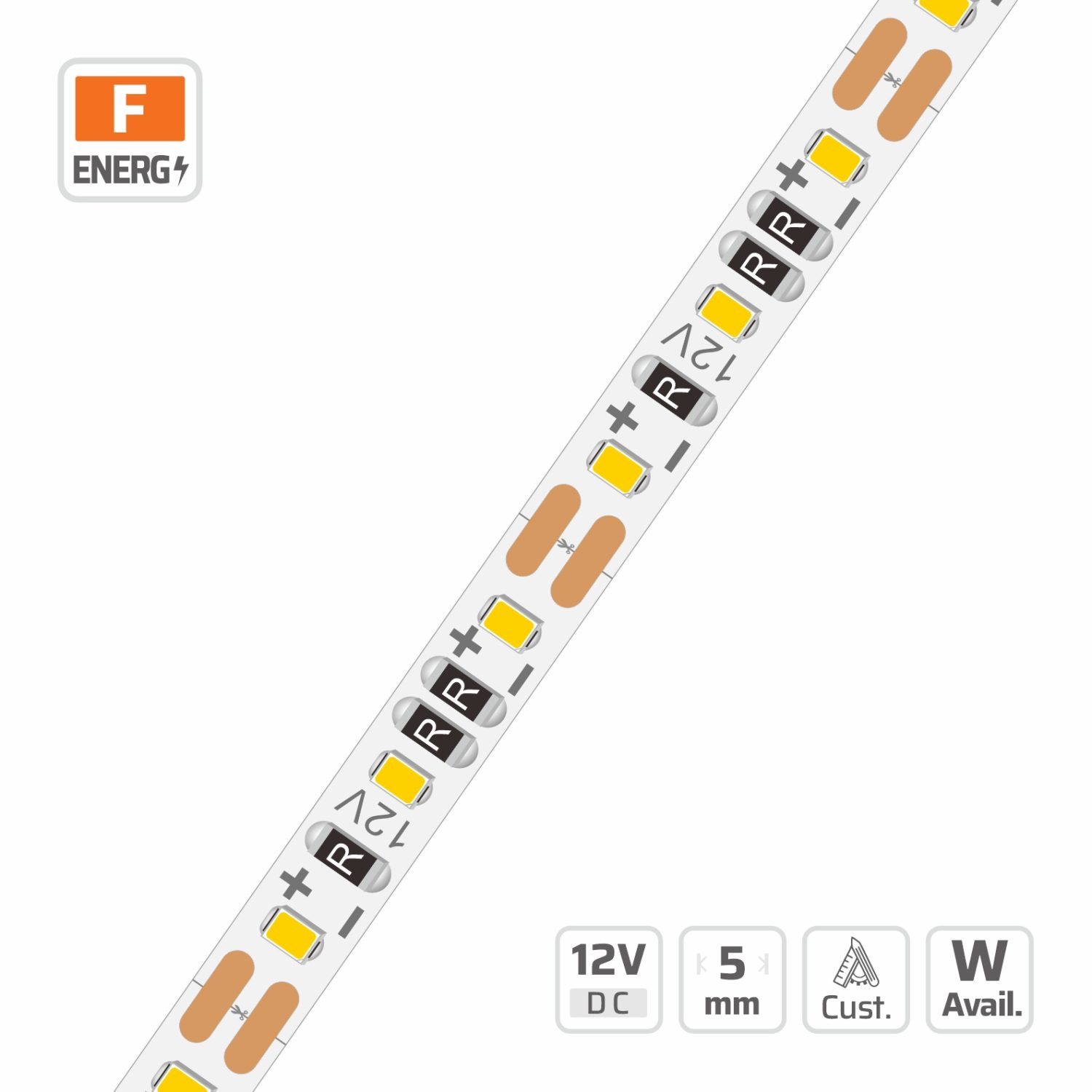

2216 Ultra-Narrow LED Strip Light | 5mm | 12V | 120LEDs | 25mm/cut | #5288 is part of the DENO Ultra-Narrow SMD Strips series, engineered around ultra narrow LED strip. Key specifications: 2216, 120 LEDs/m, DC 12V, 5 PCB, 2oz copper FPCB, cuttable 3LEDs/25mm. Every reel is produced on DENO's roll-to-roll line with 99.9% pure copper FPCB and ships CE, UL and RoHS compliant for architectural, retail and hospitality projects. OEM and ODM configurations of length, colour temperature and waterproofing are available on request.
Description
Featuring an ultra-narrow 5mm PCB, this 2216 LED strip light fits effortlessly into slim aluminum profiles for discreet cabinet lighting installations. Configured with 120 LEDs per meter at DC 12V, it allows precise 25mm cutting intervals for tailored wholesale project supply needs. The high-density SMD2216 chips deliver smooth dimmable illumination with a 120-degree beam angle and CRI greater than 90 color fidelity. Built with heavy 2oz copper foil on a constant voltage circuit, the strip handles operating temperatures from minus 25 to 40 degrees Celsius.
Ultra Narrow Led Strip built for ultra-narrow smd strips projects.
Specifications
| LED QTY | 120 LEDs/m |
|---|---|
| PART NO | DL-F22A60V12-5288-* |
| SMD TYPE | 2216 |
| CUTTABLE UNIT | 3LEDs/25mm |
| DIMMABLE | Yes |
| IP RATING | IP20 |
| LED PITCH | 8.3mm |
| PCB WIDTH | 5 |
| BEAM ANGLE | 120° |
| RUN LENGTH | 5m |
| COPPER FOIL | 2oz |
| POWER RANGE | 2.4~9.6W |
| CIRCUIT TYPE | C.V. |
| INPUT VOLTAGE | DC 12V |
| OPERATING TEMPERATURE | -25~40°C; Tc: 75°C (max) |
Applications
- Cove, wall-wash & perimeter lighting — Coves, recesses, wall-wash details and ceiling perimeters where a continuous, uniform line of light is required.
- Showroom & hospitality display lighting — Shelving, display cases, reception desks and signage backlighting in shops, showrooms and hospitality spaces.
- Kitchen & wardrobe under-cabinet lighting — Kitchen, wardrobe and furniture task lighting where the strip stays hidden and only the light is seen.
- Ultra-narrow 5mm channels & shadow gaps — Fits shadow-gap details, slim profiles and joinery grooves that cannot take a standard 8–10mm strip.
Recommended accessories & compatible parts
- DL-0809HX-F — 8.89x7.79mm Mini Recessed LED Channel with Flange — Trimless Aluminum Profile for 5mm Strip: Accepts LED strips up to 5mm wide.
- DL-0909HX-M — 9x9mm Magnetic LED Channel — Tool-Free Aluminum Profile for Shelf Lighting: Accepts LED strips up to 5mm wide.
- DL-1010HX-V — 10x10mm V Shape Corner LED Channel — 45 Degree Aluminum Profile for Cabinets: Accepts LED strips up to 5mm wide.
- V1 — 5-36VDC 1-Channel * 8A RF+Push Dimming Controller | V1: Matched by input voltage range and colour channels.
Request a quotation for #5288
DENO LED is a Shenzhen-based LED strip manufacturer with its own Foshan production base. Send the run length, voltage, CCT/CRI and IP rating you need and our engineering team replies with a specification sheet, wiring plan and price — OEM/ODM and fully custom builds included.
- Warranty: 5 years
- Lead time: standard boards: samples from 1 working day · custom: 3–5 working days · new FPCB: 1–3 weeks · production 1–2 weeks after sample approval
- Compliance: CE · UL · RoHS
- Bonding wire: 99.99% pure gold
- Copper foil: 99.9% pure copper FPCB
Photometric Performance — CCT × CRI Efficacy Matrix
Peak measured luminous efficacy: 127 lm/W at 4000K, Ra 90, ErP energy class E (Grade DL (2nd Tier) · 2.4W/m).
All values are measured at the stated power density and ambient 25 °C, reported as luminous efficacy in lumens per watt (lm/W), luminous flux per metre (lm/m) and the corresponding EU ErP (2019/2015) energy class.
Grade DL (2nd Tier) · 2.4W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | — | — | — | 96.1 lm/W | 230.5 lm/m | F | — | — | — |
| 2300 K | — | — | — | 106.9 lm/W | 256.7 lm/m | F | — | — | — |
| 2700 K | — | — | — | 115.8 lm/W | 277.9 lm/m | E | 93.8 lm/W | 225.1 lm/m | F |
| 3000 K | — | — | — | 121.8 lm/W | 292.4 lm/m | E | 99 lm/W | 237.7 lm/m | F |
| 3500 K | — | — | — | 124 lm/W | 297.6 lm/m | E | 102 lm/W | 244.8 lm/m | F |
| 4000 K | — | — | — | 127 lm/W | 304.8 lm/m | E | 104.8 lm/W | 251.5 lm/m | F |
| 5000 K | — | — | — | 126.9 lm/W | 304.5 lm/m | E | — | — | — |
| 6500 K | — | — | — | 121.7 lm/W | 292.2 lm/m | E | — | — | — |
Grade DL (2nd Tier) · 4.8W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | — | — | — | 94.5 lm/W | 453.4 lm/m | F | — | — | — |
| 2300 K | — | — | — | 105.2 lm/W | 504.8 lm/m | F | — | — | — |
| 2700 K | — | — | — | 113.8 lm/W | 546.5 lm/m | E | 92.2 lm/W | 442.7 lm/m | F |
| 3000 K | — | — | — | 119.8 lm/W | 575.1 lm/m | E | 97.4 lm/W | 467.4 lm/m | F |
| 3500 K | — | — | — | 121.9 lm/W | 585.3 lm/m | E | 100.3 lm/W | 481.5 lm/m | F |
| 4000 K | — | — | — | 124.9 lm/W | 599.3 lm/m | E | 103 lm/W | 494.6 lm/m | F |
| 5000 K | — | — | — | 124.8 lm/W | 598.8 lm/m | E | — | — | — |
| 6500 K | — | — | — | 119.7 lm/W | 574.6 lm/m | E | — | — | — |
Grade DL (2nd Tier) · 7.2W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | — | — | — | 92.9 lm/W | 668.7 lm/m | F | — | — | — |
| 2300 K | — | — | — | 103.4 lm/W | 744.5 lm/m | F | — | — | — |
| 2700 K | — | — | — | 111.9 lm/W | 806 lm/m | E | 90.7 lm/W | 652.9 lm/m | F |
| 3000 K | — | — | — | 117.8 lm/W | 848.2 lm/m | E | 95.8 lm/W | 689.4 lm/m | F |
| 3500 K | — | — | — | 119.9 lm/W | 863.2 lm/m | E | 98.6 lm/W | 710.2 lm/m | F |
| 4000 K | — | — | — | 122.8 lm/W | 883.9 lm/m | E | 101.3 lm/W | 729.5 lm/m | F |
| 5000 K | — | — | — | 122.7 lm/W | 883.2 lm/m | E | — | — | — |
| 6500 K | — | — | — | 117.7 lm/W | 847.5 lm/m | E | — | — | — |
Grade DL (2nd Tier) · 9.6W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | — | — | — | 91.3 lm/W | 876.7 lm/m | F | — | — | — |
| 2300 K | — | — | — | 101.7 lm/W | 976 lm/m | F | — | — | — |
| 2700 K | — | — | — | 110.1 lm/W | 1056.7 lm/m | E | 89.2 lm/W | 856 lm/m | F |
| 3000 K | — | — | — | 115.8 lm/W | 1112 lm/m | E | 94.2 lm/W | 903.9 lm/m | F |
| 3500 K | — | — | — | 117.9 lm/W | 1131.7 lm/m | E | 97 lm/W | 931 lm/m | F |
| 4000 K | — | — | — | 120.7 lm/W | 1158.9 lm/m | E | 99.6 lm/W | 956.4 lm/m | F |
| 5000 K | — | — | — | 120.6 lm/W | 1157.9 lm/m | E | — | — | — |
| 6500 K | — | — | — | 115.7 lm/W | 1111.1 lm/m | E | — | — | — |
Recommended LED Channels
Mount this LED strip in a DENO LED aluminum profile for heat dissipation, physical protection and diffused, dot-free output.
This strip is 5mm wide, so it needs a channel with at least 7mm inner width (5mm + 2mm clearance). Every profile below meets that.
Related models in this series
- 2216 Ultra-Narrow LED Strip Light (#6891)
- 2835 High Light Efficacy Ultra-Narrow LED Strip Light (#5267)
- 2835 Ultra-Narrow LED Strip Light (#6644)
- 2835 Ultra-Narrow LED Strip Light (#9496)
- 2216 Ultra-Narrow LED Strip Light (#13921-N)
See every model in SMD LED Strip Series or narrow to Ultra Narrow. Compare wattage, lumen output and run length in the ProCalc parameter library, or request OEM/ODM pricing on the custom manufacturing page.
Frequently Asked Questions
What are the key specifications of 5288?
5288: 2216, 120 LEDs/m, DC 12V, 5 PCB, 2oz copper FPCB, cuttable 3LEDs/25mm. Full photometric data, wiring diagrams and test reports are available in the downloads section of this page.
How long can a single run of this ultra narrow LED strip be?
Maximum single run for this model is 5m. Feeding from both ends or using a mid-point tap halves the effective distance per segment, so a ultra narrow LED strip can cover twice that length on one circuit when wired accordingly.
Can DENO customise this ultra narrow LED strip for a project?
Yes. DENO manufactures the Ultra-Narrow SMD Strips series as an OEM and ODM supplier: reel length, colour temperature, CRI grade, PCB width, waterproofing and private labelling can all be specified. Request a quote for lead time and project pricing.
How narrow can a thin LED strip be?
DENO builds down to a 3 mm wide FPCB. A 3 mm LED strip fits aluminium channels, cabinet reveals, shelf edges and slim architectural slots where an 8 or 10 mm board cannot be hidden, while still carrying 2 oz copper for stable long runs.
Which LED driver and run length suit #5288?
5mm | 12V | 120LEDs | 25mm/cut | #5288 | 2216 Ultra-Narrow LED Strip Light is a constant-voltage DC 12V product, so pair it with a CE or UL listed DC 12V constant-voltage LED driver rated about 20% above the connected load. Maximum single run is 5m. 5m Single/10m Dual Input power. Feeding from both ends or mid-feeding halves the copper distance and roughly quarters the voltage drop.
