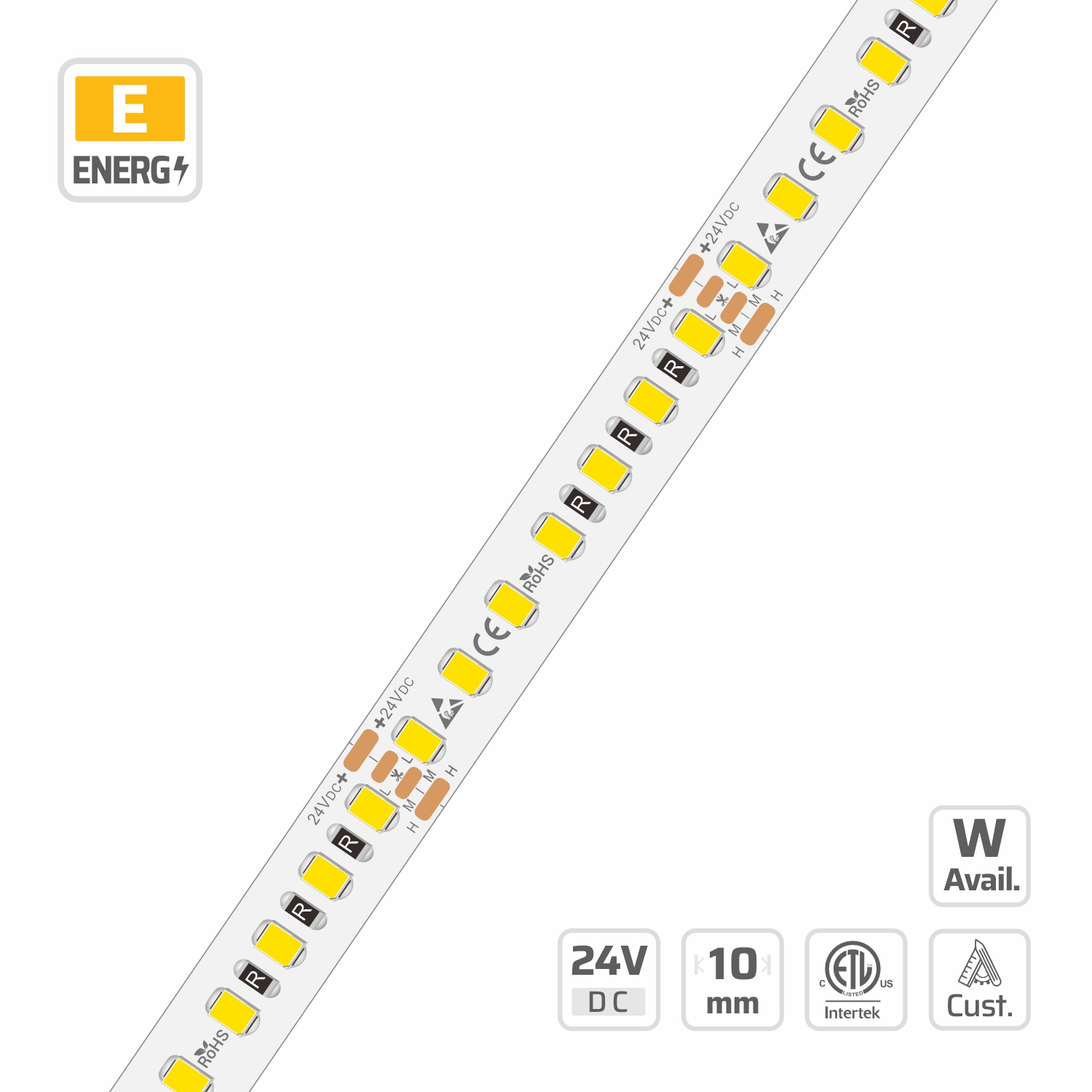

2835 6-in-1 Adjustable Power LED Strip Light (#18367)
10mm · 24V · 140LEDs · 50mm/cut
Model: 18367
Overview
Model 18367 is a 24V multi power LED strip with six selectable output levels from 9.6W/m to 28.8W/m, set by the wiring configuration at installation. Built on a 10mm FPCB with 140 2835 LEDs/m at 7.1mm pitch, cut every 50mm, with 2 oz copper sized for the 28.8W/m step so every lower step stays well inside junction-temperature limits.
Description
This 2835 LED strip light delivers six selectable power levels from 9.6W to 28.8W per meter via wiring configurations without extra control gear. Engineered with 140 LEDs per meter on a 10mm PCB, the 7.143mm pitch delivers uniform output ideal for architectural cove lighting. Precise cutting increments of 50mm with dedicated solder pads every 7 LEDs allow accurate field sizing for OEM custom lengths. Built on a durable 3oz copper flexible circuit board, the 24V constant-voltage design ensures optimal thermal management across all operating power steps. Consolidating multiple wattage options into a single 5m reel streamlines inventory management for factory-direct wholesale project supply.
We use 99.99% gold wire, large-size chips, and thickened FPCB, backed by a 5-year warranty.
Specifications
| CRI | Ra≥90 |
|---|---|
| POWER (W/M) | 16 W/m |
| LED QTY | 140 LEDs/m |
| PART NO | DL-F28A70V24-18367-* |
| SMD TYPE | 2835 |
| CUTTABLE UNIT | 7LEDs/50mm |
| DIMMABLE | Yes |
| IP RATING | IP20 |
| LED PITCH | 7.143mm |
| PCB WIDTH | 10mm |
| BEAM ANGLE | 120° |
| RUN LENGTH | 5m |
| COPPER FOIL | 3oz |
| POWER RANGE | 9.6~28.8W |
| CIRCUIT TYPE | C.V. |
| INPUT VOLTAGE | 24V |
| LUMINOUS FLUX | 394–2092 lm/m |
Applications
- Cove, wall-wash & perimeter lighting — Coves, recesses, wall-wash details and ceiling perimeters where a continuous, uniform line of light is required.
- Showroom & hospitality display lighting — Shelving, display cases, reception desks and signage backlighting in shops, showrooms and hospitality spaces.
- Kitchen & wardrobe under-cabinet lighting — Kitchen, wardrobe and furniture task lighting where the strip stays hidden and only the light is seen.
Recommended accessories & compatible parts
- DL-1003 — 19.1x8mm Surface Mount LED Channel — Dotless Aluminum Profile for 240 LEDs/m Strip: Accepts LED strips up to 10mm wide.
- DL-1103-1 — 16x13mm Surface Mount LED Channel — Aluminum Profile for 10mm LED Strip: Accepts LED strips up to 10mm wide.
- DL-1510 HX-F — 15x9.9mm Recessed LED Channel with Flange — Flush Mount Aluminum Profile: Accepts LED strips up to 10mm wide.
- DN-PSU-100 — 24V 100W Class-2 LED Driver · High Efficiency: Matches the 24V DC input of this strip; size the driver with at least 20% headroom over total load.
- DN-PSU-150 — 24V 150W Class-2 LED Driver · Premium: Matches the 24V DC input of this strip; size the driver with at least 20% headroom over total load.
- DN-PSU-60 — 24V 60W Class-2 LED Driver · Constant Voltage: Matches the 24V DC input of this strip; size the driver with at least 20% headroom over total load.
- V1 — 5-36VDC 1-Channel * 8A RF+Push Dimming Controller | V1: Matched by input voltage range and colour channels.
Request a quotation for #18367
DENO LED is a Shenzhen-based LED strip manufacturer with its own Foshan production base. Send the run length, voltage, CCT/CRI and IP rating you need and our engineering team replies with a specification sheet, wiring plan and price — OEM/ODM and fully custom builds included.
- Warranty: 5 years
- Lead time: standard boards: samples from 1 working day · custom: 3–5 working days · new FPCB: 1–3 weeks · production 1–2 weeks after sample approval
- Compliance: CE · UL · RoHS
- Bonding wire: 99.99% pure gold
- Copper foil: 99.9% pure copper FPCB
Photometric Performance — CCT × CRI Efficacy Matrix
Peak measured luminous efficacy: 166.3 lm/W at 4000K, Ra 80, ErP energy class C (Grade DL (2nd Tier) · 9.6W/m).
All values are measured at the stated power density and ambient 25 °C, reported as luminous efficacy in lumens per watt (lm/W), luminous flux per metre (lm/m) and the corresponding EU ErP (2019/2015) energy class.
Grade DL (2nd Tier) · 9.6W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | 126.8 lm/W | 1216.9 lm/m | E | 101.5 lm/W | 974.3 lm/m | F | — | — | — |
| 2300 K | 141 lm/W | 1353.8 lm/m | D | 113.1 lm/W | 1086.1 lm/m | E | 91.6 lm/W | 879.4 lm/m | F |
| 2700 K | 148.9 lm/W | 1429.3 lm/m | D | 122.4 lm/W | 1174.6 lm/m | E | 99.2 lm/W | 952.2 lm/m | F |
| 3000 K | 158.7 lm/W | 1523.9 lm/m | D | 128.8 lm/W | 1236 lm/m | E | 104.7 lm/W | 1005.5 lm/m | F |
| 3500 K | 161.2 lm/W | 1547.1 lm/m | C | 131.1 lm/W | 1258.2 lm/m | E | 107.9 lm/W | 1035.7 lm/m | F |
| 4000 K | 166.3 lm/W | 1596.4 lm/m | C | 134.2 lm/W | 1288.4 lm/m | E | 110.8 lm/W | 1063.9 lm/m | E |
| 5000 K | 166.1 lm/W | 1594.4 lm/m | C | 134.2 lm/W | 1288.4 lm/m | E | 110.7 lm/W | 1062.7 lm/m | E |
| 6500 K | 152.1 lm/W | 1460.5 lm/m | D | 128.8 lm/W | 1236 lm/m | E | 106.9 lm/W | 1026.2 lm/m | F |
Grade DL (2nd Tier) · 12W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | 124.6 lm/W | 1495.7 lm/m | E | 99.8 lm/W | 1197.6 lm/m | F | — | — | — |
| 2300 K | 138.7 lm/W | 1664 lm/m | D | 111.2 lm/W | 1334.9 lm/m | E | 90.1 lm/W | 1081.2 lm/m | F |
| 2700 K | 146.4 lm/W | 1756.7 lm/m | D | 120.3 lm/W | 1443.8 lm/m | E | 97.5 lm/W | 1170.3 lm/m | F |
| 3000 K | 156.1 lm/W | 1873 lm/m | D | 126.6 lm/W | 1519.2 lm/m | E | 103 lm/W | 1235.9 lm/m | F |
| 3500 K | 158.5 lm/W | 1901.5 lm/m | D | 128.9 lm/W | 1546.4 lm/m | E | 106.1 lm/W | 1273 lm/m | F |
| 4000 K | 163.5 lm/W | 1962.1 lm/m | C | 132 lm/W | 1583.5 lm/m | E | 109 lm/W | 1307.7 lm/m | F |
| 5000 K | 163.3 lm/W | 1959.6 lm/m | C | 132 lm/W | 1583.5 lm/m | E | 108.9 lm/W | 1306.8 lm/m | F |
| 6500 K | 149.6 lm/W | 1795.1 lm/m | D | 126.6 lm/W | 1519.2 lm/m | E | 105.1 lm/W | 1261.2 lm/m | F |
Grade DL (2nd Tier) · 14.4W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | 122.6 lm/W | 1764.8 lm/m | E | 98.1 lm/W | 1413 lm/m | F | — | — | — |
| 2300 K | 136.3 lm/W | 1963.4 lm/m | D | 109.4 lm/W | 1575.1 lm/m | F | 88.6 lm/W | 1275.8 lm/m | F |
| 2700 K | 143.9 lm/W | 2072.9 lm/m | D | 118.3 lm/W | 1703.5 lm/m | E | 95.9 lm/W | 1380.9 lm/m | F |
| 3000 K | 153.5 lm/W | 2210.1 lm/m | D | 124.5 lm/W | 1792.6 lm/m | E | 101.3 lm/W | 1458.3 lm/m | F |
| 3500 K | 155.8 lm/W | 2243.6 lm/m | D | 126.7 lm/W | 1824.7 lm/m | E | 104.3 lm/W | 1502.1 lm/m | F |
| 4000 K | 160.8 lm/W | 2315.2 lm/m | C | 129.8 lm/W | 1868.5 lm/m | E | 107.2 lm/W | 1543 lm/m | F |
| 5000 K | 160.6 lm/W | 2312.3 lm/m | C | 129.8 lm/W | 1868.5 lm/m | E | 107 lm/W | 1540.8 lm/m | F |
| 6500 K | 147.1 lm/W | 2118.1 lm/m | D | 124.5 lm/W | 1792.6 lm/m | E | 103.3 lm/W | 1487.5 lm/m | F |
Grade DL (2nd Tier) · 19.2W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | 118.5 lm/W | 2275.1 lm/m | E | 94.9 lm/W | 1821.6 lm/m | F | — | — | — |
| 2300 K | 131.8 lm/W | 2531 lm/m | E | 105.8 lm/W | 2030.5 lm/m | F | 85.7 lm/W | 1645.4 lm/m | F |
| 2700 K | 139.2 lm/W | 2672.2 lm/m | D | 114.4 lm/W | 2196.1 lm/m | E | 92.7 lm/W | 1780.2 lm/m | F |
| 3000 K | 148.4 lm/W | 2849.1 lm/m | D | 120.4 lm/W | 2310.9 lm/m | E | 97.9 lm/W | 1879.9 lm/m | F |
| 3500 K | 150.6 lm/W | 2892.3 lm/m | D | 122.5 lm/W | 2352.3 lm/m | E | 100.9 lm/W | 1936.4 lm/m | F |
| 4000 K | 155.4 lm/W | 2984.6 lm/m | D | 125.5 lm/W | 2408.7 lm/m | E | 103.6 lm/W | 1989.1 lm/m | F |
| 5000 K | 155.2 lm/W | 2980.8 lm/m | D | 125.5 lm/W | 2408.7 lm/m | E | 103.5 lm/W | 1987.2 lm/m | F |
| 6500 K | 142.2 lm/W | 2730.5 lm/m | D | 120.4 lm/W | 2310.9 lm/m | E | 99.9 lm/W | 1918.1 lm/m | F |
Grade DL (2nd Tier) · 24W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | 114.6 lm/W | 2749.6 lm/m | E | 91.7 lm/W | 2201.5 lm/m | F | — | — | — |
| 2300 K | 127.5 lm/W | 3058.9 lm/m | E | 102.2 lm/W | 2453.9 lm/m | F | 82.8 lm/W | 1987.2 lm/m | G |
| 2700 K | 134.6 lm/W | 3229.5 lm/m | E | 110.6 lm/W | 2654.1 lm/m | E | 89.6 lm/W | 2151.5 lm/m | F |
| 3000 K | 143.5 lm/W | 3443.2 lm/m | D | 116.4 lm/W | 2792.8 lm/m | E | 94.7 lm/W | 2272 lm/m | F |
| 3500 K | 145.6 lm/W | 3495.6 lm/m | D | 118.5 lm/W | 2842.8 lm/m | E | 97.5 lm/W | 2340.2 lm/m | F |
| 4000 K | 150.3 lm/W | 3607 lm/m | D | 121.3 lm/W | 2911.1 lm/m | E | 100.2 lm/W | 2403.9 lm/m | F |
| 5000 K | 150.1 lm/W | 3602.4 lm/m | D | 121.3 lm/W | 2911.1 lm/m | E | 100.1 lm/W | 2402.4 lm/m | F |
| 6500 K | 137.5 lm/W | 3300 lm/m | D | 116.4 lm/W | 2792.8 lm/m | E | 96.6 lm/W | 2318.4 lm/m | F |
High-Power LED Strip: Heat Dissipation & Aluminum Channel Guide
At up to 24W/m, 18367 is a high-power SMD LED strip. Above roughly 14.4W/m the tape can no longer shed its own heat through the FPC alone — an aluminum channel is part of the luminaire, not an accessory.
Why high-wattage strips need a heat sink
- Aluminum conducts heat roughly 30× faster than the plastics, MDF or gypsum a strip is usually stuck to, so a bare high-power run traps heat under the tape.
- LED lifetime (LM-80 / TM-21) is driven by solder-point temperature Tc. Keeping Tc inside the datasheet limit — DENO strips are rated Tc ≤ 75°C — is what preserves the rated L70 lifetime and colour stability.
- Never run 14.4W/m or more coiled on the reel, inside a sealed plastic diffuser, or directly on wood, wallpaper or foam.
Sizing rule: FPC width vs channel inner width
- Channel inner width ≥ FPC width + 2mm. This strip is 10mm wide, so it needs at least 12mm of inner width.
- The 2mm clearance absorbs extrusion tolerance and lets the tape be seated or replaced without scraping the side walls or the wiring.
- A frosted or opal PC cover then diffuses the higher lumen output into an even, dot-free line instead of visible hot spots.
Aluminum channels that fit this strip
- 22x12mm Recessed LED Channel with Flange · fits ≤10mm strip
- 20x15mm Wide Surface Mount LED Channel · fits ≤10mm strip
- 17x15mm Surface Mount LED Channel · fits ≤10mm strip
- 15x15mm Magnetic LED Channel · fits ≤10mm strip
- 19.1x8mm Surface Mount LED Channel · fits ≤10mm strip
- 15x15mm 48V Surface Mount LED Channel · fits ≤10mm strip
Recommended LED Channels
Mount this LED strip in a DENO LED aluminum profile for heat dissipation, physical protection and diffused, dot-free output.
This strip is 10mm wide, so it needs a channel with at least 12mm inner width (10mm + 2mm clearance). Every profile below meets that.
Frequently Asked Questions
How many wattage levels does the 18367 have?
Six, spanning 9.6W/m to 28.8W/m at 24V DC — enough range to cover ambient cove lighting and high-output retail or warehouse task lighting from one part number.
Is a controller needed to change level?
No. Selection happens in the wiring, so no control gear sits in the circuit. The strip can still be dimmed downstream for scene control.
Does running at 28.8W/m shorten the life?
No. The board area and 2 oz copper are dimensioned for that step, and drive current stays inside the LED rating. The 5-year warranty applies at every level.
What are the key specifications of #18367?
10mm | 24V | 140LEDs | 50mm/cut | #18367 | 2835 6-in-1 Adjustable Power LED Strip Light: 2835 LEDs, 140 LEDs/m, 24V, 10mm FPCB, 3oz copper foil, 9.6~28.8W power, cut unit 7LEDs/50mm. Photometric files, wiring diagrams and test reports are available in the downloads block on this page.
Which LED driver and run length suit #18367?
10mm | 24V | 140LEDs | 50mm/cut | #18367 | 2835 6-in-1 Adjustable Power LED Strip Light is a constant-voltage 24V product, so pair it with a CE or UL listed 24V constant-voltage LED driver rated about 20% above the connected load. Maximum single run is 5m. 5m Single / 10m Dual Input power. Feeding from both ends or mid-feeding halves the copper distance and roughly quarters the voltage drop.
