2835 High Lumen High Density LED Strip Light (#5565)
10mm · 12V · 240LEDs · 12.5mm/cut
Model: 5565
Overview

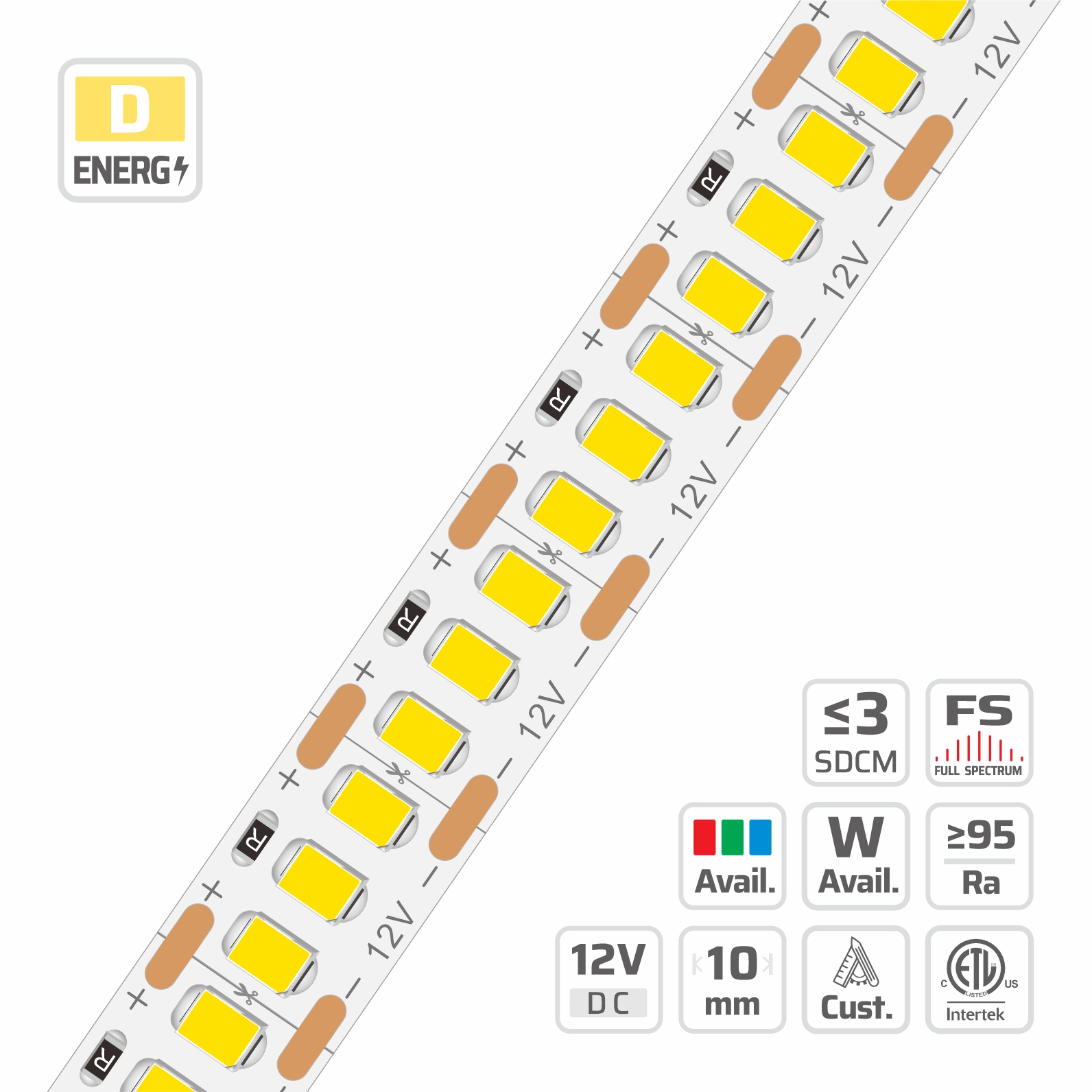

10mm | 12V | 240LEDs | 12.5mm/cut | #5565 | 2835 High Lumen High Density LED Strip Light is part of the DENO Micro-Cut SMD Strips series, engineered around micro cut LED strip. Key specifications: 2835, 240 LEDs/m, 12V, 10mm PCB, 3oz copper FPCB, cuttable 3LEDs/12.5mm. Every reel is produced on DENO's roll-to-roll line with 99.9% pure copper FPCB and ships CE, UL and RoHS compliant for architectural, retail and hospitality projects. OEM and ODM configurations of length, colour temperature and waterproofing are available on request.
Description
High-density 2835 LED strip light features 240 LEDs per meter with a tight 4.16mm pitch for smooth architectural lighting installations. Engineered with a 10mm 3oz copper PCB and 99.9% purity gold wire encapsulation to optimize thermal conductivity during continuous commercial operation. This 12V constant voltage strip supports precise field modifications with a short 12.5mm cutting interval and full dimming control capabilities. Available for wholesale project supply and OEM customization, offering a maximum 5M roll length and operating reliably from -25°C to 40°C.
We use 99.99% gold wire, large-size chips, and thickened FPCB, backed by a 5-year warranty.
Specifications
| LED QTY | 240 LEDs/m |
|---|---|
| PART NO | DL-F28A120V12-5565-* |
| SMD TYPE | 2835 |
| CUTTABLE UNIT | 3LEDs/12.5mm |
| DIMMABLE | Yes |
| IP RATING | IP20 |
| LED PITCH | 4.16mm |
| PCB WIDTH | 10mm |
| BEAM ANGLE | 120° |
| RUN LENGTH | 5M |
| COPPER FOIL | 3oz |
| ON OFF TIMES | 10000（test times） |
| POWER RANGE | 4.8~24W |
| CIRCUIT TYPE | C.V. |
| INPUT VOLTAGE | 12V |
| MIN BEND DIAMETER | Φ60mm |
| OPERATING TEMPERATURE | -25~40°C;Tc：75°C（max） |
Applications
- Cove, wall-wash & perimeter lighting — Coves, recesses, wall-wash details and ceiling perimeters where a continuous, uniform line of light is required.
- Showroom & hospitality display lighting — Shelving, display cases, reception desks and signage backlighting in shops, showrooms and hospitality spaces.
- Kitchen & wardrobe under-cabinet lighting — Kitchen, wardrobe and furniture task lighting where the strip stays hidden and only the light is seen.
Recommended accessories & compatible parts
- DL-1003 — 19.1x8mm Surface Mount LED Channel — Dotless Aluminum Profile for 240 LEDs/m Strip: Accepts LED strips up to 10mm wide.
- DL-1103-1 — 16x13mm Surface Mount LED Channel — Aluminum Profile for 10mm LED Strip: Accepts LED strips up to 10mm wide.
- DL-1510 HX-F — 15x9.9mm Recessed LED Channel with Flange — Flush Mount Aluminum Profile: Accepts LED strips up to 10mm wide.
- V1 — 5-36VDC 1-Channel * 8A RF+Push Dimming Controller | V1: Matched by input voltage range and colour channels.
Request a quotation for #5565
DENO LED is a Shenzhen-based LED strip manufacturer with its own Foshan production base. Send the run length, voltage, CCT/CRI and IP rating you need and our engineering team replies with a specification sheet, wiring plan and price — OEM/ODM and fully custom builds included.
- Warranty: 5 years
- Lead time: standard boards: samples from 1 working day · custom: 3–5 working days · new FPCB: 1–3 weeks · production 1–2 weeks after sample approval
- Compliance: CE · UL · RoHS
- Bonding wire: 99.99% pure gold
- Copper foil: 99.9% pure copper FPCB
Photometric Performance — CCT × CRI Efficacy Matrix
Peak measured luminous efficacy: 181.7 lm/W at 4000K, Ra 80, ErP energy class C (Grade DN (1st Tier) · 9.6W/m).
All values are measured at the stated power density and ambient 25 °C, reported as luminous efficacy in lumens per watt (lm/W), luminous flux per metre (lm/m) and the corresponding EU ErP (2019/2015) energy class.
Grade DL (2nd Tier) · 9.6W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | 131.5 lm/W | 1262.5 lm/m | E | 105.4 lm/W | 1011.8 lm/m | F | — | — | — |
| 2300 K | 146.4 lm/W | 1405.7 lm/m | D | 117.4 lm/W | 1127.4 lm/m | E | 95.1 lm/W | 913 lm/m | F |
| 2700 K | 154.6 lm/W | 1484.5 lm/m | D | 127.1 lm/W | 1220.5 lm/m | E | 103.1 lm/W | 989.3 lm/m | F |
| 3000 K | 164.9 lm/W | 1582.7 lm/m | C | 133.7 lm/W | 1284 lm/m | E | 108.8 lm/W | 1044.6 lm/m | F |
| 3500 K | 167.3 lm/W | 1606.2 lm/m | C | 136.1 lm/W | 1306.5 lm/m | D | 112 lm/W | 1075.3 lm/m | E |
| 4000 K | 172.6 lm/W | 1657.4 lm/m | C | 139.4 lm/W | 1338.2 lm/m | D | 115.1 lm/W | 1104.9 lm/m | E |
| 5000 K | 172.4 lm/W | 1655.3 lm/m | C | 139.3 lm/W | 1337.2 lm/m | D | 114.9 lm/W | 1103 lm/m | E |
| 6500 K | 157.9 lm/W | 1516.2 lm/m | D | 133.6 lm/W | 1282.9 lm/m | E | 110.9 lm/W | 1064.6 lm/m | E |
Grade DL (2nd Tier) · 14.4W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | 127.1 lm/W | 1830.9 lm/m | E | 101.9 lm/W | 1467.4 lm/m | F | — | — | — |
| 2300 K | 141.6 lm/W | 2038.7 lm/m | D | 113.5 lm/W | 1635.1 lm/m | E | 92 lm/W | 1324.8 lm/m | F |
| 2700 K | 149.5 lm/W | 2152.9 lm/m | D | 122.9 lm/W | 1770.1 lm/m | E | 99.6 lm/W | 1434.8 lm/m | F |
| 3000 K | 159.4 lm/W | 2295.4 lm/m | D | 129.3 lm/W | 1862.1 lm/m | E | 105.2 lm/W | 1514.9 lm/m | F |
| 3500 K | 161.8 lm/W | 2329.5 lm/m | C | 131.6 lm/W | 1894.7 lm/m | E | 108.3 lm/W | 1559.4 lm/m | F |
| 4000 K | 166.9 lm/W | 2403.7 lm/m | C | 134.8 lm/W | 1940.7 lm/m | E | 111.3 lm/W | 1602.4 lm/m | E |
| 5000 K | 166.7 lm/W | 2400.7 lm/m | C | 134.7 lm/W | 1939.3 lm/m | E | 111.1 lm/W | 1599.8 lm/m | E |
| 6500 K | 152.7 lm/W | 2198.9 lm/m | D | 129.2 lm/W | 1860.6 lm/m | E | 107.2 lm/W | 1543.7 lm/m | F |
Grade DL (2nd Tier) · 19.2W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | 122.9 lm/W | 2360.3 lm/m | E | 98.5 lm/W | 1891.7 lm/m | F | — | — | — |
| 2300 K | 136.9 lm/W | 2628.1 lm/m | D | 109.8 lm/W | 2107.8 lm/m | F | 88.9 lm/W | 1706.9 lm/m | F |
| 2700 K | 144.6 lm/W | 2775.4 lm/m | D | 118.8 lm/W | 2281.9 lm/m | E | 96.3 lm/W | 1849.6 lm/m | F |
| 3000 K | 154.1 lm/W | 2959 lm/m | D | 125 lm/W | 2400.5 lm/m | E | 101.7 lm/W | 1952.9 lm/m | F |
| 3500 K | 156.4 lm/W | 3003 lm/m | D | 127.2 lm/W | 2442.6 lm/m | E | 104.7 lm/W | 2010.3 lm/m | F |
| 4000 K | 161.4 lm/W | 3098.6 lm/m | C | 130.3 lm/W | 2501.9 lm/m | E | 107.6 lm/W | 2065.7 lm/m | F |
| 5000 K | 161.2 lm/W | 3094.8 lm/m | C | 130.2 lm/W | 2499.9 lm/m | E | 107.4 lm/W | 2062.1 lm/m | F |
| 6500 K | 147.6 lm/W | 2834.7 lm/m | D | 124.9 lm/W | 2398.6 lm/m | E | 103.7 lm/W | 1991 lm/m | F |
Grade DN (1st Tier) · 9.6W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | 142.4 lm/W | 1366.8 lm/m | E | 120 lm/W | 1152 lm/m | E | — | — | — |
| 2300 K | 155.3 lm/W | 1490.6 lm/m | D | 133.9 lm/W | 1285 lm/m | E | 108.4 lm/W | 1040.6 lm/m | F |
| 2700 K | 167.4 lm/W | 1607.3 lm/m | D | 144.8 lm/W | 1390.4 lm/m | E | 117.4 lm/W | 1127.4 lm/m | F |
| 3000 K | 175.7 lm/W | 1687.1 lm/m | C | 152.9 lm/W | 1468.1 lm/m | D | 124.4 lm/W | 1193.9 lm/m | E |
| 3500 K | 178.4 lm/W | 1712.6 lm/m | C | 156.2 lm/W | 1499.8 lm/m | D | 128.6 lm/W | 1234.9 lm/m | E |
| 4000 K | 181.7 lm/W | 1744.4 lm/m | C | 157.1 lm/W | 1508 lm/m | D | 129.7 lm/W | 1245.1 lm/m | E |
| 5000 K | 181.5 lm/W | 1742.3 lm/m | C | 158.2 lm/W | 1518.3 lm/m | D | 130.5 lm/W | 1252.8 lm/m | E |
| 6500 K | 174 lm/W | 1670.7 lm/m | C | 151.1 lm/W | 1450.7 lm/m | D | 125.4 lm/W | 1203.8 lm/m | E |
Grade DN (1st Tier) · 14.4W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | 137.7 lm/W | 1982.3 lm/m | E | 116 lm/W | 1670.7 lm/m | F | — | — | — |
| 2300 K | 150.1 lm/W | 2161.8 lm/m | D | 129.4 lm/W | 1863.6 lm/m | E | 104.8 lm/W | 1509.1 lm/m | F |
| 2700 K | 161.9 lm/W | 2331 lm/m | D | 140 lm/W | 2016.4 lm/m | E | 113.5 lm/W | 1635.1 lm/m | F |
| 3000 K | 169.9 lm/W | 2446.7 lm/m | D | 147.9 lm/W | 2129.2 lm/m | D | 120.2 lm/W | 1731.5 lm/m | E |
| 3500 K | 172.5 lm/W | 2483.8 lm/m | D | 151.1 lm/W | 2175.2 lm/m | D | 124.4 lm/W | 1790.9 lm/m | E |
| 4000 K | 175.7 lm/W | 2529.8 lm/m | C | 151.9 lm/W | 2187 lm/m | D | 125.4 lm/W | 1805.7 lm/m | E |
| 5000 K | 175.5 lm/W | 2526.8 lm/m | C | 152.9 lm/W | 2201.9 lm/m | D | 126.1 lm/W | 1815.8 lm/m | E |
| 6500 K | 168.3 lm/W | 2423 lm/m | D | 146.1 lm/W | 2103.9 lm/m | D | 121.3 lm/W | 1746.7 lm/m | E |
Grade DN (1st Tier) · 19.2W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | 133.1 lm/W | 2555.4 lm/m | E | 112.2 lm/W | 2153.7 lm/m | F | — | — | — |
| 2300 K | 145.1 lm/W | 2786.8 lm/m | E | 125.1 lm/W | 2402.4 lm/m | E | 101.4 lm/W | 1946.9 lm/m | F |
| 2700 K | 156.5 lm/W | 3004.9 lm/m | D | 135.4 lm/W | 2599.4 lm/m | E | 109.8 lm/W | 2107.8 lm/m | F |
| 3000 K | 164.3 lm/W | 3154.1 lm/m | D | 143 lm/W | 2744.8 lm/m | E | 116.3 lm/W | 2232.2 lm/m | F |
| 3500 K | 166.8 lm/W | 3201.9 lm/m | D | 146 lm/W | 2804.1 lm/m | D | 120.2 lm/W | 2308.7 lm/m | E |
| 4000 K | 169.9 lm/W | 3261.2 lm/m | D | 146.8 lm/W | 2819.4 lm/m | D | 121.2 lm/W | 2327.8 lm/m | E |
| 5000 K | 169.7 lm/W | 3257.4 lm/m | D | 147.8 lm/W | 2838.5 lm/m | D | 122 lm/W | 2342.4 lm/m | E |
| 6500 K | 162.7 lm/W | 3123.5 lm/m | D | 141.3 lm/W | 2712.3 lm/m | E | 117.2 lm/W | 2250.2 lm/m | F |
Grade KE (3rd Tier) · 9.6W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1900 K | 110 lm/W | 1055.8 lm/m | F | 88 lm/W | 845.1 lm/m | F | — | — | — |
| 2300 K | 122.7 lm/W | 1177.6 lm/m | E | 98 lm/W | 941.2 lm/m | F | 79.4 lm/W | 762.2 lm/m | G |
| 2700 K | 132.1 lm/W | 1268.6 lm/m | E | 106.5 lm/W | 1022.1 lm/m | F | 86.2 lm/W | 827.7 lm/m | F |
| 3000 K | 138.8 lm/W | 1332.1 lm/m | D | 112.4 lm/W | 1079.4 lm/m | E | 91.4 lm/W | 877.8 lm/m | F |
| 3500 K | 140.9 lm/W | 1352.5 lm/m | D | 114.7 lm/W | 1100.8 lm/m | E | 94.3 lm/W | 905.4 lm/m | F |
| 4000 K | 144.9 lm/W | 1391.4 lm/m | D | 117.1 lm/W | 1124.4 lm/m | E | 96.7 lm/W | 927.9 lm/m | F |
| 5000 K | 144.8 lm/W | 1390.4 lm/m | D | 117 lm/W | 1123.3 lm/m | E | 96.5 lm/W | 926.4 lm/m | F |
| 6500 K | 138.8 lm/W | 1332.1 lm/m | D | 112.4 lm/W | 1079.4 lm/m | E | 93.3 lm/W | 895.7 lm/m | F |
Grade KE (3rd Tier) · 14.4W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1900 K | 106.3 lm/W | 1531.2 lm/m | F | 85.1 lm/W | 1225.6 lm/m | F | — | — | — |
| 2300 K | 118.6 lm/W | 1707.8 lm/m | E | 94.8 lm/W | 1365 lm/m | F | 76.8 lm/W | 1105.9 lm/m | G |
| 2700 K | 127.8 lm/W | 1839.8 lm/m | E | 102.9 lm/W | 1482.3 lm/m | F | 83.4 lm/W | 1200.3 lm/m | G |
| 3000 K | 134.2 lm/W | 1931.8 lm/m | E | 108.7 lm/W | 1565.3 lm/m | F | 88.4 lm/W | 1273.1 lm/m | F |
| 3500 K | 136.2 lm/W | 1961.5 lm/m | D | 110.9 lm/W | 1596.5 lm/m | E | 91.2 lm/W | 1313.1 lm/m | F |
| 4000 K | 140.1 lm/W | 2017.9 lm/m | D | 113.2 lm/W | 1630.6 lm/m | E | 93.5 lm/W | 1345.8 lm/m | F |
| 5000 K | 140 lm/W | 2016.4 lm/m | D | 113.1 lm/W | 1629.1 lm/m | E | 93.3 lm/W | 1343.5 lm/m | F |
| 6500 K | 134.2 lm/W | 1931.8 lm/m | E | 108.7 lm/W | 1565.3 lm/m | F | 90.2 lm/W | 1298.9 lm/m | F |
Grade KE (3rd Tier) · 19.2W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1900 K | 102.8 lm/W | 1973.9 lm/m | F | 82.3 lm/W | 1579.9 lm/m | G | — | — | — |
| 2300 K | 114.7 lm/W | 2201.6 lm/m | E | 91.7 lm/W | 1759.7 lm/m | F | 74.2 lm/W | 1424.6 lm/m | G |
| 2700 K | 123.5 lm/W | 2371.8 lm/m | E | 99.5 lm/W | 1910.8 lm/m | F | 80.6 lm/W | 1547.4 lm/m | G |
| 3000 K | 129.7 lm/W | 2490.4 lm/m | E | 105.1 lm/W | 2017.9 lm/m | F | 85.5 lm/W | 1641.1 lm/m | F |
| 3500 K | 131.7 lm/W | 2528.6 lm/m | E | 107.2 lm/W | 2058.1 lm/m | F | 88.2 lm/W | 1692.8 lm/m | F |
| 4000 K | 135.5 lm/W | 2601.3 lm/m | D | 109.5 lm/W | 2102.1 lm/m | F | 90.4 lm/W | 1734.8 lm/m | F |
| 5000 K | 135.4 lm/W | 2599.4 lm/m | D | 109.4 lm/W | 2100.2 lm/m | F | 90.2 lm/W | 1731.8 lm/m | F |
| 6500 K | 129.7 lm/W | 2490.4 lm/m | E | 105.1 lm/W | 2017.9 lm/m | F | 87.2 lm/W | 1674.2 lm/m | F |
High-Power LED Strip: Heat Dissipation & Aluminum Channel Guide
At up to 19.2W/m, 5565 is a high-power SMD LED strip. Above roughly 14.4W/m the tape can no longer shed its own heat through the FPC alone — an aluminum channel is part of the luminaire, not an accessory.
Why high-wattage strips need a heat sink
- Aluminum conducts heat roughly 30× faster than the plastics, MDF or gypsum a strip is usually stuck to, so a bare high-power run traps heat under the tape.
- LED lifetime (LM-80 / TM-21) is driven by solder-point temperature Tc. Keeping Tc inside the datasheet limit — DENO strips are rated Tc ≤ 75°C — is what preserves the rated L70 lifetime and colour stability.
- Never run 14.4W/m or more coiled on the reel, inside a sealed plastic diffuser, or directly on wood, wallpaper or foam.
Sizing rule: FPC width vs channel inner width
- Channel inner width ≥ FPC width + 2mm. This strip is 10mm wide, so it needs at least 12mm of inner width.
- The 2mm clearance absorbs extrusion tolerance and lets the tape be seated or replaced without scraping the side walls or the wiring.
- A frosted or opal PC cover then diffuses the higher lumen output into an even, dot-free line instead of visible hot spots.
Aluminum channels that fit this strip
- 22x12mm Recessed LED Channel with Flange · fits ≤10mm strip
- 20x15mm Wide Surface Mount LED Channel · fits ≤10mm strip
- 17x15mm Surface Mount LED Channel · fits ≤10mm strip
- 15x15mm Magnetic LED Channel · fits ≤10mm strip
- 19.1x8mm Surface Mount LED Channel · fits ≤10mm strip
- 15x15mm 48V Surface Mount LED Channel · fits ≤10mm strip
Recommended LED Channels
Mount this LED strip in a DENO LED aluminum profile for heat dissipation, physical protection and diffused, dot-free output.
This strip is 10mm wide, so it needs a channel with at least 12mm inner width (10mm + 2mm clearance). Every profile below meets that.
Related models in this series
- Roll-to-Roll Long Reel LED Strip Light (#16773)
- 2835 1 SDCM Classic High Consistency LED Strip Light (#2176-B)
- Roll-to-Roll Long Reel LED Strip Light (#16774)
- 2835 1-Step (1 SDCM) High Consistency LED Strip 128LEDs/m (#3015-B)
- Roll-to-Roll Long Reel LED Strip Light (#16776)
- 2835 Roll-to-Roll Long Reel LED Strip Light (#16771)
- Multi-Line Three-Row High-Density LED LED Strip Light (#16706)
- 2835 S-Bend LED Strip High-Efficiency LED Strip Light (#19071)
See every model in SMD LED Strip Series or narrow to 2835. Compare wattage, lumen output and run length in the ProCalc parameter library, or request OEM/ODM pricing on the custom manufacturing page.
Frequently Asked Questions
What are the key specifications of 5565?
5565: 2835, 240 LEDs/m, 12V, 10mm PCB, 3oz copper FPCB, cuttable 3LEDs/12.5mm. Full photometric data, wiring diagrams and test reports are available in the downloads section of this page.
What makes the construction of this micro cut LED strip different?
It is built as a micro cut LED strip on 3oz copper FPCB with a cutting unit of 3LEDs/12.5mm and an LED pitch of 4.16mm, so it holds its electrical and mechanical performance where standard strips fail.
Can DENO customise this micro cut LED strip for a project?
Yes. DENO manufactures the Micro-Cut SMD Strips series as an OEM and ODM supplier: reel length, colour temperature, CRI grade, PCB width, waterproofing and private labelling can all be specified. Request a quote for lead time and project pricing.
Which SMD LED strip density should you specify?
For general cove and shelf lighting, 120 LEDs/m on a 24V LED strip is the usual baseline. Move to 180 or 240 LEDs/m when the strip sits close to a diffuser or is seen at a shallow angle, since higher density is what removes visible dots on a 2835 LED strip.
How short can you cut a micro-cut LED strip?
Cut points come as close as 12.5 mm, against 50 to 100 mm on a conventional cuttable LED strip. Short segments matter in cabinets, stair nosings, signage letters and display cases where a standard cut interval would leave a dark gap at the end of the run.
