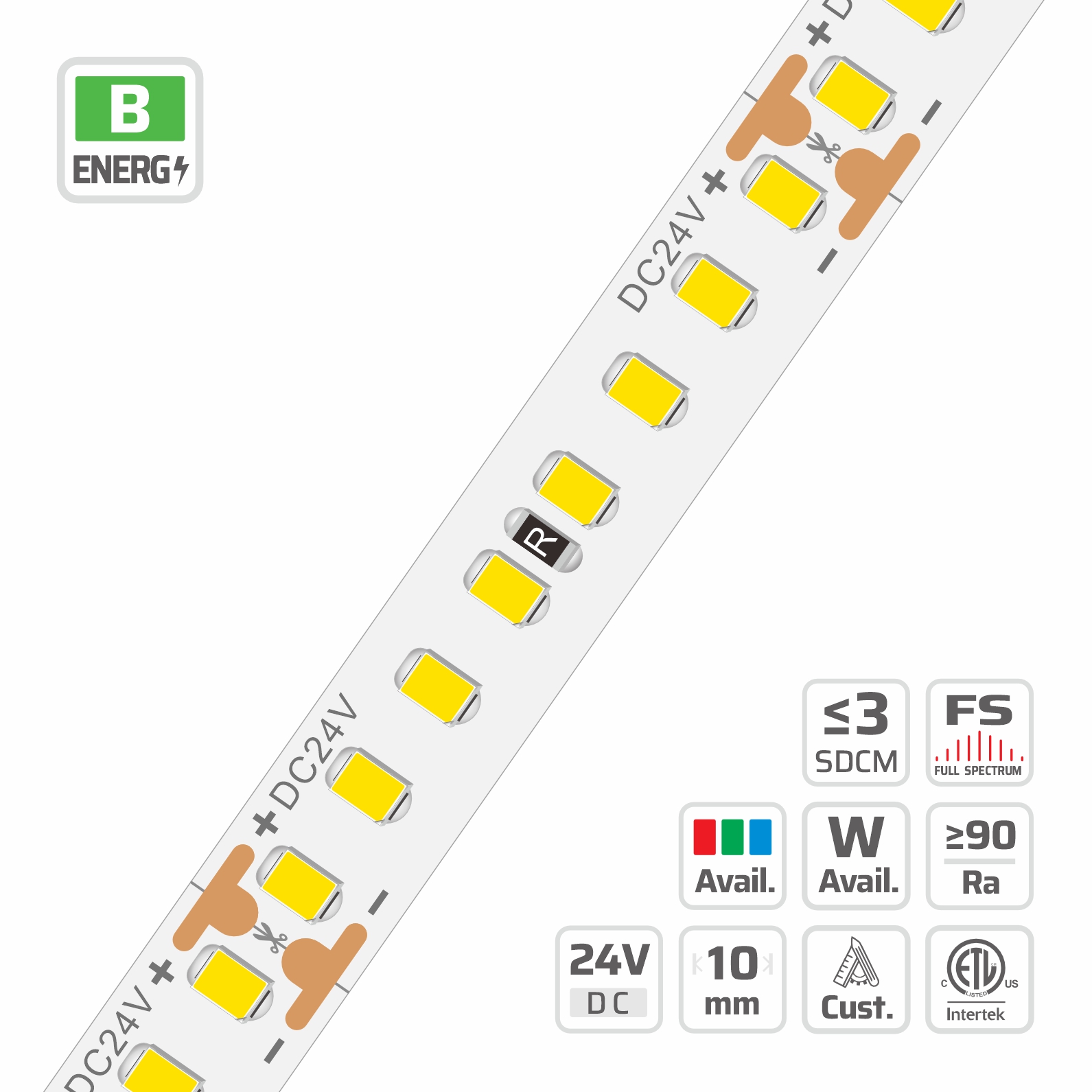

2835 High Light Efficacy High Lumen LED Strip Light (#5492)
10mm · 24V · 160LEDs · 50cut
Model: 5492
Overview
10mm | 24V | 160LEDs | 50cut | #5492 | 2835 High Light Efficacy High Lumen LED Strip Light is part of the DENO High Light Efficacy SMD Strips series, engineered around high efficacy LED strip lights. Key specifications: 2835, 160, 24V, 10mm PCB, 3oz copper FPCB, cuttable 8LEDs/50mm, IP20/IP54/IP65/IP66/IP67/IP68, CRI Ra≥80 , Ra≥90 , Ra≥95 , FS. Every reel is produced on DENO's roll-to-roll line with 99.9% pure copper FPCB and ships CE, UL and RoHS compliant for architectural, retail and hospitality projects. OEM and ODM configurations of length, colour temperature and waterproofing are available on request.
Description
This 24V 2835 LED strip light features 160 LEDs per meter on a 10mm PCB, delivering high lumen output up to 2760 lm/m. Built with a heavy 3oz copper PCB and pure copper frames with 99.9% purity gold wire encapsulation, it ensures superior thermal reliability. Single-bin color consistency under 3 SDCM and color rendering options up to Ra≥95 make this strip ideal for premium architectural lighting designs. Engineered for precise installation, this constant voltage circuit is dimmable and cuttable every 50mm to accommodate tailored project layouts. Available in multiple ingress ratings from IP20 to IP68, we support wholesale project supply and OEM custom configurations for global contractors.
We use 99.99% gold wire, large-size chips, and thickened FPCB, backed by a 5-year warranty.
Specifications
| CCT (K) | 1800-6500 |
|---|---|
| CRI | Ra≥80 , Ra≥90 , Ra≥95 , FS |
| SDCM | < 3 SDCM (Single Bin) |
| POWER (W/M) | 15.6 W/m |
| LED QTY | 160 |
| PART NO | DL-F28A80V24-5492-* |
| SMD TYPE | 2835 |
| CUTTABLE UNIT | 8LEDs/50mm |
| DIMMABLE | Yes |
| IP RATING | IP20/IP54/IP65/IP66/IP67/IP68 |
| LED PITCH | 6.2mm |
| LIFESPAN | 50000h |
| PCB WIDTH | 10mm |
| WARRANTY | 5 Years |
| BEAM ANGLE | 120° |
| RUN LENGTH | 5m |
| COPPER FOIL | 3oz |
| POWER RANGE | 2.4~26W |
| CIRCUIT TYPE | C.V. |
| INPUT VOLTAGE | 24V |
| LUMINOUS FLUX | 2760 lm/m |
| OPERATING TEMPERATURE | -25~40°C;Tc：75°C（max） |
Applications
- Cove, wall-wash & perimeter lighting — Coves, recesses, wall-wash details and ceiling perimeters where a continuous, uniform line of light is required.
- Showroom & hospitality display lighting — Shelving, display cases, reception desks and signage backlighting in shops, showrooms and hospitality spaces.
- Kitchen & wardrobe under-cabinet lighting — Kitchen, wardrobe and furniture task lighting where the strip stays hidden and only the light is seen.
Recommended accessories & compatible parts
- DL-1003 — 19.1x8mm Surface Mount LED Channel — Dotless Aluminum Profile for 240 LEDs/m Strip: Accepts LED strips up to 10mm wide.
- DL-1103-1 — 16x13mm Surface Mount LED Channel — Aluminum Profile for 10mm LED Strip: Accepts LED strips up to 10mm wide.
- DL-1510 HX-F — 15x9.9mm Recessed LED Channel with Flange — Flush Mount Aluminum Profile: Accepts LED strips up to 10mm wide.
- DN-PSU-100 — 24V 100W Class-2 LED Driver · High Efficiency: Matches the 24V DC input of this strip; size the driver with at least 20% headroom over total load.
- DN-PSU-150 — 24V 150W Class-2 LED Driver · Premium: Matches the 24V DC input of this strip; size the driver with at least 20% headroom over total load.
- DN-PSU-60 — 24V 60W Class-2 LED Driver · Constant Voltage: Matches the 24V DC input of this strip; size the driver with at least 20% headroom over total load.
- V1 — 5-36VDC 1-Channel * 8A RF+Push Dimming Controller | V1: Matched by input voltage range and colour channels.
Request a quotation for #5492
DENO LED is a Shenzhen-based LED strip manufacturer with its own Foshan production base. Send the run length, voltage, CCT/CRI and IP rating you need and our engineering team replies with a specification sheet, wiring plan and price — OEM/ODM and fully custom builds included.
- Warranty: 5 years
- Lead time: standard boards: samples from 1 working day · custom: 3–5 working days · new FPCB: 1–3 weeks · production 1–2 weeks after sample approval
- Compliance: CE · UL · RoHS
- Bonding wire: 99.99% pure gold
- Copper foil: 99.9% pure copper FPCB
Photometric Performance — CCT × CRI Efficacy Matrix
Peak measured luminous efficacy: 205.5 lm/W at 4000K, Ra 80, ErP energy class B (Grade DN (1st Tier) · 7.2W/m).
All values are measured at the stated power density and ambient 25 °C, reported as luminous efficacy in lumens per watt (lm/W), luminous flux per metre (lm/m) and the corresponding EU ErP (2019/2015) energy class.
Grade DL (2nd Tier) · 7.2W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | 150.2 lm/W | 1081.1 lm/m | D | 120.5 lm/W | 867.3 lm/m | E | — | — | — |
| 2300 K | 167.2 lm/W | 1204 lm/m | C | 134.3 lm/W | 966.7 lm/m | E | — | — | — |
| 2700 K | 176.9 lm/W | 1273.7 lm/m | C | 145.2 lm/W | 1045.5 lm/m | D | 117.7 lm/W | 847.6 lm/m | E |
| 3000 K | 188.2 lm/W | 1354.8 lm/m | B | 152.9 lm/W | 1100.9 lm/m | D | 124.4 lm/W | 895.4 lm/m | E |
| 3500 K | 190.9 lm/W | 1374.6 lm/m | B | 155.6 lm/W | 1120.6 lm/m | D | 128 lm/W | 921.9 lm/m | E |
| 4000 K | 197 lm/W | 1418.5 lm/m | B | 159.3 lm/W | 1147.1 lm/m | D | 131.5 lm/W | 947 lm/m | E |
| 5000 K | 196.8 lm/W | 1417 lm/m | B | 159.2 lm/W | 1146.3 lm/m | D | — | — | — |
| 6500 K | 180.5 lm/W | 1299.5 lm/m | C | 152.8 lm/W | 1100.1 lm/m | D | — | — | — |
Grade DL (2nd Tier) · 14.4W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | 142.8 lm/W | 2055.6 lm/m | D | 114.5 lm/W | 1649.1 lm/m | E | — | — | — |
| 2300 K | 159 lm/W | 2289.2 lm/m | D | 127.6 lm/W | 1838 lm/m | E | — | — | — |
| 2700 K | 168.2 lm/W | 2421.8 lm/m | C | 138 lm/W | 1987.9 lm/m | D | 111.9 lm/W | 1611.7 lm/m | E |
| 3000 K | 178.9 lm/W | 2576 lm/m | C | 145.4 lm/W | 2093.1 lm/m | D | 118.2 lm/W | 1702.5 lm/m | E |
| 3500 K | 181.5 lm/W | 2613.5 lm/m | C | 148 lm/W | 2130.6 lm/m | D | 121.7 lm/W | 1752.9 lm/m | E |
| 4000 K | 187.3 lm/W | 2697.1 lm/m | B | 151.5 lm/W | 2181.1 lm/m | D | 125 lm/W | 1800.5 lm/m | E |
| 5000 K | 187.1 lm/W | 2694.3 lm/m | B | 151.4 lm/W | 2179.6 lm/m | D | — | — | — |
| 6500 K | 171.6 lm/W | 2470.8 lm/m | C | 145.3 lm/W | 2091.7 lm/m | D | — | — | — |
Grade DL (2nd Tier) · 19.2W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | 138 lm/W | 2650 lm/m | D | 110.7 lm/W | 2125.9 lm/m | E | — | — | — |
| 2300 K | 153.7 lm/W | 2951 lm/m | D | 123.4 lm/W | 2369.4 lm/m | E | — | — | — |
| 2700 K | 162.6 lm/W | 3122 lm/m | C | 133.5 lm/W | 2562.6 lm/m | E | 108.2 lm/W | 2077.6 lm/m | F |
| 3000 K | 173 lm/W | 3320.8 lm/m | C | 140.5 lm/W | 2698.3 lm/m | D | 114.3 lm/W | 2194.7 lm/m | E |
| 3500 K | 175.5 lm/W | 3369.2 lm/m | C | 143.1 lm/W | 2746.6 lm/m | D | 117.7 lm/W | 2259.7 lm/m | E |
| 4000 K | 181.1 lm/W | 3476.9 lm/m | C | 146.4 lm/W | 2811.7 lm/m | D | 120.9 lm/W | 2321.1 lm/m | E |
| 5000 K | 180.9 lm/W | 3473.2 lm/m | C | 146.3 lm/W | 2809.8 lm/m | D | — | — | — |
| 6500 K | 165.9 lm/W | 3185.2 lm/m | C | 140.4 lm/W | 2696.4 lm/m | D | — | — | — |
Grade KE (3rd Tier) · 7.2W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1900 K | 129.5 lm/W | 932.1 lm/m | E | 103.9 lm/W | 747.8 lm/m | F | — | — | — |
| 2300 K | 144.3 lm/W | 1039.1 lm/m | D | 115.7 lm/W | 832.8 lm/m | E | — | — | — |
| 2700 K | 155.6 lm/W | 1120.2 lm/m | D | 125.6 lm/W | 904.1 lm/m | E | 101.8 lm/W | 732.7 lm/m | F |
| 3000 K | 163.4 lm/W | 1176.3 lm/m | C | 132.6 lm/W | 954.9 lm/m | E | 107.9 lm/W | 776.6 lm/m | F |
| 3500 K | 165.8 lm/W | 1193.8 lm/m | C | 135.3 lm/W | 973.8 lm/m | D | 111.2 lm/W | 800.9 lm/m | E |
| 4000 K | 170.6 lm/W | 1228.7 lm/m | C | 138.1 lm/W | 994.3 lm/m | D | 114 lm/W | 820.6 lm/m | E |
| 5000 K | 170.4 lm/W | 1227.2 lm/m | C | 138.1 lm/W | 994.3 lm/m | D | — | — | — |
| 6500 K | 163.4 lm/W | 1176.3 lm/m | C | 132.5 lm/W | 954.1 lm/m | E | — | — | — |
Grade KE (3rd Tier) · 14.4W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1900 K | 123.1 lm/W | 1772.3 lm/m | E | 98.7 lm/W | 1421.9 lm/m | F | — | — | — |
| 2300 K | 137.2 lm/W | 1975.6 lm/m | D | 110 lm/W | 1583.4 lm/m | F | — | — | — |
| 2700 K | 147.9 lm/W | 2129.9 lm/m | D | 119.4 lm/W | 1718.9 lm/m | E | 96.7 lm/W | 1393 lm/m | F |
| 3000 K | 155.3 lm/W | 2236.6 lm/m | D | 126.1 lm/W | 1815.6 lm/m | E | 102.5 lm/W | 1476.7 lm/m | F |
| 3500 K | 157.6 lm/W | 2269.8 lm/m | D | 128.6 lm/W | 1851.6 lm/m | E | 105.8 lm/W | 1522.8 lm/m | F |
| 4000 K | 162.2 lm/W | 2336.1 lm/m | C | 131.3 lm/W | 1890.5 lm/m | E | 108.4 lm/W | 1560.3 lm/m | F |
| 5000 K | 162 lm/W | 2333.3 lm/m | C | 131.3 lm/W | 1890.5 lm/m | E | — | — | — |
| 6500 K | 155.3 lm/W | 2236.6 lm/m | D | 126 lm/W | 1814.1 lm/m | E | — | — | — |
Grade KE (3rd Tier) · 19.2W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1900 K | 119 lm/W | 2284.7 lm/m | E | 95.5 lm/W | 1833 lm/m | F | — | — | — |
| 2300 K | 132.6 lm/W | 2546.8 lm/m | E | 106.3 lm/W | 2041.2 lm/m | F | — | — | — |
| 2700 K | 143 lm/W | 2745.7 lm/m | D | 115.4 lm/W | 2215.9 lm/m | E | 93.5 lm/W | 1795.8 lm/m | F |
| 3000 K | 150.2 lm/W | 2883.3 lm/m | D | 121.9 lm/W | 2340.5 lm/m | E | 99.1 lm/W | 1903.6 lm/m | F |
| 3500 K | 152.4 lm/W | 2926.1 lm/m | D | 124.3 lm/W | 2387 lm/m | E | 102.2 lm/W | 1963.1 lm/m | F |
| 4000 K | 156.9 lm/W | 3011.6 lm/m | D | 126.9 lm/W | 2437.2 lm/m | E | 104.8 lm/W | 2011.4 lm/m | F |
| 5000 K | 156.7 lm/W | 3007.9 lm/m | D | 126.9 lm/W | 2437.2 lm/m | E | — | — | — |
| 6500 K | 150.2 lm/W | 2883.3 lm/m | D | 121.8 lm/W | 2338.6 lm/m | E | — | — | — |
Grade DN (1st Tier) · 7.2W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | 160.9 lm/W | 1158.8 lm/m | D | 135.7 lm/W | 977.4 lm/m | E | — | — | — |
| 2300 K | 175.5 lm/W | 1263.8 lm/m | C | 151.5 lm/W | 1090.7 lm/m | D | — | — | — |
| 2700 K | 189.2 lm/W | 1362.1 lm/m | C | 164 lm/W | 1180.7 lm/m | D | 132.9 lm/W | 957 lm/m | E |
| 3000 K | 198.7 lm/W | 1430.9 lm/m | C | 173 lm/W | 1245.7 lm/m | C | 140.7 lm/W | 1012.9 lm/m | E |
| 3500 K | 201.7 lm/W | 1452.1 lm/m | B | 176.8 lm/W | 1272.9 lm/m | C | 145.5 lm/W | 1047.7 lm/m | E |
| 4000 K | 205.5 lm/W | 1479.3 lm/m | B | 177.7 lm/W | 1279.7 lm/m | C | 146.8 lm/W | 1056.7 lm/m | D |
| 5000 K | 205.1 lm/W | 1477 lm/m | B | 178.9 lm/W | 1288 lm/m | C | — | — | — |
| 6500 K | 196.6 lm/W | 1415.8 lm/m | C | 171 lm/W | 1231.3 lm/m | D | — | — | — |
Grade DN (1st Tier) · 14.4W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | 153 lm/W | 2203.2 lm/m | D | 129 lm/W | 1858.3 lm/m | E | — | — | — |
| 2300 K | 166.9 lm/W | 2403 lm/m | D | 144 lm/W | 2073.9 lm/m | E | — | — | — |
| 2700 K | 179.9 lm/W | 2589.9 lm/m | C | 155.9 lm/W | 2244.9 lm/m | D | 126.4 lm/W | 1819.5 lm/m | E |
| 3000 K | 188.9 lm/W | 2720.6 lm/m | C | 164.5 lm/W | 2368.5 lm/m | D | 133.7 lm/W | 1925.9 lm/m | E |
| 3500 K | 191.7 lm/W | 2760.9 lm/m | C | 168.1 lm/W | 2420.3 lm/m | D | 138.3 lm/W | 1992 lm/m | E |
| 4000 K | 195.3 lm/W | 2812.6 lm/m | C | 169 lm/W | 2433.2 lm/m | D | 139.5 lm/W | 2009.2 lm/m | E |
| 5000 K | 195 lm/W | 2808.3 lm/m | C | 170.1 lm/W | 2449 lm/m | D | — | — | — |
| 6500 K | 186.9 lm/W | 2691.9 lm/m | C | 162.6 lm/W | 2341.2 lm/m | D | — | — | — |
Grade DN (1st Tier) · 19.2W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | 147.9 lm/W | 2840.3 lm/m | D | 124.8 lm/W | 2395.6 lm/m | E | — | — | — |
| 2300 K | 161.3 lm/W | 3097.8 lm/m | D | 139.2 lm/W | 2673.5 lm/m | E | — | — | — |
| 2700 K | 173.9 lm/W | 3338.6 lm/m | C | 150.7 lm/W | 2894 lm/m | D | 122.2 lm/W | 2345.6 lm/m | E |
| 3000 K | 182.7 lm/W | 3507.2 lm/m | C | 159 lm/W | 3053.3 lm/m | D | 129.3 lm/W | 2482.7 lm/m | E |
| 3500 K | 185.4 lm/W | 3559.1 lm/m | C | 162.5 lm/W | 3120 lm/m | D | 133.7 lm/W | 2567.9 lm/m | E |
| 4000 K | 188.8 lm/W | 3625.8 lm/m | C | 163.4 lm/W | 3136.7 lm/m | D | 134.9 lm/W | 2590.1 lm/m | E |
| 5000 K | 188.6 lm/W | 3620.3 lm/m | C | 164.4 lm/W | 3157.1 lm/m | D | — | — | — |
| 6500 K | 180.7 lm/W | 3470.2 lm/m | C | 157.2 lm/W | 3018.1 lm/m | D | — | — | — |
High-Power LED Strip: Heat Dissipation & Aluminum Channel Guide
At up to 19.2W/m, 5492 is a high-power SMD LED strip. Above roughly 14.4W/m the tape can no longer shed its own heat through the FPC alone — an aluminum channel is part of the luminaire, not an accessory.
Why high-wattage strips need a heat sink
- Aluminum conducts heat roughly 30× faster than the plastics, MDF or gypsum a strip is usually stuck to, so a bare high-power run traps heat under the tape.
- LED lifetime (LM-80 / TM-21) is driven by solder-point temperature Tc. Keeping Tc inside the datasheet limit — DENO strips are rated Tc ≤ 75°C — is what preserves the rated L70 lifetime and colour stability.
- Never run 14.4W/m or more coiled on the reel, inside a sealed plastic diffuser, or directly on wood, wallpaper or foam.
Sizing rule: FPC width vs channel inner width
- Channel inner width ≥ FPC width + 2mm. This strip is 10mm wide, so it needs at least 12mm of inner width.
- The 2mm clearance absorbs extrusion tolerance and lets the tape be seated or replaced without scraping the side walls or the wiring.
- A frosted or opal PC cover then diffuses the higher lumen output into an even, dot-free line instead of visible hot spots.
Aluminum channels that fit this strip
- 22x12mm Recessed LED Channel with Flange · fits ≤10mm strip
- 20x15mm Wide Surface Mount LED Channel · fits ≤10mm strip
- 17x15mm Surface Mount LED Channel · fits ≤10mm strip
- 15x15mm Magnetic LED Channel · fits ≤10mm strip
- 19.1x8mm Surface Mount LED Channel · fits ≤10mm strip
- 15x15mm 48V Surface Mount LED Channel · fits ≤10mm strip
Recommended LED Channels
Mount this LED strip in a DENO LED aluminum profile for heat dissipation, physical protection and diffused, dot-free output.
This strip is 10mm wide, so it needs a channel with at least 12mm inner width (10mm + 2mm clearance). Every profile below meets that.
Related models in this series
- Roll-to-Roll Long Reel LED Strip Light (#16773)
- 2835 1 SDCM Classic High Consistency LED Strip Light (#2176-B)
- Roll-to-Roll Long Reel LED Strip Light (#16774)
- 2835 1-Step (1 SDCM) High Consistency LED Strip 128LEDs/m (#3015-B)
- Roll-to-Roll Long Reel LED Strip Light (#16776)
- 2835 Roll-to-Roll Long Reel LED Strip Light (#16771)
- Multi-Line Three-Row High-Density LED LED Strip Light (#16706)
- 2835 S-Bend LED Strip High-Efficiency LED Strip Light (#19071)
See every model in SMD LED Strip Series or narrow to 2835. Compare wattage, lumen output and run length in the ProCalc parameter library, or request OEM/ODM pricing on the custom manufacturing page.
Frequently Asked Questions
What are the key specifications of 5492?
5492: 2835, 160, 24V, 10mm PCB, 3oz copper FPCB, cuttable 8LEDs/50mm, IP20/IP54/IP65/IP66/IP67/IP68, CRI Ra≥80 , Ra≥90 , Ra≥95 , FS. Full photometric data, wiring diagrams and test reports are available in the downloads section of this page.
Which environments is this high efficacy LED strip lights rated for?
Ingress protection for this model is IP20/IP54/IP65/IP66/IP67/IP68. As a high efficacy LED strip lights it is specified for the duty listed in the datasheet, and DENO can supply alternative coatings, sleeves or IP68 potting for harsher installations.
Can DENO customise this high efficacy LED strip lights for a project?
Yes. DENO manufactures the High Light Efficacy SMD Strips series as an OEM and ODM supplier: reel length, colour temperature, CRI grade, PCB width, waterproofing and private labelling can all be specified. Request a quote for lead time and project pricing.
How much can a high efficacy LED strip cut energy use?
Moving from a typical 100 lm/W strip to a 180 to 200 lm/W high lumen LED strip roughly halves the wattage needed for the same lumen output. Over a long commercial run this also lowers the required driver size and helps the installation reach a better ErP energy class.
Which LED driver and run length suit #5492?
