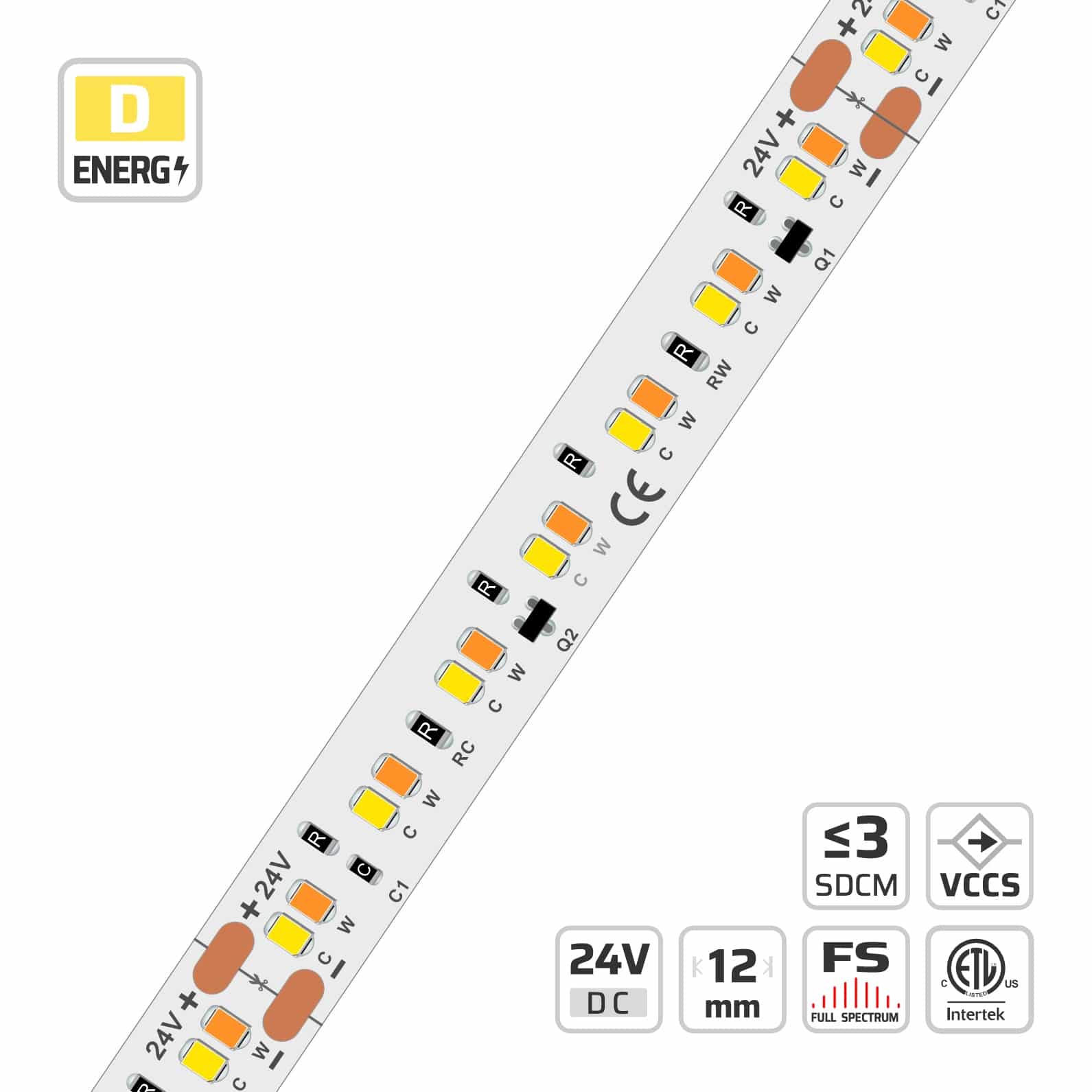

2835 Dim to Warm LED Strip Light (#5462)

12mm · 24V · 168LEDs · 83.3mm/cut

Model: 5462

Overview

2835 Dim to Warm LED Strip Light | 12mm | 24V | 168LEDs | 83.3mm/cut | #5462 is part of the DENO C.C. SMD Strips (IC Regulated) series, engineered around constant current IC LED strip. Key specifications: 2835, 168 LEDs/m, 24V, 12mm PCB, 3oz copper FPCB, cuttable 14LEDs/83.33mm. Every reel is produced on DENO's roll-to-roll line with 99.9% pure copper FPCB and ships CE, UL and RoHS compliant for architectural, retail and hospitality projects. OEM and ODM configurations of length, colour temperature and waterproofing are available on request.

Description

Natural dim to warm technology smoothly shifts the color temperature from 3000K to 1800K to recreate the cozy glow of traditional incandescent lighting. Built with 168 densely spaced 2835 SMD LEDs per meter on a 12mm 3oz copper PCB for reliable wholesale project supply. Operating on a 24V constant current circuit with a 120-degree beam angle, this LED strip light delivers balanced and stable performance. Precision cut points at 83.33mm intervals provide flexible sizing tailored for commercial cove lighting, accent illumination, and custom architectural fixtures. Versatile dimming compatibility supports Triac, PWM, and 0/1-10V control protocols for easy integration into standard commercial dimming systems.

We use 99.99% gold wire, large-size chips, and thickened FPCB, backed by a 5-year warranty.

Specifications

LED QTY	168 LEDs/m
PART NO	DL-F28A84V24-5462-*
SMD TYPE	2835
CUTTABLE UNIT	14LEDs/83.33mm
DIMMABLE	Yes
IP RATING	IP20
LED PITCH	11.9mm
PCB WIDTH	12mm
BEAM ANGLE	120°
RUN LENGTH	5M
COPPER FOIL	3oz
POWER RANGE	5.8~28.8W
CIRCUIT TYPE	C.C.
INPUT VOLTAGE	24V

Applications

Cove, wall-wash & perimeter lighting — Coves, recesses, wall-wash details and ceiling perimeters where a continuous, uniform line of light is required.
Showroom & hospitality display lighting — Shelving, display cases, reception desks and signage backlighting in shops, showrooms and hospitality spaces.
Kitchen & wardrobe under-cabinet lighting — Kitchen, wardrobe and furniture task lighting where the strip stays hidden and only the light is seen.
Hotel & residential tunable-white scenes — Hotel rooms, residential living areas and meeting spaces where warm evening light and neutral daytime light are both required from one fixture.

Recommended accessories & compatible parts

DL-1201 — 25x14.5mm Wide Surface Mount LED Channel — Aluminum Profile for 12mm Strip: Accepts LED strips up to 12mm wide.
DL-1202 — 17.3x14.5mm Surface Mount LED Channel — Deep Aluminum Profile for 12mm Strip: Accepts LED strips up to 12mm wide.
DL-1204 — 25x7mm Wide Slim Surface Mount LED Channel — Dotless Aluminum Profile for 240 LEDs/m: Accepts LED strips up to 12mm wide.
DN-PSU-100 — 24V 100W Class-2 LED Driver · High Efficiency: Matches the 24V DC input of this strip; size the driver with at least 20% headroom over total load.
DN-PSU-150 — 24V 150W Class-2 LED Driver · Premium: Matches the 24V DC input of this strip; size the driver with at least 20% headroom over total load.
DN-PSU-60 — 24V 60W Class-2 LED Driver · Constant Voltage: Matches the 24V DC input of this strip; size the driver with at least 20% headroom over total load.
V1 — 5-36VDC 1-Channel * 8A RF+Push Dimming Controller | V1: Matched by input voltage range and colour channels.

Request a quotation for #5462

DENO LED is a Shenzhen-based LED strip manufacturer with its own Foshan production base. Send the run length, voltage, CCT/CRI and IP rating you need and our engineering team replies with a specification sheet, wiring plan and price — OEM/ODM and fully custom builds included.

Warranty: 5 years
Lead time: standard boards: samples from 1 working day · custom: 3–5 working days · new FPCB: 1–3 weeks · production 1–2 weeks after sample approval
Compliance: CE · UL · RoHS
Bonding wire: 99.99% pure gold
Copper foil: 99.9% pure copper FPCB

Contact DENO LED engineers · OEM / ODM capability

Photometric Performance — CCT × CRI Efficacy Matrix

Peak measured luminous efficacy: 148.2 lm/W at 3000K, Ra 80, ErP energy class D (DN · DTW C · 10.8W/m).

All values are measured at the stated power density and ambient 25 °C, reported as luminous efficacy in lumens per watt (lm/W), luminous flux per metre (lm/m) and the corresponding EU ErP (2019/2015) energy class.

DL · DTW C · 10.8W/m

DL · DTW C · 10.8W/m — measured at 10.8 W/m: luminous efficacy (lm/W), luminous flux (lm/m) and ErP energy class per CCT and CRI grade.
CCT (K)	Ra 80 — Luminous Efficacy (lm/W)	Ra 80 — Luminous Flux (lm/m)	Ra 80 — ErP Energy Class	Ra 90 — Luminous Efficacy (lm/W)	Ra 90 — Luminous Flux (lm/m)	Ra 90 — ErP Energy Class	Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W)	Full Spectrum (Ra 95+) — Luminous Flux (lm/m)	Full Spectrum (Ra 95+) — ErP Energy Class
3000 K	126.2 lm/W	1363 lm/m	E	102.4 lm/W	1106 lm/m	F	79.8 lm/W	862 lm/m	G
2980 K	125.4 lm/W	1161 lm/m	E	101.8 lm/W	943 lm/m	F	79.3 lm/W	734 lm/m	G
2960 K	124 lm/W	967 lm/m	E	100.6 lm/W	785 lm/m	F	78.4 lm/W	612 lm/m	G
2940 K	122.1 lm/W	784 lm/m	E	99.1 lm/W	636 lm/m	F	77.2 lm/W	496 lm/m	G
2900 K	119.9 lm/W	616 lm/m	E	97.3 lm/W	500 lm/m	F	75.8 lm/W	390 lm/m	G
2860 K	112.7 lm/W	444 lm/m	E	91.5 lm/W	361 lm/m	F	71.3 lm/W	281 lm/m	G
2800 K	105.6 lm/W	302 lm/m	F	85.7 lm/W	245 lm/m	F	66.8 lm/W	191 lm/m	G
2700 K	98.4 lm/W	186 lm/m	F	79.9 lm/W	151 lm/m	G	62.2 lm/W	118 lm/m	G
2500 K	55.7 lm/W	59 lm/m	G	45.2 lm/W	48 lm/m	G	35.2 lm/W	37 lm/m	G
2200 K	25.9 lm/W	10 lm/m	G	21 lm/W	8 lm/m	G	16.4 lm/W	7 lm/m	G
1850 K	14.3 lm/W	1 lm/m	G	11.6 lm/W	1 lm/m	G	9.1 lm/W	1 lm/m	G

DL · DTW C · 17.28W/m

DL · DTW C · 17.28W/m — measured at 17.3 W/m: luminous efficacy (lm/W), luminous flux (lm/m) and ErP energy class per CCT and CRI grade.
CCT (K)	Ra 80 — Luminous Efficacy (lm/W)	Ra 80 — Luminous Flux (lm/m)	Ra 80 — ErP Energy Class	Ra 90 — Luminous Efficacy (lm/W)	Ra 90 — Luminous Flux (lm/m)	Ra 90 — ErP Energy Class	Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W)	Full Spectrum (Ra 95+) — Luminous Flux (lm/m)	Full Spectrum (Ra 95+) — ErP Energy Class
3000 K	120.7 lm/W	2086 lm/m	E	97.8 lm/W	1690 lm/m	F	76.3 lm/W	1318 lm/m	G
2980 K	119.9 lm/W	1777 lm/m	E	97.2 lm/W	1441 lm/m	F	75.8 lm/W	1123 lm/m	G
2960 K	118.6 lm/W	1480 lm/m	E	96.1 lm/W	1199 lm/m	F	75 lm/W	936 lm/m	G
2940 K	116.8 lm/W	1201 lm/m	E	94.6 lm/W	972 lm/m	F	73.8 lm/W	759 lm/m	G
2900 K	114.7 lm/W	943 lm/m	E	92.9 lm/W	764 lm/m	F	72.5 lm/W	596 lm/m	G
2860 K	107.8 lm/W	680 lm/m	F	87.4 lm/W	551 lm/m	F	68.2 lm/W	430 lm/m	G
2800 K	101 lm/W	462 lm/m	F	81.8 lm/W	374 lm/m	G	63.8 lm/W	292 lm/m	G
2700 K	94.1 lm/W	285 lm/m	F	76.3 lm/W	231 lm/m	G	59.5 lm/W	180 lm/m	G
2500 K	53.3 lm/W	91 lm/m	G	43.2 lm/W	73 lm/m	G	33.7 lm/W	57 lm/m	G
2200 K	24.7 lm/W	16 lm/m	G	20.1 lm/W	13 lm/m	G	15.6 lm/W	10 lm/m	G
1850 K	13.7 lm/W	2 lm/m	G	11.1 lm/W	1 lm/m	G	8.7 lm/W	1 lm/m	G

DL · DTW C · 19.2W/m

DL · DTW C · 19.2W/m — measured at 19.2 W/m: luminous efficacy (lm/W), luminous flux (lm/m) and ErP energy class per CCT and CRI grade.
CCT (K)	Ra 80 — Luminous Efficacy (lm/W)	Ra 80 — Luminous Flux (lm/m)	Ra 80 — ErP Energy Class	Ra 90 — Luminous Efficacy (lm/W)	Ra 90 — Luminous Flux (lm/m)	Ra 90 — ErP Energy Class	Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W)	Full Spectrum (Ra 95+) — Luminous Flux (lm/m)	Full Spectrum (Ra 95+) — ErP Energy Class
3000 K	119.1 lm/W	2287 lm/m	E	96.5 lm/W	1853 lm/m	F	75.3 lm/W	1446 lm/m	G
2980 K	118.4 lm/W	1949 lm/m	E	95.9 lm/W	1579 lm/m	F	74.8 lm/W	1231 lm/m	G
2960 K	117 lm/W	1623 lm/m	E	94.8 lm/W	1315 lm/m	F	74 lm/W	1026 lm/m	G
2940 K	115.2 lm/W	1316 lm/m	E	93.4 lm/W	1067 lm/m	F	72.9 lm/W	833 lm/m	G
2900 K	113.1 lm/W	1033 lm/m	E	91.7 lm/W	837 lm/m	F	71.5 lm/W	653 lm/m	G
2860 K	106.4 lm/W	746 lm/m	F	86.2 lm/W	604 lm/m	F	67.3 lm/W	472 lm/m	G
2800 K	99.6 lm/W	506 lm/m	F	80.7 lm/W	410 lm/m	G	63 lm/W	320 lm/m	G
2700 K	92.9 lm/W	312 lm/m	F	75.3 lm/W	253 lm/m	G	58.7 lm/W	197 lm/m	G
2500 K	52.6 lm/W	99 lm/m	G	42.6 lm/W	81 lm/m	G	33.2 lm/W	63 lm/m	G
2200 K	24.4 lm/W	17 lm/m	G	19.8 lm/W	14 lm/m	G	15.4 lm/W	11 lm/m	G
1850 K	13.5 lm/W	2 lm/m	G	11 lm/W	2 lm/m	G	8.6 lm/W	1 lm/m	G

DL · DTW C · 23W/m

DL · DTW C · 23W/m — measured at 23 W/m: luminous efficacy (lm/W), luminous flux (lm/m) and ErP energy class per CCT and CRI grade.
CCT (K)	Ra 80 — Luminous Efficacy (lm/W)	Ra 80 — Luminous Flux (lm/m)	Ra 80 — ErP Energy Class	Ra 90 — Luminous Efficacy (lm/W)	Ra 90 — Luminous Flux (lm/m)	Ra 90 — ErP Energy Class	Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W)	Full Spectrum (Ra 95+) — Luminous Flux (lm/m)	Full Spectrum (Ra 95+) — ErP Energy Class
3000 K	116 lm/W	2668 lm/m	E	94 lm/W	2162 lm/m	F	73.3 lm/W	1686 lm/m	G
2980 K	115.3 lm/W	2274 lm/m	E	93.4 lm/W	1842 lm/m	F	72.8 lm/W	1436 lm/m	G
2960 K	113.9 lm/W	1892 lm/m	E	92.3 lm/W	1533 lm/m	F	72 lm/W	1196 lm/m	G
2940 K	112.2 lm/W	1535 lm/m	E	90.9 lm/W	1244 lm/m	F	70.9 lm/W	970 lm/m	G
2900 K	110.2 lm/W	1206 lm/m	E	89.3 lm/W	977 lm/m	F	69.6 lm/W	761 lm/m	G
2860 K	103.6 lm/W	870 lm/m	F	84 lm/W	706 lm/m	G	65.5 lm/W	550 lm/m	G
2800 K	97.1 lm/W	591 lm/m	F	78.6 lm/W	479 lm/m	G	61.3 lm/W	373 lm/m	G
2700 K	90.5 lm/W	365 lm/m	F	73.3 lm/W	295 lm/m	G	57.2 lm/W	231 lm/m	G
2500 K	51.2 lm/W	116 lm/m	G	41.5 lm/W	94 lm/m	G	32.3 lm/W	73 lm/m	G
2200 K	23.8 lm/W	20 lm/m	G	19.3 lm/W	16 lm/m	G	15 lm/W	13 lm/m	G
1850 K	13.2 lm/W	2 lm/m	G	10.7 lm/W	2 lm/m	G	8.3 lm/W	1 lm/m	G

DL · DTW C · 28.8W/m

DL · DTW C · 28.8W/m — measured at 28.8 W/m: luminous efficacy (lm/W), luminous flux (lm/m) and ErP energy class per CCT and CRI grade.
CCT (K)	Ra 80 — Luminous Efficacy (lm/W)	Ra 80 — Luminous Flux (lm/m)	Ra 80 — ErP Energy Class	Ra 90 — Luminous Efficacy (lm/W)	Ra 90 — Luminous Flux (lm/m)	Ra 90 — ErP Energy Class	Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W)	Full Spectrum (Ra 95+) — Luminous Flux (lm/m)	Full Spectrum (Ra 95+) — ErP Energy Class
3000 K	111.4 lm/W	3208 lm/m	E	90.2 lm/W	2598 lm/m	F	70.4 lm/W	2028 lm/m	G
2980 K	110.7 lm/W	2734 lm/m	E	89.6 lm/W	2213 lm/m	F	70 lm/W	1729 lm/m	G
2960 K	109.4 lm/W	2276 lm/m	F	88.6 lm/W	1843 lm/m	F	69.2 lm/W	1439 lm/m	G
2940 K	107.8 lm/W	1847 lm/m	F	87.3 lm/W	1495 lm/m	F	68.1 lm/W	1167 lm/m	G
2900 K	105.8 lm/W	1449 lm/m	F	85.7 lm/W	1174 lm/m	F	66.9 lm/W	917 lm/m	G
2860 K	99.5 lm/W	1047 lm/m	F	80.6 lm/W	848 lm/m	G	62.9 lm/W	662 lm/m	G
2800 K	93.2 lm/W	710 lm/m	F	75.5 lm/W	575 lm/m	G	58.9 lm/W	449 lm/m	G
2700 K	86.9 lm/W	438 lm/m	F	70.4 lm/W	355 lm/m	G	54.9 lm/W	277 lm/m	G
2500 K	49.2 lm/W	139 lm/m	G	39.8 lm/W	113 lm/m	G	31.1 lm/W	88 lm/m	G
2200 K	22.8 lm/W	24 lm/m	G	18.5 lm/W	20 lm/m	G	14.4 lm/W	15 lm/m	G
1850 K	12.7 lm/W	3 lm/m	G	10.2 lm/W	2 lm/m	G	8 lm/W	2 lm/m	G

DN · DTW C · 10.8W/m

DN · DTW C · 10.8W/m — measured at 10.8 W/m: luminous efficacy (lm/W), luminous flux (lm/m) and ErP energy class per CCT and CRI grade.
CCT (K)	Ra 80 — Luminous Efficacy (lm/W)	Ra 80 — Luminous Flux (lm/m)	Ra 80 — ErP Energy Class	Ra 90 — Luminous Efficacy (lm/W)	Ra 90 — Luminous Flux (lm/m)	Ra 90 — ErP Energy Class	Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W)	Full Spectrum (Ra 95+) — Luminous Flux (lm/m)	Full Spectrum (Ra 95+) — ErP Energy Class
3000 K	148.2 lm/W	1601 lm/m	D	120.4 lm/W	1300 lm/m	E	93.9 lm/W	1014 lm/m	F
2980 K	147.3 lm/W	1364 lm/m	D	119.6 lm/W	1107 lm/m	E	93.3 lm/W	864 lm/m	F
2960 K	145.6 lm/W	1136 lm/m	D	118.3 lm/W	923 lm/m	E	92.2 lm/W	719 lm/m	F
2940 K	143.4 lm/W	921 lm/m	D	116.5 lm/W	748 lm/m	E	90.9 lm/W	584 lm/m	F
2900 K	140.8 lm/W	724 lm/m	D	114.4 lm/W	588 lm/m	E	89.2 lm/W	458 lm/m	F
2860 K	132.4 lm/W	522 lm/m	E	107.6 lm/W	424 lm/m	F	83.9 lm/W	331 lm/m	G
2800 K	124 lm/W	355 lm/m	E	100.7 lm/W	288 lm/m	F	78.6 lm/W	225 lm/m	G
2700 K	115.6 lm/W	218 lm/m	E	93.9 lm/W	177 lm/m	F	73.2 lm/W	138 lm/m	G
2500 K	65.4 lm/W	69 lm/m	G	53.1 lm/W	56 lm/m	G	41.4 lm/W	44 lm/m	G
2200 K	30.4 lm/W	12 lm/m	G	24.7 lm/W	10 lm/m	G	19.3 lm/W	8 lm/m	G
1850 K	16.8 lm/W	1 lm/m	G	13.7 lm/W	1 lm/m	G	10.7 lm/W	1 lm/m	G

DN · DTW C · 17.28W/m

DN · DTW C · 17.28W/m — measured at 17.3 W/m: luminous efficacy (lm/W), luminous flux (lm/m) and ErP energy class per CCT and CRI grade.
CCT (K)	Ra 80 — Luminous Efficacy (lm/W)	Ra 80 — Luminous Flux (lm/m)	Ra 80 — ErP Energy Class	Ra 90 — Luminous Efficacy (lm/W)	Ra 90 — Luminous Flux (lm/m)	Ra 90 — ErP Energy Class	Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W)	Full Spectrum (Ra 95+) — Luminous Flux (lm/m)	Full Spectrum (Ra 95+) — ErP Energy Class
3000 K	142.6 lm/W	2464 lm/m	D	115.8 lm/W	2001 lm/m	E	90.3 lm/W	1560 lm/m	F
2980 K	141.7 lm/W	2100 lm/m	D	115.1 lm/W	1706 lm/m	E	89.7 lm/W	1329 lm/m	F
2960 K	140.1 lm/W	1748 lm/m	D	113.8 lm/W	1420 lm/m	E	88.7 lm/W	1107 lm/m	F
2940 K	138 lm/W	1419 lm/m	D	112 lm/W	1151 lm/m	E	87.4 lm/W	898 lm/m	F
2900 K	135.5 lm/W	1114 lm/m	D	110 lm/W	904 lm/m	E	85.8 lm/W	705 lm/m	F
2860 K	127.4 lm/W	804 lm/m	E	103.4 lm/W	652 lm/m	F	80.7 lm/W	509 lm/m	G
2800 K	119.3 lm/W	545 lm/m	E	96.9 lm/W	443 lm/m	F	75.6 lm/W	345 lm/m	G
2700 K	111.2 lm/W	337 lm/m	E	90.3 lm/W	274 lm/m	F	70.4 lm/W	213 lm/m	G
2500 K	62.9 lm/W	107 lm/m	G	51.1 lm/W	87 lm/m	G	39.9 lm/W	68 lm/m	G
2200 K	29.2 lm/W	19 lm/m	G	23.7 lm/W	15 lm/m	G	18.5 lm/W	12 lm/m	G
1850 K	16.2 lm/W	2 lm/m	G	13.2 lm/W	2 lm/m	G	10.3 lm/W	1 lm/m	G

DN · DTW C · 19.2W/m

DN · DTW C · 19.2W/m — measured at 19.2 W/m: luminous efficacy (lm/W), luminous flux (lm/m) and ErP energy class per CCT and CRI grade.
CCT (K)	Ra 80 — Luminous Efficacy (lm/W)	Ra 80 — Luminous Flux (lm/m)	Ra 80 — ErP Energy Class	Ra 90 — Luminous Efficacy (lm/W)	Ra 90 — Luminous Flux (lm/m)	Ra 90 — ErP Energy Class	Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W)	Full Spectrum (Ra 95+) — Luminous Flux (lm/m)	Full Spectrum (Ra 95+) — ErP Energy Class
3000 K	141 lm/W	2707 lm/m	D	114.5 lm/W	2198 lm/m	E	89.3 lm/W	1715 lm/m	F
2980 K	140.1 lm/W	2306 lm/m	D	113.8 lm/W	1873 lm/m	E	88.7 lm/W	1460 lm/m	F
2960 K	138.5 lm/W	1921 lm/m	D	112.5 lm/W	1560 lm/m	E	87.7 lm/W	1216 lm/m	F
2940 K	136.4 lm/W	1558 lm/m	D	110.8 lm/W	1265 lm/m	E	86.4 lm/W	987 lm/m	F
2900 K	133.9 lm/W	1223 lm/m	E	108.8 lm/W	993 lm/m	F	84.8 lm/W	774 lm/m	G
2860 K	126 lm/W	883 lm/m	E	102.3 lm/W	717 lm/m	F	79.8 lm/W	559 lm/m	G
2800 K	118 lm/W	599 lm/m	E	95.8 lm/W	487 lm/m	F	74.7 lm/W	379 lm/m	G
2700 K	110 lm/W	370 lm/m	E	89.3 lm/W	300 lm/m	F	69.7 lm/W	234 lm/m	G
2500 K	62.2 lm/W	118 lm/m	G	50.5 lm/W	95 lm/m	G	39.4 lm/W	74 lm/m	G
2200 K	28.9 lm/W	21 lm/m	G	23.5 lm/W	17 lm/m	G	18.3 lm/W	13 lm/m	G
1850 K	16 lm/W	2 lm/m	G	13 lm/W	2 lm/m	G	10.1 lm/W	1 lm/m	G

DN · DTW C · 23W/m

DN · DTW C · 23W/m — measured at 23 W/m: luminous efficacy (lm/W), luminous flux (lm/m) and ErP energy class per CCT and CRI grade.
CCT (K)	Ra 80 — Luminous Efficacy (lm/W)	Ra 80 — Luminous Flux (lm/m)	Ra 80 — ErP Energy Class	Ra 90 — Luminous Efficacy (lm/W)	Ra 90 — Luminous Flux (lm/m)	Ra 90 — ErP Energy Class	Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W)	Full Spectrum (Ra 95+) — Luminous Flux (lm/m)	Full Spectrum (Ra 95+) — ErP Energy Class
3000 K	137.9 lm/W	3172 lm/m	D	112 lm/W	2576 lm/m	E	87.3 lm/W	2008 lm/m	F
2980 K	137 lm/W	2702 lm/m	D	111.3 lm/W	2195 lm/m	E	86.8 lm/W	1712 lm/m	F
2960 K	135.5 lm/W	2251 lm/m	D	110 lm/W	1827 lm/m	E	85.8 lm/W	1425 lm/m	F
2940 K	133.4 lm/W	1825 lm/m	E	108.4 lm/W	1483 lm/m	F	84.5 lm/W	1156 lm/m	G
2900 K	131 lm/W	1433 lm/m	E	106.4 lm/W	1164 lm/m	F	82.9 lm/W	907 lm/m	G
2860 K	123.2 lm/W	1035 lm/m	E	100.1 lm/W	841 lm/m	F	78 lm/W	655 lm/m	G
2800 K	115.4 lm/W	703 lm/m	E	93.7 lm/W	571 lm/m	F	73 lm/W	445 lm/m	G
2700 K	107.6 lm/W	434 lm/m	F	87.4 lm/W	352 lm/m	F	68.1 lm/W	274 lm/m	G
2500 K	60.9 lm/W	138 lm/m	G	49.4 lm/W	112 lm/m	G	38.5 lm/W	87 lm/m	G
2200 K	28.3 lm/W	24 lm/m	G	23 lm/W	20 lm/m	G	17.9 lm/W	15 lm/m	G
1850 K	15.7 lm/W	3 lm/m	G	12.7 lm/W	2 lm/m	G	9.9 lm/W	2 lm/m	G

DN · DTW C · 28.8W/m

DN · DTW C · 28.8W/m — measured at 28.8 W/m: luminous efficacy (lm/W), luminous flux (lm/m) and ErP energy class per CCT and CRI grade.
CCT (K)	Ra 80 — Luminous Efficacy (lm/W)	Ra 80 — Luminous Flux (lm/m)	Ra 80 — ErP Energy Class	Ra 90 — Luminous Efficacy (lm/W)	Ra 90 — Luminous Flux (lm/m)	Ra 90 — ErP Energy Class	Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W)	Full Spectrum (Ra 95+) — Luminous Flux (lm/m)	Full Spectrum (Ra 95+) — ErP Energy Class
3000 K	133.4 lm/W	3842 lm/m	E	108.2 lm/W	3116 lm/m	F	84.4 lm/W	2431 lm/m	G
2980 K	132.6 lm/W	3275 lm/m	E	107.5 lm/W	2655 lm/m	F	83.9 lm/W	2072 lm/m	G
2960 K	131 lm/W	2725 lm/m	E	106.3 lm/W	2211 lm/m	F	82.9 lm/W	1724 lm/m	G
2940 K	129.1 lm/W	2211 lm/m	E	104.7 lm/W	1794 lm/m	F	81.7 lm/W	1400 lm/m	G
2900 K	126.7 lm/W	1736 lm/m	E	102.8 lm/W	1408 lm/m	F	80.2 lm/W	1099 lm/m	G
2860 K	119.2 lm/W	1254 lm/m	E	96.7 lm/W	1017 lm/m	F	75.4 lm/W	793 lm/m	G
2800 K	111.6 lm/W	850 lm/m	E	90.5 lm/W	690 lm/m	F	70.6 lm/W	538 lm/m	G
2700 K	104.1 lm/W	525 lm/m	F	84.4 lm/W	425 lm/m	G	65.8 lm/W	332 lm/m	G
2500 K	58.9 lm/W	167 lm/m	G	47.8 lm/W	135 lm/m	G	37.2 lm/W	105 lm/m	G
2200 K	27.4 lm/W	29 lm/m	G	22.2 lm/W	24 lm/m	G	17.3 lm/W	19 lm/m	G
1850 K	15.1 lm/W	3 lm/m	G	12.3 lm/W	3 lm/m	G	9.6 lm/W	2 lm/m	G

KE · DTW C · 10.8W/m

KE · DTW C · 10.8W/m — measured at 10.8 W/m: luminous efficacy (lm/W), luminous flux (lm/m) and ErP energy class per CCT and CRI grade.
CCT (K)	Ra 80 — Luminous Efficacy (lm/W)	Ra 80 — Luminous Flux (lm/m)	Ra 80 — ErP Energy Class	Ra 90 — Luminous Efficacy (lm/W)	Ra 90 — Luminous Flux (lm/m)	Ra 90 — ErP Energy Class	Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W)	Full Spectrum (Ra 95+) — Luminous Flux (lm/m)	Full Spectrum (Ra 95+) — ErP Energy Class
3000 K	101.8 lm/W	1099 lm/m	F	82.4 lm/W	890 lm/m	G	64.2 lm/W	693 lm/m	G
2980 K	101.2 lm/W	937 lm/m	F	81.9 lm/W	758 lm/m	G	63.8 lm/W	591 lm/m	G
2960 K	100 lm/W	780 lm/m	F	80.9 lm/W	631 lm/m	G	63.1 lm/W	492 lm/m	G
2940 K	98.5 lm/W	632 lm/m	F	79.7 lm/W	512 lm/m	G	62.1 lm/W	399 lm/m	G
2900 K	96.7 lm/W	497 lm/m	F	78.3 lm/W	402 lm/m	G	61 lm/W	314 lm/m	G
2860 K	90.9 lm/W	358 lm/m	F	73.6 lm/W	290 lm/m	G	57.4 lm/W	226 lm/m	G
2800 K	85.2 lm/W	244 lm/m	F	68.9 lm/W	197 lm/m	G	53.7 lm/W	154 lm/m	G
2700 K	79.4 lm/W	150 lm/m	G	64.3 lm/W	122 lm/m	G	50.1 lm/W	95 lm/m	G
2500 K	44.9 lm/W	48 lm/m	G	36.4 lm/W	39 lm/m	G	28.3 lm/W	30 lm/m	G
2200 K	20.9 lm/W	8 lm/m	G	16.9 lm/W	7 lm/m	G	13.2 lm/W	5 lm/m	G
1850 K	11.6 lm/W	1 lm/m	G	9.4 lm/W	1 lm/m	G	7.3 lm/W	1 lm/m	G

KE · DTW C · 17.28W/m

KE · DTW C · 17.28W/m — measured at 17.3 W/m: luminous efficacy (lm/W), luminous flux (lm/m) and ErP energy class per CCT and CRI grade.
CCT (K)	Ra 80 — Luminous Efficacy (lm/W)	Ra 80 — Luminous Flux (lm/m)	Ra 80 — ErP Energy Class	Ra 90 — Luminous Efficacy (lm/W)	Ra 90 — Luminous Flux (lm/m)	Ra 90 — ErP Energy Class	Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W)	Full Spectrum (Ra 95+) — Luminous Flux (lm/m)	Full Spectrum (Ra 95+) — ErP Energy Class
3000 K	96.3 lm/W	1664 lm/m	F	77.8 lm/W	1344 lm/m	G	60.7 lm/W	1049 lm/m	G
2980 K	95.7 lm/W	1418 lm/m	F	77.3 lm/W	1146 lm/m	G	60.3 lm/W	894 lm/m	G
2960 K	94.6 lm/W	1181 lm/m	F	76.4 lm/W	953 lm/m	G	59.6 lm/W	744 lm/m	G
2940 K	93.2 lm/W	958 lm/m	F	75.3 lm/W	774 lm/m	G	58.7 lm/W	603 lm/m	G
2900 K	91.5 lm/W	752 lm/m	F	73.9 lm/W	607 lm/m	G	57.7 lm/W	474 lm/m	G
2860 K	86 lm/W	543 lm/m	F	69.5 lm/W	439 lm/m	G	54.2 lm/W	342 lm/m	G
2800 K	80.6 lm/W	368 lm/m	G	65.1 lm/W	298 lm/m	G	50.8 lm/W	232 lm/m	G
2700 K	75.1 lm/W	228 lm/m	G	60.7 lm/W	184 lm/m	G	47.3 lm/W	143 lm/m	G
2500 K	42.5 lm/W	72 lm/m	G	34.3 lm/W	58 lm/m	G	26.8 lm/W	46 lm/m	G
2200 K	19.7 lm/W	13 lm/m	G	16 lm/W	10 lm/m	G	12.4 lm/W	8 lm/m	G
1850 K	10.9 lm/W	1 lm/m	G	8.8 lm/W	1 lm/m	G	6.9 lm/W	1 lm/m	G

KE · DTW C · 19.2W/m

KE · DTW C · 19.2W/m — measured at 19.2 W/m: luminous efficacy (lm/W), luminous flux (lm/m) and ErP energy class per CCT and CRI grade.
CCT (K)	Ra 80 — Luminous Efficacy (lm/W)	Ra 80 — Luminous Flux (lm/m)	Ra 80 — ErP Energy Class	Ra 90 — Luminous Efficacy (lm/W)	Ra 90 — Luminous Flux (lm/m)	Ra 90 — ErP Energy Class	Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W)	Full Spectrum (Ra 95+) — Luminous Flux (lm/m)	Full Spectrum (Ra 95+) — ErP Energy Class
3000 K	94.7 lm/W	1818 lm/m	F	76.5 lm/W	1469 lm/m	G	59.7 lm/W	1146 lm/m	G
2980 K	94.1 lm/W	1549 lm/m	F	76 lm/W	1251 lm/m	G	59.3 lm/W	976 lm/m	G
2960 K	93 lm/W	1290 lm/m	F	75.1 lm/W	1042 lm/m	G	58.6 lm/W	813 lm/m	G
2940 K	91.6 lm/W	1046 lm/m	F	74 lm/W	845 lm/m	G	57.8 lm/W	660 lm/m	G
2900 K	90 lm/W	822 lm/m	F	72.7 lm/W	664 lm/m	G	56.7 lm/W	518 lm/m	G
2860 K	84.6 lm/W	593 lm/m	G	68.3 lm/W	479 lm/m	G	53.3 lm/W	374 lm/m	G
2800 K	79.2 lm/W	402 lm/m	G	64 lm/W	325 lm/m	G	49.9 lm/W	253 lm/m	G
2700 K	73.9 lm/W	248 lm/m	G	59.7 lm/W	201 lm/m	G	46.6 lm/W	157 lm/m	G
2500 K	41.8 lm/W	79 lm/m	G	33.8 lm/W	64 lm/m	G	26.3 lm/W	50 lm/m	G
2200 K	19.4 lm/W	14 lm/m	G	15.7 lm/W	11 lm/m	G	12.2 lm/W	9 lm/m	G
1850 K	10.8 lm/W	2 lm/m	G	8.7 lm/W	1 lm/m	G	6.8 lm/W	1 lm/m	G

KE · DTW C · 23W/m

KE · DTW C · 23W/m — measured at 23 W/m: luminous efficacy (lm/W), luminous flux (lm/m) and ErP energy class per CCT and CRI grade.
CCT (K)	Ra 80 — Luminous Efficacy (lm/W)	Ra 80 — Luminous Flux (lm/m)	Ra 80 — ErP Energy Class	Ra 90 — Luminous Efficacy (lm/W)	Ra 90 — Luminous Flux (lm/m)	Ra 90 — ErP Energy Class	Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W)	Full Spectrum (Ra 95+) — Luminous Flux (lm/m)	Full Spectrum (Ra 95+) — ErP Energy Class
3000 K	91.6 lm/W	2107 lm/m	F	74 lm/W	1702 lm/m	G	57.7 lm/W	1327 lm/m	G
2980 K	91 lm/W	1795 lm/m	F	73.5 lm/W	1449 lm/m	G	57.3 lm/W	1130 lm/m	G
2960 K	90 lm/W	1495 lm/m	F	72.7 lm/W	1208 lm/m	G	56.7 lm/W	942 lm/m	G
2940 K	88.6 lm/W	1212 lm/m	F	71.6 lm/W	979 lm/m	G	55.8 lm/W	763 lm/m	G
2900 K	87 lm/W	952 lm/m	F	70.3 lm/W	769 lm/m	G	54.8 lm/W	600 lm/m	G
2860 K	81.8 lm/W	687 lm/m	G	66.1 lm/W	555 lm/m	G	51.5 lm/W	433 lm/m	G
2800 K	76.6 lm/W	466 lm/m	G	61.9 lm/W	377 lm/m	G	48.3 lm/W	294 lm/m	G
2700 K	71.4 lm/W	288 lm/m	G	57.7 lm/W	233 lm/m	G	45 lm/W	181 lm/m	G
2500 K	40.4 lm/W	91 lm/m	G	32.7 lm/W	74 lm/m	G	25.5 lm/W	58 lm/m	G
2200 K	18.8 lm/W	16 lm/m	G	15.2 lm/W	13 lm/m	G	11.8 lm/W	10 lm/m	G
1850 K	10.4 lm/W	2 lm/m	G	8.4 lm/W	1 lm/m	G	6.6 lm/W	1 lm/m	G

KE · DTW C · 28.8W/m

KE · DTW C · 28.8W/m — measured at 28.8 W/m: luminous efficacy (lm/W), luminous flux (lm/m) and ErP energy class per CCT and CRI grade.
CCT (K)	Ra 80 — Luminous Efficacy (lm/W)	Ra 80 — Luminous Flux (lm/m)	Ra 80 — ErP Energy Class	Ra 90 — Luminous Efficacy (lm/W)	Ra 90 — Luminous Flux (lm/m)	Ra 90 — ErP Energy Class	Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W)	Full Spectrum (Ra 95+) — Luminous Flux (lm/m)	Full Spectrum (Ra 95+) — ErP Energy Class
3000 K	87 lm/W	2506 lm/m	F	70.2 lm/W	2022 lm/m	G	54.8 lm/W	1578 lm/m	G
2980 K	86.5 lm/W	2137 lm/m	F	69.8 lm/W	1724 lm/m	G	54.5 lm/W	1346 lm/m	G
2960 K	85.5 lm/W	1778 lm/m	F	69 lm/W	1435 lm/m	G	53.8 lm/W	1119 lm/m	G
2940 K	84.2 lm/W	1442 lm/m	G	67.9 lm/W	1163 lm/m	G	53 lm/W	908 lm/m	G
2900 K	82.6 lm/W	1132 lm/m	G	66.7 lm/W	914 lm/m	G	52.1 lm/W	714 lm/m	G
2860 K	77.7 lm/W	817 lm/m	G	62.7 lm/W	660 lm/m	G	49 lm/W	515 lm/m	G
2800 K	72.8 lm/W	555 lm/m	G	58.7 lm/W	447 lm/m	G	45.8 lm/W	349 lm/m	G
2700 K	67.9 lm/W	342 lm/m	G	54.8 lm/W	276 lm/m	G	42.7 lm/W	215 lm/m	G
2500 K	38.4 lm/W	109 lm/m	G	31 lm/W	88 lm/m	G	24.2 lm/W	68 lm/m	G
2200 K	17.8 lm/W	19 lm/m	G	14.4 lm/W	15 lm/m	G	11.2 lm/W	12 lm/m	G
1850 K	9.9 lm/W	2 lm/m	G	8 lm/W	2 lm/m	G	6.2 lm/W	1 lm/m	G

High-Power LED Strip: Heat Dissipation & Aluminum Channel Guide

At up to 28.8W/m, 5462 is a high-power SMD LED strip. Above roughly 14.4W/m the tape can no longer shed its own heat through the FPC alone — an aluminum channel is part of the luminaire, not an accessory.

Why high-wattage strips need a heat sink

Aluminum conducts heat roughly 30× faster than the plastics, MDF or gypsum a strip is usually stuck to, so a bare high-power run traps heat under the tape.
LED lifetime (LM-80 / TM-21) is driven by solder-point temperature Tc. Keeping Tc inside the datasheet limit — DENO strips are rated Tc ≤ 75°C — is what preserves the rated L70 lifetime and colour stability.
Never run 14.4W/m or more coiled on the reel, inside a sealed plastic diffuser, or directly on wood, wallpaper or foam.

Sizing rule: FPC width vs channel inner width

Channel inner width ≥ FPC width + 2mm. This strip is 12mm wide, so it needs at least 14mm of inner width.
The 2mm clearance absorbs extrusion tolerance and lets the tape be seated or replaced without scraping the side walls or the wiring.
A frosted or opal PC cover then diffuses the higher lumen output into an even, dot-free line instead of visible hot spots.

Aluminum channels that fit this strip

Recommended LED Channels

Mount this LED strip in a DENO LED aluminum profile for heat dissipation, physical protection and diffused, dot-free output.

This strip is 12mm wide, so it needs a channel with at least 14mm inner width (12mm + 2mm clearance). Every profile below meets that.

Related models in this series

2216 Dim to Warm LED LED Strip Light (#6942)

See every model in SMD LED Strip Series or narrow to Dim To Warm. Compare wattage, lumen output and run length in the ProCalc parameter library, or request OEM/ODM pricing on the custom manufacturing page.

Frequently Asked Questions

What are the key specifications of 5462?

5462: 2835, 168 LEDs/m, 24V, 12mm PCB, 3oz copper FPCB, cuttable 14LEDs/83.33mm. Full photometric data, wiring diagrams and test reports are available in the downloads section of this page.

What makes the construction of this constant current IC LED strip different?

It is built as a constant current IC LED strip on 3oz copper FPCB with a cutting unit of 14LEDs/83.33mm and an LED pitch of 11.9mm, so it holds its electrical and mechanical performance where standard strips fail.

Can DENO customise this constant current IC LED strip for a project?

Yes. DENO manufactures the C.C. SMD Strips (IC Regulated) series as an OEM and ODM supplier: reel length, colour temperature, CRI grade, PCB width, waterproofing and private labelling can all be specified. Request a quote for lead time and project pricing.

How does a dim to warm LED strip behave when dimmed?

As output falls the white point shifts from about 3000K down to 1800K, mimicking an incandescent or halogen lamp at low levels. The shift follows a single dimming channel, so any standard 0-10V, DALI or PWM dimmer controls it and no second control wire is required.

Does a constant current LED strip really eliminate voltage drop?

Voltage still drops along the copper, but the per-segment constant current IC holds LED current fixed until the local voltage falls below its dropout point. Brightness therefore stays even end to end, and power can be injected at one end, both ends or any mid point of the run.

Engineering & selection guide

Bending limits, IP selection, voltage drop, cutting and the full buyer Q&A for this family are kept on the series page.

Dim to Warm LED Strips series — Dim to Warm LED Strip — Buyer Questions
constant current LED strip series — Constant Current LED Strip — Buyer Questions
LED strip engineering selection handbook
