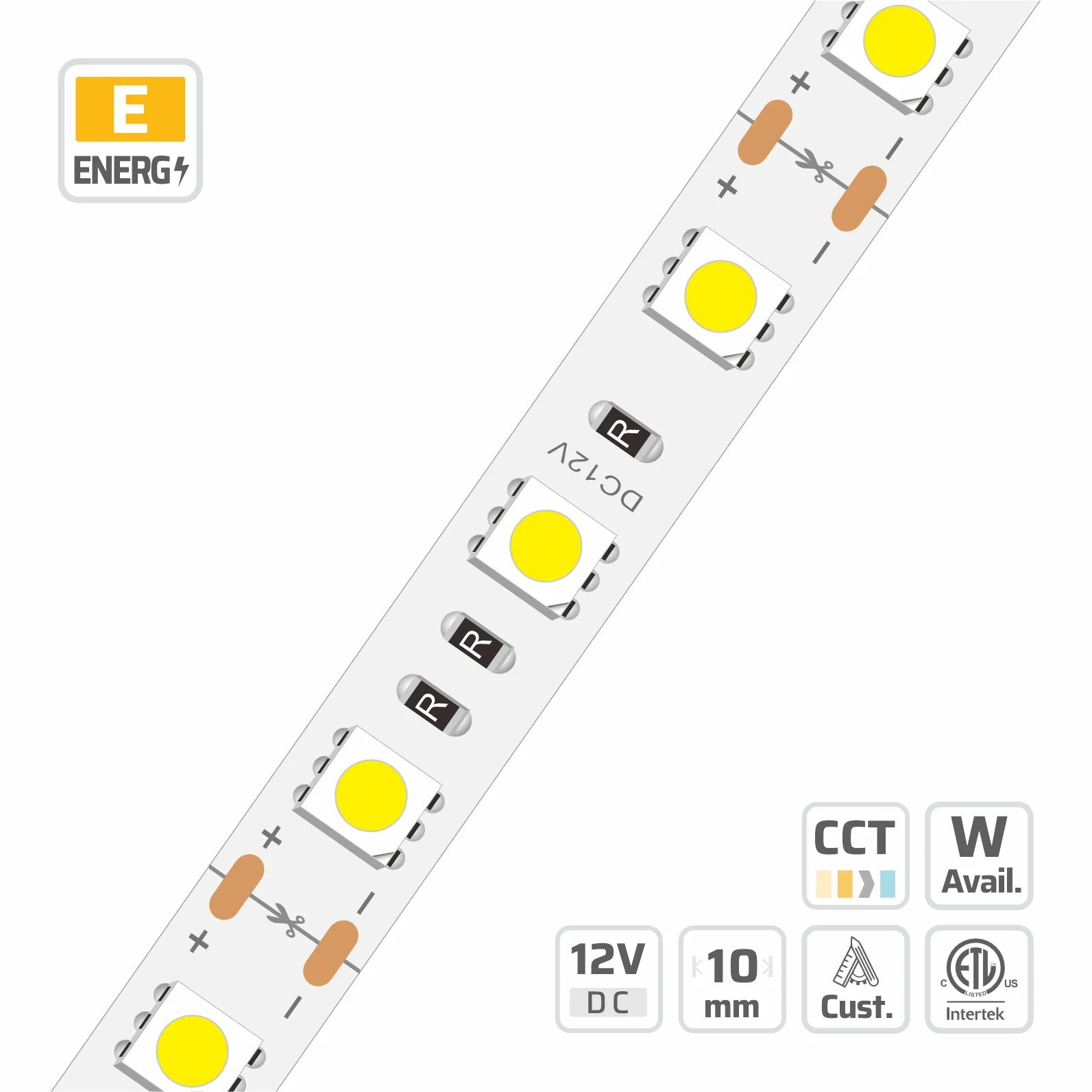

5050 Classic LED Strip Light (#5393)
10mm · 12V · 60LEDs · 50mm/cut
Model: 5393
Overview
5050 Classic LED Strip Light | 10mm | 12V | 60LEDs | 50mm/cut | #5393 is part of the DENO Classic SMD Strips series, engineered around 24V SMD LED strip lights. Key specifications: 5050 SMD, 60, 12V, 10 PCB, 3oz copper FPCB, cuttable 3LEDs/50mm. Every reel is produced on DENO's roll-to-roll line with 99.9% pure copper FPCB and ships CE, UL and RoHS compliant for architectural, retail and hospitality projects. OEM and ODM configurations of length, colour temperature and waterproofing are available on request.
Description
5050 Classic LED Strip Light | 10mm | 12V | 60LEDs | 50mm/cut | #5393 Adopt pure copper strong LED frame, 99.9% purity diameter> 1 mm pure golden wire encapsulation, can reduce the LED damage in different applications. The special snake shape PCB design provides flexible bending angle and bending direction. It is the first choice for backlight. Like the advertising word, signboard light box or abnormity mount scene. Decorating backlight and indirect lighting for showcase, shelf, cabinet, billboard, signage, hotel, garden, bridge, corridor, ceiling, stair, floor, cove, theatre, lift etc.
24v Smd Led Strip Lights built for classic smd strips projects.
Specifications
| LED QTY | 60 |
|---|---|
| PART NO | DL-F50A30V12-5393-* |
| SMD TYPE | 5050 SMD |
| CUTTABLE UNIT | 3LEDs/50mm |
| DIMMABLE | Yes |
| LED PITCH | 16.6mm |
| LIFESPAN | 50000 |
| PCB WIDTH | 10 |
| WARRANTY | 5 Years |
| BEAM ANGLE | 120° |
| LENGTH MAX | 5m |
| COPPER FOIL | 3oz |
| POWER RANGE | 3.6~14.4W |
| CIRCUIT TYPE | C.V. |
| INPUT VOLTAGE | 12V |
| OPERATING TEMPERATURE | -25~40°C;Tc：75°C（max） |
Applications
- Cove, wall-wash & perimeter lighting — Coves, recesses, wall-wash details and ceiling perimeters where a continuous, uniform line of light is required.
- Showroom & hospitality display lighting — Shelving, display cases, reception desks and signage backlighting in shops, showrooms and hospitality spaces.
- Kitchen & wardrobe under-cabinet lighting — Kitchen, wardrobe and furniture task lighting where the strip stays hidden and only the light is seen.
Request a quotation for #5393
DENO LED is a Shenzhen-based LED strip manufacturer with its own Foshan production base. Send the run length, voltage, CCT/CRI and IP rating you need and our engineering team replies with a specification sheet, wiring plan and price — OEM/ODM and fully custom builds included.
- Warranty: 5 years
- Compliance: CE · UL · RoHS
- Bonding wire: 99.99% pure gold
- Copper foil: 99.9% pure copper FPCB
Related models in this series
- 2835 Classic LED Strip Light (#11014)
- 2216 High Density LED Strip Light (#2802)
- 2110 Classic LED Strip Light (#6011)
- 2216 High Density LED Strip Light (#2783)
- 2216 Classic LED Strip Light (#2354)
- 2216 Classic LED Strip Light (#2782)
- 2216 Classic High Density LED Strip Light (#9416)
- 2216 High Density LED Strip Light (#1688)
See every model in SMD LED Strip Series or narrow to Classic. Compare wattage, lumen output and run length in the ProCalc parameter library, or request OEM/ODM pricing on the custom manufacturing page.
Frequently Asked Questions
What are the key specifications of 5393?
5393: 5050 SMD, 60, 12V, 10 PCB, 3oz copper FPCB, cuttable 3LEDs/50mm. Full photometric data, wiring diagrams and test reports are available in the downloads section of this page.
How long can a single run of this 24V SMD LED strip lights be?
Maximum single run for this model is 5m. Feeding from both ends or using a mid-point tap halves the effective distance per segment, so a 24V SMD LED strip lights can cover twice that length on one circuit when wired accordingly.
Can DENO customise this 24V SMD LED strip lights for a project?
Yes. DENO manufactures the Classic SMD Strips series as an OEM and ODM supplier: reel length, colour temperature, CRI grade, PCB width, waterproofing and private labelling can all be specified. Request a quote for lead time and project pricing.
Which SMD LED strip density should you specify?
For general cove and shelf lighting, 120 LEDs/m on a 24V LED strip is the usual baseline. Move to 180 or 240 LEDs/m when the strip sits close to a diffuser or is seen at a shallow angle, since higher density is what removes visible dots on a 2835 LED strip.
Which LED driver and run length suit #5393?
5050 Classic LED Strip Light | 10mm | 12V | 60LEDs | 50mm/cut | #5393 is a constant-voltage 12V product, so pair it with a CE or UL listed 12V constant-voltage LED driver rated about 20% above the connected load. Maximum single run is 5m. 5m Single / 10m Dual Input power. Feeding from both ends or mid-feeding halves the copper distance and roughly quarters the voltage drop.
