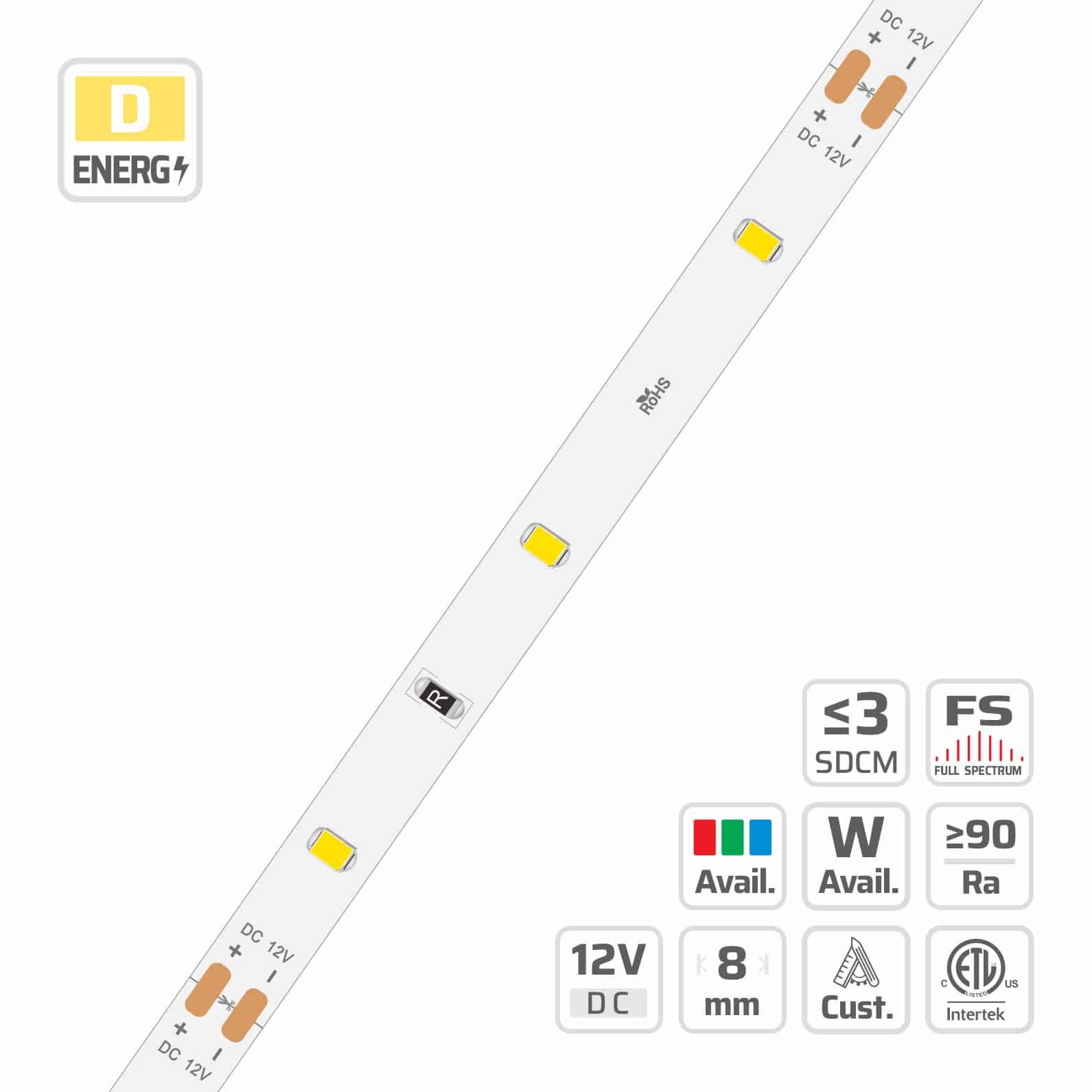

2835 Classic LED Strip Light (#11014)
8mm · 12V · 30LEDs · 100cut
Model: 11014
Overview
2835 Classic LED Strip Light | 8mm | 12V | 30LEDs | 100cut | #11014 is part of the DENO Classic SMD Strips series, engineered around 24V SMD LED strip lights. Key specifications: 2835, 30LEDs/m, DC 12V, 8 mm PCB, 3oz copper FPCB, cuttable 3LEDs/100mm. Every reel is produced on DENO's roll-to-roll line with 99.9% pure copper FPCB and ships CE, UL and RoHS compliant for architectural, retail and hospitality projects. OEM and ODM configurations of length, colour temperature and waterproofing are available on request.
Description
Engineered with 2835 SMD LEDs, this classic LED strip light delivers up to 139 lm/W of energy-efficient output for reliable cove lighting installations. The robust 8mm PCB features 3oz copper foil and operates on 12V constant voltage to maintain uniform illumination across the full 5m run. Precise cut points every 100mm with 3 LEDs per unit and full dimming capability allow flexible adaptation to custom project requirements. Featuring a wide 120-degree beam angle and durable thermal performance, this model is available for wholesale project supply and OEM configurations.
We use 99.99% gold wire, large-size chips, and thickened FPCB, backed by a 5-year warranty.
Specifications
| LED QTY | 30LEDs/m |
|---|---|
| PART NO | DL-F28A15V12-11014- |
| SMD TYPE | 2835 |
| CUTTABLE UNIT | 3LEDs/100mm |
| DIMMABLE | Yes |
| IP RATING | IP20 |
| LED PITCH | 33.33mm |
| PCB WIDTH | 8 mm |
| BEAM ANGLE | 120° |
| RUN LENGTH | 5m |
| COPPER FOIL | 3oz |
| ON OFF TIMES | 10000（test times） |
| CIRCUIT TYPE | C.V. |
| INPUT VOLTAGE | DC 12V |
| MIN BEND DIAMETER | Φ60mm |
| OPERATING TEMPERATURE | -25~40°C;Tc：75°C（max） |
Applications
- Cove, wall-wash & perimeter lighting — Coves, recesses, wall-wash details and ceiling perimeters where a continuous, uniform line of light is required.
- Showroom & hospitality display lighting — Shelving, display cases, reception desks and signage backlighting in shops, showrooms and hospitality spaces.
- Kitchen & wardrobe under-cabinet lighting — Kitchen, wardrobe and furniture task lighting where the strip stays hidden and only the light is seen.
Recommended accessories & compatible parts
- DL-1215 — 12x15mm Surface Mount LED Channel — Tall U Shape Aluminum Profile: Accepts LED strips up to 8mm wide.
- DL-1313HX-M — 13x13mm Magnetic Cabinet LED Channel — Tool-Free Corner Aluminum Profile: Accepts LED strips up to 8mm wide.
- DL-1408 HX — 14x8mm Surface Mount LED Channel — Slim Aluminum Profile for 8mm Strip: Accepts LED strips up to 8mm wide.
- V1 — 5-36VDC 1-Channel * 8A RF+Push Dimming Controller | V1: Matched by input voltage range and colour channels.
Request a quotation for #11014
DENO LED is a Shenzhen-based LED strip manufacturer with its own Foshan production base. Send the run length, voltage, CCT/CRI and IP rating you need and our engineering team replies with a specification sheet, wiring plan and price — OEM/ODM and fully custom builds included.
- Warranty: 5 years
- Lead time: standard boards: samples from 1 working day · custom: 3–5 working days · new FPCB: 1–3 weeks · production 1–2 weeks after sample approval
- Compliance: CE · UL · RoHS
- Bonding wire: 99.99% pure gold
- Copper foil: 99.9% pure copper FPCB
Photometric Performance — CCT × CRI Efficacy Matrix
Peak measured luminous efficacy: 151.4 lm/W at 4000K, Ra 80, ErP energy class D (Grade DN (1st Tier) · 3.6W/m).
All values are measured at the stated power density and ambient 25 °C, reported as luminous efficacy in lumens per watt (lm/W), luminous flux per metre (lm/m) and the corresponding EU ErP (2019/2015) energy class.
Grade DL (2nd Tier) · 3.6W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | 107.4 lm/W | 386.7 lm/m | F | 85.9 lm/W | 309.2 lm/m | F | — | — | — |
| 2300 K | 119.6 lm/W | 430.4 lm/m | E | 95.7 lm/W | 344.5 lm/m | F | 77.5 lm/W | 279 lm/m | G |
| 2700 K | 125.8 lm/W | 453 lm/m | E | 103.6 lm/W | 372.9 lm/m | F | 84 lm/W | 302.3 lm/m | G |
| 3000 K | 134.6 lm/W | 484.6 lm/m | E | 109 lm/W | 392.6 lm/m | F | 88.6 lm/W | 319.1 lm/m | F |
| 3500 K | 136.6 lm/W | 491.9 lm/m | D | 111 lm/W | 399.5 lm/m | E | 91.4 lm/W | 328.9 lm/m | F |
| 4000 K | 141 lm/W | 507.5 lm/m | D | 113.6 lm/W | 408.9 lm/m | E | 93.8 lm/W | 337.6 lm/m | F |
| 5000 K | 140.9 lm/W | 507.2 lm/m | D | 113.6 lm/W | 408.9 lm/m | E | 93.7 lm/W | 337.3 lm/m | F |
| 6500 K | 128.9 lm/W | 463.9 lm/m | E | 108.9 lm/W | 392.2 lm/m | F | 90.4 lm/W | 325.4 lm/m | F |
Grade DL (2nd Tier) · 4.2W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | 107 lm/W | 449.3 lm/m | F | 85.5 lm/W | 359.3 lm/m | F | — | — | — |
| 2300 K | 119.1 lm/W | 500 lm/m | E | 95.3 lm/W | 400.3 lm/m | F | 77.2 lm/W | 324.2 lm/m | G |
| 2700 K | 125.3 lm/W | 526.2 lm/m | E | 103.2 lm/W | 433.2 lm/m | F | 83.6 lm/W | 351.2 lm/m | G |
| 3000 K | 134 lm/W | 563 lm/m | E | 108.6 lm/W | 456.1 lm/m | F | 88.3 lm/W | 370.7 lm/m | F |
| 3500 K | 136.1 lm/W | 571.4 lm/m | D | 110.5 lm/W | 464.1 lm/m | E | 91 lm/W | 382.1 lm/m | F |
| 4000 K | 140.4 lm/W | 589.6 lm/m | D | 113.1 lm/W | 475.1 lm/m | E | 93.4 lm/W | 392.2 lm/m | F |
| 5000 K | 140.3 lm/W | 589.2 lm/m | D | 113.1 lm/W | 475.1 lm/m | E | 93.3 lm/W | 391.9 lm/m | F |
| 6500 K | 128.3 lm/W | 538.9 lm/m | E | 108.5 lm/W | 455.6 lm/m | F | 90 lm/W | 378 lm/m | F |
Grade DL (2nd Tier) · 4.8W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | 106.5 lm/W | 511.3 lm/m | F | 85.2 lm/W | 408.9 lm/m | F | — | — | — |
| 2300 K | 118.6 lm/W | 569 lm/m | E | 94.9 lm/W | 455.5 lm/m | F | 76.9 lm/W | 369.1 lm/m | G |
| 2700 K | 124.8 lm/W | 598.9 lm/m | E | 102.7 lm/W | 493 lm/m | F | 83.3 lm/W | 399.7 lm/m | G |
| 3000 K | 133.5 lm/W | 640.7 lm/m | E | 108.1 lm/W | 519 lm/m | F | 87.9 lm/W | 421.9 lm/m | F |
| 3500 K | 135.5 lm/W | 650.3 lm/m | D | 110 lm/W | 528.2 lm/m | E | 90.6 lm/W | 434.8 lm/m | F |
| 4000 K | 139.8 lm/W | 671 lm/m | D | 112.6 lm/W | 540.7 lm/m | E | 93 lm/W | 446.4 lm/m | F |
| 5000 K | 139.7 lm/W | 670.5 lm/m | D | 112.6 lm/W | 540.7 lm/m | E | 92.9 lm/W | 445.9 lm/m | F |
| 6500 K | 127.8 lm/W | 613.3 lm/m | E | 108 lm/W | 518.5 lm/m | F | 89.7 lm/W | 430.6 lm/m | F |
Grade DL (2nd Tier) · 5.4W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | 106.1 lm/W | 572.8 lm/m | F | 84.8 lm/W | 458 lm/m | G | — | — | — |
| 2300 K | 118.1 lm/W | 637.5 lm/m | E | 94.5 lm/W | 510.3 lm/m | F | 76.5 lm/W | 413.1 lm/m | G |
| 2700 K | 124.2 lm/W | 670.9 lm/m | E | 102.3 lm/W | 552.3 lm/m | F | 82.9 lm/W | 447.8 lm/m | G |
| 3000 K | 132.9 lm/W | 717.8 lm/m | E | 107.7 lm/W | 581.4 lm/m | F | 87.5 lm/W | 472.6 lm/m | F |
| 3500 K | 134.9 lm/W | 728.6 lm/m | E | 109.6 lm/W | 591.7 lm/m | F | 90.2 lm/W | 487.1 lm/m | F |
| 4000 K | 139.2 lm/W | 751.7 lm/m | D | 112.2 lm/W | 605.7 lm/m | E | 92.6 lm/W | 500.1 lm/m | F |
| 5000 K | 139.1 lm/W | 751.2 lm/m | D | 112.2 lm/W | 605.7 lm/m | E | 92.5 lm/W | 499.5 lm/m | F |
| 6500 K | 127.2 lm/W | 687.1 lm/m | E | 107.6 lm/W | 580.9 lm/m | F | 89.3 lm/W | 482.2 lm/m | F |
Grade DN (1st Tier) · 3.6W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | 118.6 lm/W | 427.1 lm/m | F | 99.7 lm/W | 359.1 lm/m | F | — | — | — |
| 2300 K | 129.4 lm/W | 465.7 lm/m | E | 111.4 lm/W | 400.9 lm/m | F | 90.2 lm/W | 324.7 lm/m | G |
| 2700 K | 139.5 lm/W | 502.1 lm/m | E | 120.5 lm/W | 433.7 lm/m | E | 97.6 lm/W | 351.4 lm/m | F |
| 3000 K | 146.4 lm/W | 527.2 lm/m | D | 127.2 lm/W | 458 lm/m | E | 103.5 lm/W | 372.6 lm/m | F |
| 3500 K | 148.6 lm/W | 534.8 lm/m | D | 130 lm/W | 467.9 lm/m | E | 107 lm/W | 385.3 lm/m | F |
| 4000 K | 151.4 lm/W | 545 lm/m | D | 130.7 lm/W | 470.4 lm/m | E | 107.9 lm/W | 388.6 lm/m | F |
| 5000 K | 151.2 lm/W | 544.3 lm/m | D | 131.6 lm/W | 473.7 lm/m | E | 108.6 lm/W | 391 lm/m | F |
| 6500 K | 144.9 lm/W | 521.7 lm/m | E | 125.7 lm/W | 452.6 lm/m | E | 104.3 lm/W | 375.5 lm/m | F |
Grade DN (1st Tier) · 4.2W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | 118.1 lm/W | 496.2 lm/m | F | 99.3 lm/W | 417.2 lm/m | F | — | — | — |
| 2300 K | 128.8 lm/W | 541 lm/m | E | 110.9 lm/W | 465.8 lm/m | F | 89.8 lm/W | 377.2 lm/m | G |
| 2700 K | 138.9 lm/W | 583.3 lm/m | E | 120 lm/W | 503.8 lm/m | E | 97.2 lm/W | 408.3 lm/m | F |
| 3000 K | 145.8 lm/W | 612.4 lm/m | D | 126.7 lm/W | 532.1 lm/m | E | 103.1 lm/W | 432.8 lm/m | F |
| 3500 K | 147.9 lm/W | 621.3 lm/m | D | 129.4 lm/W | 543.6 lm/m | E | 106.6 lm/W | 447.6 lm/m | F |
| 4000 K | 150.8 lm/W | 633.2 lm/m | D | 130.1 lm/W | 546.5 lm/m | E | 107.5 lm/W | 451.4 lm/m | F |
| 5000 K | 150.6 lm/W | 632.3 lm/m | D | 131 lm/W | 550.3 lm/m | E | 108.1 lm/W | 454 lm/m | F |
| 6500 K | 144.3 lm/W | 606.1 lm/m | E | 125.2 lm/W | 525.8 lm/m | E | 103.9 lm/W | 436.4 lm/m | F |
Grade DN (1st Tier) · 4.8W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | 117.6 lm/W | 564.7 lm/m | F | 98.9 lm/W | 474.8 lm/m | F | — | — | — |
| 2300 K | 128.3 lm/W | 615.7 lm/m | E | 110.4 lm/W | 530.1 lm/m | F | 89.5 lm/W | 429.6 lm/m | G |
| 2700 K | 138.3 lm/W | 663.8 lm/m | E | 119.5 lm/W | 573.4 lm/m | E | 96.8 lm/W | 464.7 lm/m | F |
| 3000 K | 145.2 lm/W | 697 lm/m | E | 126.2 lm/W | 605.6 lm/m | E | 102.6 lm/W | 492.6 lm/m | F |
| 3500 K | 147.3 lm/W | 707.1 lm/m | D | 128.9 lm/W | 618.6 lm/m | E | 106.1 lm/W | 509.4 lm/m | F |
| 4000 K | 150.1 lm/W | 720.6 lm/m | D | 129.6 lm/W | 622 lm/m | E | 107 lm/W | 513.7 lm/m | F |
| 5000 K | 149.9 lm/W | 719.6 lm/m | D | 130.5 lm/W | 626.3 lm/m | E | 107.6 lm/W | 516.5 lm/m | F |
| 6500 K | 143.7 lm/W | 689.8 lm/m | E | 124.7 lm/W | 598.4 lm/m | E | 103.5 lm/W | 496.8 lm/m | F |
Grade DN (1st Tier) · 5.4W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | 117.2 lm/W | 632.6 lm/m | F | 98.5 lm/W | 531.9 lm/m | F | — | — | — |
| 2300 K | 127.7 lm/W | 689.8 lm/m | E | 110 lm/W | 593.8 lm/m | F | 89.1 lm/W | 481.1 lm/m | G |
| 2700 K | 137.7 lm/W | 743.6 lm/m | E | 119 lm/W | 642.3 lm/m | E | 96.4 lm/W | 520.5 lm/m | F |
| 3000 K | 144.6 lm/W | 780.8 lm/m | E | 125.6 lm/W | 678.4 lm/m | E | 102.2 lm/W | 551.8 lm/m | F |
| 3500 K | 146.7 lm/W | 792.1 lm/m | D | 128.3 lm/W | 693 lm/m | E | 105.7 lm/W | 570.7 lm/m | F |
| 4000 K | 149.5 lm/W | 807.2 lm/m | D | 129 lm/W | 696.8 lm/m | E | 106.6 lm/W | 575.5 lm/m | F |
| 5000 K | 149.3 lm/W | 806.2 lm/m | D | 129.9 lm/W | 701.6 lm/m | E | 107.2 lm/W | 578.9 lm/m | F |
| 6500 K | 143.1 lm/W | 772.7 lm/m | E | 124.1 lm/W | 670.4 lm/m | E | 103 lm/W | 556.2 lm/m | F |
Grade KE (3rd Tier) · 3.6W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1900 K | 87.1 lm/W | 313.6 lm/m | F | 69.5 lm/W | 250.3 lm/m | G | — | — | — |
| 2300 K | 97.1 lm/W | 349.6 lm/m | F | 77.4 lm/W | 278.7 lm/m | G | 62.7 lm/W | 225.7 lm/m | G |
| 2700 K | 104.7 lm/W | 376.9 lm/m | F | 84 lm/W | 302.3 lm/m | G | 68.1 lm/W | 245.2 lm/m | G |
| 3000 K | 110 lm/W | 395.8 lm/m | F | 88.8 lm/W | 319.8 lm/m | F | 72.3 lm/W | 260.1 lm/m | G |
| 3500 K | 111.6 lm/W | 401.7 lm/m | E | 90.6 lm/W | 326 lm/m | F | 74.6 lm/W | 268.5 lm/m | G |
| 4000 K | 114.8 lm/W | 413.3 lm/m | E | 92.6 lm/W | 333.3 lm/m | F | 76.4 lm/W | 275 lm/m | G |
| 5000 K | 114.6 lm/W | 412.6 lm/m | E | 92.5 lm/W | 332.9 lm/m | F | 76.3 lm/W | 274.7 lm/m | G |
| 6500 K | 110 lm/W | 395.8 lm/m | F | 88.8 lm/W | 319.8 lm/m | F | 73.7 lm/W | 265.3 lm/m | G |
Grade KE (3rd Tier) · 4.2W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1900 K | 86.7 lm/W | 364.3 lm/m | F | 69.2 lm/W | 290.8 lm/m | G | — | — | — |
| 2300 K | 96.7 lm/W | 406.2 lm/m | F | 77.1 lm/W | 323.8 lm/m | G | 62.4 lm/W | 262.1 lm/m | G |
| 2700 K | 104.3 lm/W | 437.9 lm/m | F | 83.6 lm/W | 351.2 lm/m | G | 67.8 lm/W | 284.9 lm/m | G |
| 3000 K | 109.5 lm/W | 459.9 lm/m | F | 88.5 lm/W | 371.5 lm/m | F | 72 lm/W | 302.2 lm/m | G |
| 3500 K | 111.1 lm/W | 466.6 lm/m | E | 90.2 lm/W | 378.7 lm/m | F | 74.3 lm/W | 311.9 lm/m | G |
| 4000 K | 114.3 lm/W | 480.2 lm/m | E | 92.2 lm/W | 387.2 lm/m | F | 76.1 lm/W | 319.5 lm/m | G |
| 5000 K | 114.1 lm/W | 479.3 lm/m | E | 92.1 lm/W | 386.7 lm/m | F | 76 lm/W | 319.2 lm/m | G |
| 6500 K | 109.5 lm/W | 459.9 lm/m | F | 88.5 lm/W | 371.5 lm/m | F | 73.4 lm/W | 308.3 lm/m | G |
Grade KE (3rd Tier) · 4.8W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1900 K | 86.4 lm/W | 414.6 lm/m | F | 68.9 lm/W | 330.9 lm/m | G | — | — | — |
| 2300 K | 96.3 lm/W | 462.3 lm/m | F | 76.8 lm/W | 368.5 lm/m | G | 62.2 lm/W | 298.6 lm/m | G |
| 2700 K | 103.8 lm/W | 498.3 lm/m | F | 83.3 lm/W | 399.7 lm/m | G | 67.5 lm/W | 324.2 lm/m | G |
| 3000 K | 109 lm/W | 523.3 lm/m | F | 88.1 lm/W | 422.8 lm/m | F | 71.7 lm/W | 343.9 lm/m | G |
| 3500 K | 110.6 lm/W | 531 lm/m | E | 89.8 lm/W | 431 lm/m | F | 74 lm/W | 355 lm/m | G |
| 4000 K | 113.8 lm/W | 546.4 lm/m | E | 91.8 lm/W | 440.6 lm/m | F | 75.8 lm/W | 363.7 lm/m | G |
| 5000 K | 113.6 lm/W | 545.5 lm/m | E | 91.7 lm/W | 440.1 lm/m | F | 75.6 lm/W | 362.9 lm/m | G |
| 6500 K | 109 lm/W | 523.3 lm/m | F | 88.1 lm/W | 422.8 lm/m | F | 73.1 lm/W | 350.9 lm/m | G |
Grade KE (3rd Tier) · 5.4W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1900 K | 86 lm/W | 464.5 lm/m | F | 68.7 lm/W | 370.7 lm/m | G | — | — | — |
| 2300 K | 95.9 lm/W | 517.9 lm/m | F | 76.4 lm/W | 412.8 lm/m | G | 61.9 lm/W | 334.3 lm/m | G |
| 2700 K | 103.4 lm/W | 558.3 lm/m | F | 82.9 lm/W | 447.8 lm/m | G | 67.3 lm/W | 363.2 lm/m | G |
| 3000 K | 108.6 lm/W | 586.3 lm/m | F | 87.7 lm/W | 473.7 lm/m | F | 71.4 lm/W | 385.3 lm/m | G |
| 3500 K | 110.2 lm/W | 594.9 lm/m | E | 89.4 lm/W | 482.8 lm/m | F | 73.6 lm/W | 397.7 lm/m | G |
| 4000 K | 113.4 lm/W | 612.2 lm/m | E | 91.4 lm/W | 493.6 lm/m | F | 75.4 lm/W | 407.4 lm/m | G |
| 5000 K | 113.2 lm/W | 611.1 lm/m | E | 91.3 lm/W | 493.1 lm/m | F | 75.3 lm/W | 406.6 lm/m | G |
| 6500 K | 108.6 lm/W | 586.3 lm/m | F | 87.7 lm/W | 473.7 lm/m | F | 72.8 lm/W | 393.1 lm/m | G |
Recommended LED Channels
Mount this LED strip in a DENO LED aluminum profile for heat dissipation, physical protection and diffused, dot-free output.
This strip is 8mm wide, so it needs a channel with at least 10mm inner width (8mm + 2mm clearance). Every profile below meets that.
Related models in this series
- 5050 Classic LED Strip Light (#5393)
- 2216 High Density LED Strip Light (#2802)
- 2110 Classic LED Strip Light (#6011)
- 2216 High Density LED Strip Light (#2783)
- 2216 Classic LED Strip Light (#2354)
- 2216 Classic LED Strip Light (#2782)
- 2216 Classic High Density LED Strip Light (#9416)
- 2216 High Density LED Strip Light (#1688)
See every model in SMD LED Strip Series or narrow to Classic. Compare wattage, lumen output and run length in the ProCalc parameter library, or request OEM/ODM pricing on the custom manufacturing page.
Frequently Asked Questions
What are the key specifications of 11014?
11014: 2835, 30LEDs/m, DC 12V, 8 mm PCB, 3oz copper FPCB, cuttable 3LEDs/100mm. Full photometric data, wiring diagrams and test reports are available in the downloads section of this page.
How long can a single run of this 24V SMD LED strip lights be?
Maximum single run for this model is 5m. Feeding from both ends or using a mid-point tap halves the effective distance per segment, so a 24V SMD LED strip lights can cover twice that length on one circuit when wired accordingly.
Can DENO customise this 24V SMD LED strip lights for a project?
Yes. DENO manufactures the Classic SMD Strips series as an OEM and ODM supplier: reel length, colour temperature, CRI grade, PCB width, waterproofing and private labelling can all be specified. Request a quote for lead time and project pricing.
Which SMD LED strip density should you specify?
For general cove and shelf lighting, 120 LEDs/m on a 24V LED strip is the usual baseline. Move to 180 or 240 LEDs/m when the strip sits close to a diffuser or is seen at a shallow angle, since higher density is what removes visible dots on a 2835 LED strip.
Which LED driver and run length suit #11014?
2835 Classic LED Strip Light | 8mm | 12V | 30LEDs | 100cut | #11014 is a constant-voltage DC 12V product, so pair it with a CE or UL listed DC 12V constant-voltage LED driver rated about 20% above the connected load. Maximum single run is 5m. 5m Single/10m Dual Input power. Feeding from both ends or mid-feeding halves the copper distance and roughly quarters the voltage drop.
