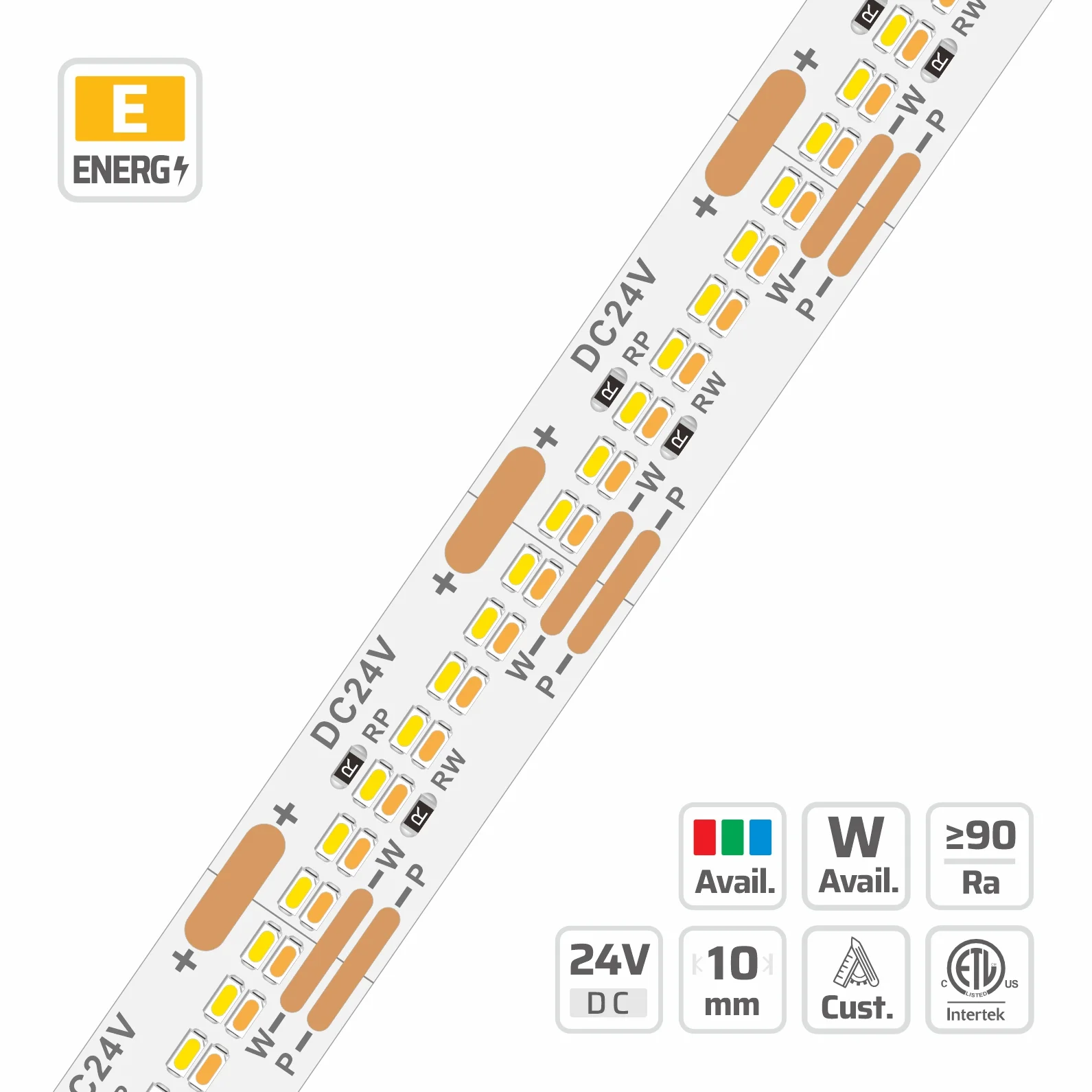

10mm | 24V | 616LEDs | 22.72mm/cut | #5378 | 2110 Ultra-density LED strip light
Model: 5378
Overview
The DENO LED model 5378 is a premium 2110 ultra-density LED strip light, offering exceptional illumination for a wide range of B2B applications. Featuring 616 LEDs per meter, a robust 24V input, and a high CRI of Ra≥90, this strip ensures brilliant and accurate color rendering. Its flexible design, available with IP20 to IP68 ratings, makes it ideal for backlighting, general lighting in aluminum frames, and under-cabinet installations for architects, designers, and contract...
Description
10mm | 24V | 616LEDs | 22.72mm/cut | #5378 | 2110 Ultra-density LED strip light Strong pure copper LED frame, and diameter>1mm, 99.9%-purity gold wire encapsulation, can reduce damage to the LED in different applications High density on PCB, no lighting spot, can make maximum 720leds/meter for single row using the SMD2110 30000h lifespan normal CCT tunnable LED strip is outfitted with extremely bright LED chips and strong adhesive backing. Special heat resistant PCB layout, copper layer 3Oz that make sure lower voltage drop and excellent heat dissipation The flexible design of LED strips allows for bright lighting almost any space you can imagine,which is quite suitable for back lighting and general lighting in aluminum frames or under cabinet, and is commonly used by architects and lighting designers in professional installations
Specifications
| cct | 2700-6500 |
|---|---|
| cri | Ra≥90 |
| sdcm | < 3 SDCM (Single Bin) |
| ledQty | 616 |
| partNo | DL-F21A308V24-5378-* |
| smdType | 2110 |
| cuttable | 14LEDs/22.72mm |
| dimmable | Yes |
| ipRating | IP20/IP65/IP67/IP68 |
| ledPitch | 3.2mm |
| lifespan | 50000 |
| pcbWidth | 10 |
| warranty | 3 Years |
| beamAngle | 120° |
| lengthMax | 5m |
| copperFoil | 3oz |
| powerRange | 12~24W |
| circuitType | CV |
| inputVoltage | 24V |
| luminousFlux | 1593 lm/m |
| operatingTemperature | -20°C ~ +50°C |
Frequently Asked Questions
What are the available color temperature (CCT) options for the 5378 LED strip light?
The DENO LED 5378 strip light offers a broad CCT range from 2700K (warm white) to 6500K (cool white), accommodating various ambiance and design requirements for your projects.
Is the 5378 2110 ultra-density LED strip dimmable and what are its IP rating options?
Yes, the 5378 LED strip is fully dimmable. It is available with IP ratings including IP20, IP65, IP67, and IP68, providing flexibility for both indoor and outdoor installations.
What makes the 2110 ultra-density LED strip suitable for professional architectural lighting?
Its ultra-dense LED configuration (616 LEDs/m) and high CRI (Ra≥90) enable seamless, spot-free illumination. The robust copper PCB and high-purity gold wire ensure durability and consistent performance.
Can this LED strip be customized for specific project lengths or power requirements?
The 5378 strip is cuttable every 22.72mm (14 LEDs), allowing for precise length customization. Its 24V CV circuit supports power optimization across various project scales.
